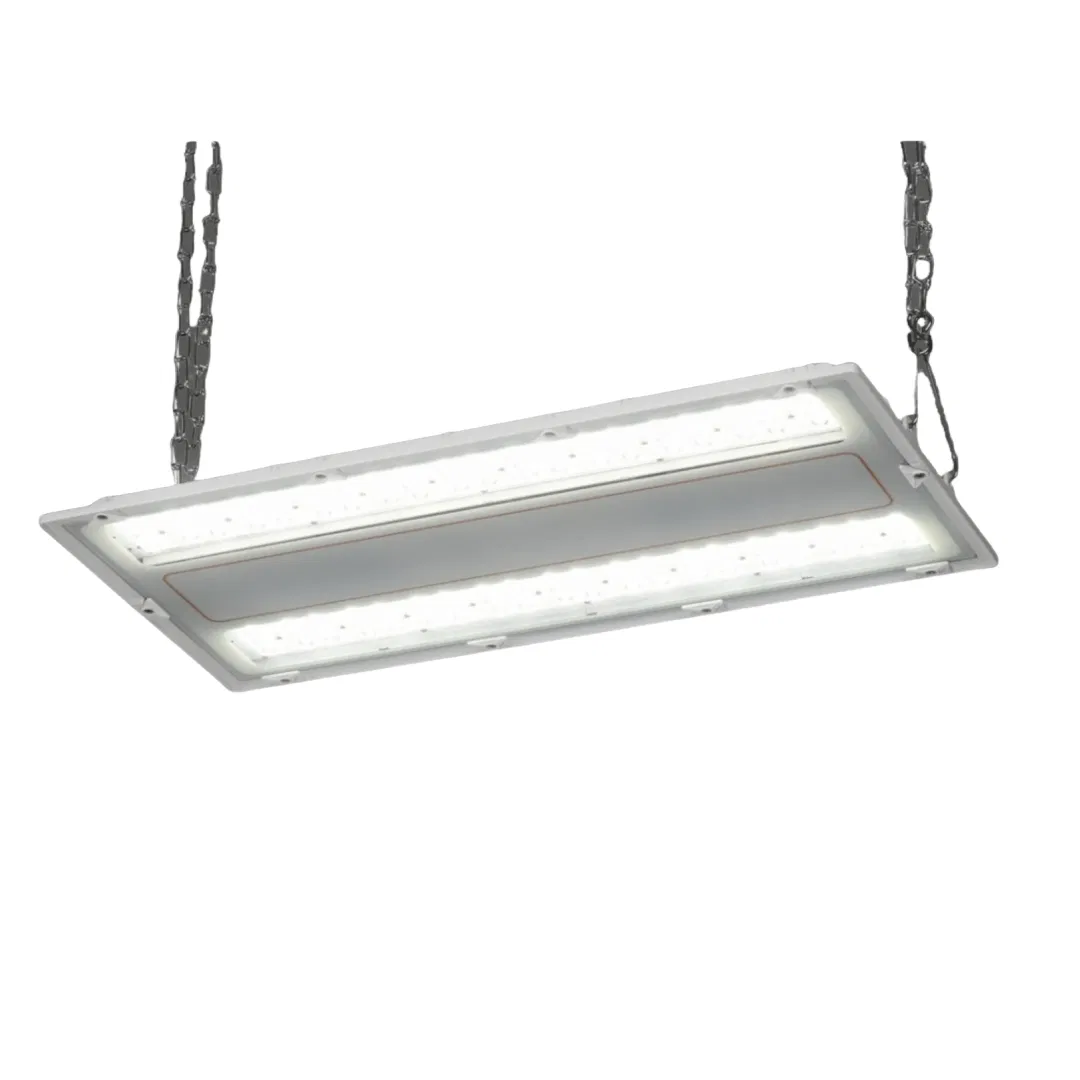

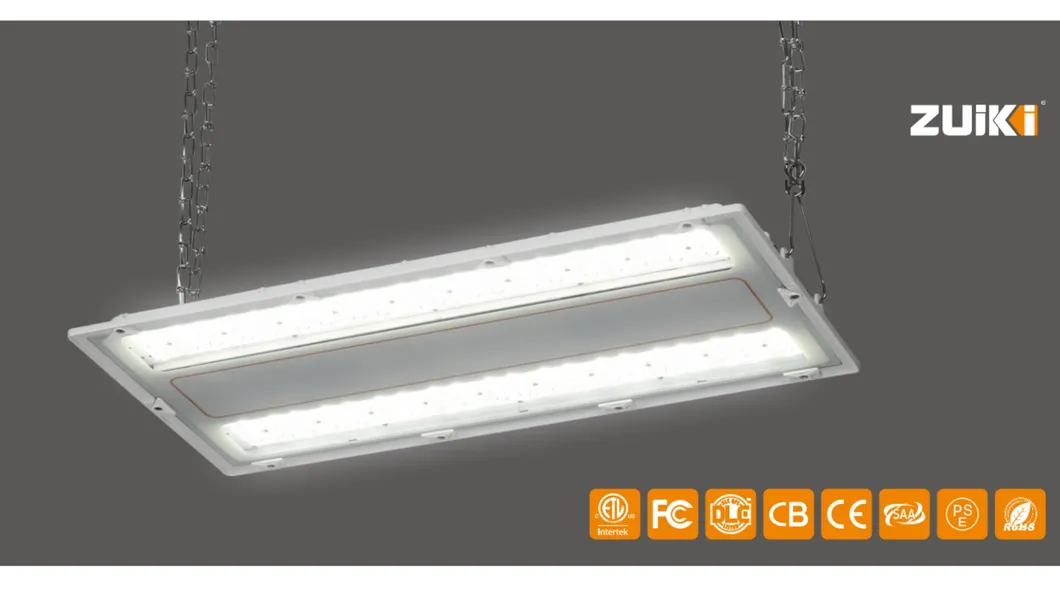

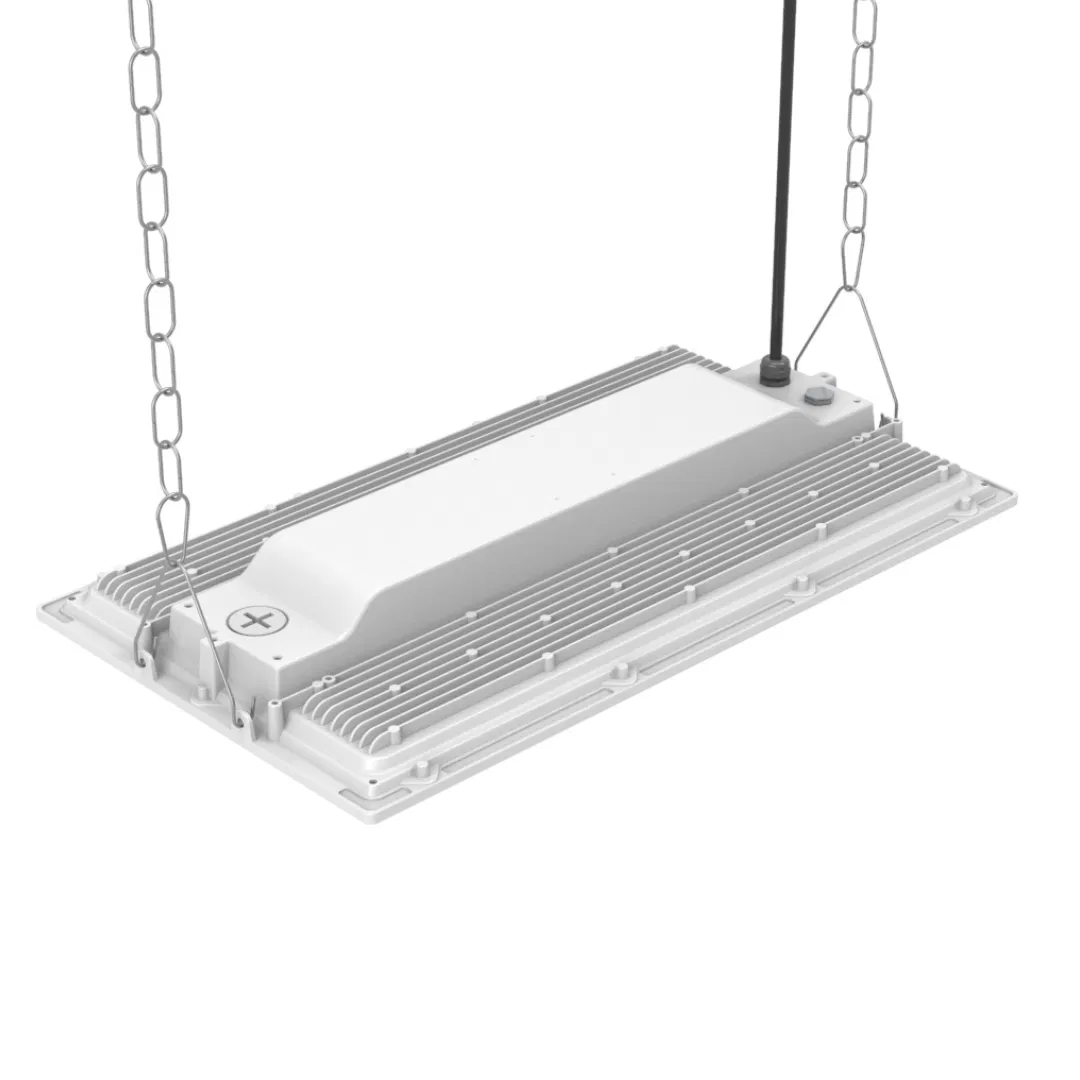

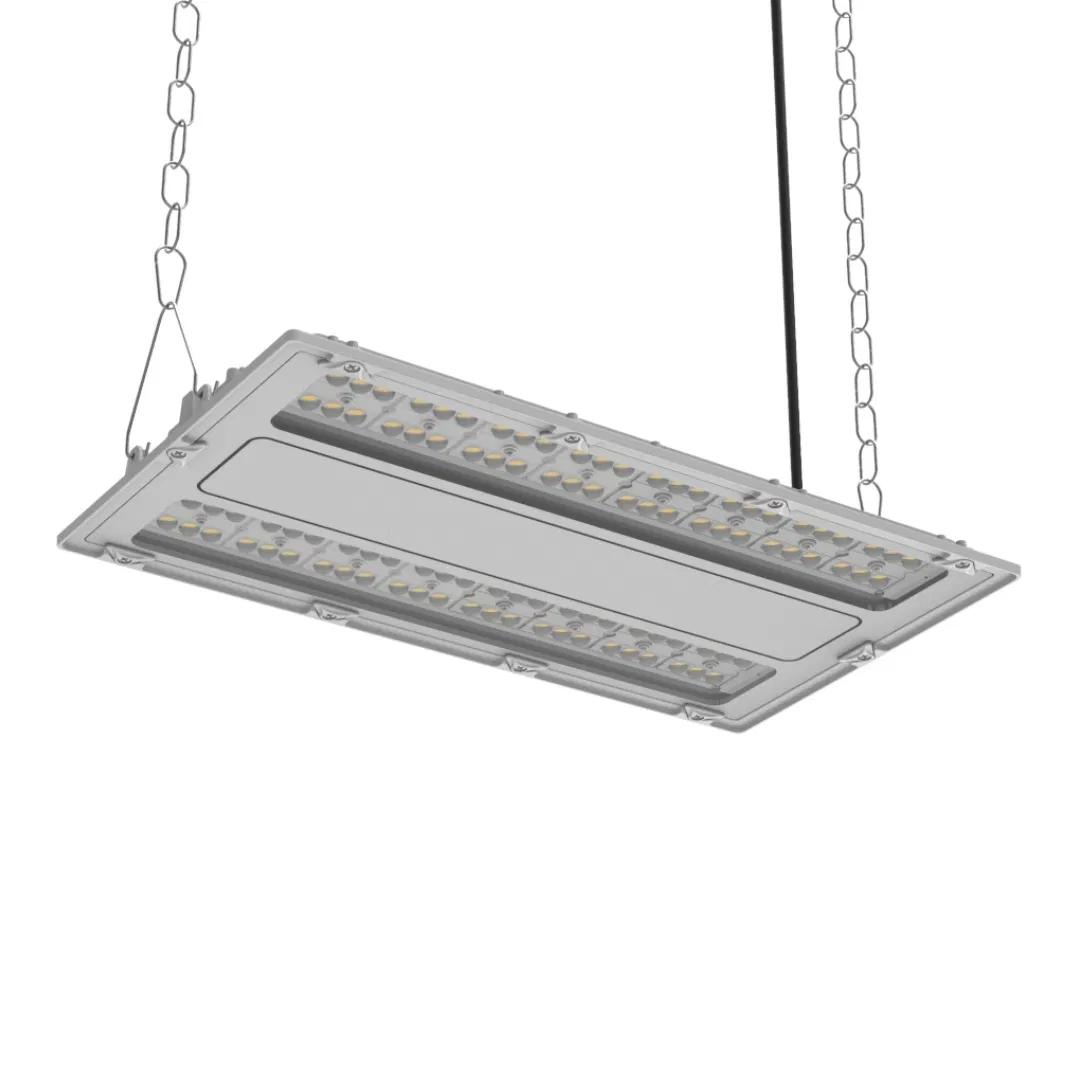

0-10V Dimming 260W 100W 200W Linear LED High Bay LED Light for Warehouse Lighting 170lm/W with ETL/cETL/FCC/CE
Product Description
Basic Info
Model NO.JR-ZKHB03A038-100D
Power100W
UsageGymnasium, Shipyard, Exhibition, Warehouse, Shopping Mall, Factory, Tunnel
Lifespan≥50000H
IP RatingIP65
CertificationCE, EMC, ETL, FCC, LVD, REACH, RoHS
Beam Angle120°
LED ChipsSanan
Transport PackageCarton
SpecificationDimension: 430mm*340*170mm
HS Code9405409000
Production Capacity100,000pieces/Year
Product Description
In industrial and commercial settings, excessive glare from high bay lights can significantly interfere with work operations and pose safety risks. For instance, overwhelming glare may obstruct a forklift driver's line of sight, leading to the potential for falling loads or personal injuries. The JR-ZKHB03A series LED linear high bay light is designed to provide uniform, low-glare, safe, and comfortable lighting solutions, making it an excellent choice for a variety of applications. This product is particularly suitable for environments such as parking lots, gymnasiums, workshops, clothing stores, supermarkets, and, importantly, warehouse lighting.
Technical Specifications
| Input Voltage | AC100-277V 50/60Hz |
| Power Factor | PF>0.9 |
| Input Power | 100W (Optional 200W/260W) |
| Efficiency | 160-170lm/w |
| Color Index | Ra>83 |
| Lifespan | 50,000 hours |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -40°C ~ +50°C |
| IP Rating | IP65 |
| CCT (Single color) | 3000K - 4000K - 5000K - 6000K |
| Material | Aluminum + PC |
Key Features
- Multiple Power Options: Available in 100W, 200W, and 260W with efficacy up to 170 lm/w.
- Advanced Optics: 0-10V dimming as standard; beam angles of 30°, 60°, and 90° available.
- Superior Build: High-quality, one-piece die-cast aluminum housing with aerodynamic heat dissipation.

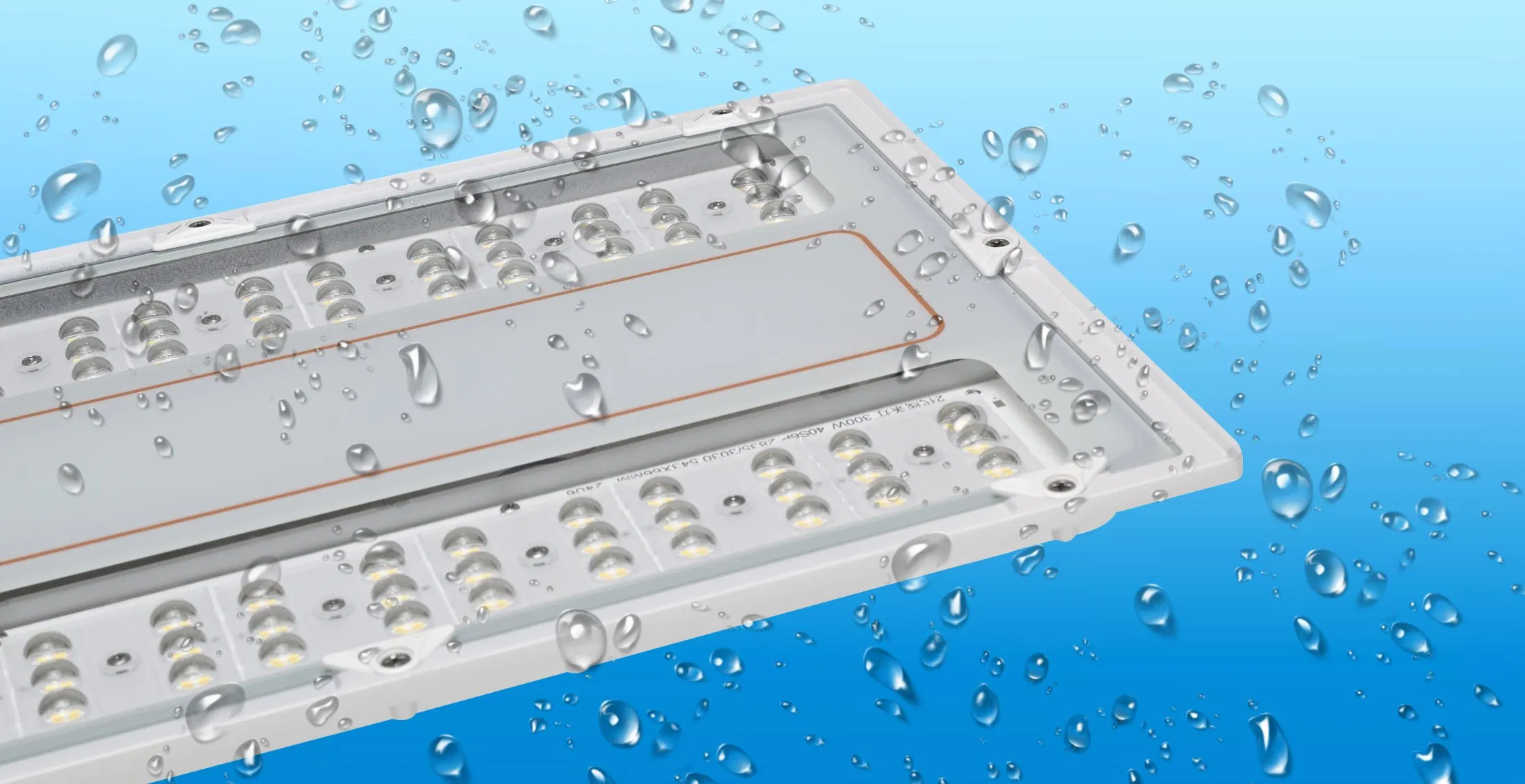

- Durability: IP65 grade protection with 304 stainless steel screws for corrosion resistance.
- Quality Components: SMD3030 LED sources, reliable drivers, and anti-glare transparent lenses.
- Certified Safety: ETL, CETL, CE, RoHS, and FCC approvals with a 5-year warranty.
Product Variations
| Model | Length | Power | Led Type | Lumens (lm) | Package |
|---|---|---|---|---|---|
| JR-ZKHB03A038-100D | 1.0 FT | 100W | SMD3030 | 16000 | 43*34*17 (cm) 2pcs/ctn |
| JR-ZKHB03A048-200D | 1.5 FT | 200W | SMD3030 | 32000 | 53*34*17 (cm) 2pcs/ctn |
| JR-ZKHB03A059-260D | 2.0 FT | 260W | SMD3030 | 41600 | 63.5*35*18 (cm) 2pcs/ctn |
Dimension & Installation

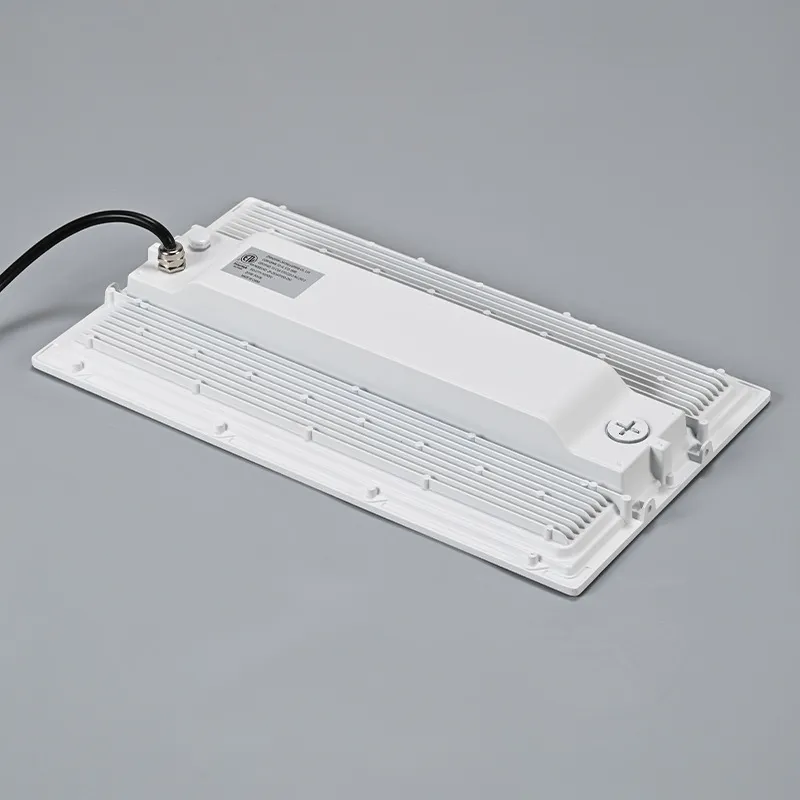

Dimension Illustration:

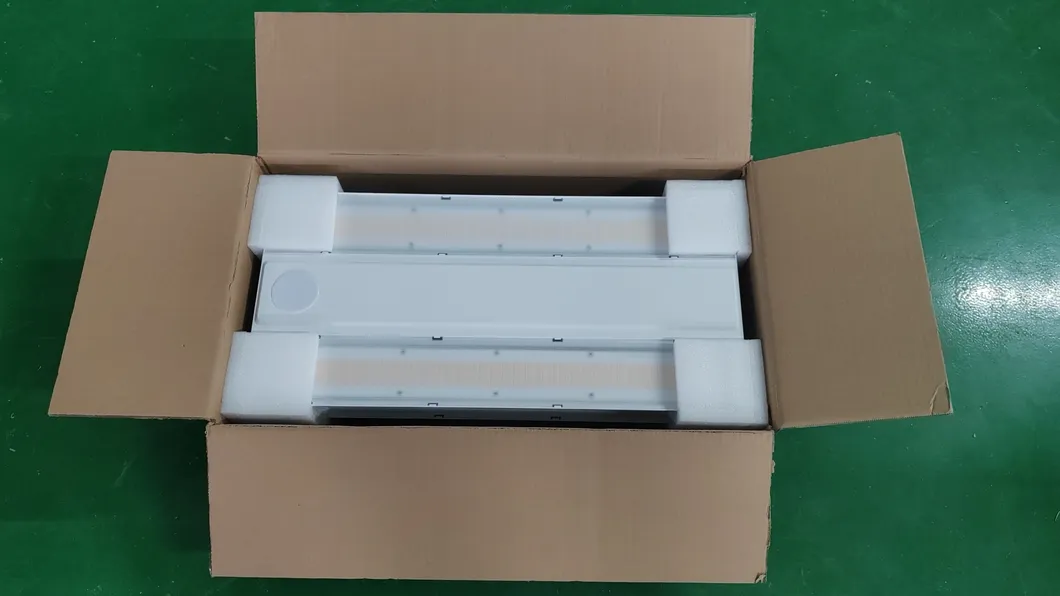

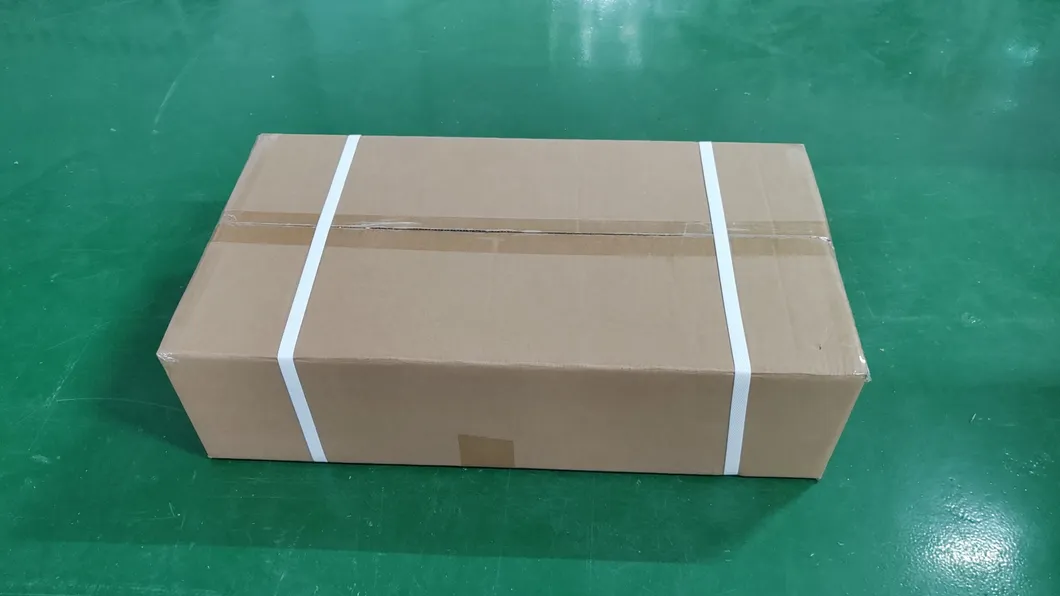

Package Introduction:

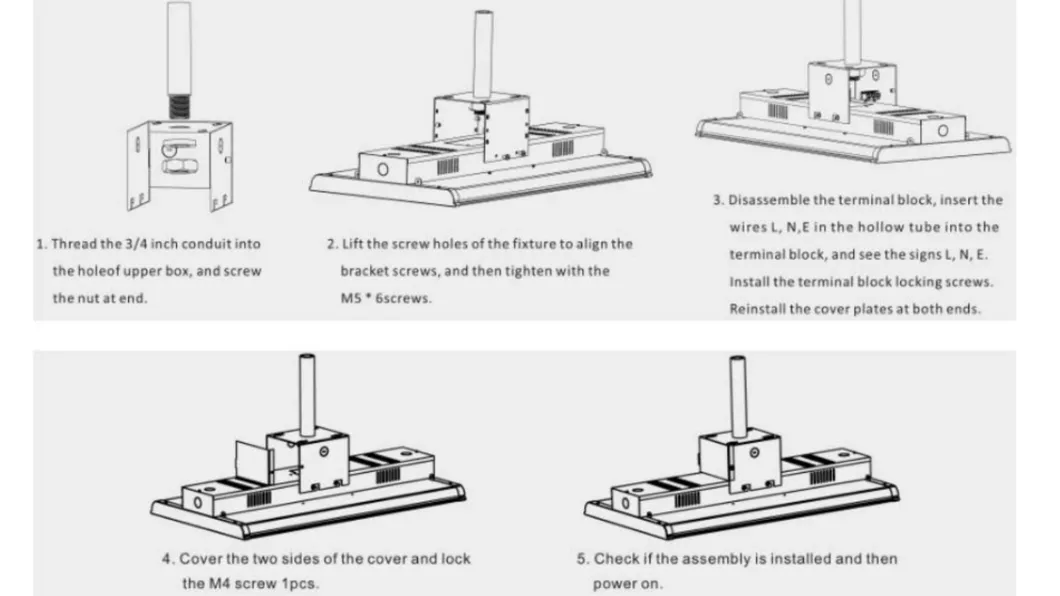

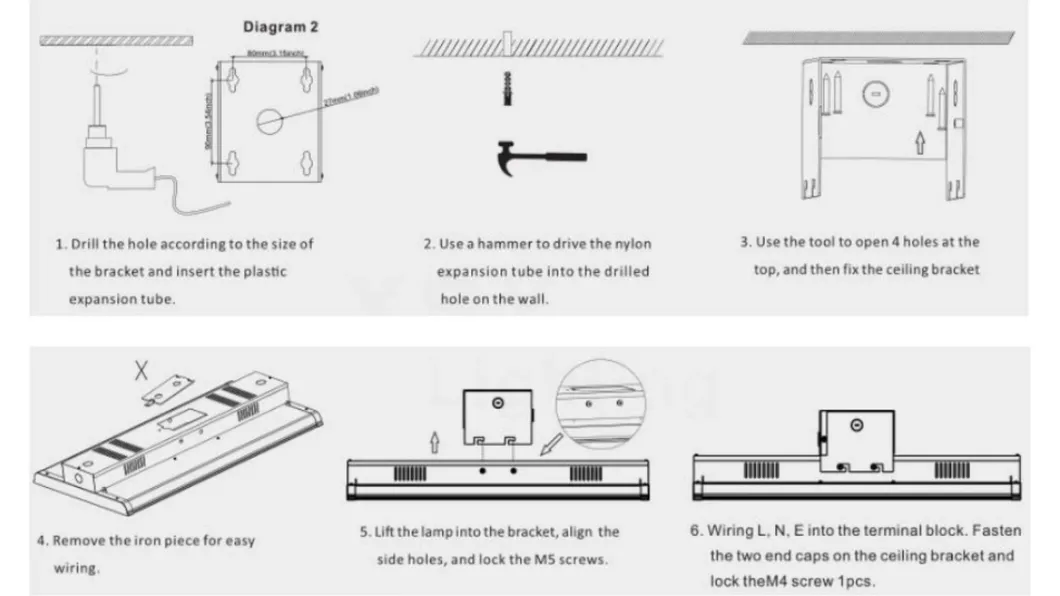

Installation Options:
Quality Assurance & Services

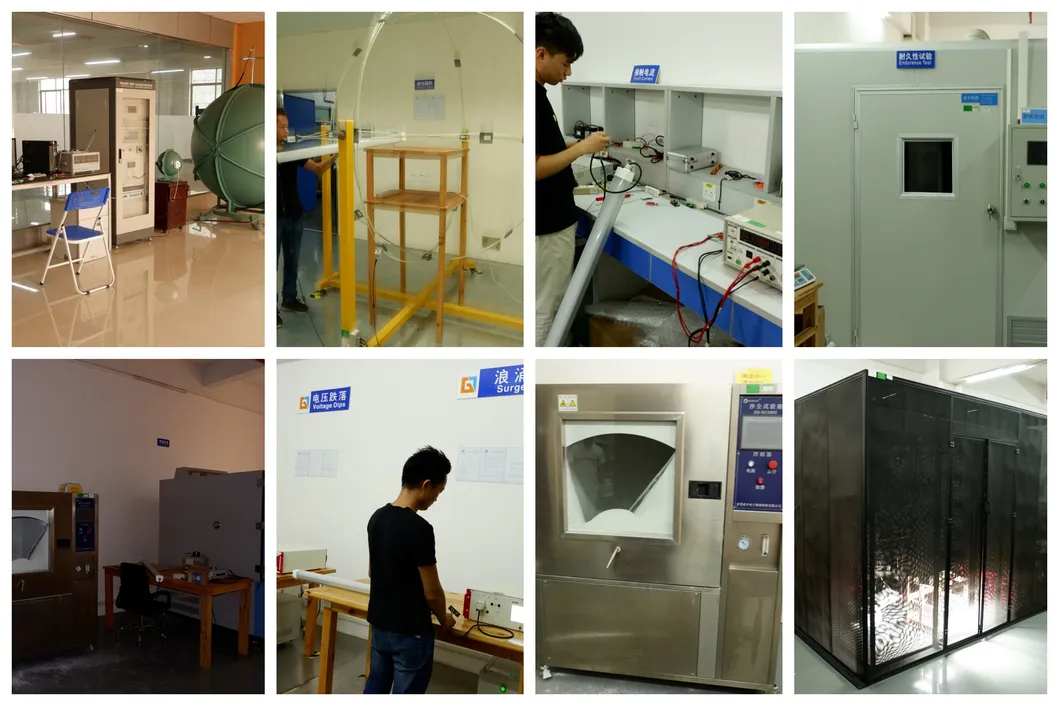

Product Testing:

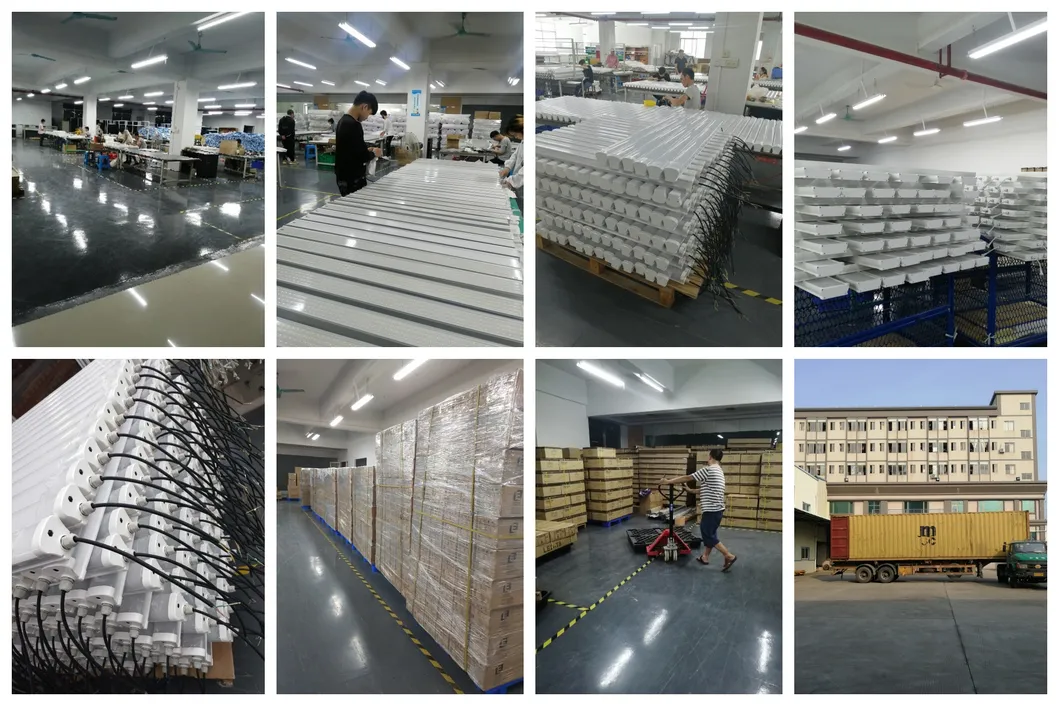

Packing & Loading:
OEM & ODM Service: We provide complete customization options, allowing you to tailor the product to your brand's specific needs. This flexibility extends beyond aesthetics and covers engineering and manufacturing, including power sources, optical lenses, and cutting-edge thermal management solutions.
Safety Remarks:
* To prevent electric shock, maintenance and installation must be performed exclusively by a qualified electrician.
* Please ensure usage within the specified input power range.
* Refrain from utilizing this product in outdoor environments.
* Prior to installation, power must be disconnected to ensure safety.
* To prevent electric shock, maintenance and installation must be performed exclusively by a qualified electrician.
* Please ensure usage within the specified input power range.
* Refrain from utilizing this product in outdoor environments.
* Prior to installation, power must be disconnected to ensure safety.
Frequently Asked Questions
Can I have a sample order for this LED light?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What is the expected lead time?
Quick delivery: 3-5 working days for sample orders, and 12-20 working days for bulk orders depending on production plans.
Is there a minimum order quantity (MOQ)?
We offer a low MOQ; 1pc for sample checking is available.
How are the goods shipped and how long does it take?
We usually ship by sea, though DHL, UPS, and FedEx are optional. Delivery typically takes 3-10 days for air/express.
Do you offer customization or logo printing?
Yes, OEM/ODM services are available. We can print your logo on the product based on your design confirmation.
What is the warranty period for these products?
We offer a 3-5 year warranty for our products, ensuring long-term reliability and performance.
