16years Manufacture 3years Warranty 220-240V Emergency Power 3W Time 3hours Li-FEP04 Battery IP20 LED Emergency Kit Powerpack Ballast Backup Driver
Product Description

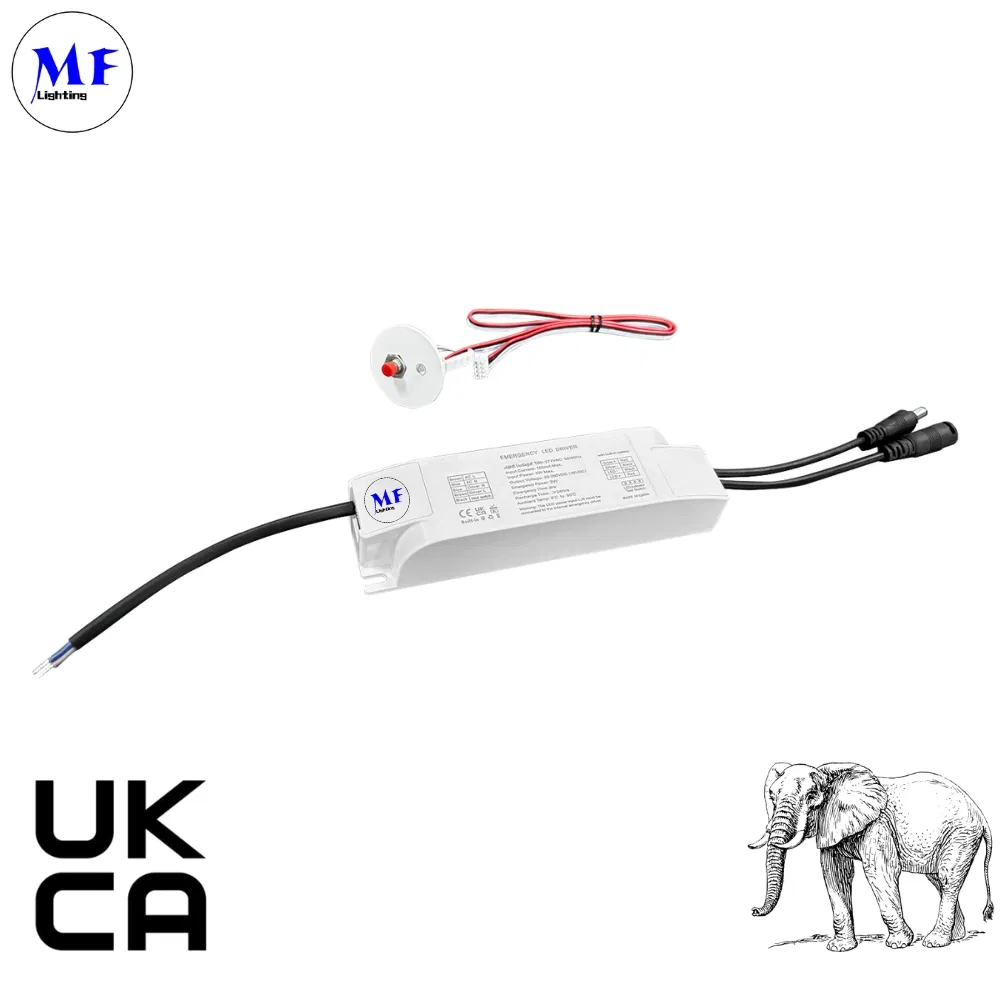

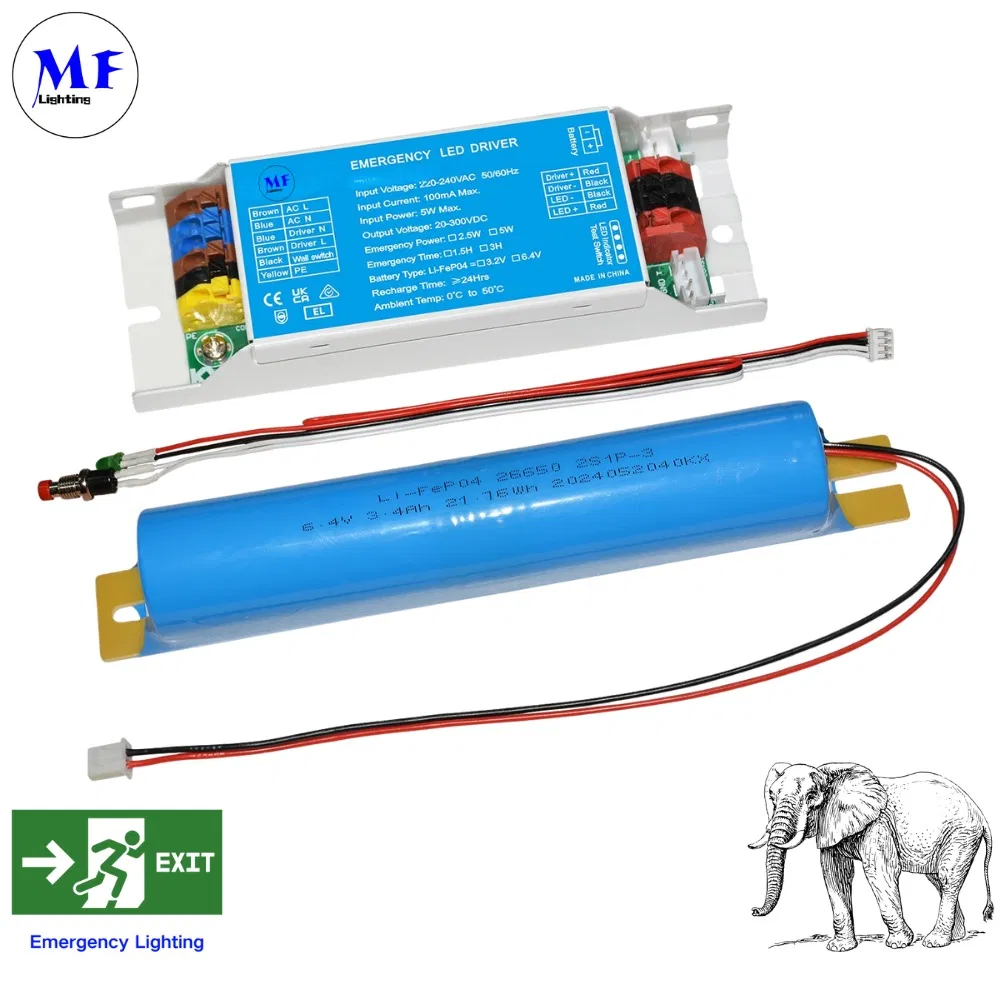

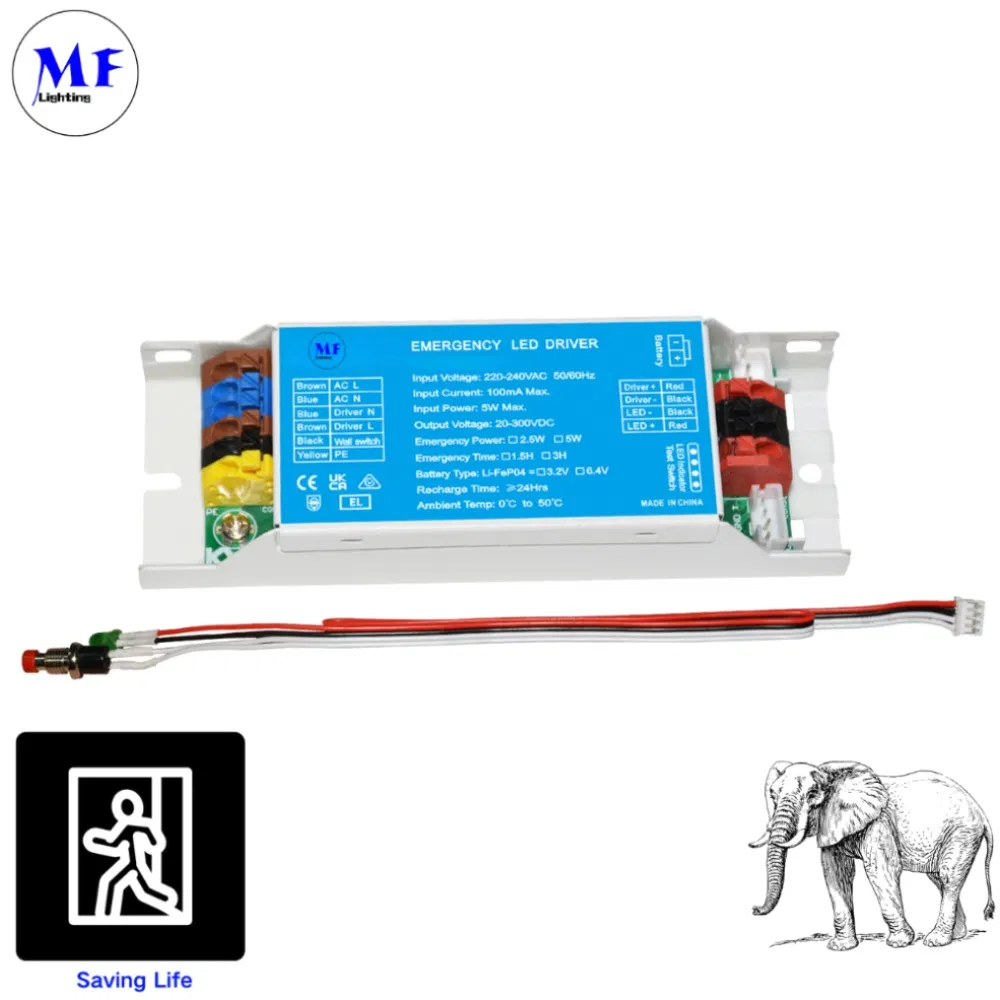

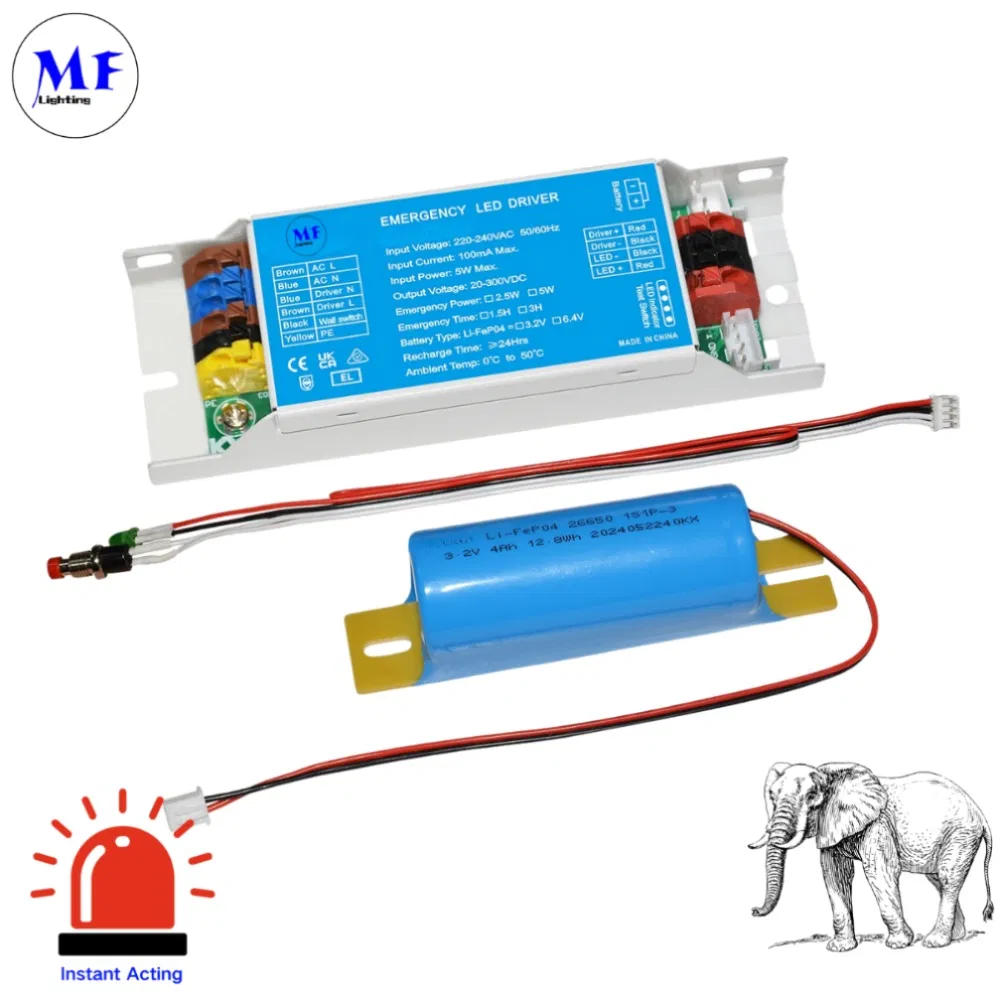

Emergency Kit Powerpack
16 Years Manufacture - 3 Years Warranty: 220-240V Emergency Power 3W LED Emergency Kit Backup Driver with Li-Fep04 Battery
Basic Information
Model NO.
188X
Input Voltage
220-240 VAC 50/60Hz
Input Current
0.003A Max 230VAC
Input Wattage
<5.0W
Power Factor
>0.5 230 VAC
Battery Type
Li-FEP04 / 3.2V 14000mAh
Emergency Power
3W
Emergency Time
3 Hours
IP Rating
IP 20
Charging Time
≤24h
Storage Temp
-20 to 40℃
Standards
IEC61347-2-7 / IEC61347-1
Key Features
- Self-detecting functionality for system reliability.
- Constant power emergency output.
- Suitable for LED fittings with external LED drivers.
- External Li-FeP04 battery for enhanced safety and longevity.
- Multi-protection: Overcharge, Over-discharge, Output Overload, and Short-circuit protection.
- Includes accessory test switch and LED indicator.
- Zero static current at battery terminal during power-off state.

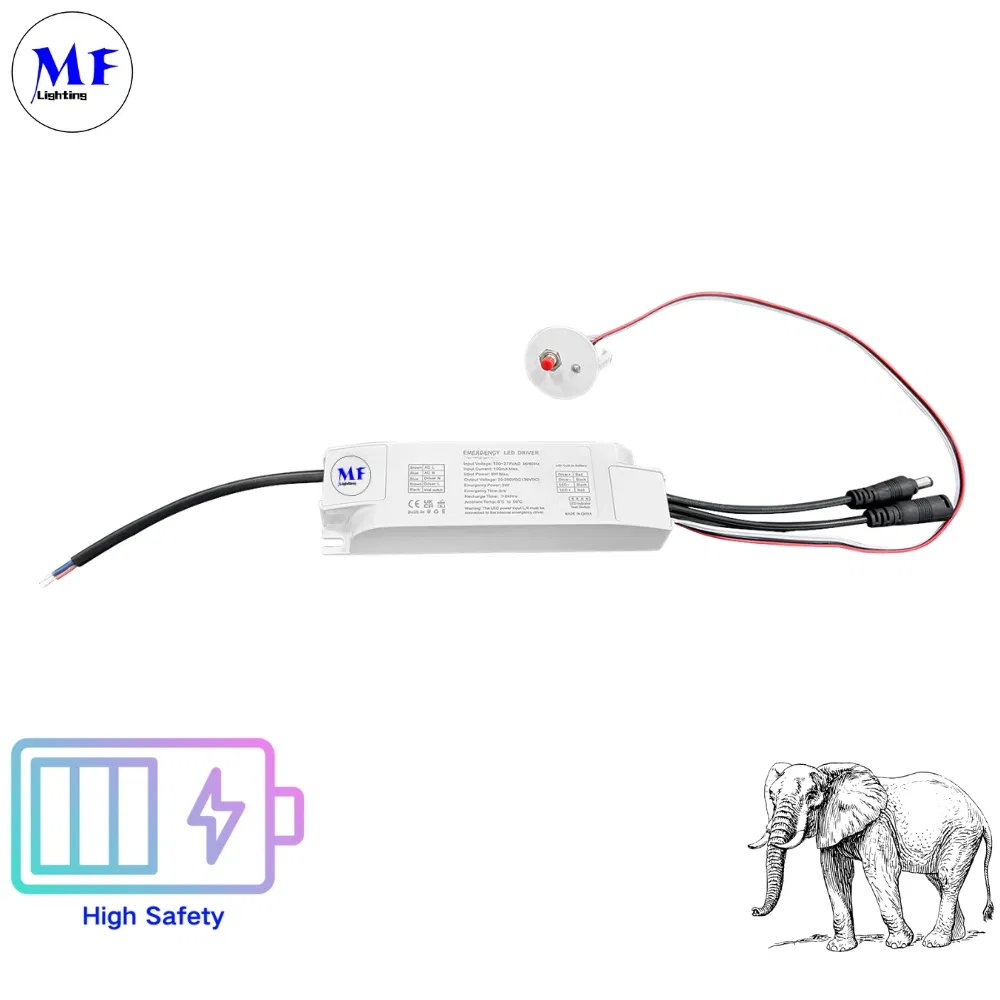

Product Design
Technical Specifications
| Parameter | Details |
|---|---|
| Input Voltage | 100-277 Vac 50/60Hz |
| Input Current | 0.003A Max @230Vac |
| Emergency Output | 3W: 15-85VDC (Max 90VDC) / 5W-8W: 30-240VDC |
| Electric Strength | 2000Vac 5mA (Input to Output) |
| Warranty | 3 Years |
| Power | Emergency Time | Battery Specification |
|---|---|---|
| 3W | 1.5H | Li-ion 18650 2000mAh 3.7V |
| 3W | 3H | Li-ion 18650 2600mAh 3.7V |
| 5W | 3H | Li-ion 21700 5000mAh 3.7V |
| 8W | 1.5H | Li-ion 21700 4500mAh 3.7V |

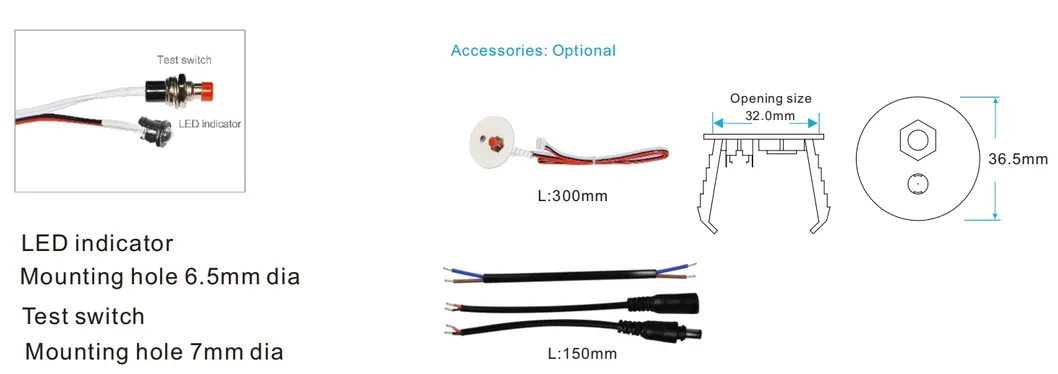

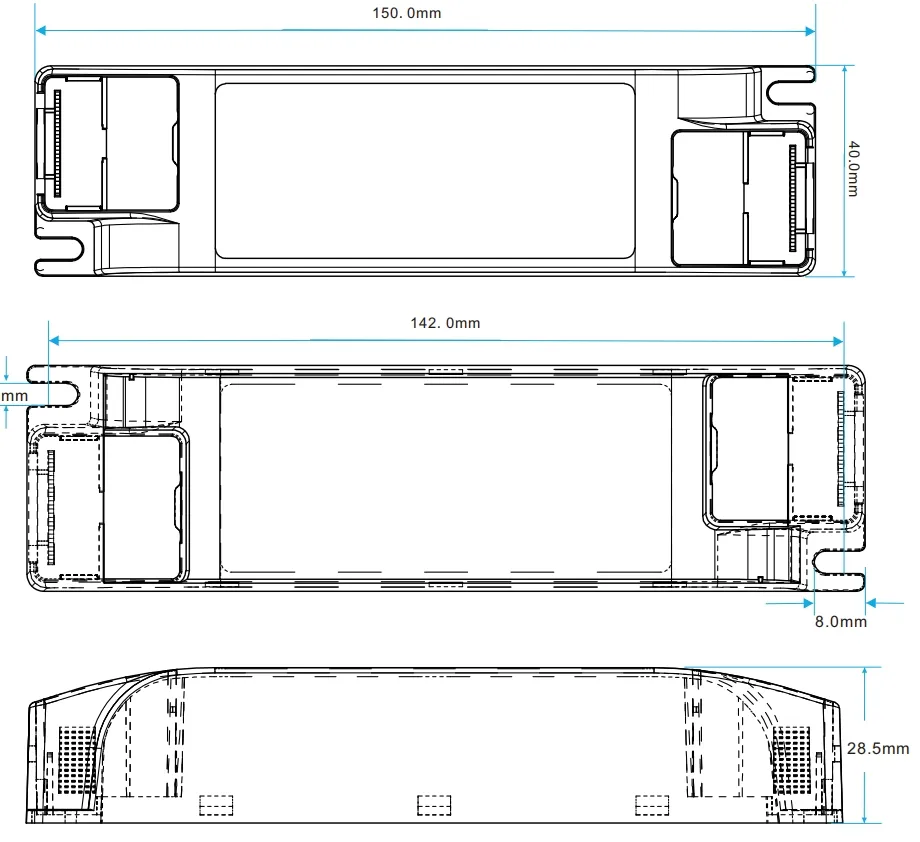

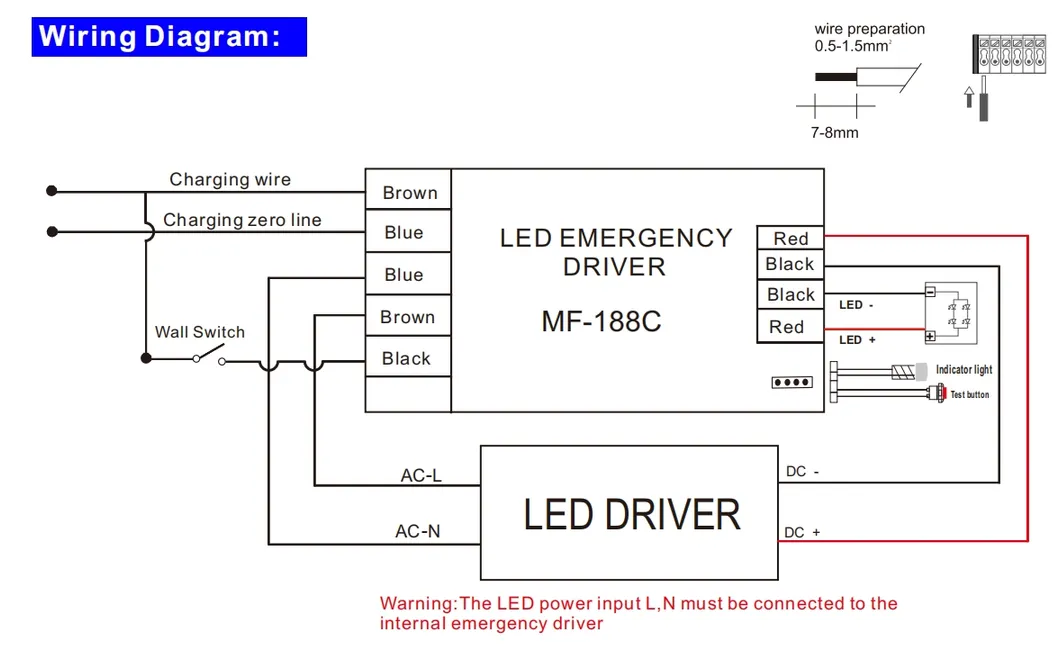

Wiring & Dimensions
LED & Test Button Status
LED INDICATOR Status:
- Green Breathing: Charging mode
- Green Stable: Fully charged
- Red Flashing (1/sec): Battery not connected or defective
- Red Flashing (4/sec): Load failure (short/open circuit)
- Green Flashing: Emergency status
TEST BUTTON Operations:
- Press 0-2s: Enter simulated emergency state (lasts 10s)
- Short press during simulation: Exit and return to charging
- Quarterly Self-Test: Automatically enters emergency state every 90 days to discharge and test battery.
Applications

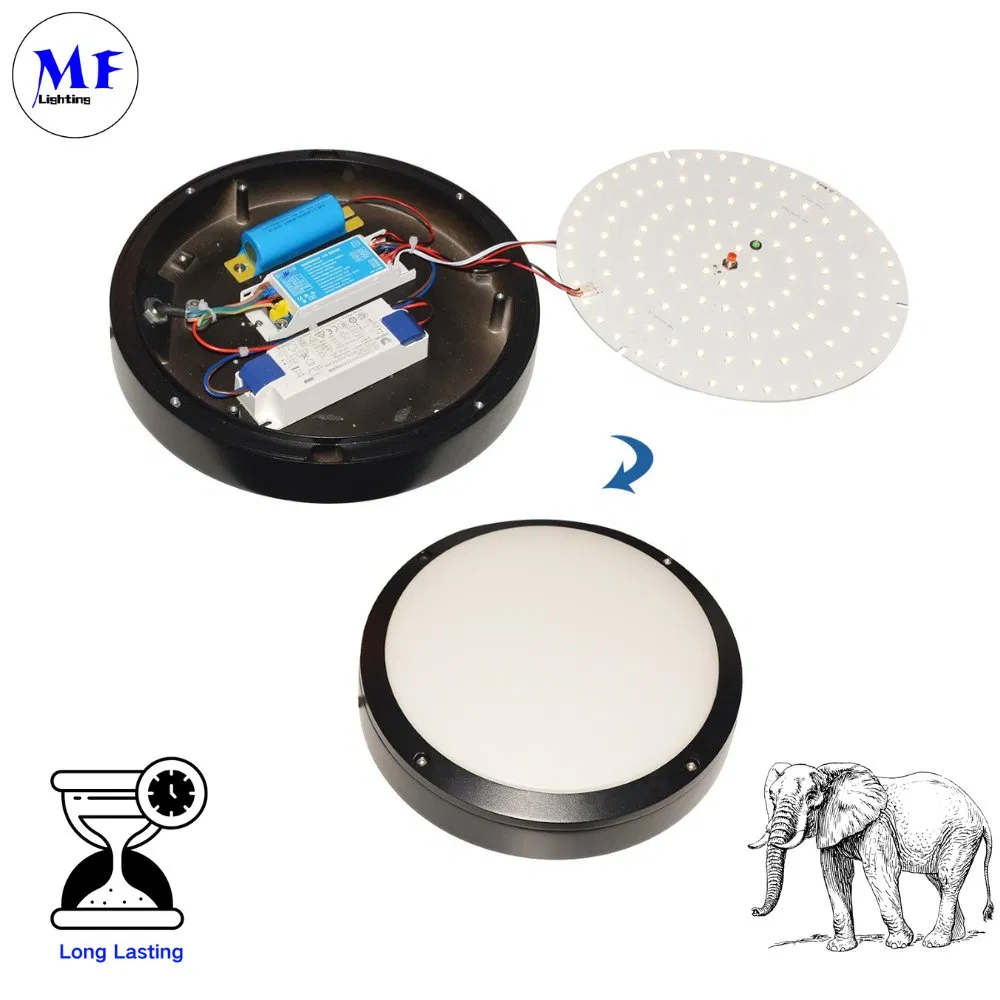

This emergency kit is compatible with a wide range of LED fixtures including Street Lights, High Bay Lights, Panel Lights, Downlights, Tri-proof Lights, and Explosion-proof Lights.
Frequently Asked Questions
Are you a professional manufacturer?
Yes, we are a professional manufacturer with 16 years of experience specializing in emergency lighting solutions, industrial LED lighting, and outdoor landscape fixtures.
What is the warranty period for this emergency kit?
This product comes with a comprehensive 3-year warranty, ensuring long-term reliability for your emergency lighting systems.
What is the Minimum Order Quantity (MOQ)?
For standard models, we have flexible MOQ requirements. For customized models, we offer free customization for orders exceeding 1000 pieces.
What are the available payment and shipping terms?
We accept T/T, Western Union, and Paypal. Shipping terms include EXW, FOB, CIF, CNF, and DDP to suit your logistics needs.
How long does delivery take?
Samples are typically delivered within 5-7 working days. Mass production takes approximately 20-30 working days depending on the order quantity.
How are the emergency drivers packaged?
Each unit is packed in an individual color box and then secured in a high-strength master carton to prevent damage during transit.
