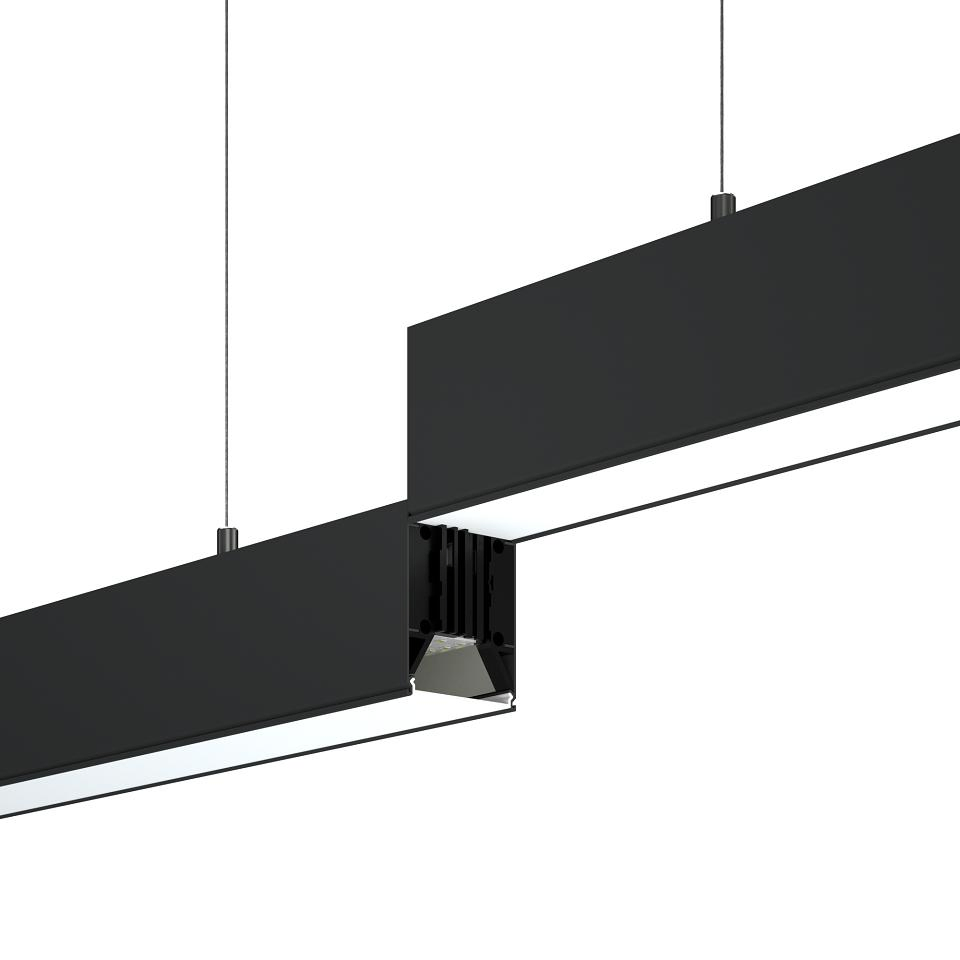

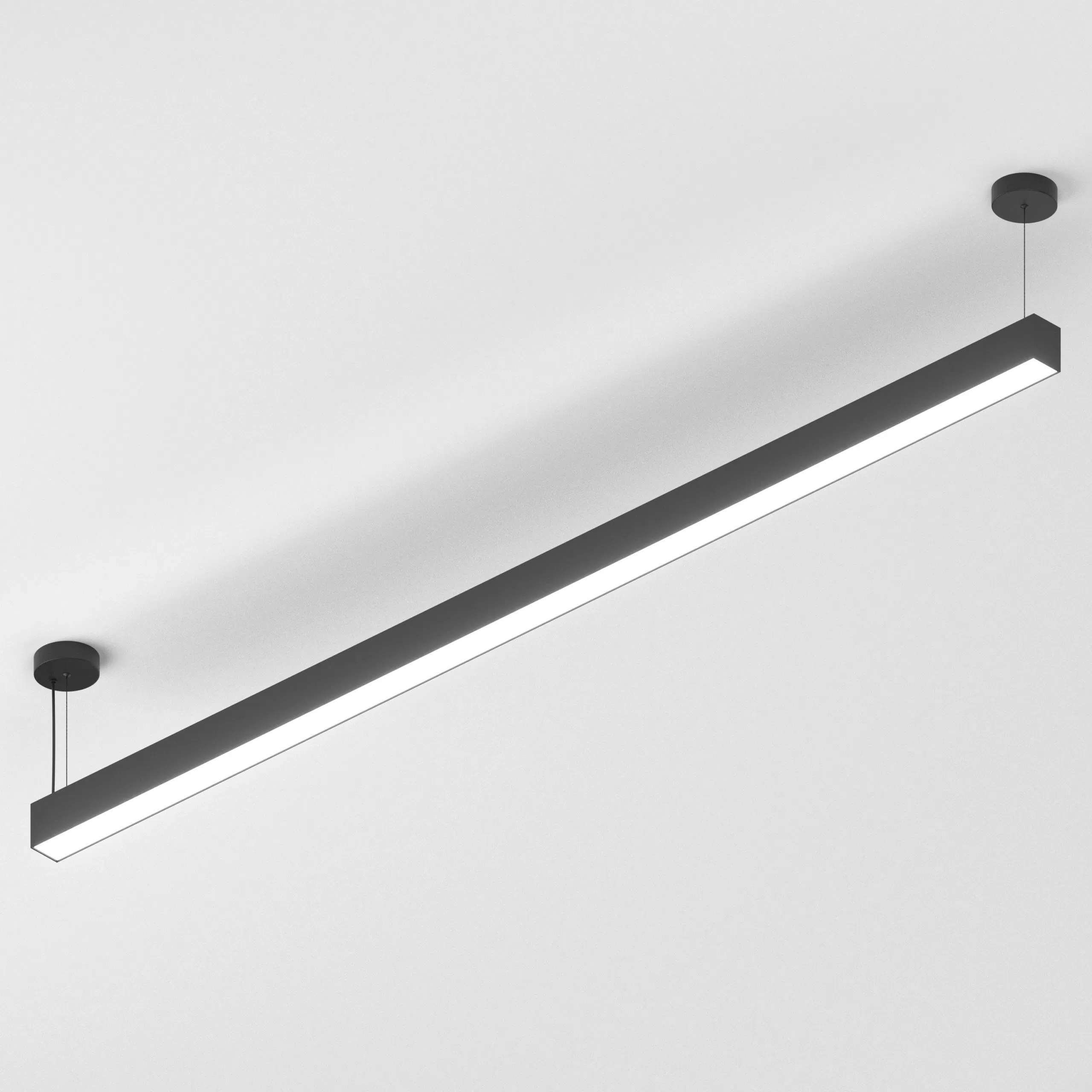

2.4m 80W up and Down Linkable LED Linear Light with ETL Certificate
Product Description
📋
Basic Specifications
Model NO.AB5575S-L2400UD-80
IP RatingIP20 / IP67 Optional
Length2.4m
SizeW55*H75mm
Input Voltage100-277V / 220-240V
Efficiency100-140lm/W
Driver BrandLifud
LED ChipSan'an/Bridgelux/Citizen/CREE
CRI80/90/95
Beam Angle120°
Warranty5 Years
Light Ratio20% Up / 80% Down
💡
Product Description

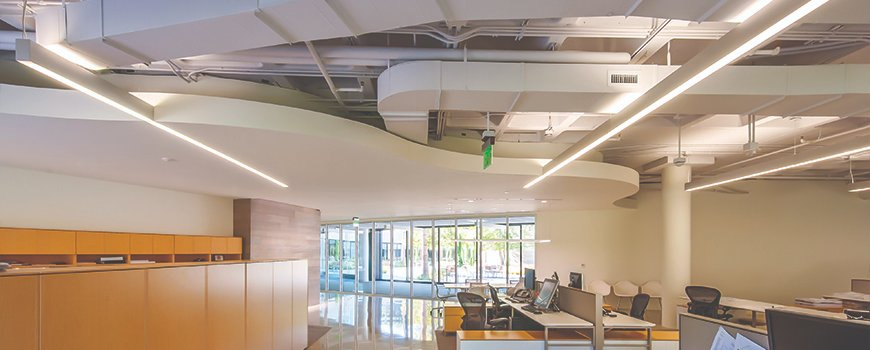

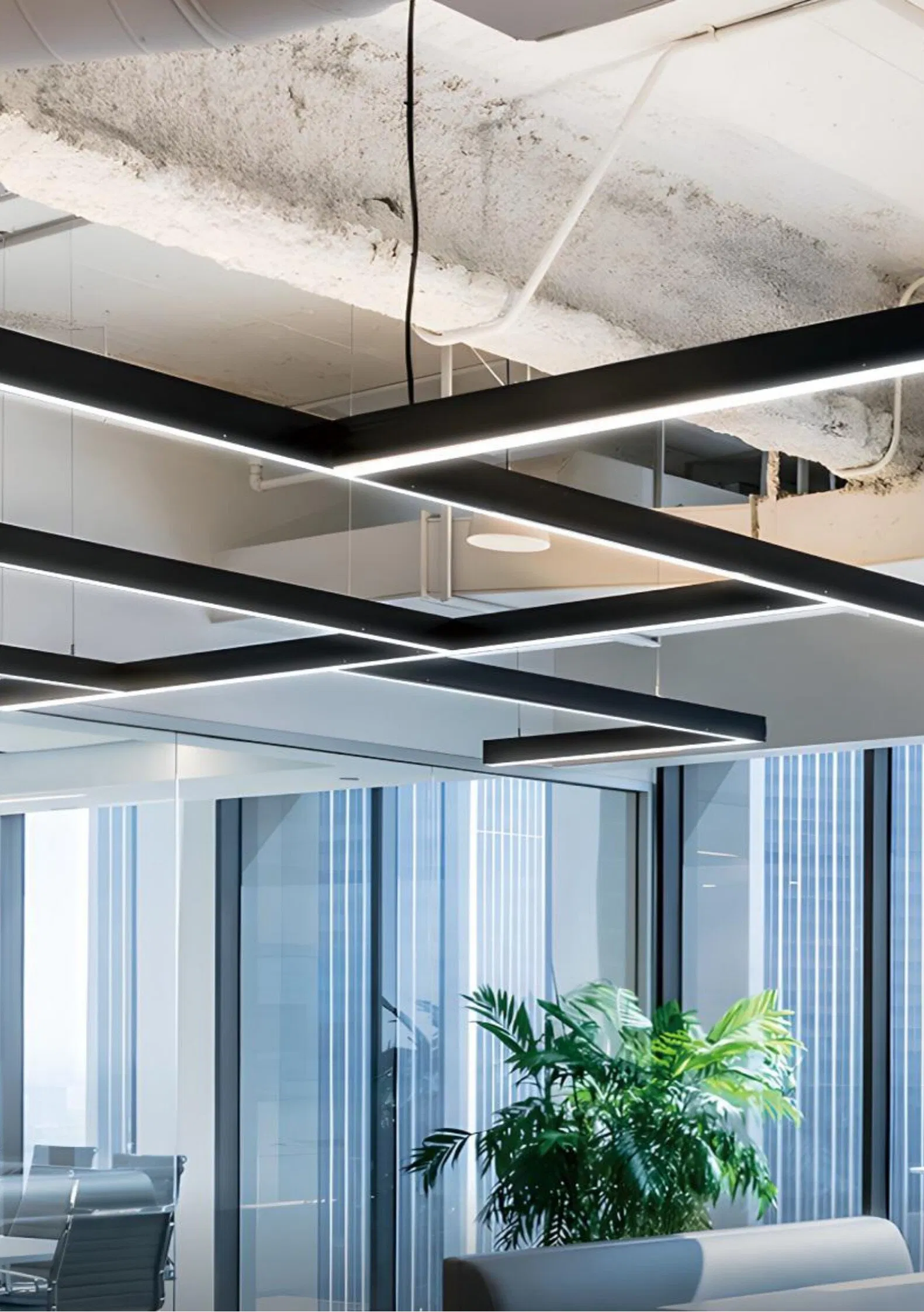

The AB5575S is a sleek and versatile linear lighting solution designed for modern architectural and decorative applications. Its uniform light distribution and adaptable mounting options make it ideal for a wide range of projects.

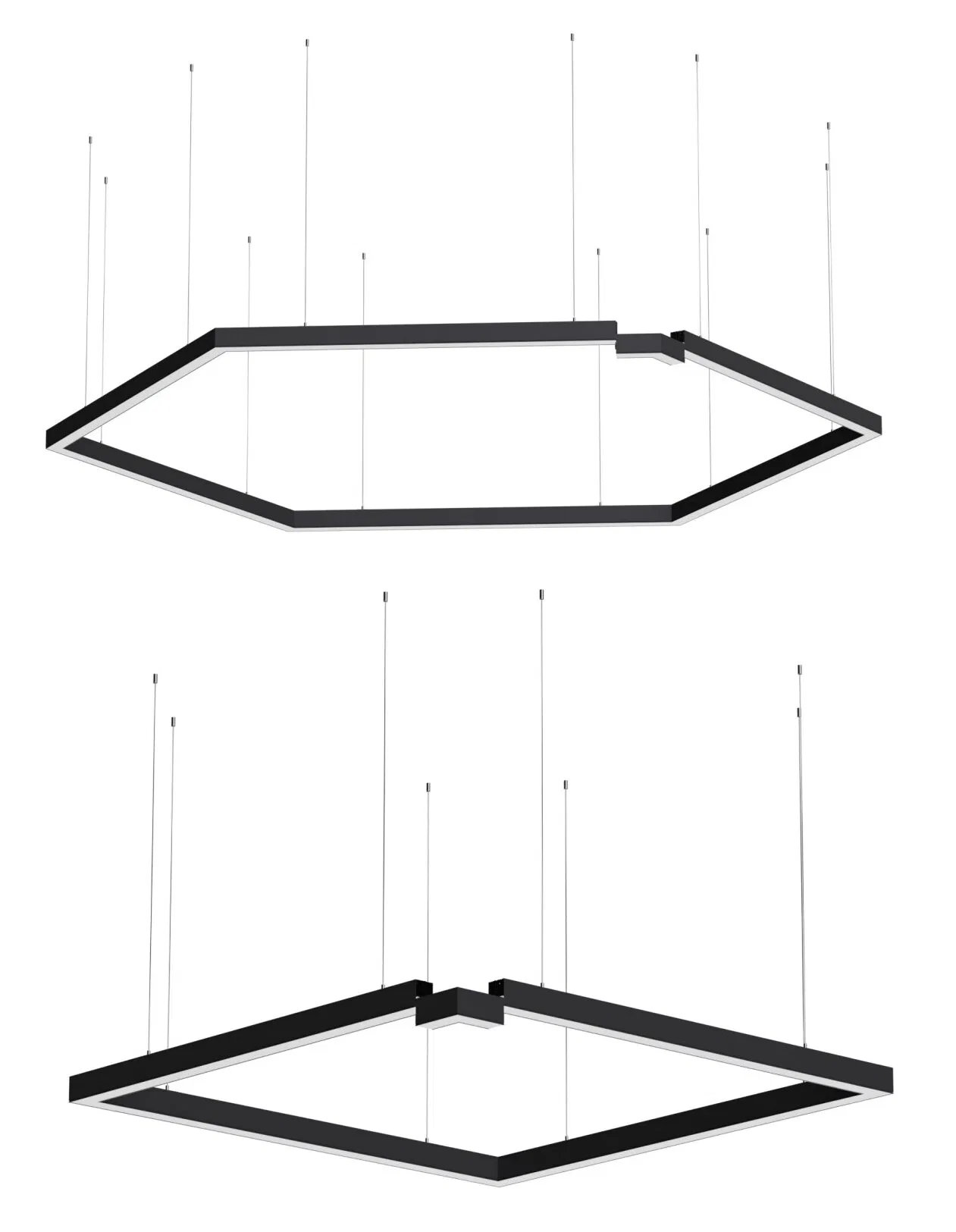

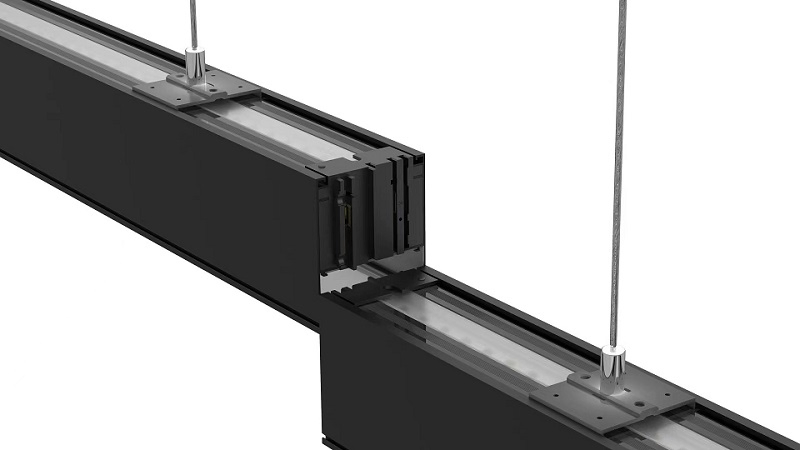

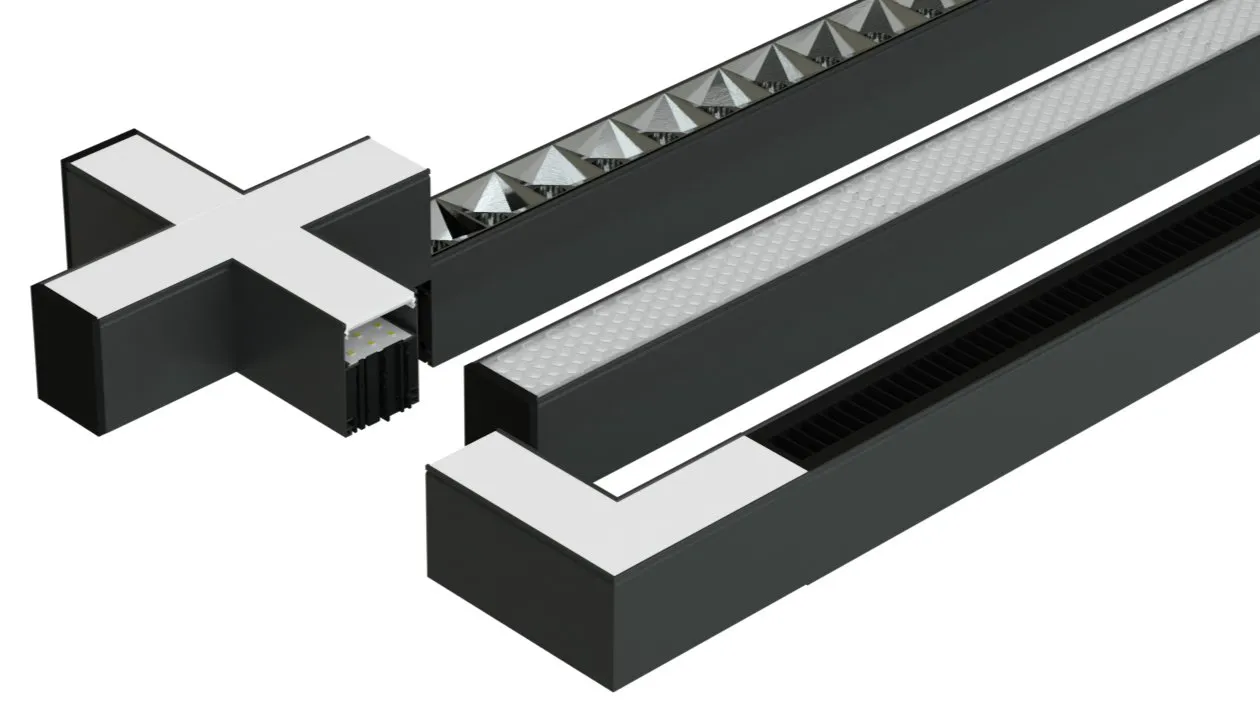

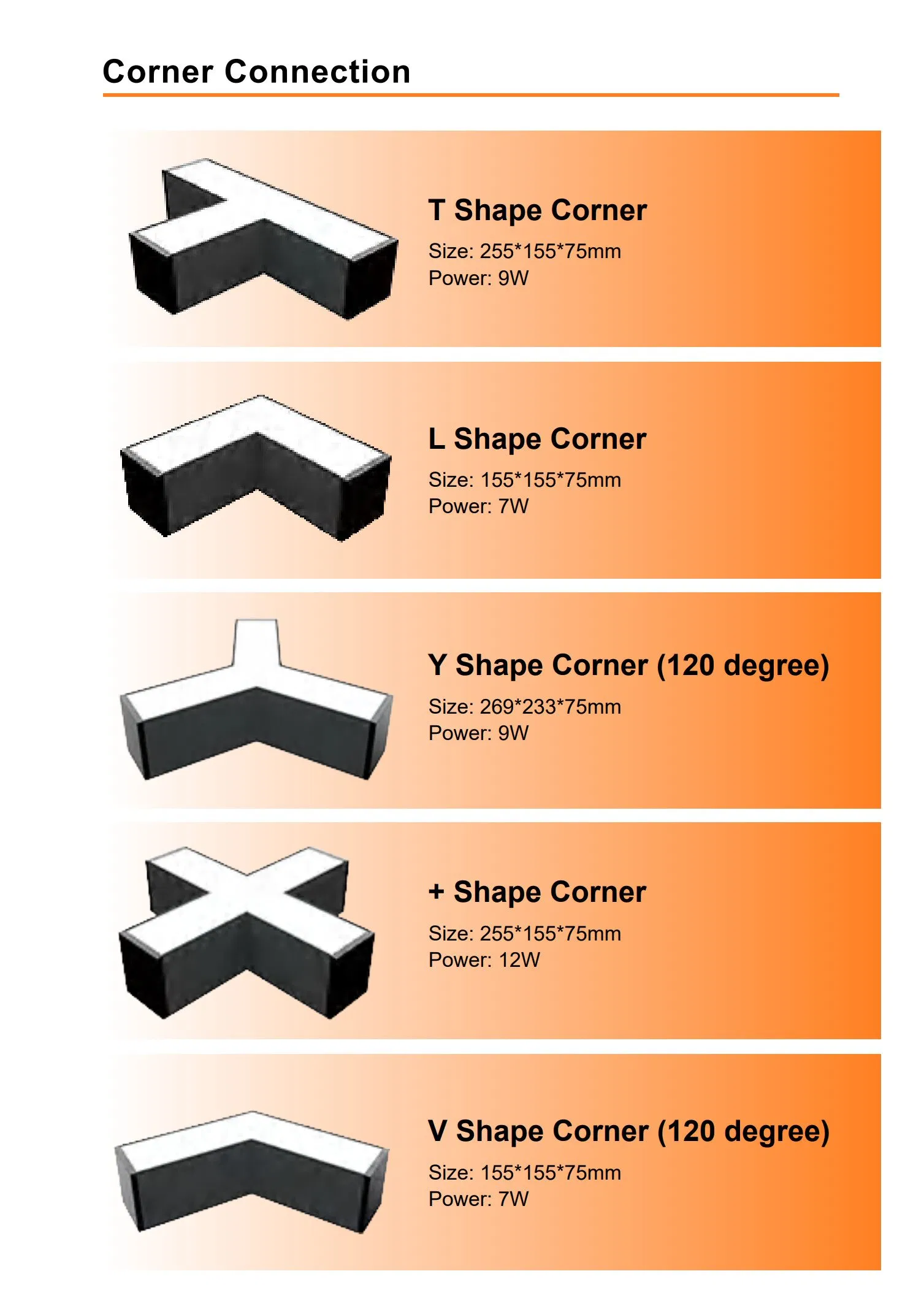

- ✔ Modular Design – Seamlessly connect straight runs using preassembled lit-connectors (X, L, T, V, Y).
- ✔ Adjustable CCT – On-board Dip switch for easy tuning from 2700K to 5000K.
- ✔ Sleek Aesthetic – Minimalist design that blends into modern interiors.
- ✔ Uniform Illumination – Consistent, glare-free output for retail and office spaces.
📊
Technical Specification
| Part Number | Power | Input | Driver | LED | CCT | Material | Warranty |
|---|---|---|---|---|---|---|---|
| AB5575S-L120 | 40W | 120-277V | Lifud | SMD 2835 | 2700-6500K | Aluminum | 5 Years |
| AB5575S-L240 | 80W | 120-277V | Lifud | SMD 2835 | 2700-6500K | Aluminum | 5 Years |
🏗️

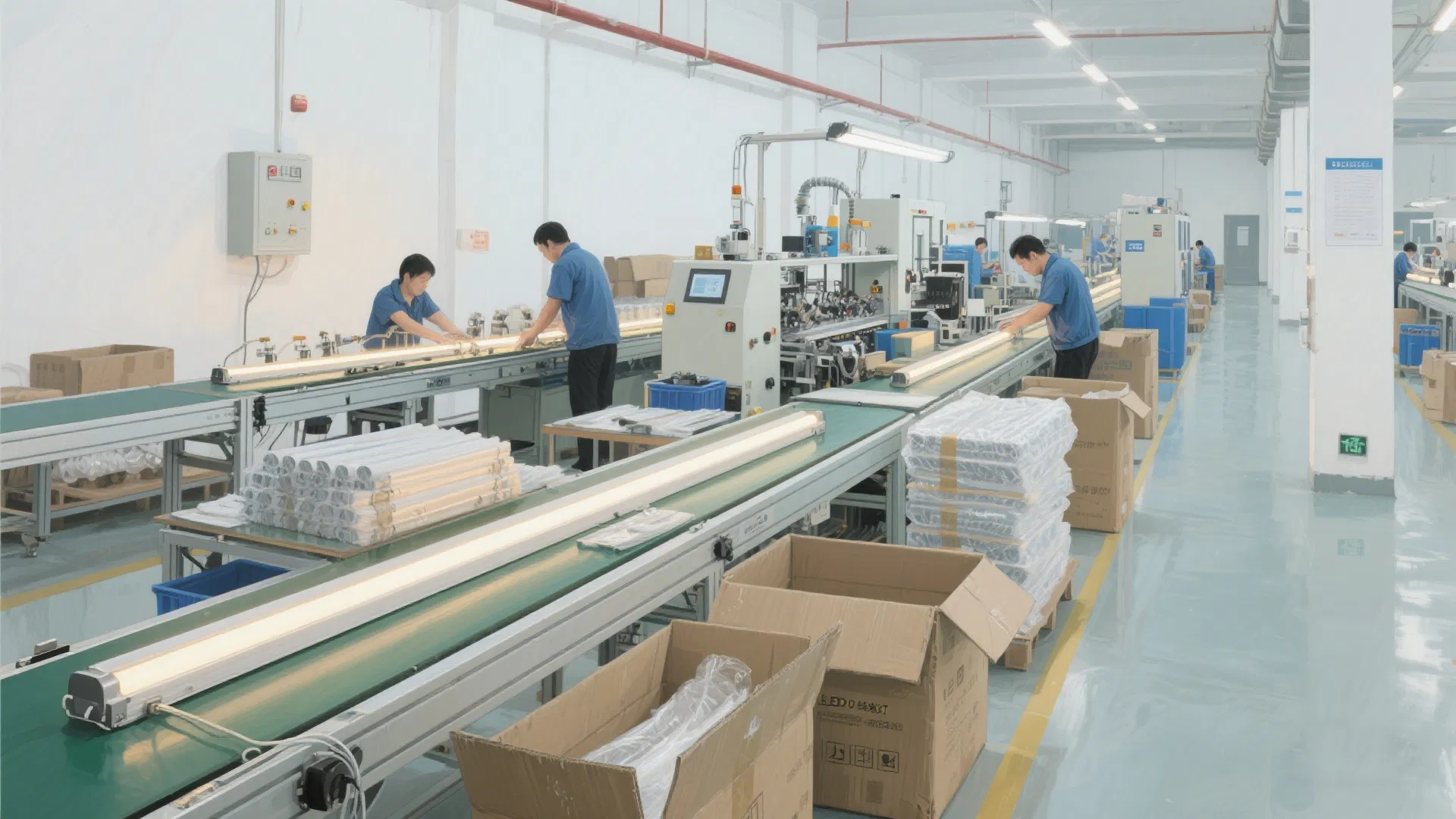

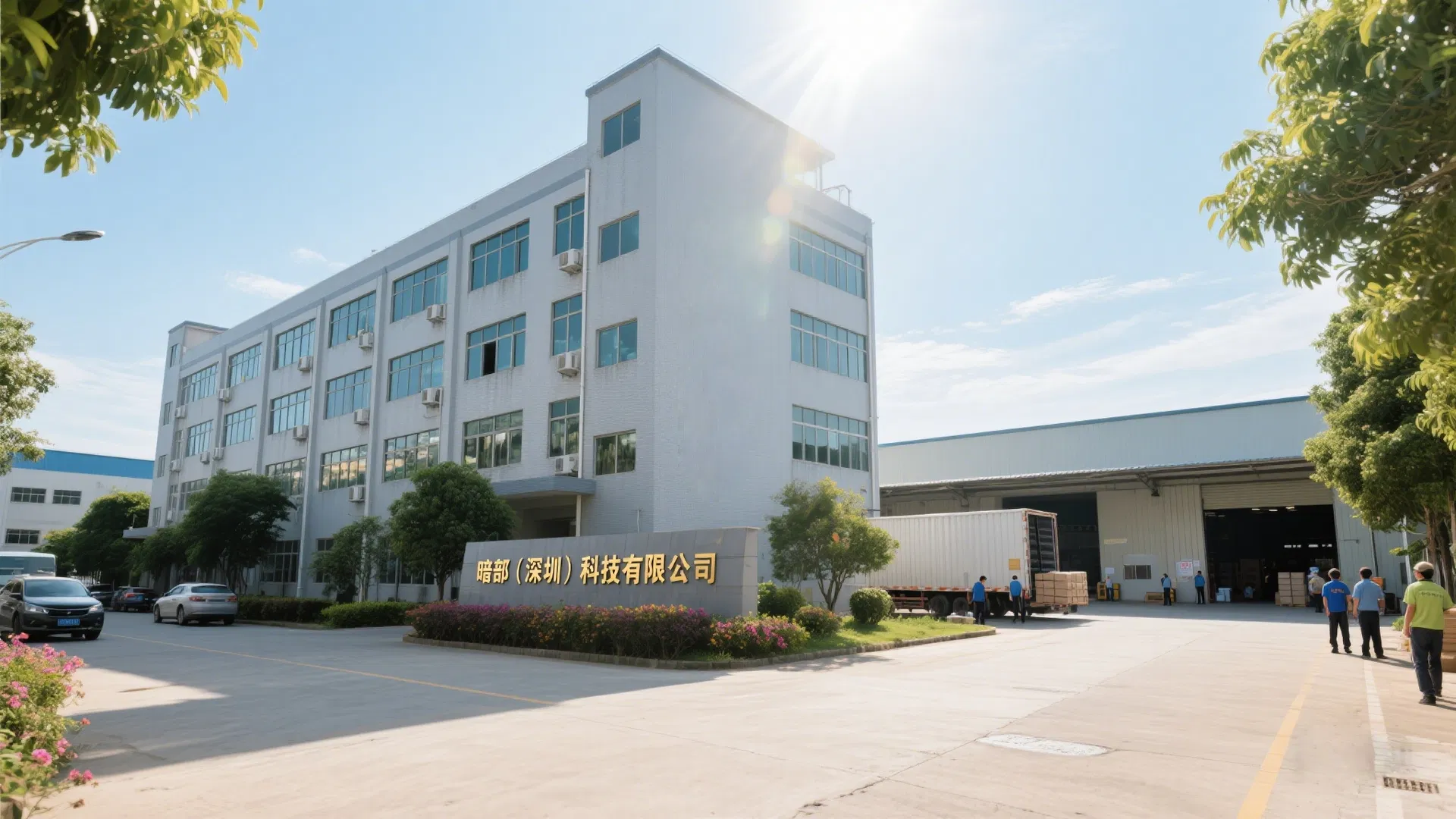

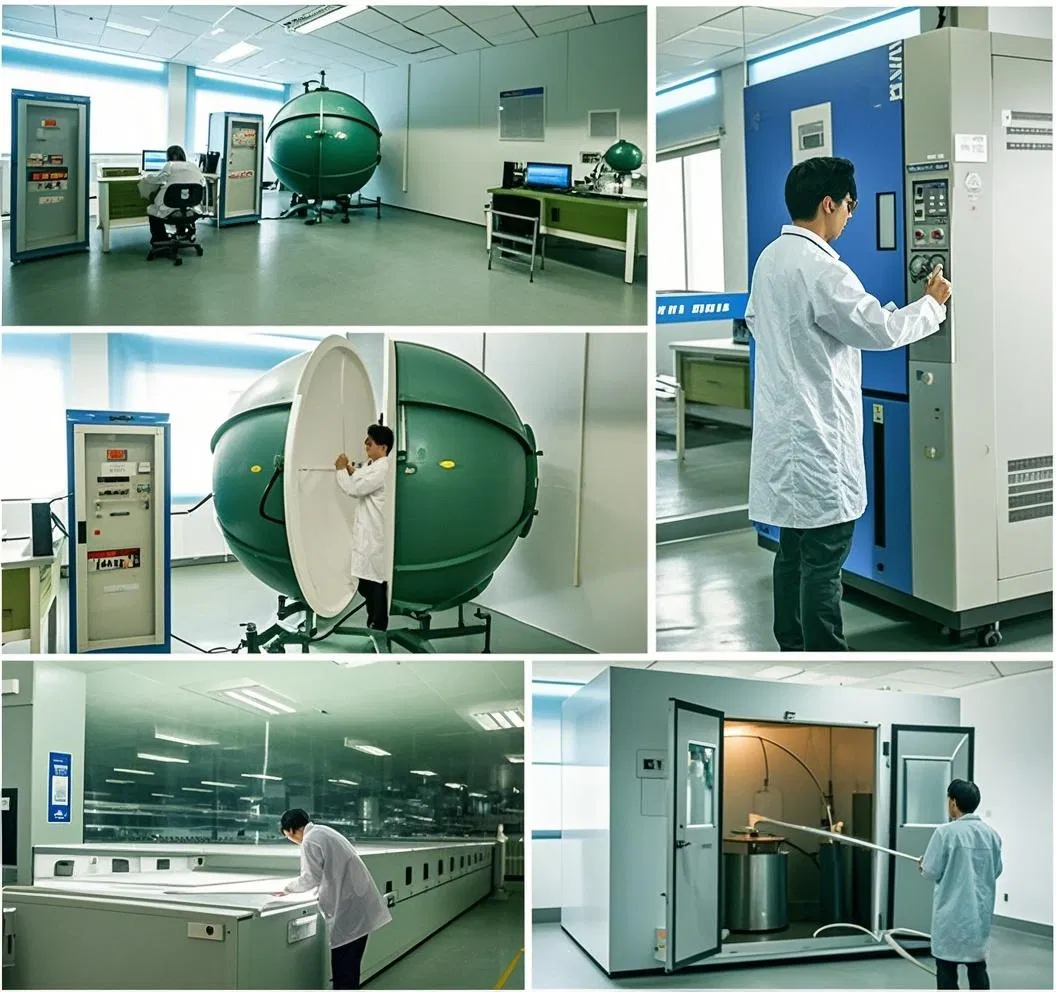

Manufacturing Excellence
With over a decade of industry expertise, we specialize in designing and manufacturing premium LED linear lights and commercial lighting solutions. Our commitment to quality is backed by international certifications including CE, RoHS, and ETL.
📦
Packaging & Shipping
ExpressDHL/FedEx/UPS (3-7 days)
Air FreightMedium shipments (5-10 days)
Sea FreightBulk orders (FCL/LCL)
Land TransportRegional trucking and rail solutions
❓
Frequently Asked Questions
Q1: Do you have a minimum order quantity (MOQ)?
We maintain a low MOQ policy, and you can order even a single piece for sample inspection.
Q2: Can you produce according to samples or drawings?
Yes, our R&D department is fully capable of providing OEM and ODM services based on your specific designs.
Q3: What is the typical lead time for orders?
Samples generally take 5-7 days, while bulk orders typically require 15-20 days.
Q4: What are your terms of payment?
Typically, we prefer T/T. Regular orders require a 30% deposit upfront, with the balance paid before shipment.
Q5: What is your warranty policy?
We offer a comprehensive 5-year warranty. If a product fails within this period, we will provide a new replacement.
Q6: Can I have my logo printed on the LED products?
Yes, we can laser-brand your logo directly onto the product or use high-quality label stickers.
