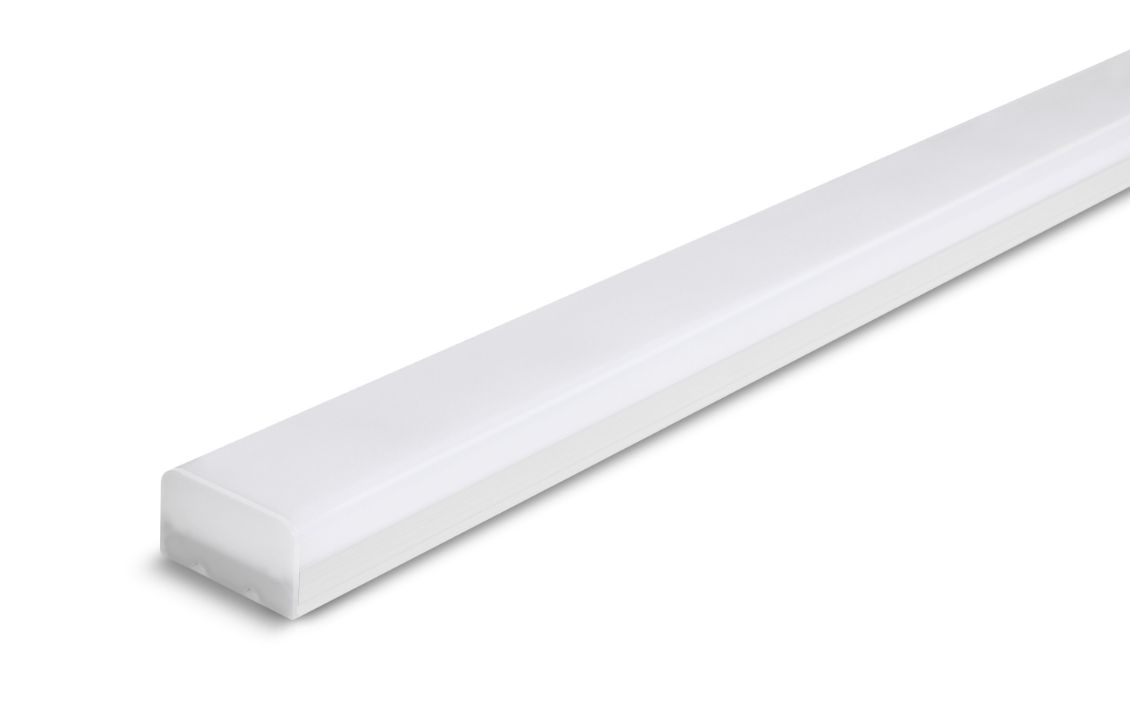

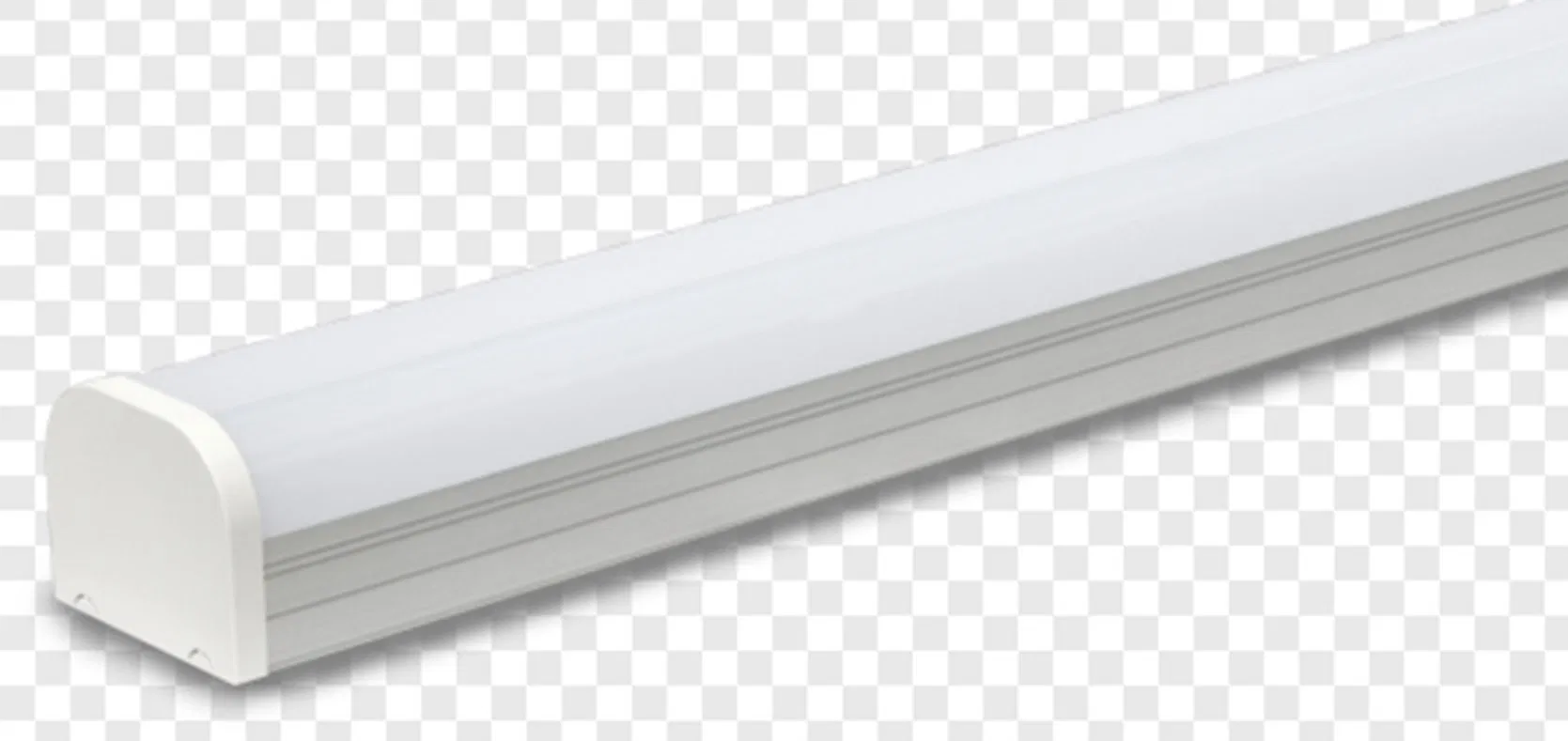

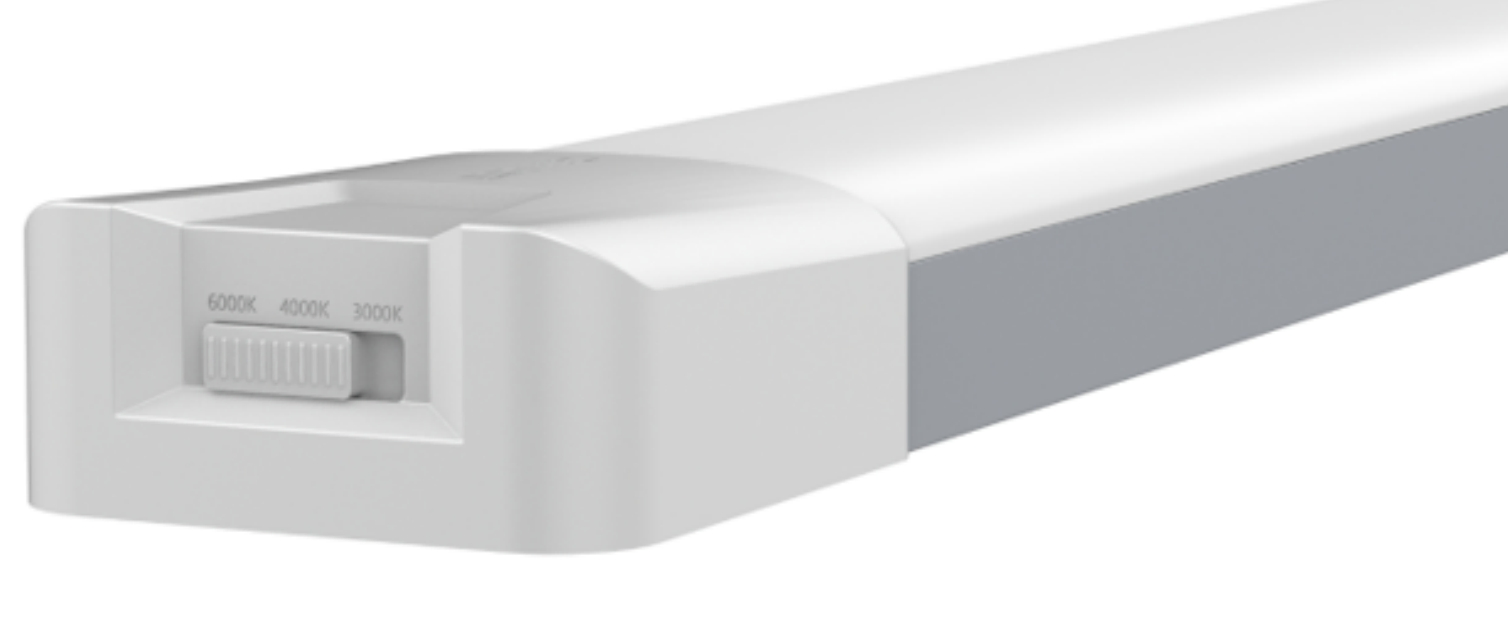

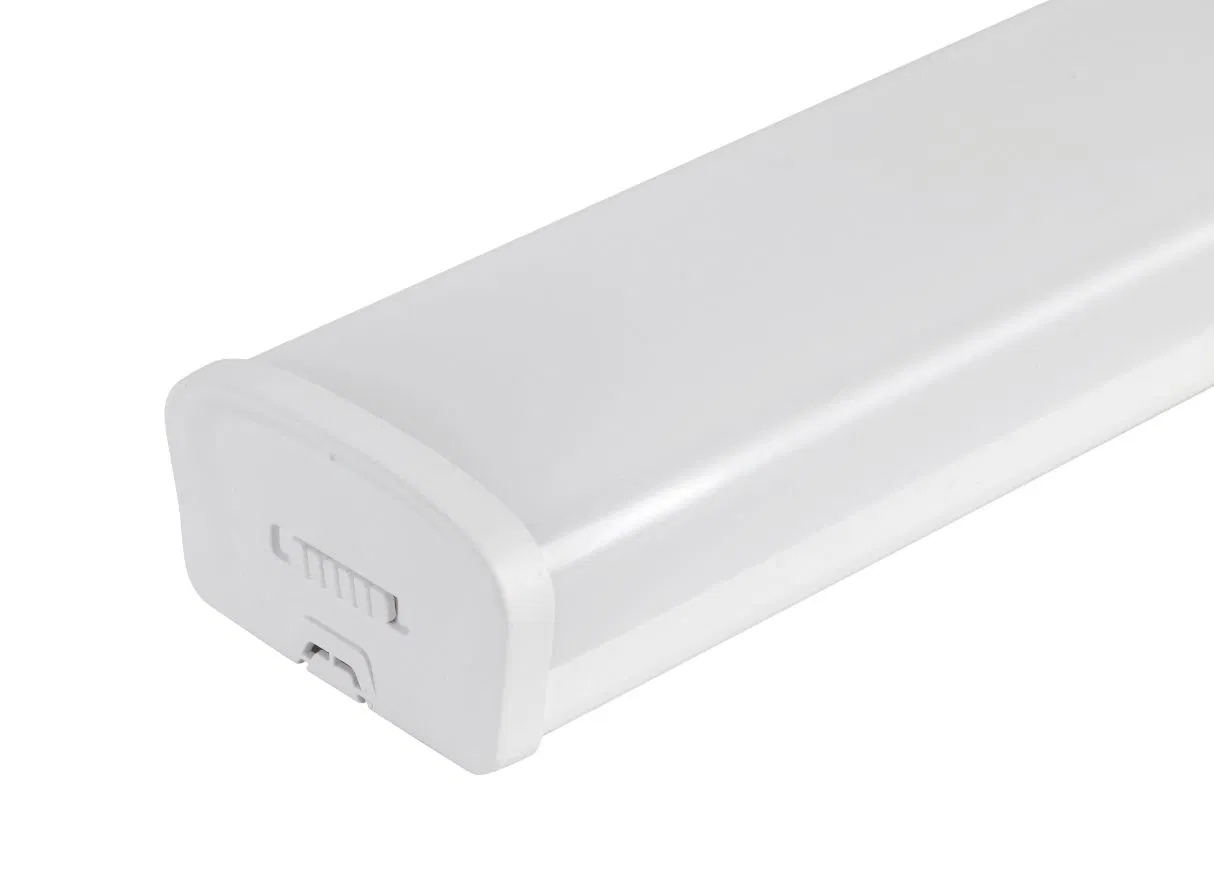

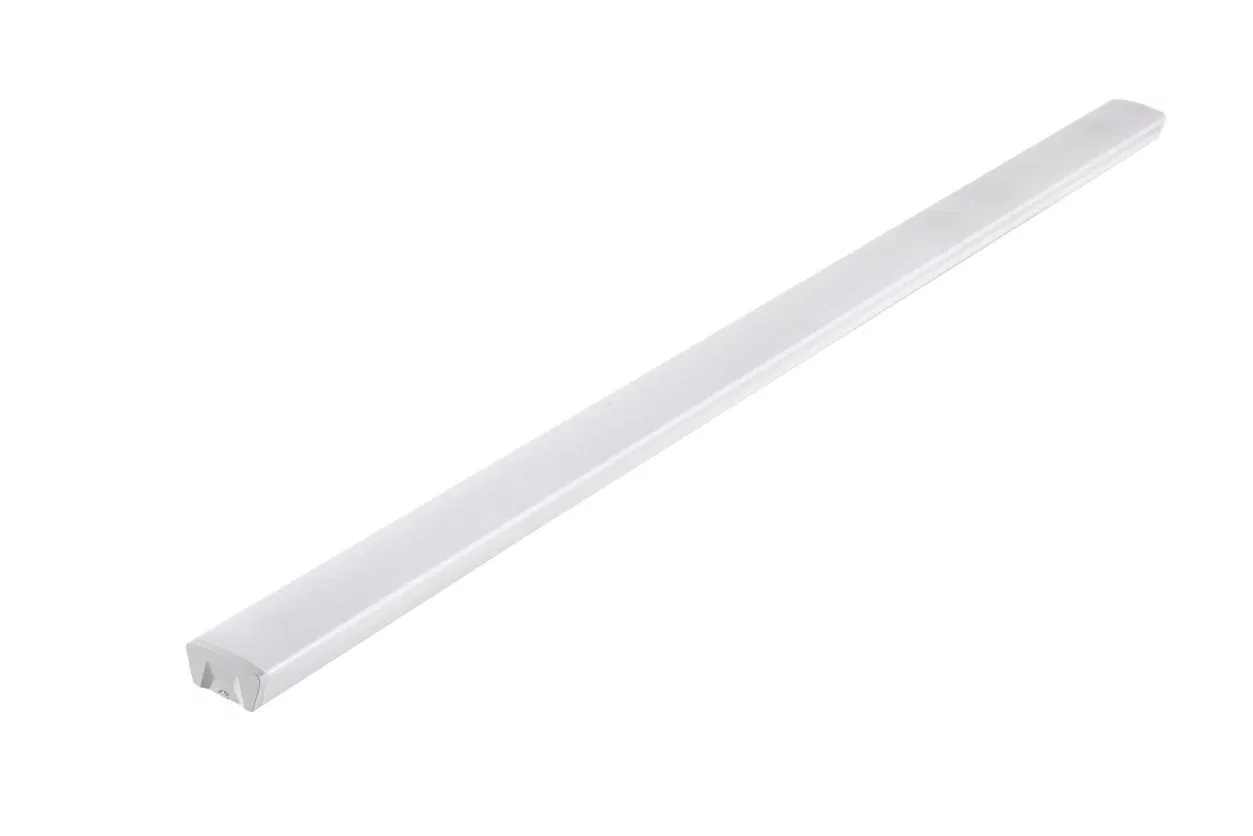

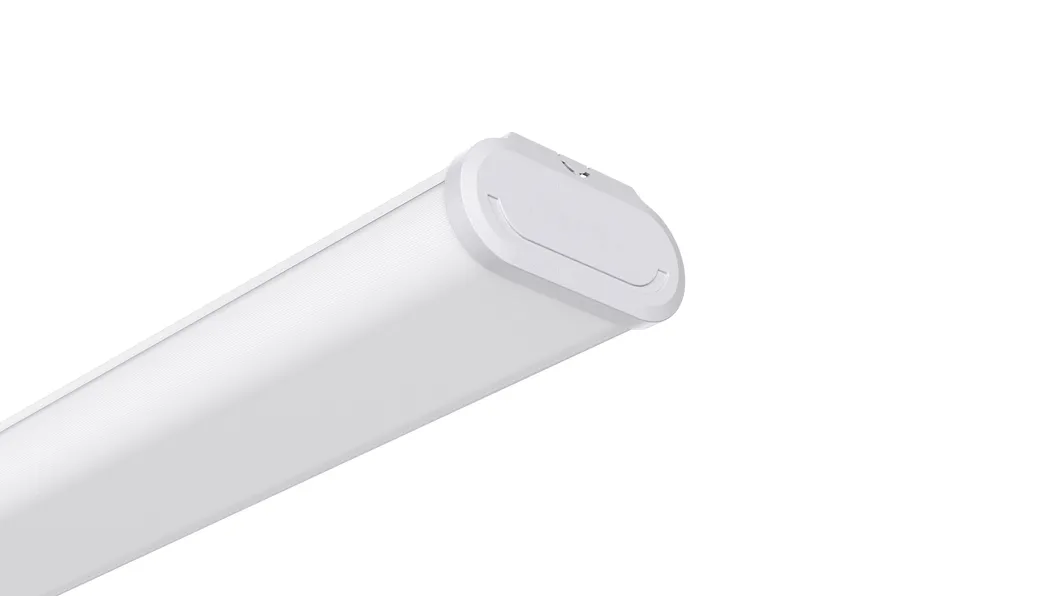

3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
Product Description
i
Basic Information
Model NO.
LL-7231-60W
IP Rating
IP20
CCT
3000K, 4000K, 6000K
Driver
No-Isolated Driver
Lumen
100lm/W

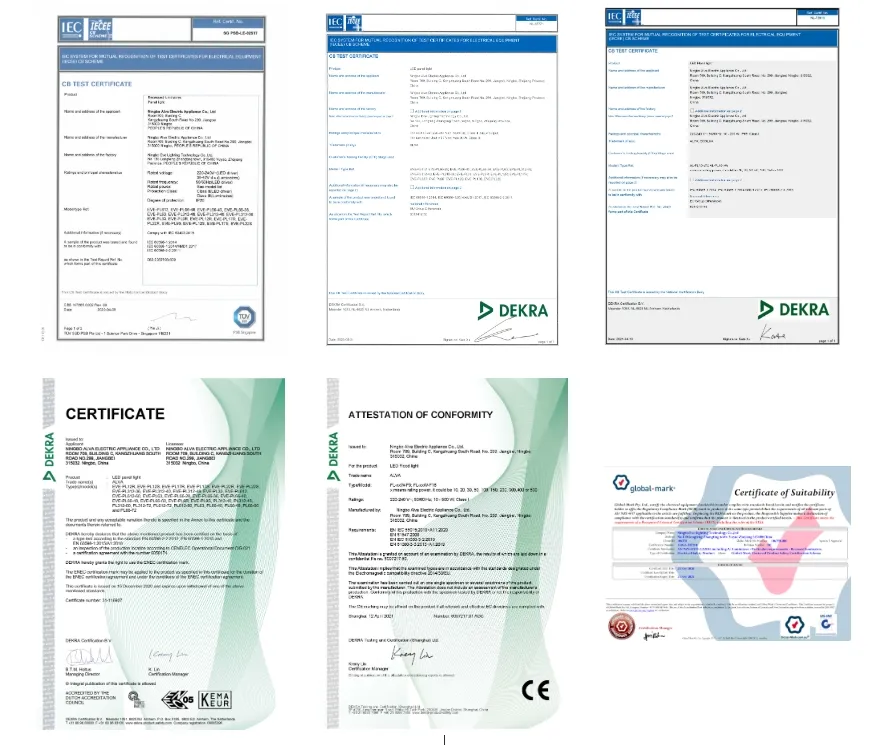

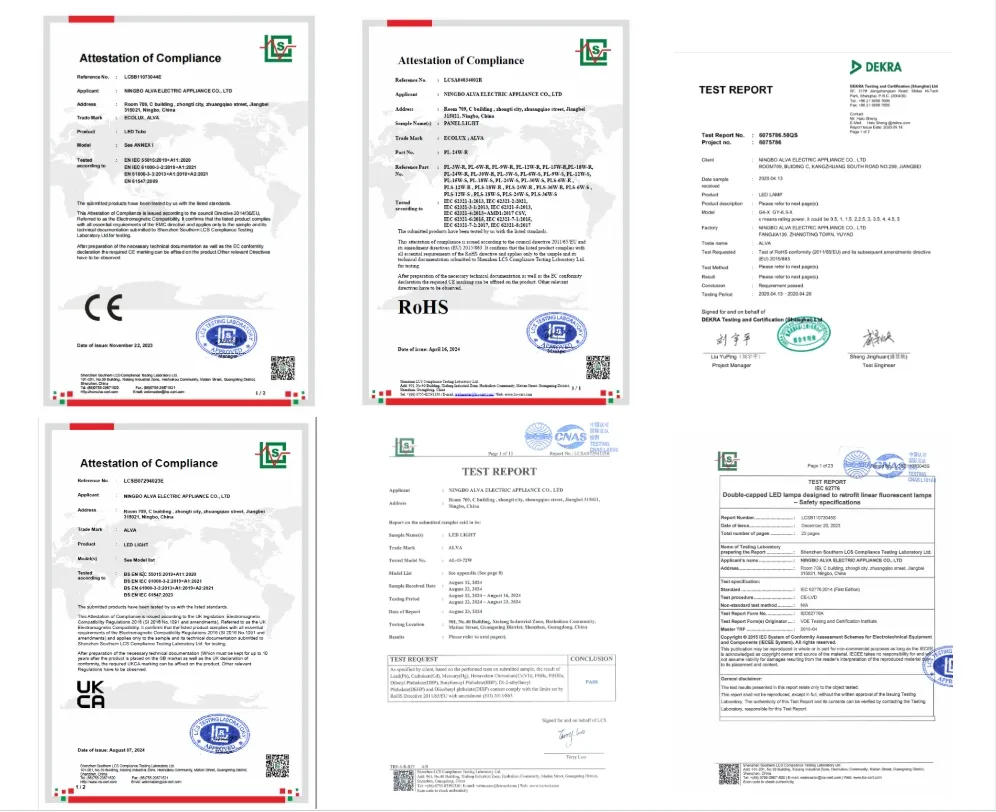

Certificates
CE-EMC, CE-LVD, RoHS, En62471
Wattage
80W
CRI
>80
Warranty
2~3 Years
Origin
China
Capacity
100000PCS/Month
Package Size
48.00cm * 48.00cm * 30.00cm
✓

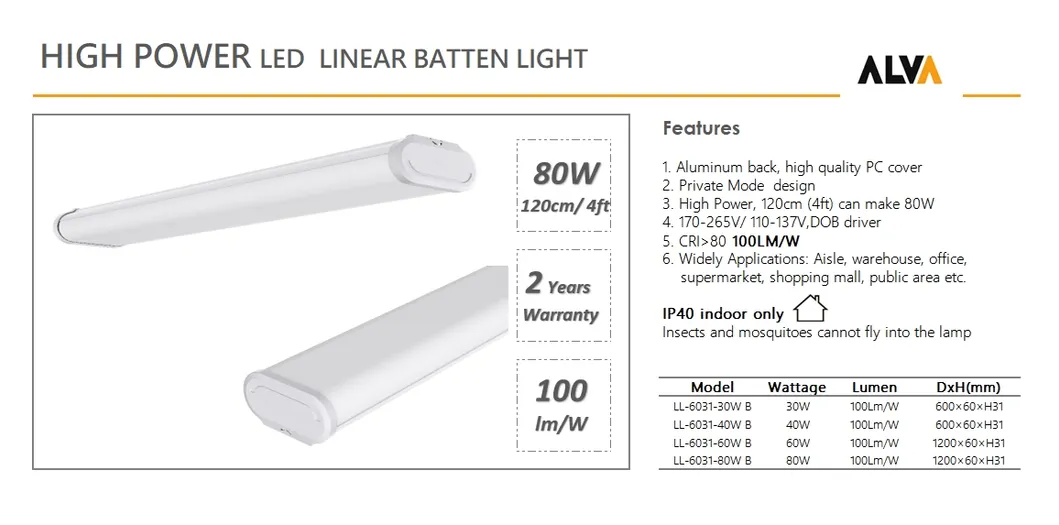

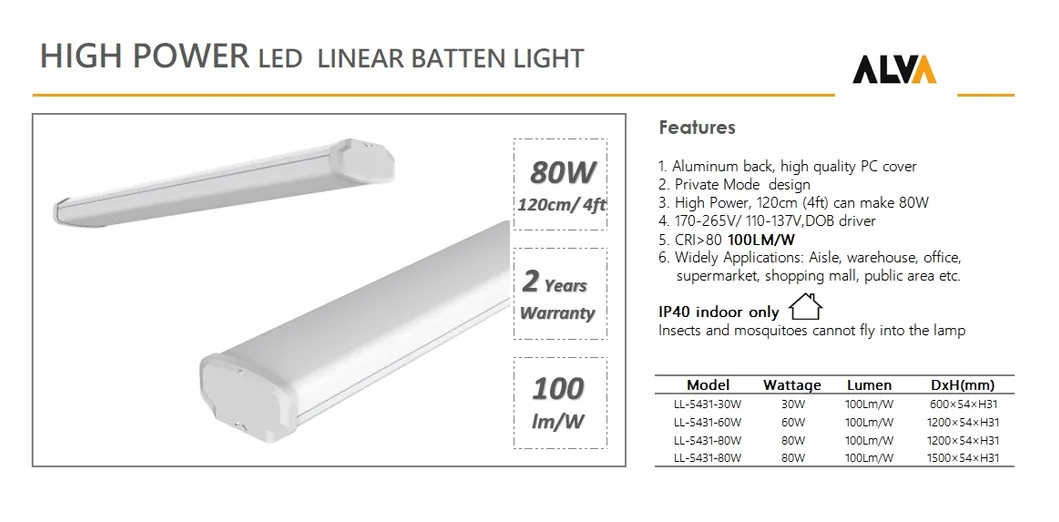

Product Features
Aluminum back, high quality PC cover
Private Mode design
High Power, 120cm (4ft) can make 80w
170-265V/ 110-137V, DOB driver
CRI>80 100LM/W efficiency
IP40 protection: Insect and mosquito proof design
Wide Application: Warehouse, office, mall, public areas
📷

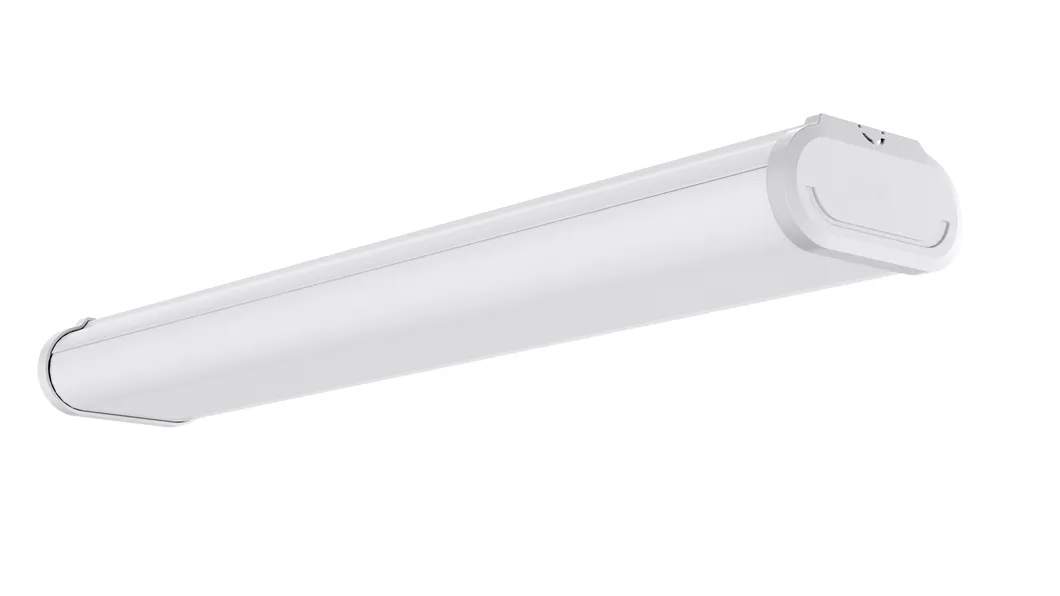

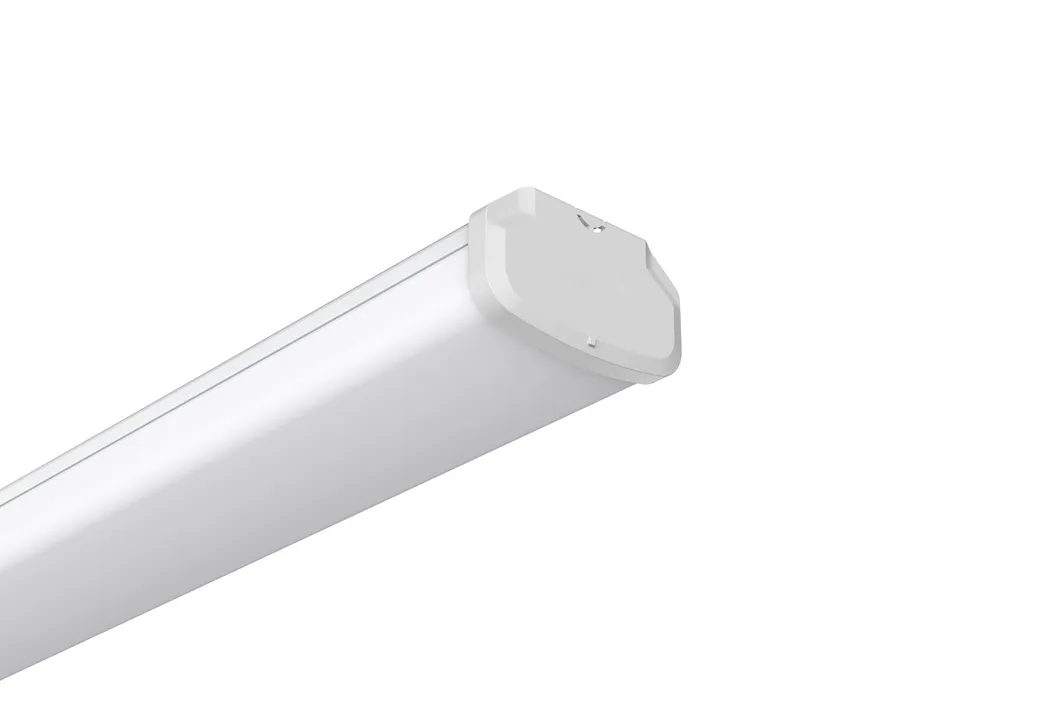

Product Showcase
⚙

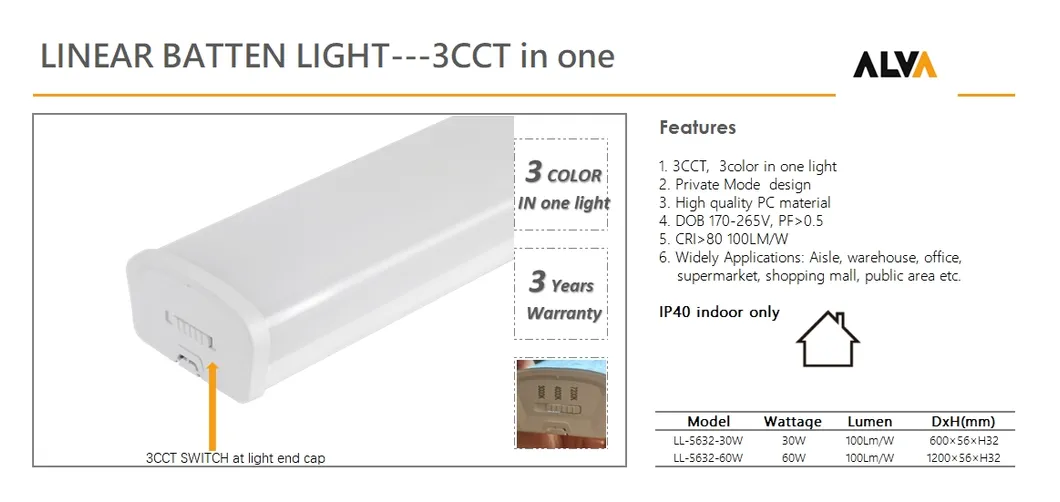

Technical Parameters
| Item No | Watts | Voltage | PF | CCT/Color | Ra | Lm/W | IP | Dimension(mm) | Warranty |
|---|---|---|---|---|---|---|---|---|---|
| LL-7231-18W | 18W | 170-265V | 0.5 | 3CCT | 80 | 135Lm/W | IP20 | 600×72×H31 | 3years |
| LL-7231-36W | 36W | 170-265V | 0.9 | 3CCT | 80 | 135Lm/W | IP20 | 1200×72×H31 | 3years |
| LL-7231-60W | 60W | 170-265V | 0.9 | 3CCT | 80 | 135Lm/W | IP20 | 1500×72×H31 | 3years |
| LL-6031-80W | 80W | 170-265V | 0.5 | 6500K | 80 | 100Lm/W | IP20 | 1200×60×H31 | 2years |
| LL-7523-72W | 72W | 175-265V | 0.5 | 6500K/4000K/3000K | 80 | 100Lm/W | IP20 | 1200*75*H23 | 2years |
★
Applications & Quality Control

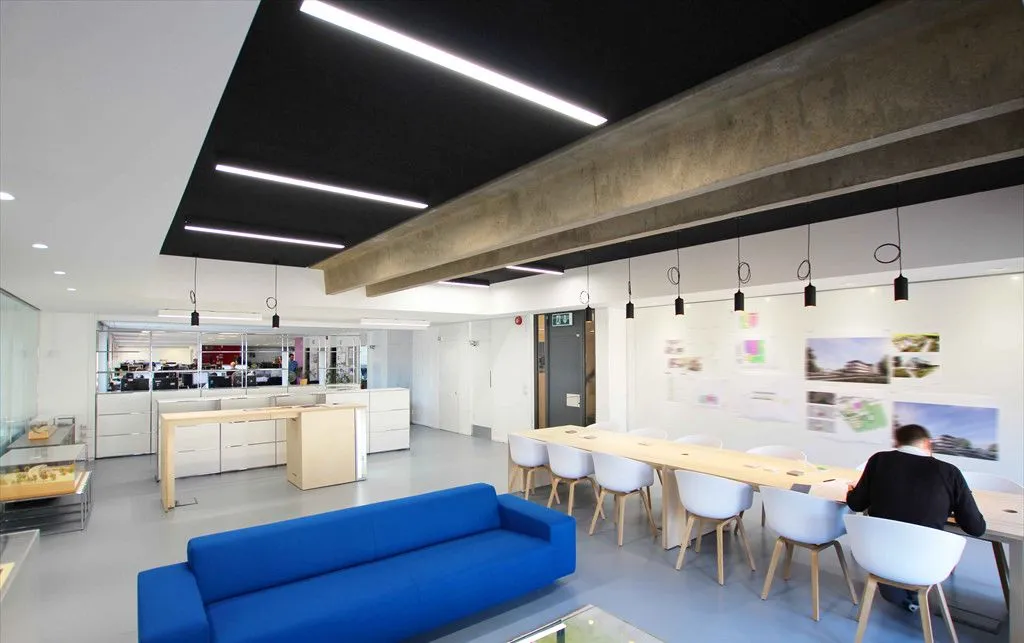

Widely used in: Living Rooms, offices, supermarkets, shopping malls, public areas etc.
Frequently Asked Questions
What are your payment terms for orders?
For samples, we require 100% payment in advance via Bank TT. For bulk orders, a 30% deposit is required, with the remaining 70% balance settled before shipment.
How long is the delivery time?
Sample orders typically take 3-7 working days. Bulk orders usually have a lead time of 30-40 working days depending on the quantity.
What shipping methods do you offer?
We offer shipping by Express (DHL, UPS, Fedex - 3-5 days), Air Cargo (5-7 days), or Sea Freight for large, non-urgent orders (approx. 1 month).
What is your warranty policy?
We offer 1, 2, 3, or 5 years of warranty as per your request. If any quality issues occur within the warranty period, we provide free replacements.

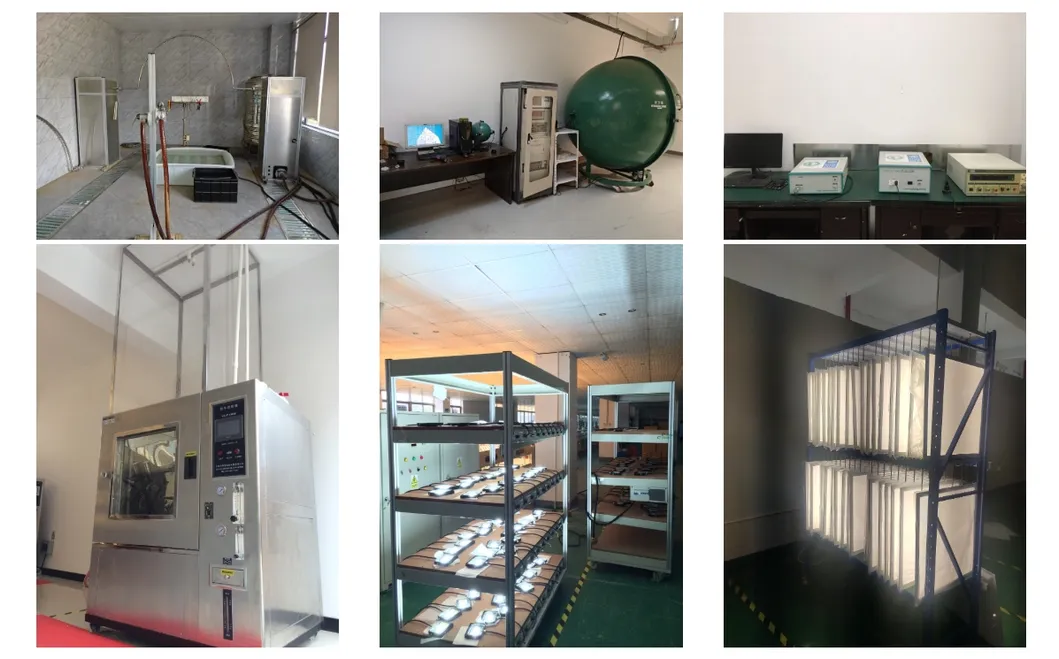

How do you ensure product quality?
100% of our lamps undergo reliability testing, including a 24-hour lighting temperature test. All units are re-tested after cooling to ensure perfect functionality before shipping.
Do you provide OEM services?
Yes, we offer comprehensive OEM services, including printing your logo on the products and customizing retail box packaging and other specifications.
