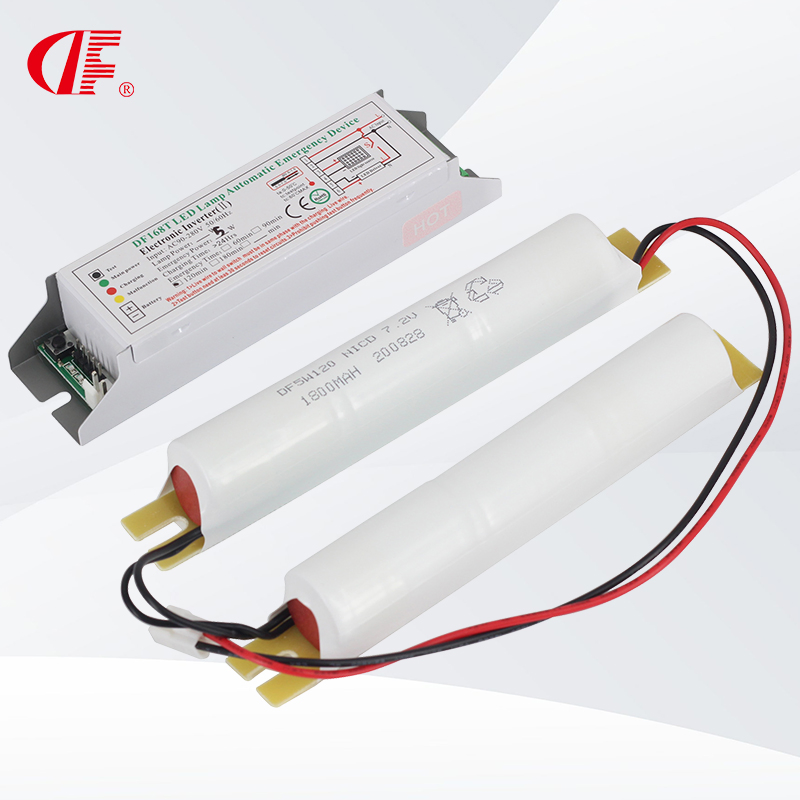

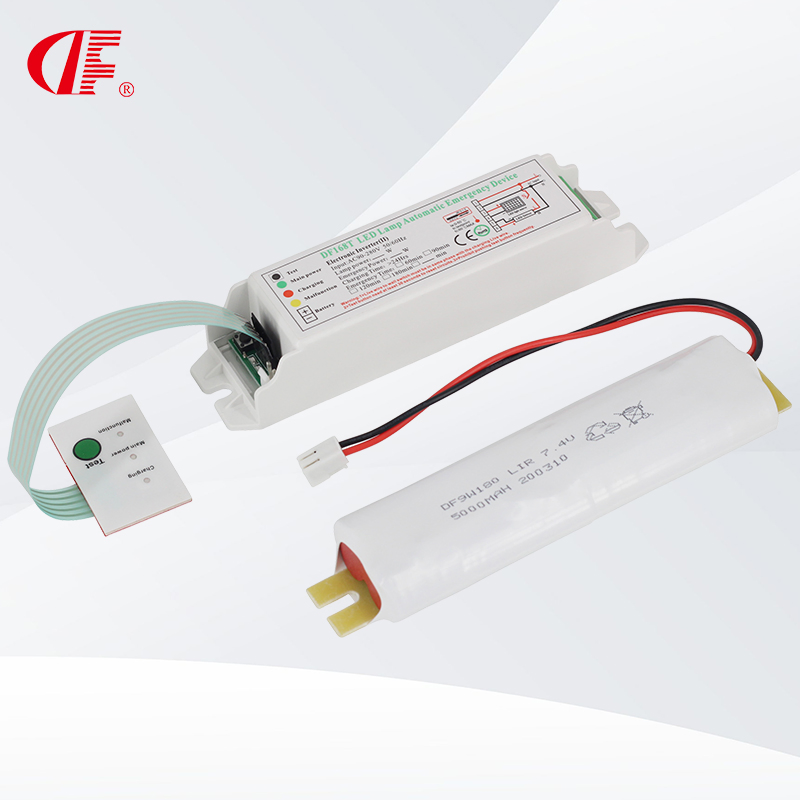

Battery Backup Emergency Conversion Kit LED Emergency Driver for Max 60W LED Lights

1 / 5

Battery Backup Emergency Conversion Kit LED Emergency Driver for Max 60W LED Lights

Customization:	Available
Certification:	CCC, ISO, CE, RoHS
Warranty:	2 Years

Send Inquiry

Product Description

Basic Information

Model NO.DF168T-9W3H

Input VoltageAC90-280V

Output Voltage12-90V

Light Power9-60W

Emergency Power9W

Emergency Time180min

Battery TypeLi-ion Battery

Battery Capacity7.4V 4400mAh 32.56wh

Waterproof RateIP20

Charge Time≥24 hours

Product Description

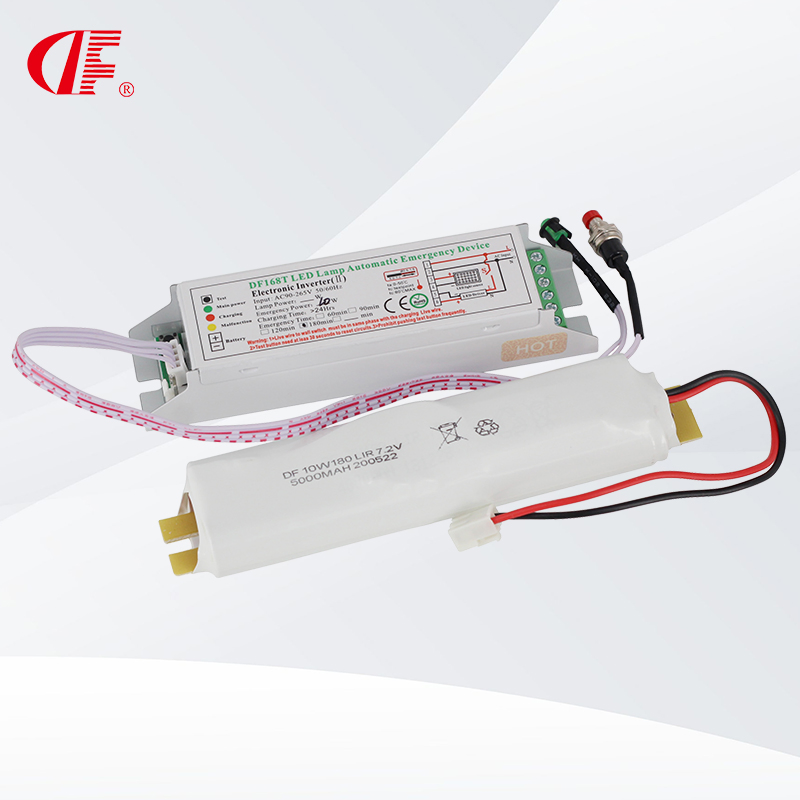

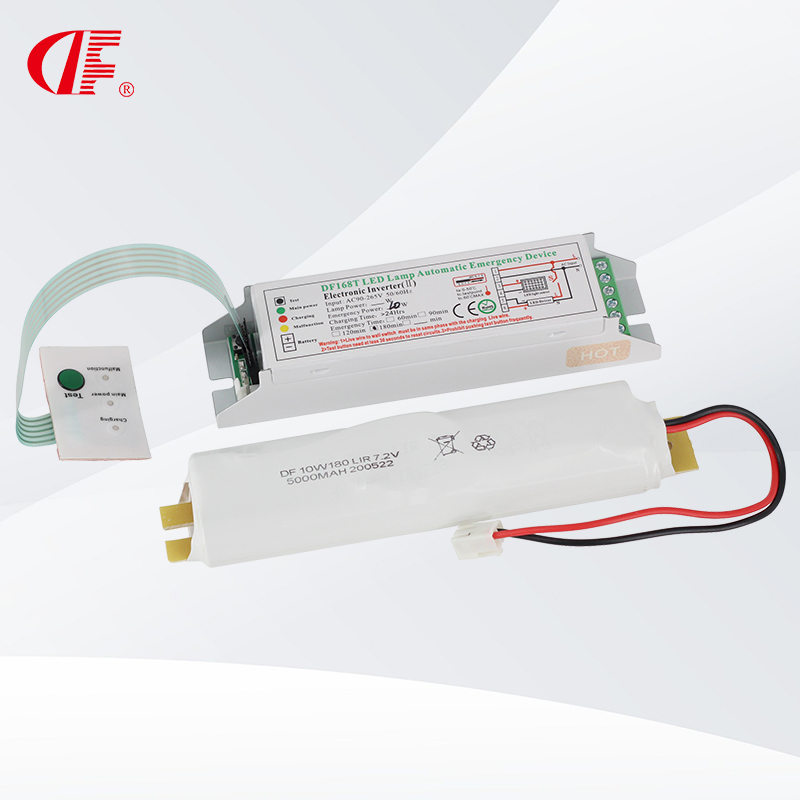

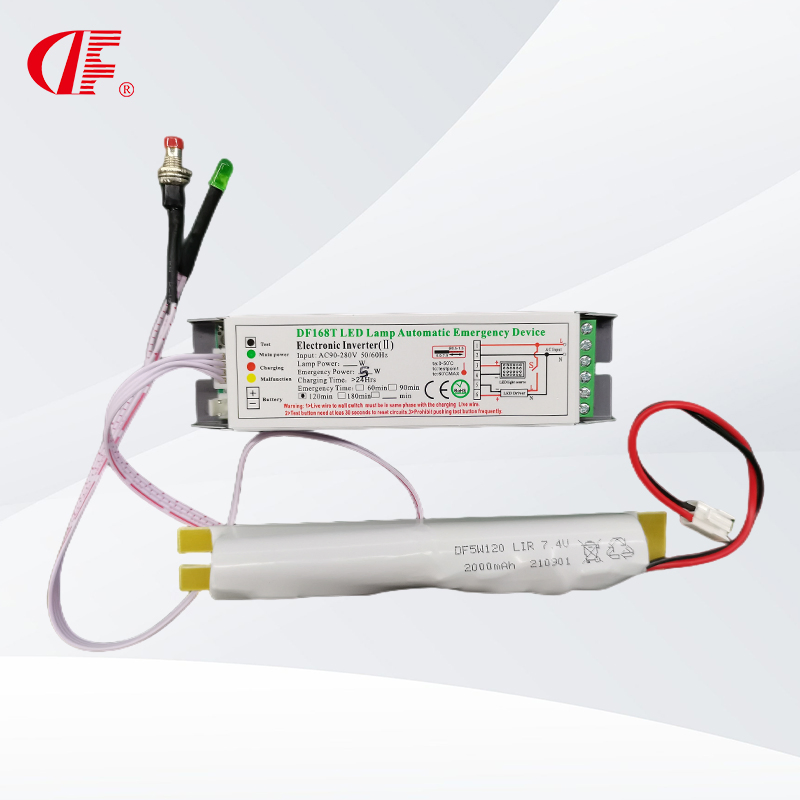

Battery Backup Emergency Conversion Kit

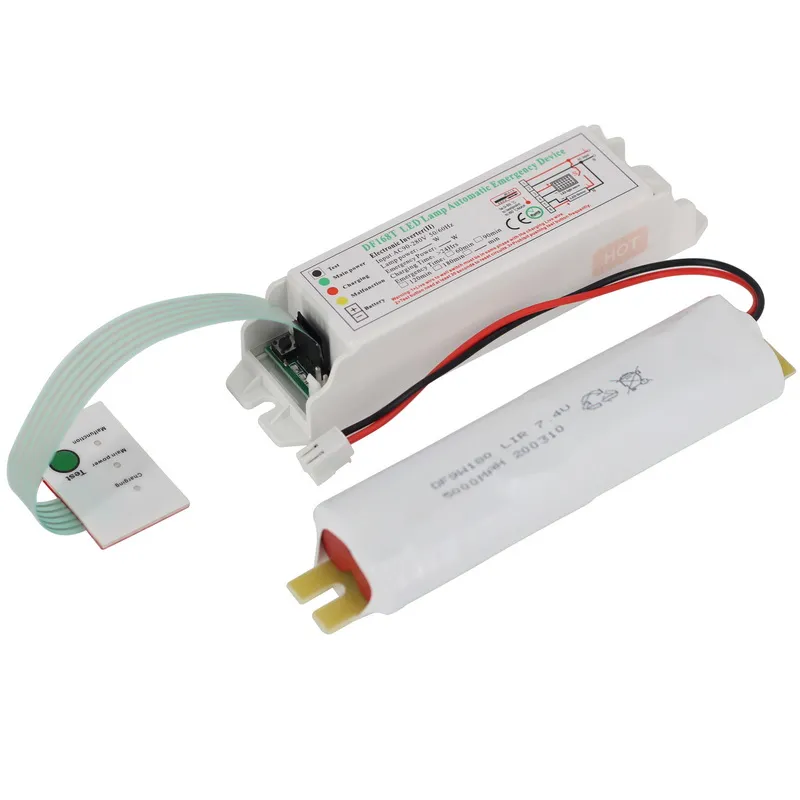

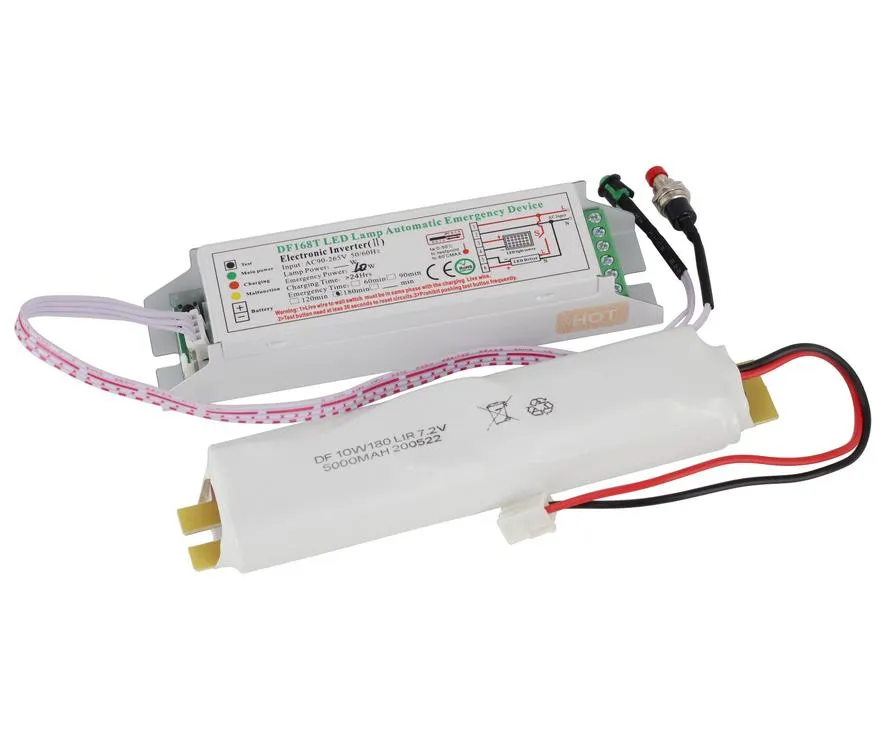

The DF168T emergency driver is designed to provide reliable backup lighting for LED fixtures up to 60W. It features an intelligent IC control circuit with constant output power, isolation protection, and no-load safety features.

Highlight Features:

Compatible with a wide range of external driver LED lights.
Supports maximum 60W light load with 10W emergency output power.
Supports multiple battery chemistries: Ni-MH, Ni-Cd, Li-ion, and LiFePO4.
Automatic testing of light chip series and output voltage adjustment.

Product Parameters

Model	DF168T
Support LED Power Range	9-60W
Emergency Output Power	9W
Input Voltage	AC90-280V
Battery Specification	Li-ion Battery 7.4V 4400mAh 32.56wh
Emergency Duration	180min
Charging Time	≥24 Hours

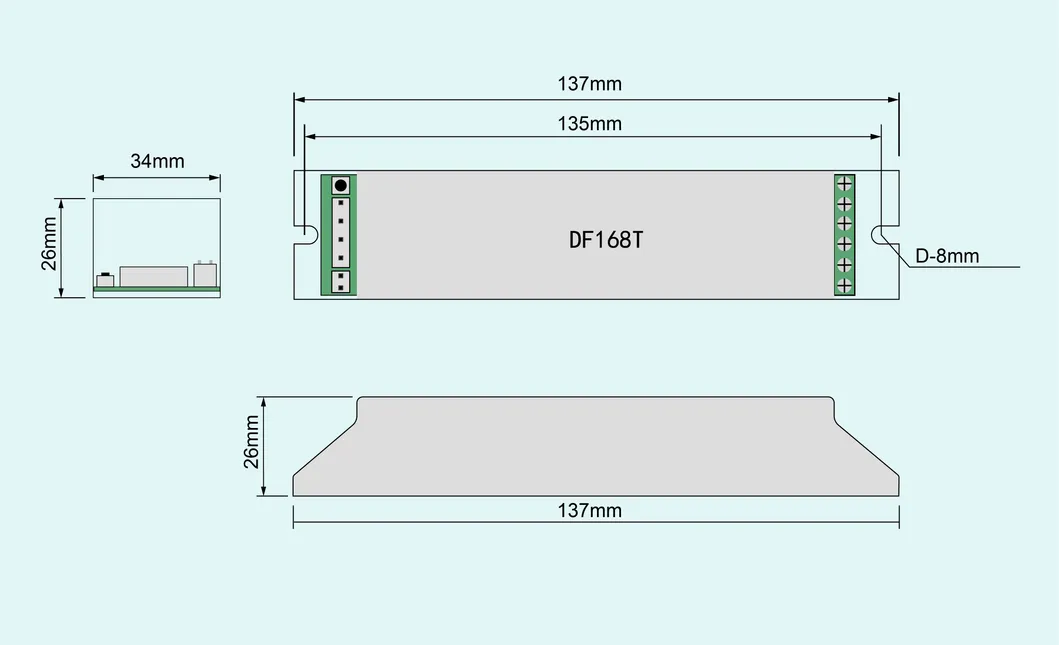

Inverter Dimensions	1373426MM

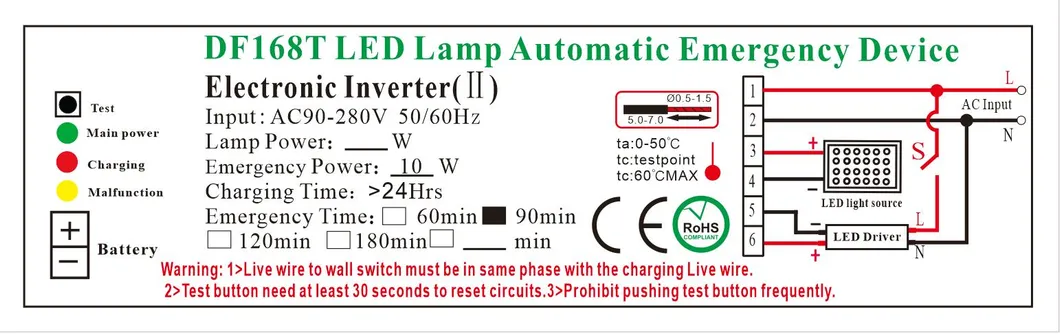

Installation Instructions

1. Connect Live Line L.
2. Connect the Null line N.
3. Connect to light source positive terminal (+).
4. Connect to light source negative terminal (-).
5. Connect LED driver negative terminal; the other line enters Null line port 2.
6. Connect LED driver Positive; connect switch line; the other side of switch line enters live line port 1.

Company Overview

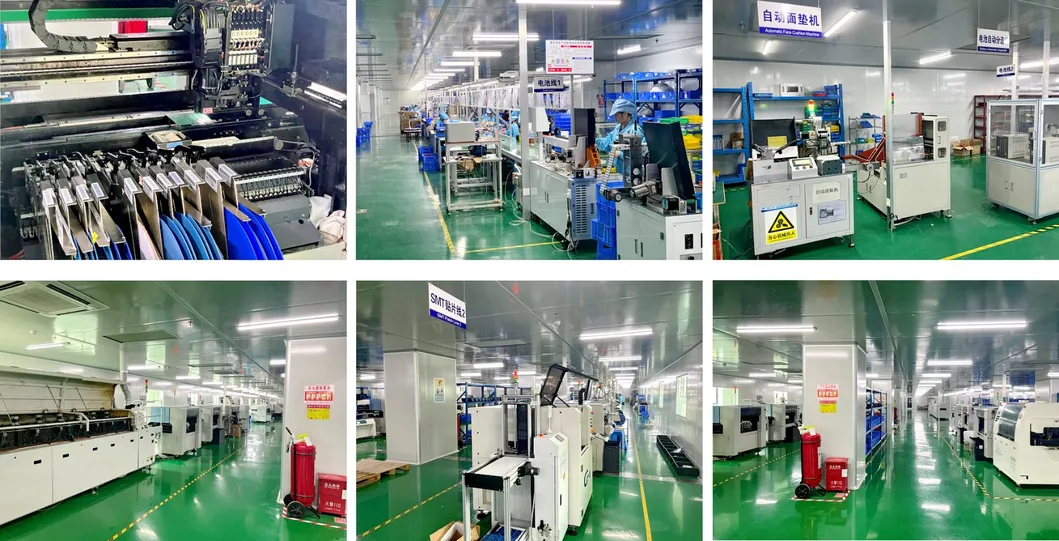

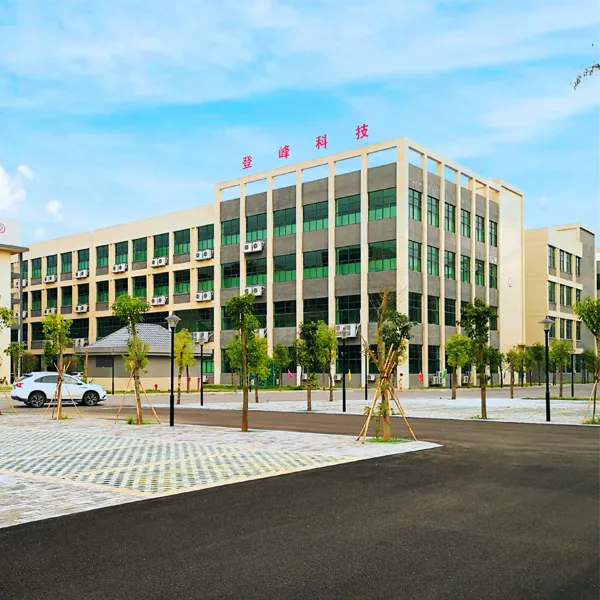

We are an internationally renowned manufacturer specializing in emergency energy storage power supplies, portable mobile power, and LED emergency drivers. Our high-tech enterprise integrates design, R&D, and production across a 20,000 square meter plant.

Our products feature sophisticated electronic circuit designs ensuring safety, durability, and ease of installation. Our UPS and emergency systems are engineered to reduce audio noise, minimize power consumption, and maintain high precision stability.

Certifications

Our products have passed UL, TUV, CB, SAA, CE, and ETL certifications.

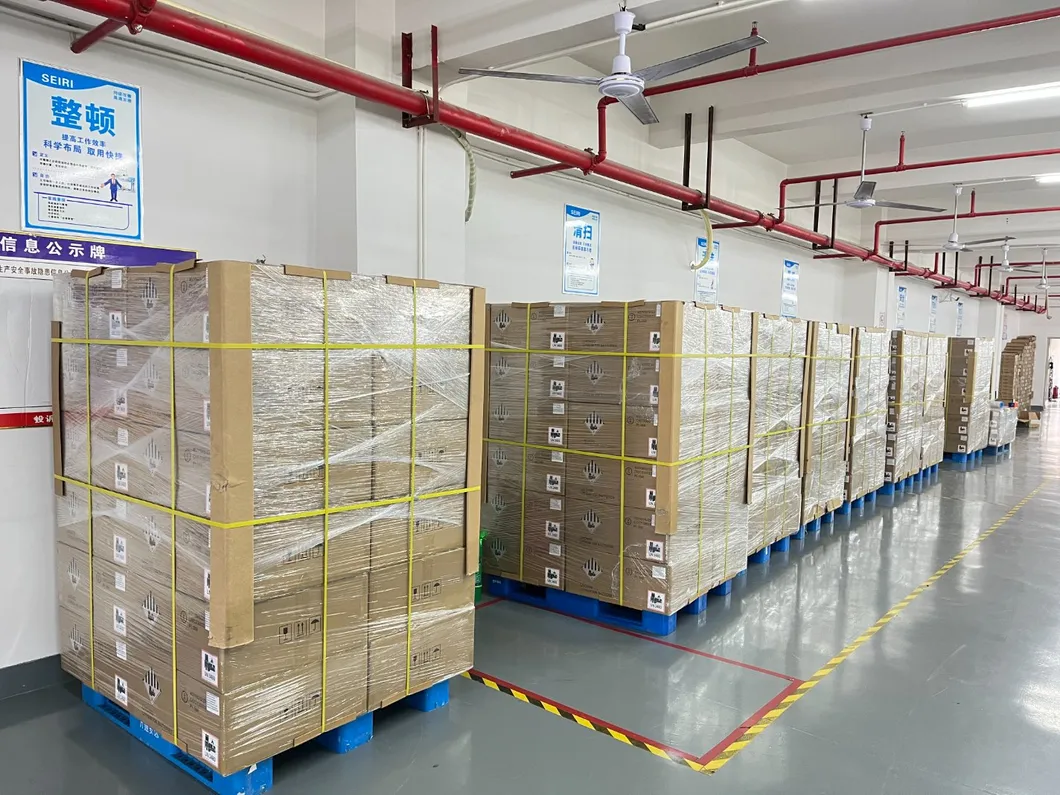

Packaging & Shipping

Carton Size39*33*13cm

Quantity Per Carton28 PCS

Gross Weight10.00kg

Package TypeStandard Export Carton

Our Services

Rapid Response: Your inquiry will be replied to within 12 hours.
Professional Support: Questions answered by our technical sales team.
OEM/ODM: We support fully customized lighting and emergency solutions.

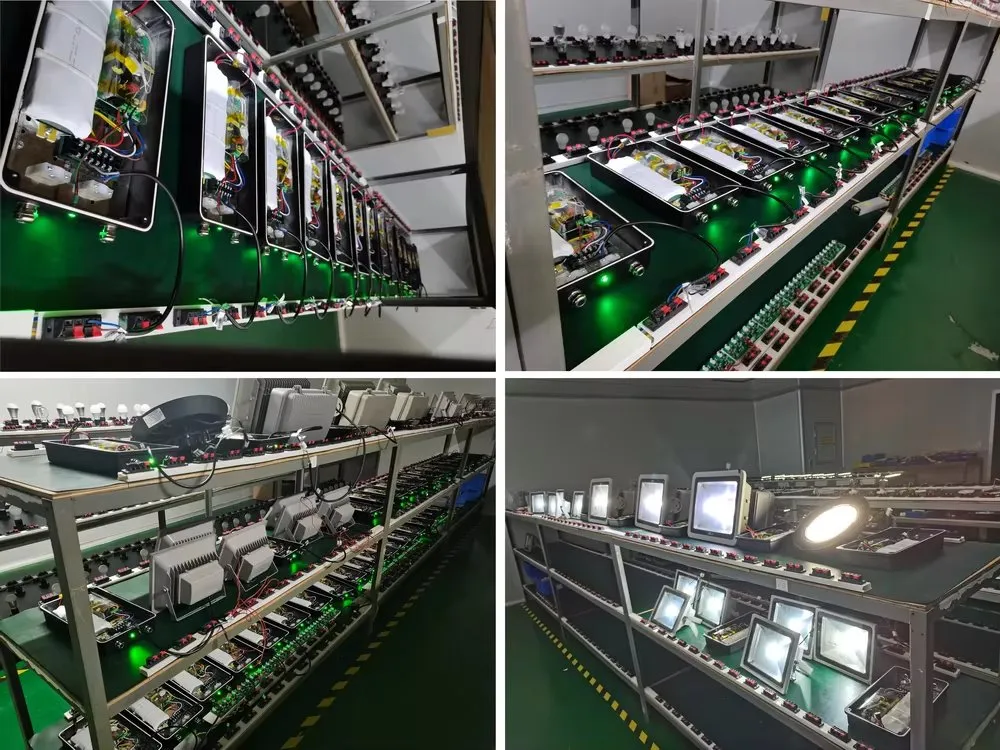

Quality Assurance: Rigorous testing before shipment.

Frequently Asked Questions

Q1: What is the maximum LED power this driver can support? A1: This driver supports LED lights with a power range from 9W up to a maximum of 60W.

Q2: How long does the emergency light stay on during a power outage? A2: The emergency duration is 180 minutes (3 hours) with a 9W emergency output power.

Q3: How long does it take to fully charge the battery? A3: It requires at least 24 hours of charging time to ensure a full battery capacity of 4400mAh.

Q4: Is the emergency driver waterproof? A4: The unit has an IP20 rating, which means it is protected against solid objects but not waterproof. It is intended for indoor use.

Q5: What is the switching time between main power and battery power? A5: The conversion happens almost instantaneously, with an emergency switch time of less than or equal to 1 second.

Q6: Can this be used with different types of batteries? A6: Yes, the system is versatile and supports Ni-MH, Ni-Cd, Li-ion, and LiFePO4 battery types.
