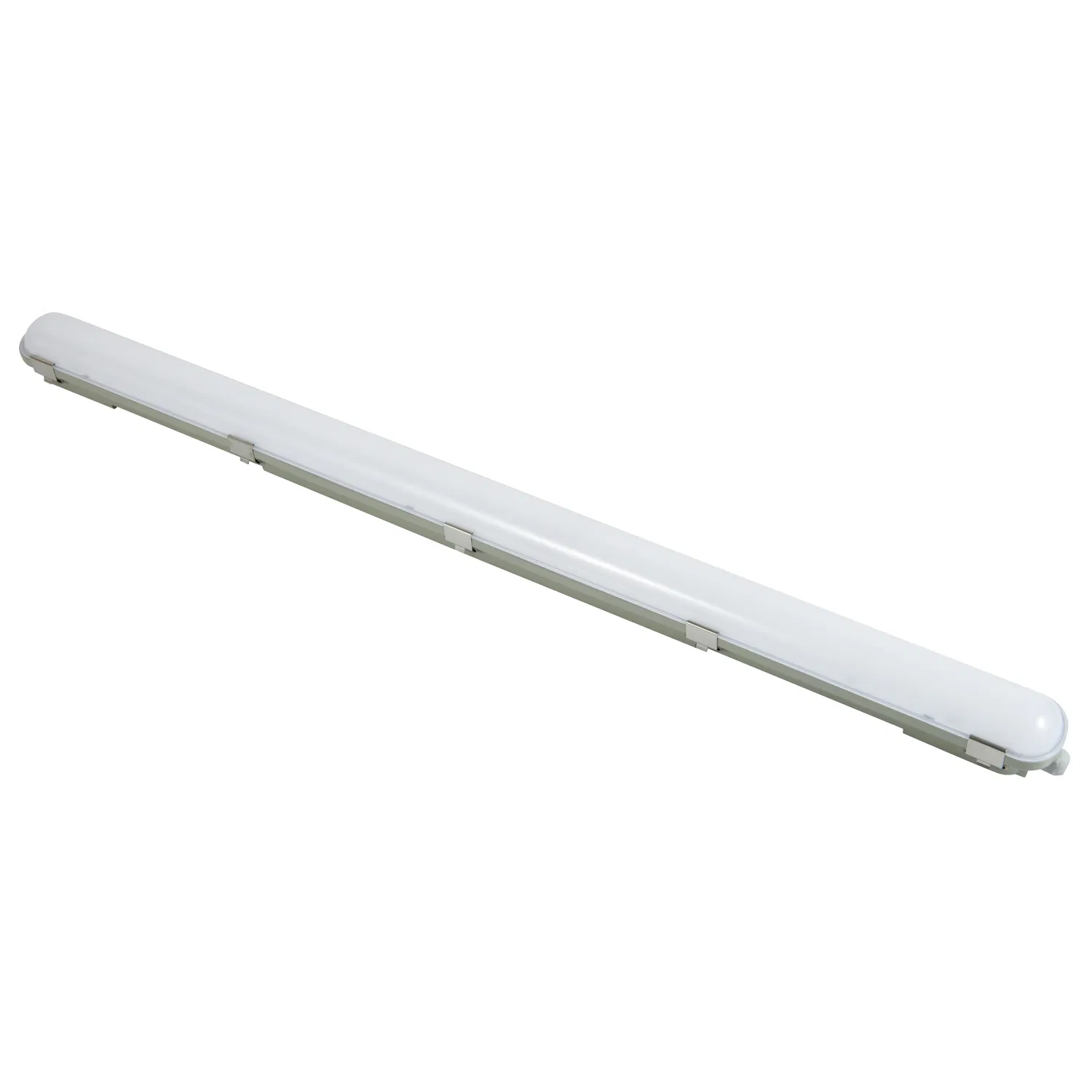

Car Park Light IP65 Waterproof Weatherproof Triproof LED Linkable Linear Batten Light with CB CE RoHS
Product Description
Car park light IP65 waterproof weatherproof triproof LED linkable linear batten light with CB CE RoHS
Basic Specifications
Model NO.
SLWP1240H
Feature
Anti-corrosion, Dust-Proof, Waterproof
Material
Plastic / PC Base & Opal PC Diffuser
IP Class
65
Wattage
40W
CRI (Ra)
80
Luminous Efficacy
80-100lm/W
LED Source
SMD2835 (116pcs)
Input Voltage
220-240V 50/60Hz
Dimensions
1200*80*64mm
Beam Angle
120 Degree
Lifespan
50,000 Hours
Visual Presentation

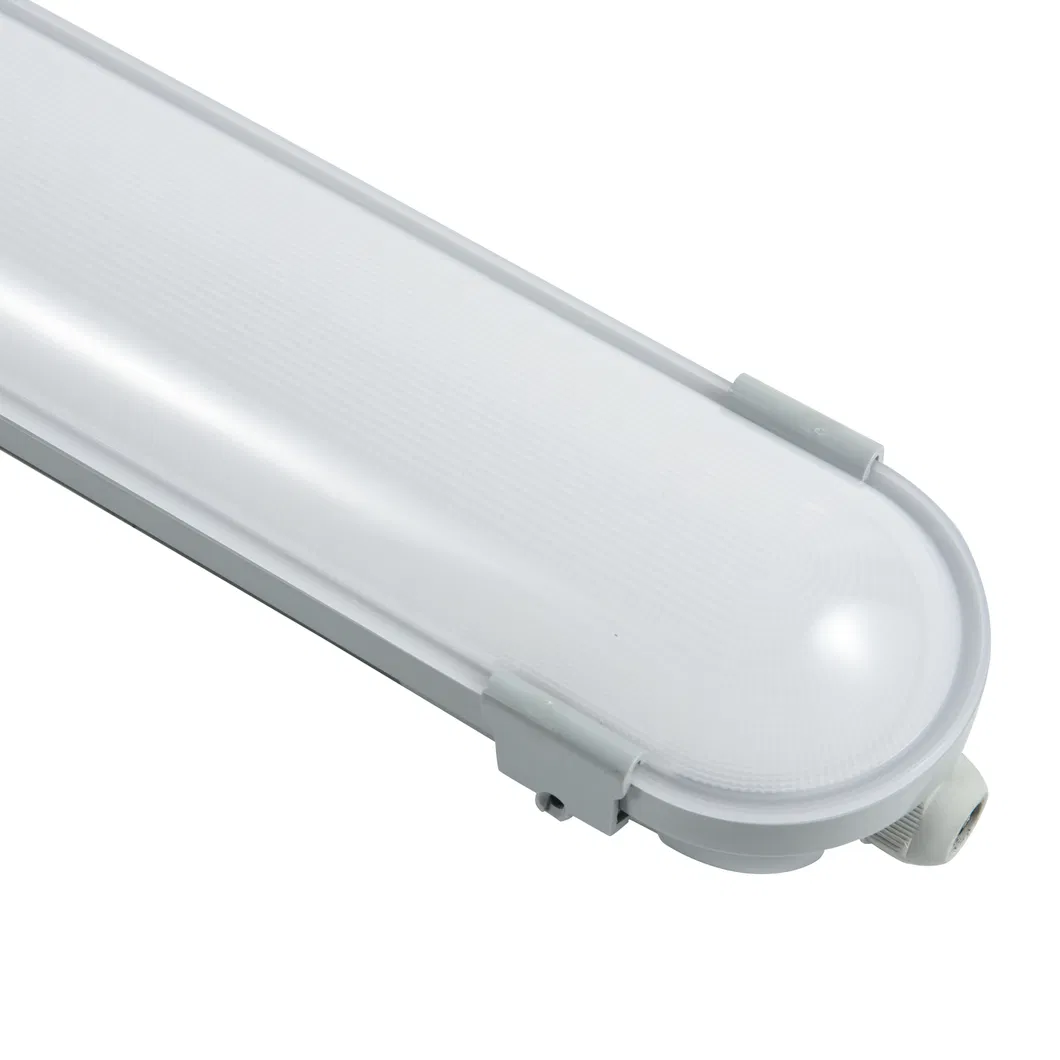

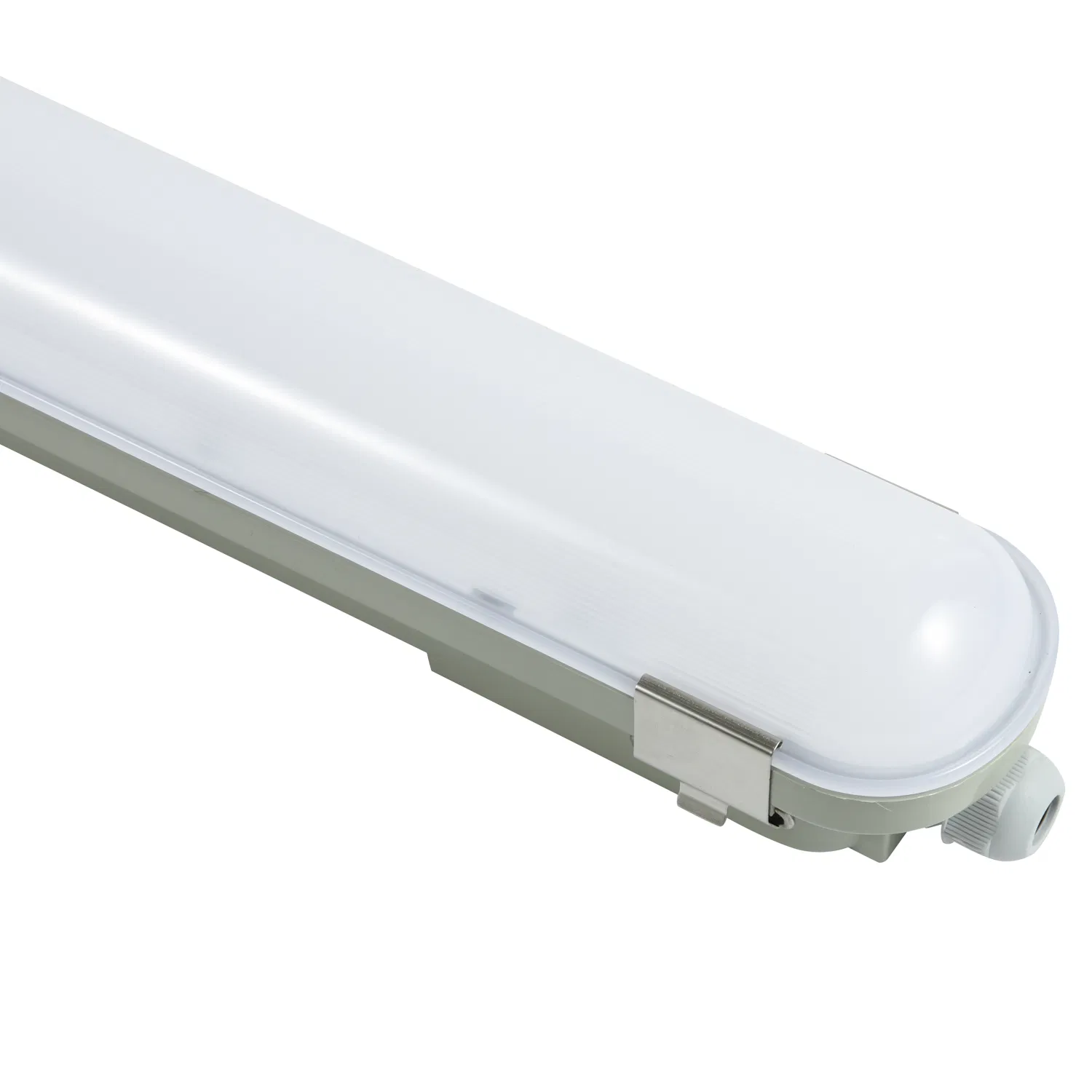

Opal diffuser & Stainless steel clips

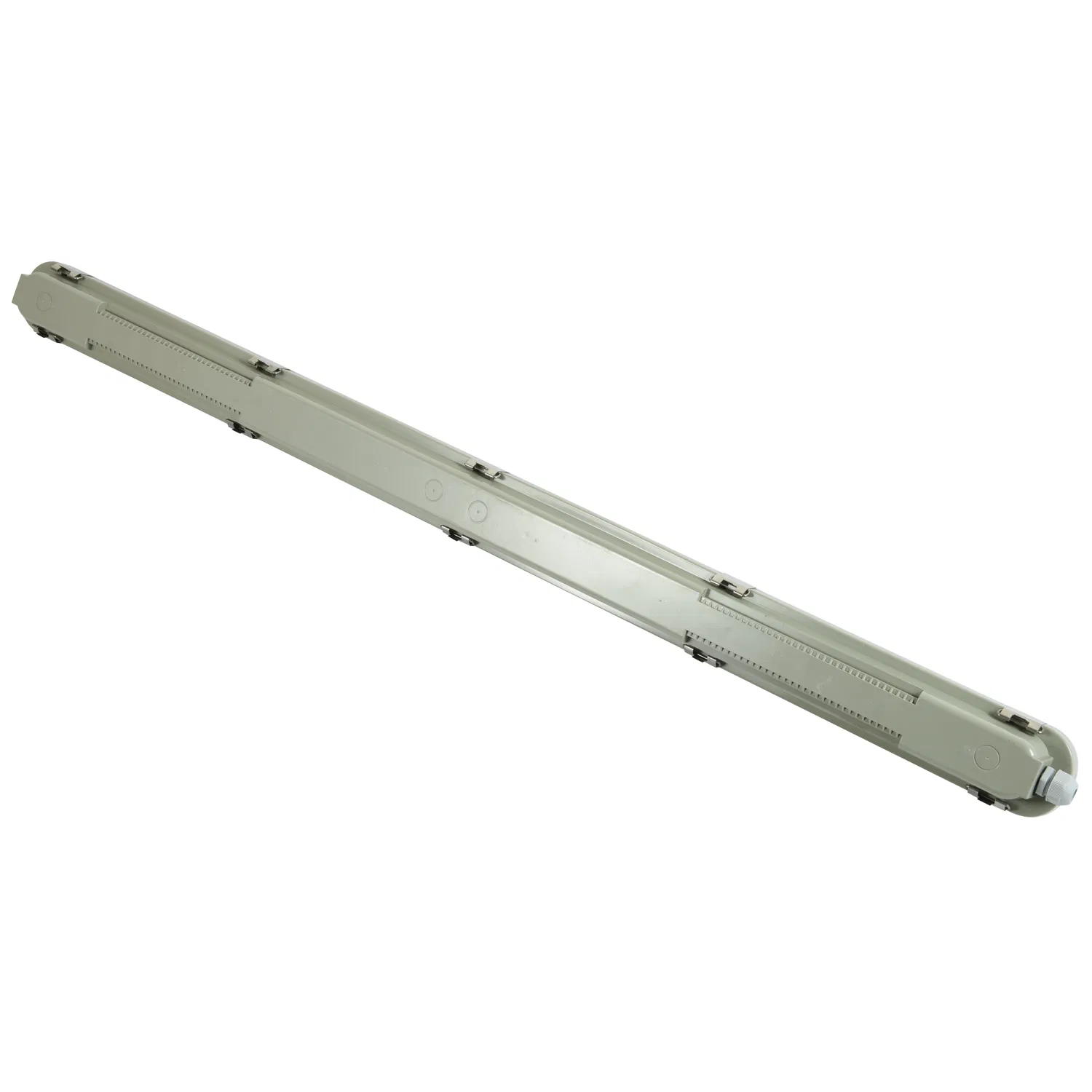

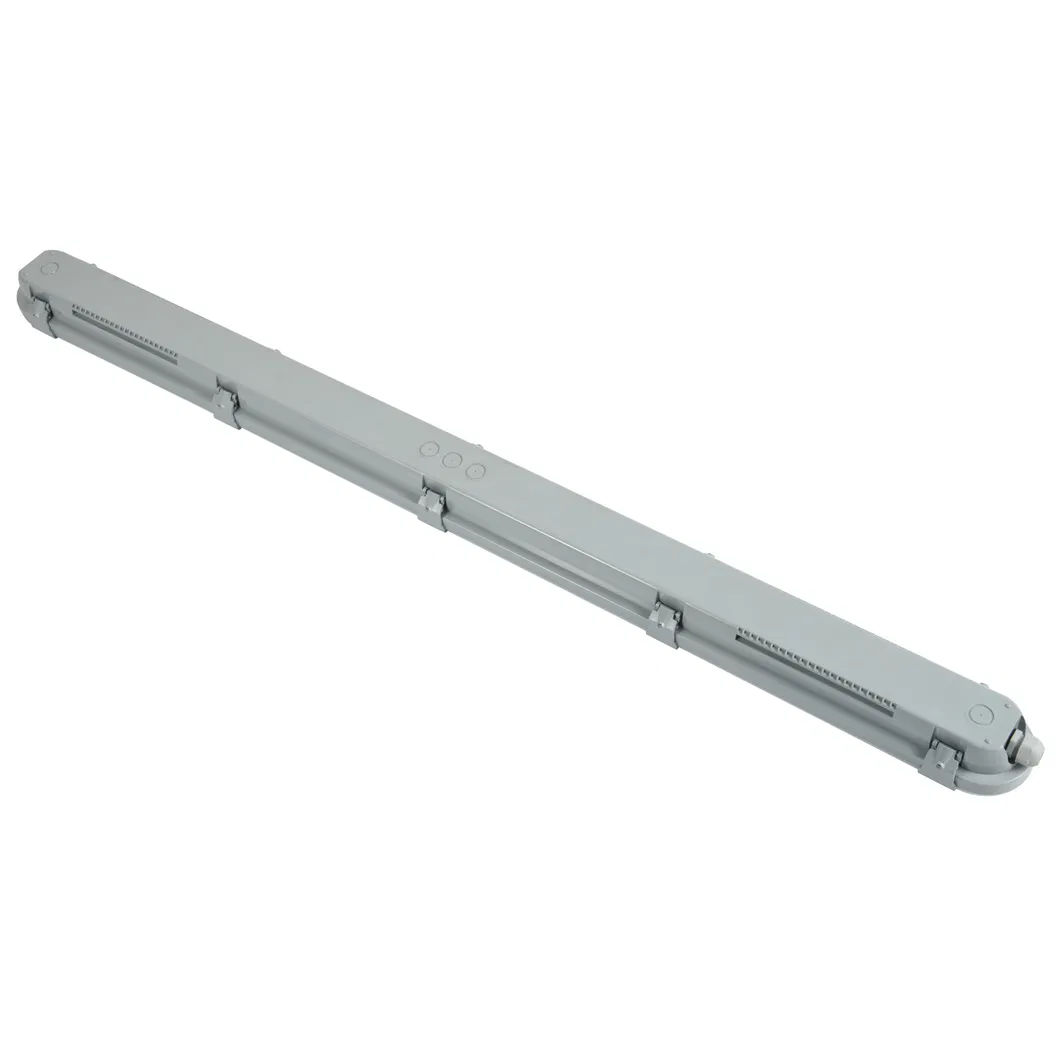

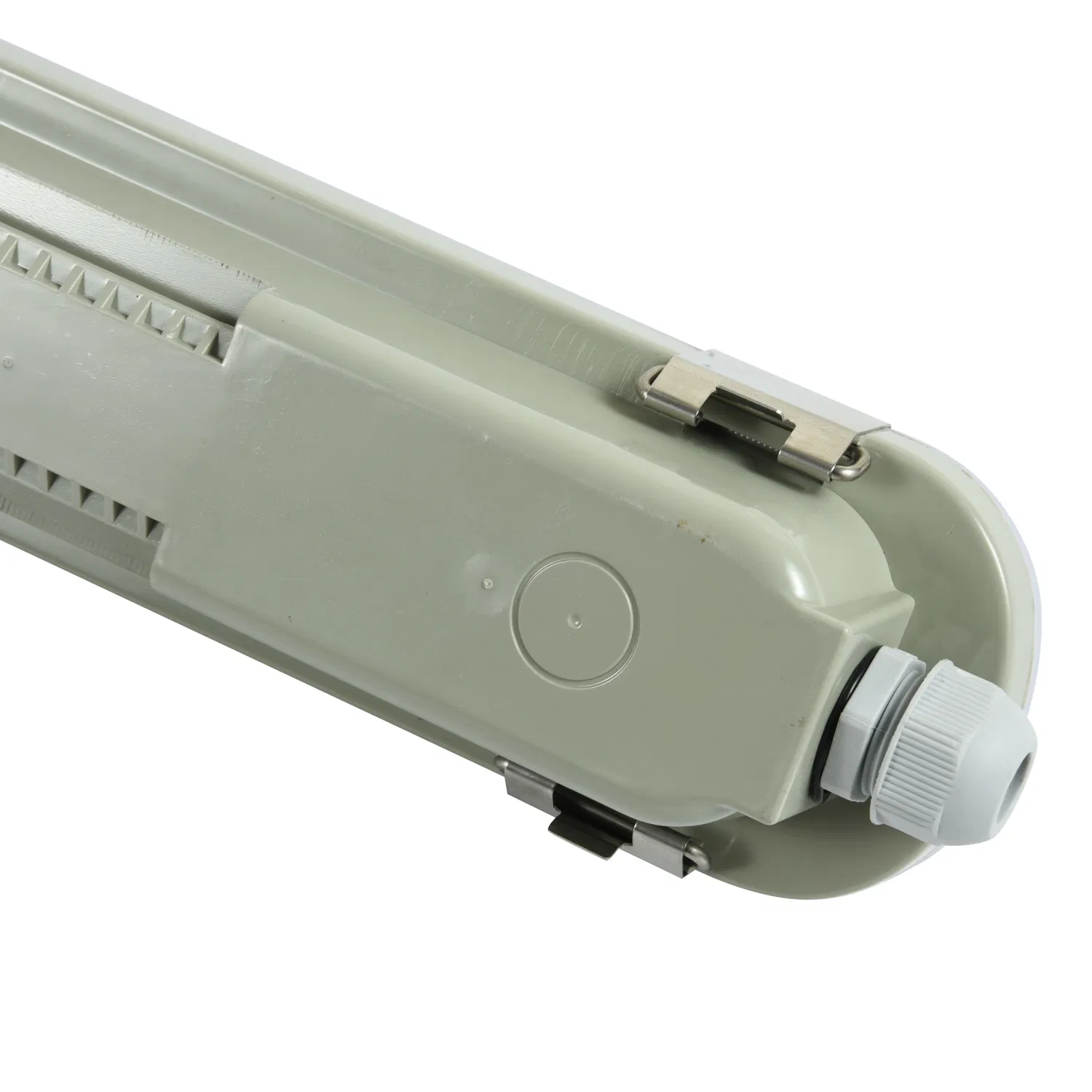

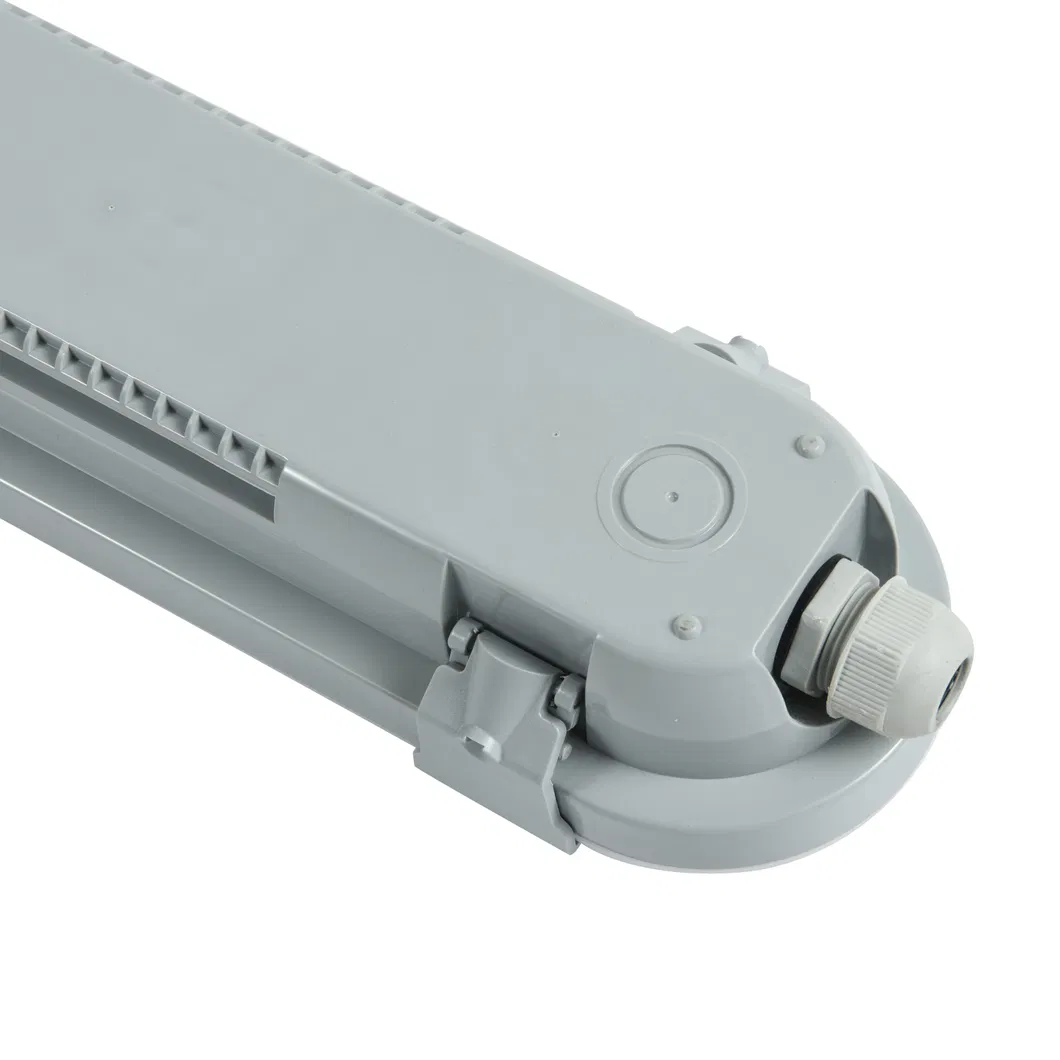

Gray base with IP65 waterproof cable gland

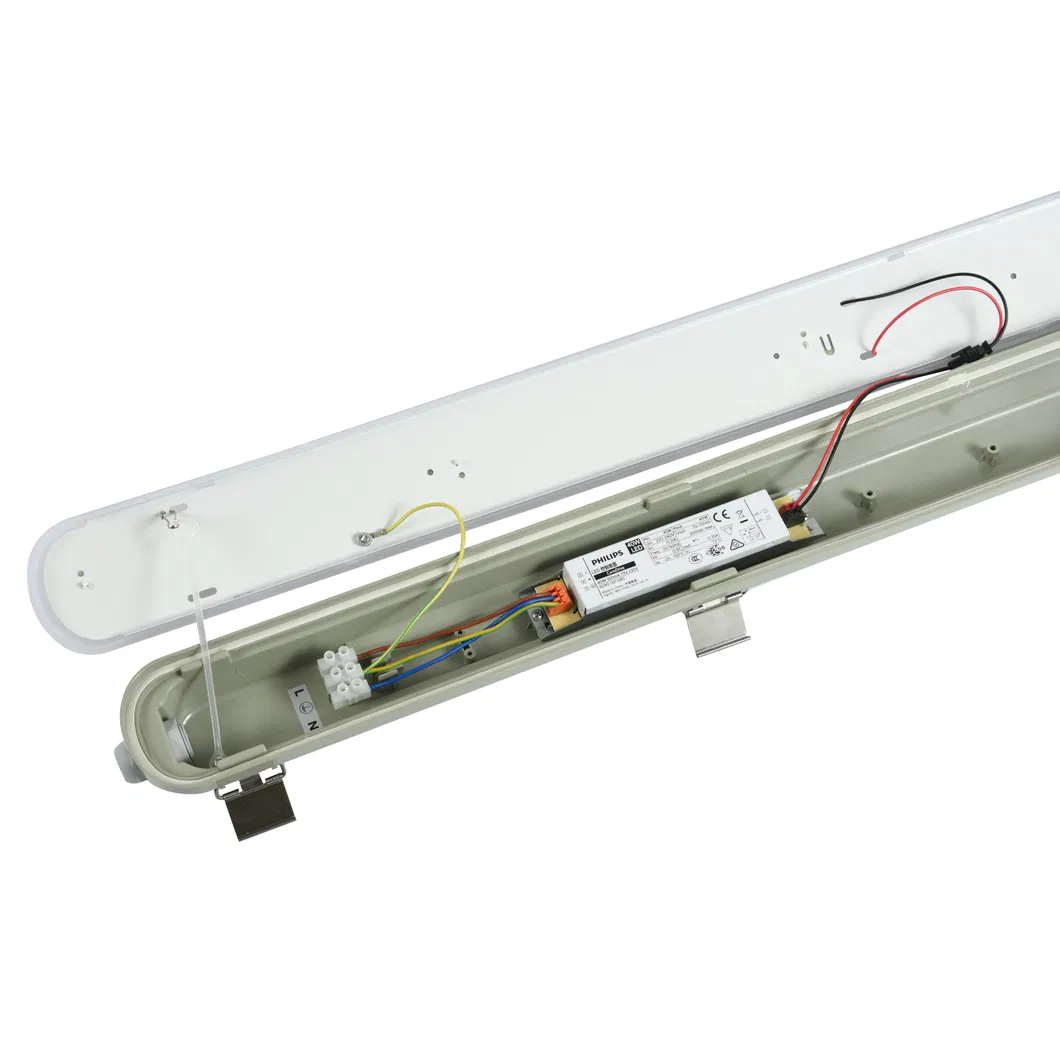

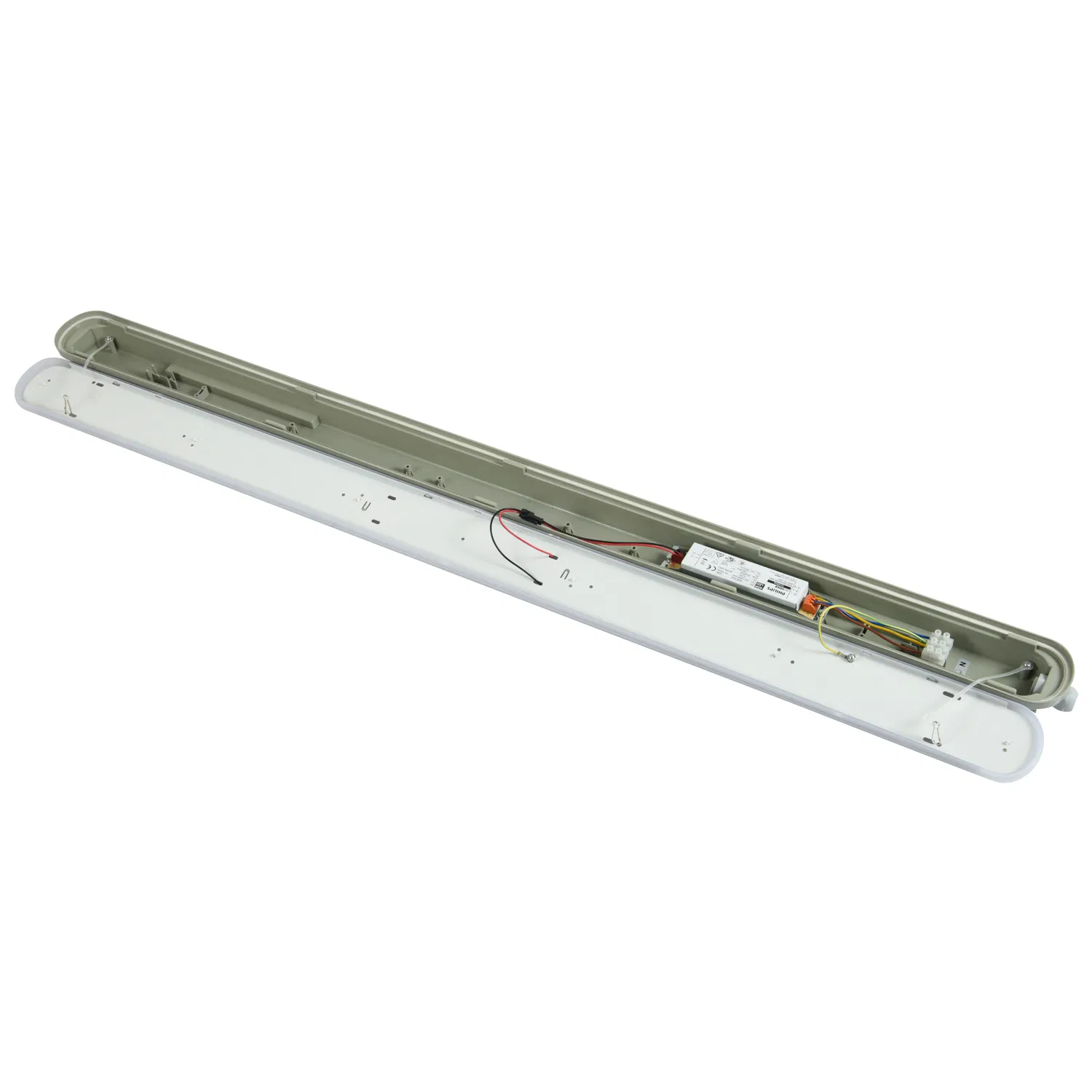

Reflector + Diffuser Integrated Design
Product Key Features
- Linear driver with AC 220-240V, 50-60Hz input
- High temperature resistant PCB or MCPCB options
- Impact resistance meeting IK08 standards
- 850 degree glow wire test compliant
- 60% electricity saving compared to T8 fluorescent fixtures
- Optional integration with motion/dimming sensors and emergency kits
- Weatherproof, dustproof, and waterproof for wet locations
- Perfect replacement for traditional T8 fluorescent luminaires
Typical Applications
Technical Parameters Matrix
| Model | Power | LED Qty | Lumens | CCT | IP | Size (mm) |
|---|---|---|---|---|---|---|
| SLWP0620H | 24W | 58pcs | 2000LM | 2700-6500K | 65 | 600*80*64 |
| SLWP1240H | 40W | 116pcs | 4000LM | 2700-6500K | 65 | 1200*80*64 |
| SLWP1560H | 60W | 174pcs | 6000LM | 2700-6500K | 65 | 1500*80*64 |
Frequently Asked Questions
What is the waterproof rating of this light?
This linear light features an IP65 rating, making it completely dust-tight and protected against water jets, suitable for outdoor and wet location applications.
How much energy can I save by switching to this LED triproof light?
Compared to standard T8 fluorescent lighting fixtures, this LED solution can save up to 60% in electricity consumption.
Is the light fixture durable enough for industrial environments?
Yes, the body and diffuser meet IK08 impact standards and have passed the 850-degree glow wire test for fire safety and durability.
Can this light be customized with sensors?
Absolutely. It can be equipped with various sensors, including On/Off sensors, dimming sensors, and emergency battery kits.
What is the expected lifespan and warranty?
The light has a lifetime of approximately 50,000 hours and comes with a 2-year warranty for peace of mind.

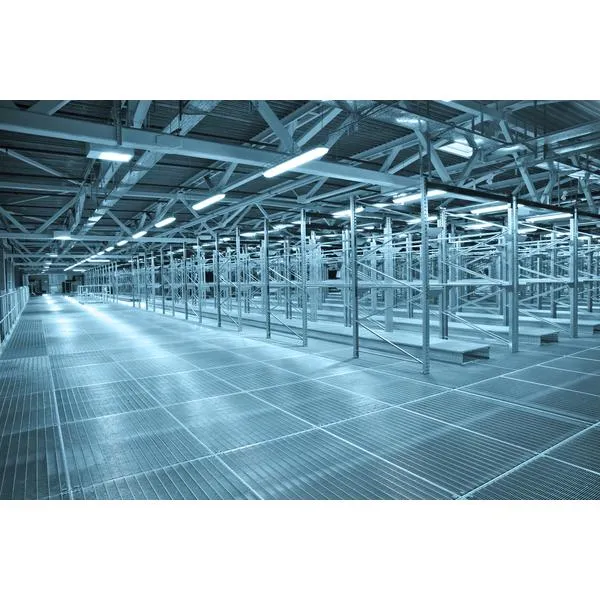

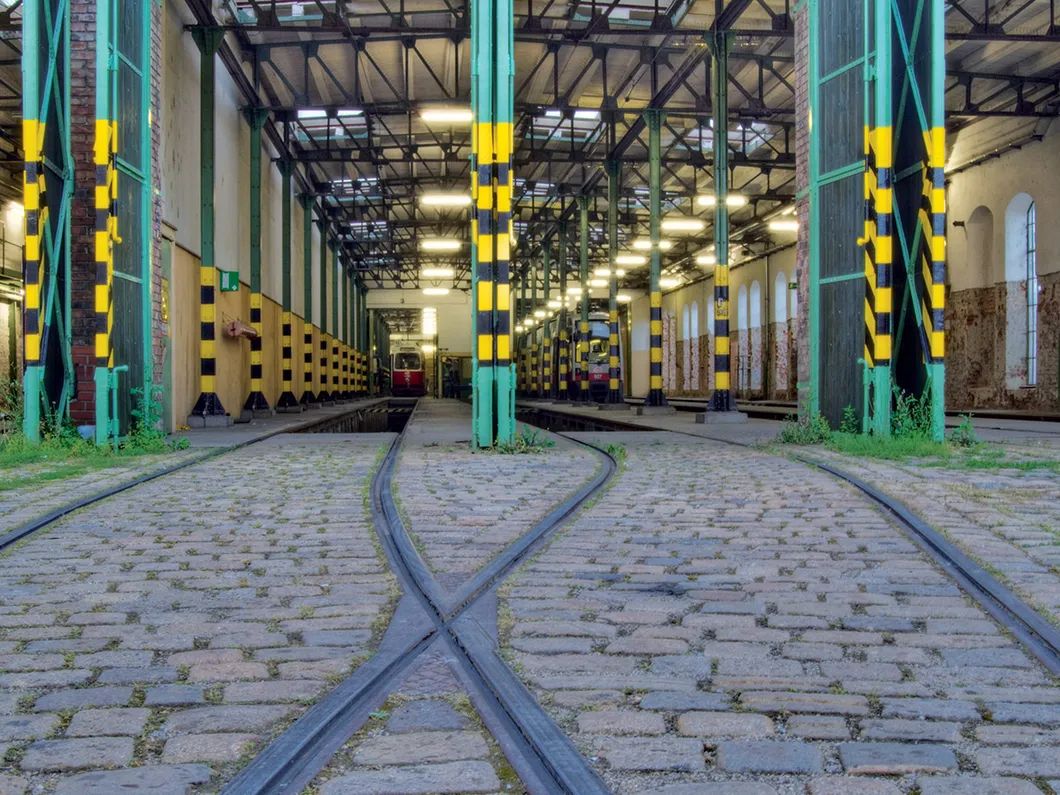

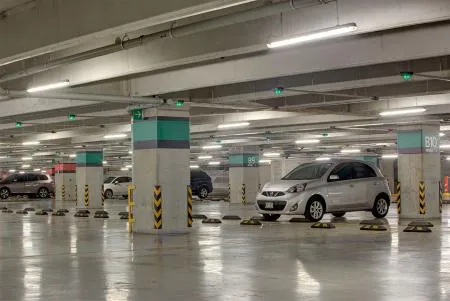

Where is this light typically used?
It is ideal for supermarket aisles, underground parking garages, warehouses, factories, and public transport stations.
