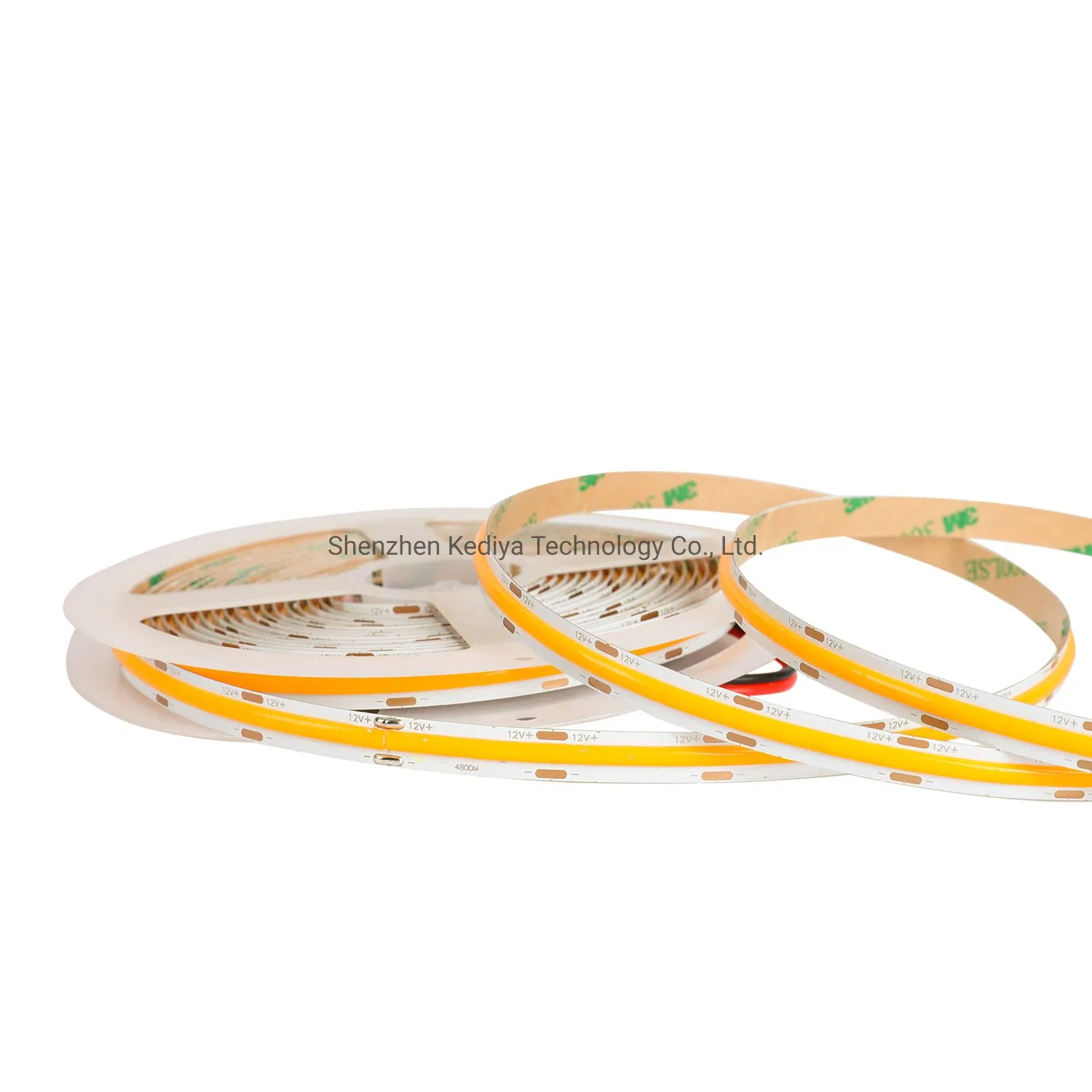

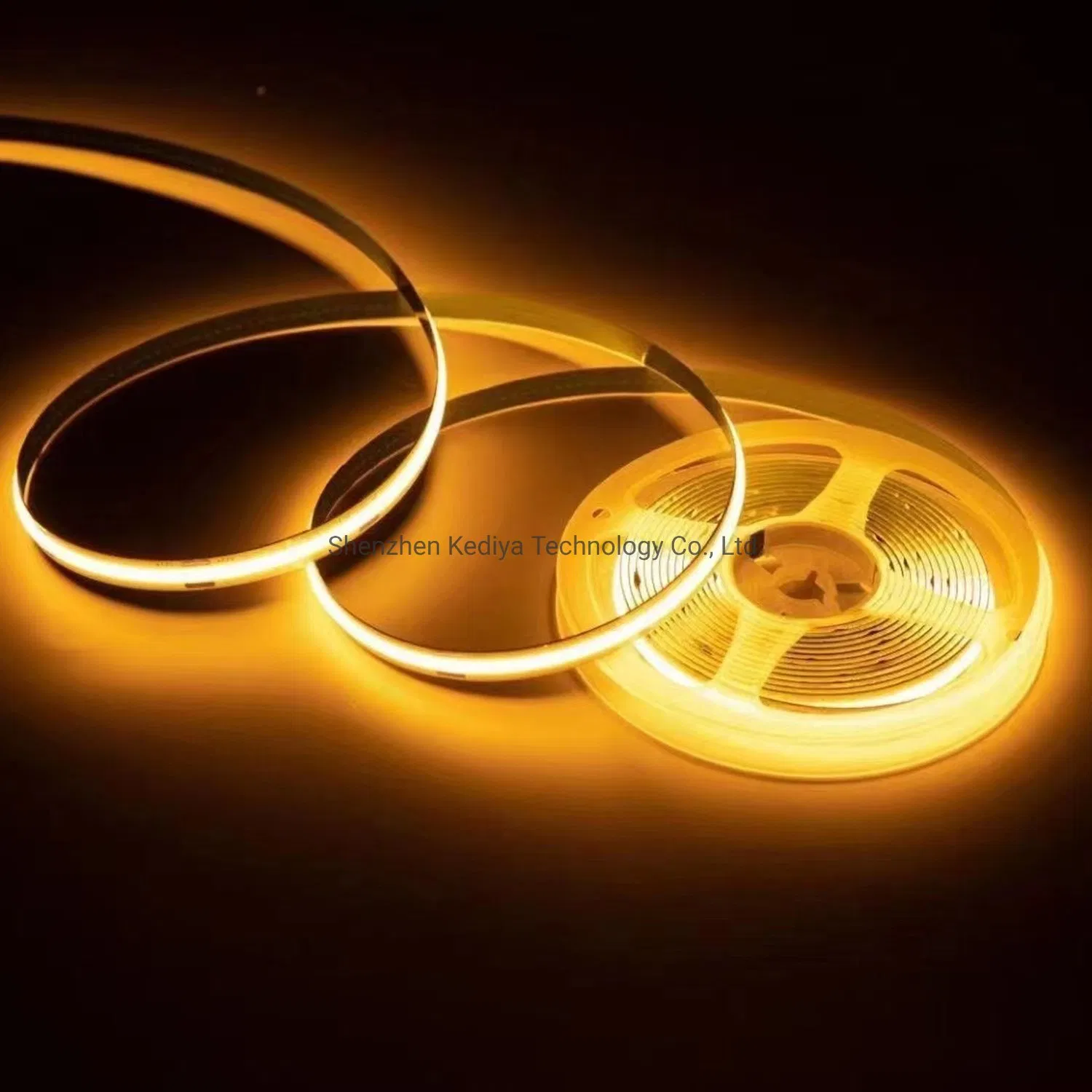

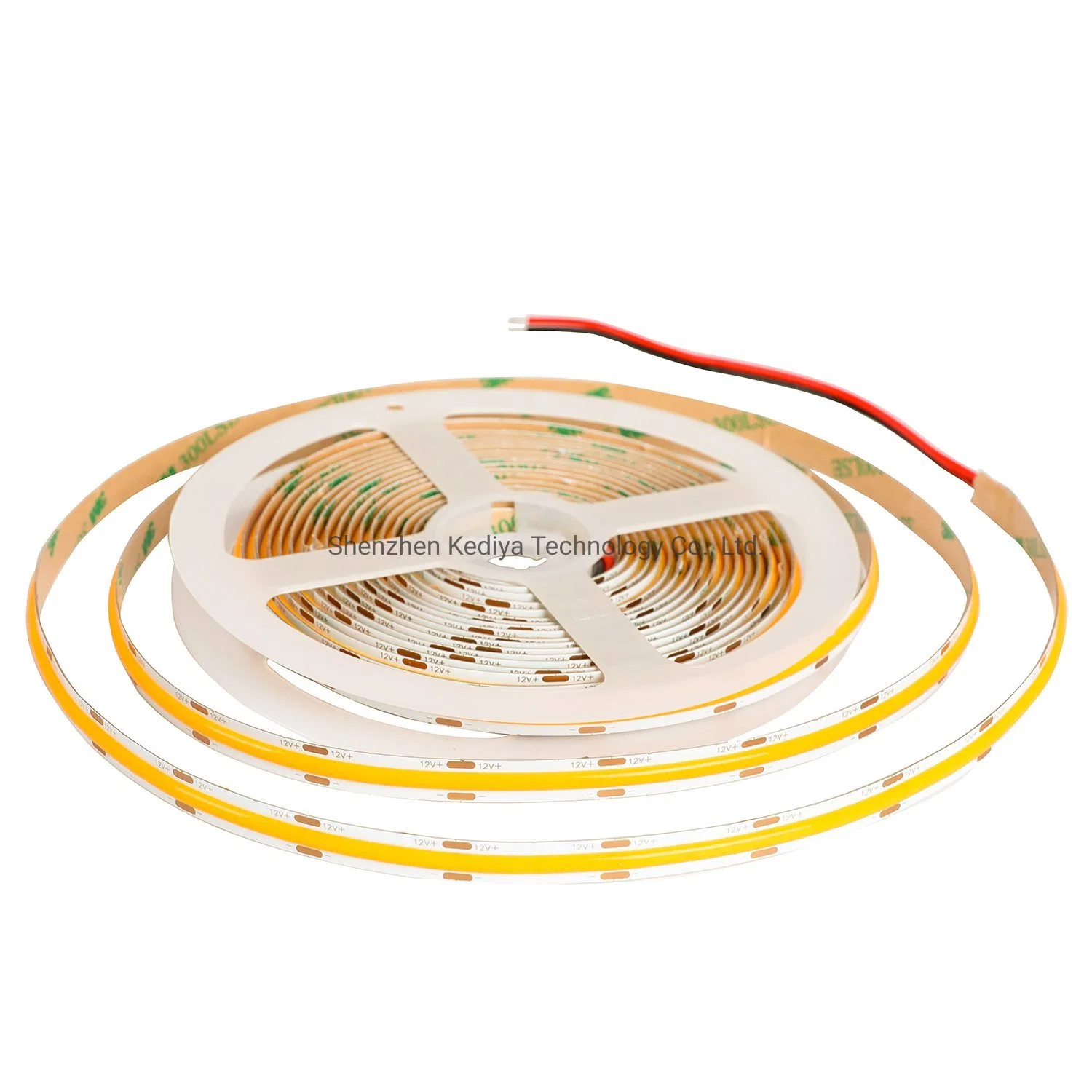

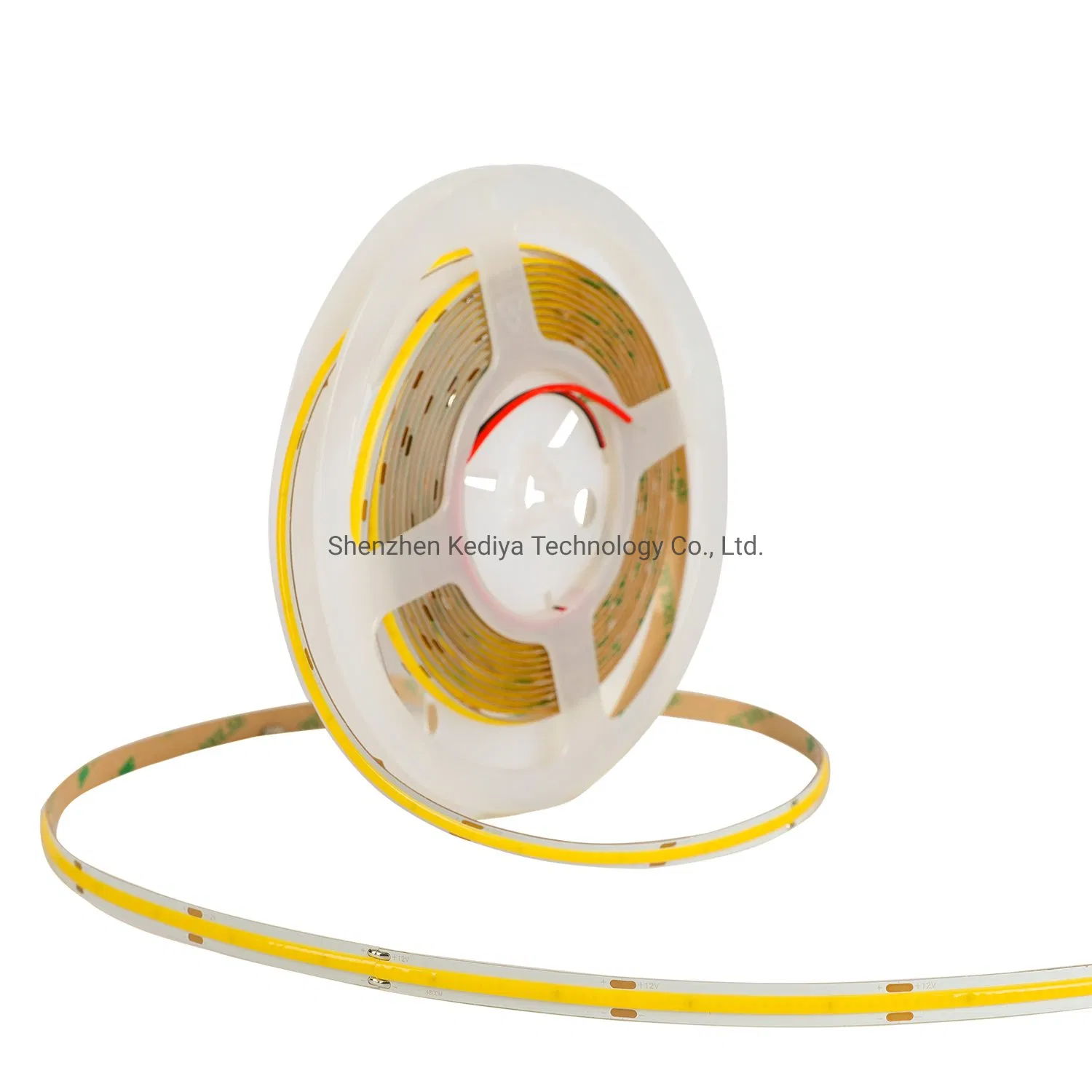

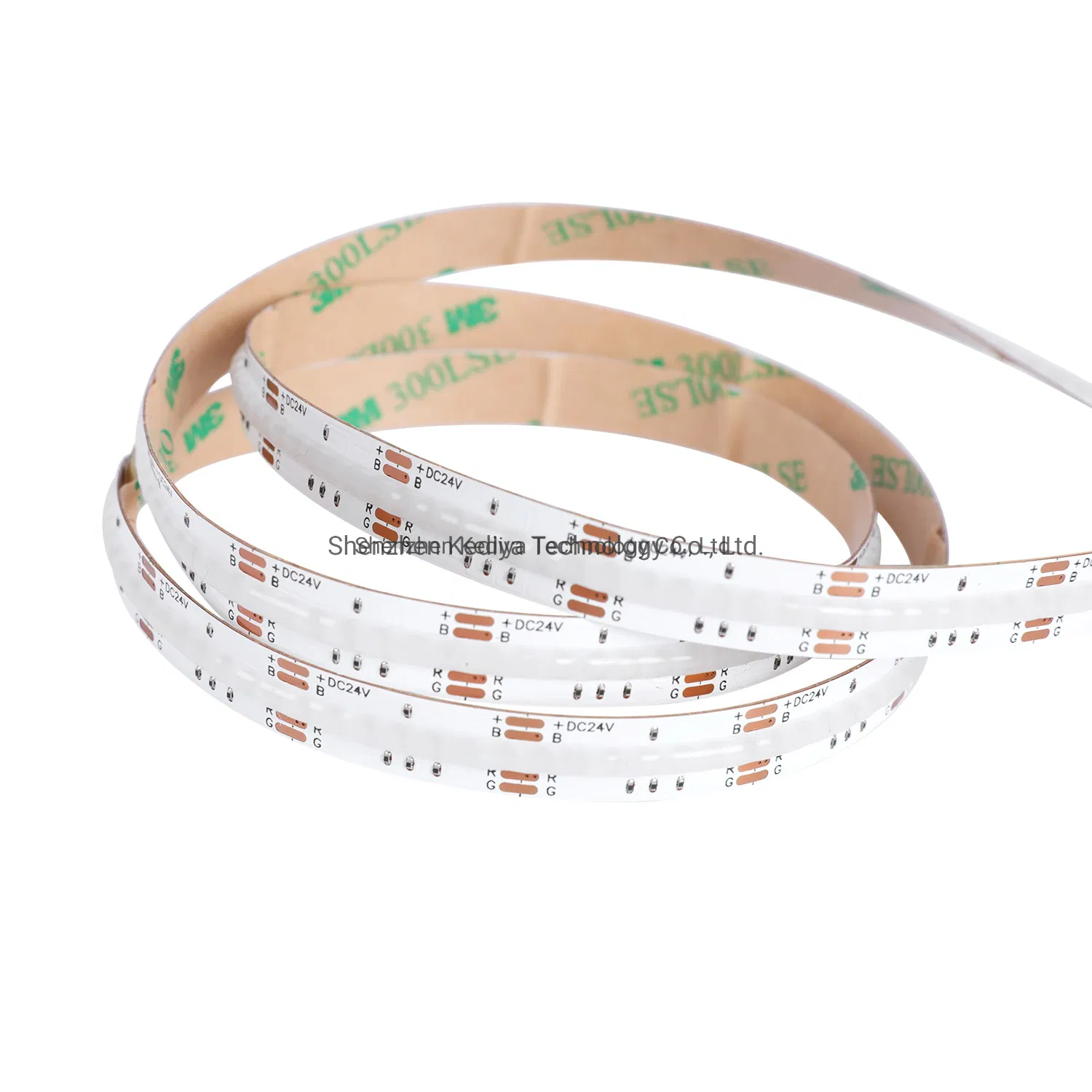

CRI90 COB Dotless Line Linear LED Tape Light IP20 Waterproof 12V 24V 320 LEDs Flexible Smart Music WiFi RGB Flexible COB LED Strip Light
Product Description
📊 Basic Info
| Model NO. | KCOB-12V320-P8G | Emitting Color | White |
| Voltage | 12V/24V | IP Rating | IP20/IP65/IP67/IP68 |
| Product Name | Day White LED Tape Light 320 LEDs Flexible COB Strip | ||
| LEDs Material | 99.99% Pure Gold Wire | Wattage | 11W/M |
| CRI (Ra>) | >90 | Luminous Flux(Lm) | 980-1100 |
| PCB Material | Double-Sided Pure Copper | LED Qty | 320LEDs/M |

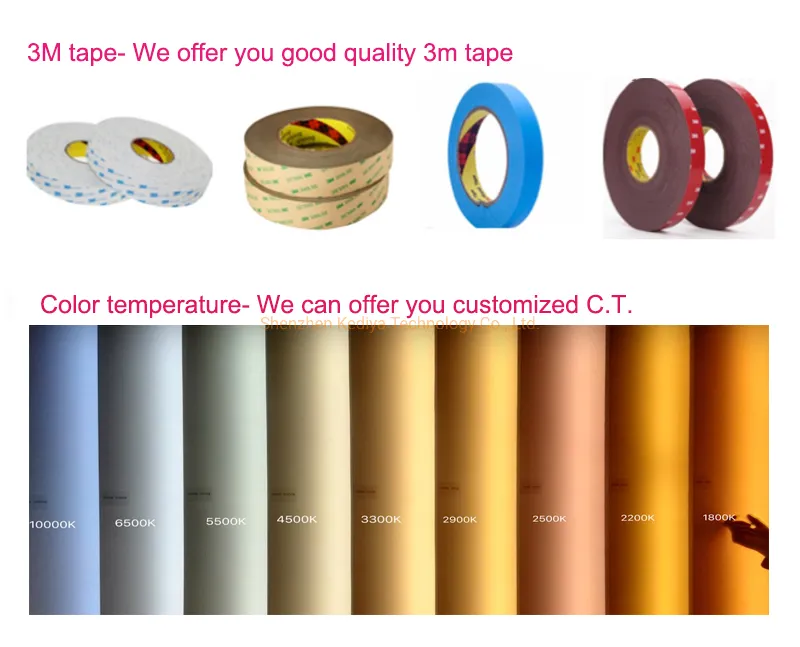

| Color Temp | 2700K, 3000K, 4000K, 6000K | Beam Angle | 180 degree |
| Warranty | 3 Years | Lifespan | 50,000 Hours |
✨ Christmas Decoration CRI90 COB Dotless Linear LED Tape Light
📝 Product Highlights

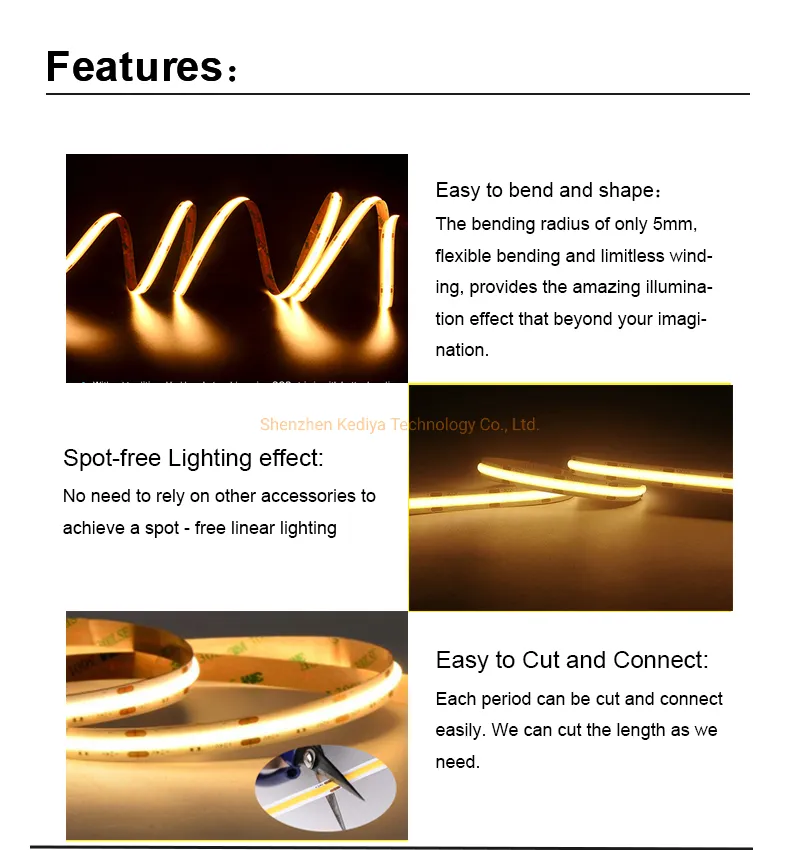

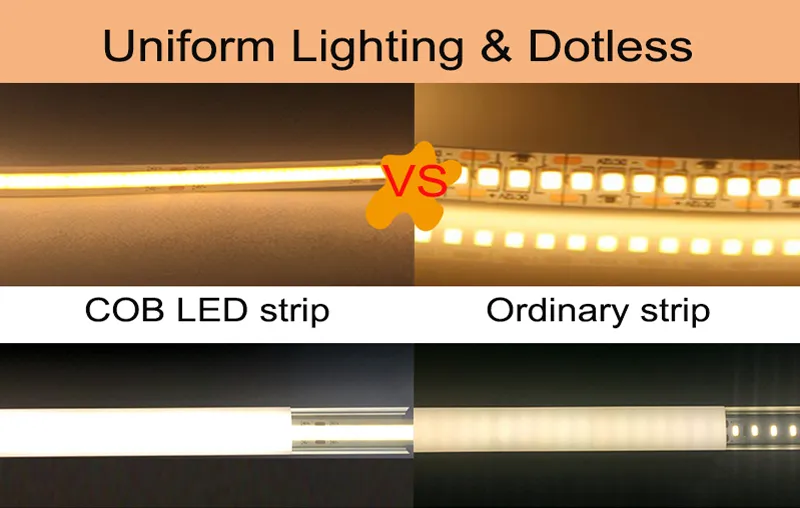

- Dot-Free Lighting: Perfect solution for linear light without needing profiles or PC covers.
- Uniform Illumination: Continuous, soft, and elegant light with no glare.
- Flip-Chip Technology: Advanced tech ensures no dead light risk and better heat dispersion.
- High Flexibility: Bending radius of only 5mm, allowing for any creative shape.
- Wide Application: Ideal for furniture, KBB market, or any corner architectural needs.
⚙️ Technical Parameters
| Item Type | Led Model | Voltage | Power | CCT(K) | Width |
|---|---|---|---|---|---|
| COB Strip | K-COB320-P8R | DC12V/24V | 8W - 11W | 2700K-6500K | 8mm |
| RGB COB | 768/840 LED | 24V | 14W - 15W | RGB | 10mm |
| CCT COB | 608 LED | 24V | 14W | Dual White | 10mm |
⭐ Key Features
🔥 LED Lighting New Trend: No need for accessories to achieve a spot-free effect.
🏠 Indoor & Outdoor: Multiple waterproof grades available: IP65 (Silicone/Heat shrink), IP67 (Silicone tube), IP68 (Full injecting).
🎨 Easy to Shape: The ultra-flexible PCB allows for intricate architectural curves.

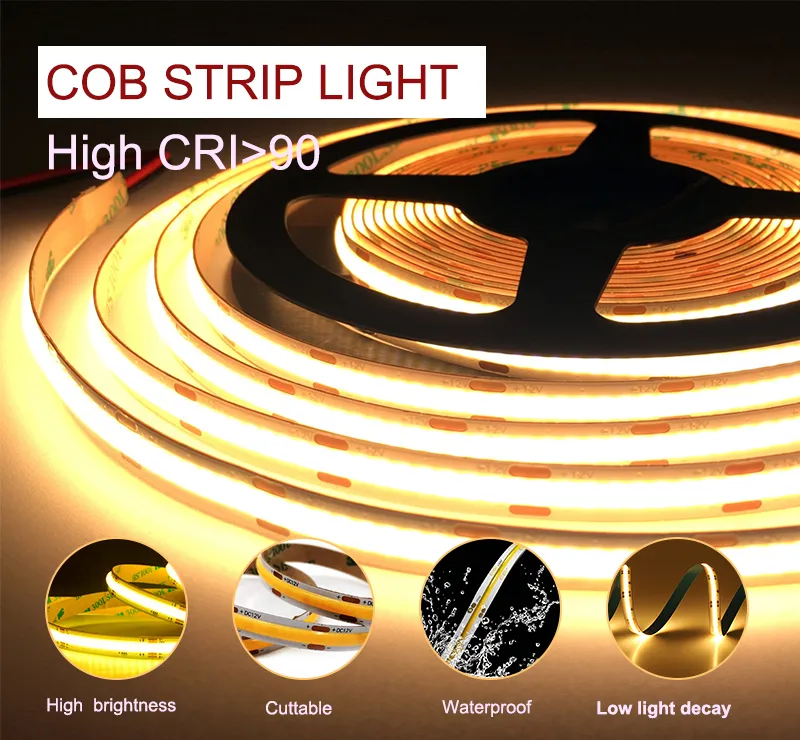

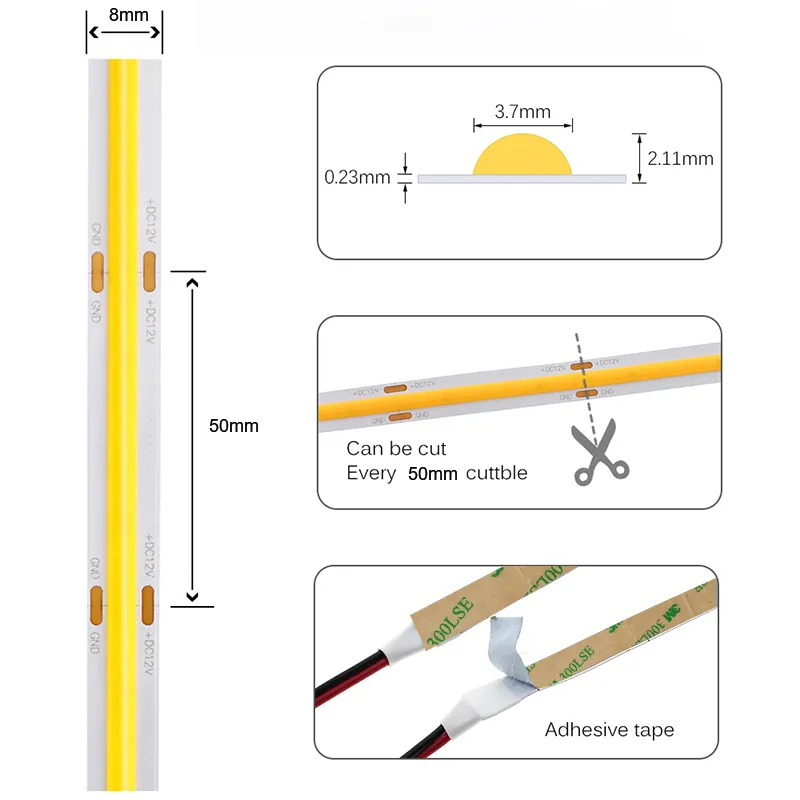

📸 Detailed Visuals

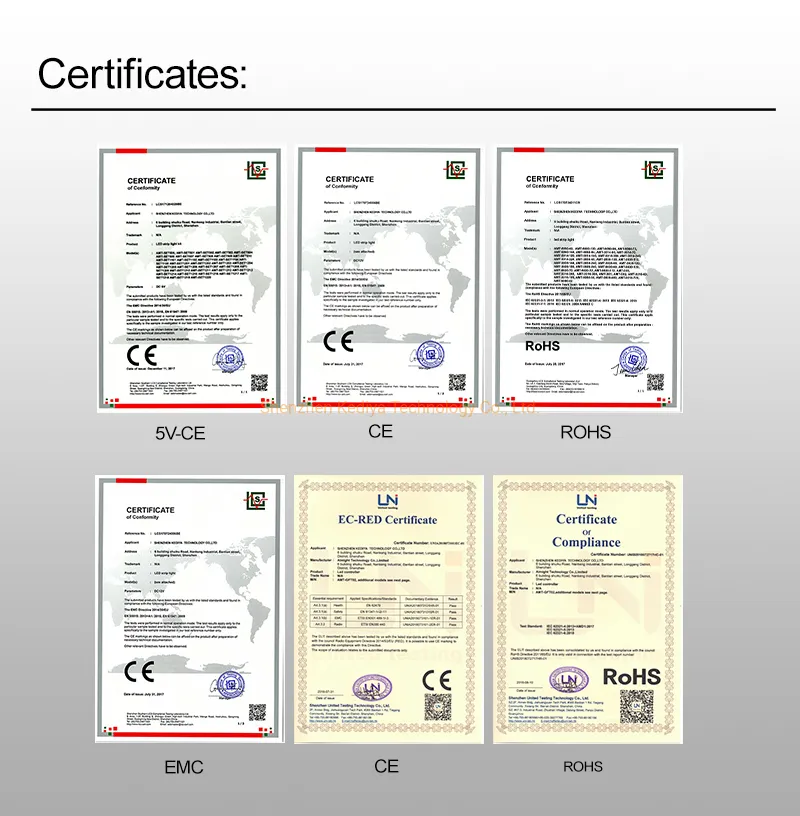

🏆 Certifications
🔬 Reliability Testing
| Test Item | Conditions | Duration |
|---|---|---|
| Thermal Shock | -25ºC (15min) ↔ 100ºC (15min) | 300 Cycles |
| Life Test | Ta=25ºC | 1000 Hours |
| Humidity Storage | Ta=85ºC, RH=85% | 1000 Hours |
🛠️ Installation Instructions
- Use a correct power supply (ensure total load is approx. 80% of power supply capacity).
- Standard length is 5 meters/roll to ensure uniform brightness.
- Clean surfaces before using the adhesive tape; test adhesion on wood or cloth surfaces first.
- Minimum bending diameter is 60mm to protect the FPC and components.
- Cut power during installation to avoid electric shock.

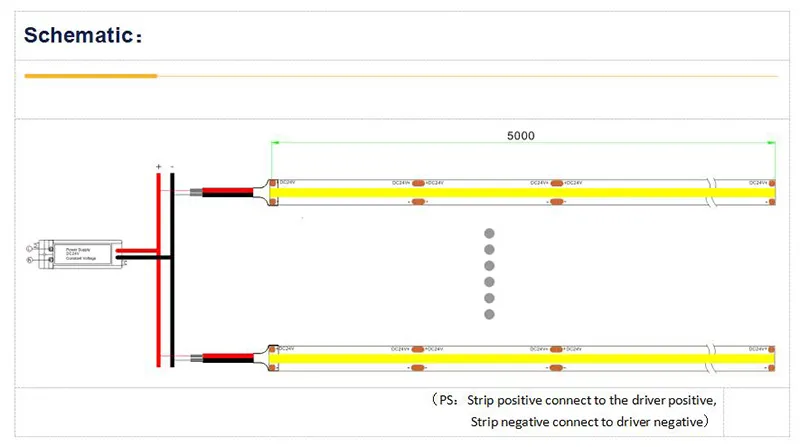

- Always observe positive and negative polarity for correct connection.
📦 Packaging & Shipping
1. Standard Packaging: 5 meters per roll, 100 rolls per carton box.
2. Delivery Time: Usually 3-5 working days for orders under 2000m.
3. Logistics: Global shipping via DHL, FedEx, UPS, or via Air/Sea transport.
❓ Frequently Asked Questions
Are you a factory or a trading company?
We are a professional manufacturer of LED strip lights, COB strip lights, and Neon lights. We provide factory-direct pricing with specialized production lines.
How do you ensure high product quality?
We maintain 100% on-line QC and final inspections. Our facility holds ISO9001:2015 and SGS certifications to ensure no defective products leave the factory.
Can I request a sample before a formal order?
Yes, we can provide samples for free. Customers are only responsible for the international express delivery charges.
Do you offer custom design or OEM services?
Absolutely! Our professional design team can provide free custom designs based on your specific project requirements.
What is the typical lead time for an order?
Sample orders take 3-5 days. Small batch orders typically take 10-15 days, while larger orders are subject to negotiation.
What is your product warranty policy?
We offer a 2-5 year warranty on our products. During this period, any quality issues are covered by free repair or replacement.
