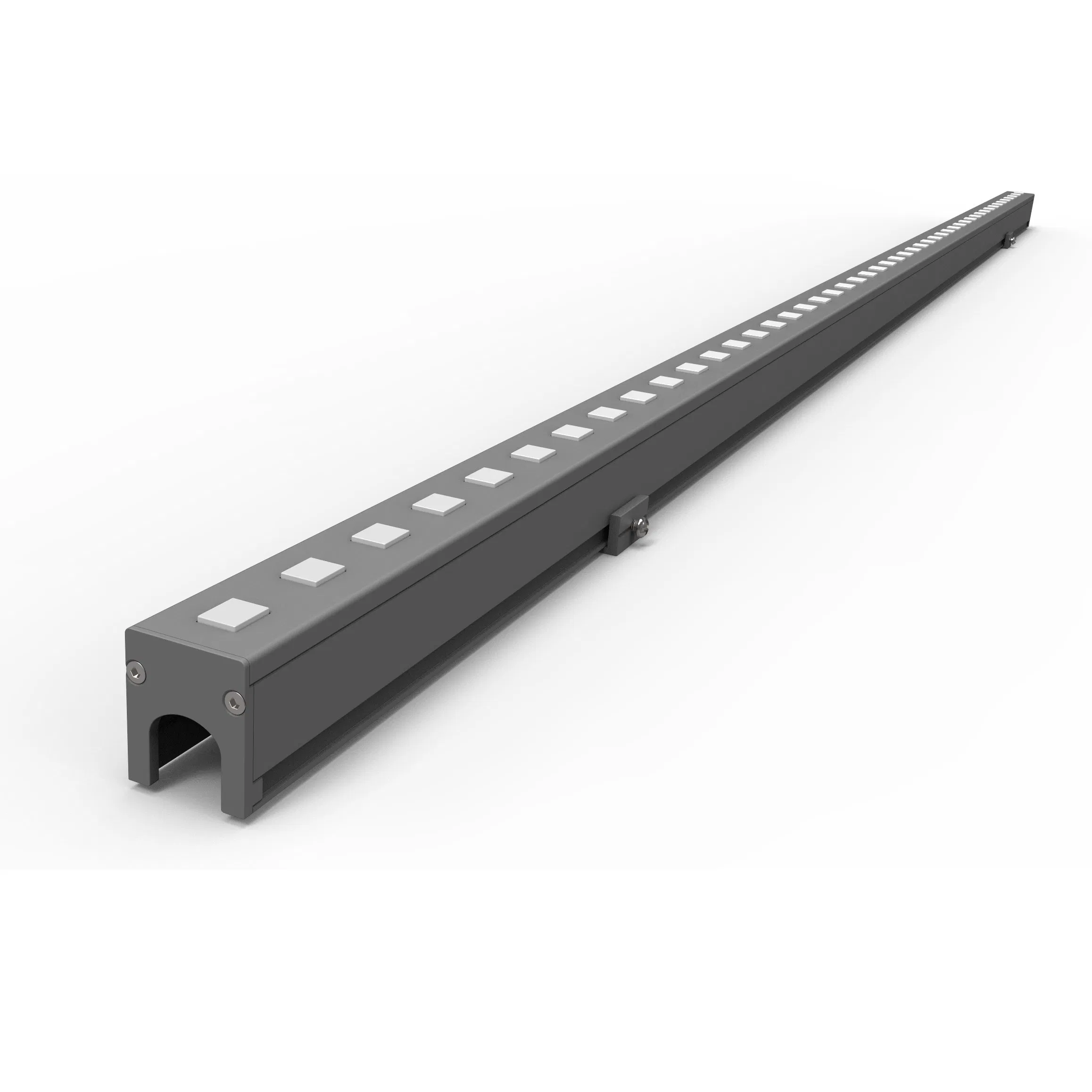

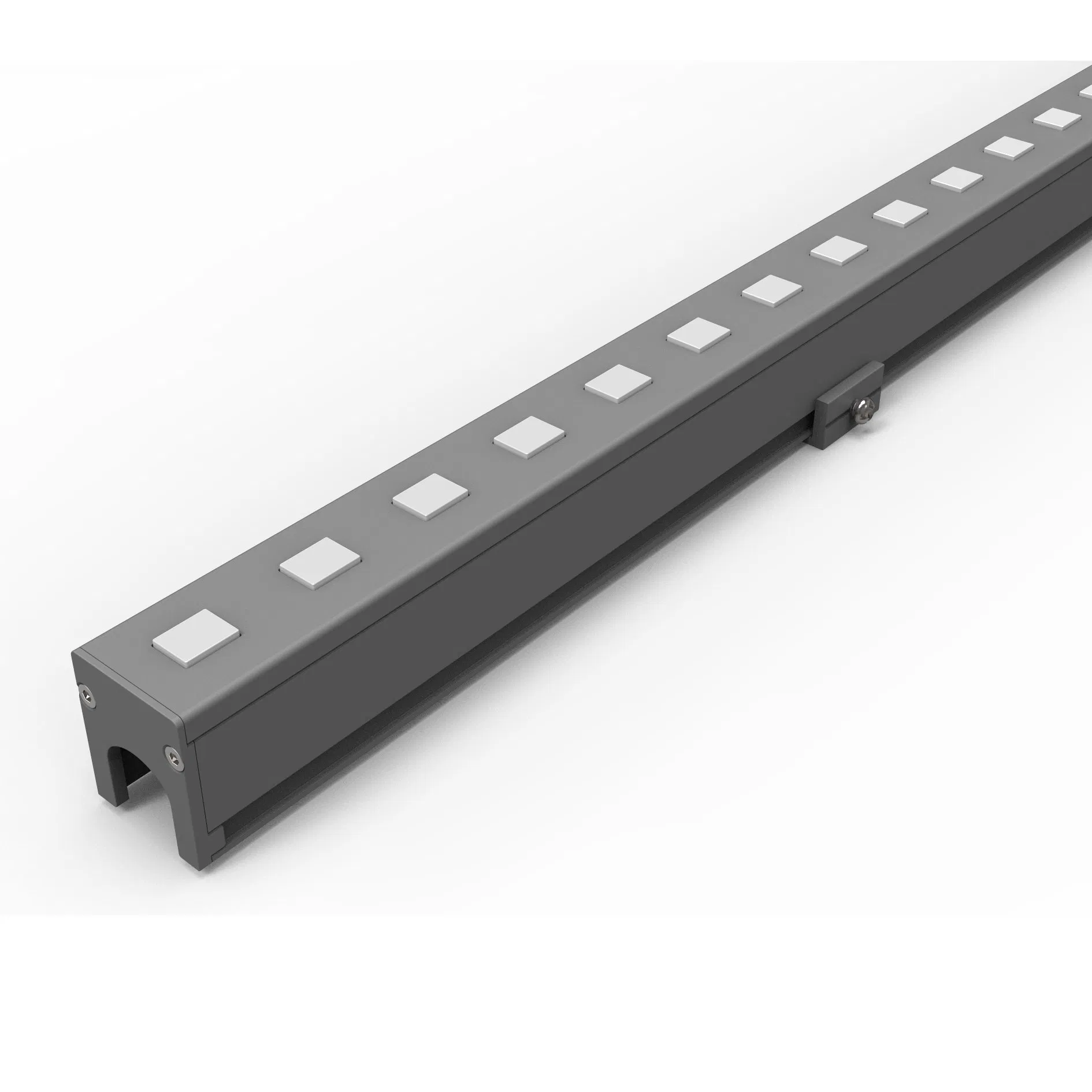

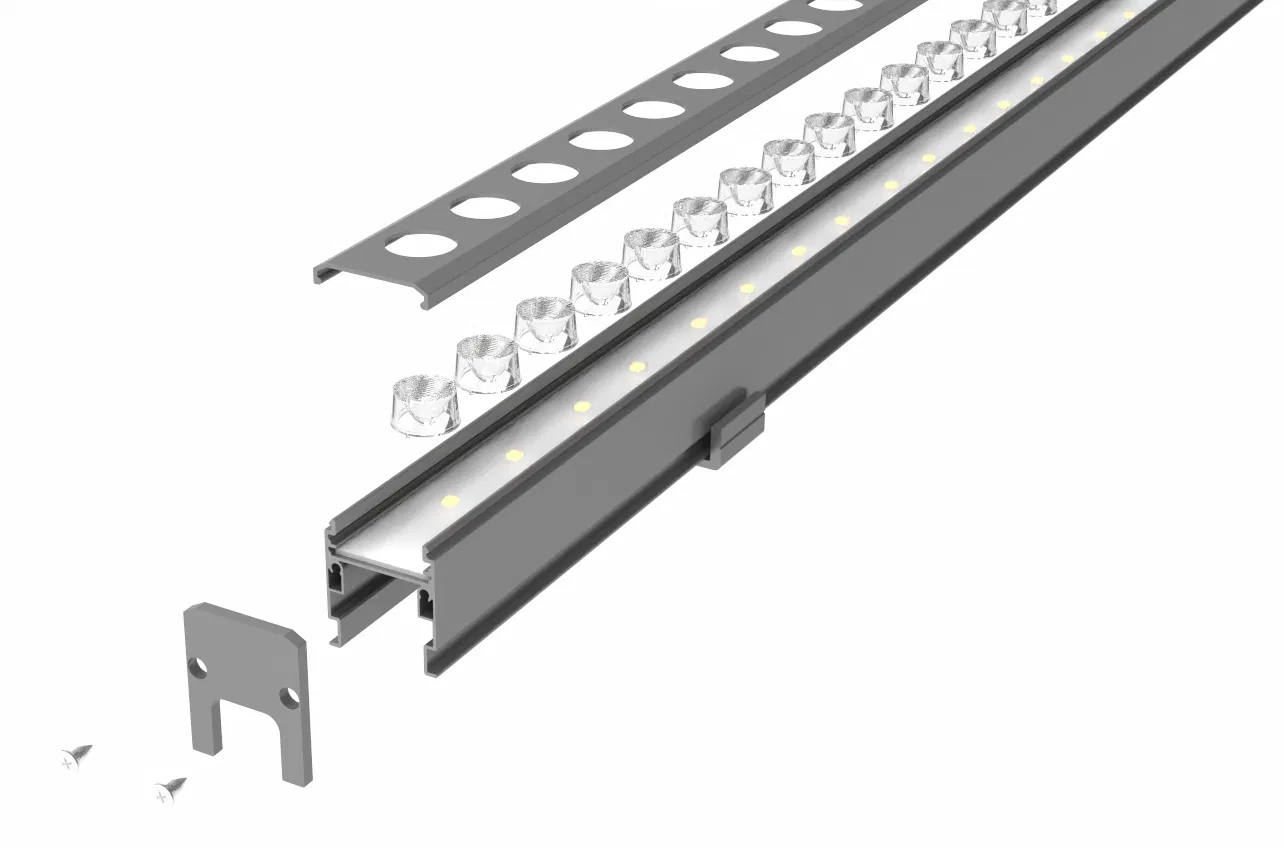

DMX512-a Protocol DC24V IP65 Jyfx07 Anti Glare 12W Rgbwoption LED Wall Washer
Product Description
Basic Information
Model NO.
Jyfx07
IP Rating
IP65
Beam Angle
30°
Lifespan
50000 hours
Warranty
3 Years
Certification
CCC, CE, CQC, EMC, VDE
Current Type
AC
Input Voltage
220V
Product Size
23*28.3*1000mm
Origin
China
Product Description

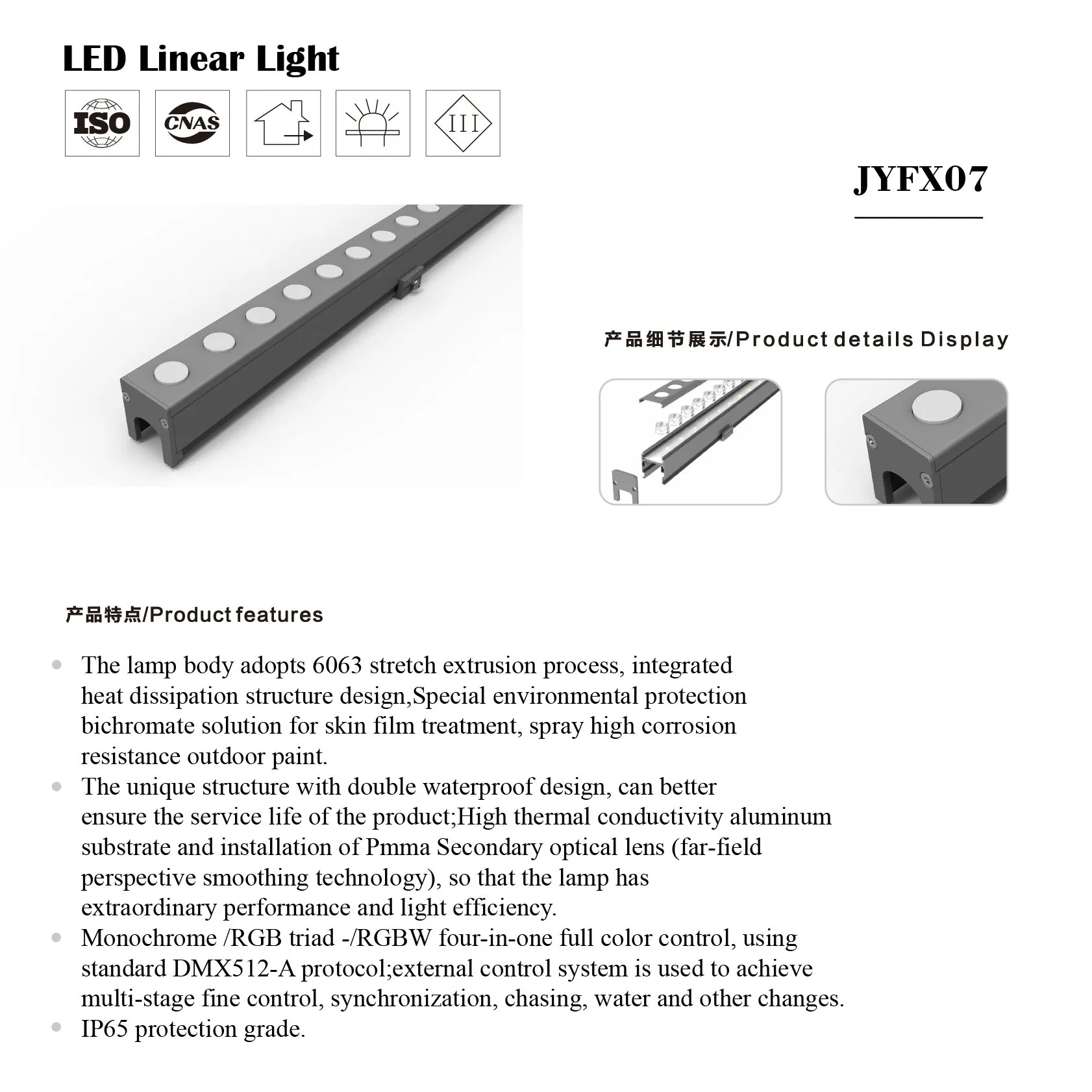

DMX512-A protocol DC24V IP65 Jyfx07 Anti Glare 12W RGBW LED Wall Washer
Options available: 15W (1800K-10000K), 15W RGB, and 15W RGBW.

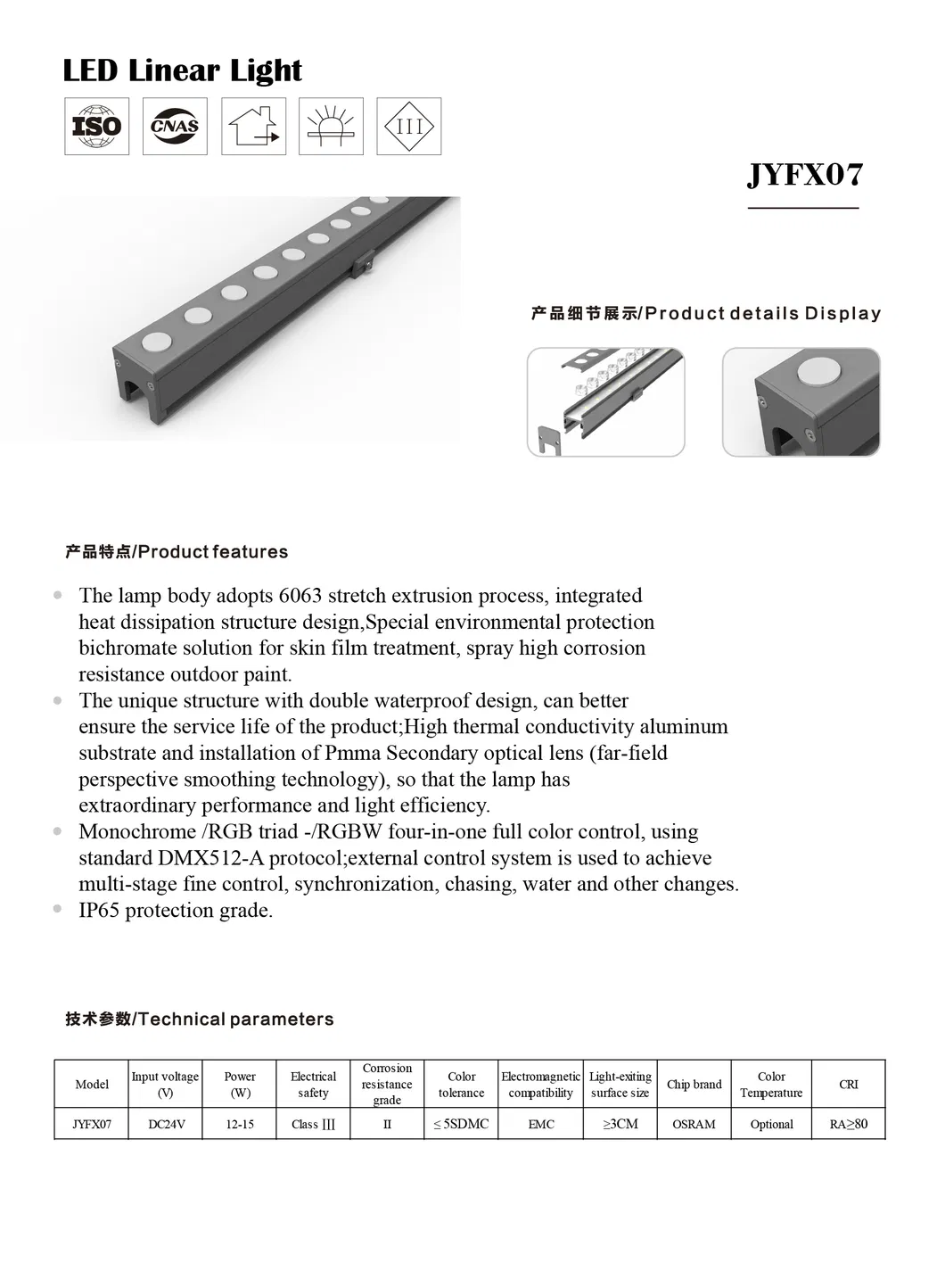

| Technical Specifications | |
|---|---|
| Working voltage | DC24V |
| Shell Material | Stretch Aluminum |
| LED Chips | SMD2835 or 5050 |
| Shell Color | Customizable according to the curtain wall |
| Protection Level | IP65 |
| LED Lifetime | 50000Hr |
| Control Mode | Monochrome constant brightness or DMX512 |

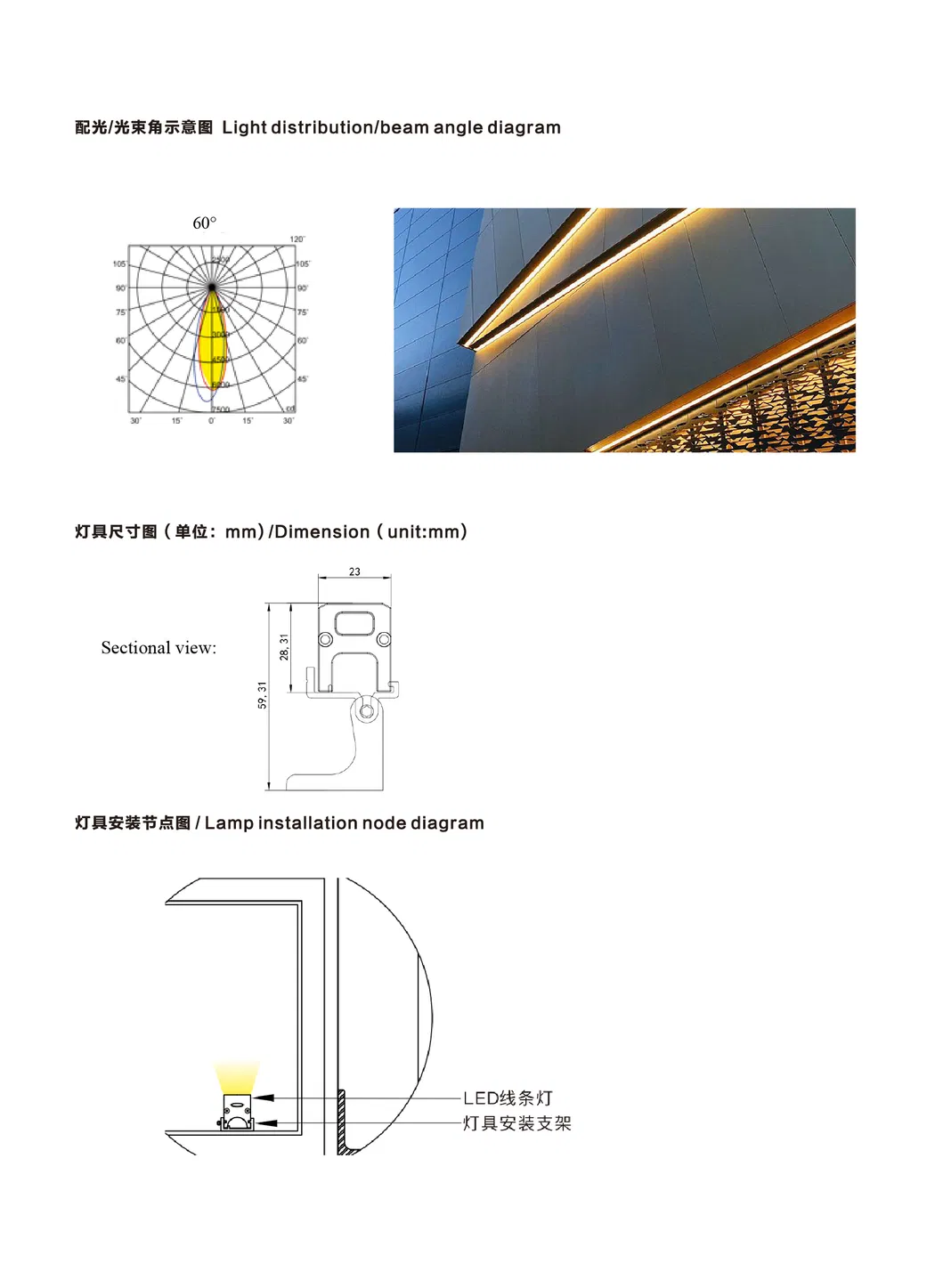

| Beam Angle | 15°, 30°, 60°, 120°, 25*45°, 10*60° and more |
| Ambient Temperature | -35ºC ± 50ºC |
| Outgoing method | Center outgoing line |
| Line length | Docking 106cm |

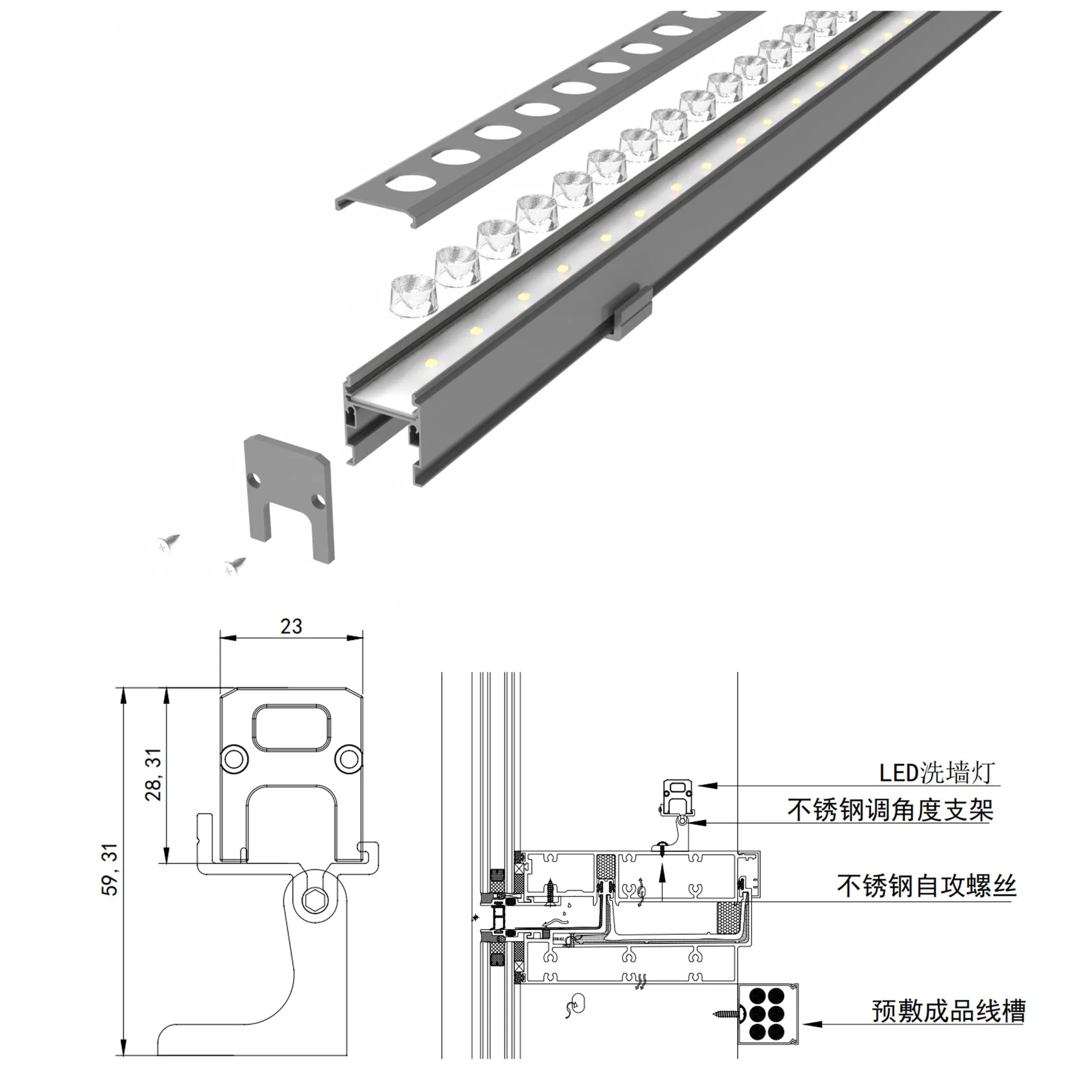

| Product Size | 23*28.3*1000mm |
| Model | Input (V) | Power (W) | Safety | EMC | CRI |
|---|---|---|---|---|---|
| JYFT07 | DC48V | 12-15 | Class III | EMC | RA≥80 |
Product Visuals
Frequently Asked Questions
What is the waterproof rating of the Jyfx07 LED wall washer?
The Jyfx07 model features an IP65 rating, making it suitable for outdoor lighting applications with excellent protection against dust and water.
Does this wall washer support DMX512 control?
Yes, it supports the DMX512-A protocol for advanced color control, as well as monochrome constant brightness modes.
What are the available beam angle options?
We offer a wide range of beam angles including 15°, 30°, 60°, 120°, 25*45°, and 10*60° to meet different architectural lighting needs.
What is the lifespan and warranty for this product?
The LEDs are designed for a lifetime of 50,000 hours, and the product comes with a 3-year warranty.
Can the shell color be customized?
Yes, the stretch aluminum shell can be sprayed with different colors to match the specific requirements of the curtain wall or building exterior.
What are the power and voltage options?
Standard input is DC24V or DC48V with power ratings typically between 12W and 15W depending on the specific model configuration (RGB, RGBW, or CCT).
