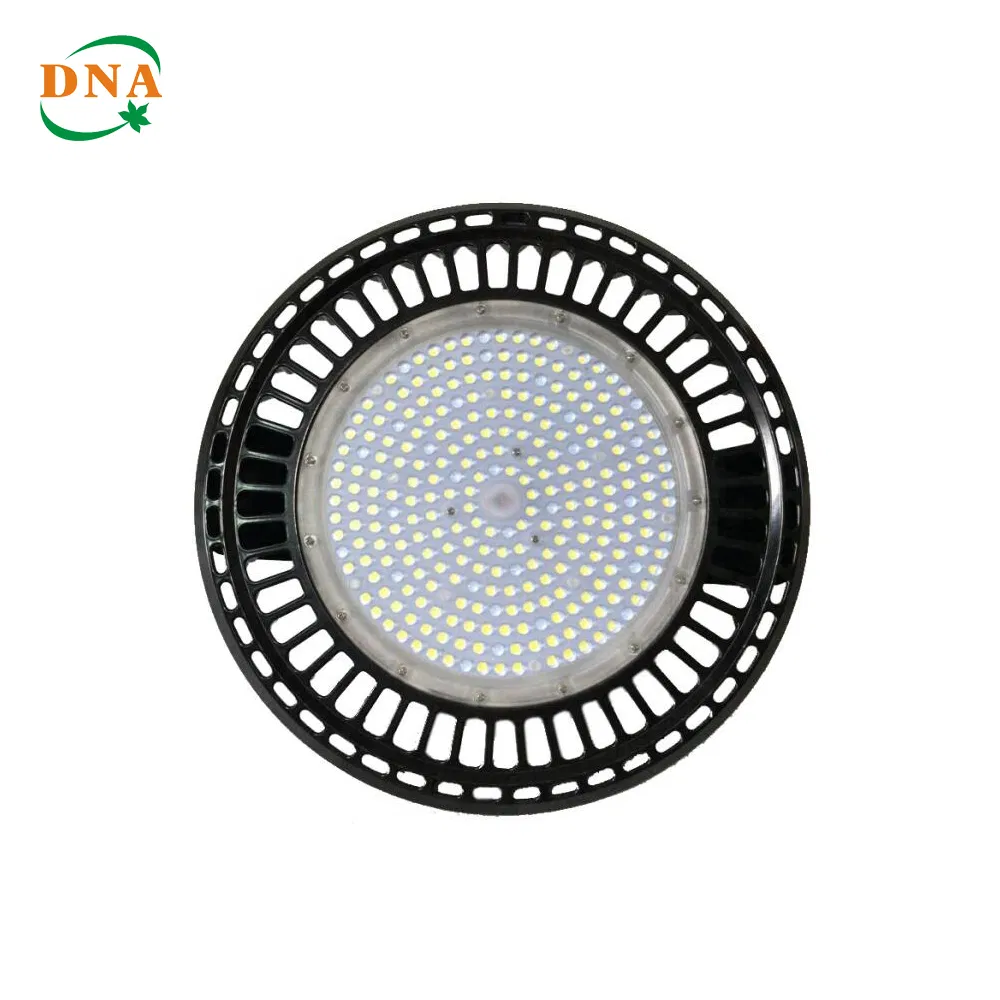

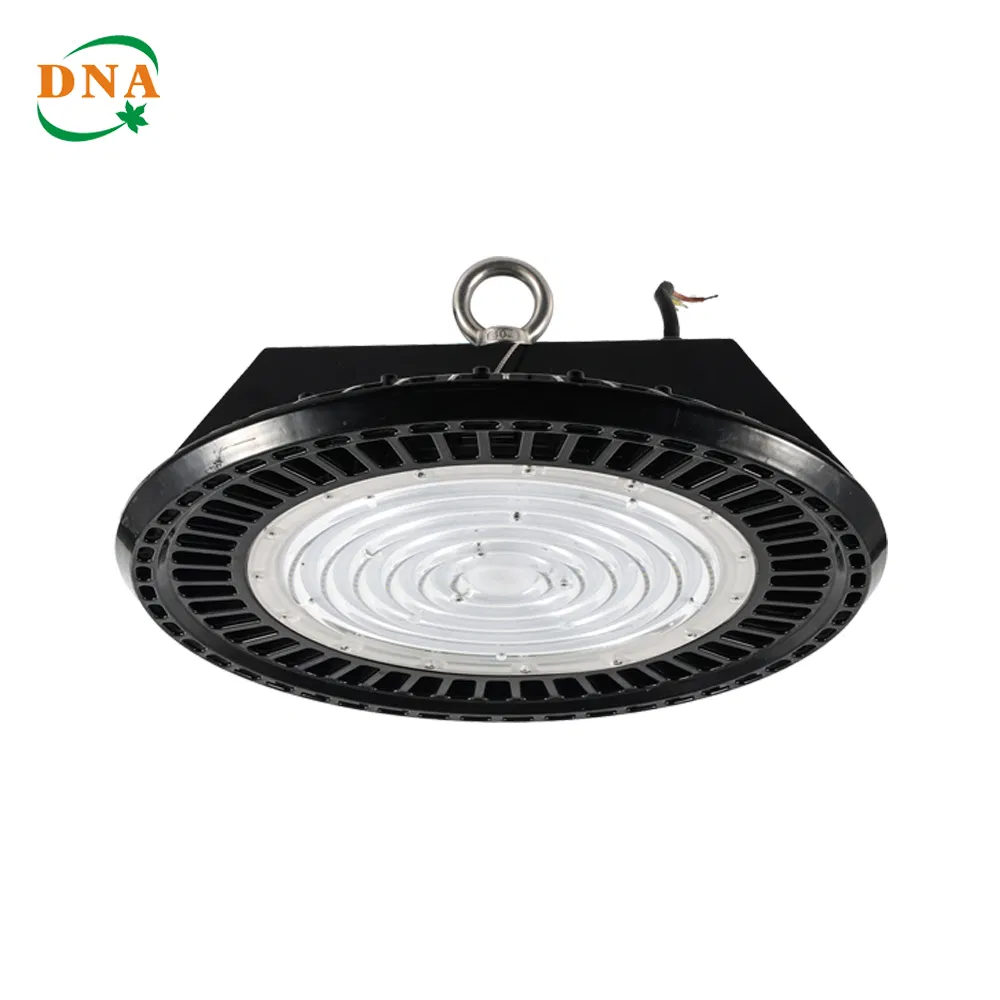

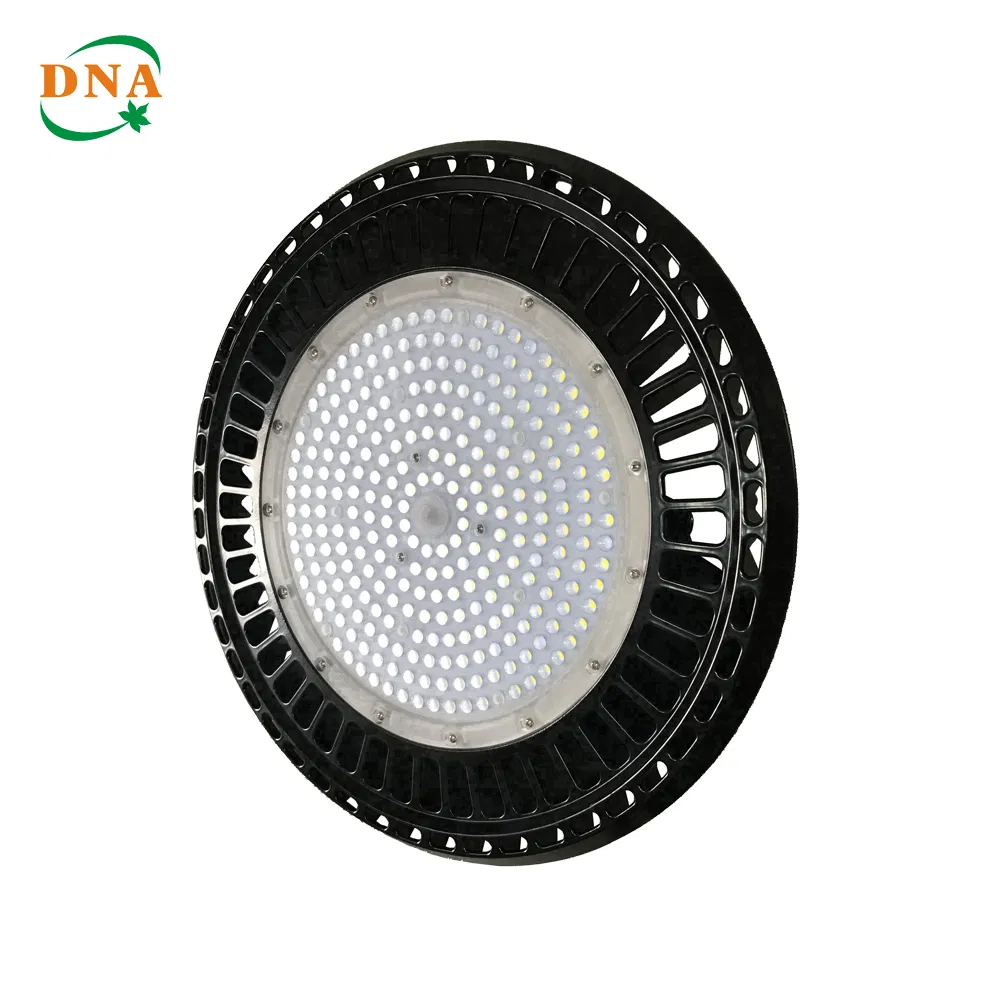

Durable LED High Bay Light Fixture for Industrial Applications
Product Description
Model NO.
HT03
Power
120—250W
Usage

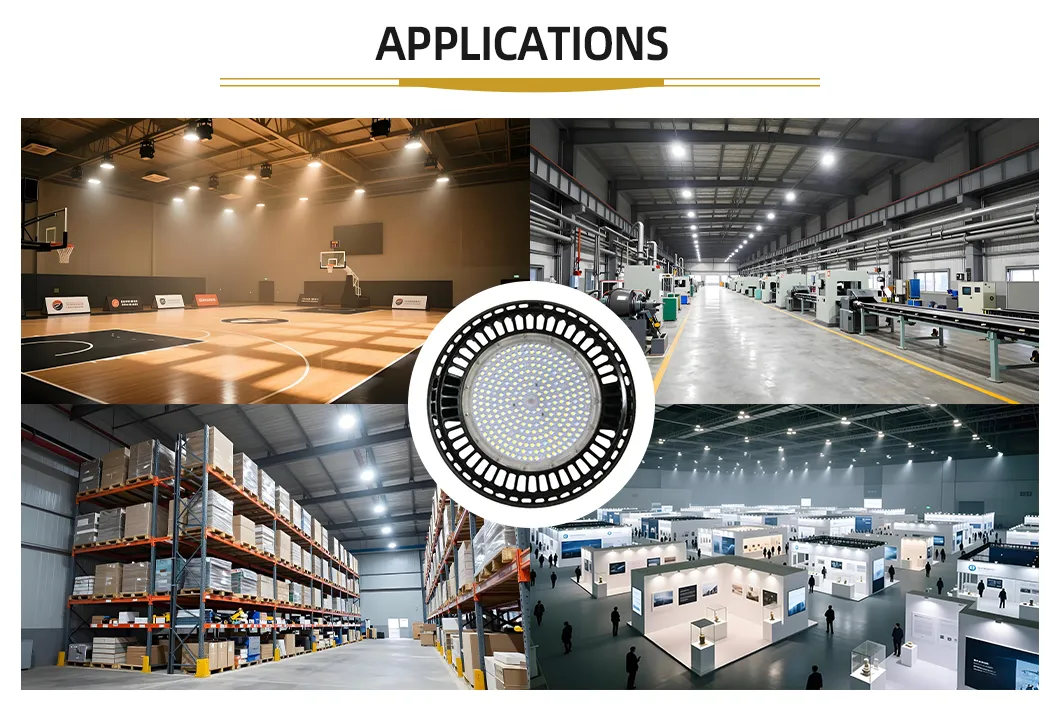

Exhibition, Warehouse, Factory
Lifespan
>50000hours
IP Rating
54/66
Certification
CE, PSE, RoHS, UL
Beam Angle
90°
LED Chips
CREE
Operating Voltage
AC90—300V
PF
≥0.9
Luminous Efficiency
100—200 Lm/W
Warranty
3/6 Years
| Model | HT03-120W | HT03-150W | HT03-175W | HT03-200W | HT03-250W |
|---|---|---|---|---|---|
| Power | 120W | 150W | 175W | 200W | 250W |
| Input Voltage | AC90-300V | AC90-300V | AC90-300V | AC90-300V | AC90-300V |
| LED Type | 3030/5050 | 3030/5050 | 3030/5050 | 3030/5050 | 3030/5050 |
| Lumen/Wattage | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
| Anti-surge | 10KV | 10KV | 10KV | 10KV | 10KV |
| Power Factor | ≥0.9 | ≥0.9 | ≥0.9 | ≥0.9 | ≥0.9 |
| CRI | >80 | >80 | >80 | >80 | >80 |
| Beam Angle | 60°/90°/120° | 60°/90°/120° | 60°/90°/120° | 60°/90°/120° | 60°/90°/120° |
| Working Temp. | -45 ℃-+65 ℃ | -45 ℃-+65 ℃ | -45 ℃-+65 ℃ | -45 ℃-+65 ℃ | -45 ℃-+65 ℃ |
| Net Weight(kg) | 5.5 | 6.0 | 6.5 | 7.0 | 7.5 |
1

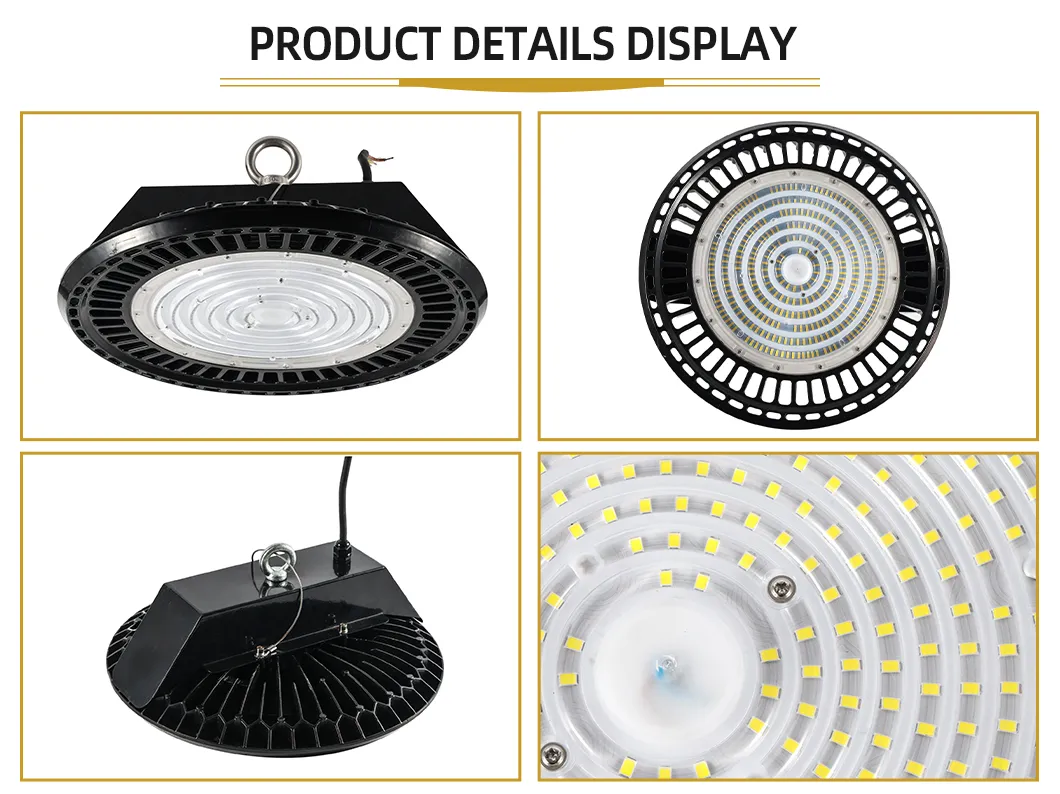

Unique Design: HT03 is a specialized LED High Bay Light with a proprietary design that stands out in the industrial market.
2
Heavy Duty Build: Features a robust aluminum alloy body for superior heat dissipation, supporting high-output performance up to 250 Watts.
3

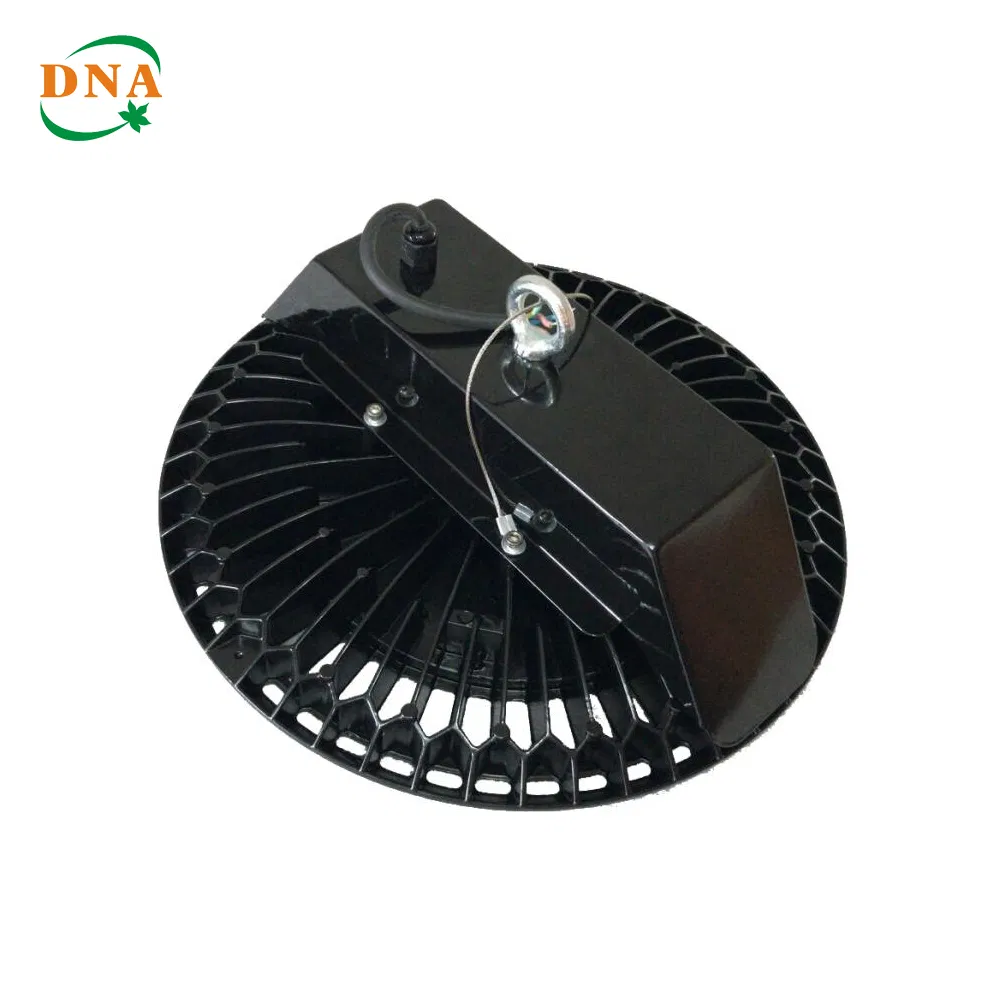

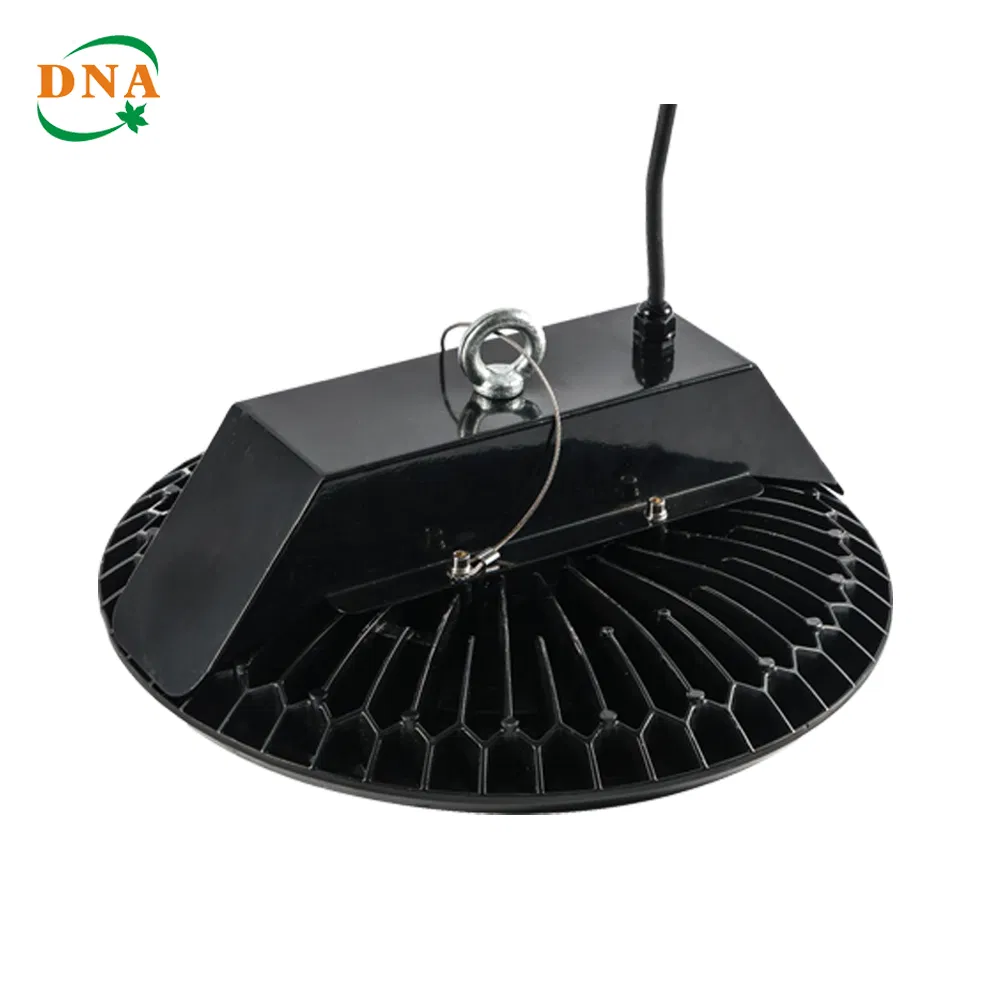

Linear Electrical Cabinet: Large and strong cabinet capable of housing various high-standard LED drivers.
4
Enhanced Safety: Equipped with an extra safety belt for a secondary security guarantee after roof installation.
Are you the original manufacturer of these lights?

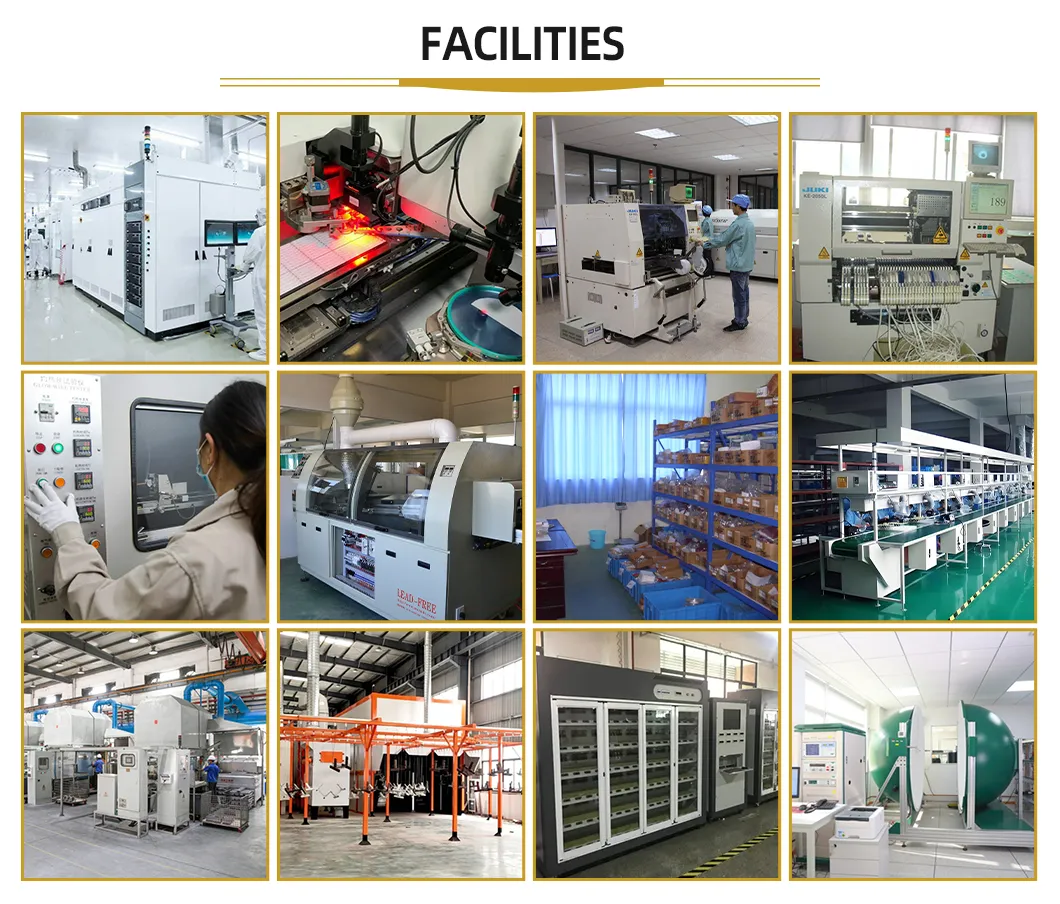

Yes, we are an original manufacturer with a production history dating back to 2001, specializing in high-quality industrial lighting solutions.
What is the minimum order quantity (MOQ)?
There is no strict quantity requirement; we accept orders starting from a single set to accommodate various project needs.
Can these LED high bay lights be customized?
Absolutely. We offer customization options such as specific color spectrums (e.g., lamps emitting blue light < 1%) and other technical adjustments.
What kind of warranty is provided for the HT03 series?
We offer a flexible warranty ranging from 3 to 6 years, depending on the specific quality and application requirements of your project.
What is your after-sales policy if a product fails?
We maintain a reliable after-sales policy. In the event of any manufacturing or performance issues, we provide free replacements.
Are IES files available for lighting simulation?
Yes, IES files are available for all our models to help engineers and designers plan their warehouse or factory lighting effectively.
