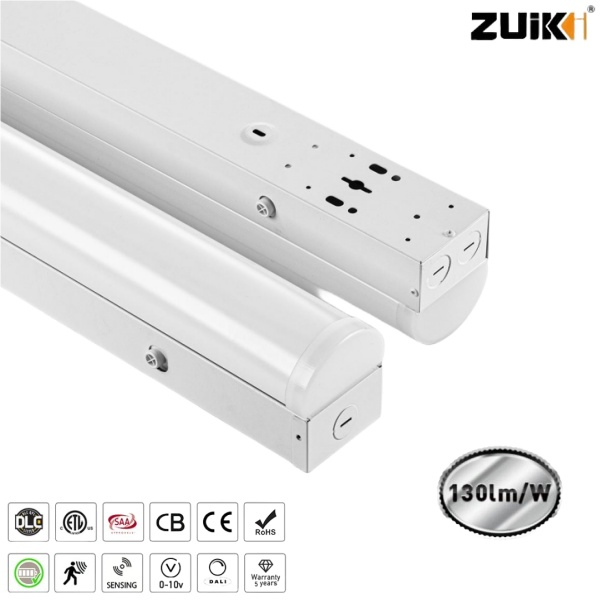

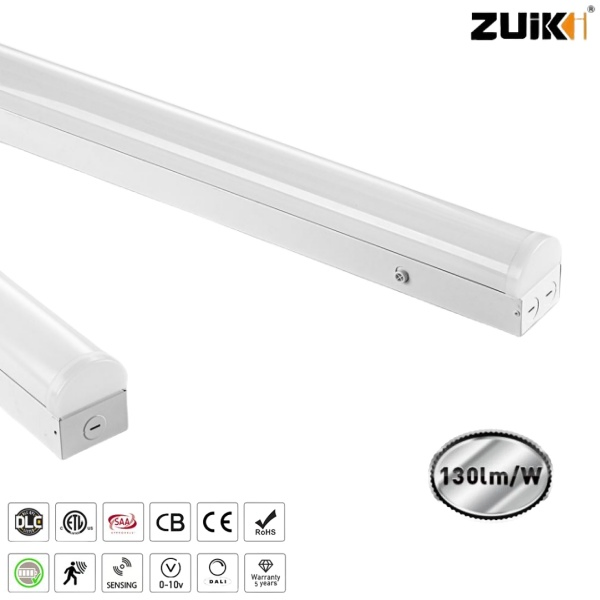

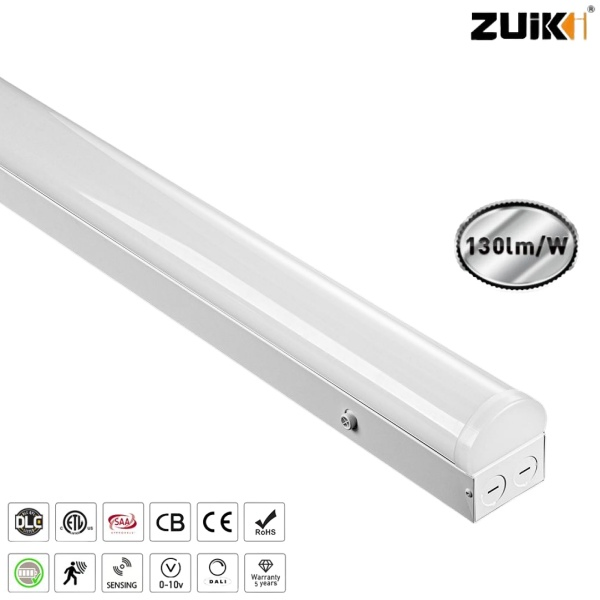

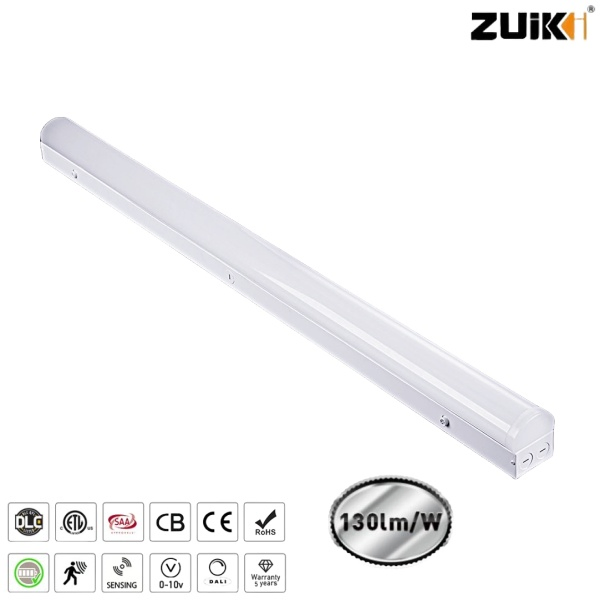

ETL 4FT Hight Lm LED Tri-Proof Batten Linear Light with Sensor (PIR, Radar)
Product Description
📋
Basic Specifications
Model NO.
JR-ZKBD23
Power
40W (Selectable)
IP Rate
IP20
Application
Warehouse/Supermarkets/Office
Size
4FT * 3.07" * 3.15"
Input Voltage
100~277V
Certificate
ETL/UL/CE/SAA/RoHS
Warranty
3 Years/5 Years
LED Chips
Nicha/Samsung
CRI
>80
Lm Efficiency
>130lm/W
Dimming
0~10V/3CCT (Color & Power)
Sensor
PIR / Radar Sensor
Detachable
Yes
HS Code
9405409000
💡
Product Highlights
- All-in-one design to replace traditional T8 fluorescent lamps.
- No Ballast or starter required. Direct AC power.
- Full range of options: emergency battery, dimmable, motion sensor, CCT tunable and power selectable.
- Detachable housing simplifies installation and maintenance process.
- Safety straps inside for hands-free maintenance.
- No flickering. No UV Radiation.
- Long lifespan, low maintenance and energy saving.
- ETL FCC certified.

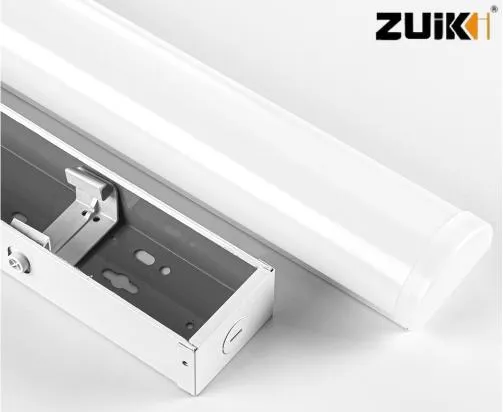

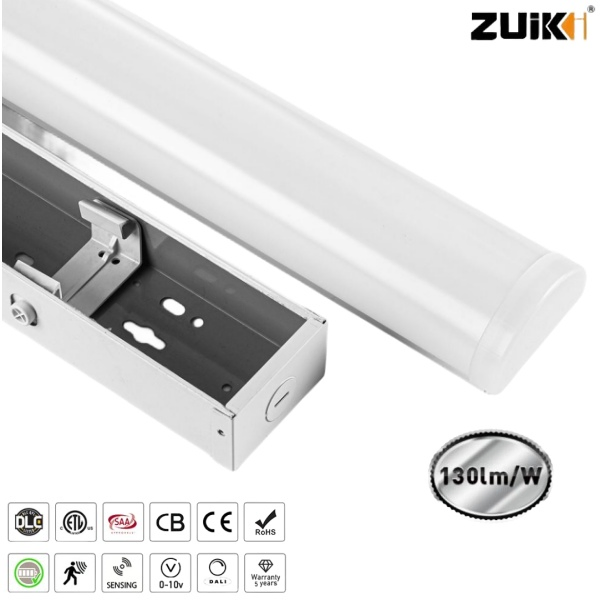

Detachable Structure
Simple click to detach the lamp cover simplifies the installation and maintenance process. It makes re-settings and re-wiring available and significantly easier.

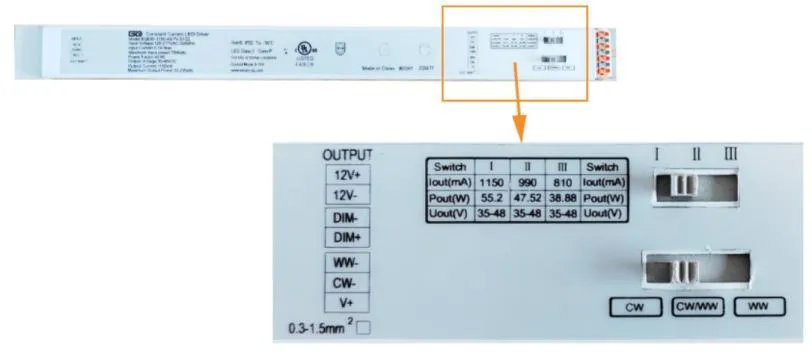

Multifunctional Driver
Internal UL listed driver includes:
- CCT Switch: 3000K-4000K-5000K tunable
- Power Switch: 30W (30/25/20W), 40W (40/30/20W), 60W (60/50/40W) selectable
- 0-10V Dimmable

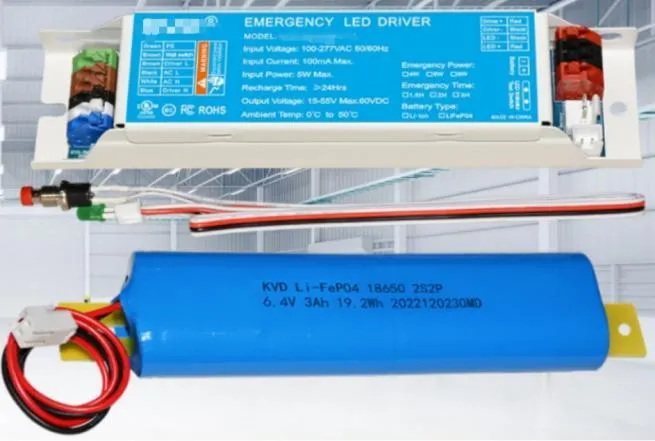

Emergency Battery Backup
During power blackout, the Li-EFP04 battery provides 90 mins of emergency lighting at 8W illumination level.

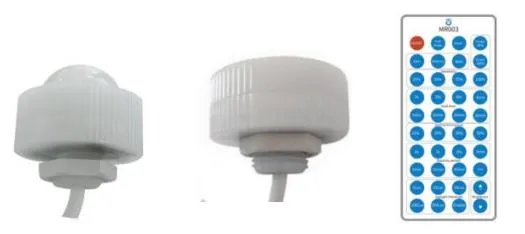

PIR / Microwave Sensor
External sensor device supporting remote control applications for enhanced energy efficiency.
📏

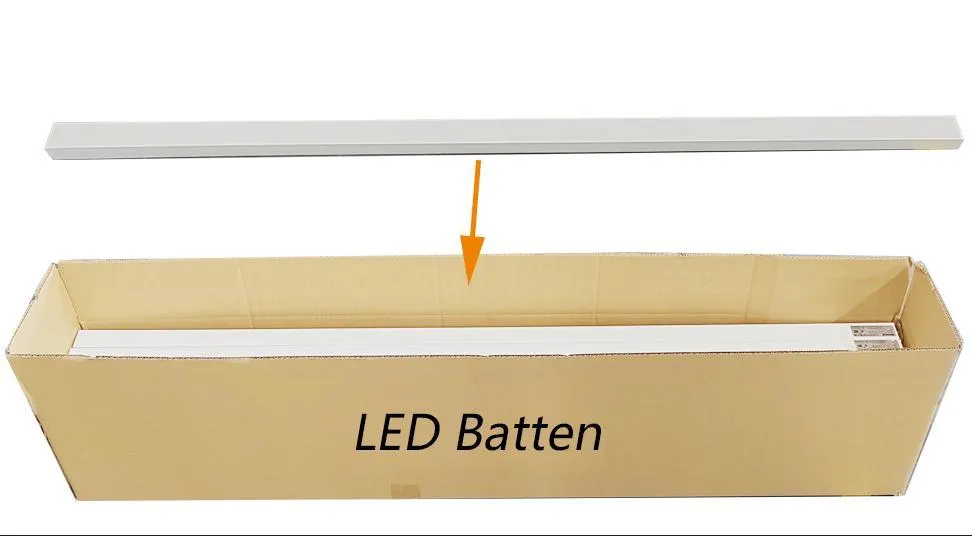

Size & Packing
| Model | Item Size | Qty / CTN | Outer Box Size |
|---|---|---|---|
| JR-ZKBD23 4FT | L4ft * W3.07" * H3.15" | 12pcs | 129.5 * 35.5 * 28.5cm |
| JR-ZKBD23 8FT | L8ft * W3.07" * H3.15" | 6pcs | 249.5 * 27 * 28.5cm |
🚀 Delivery Detail: 7~10 work days for samples; 25-30 work days for 1000 pieces bulk order.
📜 Certification: ETL, UL, CE, CCC, RoHS
🏭

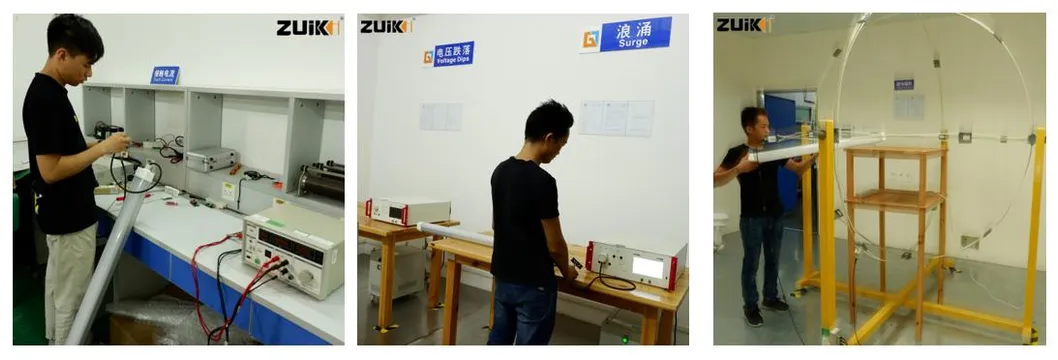

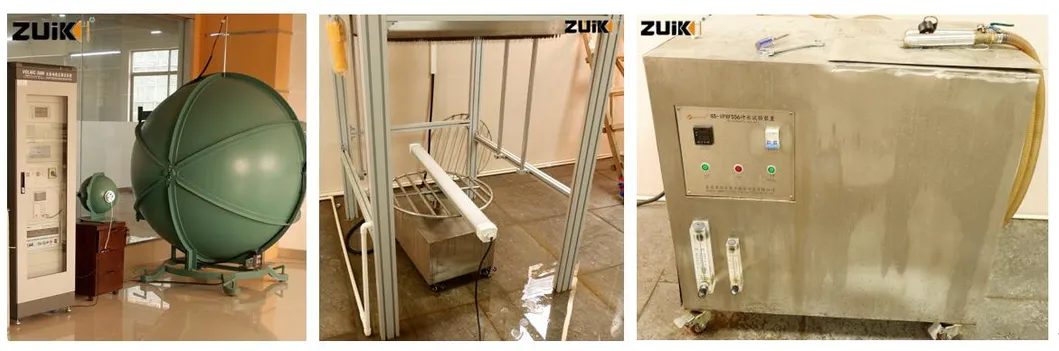

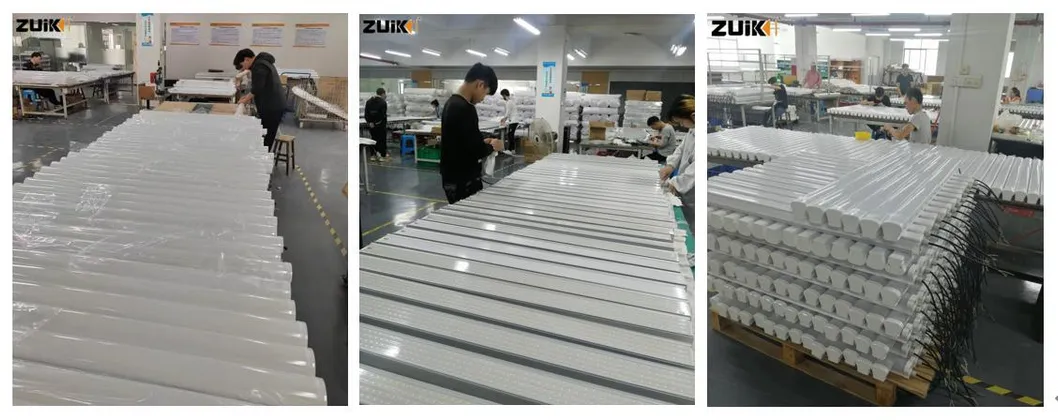

Factory Overview
❓
Frequently Asked Questions
Can I have a sample order for led light?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What is the lead time for production?
Quick delivery takes 3-5 working days for samples and 12-20 working days for bulk orders, depending on quantity.
Do you have any MOQ limit?
We offer low MOQ; 1pc for sample checking is available.
How do you ship the goods?
We usually ship by sea, but DHL, UPS, and FedEx are optional. Transit typically takes 3-10 days.
Do you accept customized OEM/ODM orders?
Yes, we accept customization. Please contact us for more personalized solutions.
What is the warranty period for your products?
We offer a 3 to 5-year warranty on our products depending on the specific model requirements.
