Factory Price IP65 Ballast Power Supply Kit Emergency Light Driver LED Emergency Converter with 3 Years Warranty 3 Hours Discharge Time Li-FEP04
Product Description

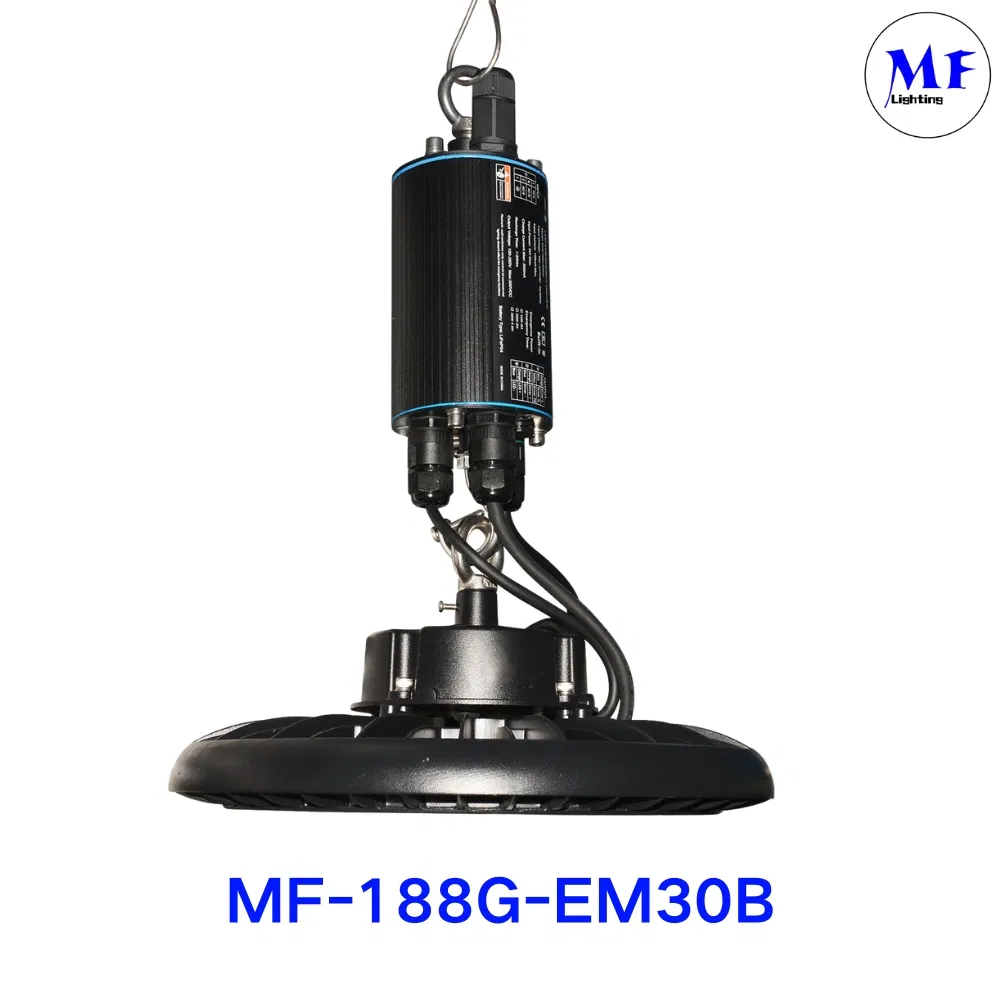

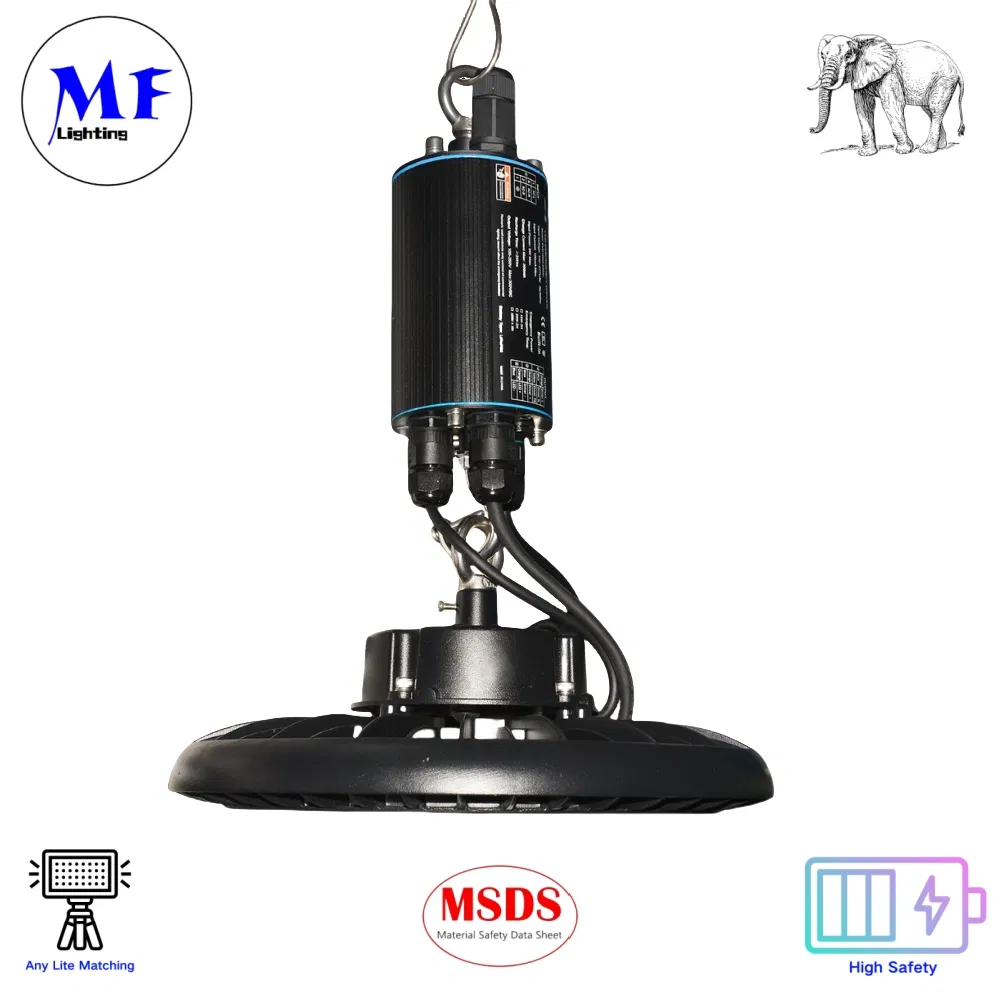

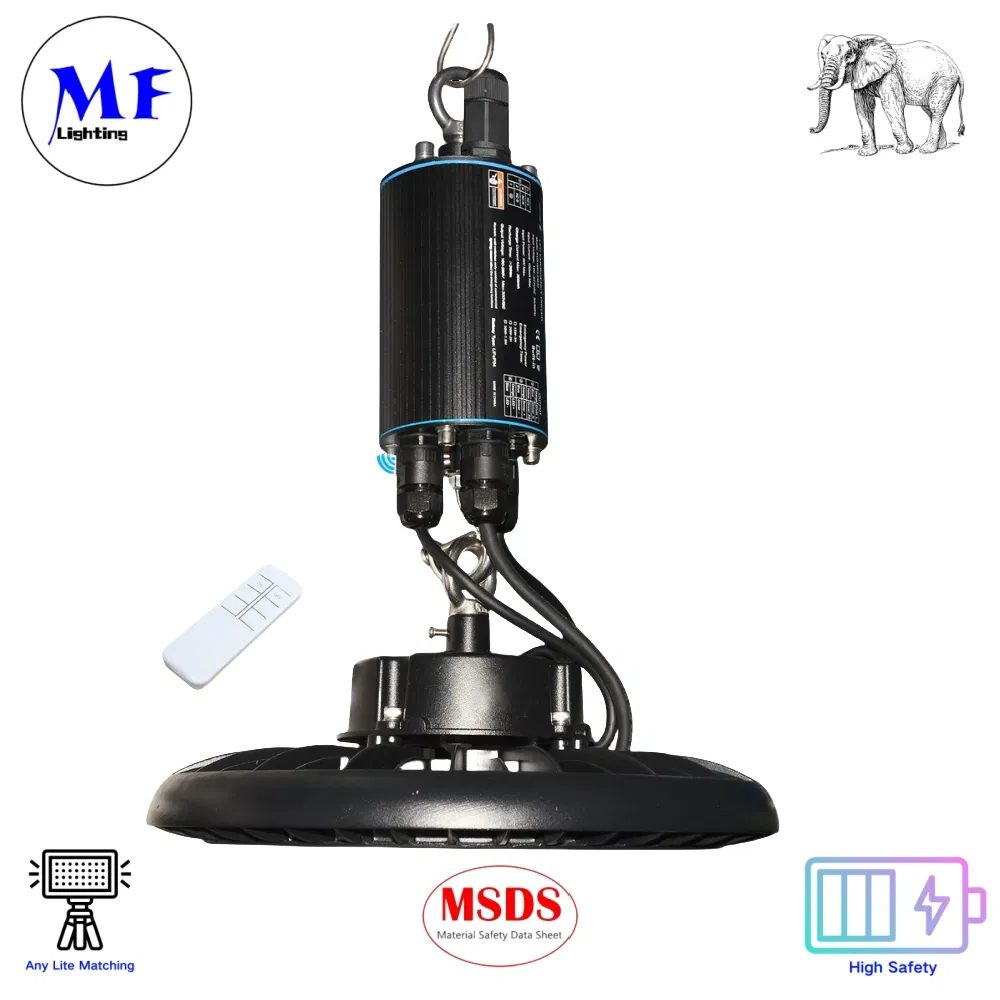

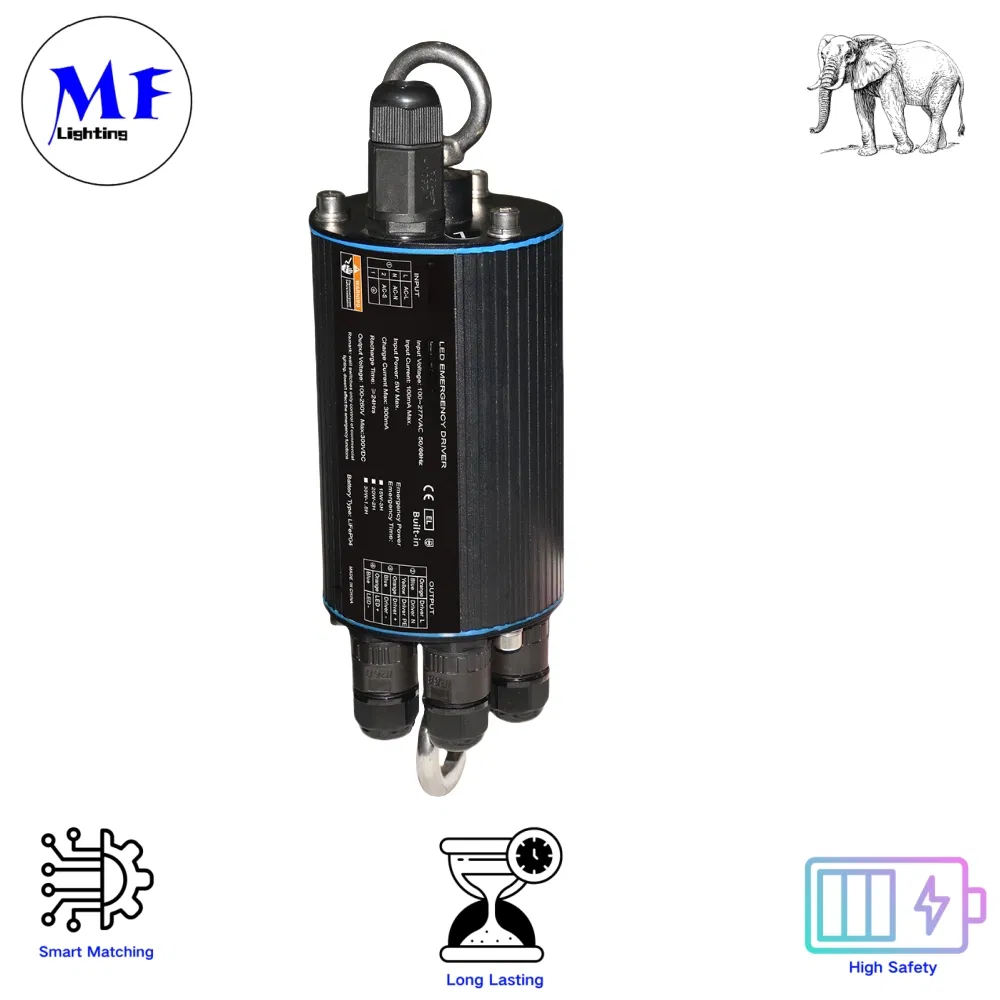

Factory Price IP65 Ballast Power Supply Kit Emergency Light Driver LED Emergency Converter
| Model NO. | 188G-EM30B |
| Input Voltage | 100-277 VAC 50/60Hz |
| Input Wattage | <5W |
| Power Factor | ≥0.5 @230 VAC |
| Emergency Output | DC100-260V |
| Emergency Power | 30W / 20W / 15W |
| Battery Capacity | LiFePO4 9.6V 6000mAh |
| Emergency Time | 1.5h / 2h / 3h |
| IP Rating | IP 65 |
| Warranty | 3 Years |

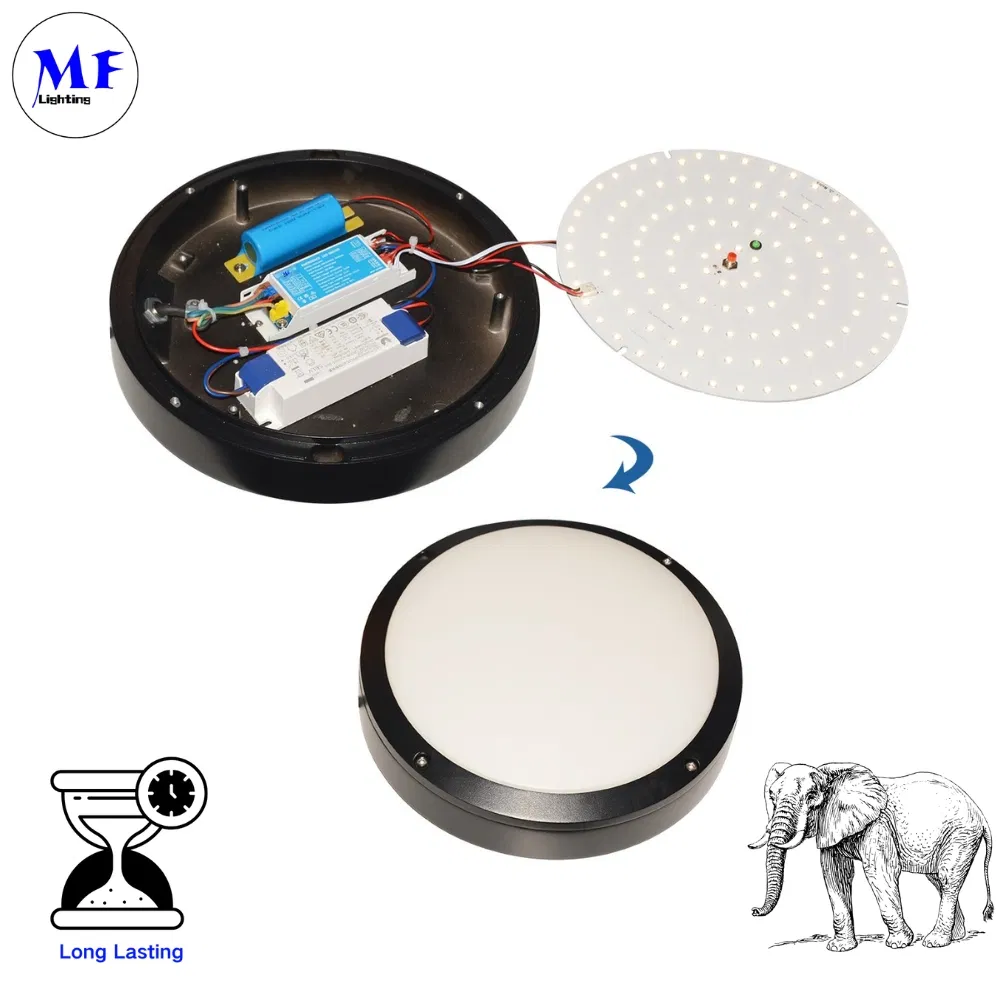

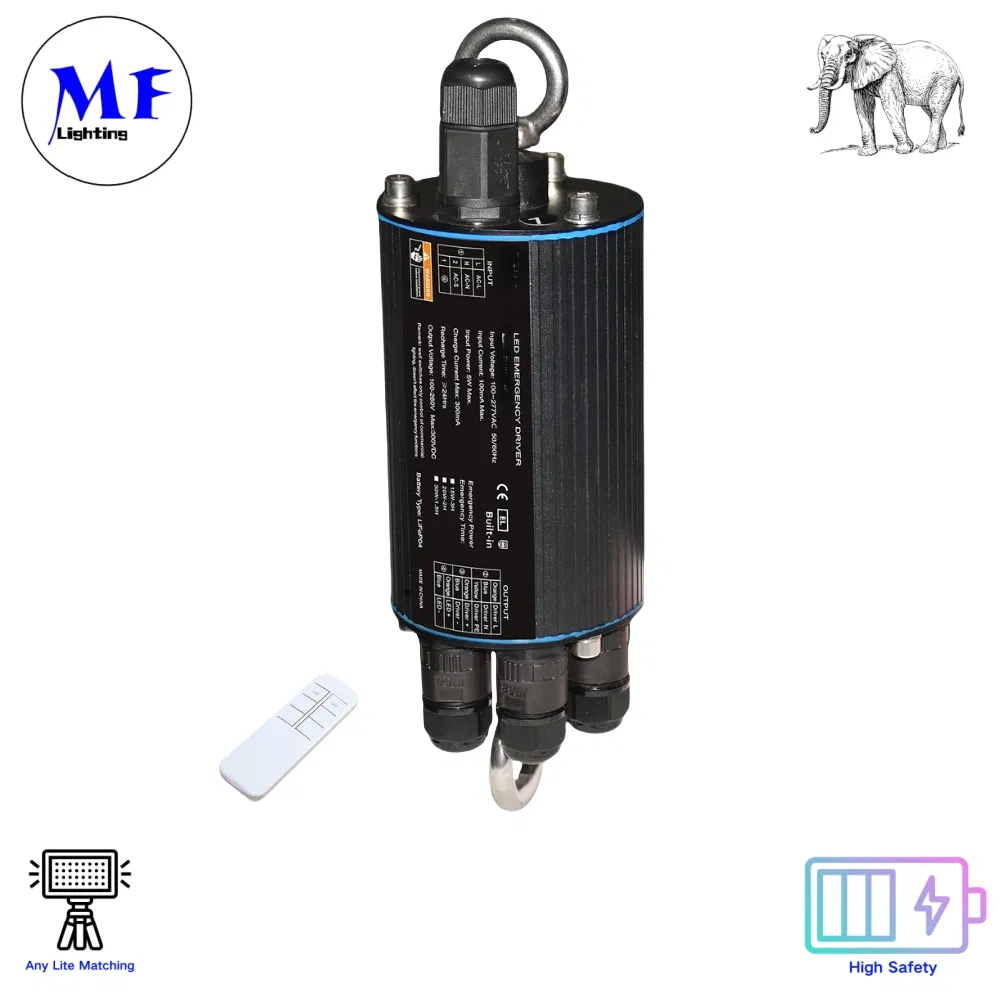

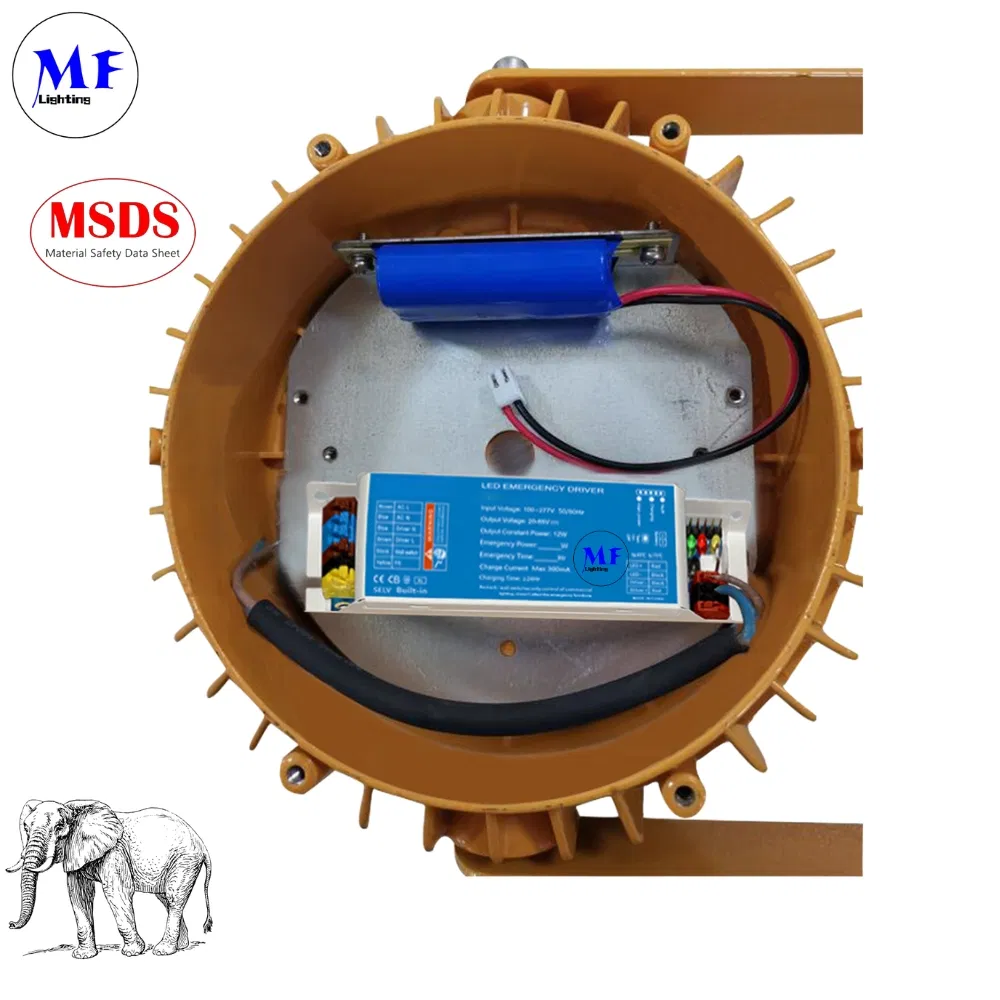

Designed for LED fixtures with an integrated battery for reliable emergency power. Key highlights include:
- Self-diagnostic Function: Automatic health checks.
- Constant-power Output: Stable illumination during outages.
- Multi-protection: Overcharge, over-discharge, overload, and short-circuit protection.
- Minimal Energy Loss: 0uA static current at battery terminal during power outages.

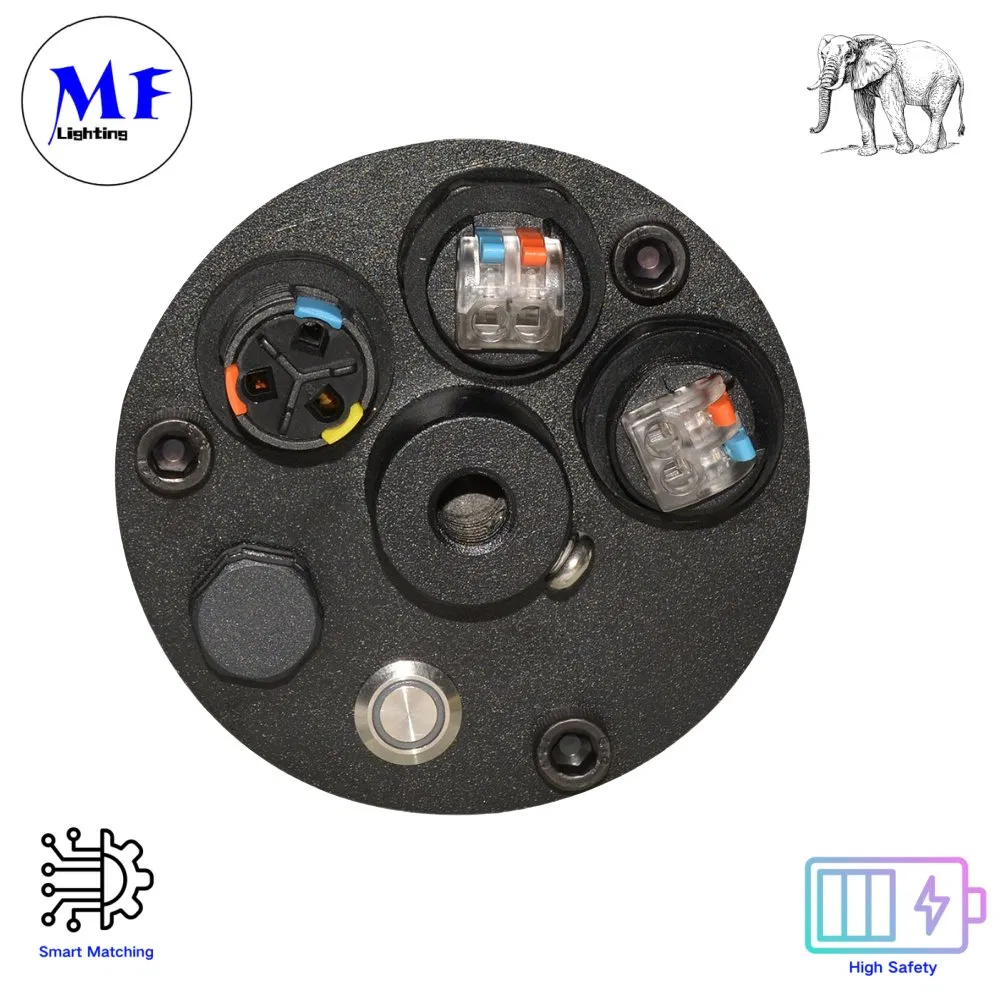

- User Friendly: Integrated test switch and LED indicator for easy maintenance.

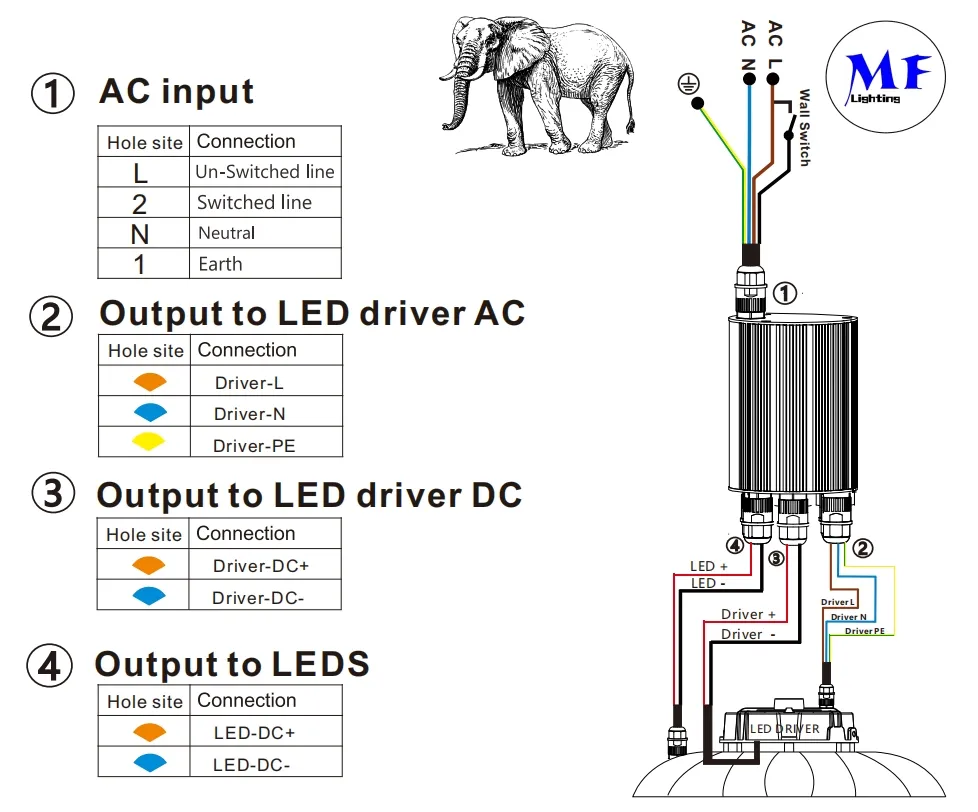

Wiring Diagram

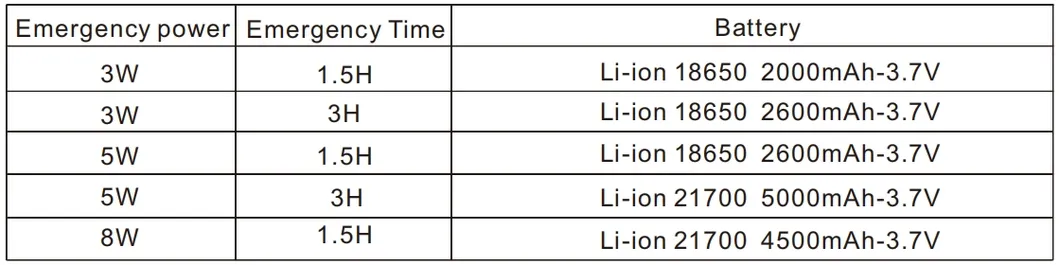

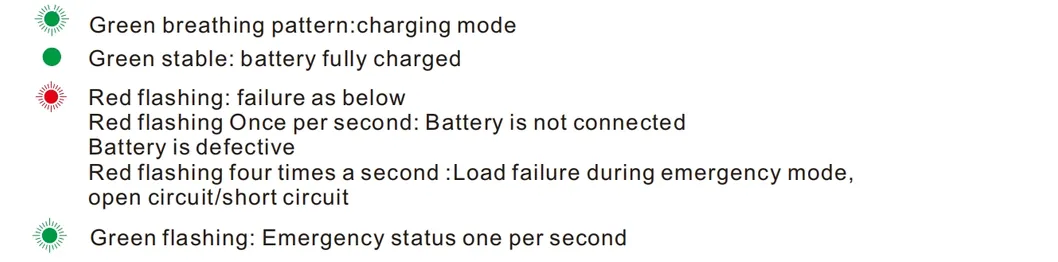

Ordering Information & Indicators
Test Button Operations:
1. Press 0-1s (ON): Enter simulated emergency state (Green indicator blinks).
2. Press 0-1s (OFF): Return to normal charging state.
3. Quarterly self-test: Automatically enters emergency state every 180 days to discharge and test battery health.
1. Connect main power for 24 hours for first-time use or after over-discharge.
2. Keep away from heat sources and operate within rated temperatures.
3. Store in a cool, dry environment.
4. Recharge at least once every 6 months during long-term storage.
5. Testing must exceed 1 minute; avoid frequent rapid pressing of the test button.
• Offices & Commercial: Ensures safe corridors and exits during power failure.

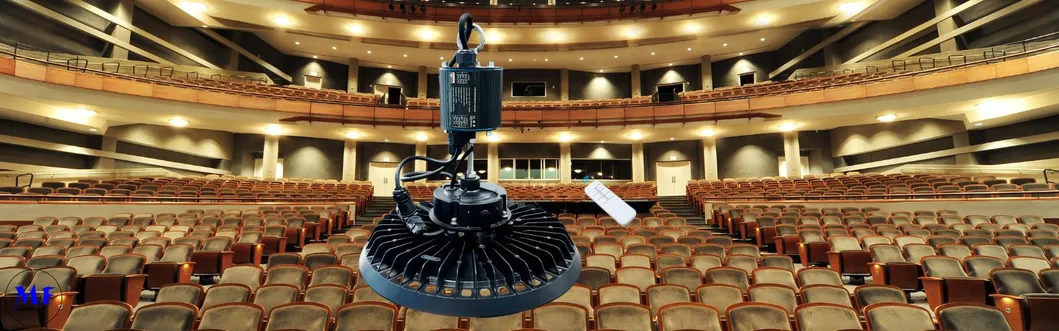

• Public Hubs: Meets strict safety standards for airports and subways.
• Hospitality: Integrates with fire systems for guest safety.

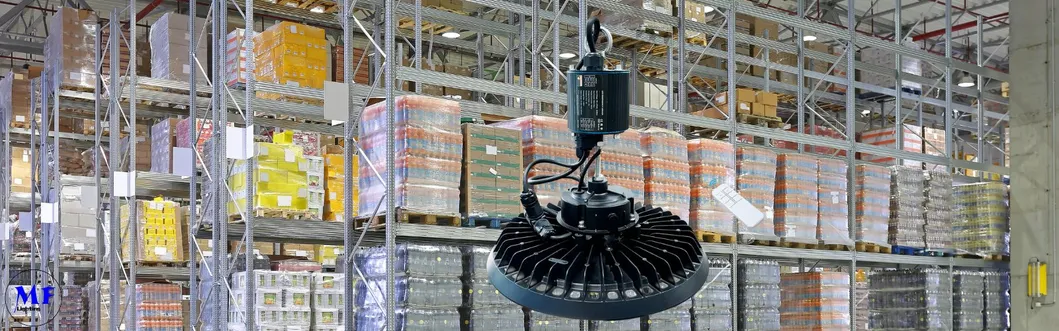

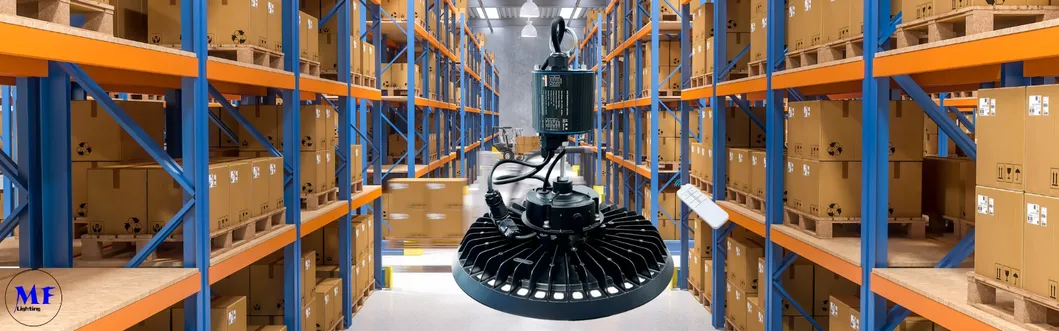

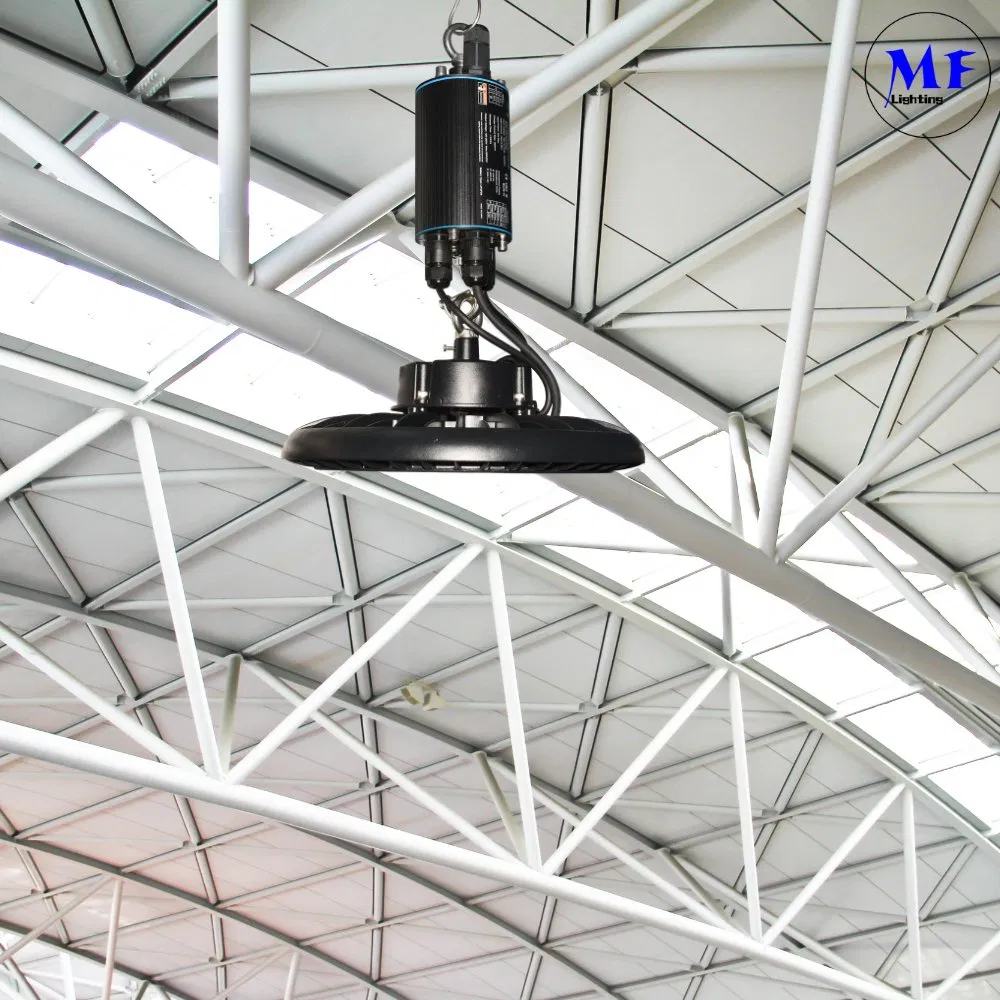

• Industrial: Reliable emergency power for high-power LED fixtures in harsh environments.

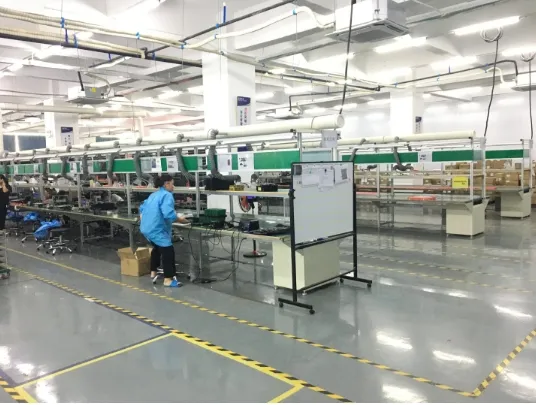

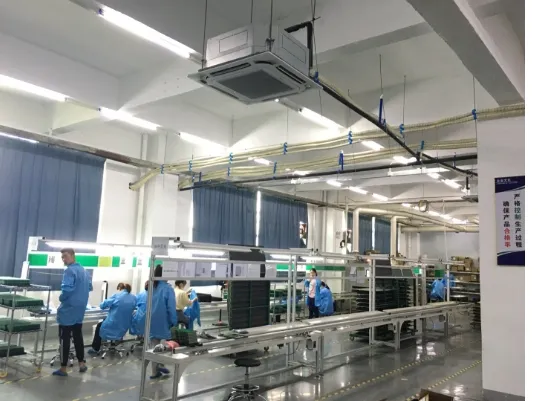

Our facility is a leading LED lighting manufacturer with a dedicated factory. We specialize in the design, production, and distribution of high-quality LED lighting products. With years of industry experience, we have established a reputation for innovation in LED technology. Our team of skilled professionals provides comprehensive residential and commercial LED lighting solutions.
