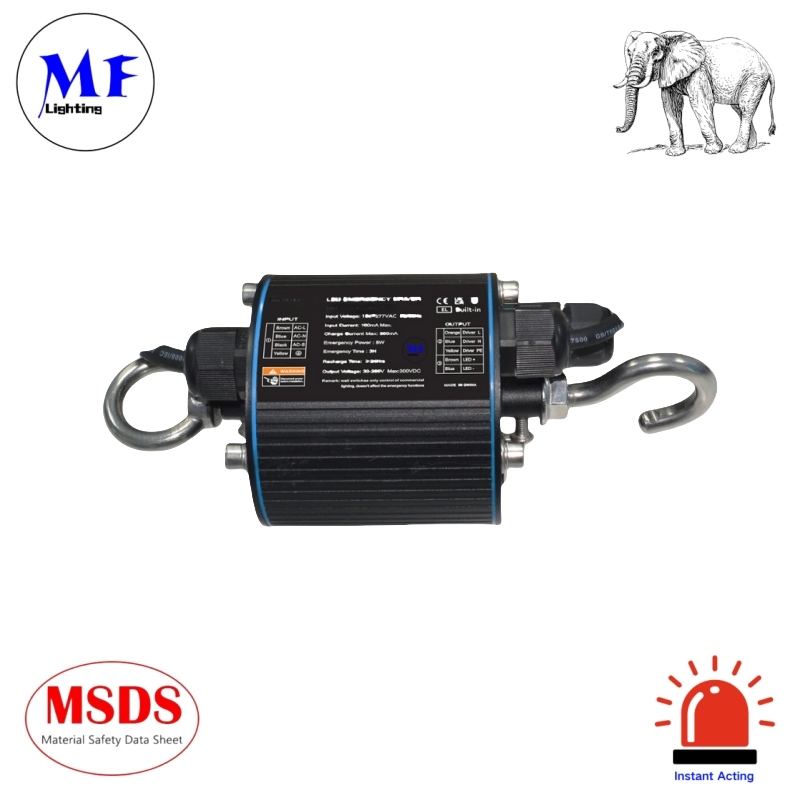

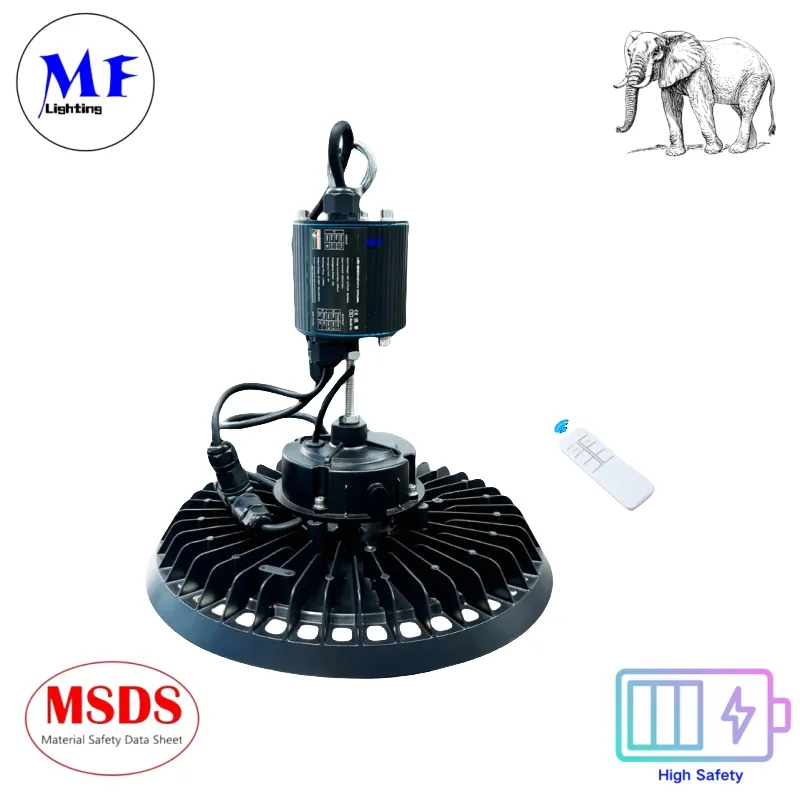

Factory Price 100-277VAC IP65 Backup Ballast LED Emergency Driver for High Bay Light Triproof Light Down Light Ceiling Light Panel Light
Product Description
📋 Basic Info. Overview
Model NO.
MF-188G-EM30A
Input Voltage
100-277 VAC 50/60Hz
Input Current
100mA Max.@230VAC
Input Wattage
5.0wmax
Power Factor
≥0.5 @230 VAC
Battery Capacity
Lifep04/32700/6000mAh-9.6V
Emergency Power
15W-3h/20W-2h/30W-1.5h
Origin
China
HS Code
9405499000
💡 Product Description
Factory Price 100-277Vac IP65 Backup Ballast LED Emergency Driver For High Bay Light Triproof Light Down Light Ceiling Light Panel Light
⚙ Product Parameters
| Input voltage | 100-277 Vac 50/60Hz |
| Input current | 100mA Max.@230Vac |
| Input wattage | 5.0Wmax |
| Power factor | ≥0.5@230 Vac |
| Battery charging current | 0-350mA Max. |
| Battery charging time | ≥24h |
| Emergency output Voltage | DC100-260V,DC300V Max |
| Storage Temperature | -20-40ºC |
| Emergency power | 15W-3H/20W-2H/30W-1.5H |
| IP Rating | IP65 |
| Warranty | 3 Years |
✨ Product Features
LED Emergency Driver is designed for LED fixtures, integrating a built-in battery for reliable emergency power. It features a self-diagnostic function and constant-power emergency output to ensure stable illumination during outages.
✔
Multi-protection technology: battery overcharge/over-discharge, overload, and short-circuit protection.
✔
User-friendly test switch and LED indicator for easy maintenance.
✔
0uA static current at battery terminal during outages to ensure minimal energy loss.
📐 Wiring & Indicators

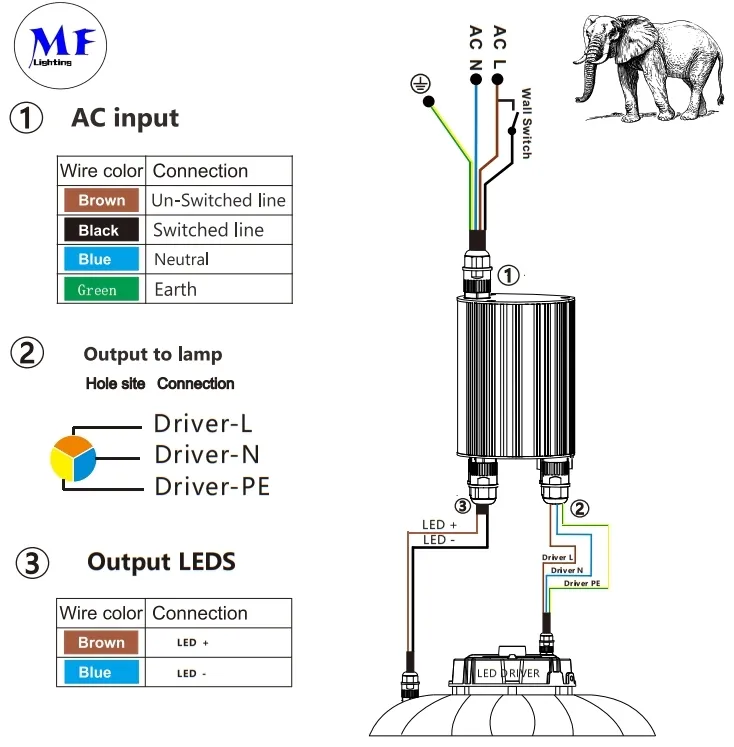

Wiring Diagram

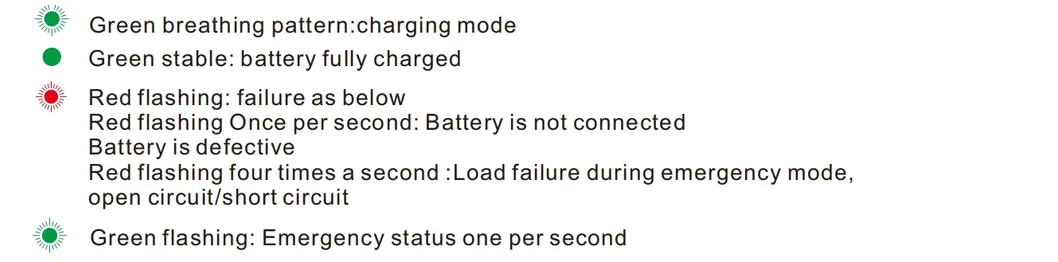

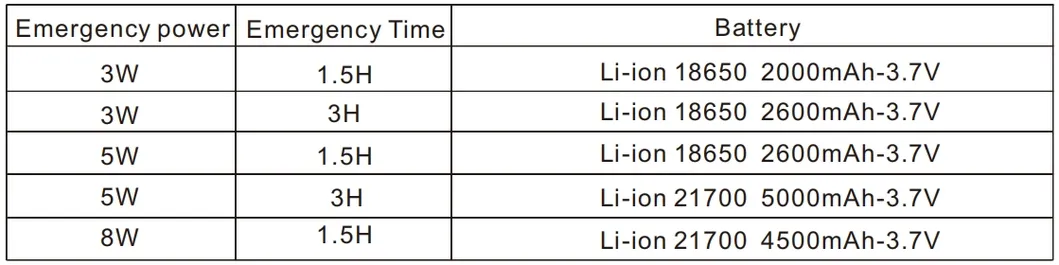

Ordering Information & LED Indicator
Test Button Functions:
1. Press ON (≤1S): Enter simulated emergency state (Green blinks).
2. Press OFF (≤1S): Return to normal charging state.
3. Press OFF (≤1S) in Emergency: Turn off emergency mode.
Quarterly Self-Test: Automatically enters emergency state every 180 days to discharge battery and verify performance.
1. Press ON (≤1S): Enter simulated emergency state (Green blinks).
2. Press OFF (≤1S): Return to normal charging state.
3. Press OFF (≤1S) in Emergency: Turn off emergency mode.
Quarterly Self-Test: Automatically enters emergency state every 180 days to discharge battery and verify performance.

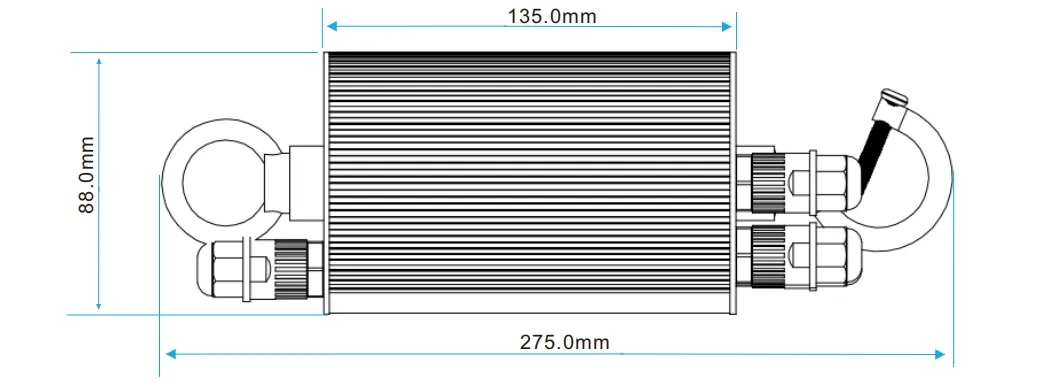

📏 Product Dimensions

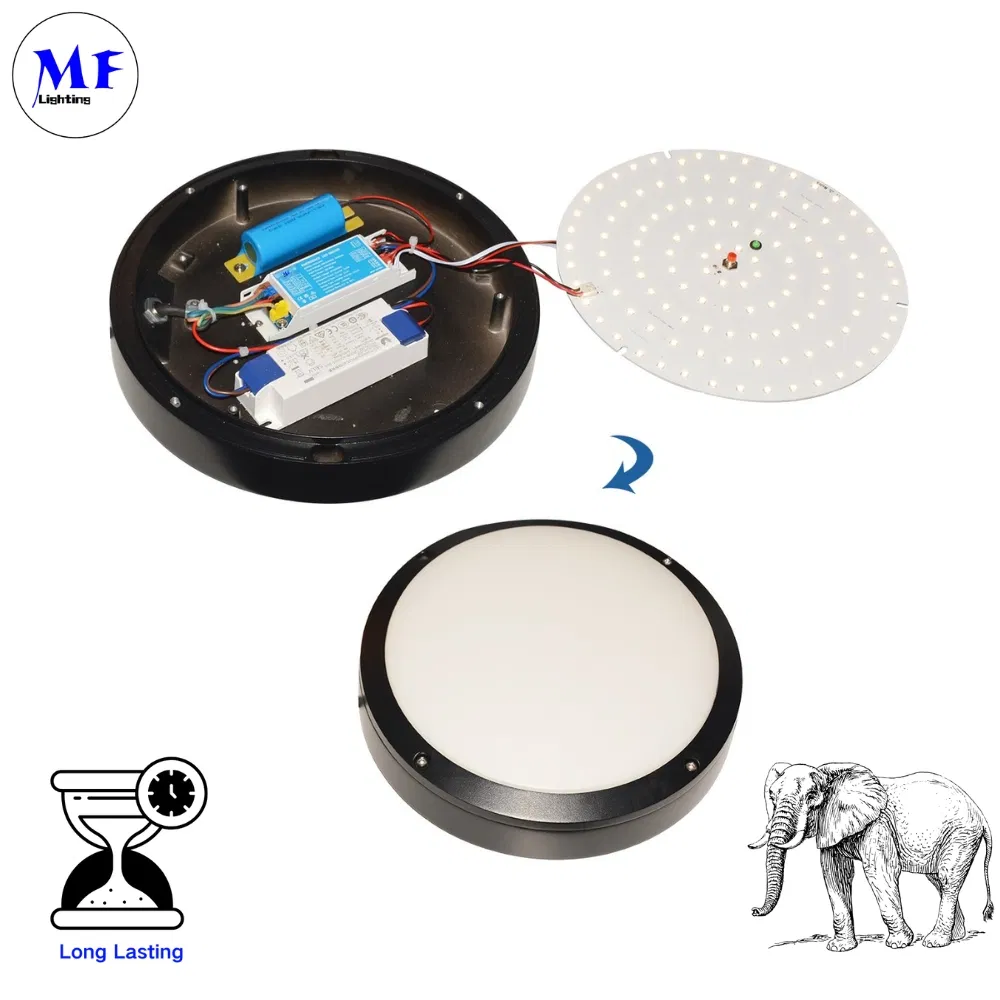

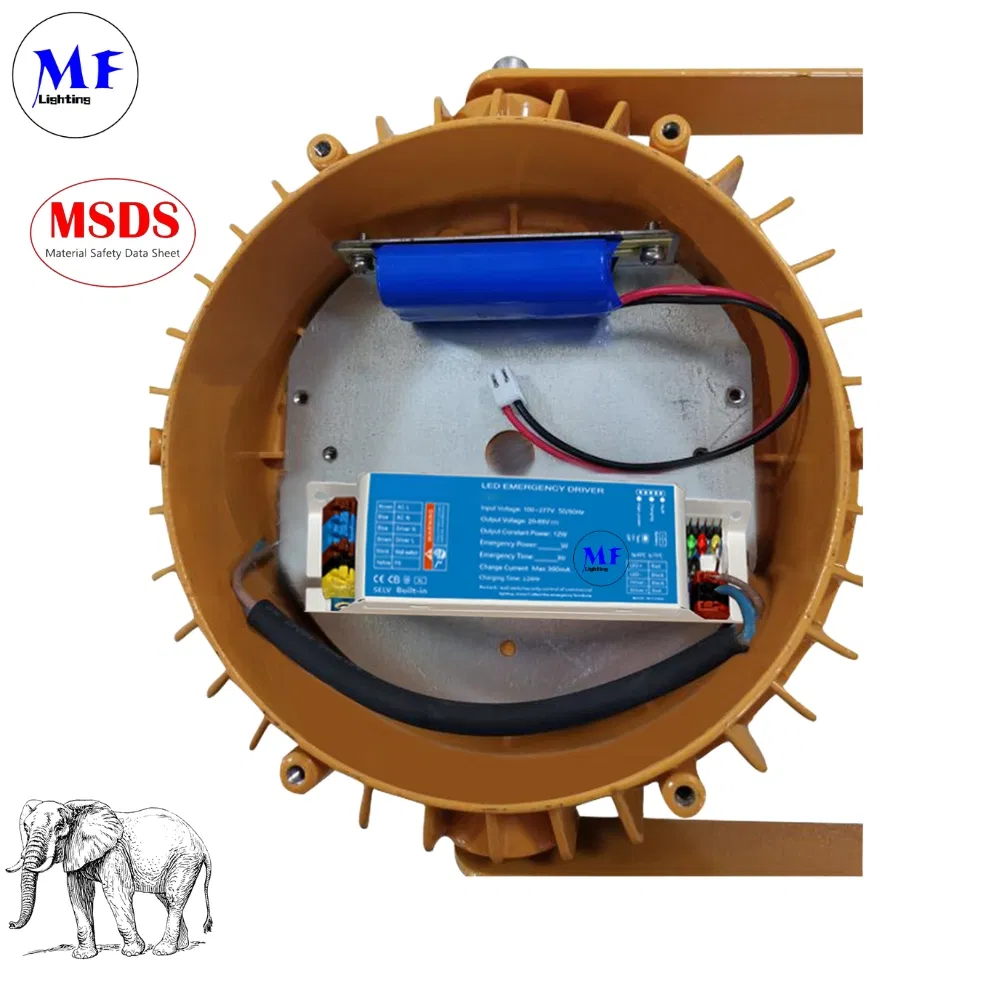

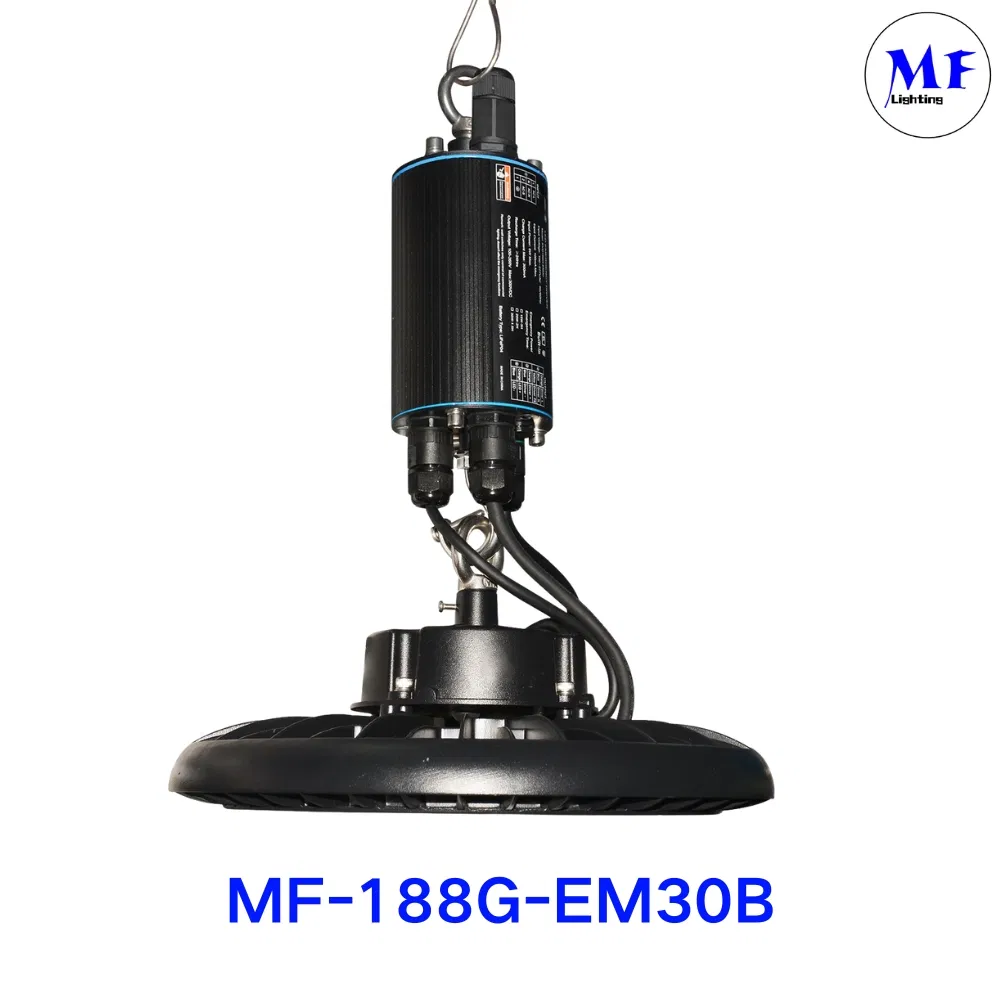

🔧 Product Installation
1. Connect main power for 24 hours to activate battery upon first use.
2. Keep away from heat sources and maintain operating temperature range.
3. Store in a cool, dry environment.
4. Recharge at least once every 6 months during storage.
5. Testing duration must exceed 1 minute; avoid frequent pressing of test button.
2. Keep away from heat sources and maintain operating temperature range.
3. Store in a cool, dry environment.
4. Recharge at least once every 6 months during storage.
5. Testing duration must exceed 1 minute; avoid frequent pressing of test button.
🏭 Product Applications
🏦

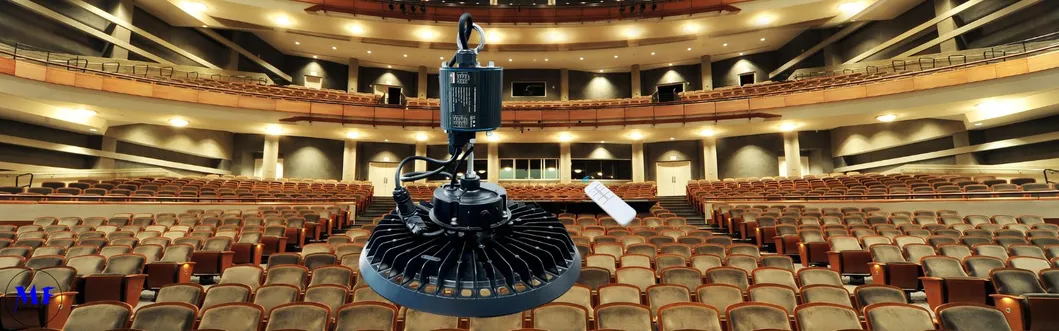

Commercial & Offices: Reliable lighting for workspaces and corridors during power loss.
🏨

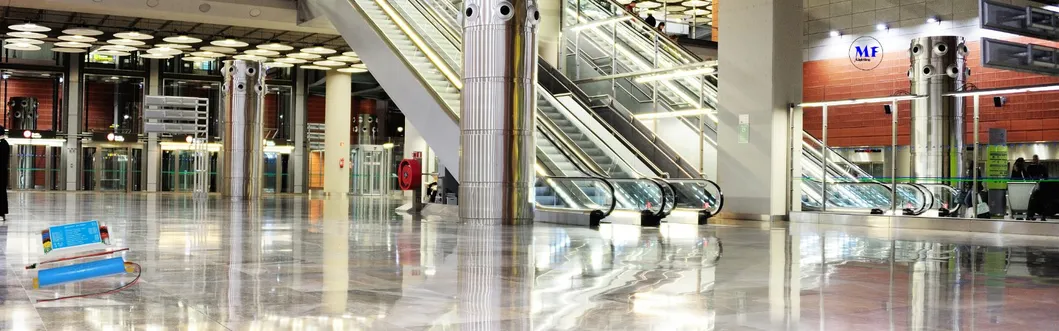

Hospitality & Residential: Ensures safety lighting in hotels, villas, and guest rooms.
🏭

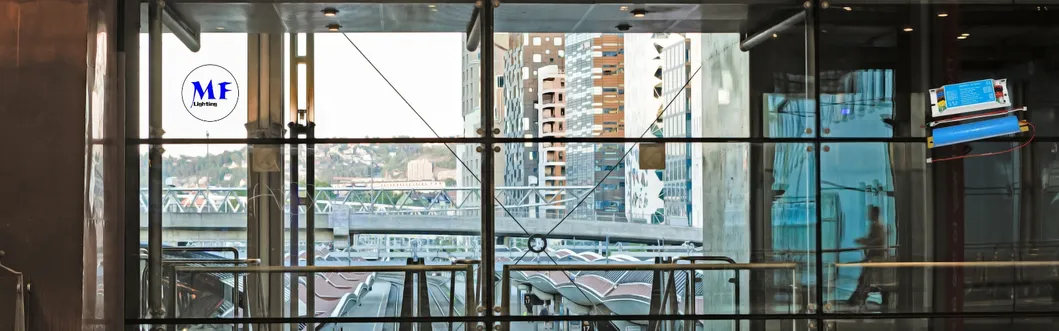

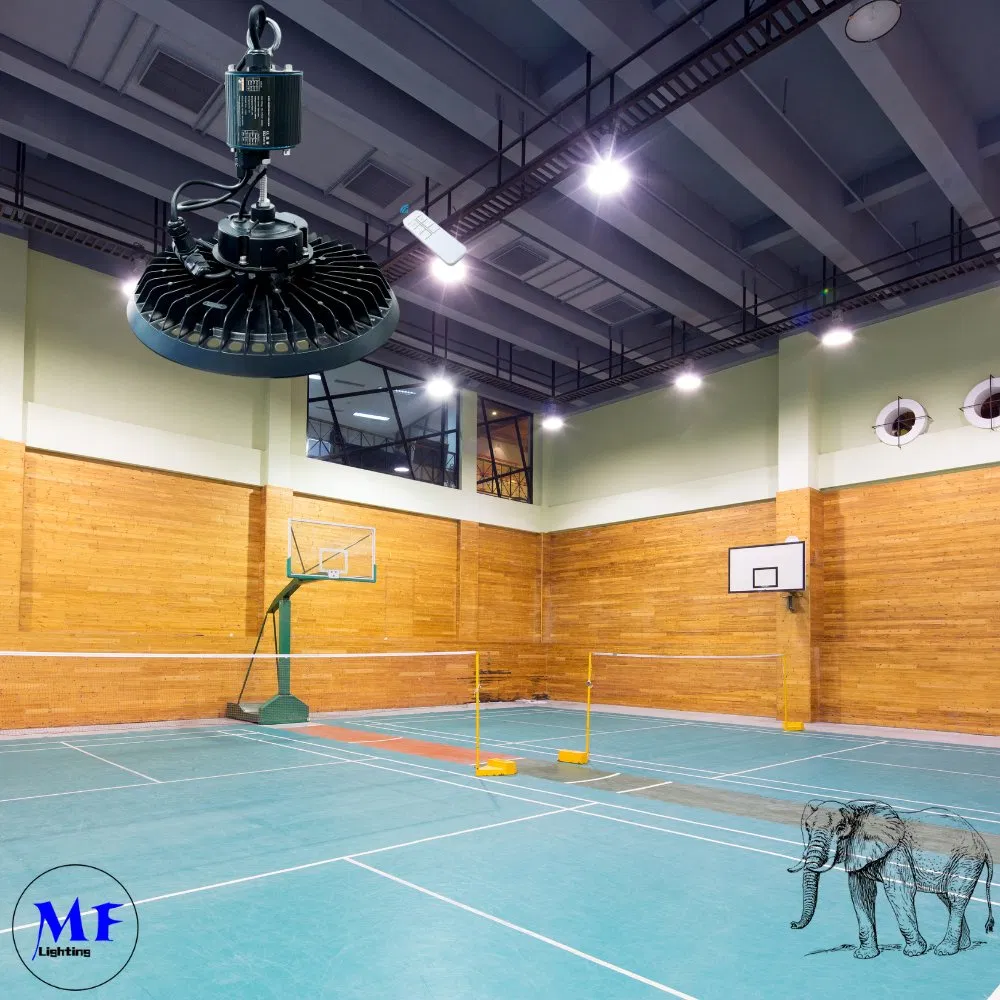

Industrial & Transportation: IP65 rated for harsh industrial environments and public hubs.

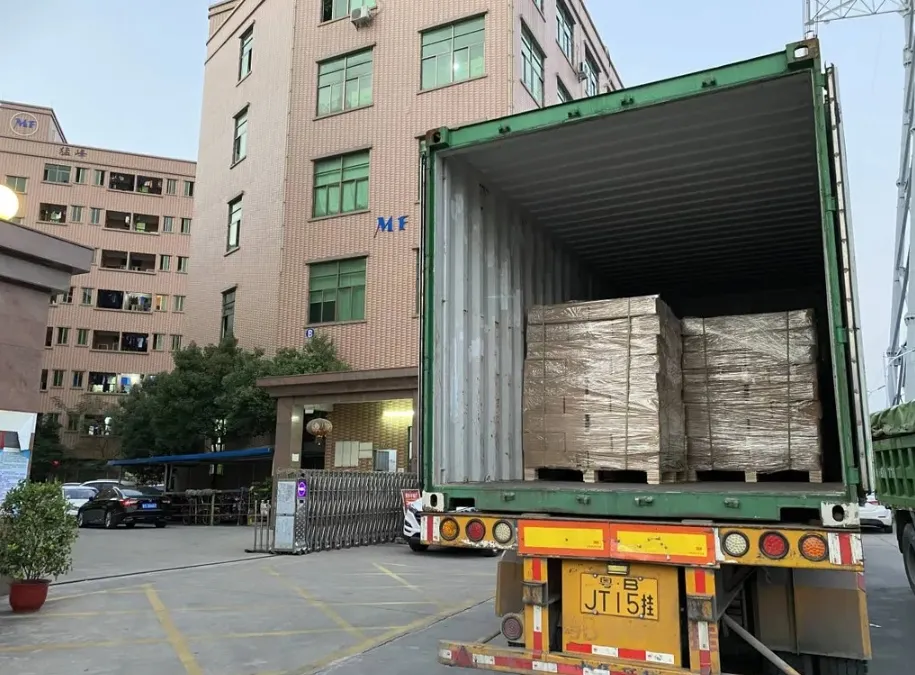

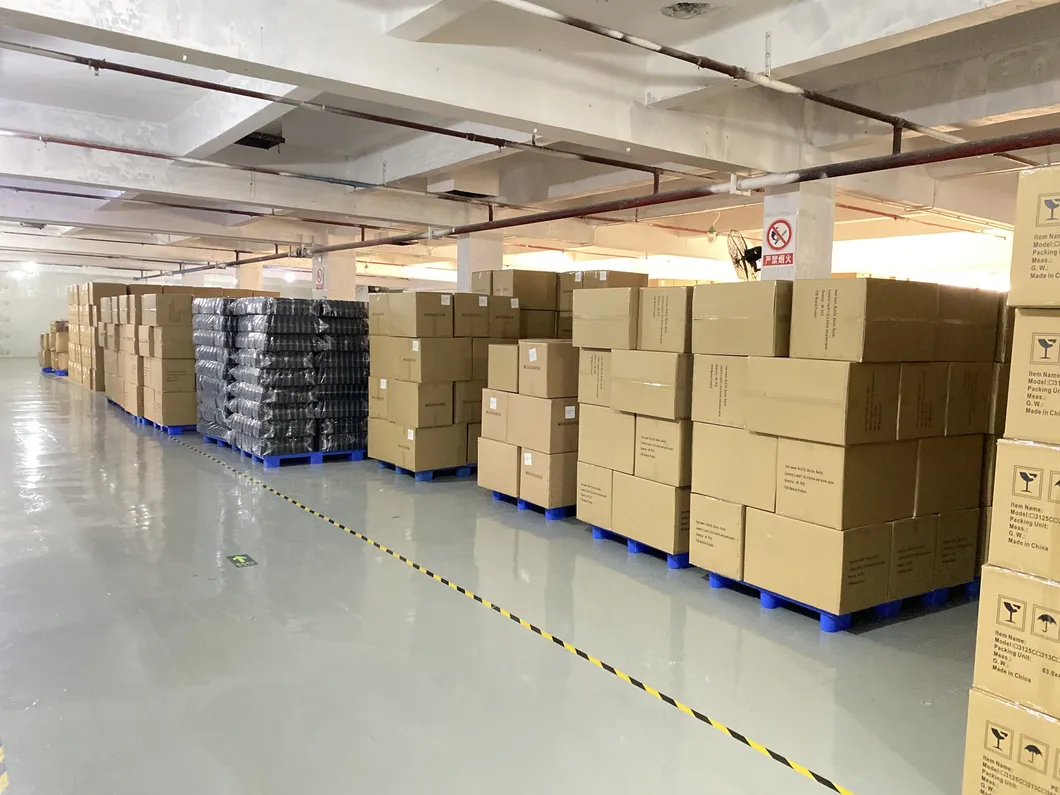

📦 Packaging & Shipping
🎓 Professional Profile

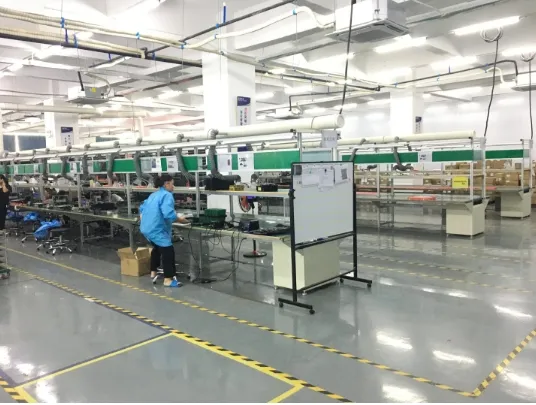

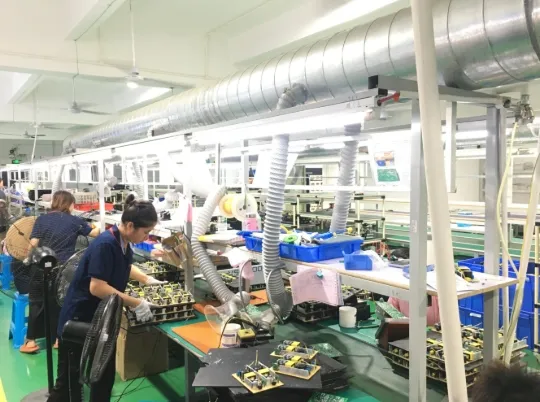

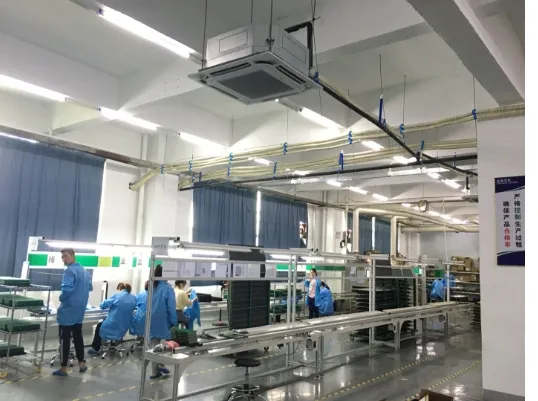

We are a leading LED lighting manufacturer with advanced production facilities. Our team specializes in the design and distribution of high-quality LED emergency solutions. With a focus on innovation and quality, we provide comprehensive lighting systems for residential and commercial needs globally.
Frequently Asked Questions
Q1: What is the emergency duration of this LED driver?
A1: The emergency power duration varies by wattage: 15W for 3 hours, 20W for 2 hours, or 30W for 1.5 hours.
Q2: Is the MF-188G-EM30A driver waterproof?
A2: Yes, it features an IP65 rating, making it suitable for damp and outdoor environments such as tri-proof and high bay lighting.
Q3: What type of battery is integrated into the system?
A3: It uses a high-quality LiFePO4 32700 battery with a capacity of 6000mAh at 9.6V.
Q4: How does the self-diagnostic function work?
A4: The driver automatically performs a self-test every 180 days by entering the emergency state to check battery health and circuitry.
Q5: Can I get a sample order before bulk purchase?
A5: Yes, sample orders are welcome to test and check the quality of our LED emergency products.
Q6: What is the typical lead time for orders?
A6: Usually 7 days for sample or small orders, and approximately 15 working days for bulk orders.
