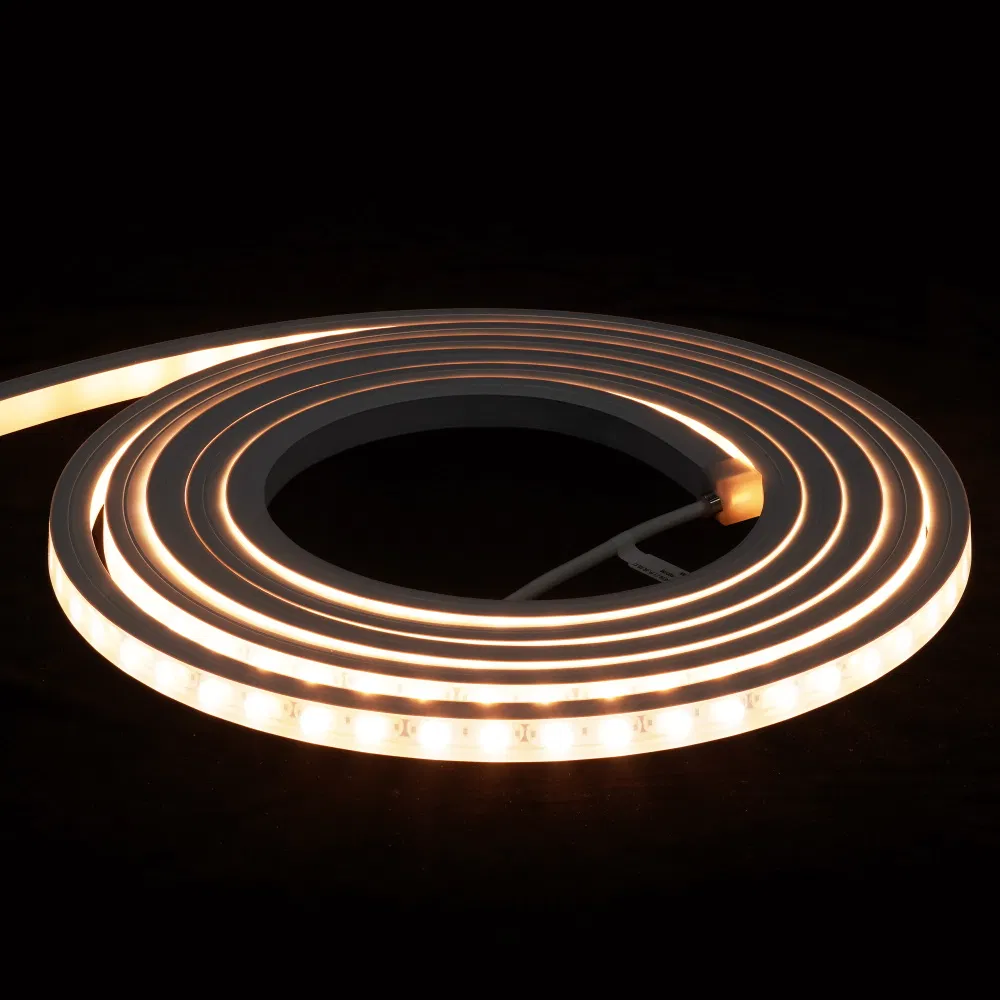

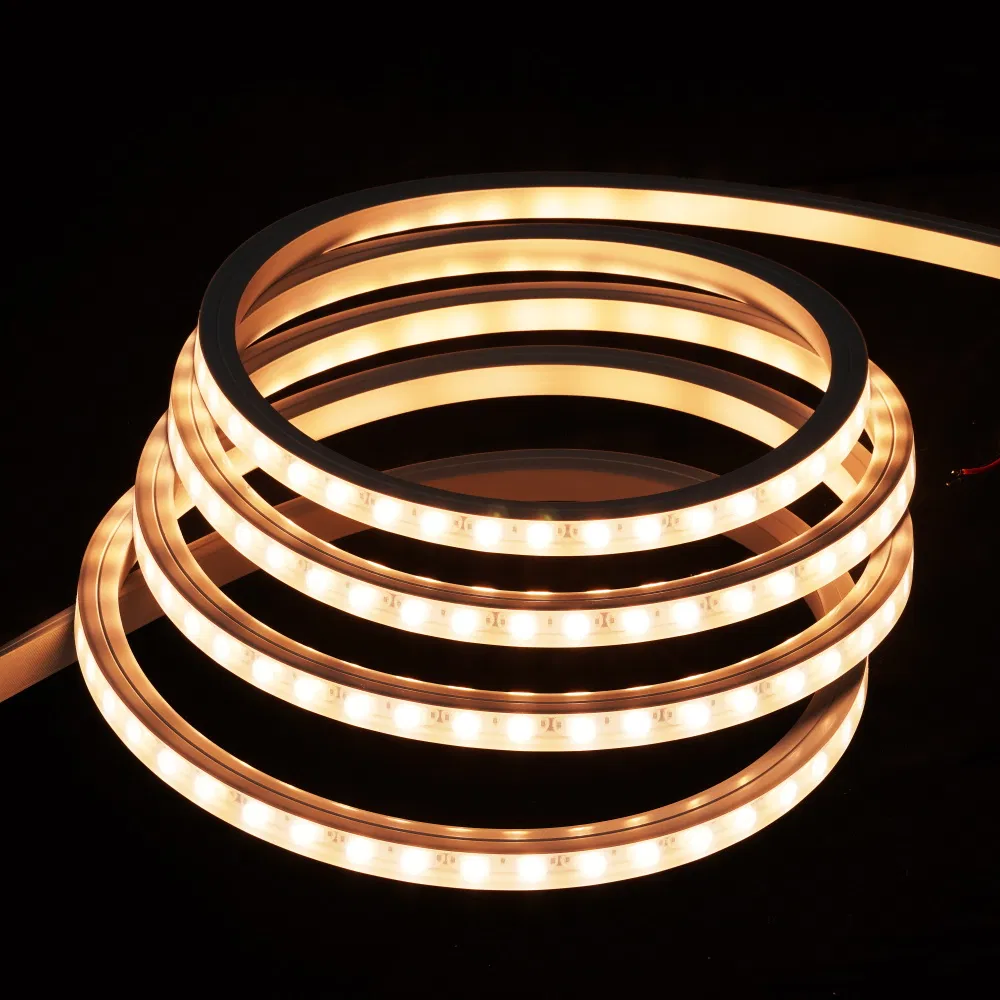

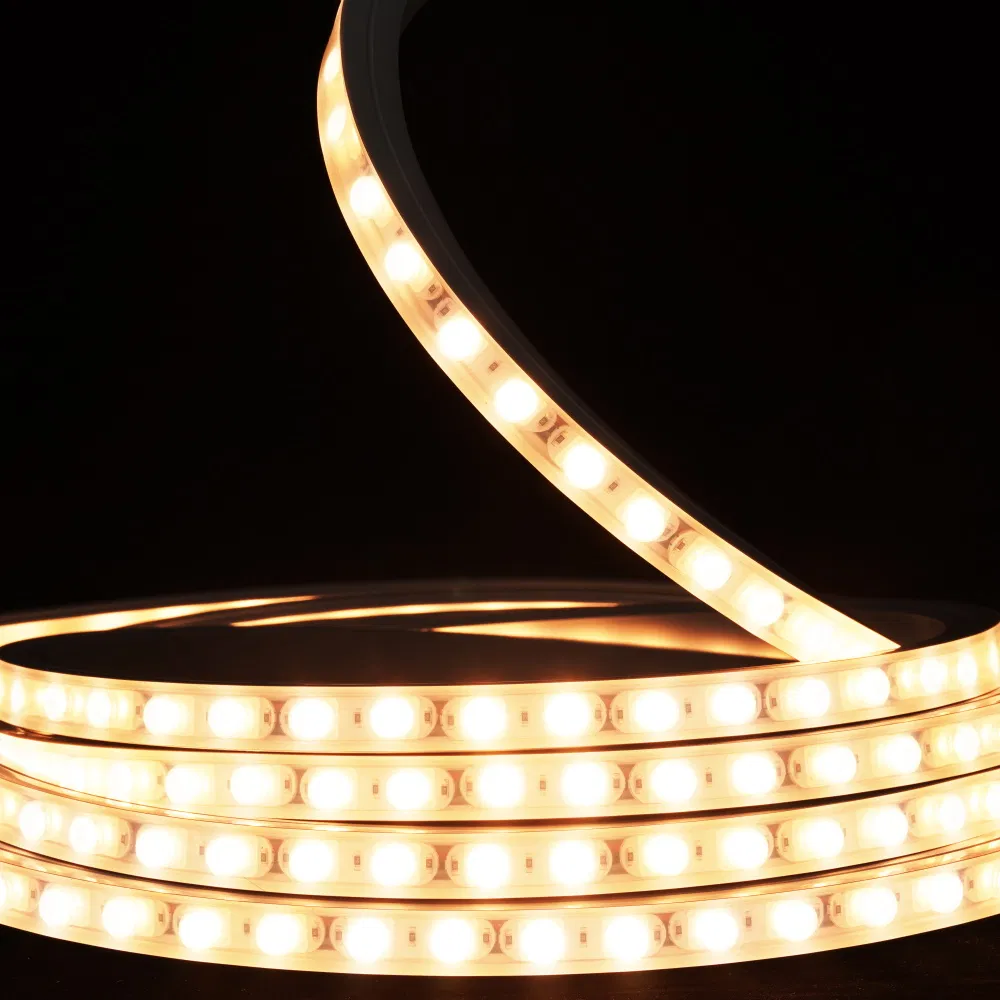

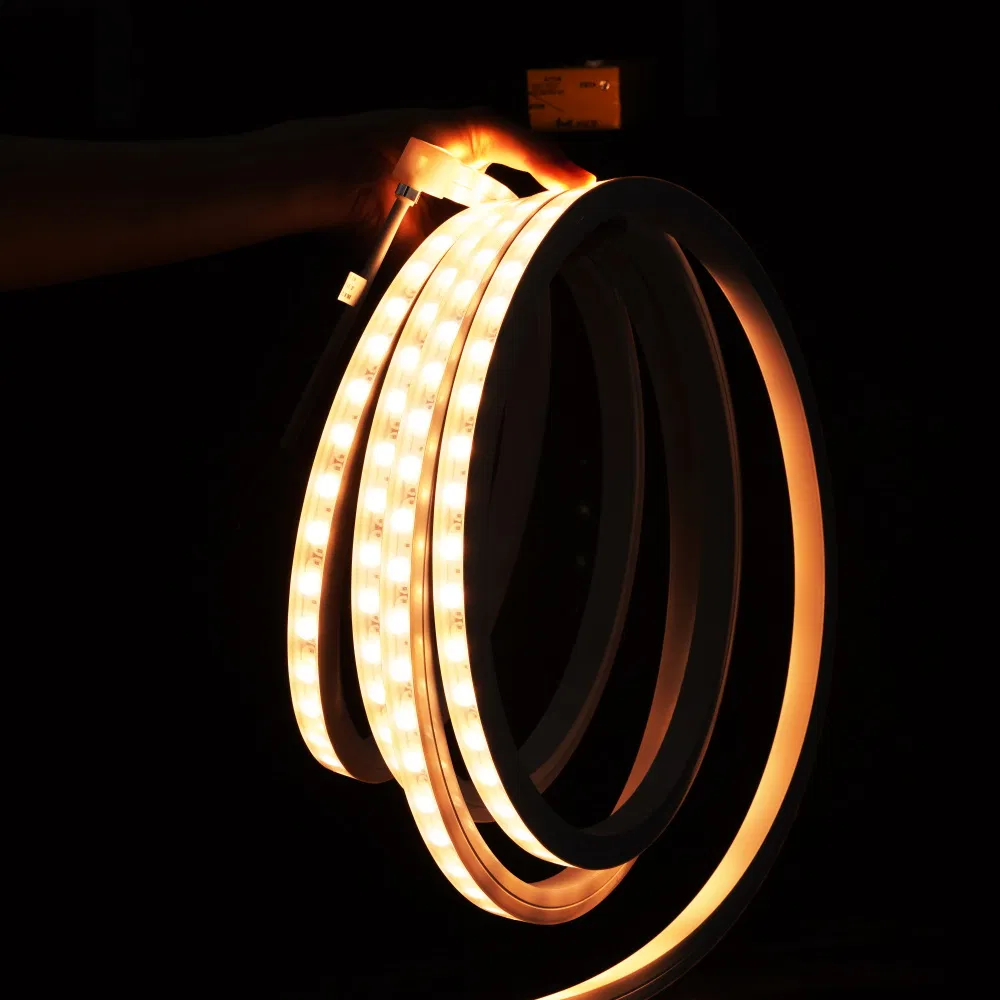

Flexible LED Wall Washer CRI90 DC24V 2835 48LEDs/M 20W 20mm Outdoor IP67 Waterproof
Product Description
i
Basic Specifications
Model NO.
ATA-WA24W22S42XX
IP Rating
IP68
Beam Angle
60°
Lifespan
50000 hours
Warranty
3 Years
Input Voltage
24V
Luminous Efficacy
130lm/W
Material
Silicone, FPCB, PMMA Lens
★
Flexible LED Wall Washer

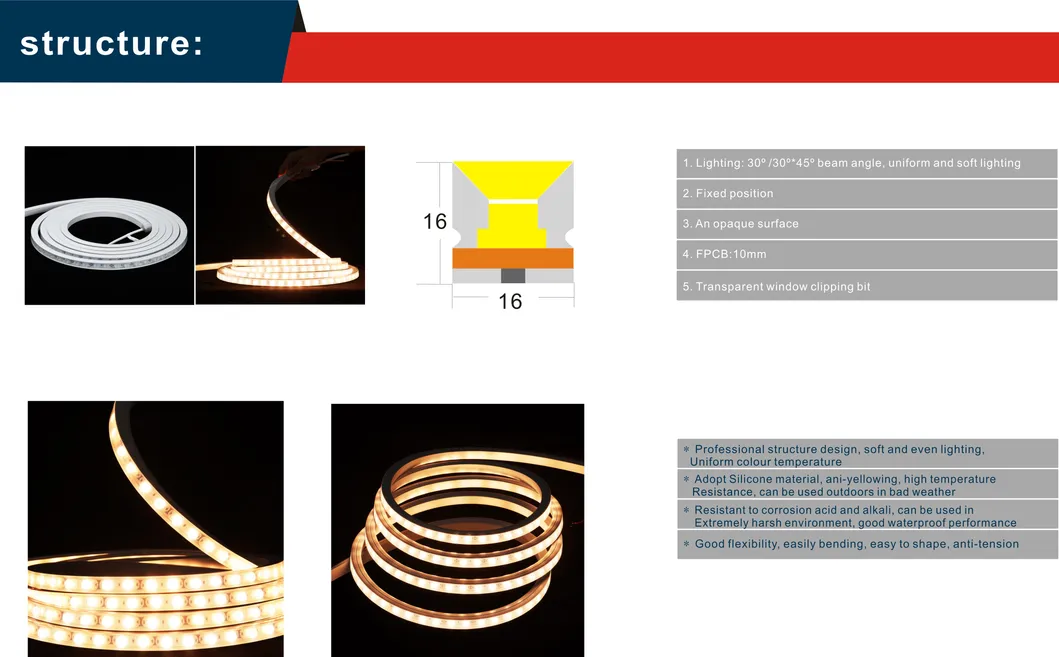

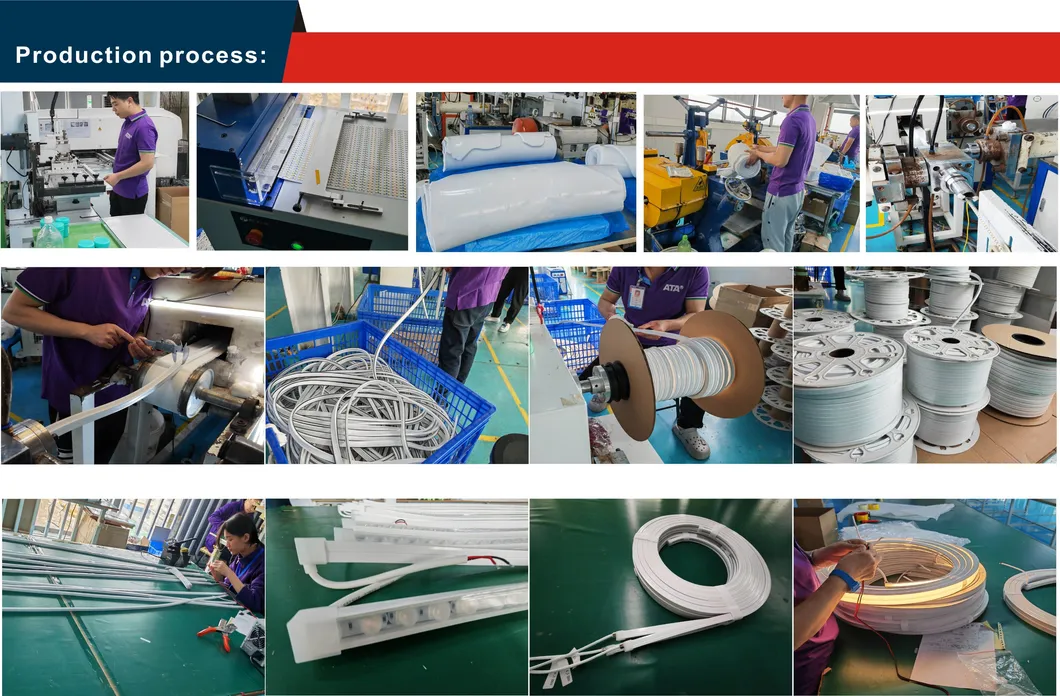

This innovative Flexible LED Wall Washer is improved from traditional heavy aluminum fixtures. Featuring an integrated extrusion injection molding process, it offers exceptional waterproof performance and 360° bendability, making it the perfect solution for narrow spaces, facade lighting, and landscape architecture.
High Protection
IP68 rated, suitable for extreme outdoor applications including rain, sleet, and snow.
IP68 rated, suitable for extreme outdoor applications including rain, sleet, and snow.
Superior Material
Adopt PMMA lens and anti-UV silicone material with excellent flame retardant performance.
Adopt PMMA lens and anti-UV silicone material with excellent flame retardant performance.
Energy Efficient
High brightness output with low power consumption, reaching up to 130LM/W.
High brightness output with low power consumption, reaching up to 130LM/W.
Flexible Installation

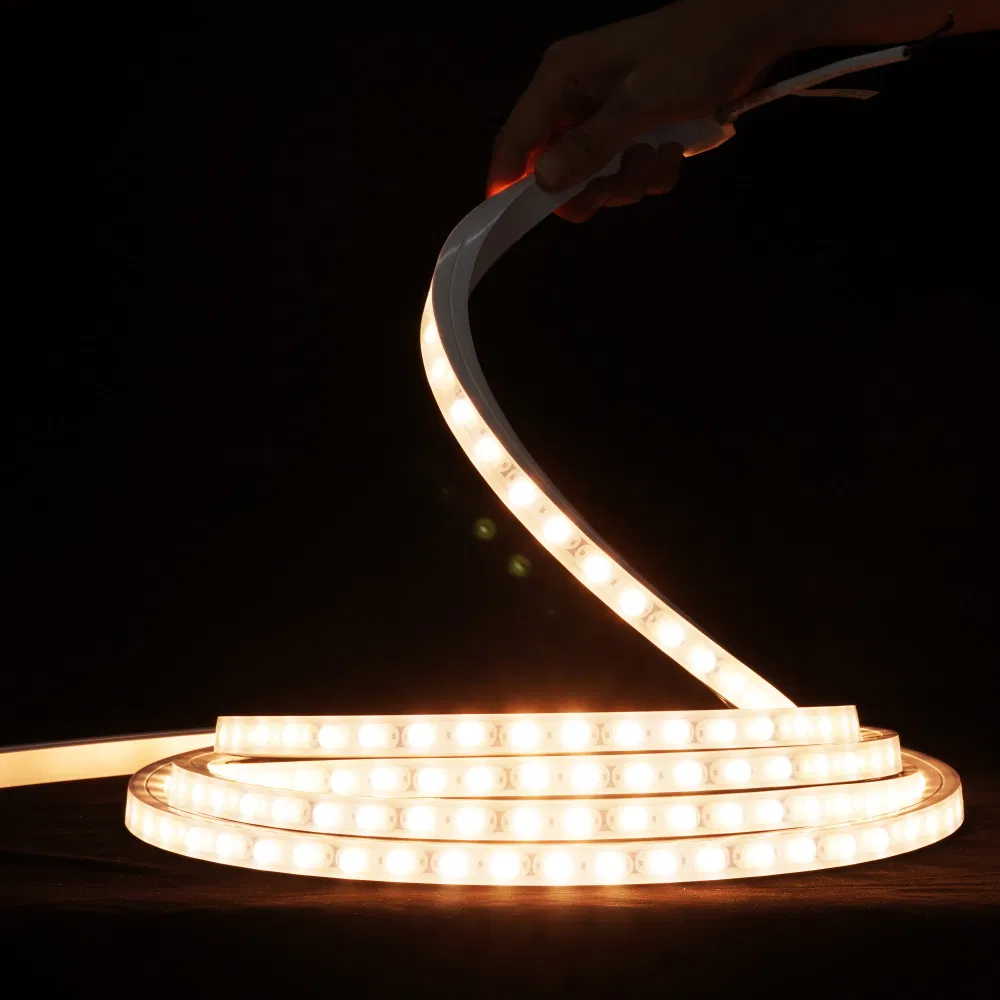

360° bendable structure allows for easy shaping of curves, letters, and complex patterns.
360° bendable structure allows for easy shaping of curves, letters, and complex patterns.
⚙

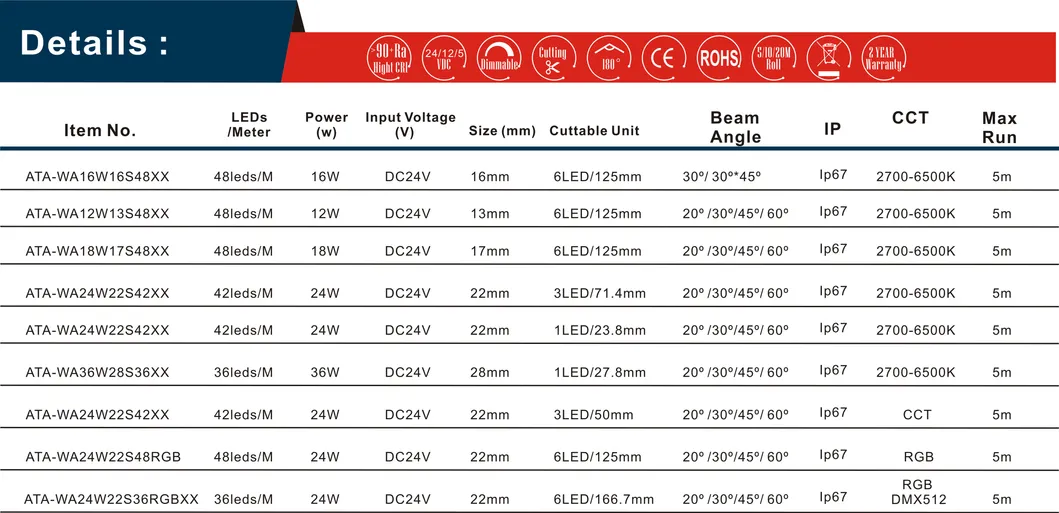

Technical Parameters
| Product Name | LED Flexible Wall Washer |
| Product Width | 13mm, 16mm, 17mm, 22mm, 25mm, 28mm |
| LED Light Source | 3030 / 3535 / 2835 SMD LED |
| CRI(Ra) | Ra>80, Ra>90, Ra>95, Ra>98 |
| Viewing Angle | 15, 20, 25, 30, 45, 60, 30*45, 20*45 degrees |
| Working Voltage | DC12V, DC24V, DC48V, AC110-240V |
| Emitting Color | White, RGB, RGBW, CCT, DMX Digital, Dream Color |
| Waterproof Rate | IP66, IP67, IP68 |
Key Product Features
- Flexible Silicone Extrusion, 360° bendable
- No dark area, uniform and bright luminance
- High tear strength and anti-yellowing silicone
- Cold-resistant (works at -20°C)
- Flame resistance and environmental protection
- Non-flicker, superior eye care design
⊕

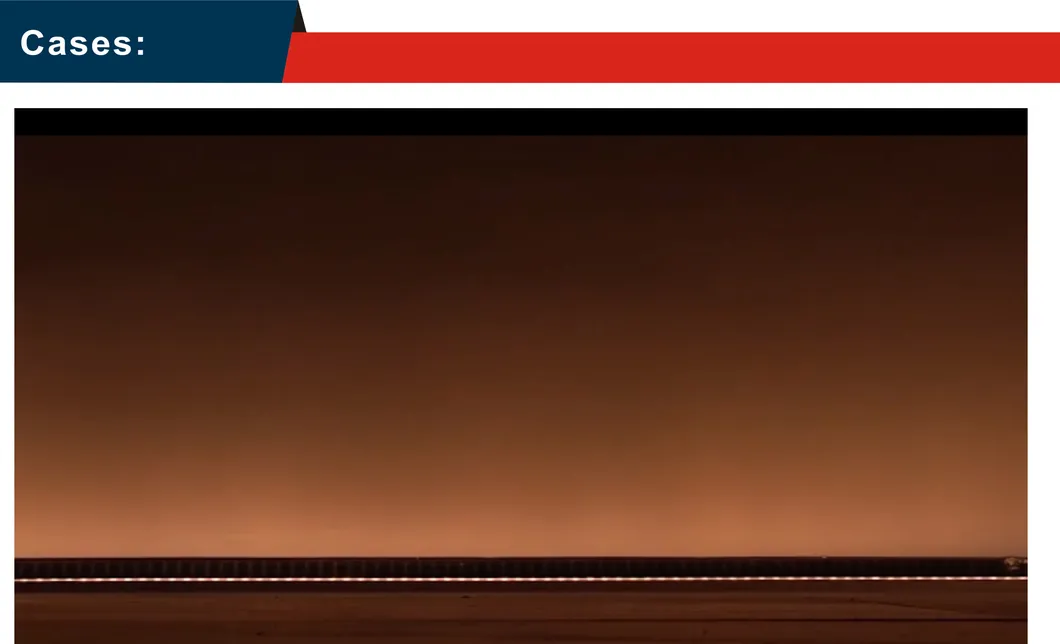

Applications & Scenarios
1. Architecture facade & building outlines
2. Bridge edge & landscape lighting
3. Bars, clubs, and entertainment venues
4. Museums & art gallery accent lighting
5. Commercial signage & advertising boards
6. Underwater & fountain decoration
7. Interior cove & furniture lighting
8. Festival & event show decorations
✔
Quality Assurance
Stability Test
100% aging test for 48 hours and waterproof testing for 72 hours.
100% aging test for 48 hours and waterproof testing for 72 hours.
Lighting Test
100% of LED strip lights are lighted and inspected before packing.
100% of LED strip lights are lighted and inspected before packing.
Certifications
Compliant with TUV, CE, RoHS, SAA, FCC, and ISO9001 standards.
Compliant with TUV, CE, RoHS, SAA, FCC, and ISO9001 standards.
?
Frequently Asked Questions
What makes this wall washer different from traditional ones?
Unlike heavy aluminum wall washers, our flexible version uses silicone extrusion, making it lightweight, 360° bendable, and easier to install in curved or narrow spaces.
Is the product truly waterproof for outdoor use?
Yes, it features an IP68 rating with a sealed silicone structure, making it perfect for underwater engineering, fountains, and extreme weather conditions.
Can the LED strip be cut to specific lengths?
Yes, the strip is cuttable at marked units (e.g., every 50mm or 125mm depending on the model) to fit your specific project requirements.
Does the silicone material turn yellow over time?
No, we use high-quality food-grade silicone that is anti-UV, anti-yellowing, and resistant to corrosion and high temperatures.
What is the expected lifespan and warranty?
The LEDs have a lifespan of approximately 50,000 hours, and we provide a 3-year warranty for this product range.
Which control methods are supported?
It supports various control modes including On/Off, DMX512, Triac, PWM, 1-10V, and smart control via WiFi or Bluetooth apps.
