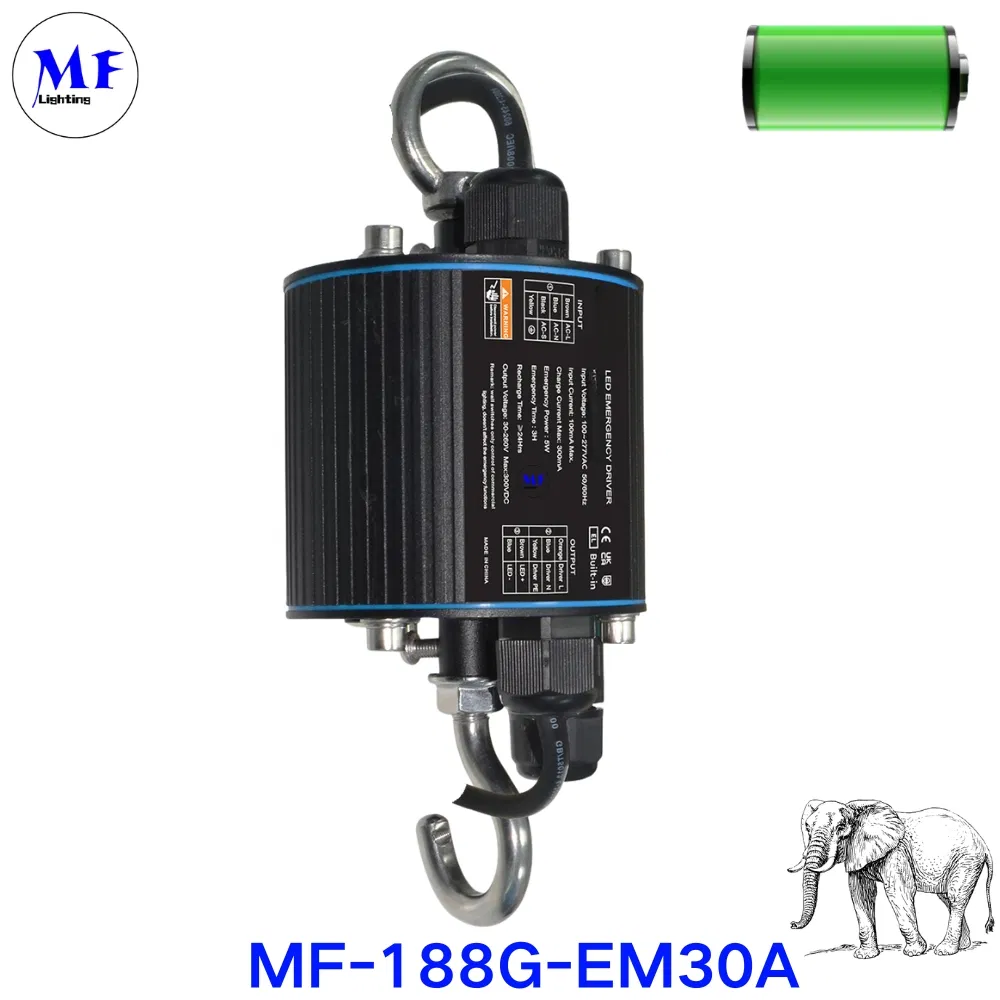

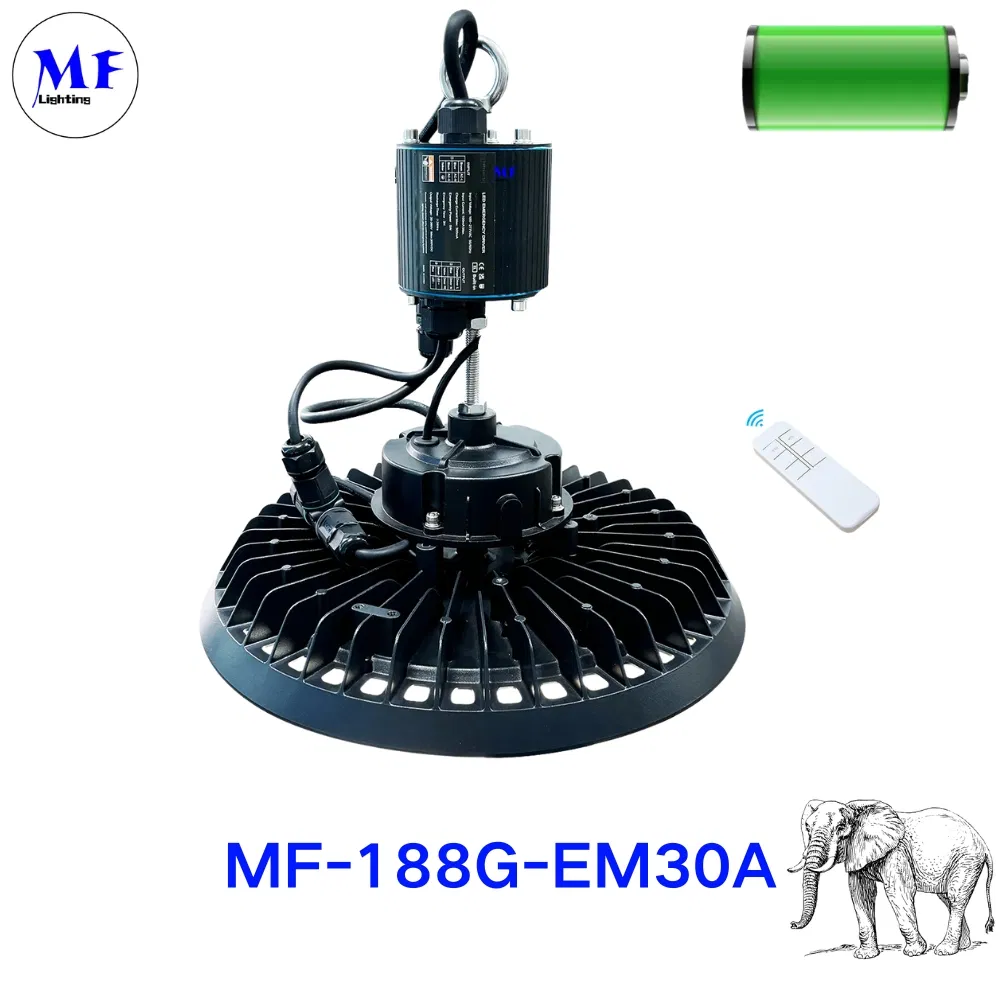

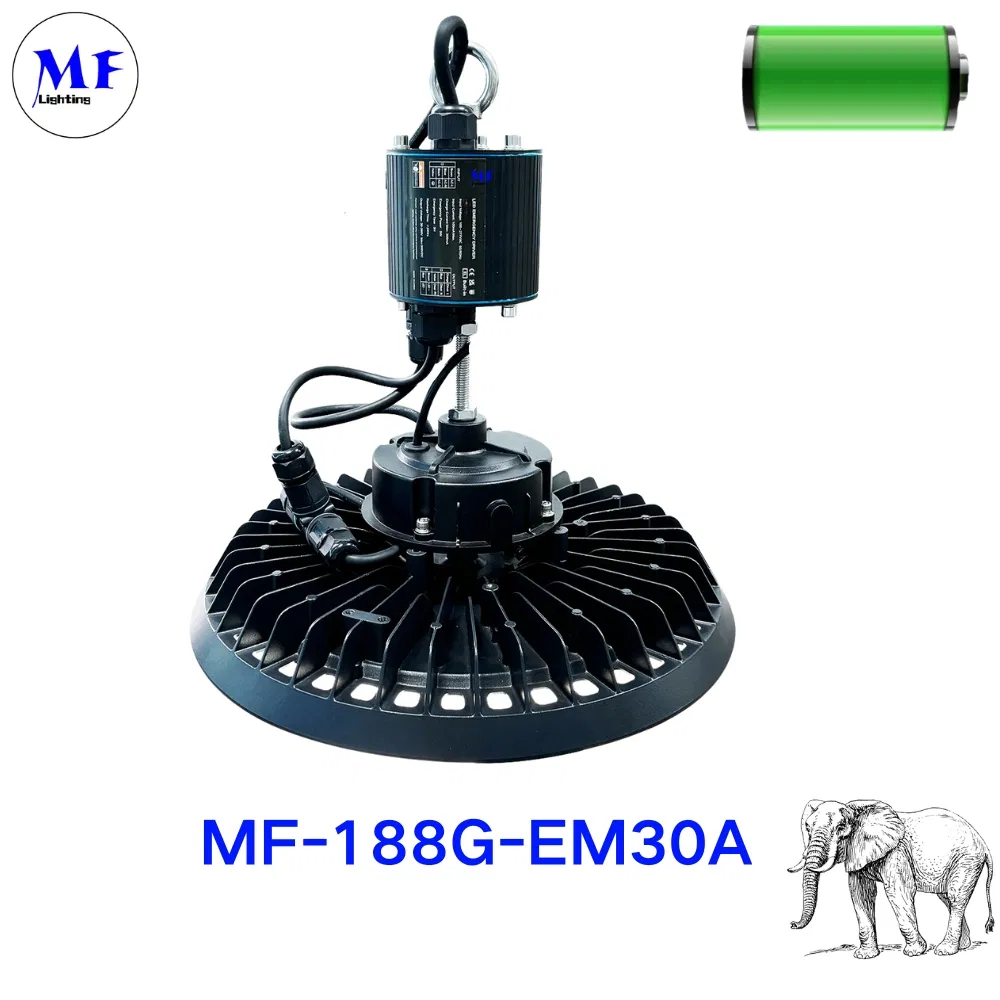

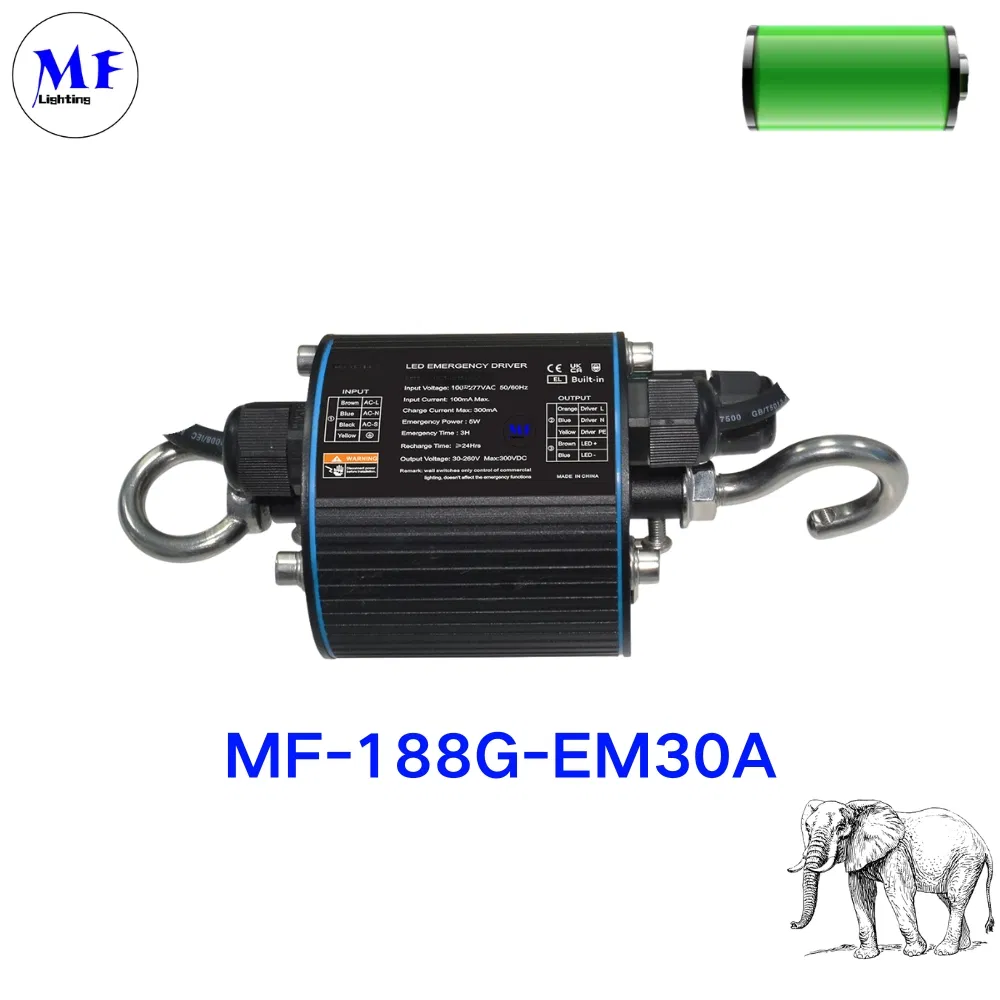

High Bay Light LiFePO4 Battery Back up IP65 15W-3h/20W-2h/30W-1.5h Discharge Time Self-Detect LED Emergency Driver Power Supply Emergency Conversion Kit
Product Description
i
Basic Specifications
Model NO.
MF-188G-EM30A
Input Voltage
100~277VAC, 50/60Hz
Input Current
100mA Max.
Charging Current
0-350mA
IP Rating
IP 65
Case Temperature
to 60℃ Max.
Power Factor
>0.5
Emergency Output
DC100-260V, DC300V Max.
Discharging Time
5W 3h
Battery Data
Li-ion 2.6ah 7.4V
Working Environment
0 to 60℃
Specification
L275*W88*H88mm
P
Product Overview

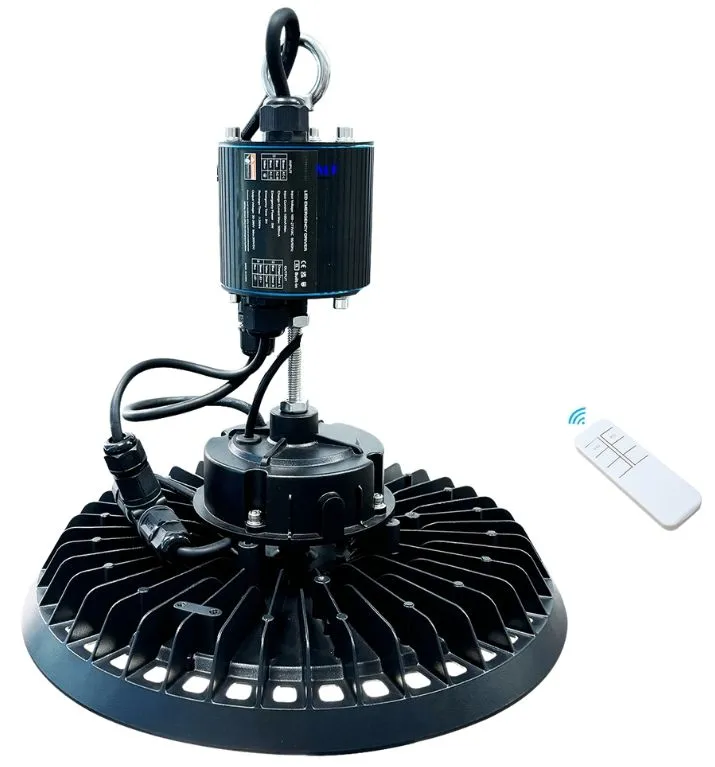

High Bay Light LiFePO4 Battery Back Up IP65 Emergency Conversion Kit
- ✅ Authorized CE certificate
- ✅ Infra red wireless remote control
- ✅ Constant power output
- ✅ Charging and discharging protection
- ✅ Over heat temperature protection
- ✅ Seasonal self detect function
- ✅ IP65 Waterproof Rating
- ✅ Metallic housing, comply EMC/FCC
T
Technical Descriptions
| Input Voltage | 220-240Vac, 50/60Hz |
| Input Current | 0.003A Max. @230Vac |
| Charging Power | 5.0W max. |
| Power Factor | >0.5 |
| Emergency Output Voltage | DC100-260V, DC300V Max. |
| Emergency Output Current | 58-150mA / 75-200mA / 115-300mA |
| Warranty | 3 Years |
| Battery | Li-ion 2.6Ah 7.4V |
D

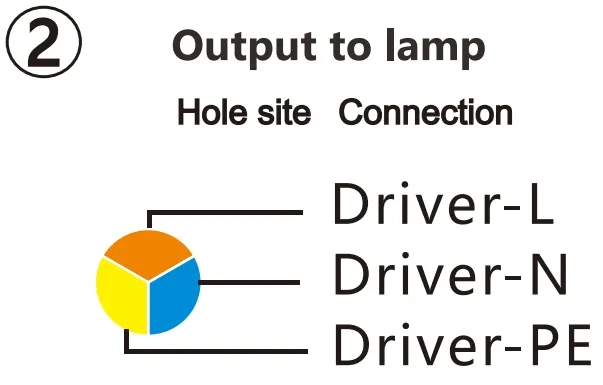

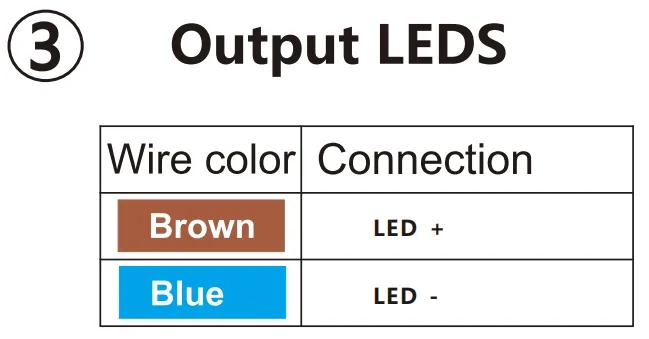

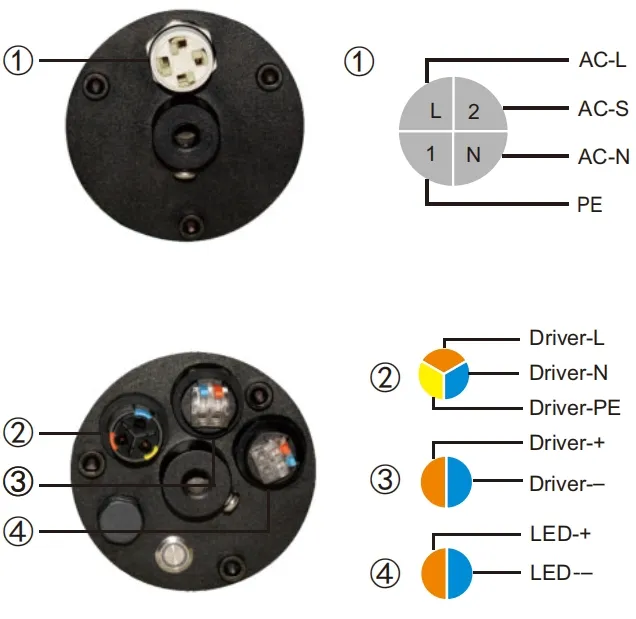

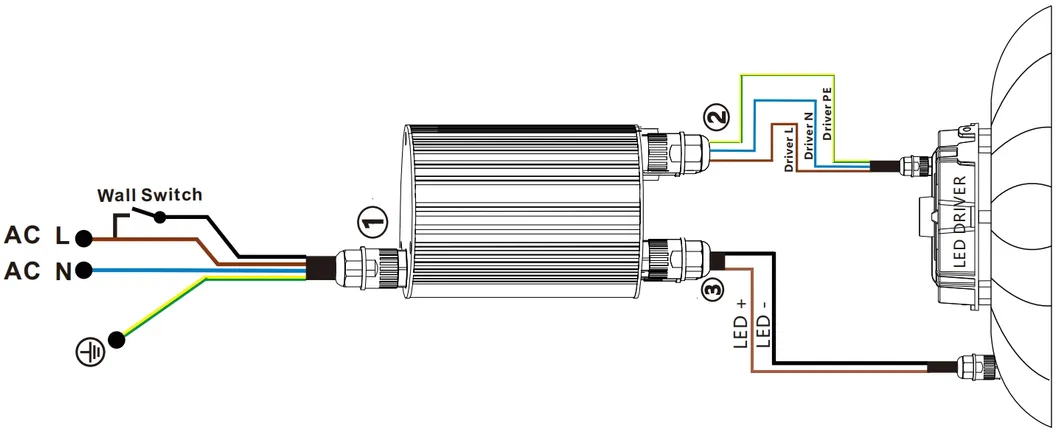

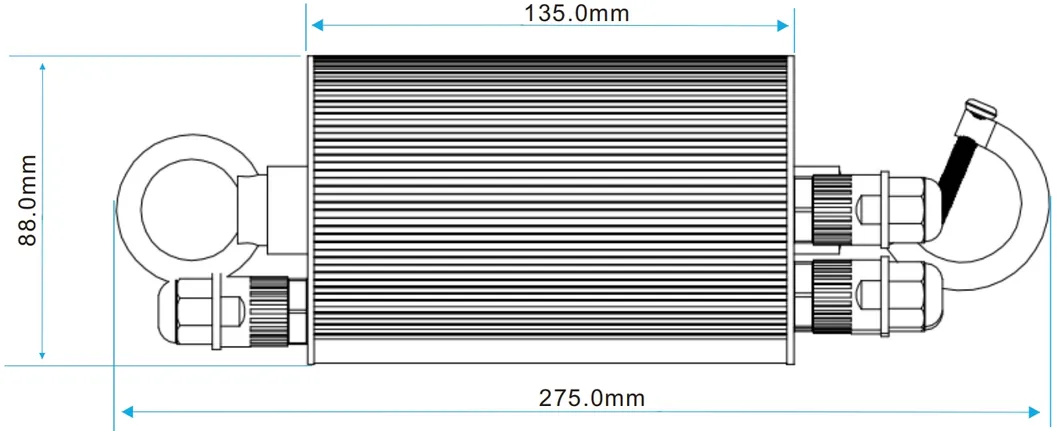

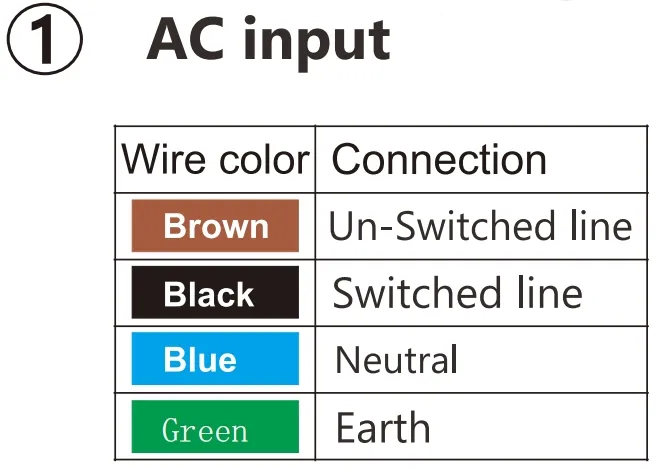

Wiring Diagram & Dimensions
F
Key Features
LED Indicator Status
• Green Breathing: Charging
• Green Stable: Fully Charged
• Red Flashing: Failure/Battery not connected
• Green Flashing: Emergency Status
• Green Stable: Fully Charged
• Red Flashing: Failure/Battery not connected
• Green Flashing: Emergency Status

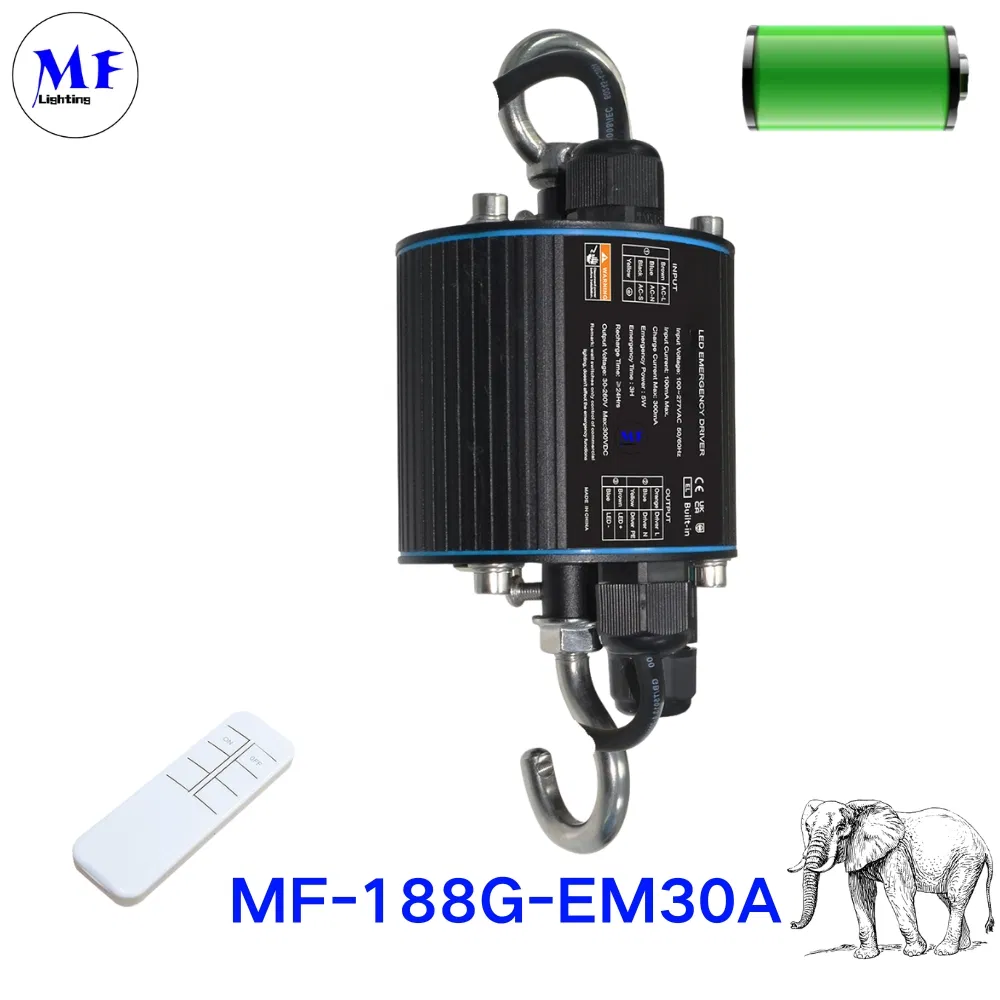

Remote Control
• Key ON (≤1S): Enter simulated emergency state
• Key OFF (≤1S): Return to normal charging state
• Emergency Mode: Turn off emergency state
• Key OFF (≤1S): Return to normal charging state
• Emergency Mode: Turn off emergency state
Automatic Self-Test
• Every 180 days, the driver automatically enters an emergency state until discharge, then returns to power-on status.
S
Installation Instructions
1For first-time use, connect to main power for 24 hours to activate and charge the emergency supply.
2Keep away from heat sources and operate within specified temperature ranges.
3Store in a cool, dry environment.
4Recharge at least once every 6 months during prolonged storage.
5Testing must last longer than 1 minute; avoid frequent pressing of the test button.
A

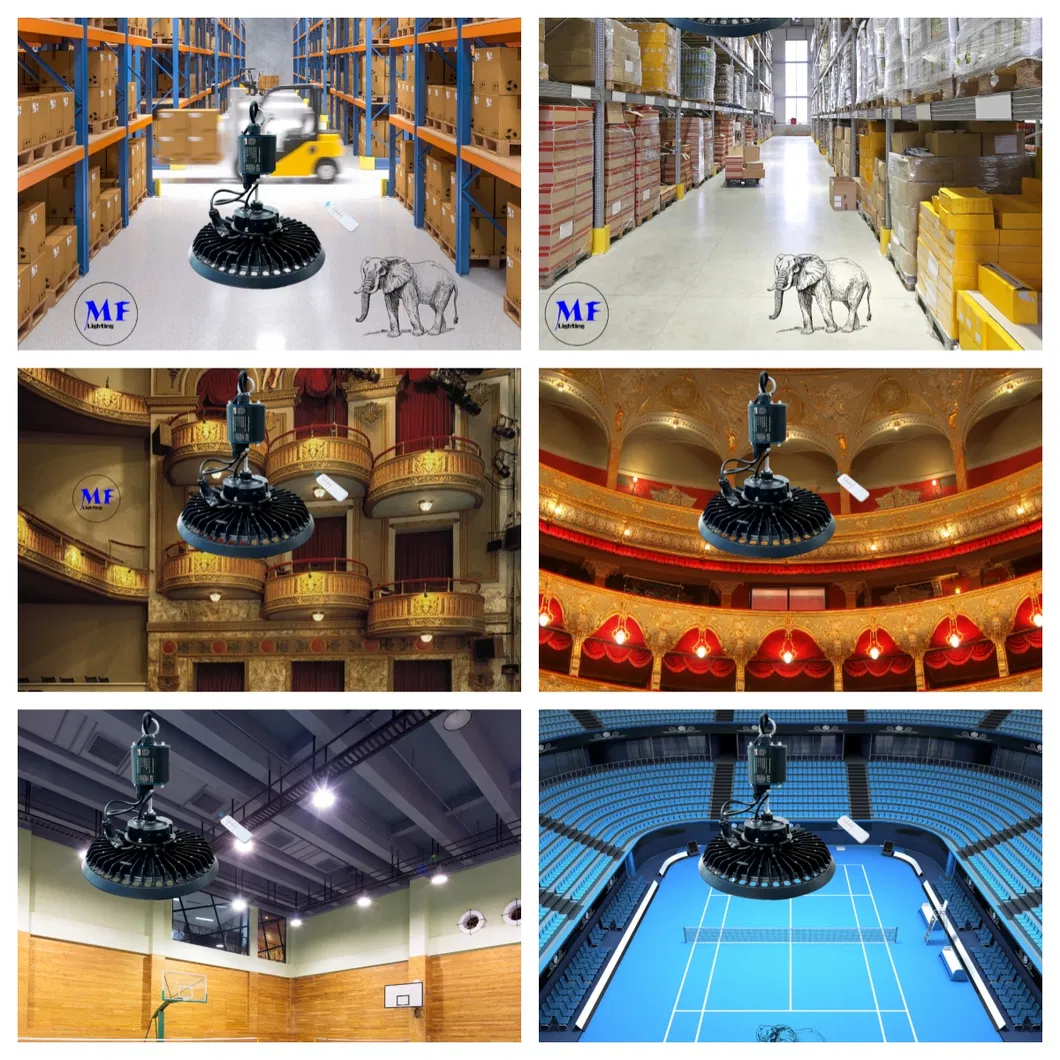

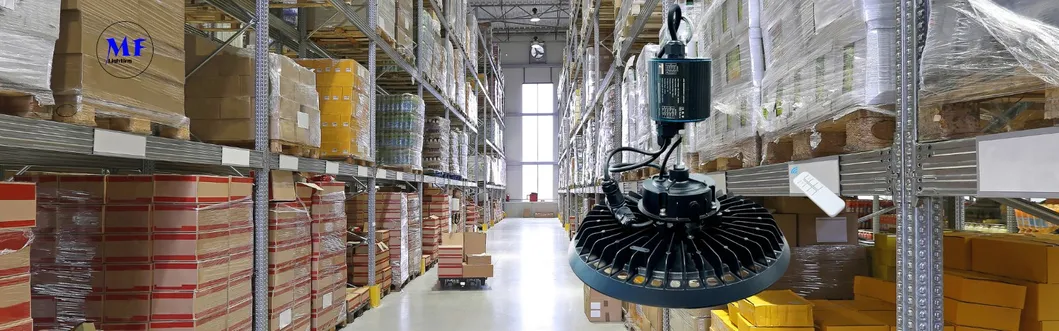

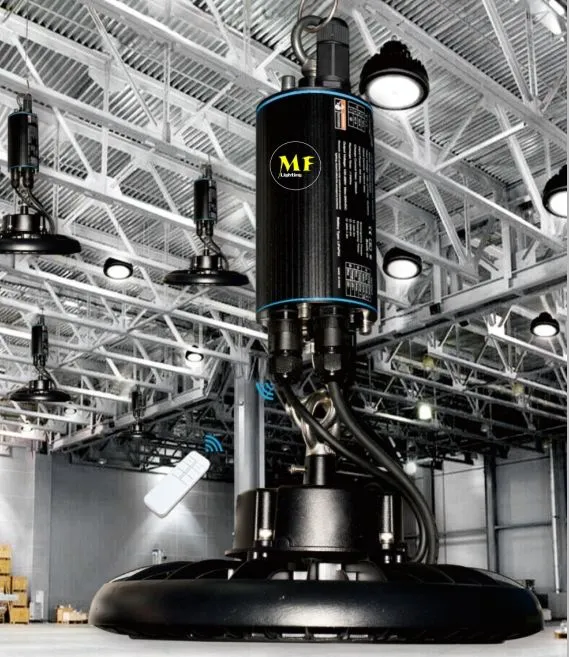

Application Areas
Suitable for schools, hospitals, subways, train stations, shopping malls, airports, offices, factories, hotels, and parking lots.
L

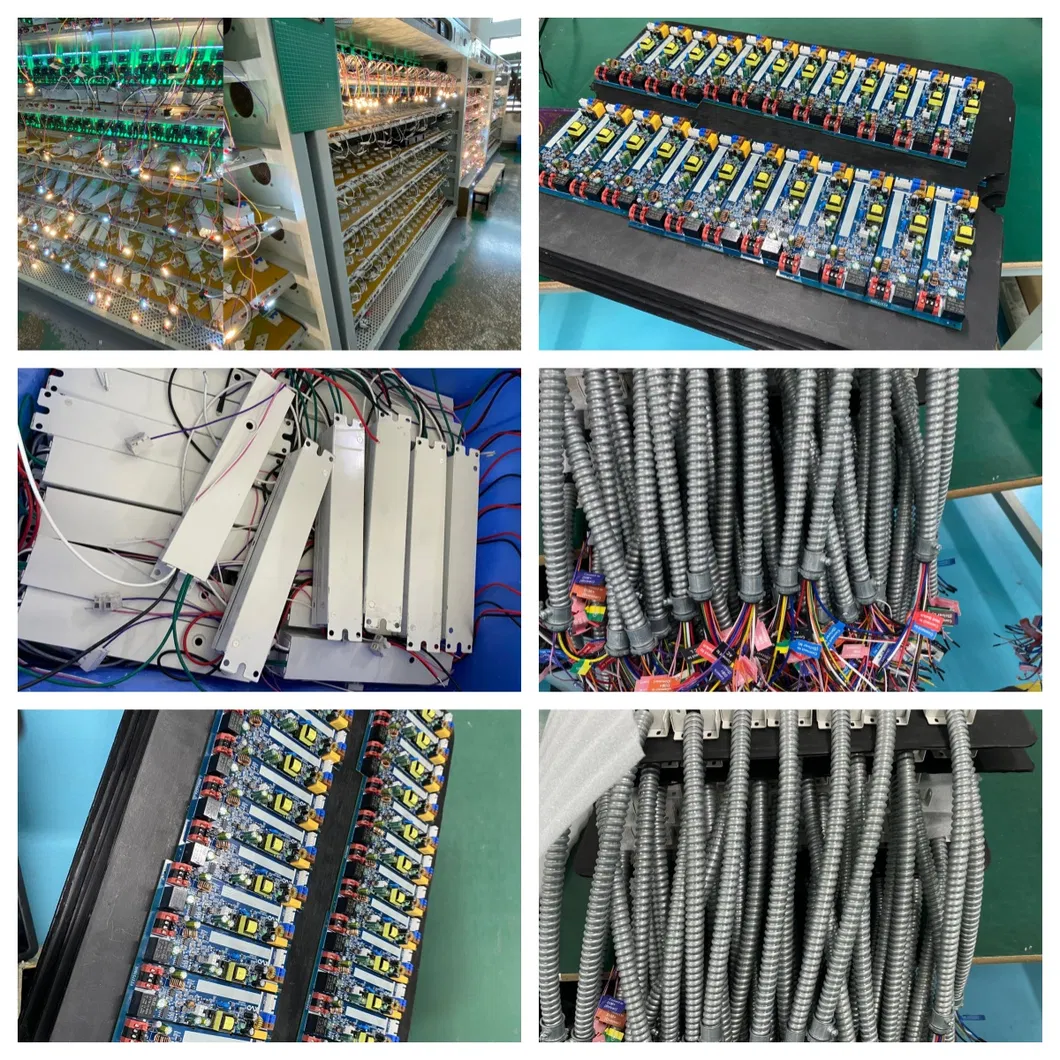

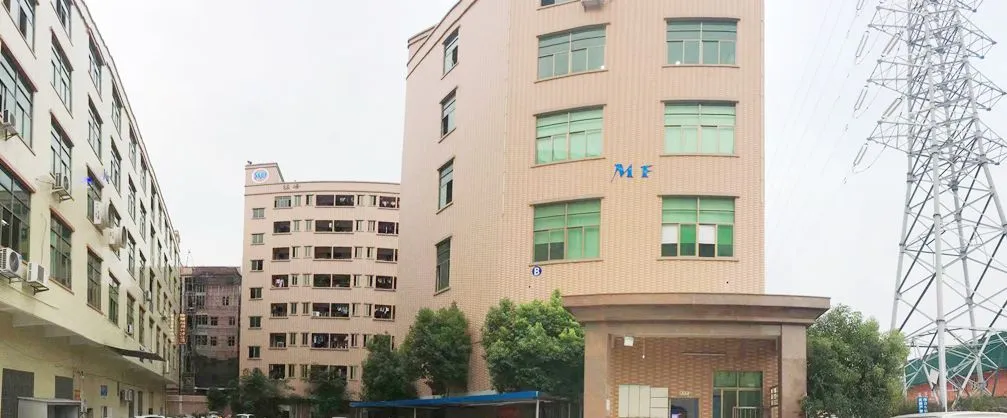

Packaging & Production Line
?
Frequently Asked Questions
Q1: Is this emergency driver suitable for sample orders?
Yes, we welcome sample orders to test and verify the quality of the emergency driver. Mixed samples are also available.
Q2: What is the typical lead time for orders?
Sample orders typically take 3-7 days, while mass production orders range from 15-25 days depending on the quantity.
Q3: How are the products shipped?
We offer various shipping methods including Sea Freight, Air Freight, or Express services such as DHL, UPS, FedEx, and TNT.
Q4: Can the product be customized with a logo?
Yes, we provide OEM services and can assist with custom labels and color box designs according to your specifications.
Q5: What is the warranty policy for this emergency power supply?
This product comes with a 3 to 5-year warranty. Our quality control system ensures a defective rate of less than 0.2%.
Q6: What should be done if a product is found defective?
If any defect occurs during the warranty period, please provide photos or videos of the issue. We will arrange for replacement lights to be sent to you promptly.
