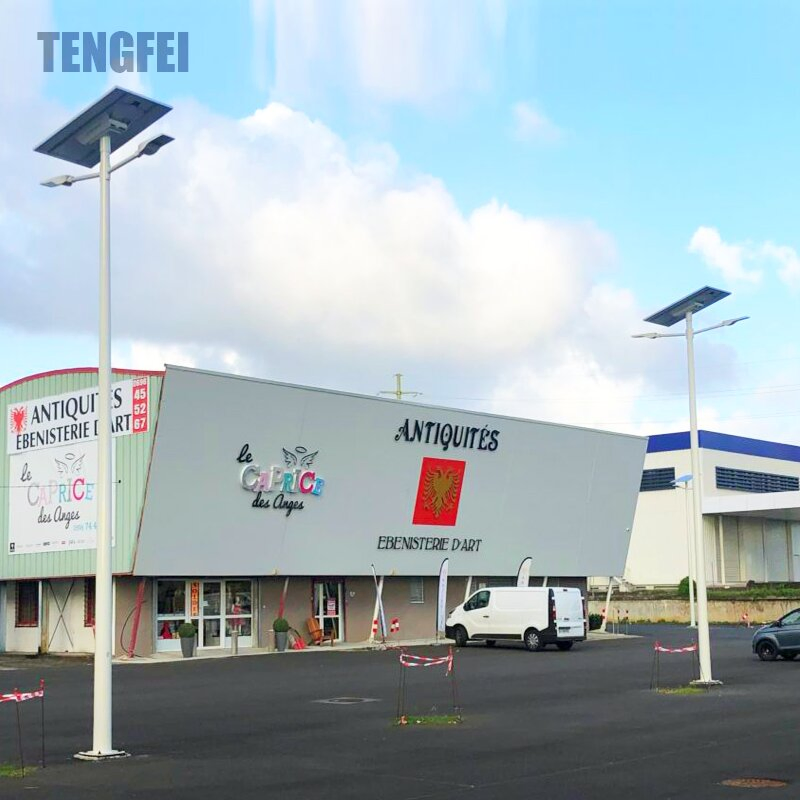

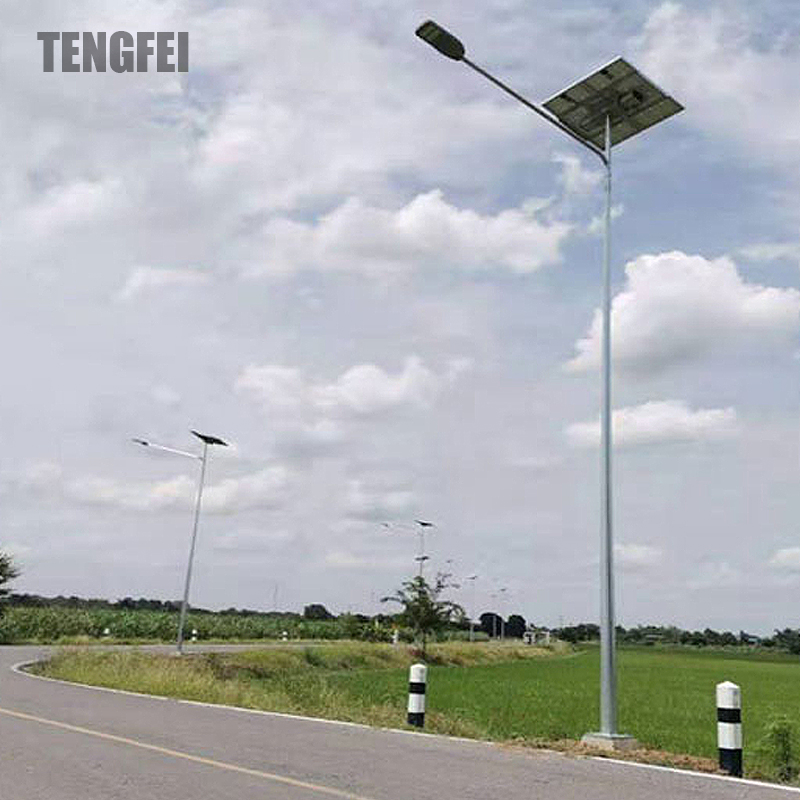

High-Efficiency LED Solar Street Light with Split Panel
Product Description
◈ Basic Information
Model NO.
001
Light Source
LED Lamp, Energy-Saving Lamp
Body Material
Aluminum Alloy
Light Type
Solar
Color Temperature
Cool White, Warm White, Pure White
Power
≥30W
Illumination Time
6h
Cell Type
LiFePO Lithium Battery
IP Rating
IP65
Luminous Efficiency
160lm/W
Sensor Type
Motion Sensor + Light Sensor + APP Remote
Solar Panel
Mono Type, 22.5% Efficiency
Lifespan
8-10 Years
Working Temp
-25 - +60
Pole
Hot DIP Galvanized 10m

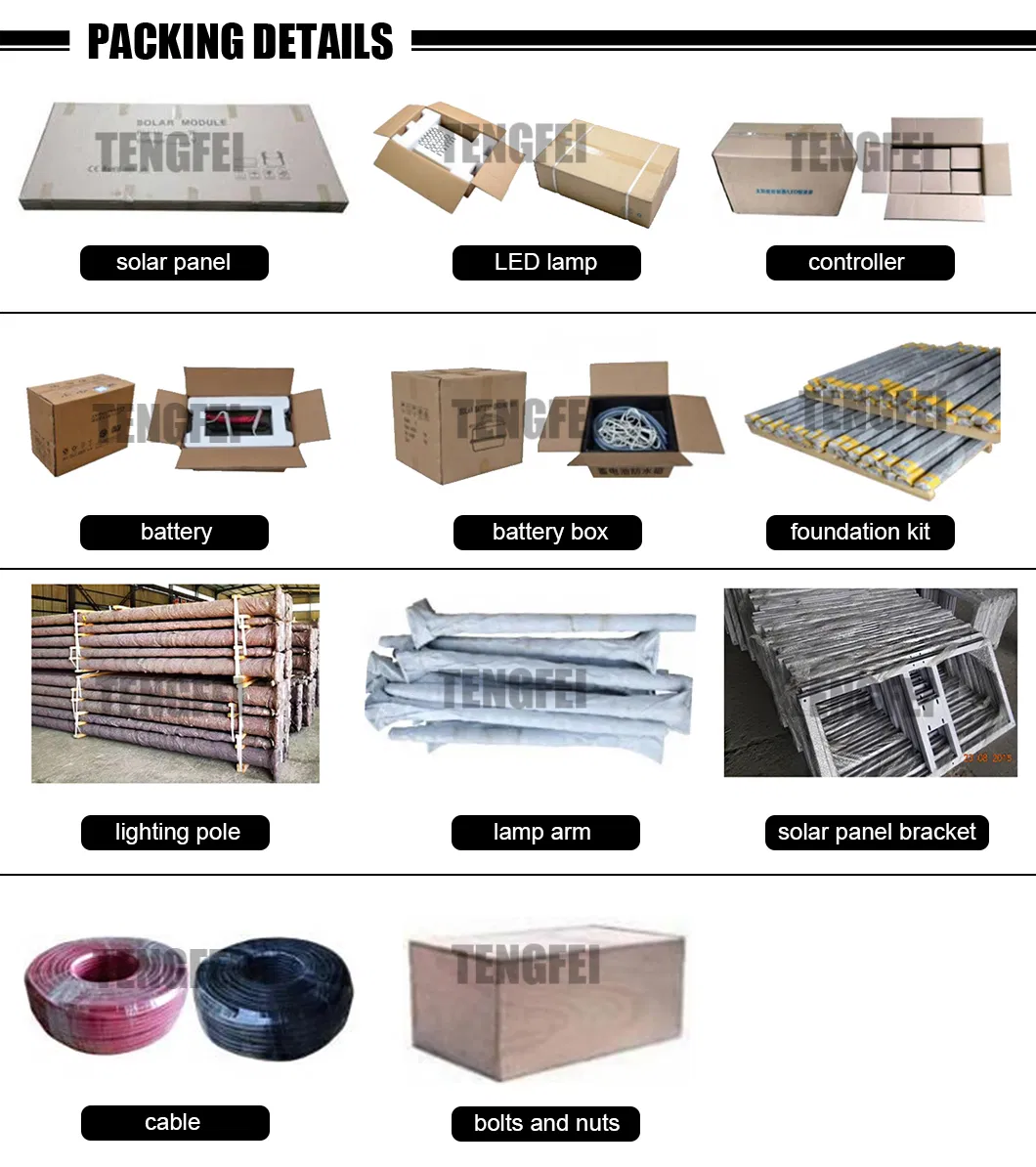

◈ Packaging & Delivery
Package Size
600.00cm * 260.00cm * 260.00cm
Gross Weight
45.000kg

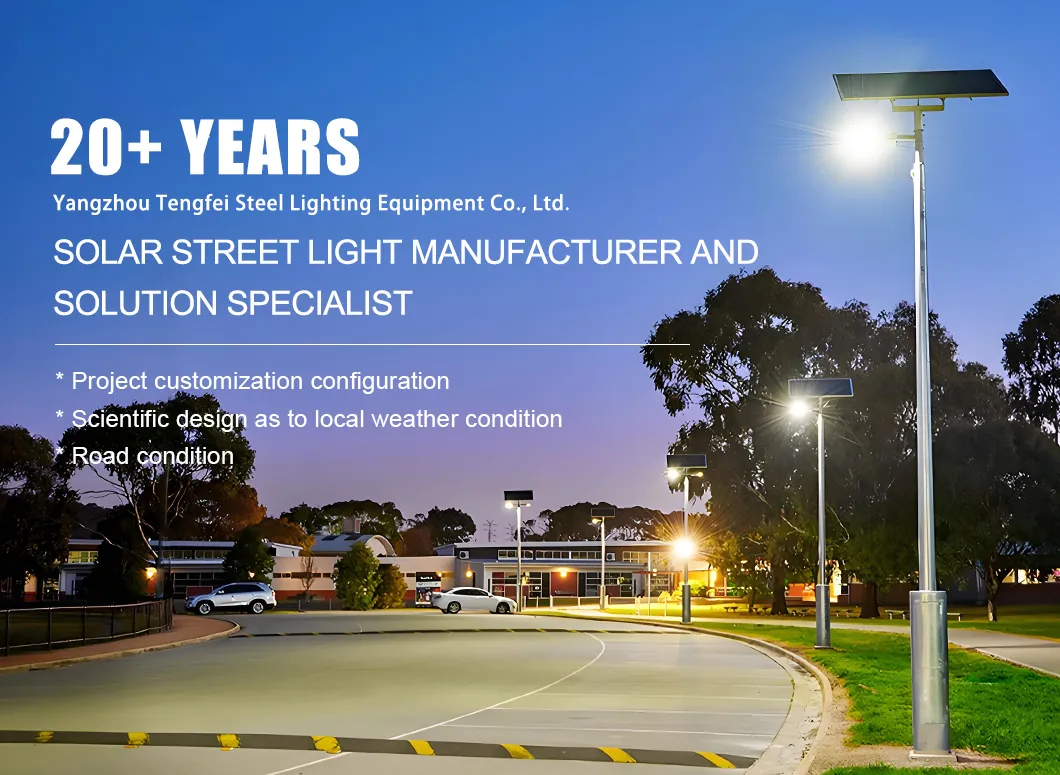

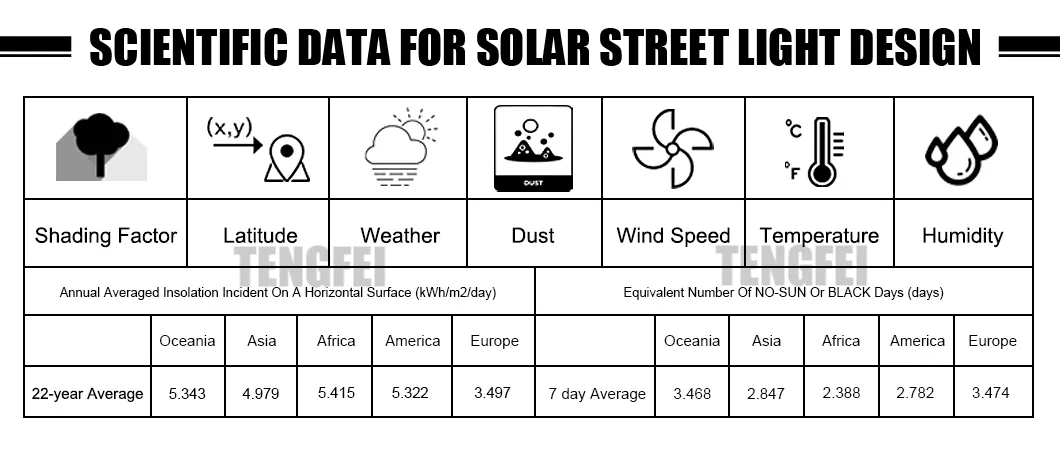

◈ Design Factors
◈ Product Parameters
| Components | 10M Pole 80W LED Solar Street Light Specification | Life Span | QTY |
|---|---|---|---|

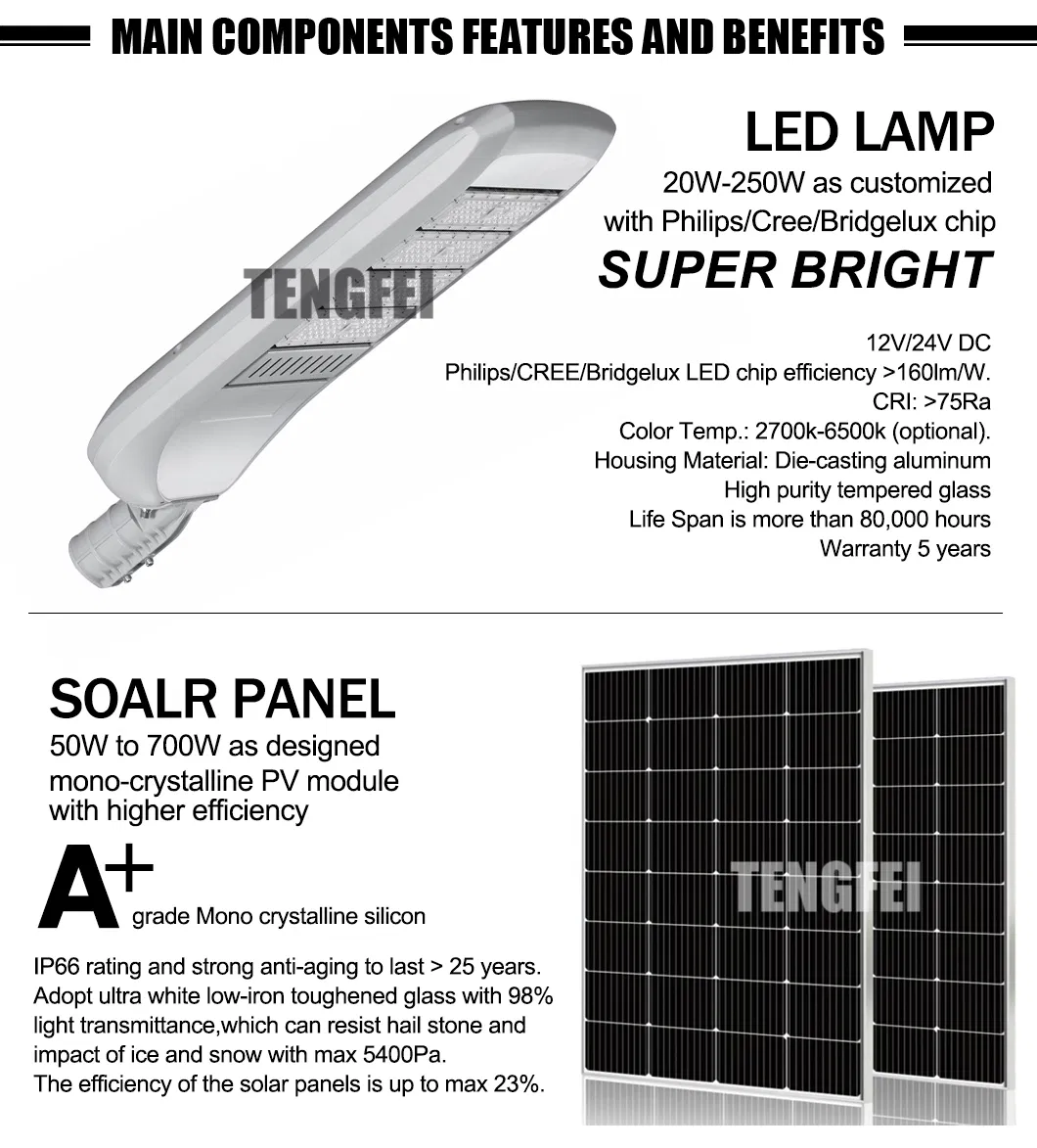

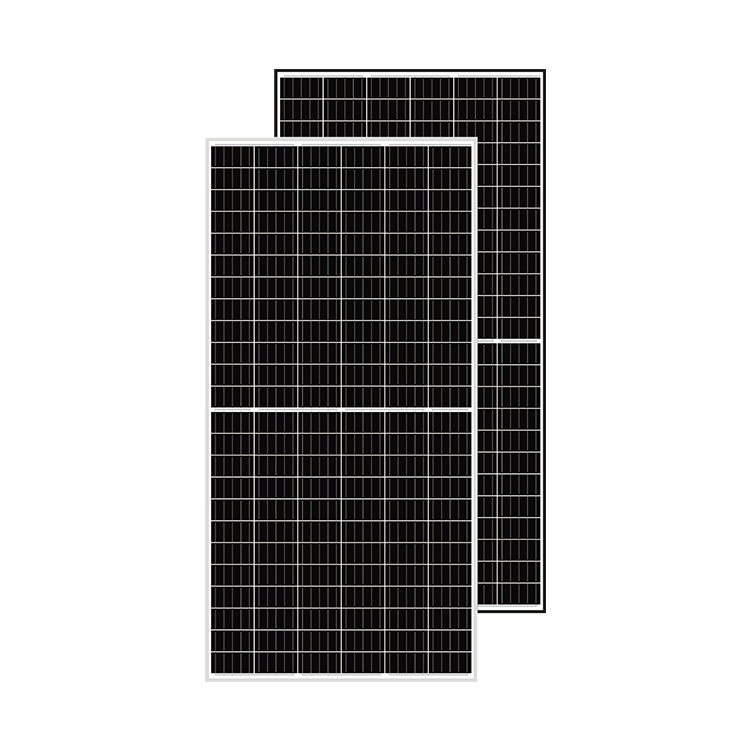

| Solar Panel | 270W/36V, Mono Crystalline, >22.12% Efficiency | >25 years | 1pc |
| LED Lamp | 80W-24V, 3030 or 5050 Chips, 160LM/W, IP66-IP68 | >80,000hrs | 1pc |

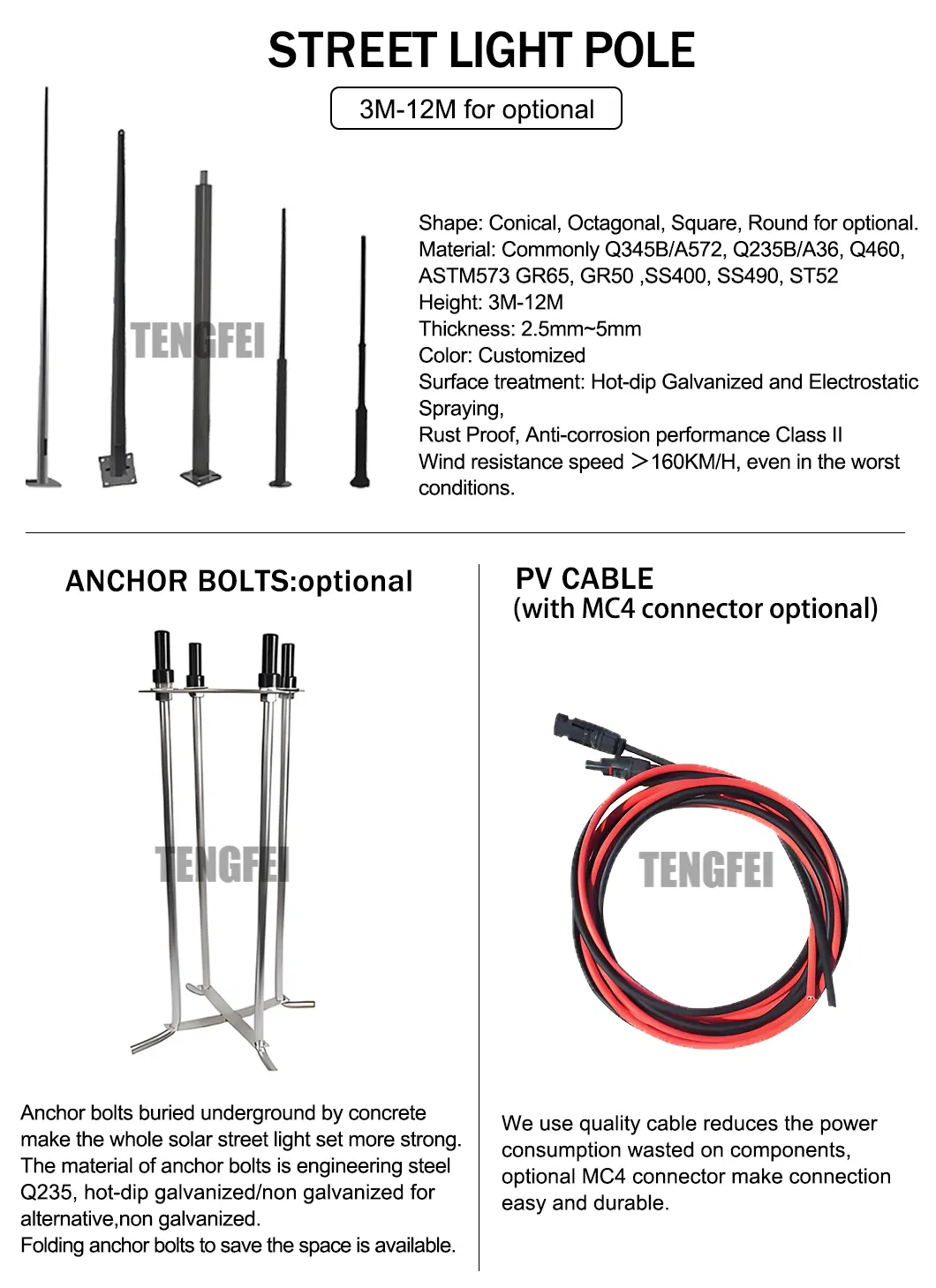

| Lighting Pole | 10M conical, single arm, Q235 Steel, Hot dip galvanized, Powder coating | >25 years | 1pc |

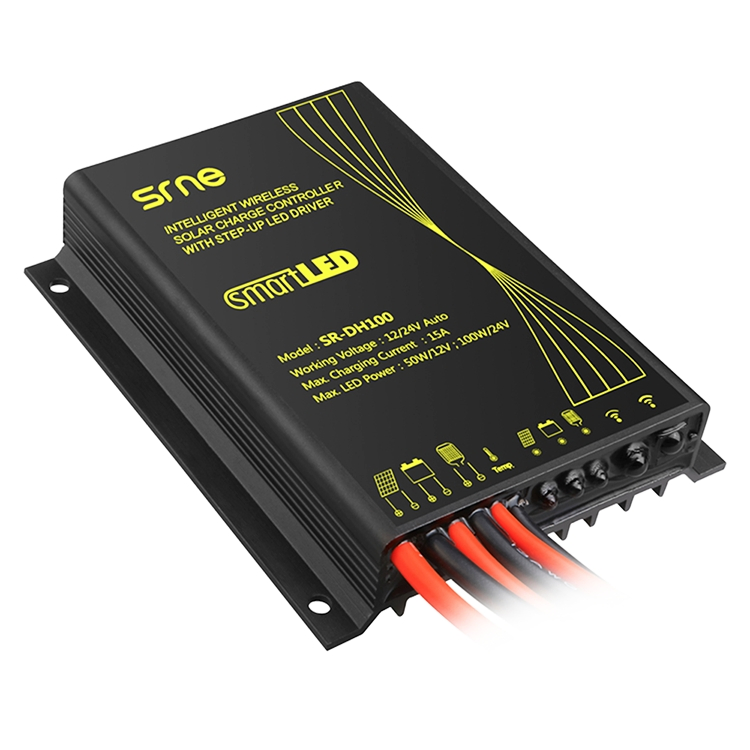

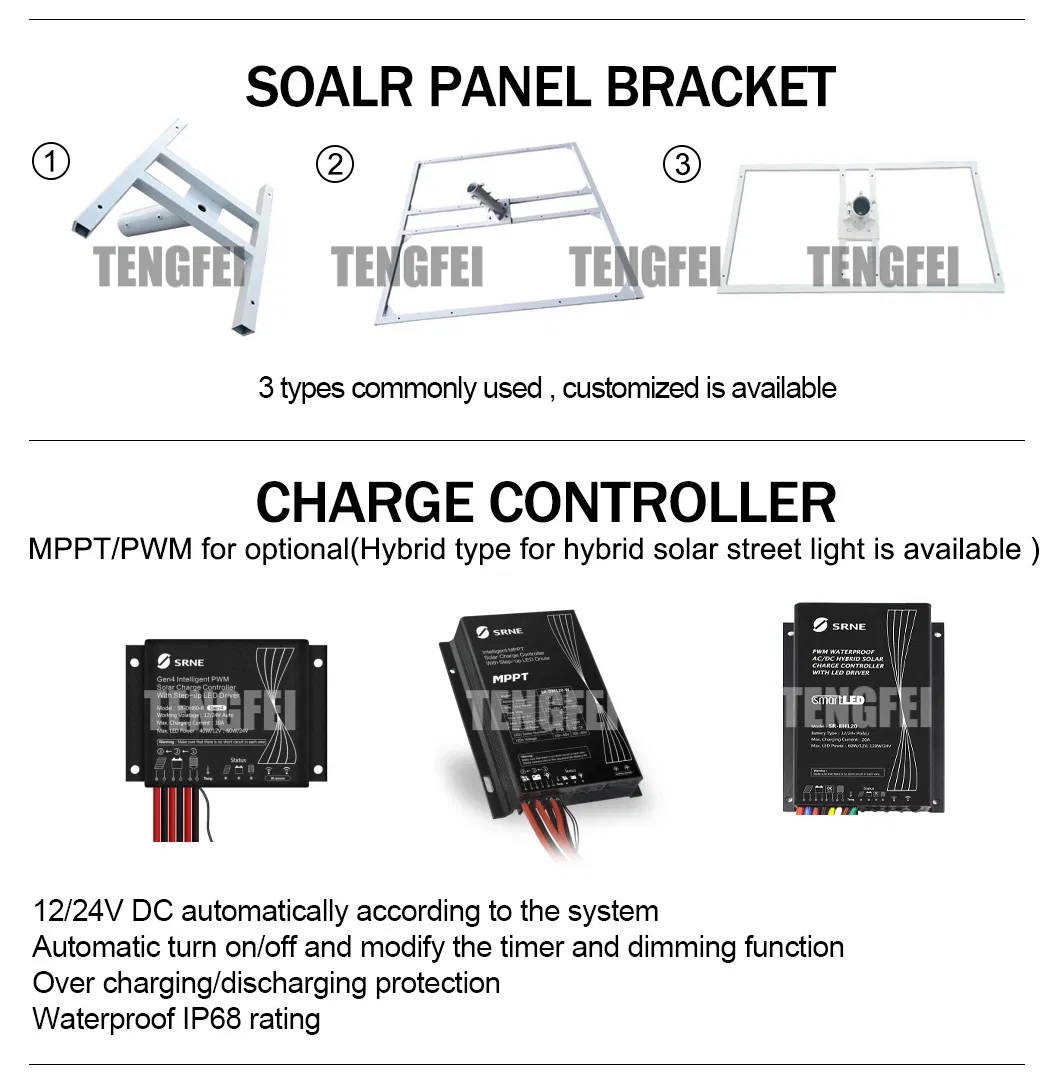

| Charge Controller | 15A, Automatic dusk to dawn auto dimming | >8 years | 1pc |

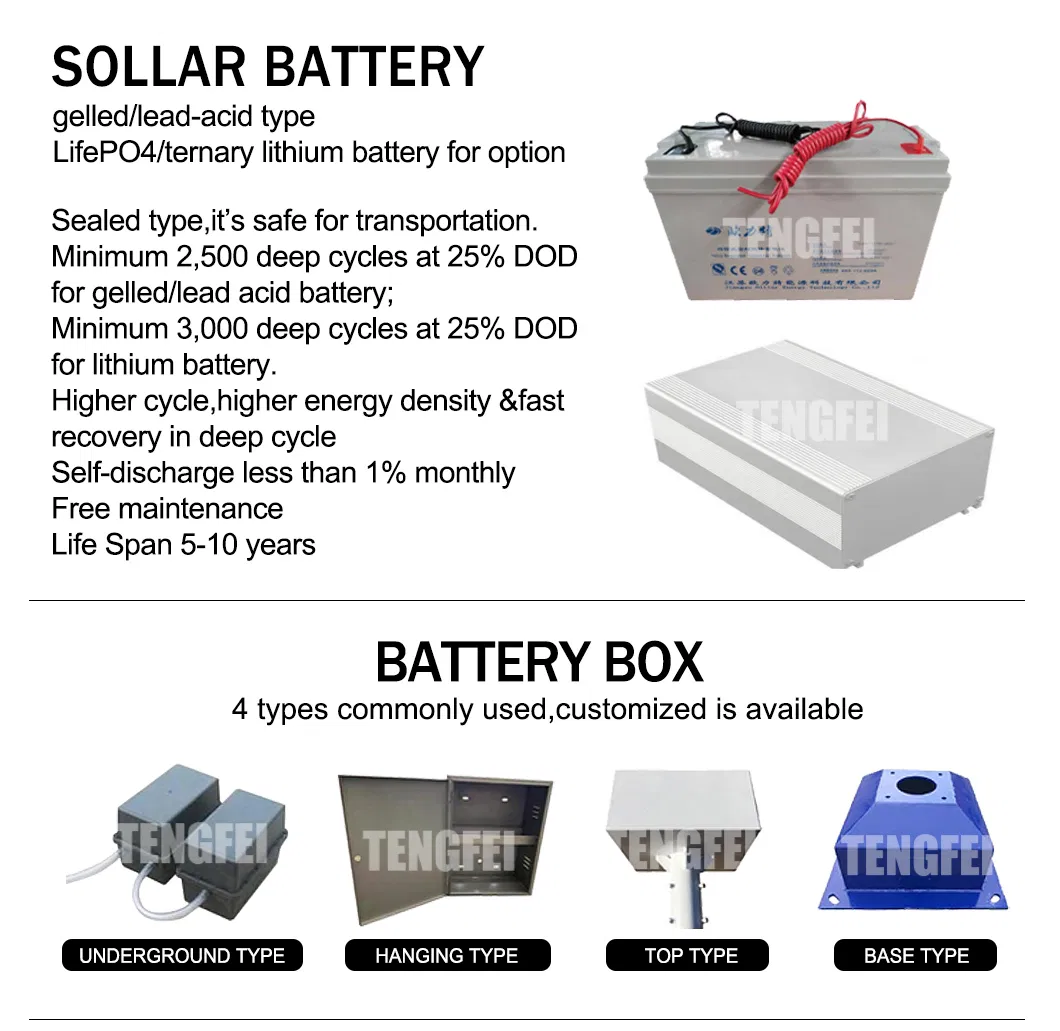

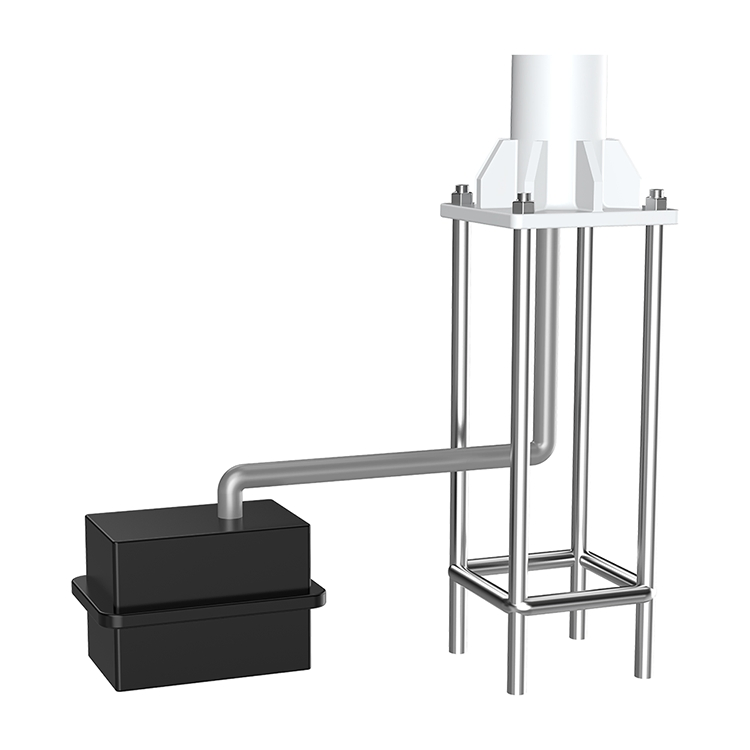

| Battery (Option 1) | 120AH/12V*2PCS GEL battery, Deep cycle | >10 years | 1pc |
| Battery (Option 2) | 84AH/25.6V LifePO4 battery, Lightweight | 5~10 years | 1pc |
- Working: 10-12hrs/night at intelligent working mode
- Backup: 2-3 overcast days support
- Pole height options: 3M to 12M for street light; 15M-50M for high mast
- LED power options: 15W to 150W available
- Customized design and remote function optional

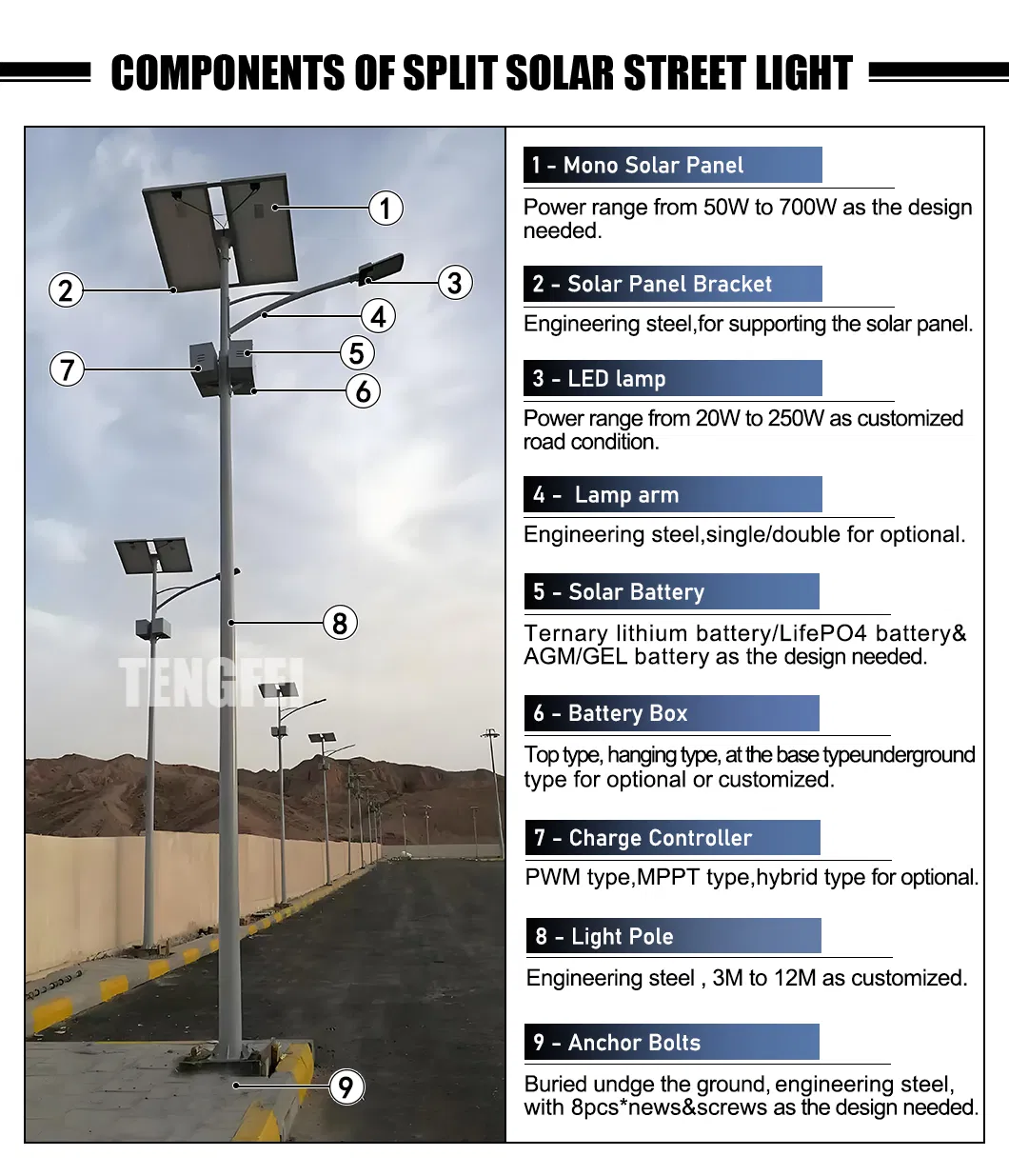

◈ Product Details
◈ Why Choose Us
◈ Frequently Asked Questions
Q1: How many hours can the solar street light operate per night?
A1: It is designed to work for 10-12 hours per night using an intelligent working mode, and it can sustain 2-3 overcast days.
Q2: What is the lifespan of the key components?
A2: The solar panel and pole have a lifespan of over 25 years, while the LED lamp lasts more than 80,000 hours. Batteries typically last 5-10 years depending on the type.
Q3: Is the street light resistant to extreme weather?
A3: Yes, the system has an IP65 rating and can operate in temperatures ranging from -25°C to +60°C. The poles are rust-proofed through hot-dip galvanization.
Q4: Are there different battery options available?
A4: Yes, we offer two options: Option 1 is a GEL battery for deep cycle use, and Option 2 is a LiFePO4 battery which is lighter and has a longer cycle lifespan.
Q5: Can I customize the pole height or LED power?
A5: Absolutely. Pole heights can range from 3M to 12M (or up to 50M for high masts), and LED power is available from 15W to 150W.
Q6: Does it feature automatic controls?
A6: Yes, it includes a smart controller for automatic dusk-to-dawn operation and auto-dimming. Remote control via an APP is also optional.
