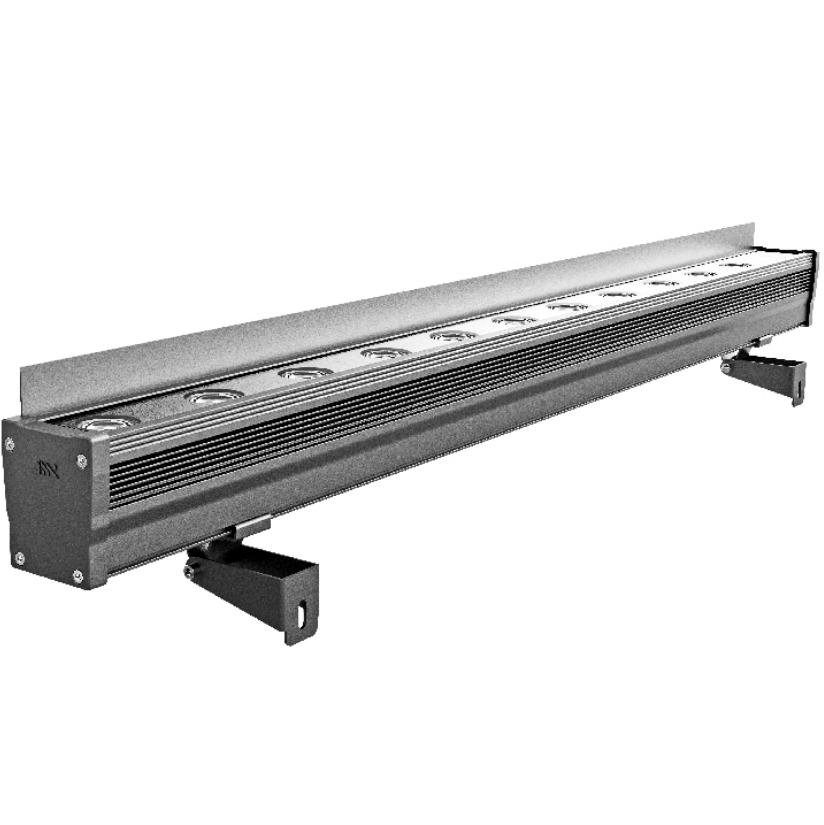

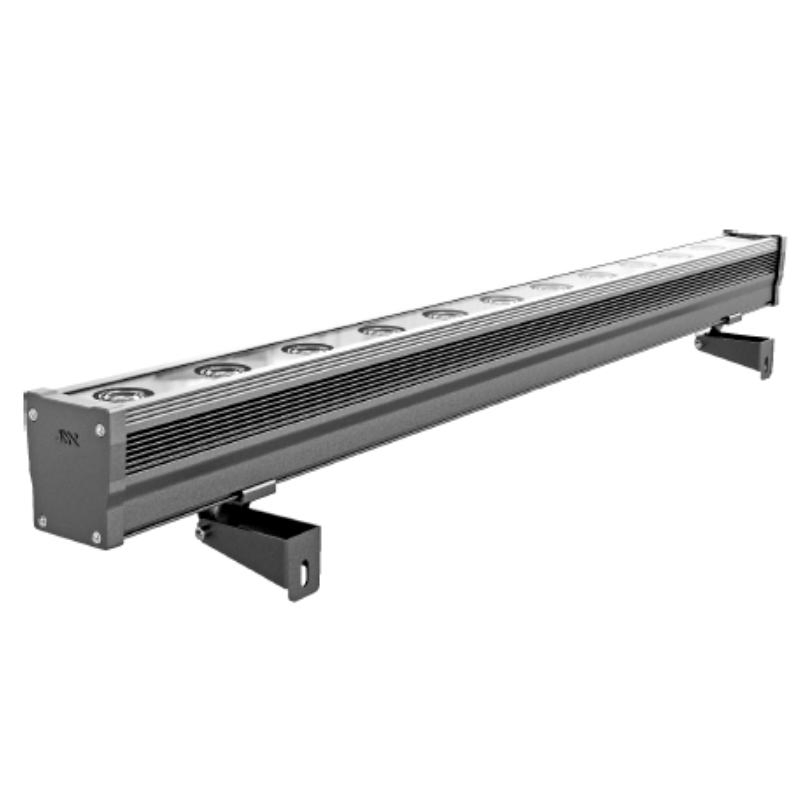

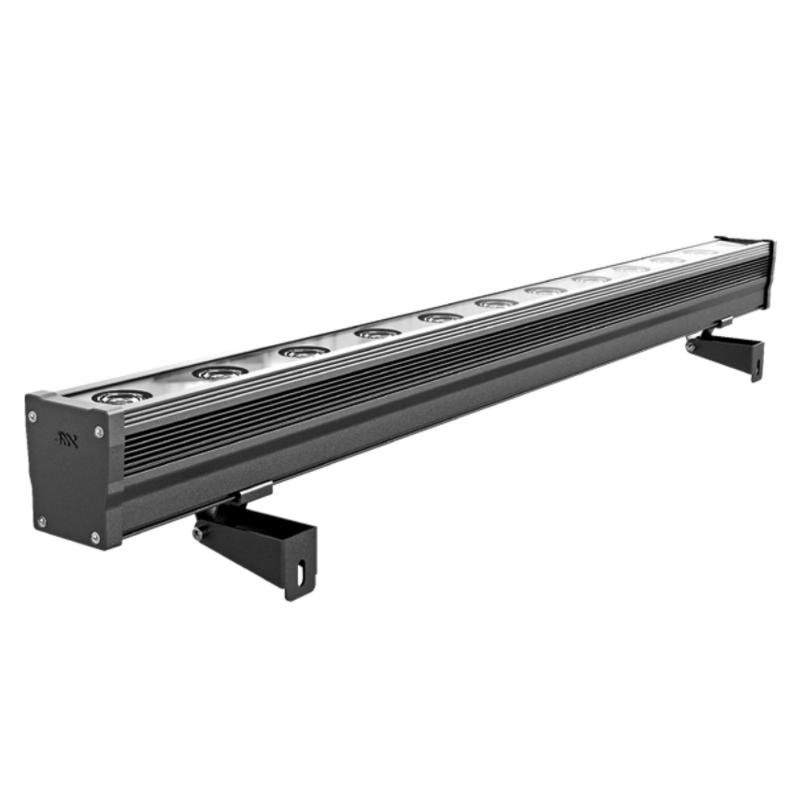

High Power LED Outdoor Aluminum Wall Washer RGB/RGBW/Pure White DMX512
Product Description
Basic Specifications
Model NO.
JML-X64L
IP Rating
IP66
Diffuser
Tempered Glass
Beam Angle
45°
Lifespan
50000 hours
Warranty
5 Years
Certification
CE, RoHS
Input Voltage
DC 24V
Body Material
Aluminum Alloy
Color Temp
RGB/RGBW/White/Warm White
Product Features
High Power LED Work Lights (60W-120W) - Mounted Flame Proof Outdoor IP66 Spotlight
💡 Key Features
- Made of aluminum with modern design
- Low thermal resistance paths for superior heat dissipation
- Waterproof design with high thermal conductive silicone seal
- Thermoelectric separation
- Outdoor lightening and ESD protection
⚙️ Function Parameters
- Light source: 5050/0.3W & 2835/0.2W
- Available Beam Angles: 8°, 15°, 30°, 45°, 60°, 10x60°
- Operating Temp: -20ºC to 50ºC
- Controlling Method: DMX512

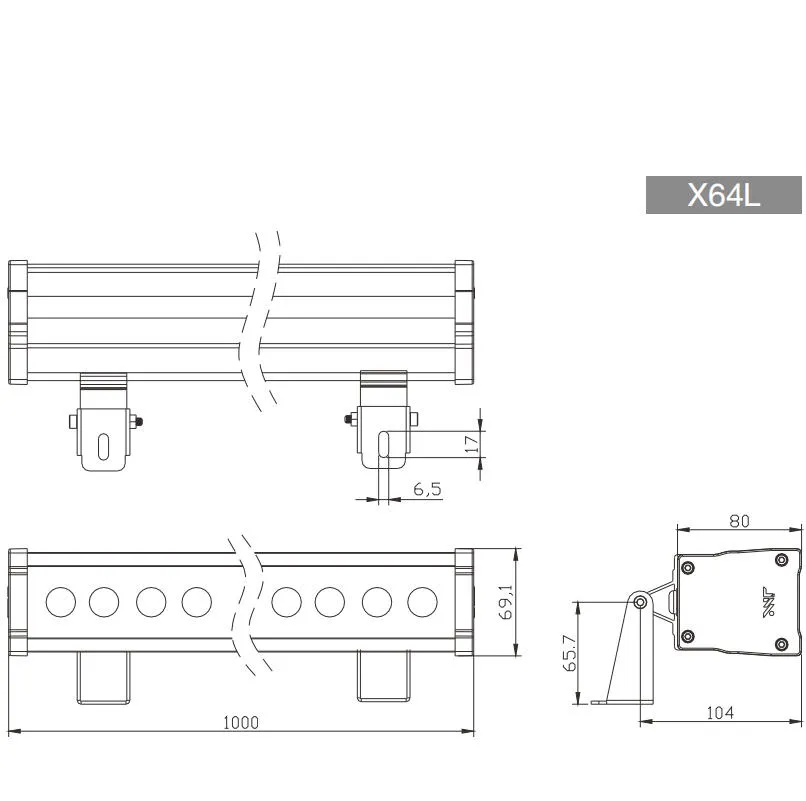

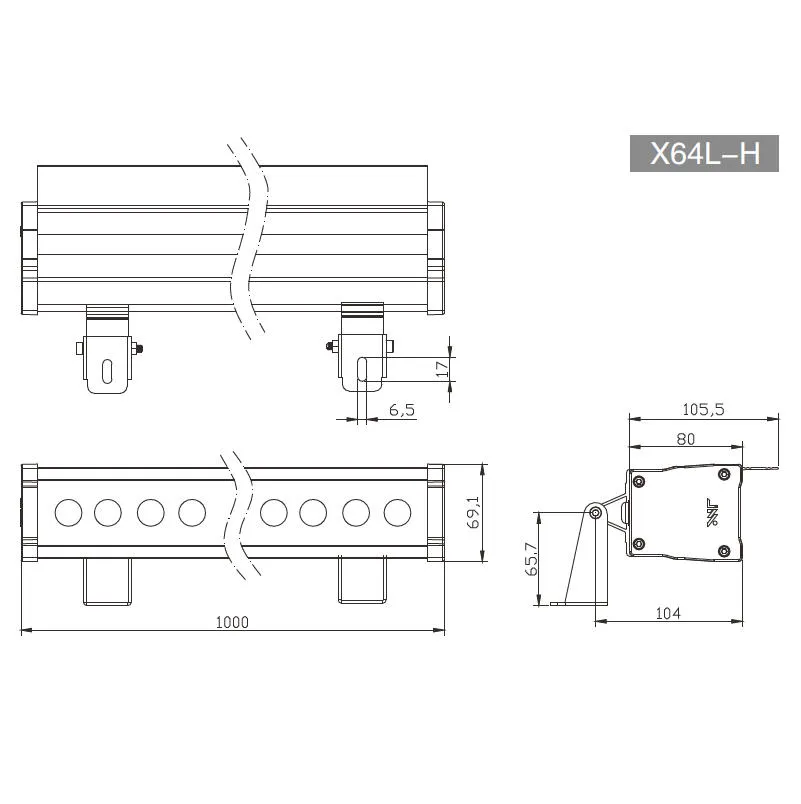

Dimensional Drawings
Model Specifications
| Model No. | Light Source | Power | Length | Color (CT) |
|---|---|---|---|---|
| JML-X64L-60M | 30×2W | 60W | 500mm | Monochrome |
| JML-X64L-72M | 36*2W | 72W | 500mm | Monochrome |
| JML-X64L-80M | 40×2W | 80W | 1000mm | Monochrome |
| JML-X64L-96M | 48×2W | 96W | 1000mm | Monochrome |
| JML-X64L-60R | 30×2W | 60W | 500mm | RGB |
| JML-X64L-72R | 36×2W | 72W | 500mm | RGB |
| JML-X64L-80R | 40×2W | 80W | 1000mm | RGB |
| JML-X64L-96R | 48×2W | 96W | 1000mm | RGB |
| JML-X64L-100R | 10×10W | 100W | 1000mm | RGBW |
| JML-X64L-120R | 12×10W | 120W | 1000mm | RGBW |

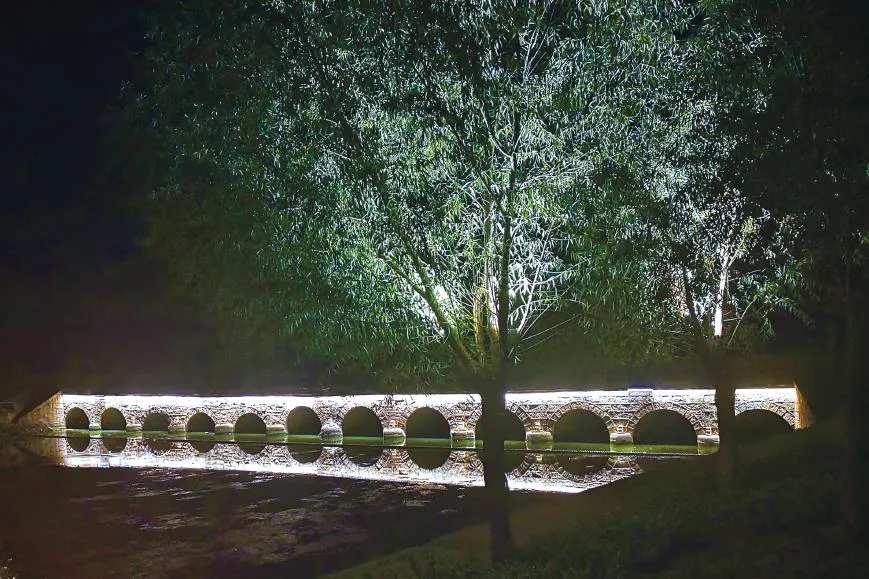

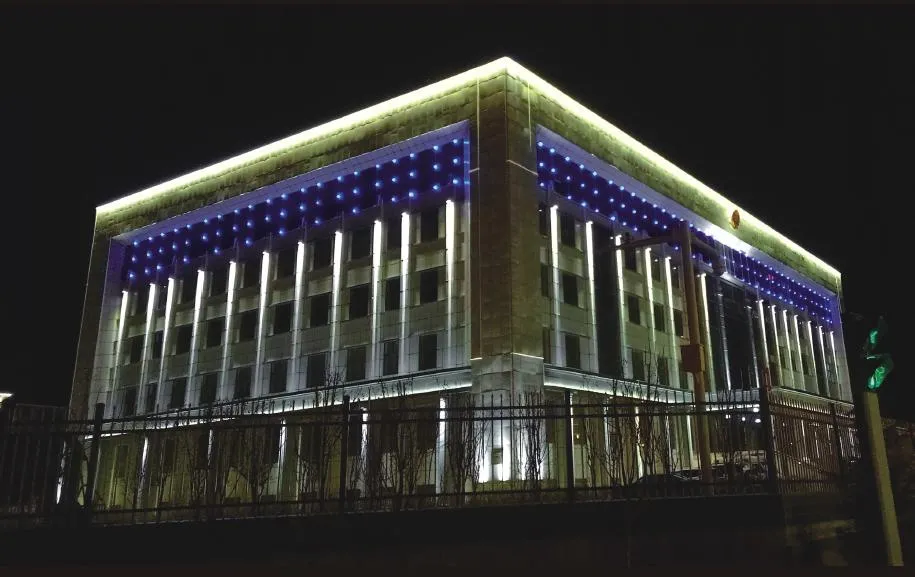

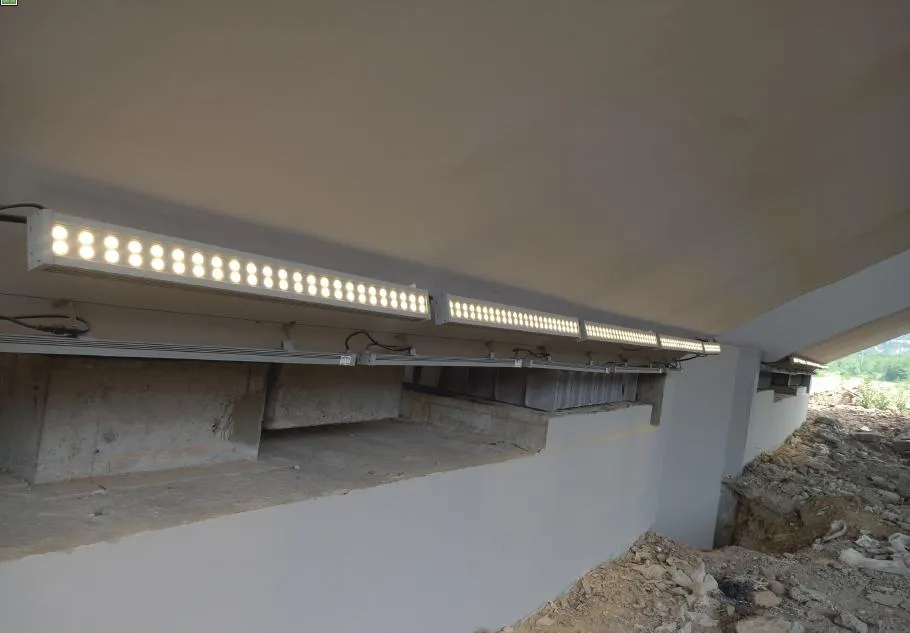

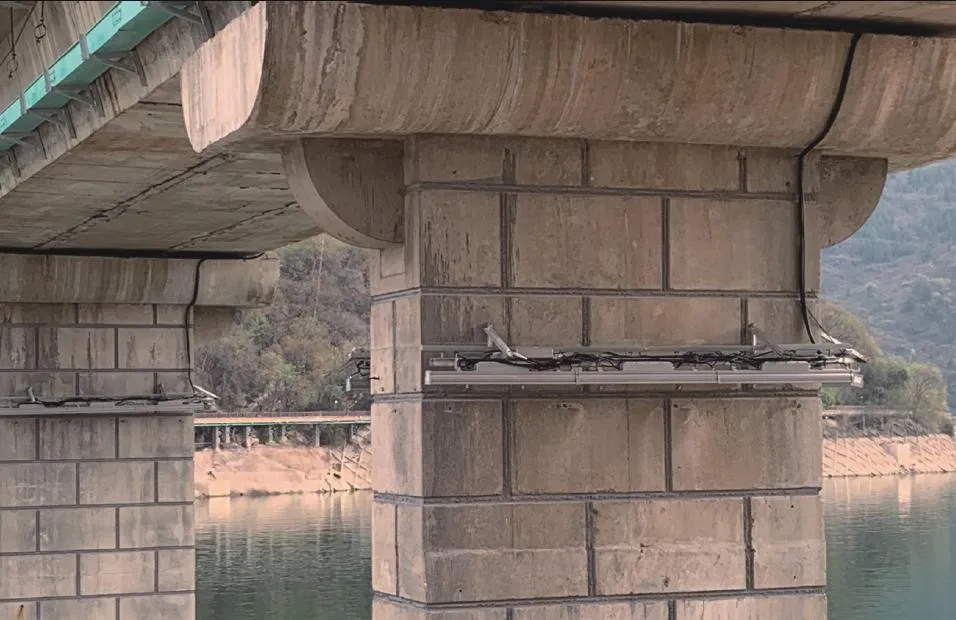

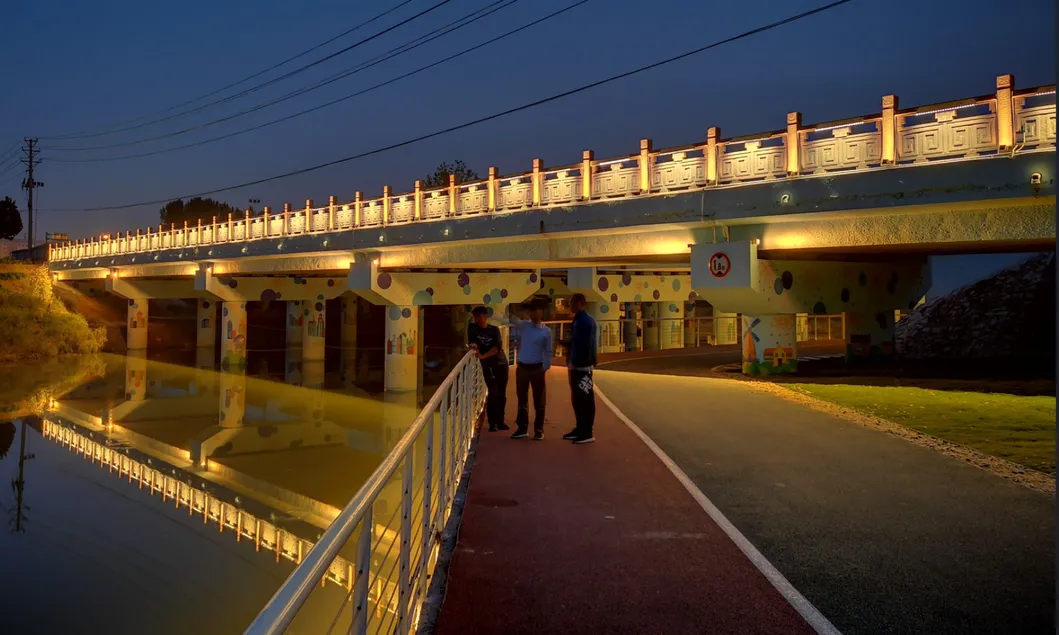

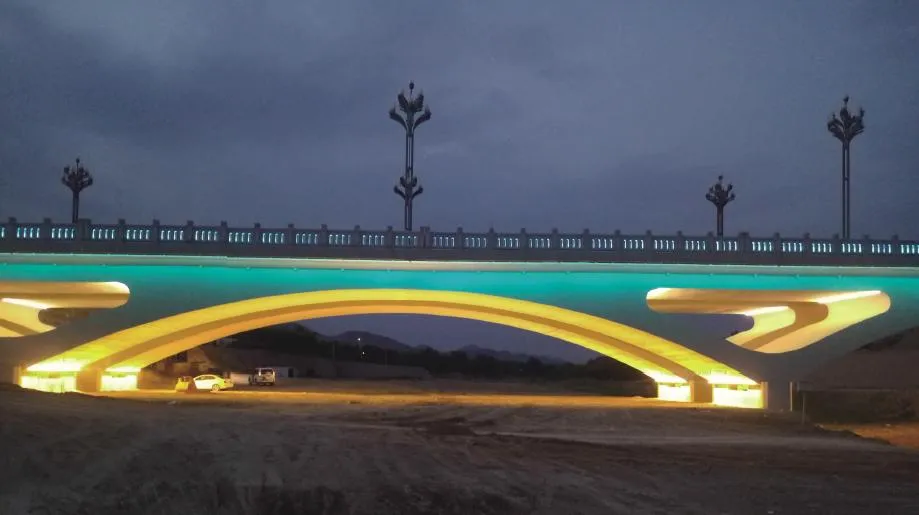

Application Cases

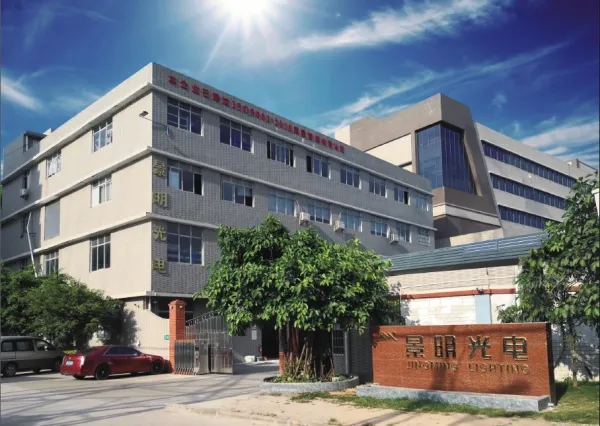

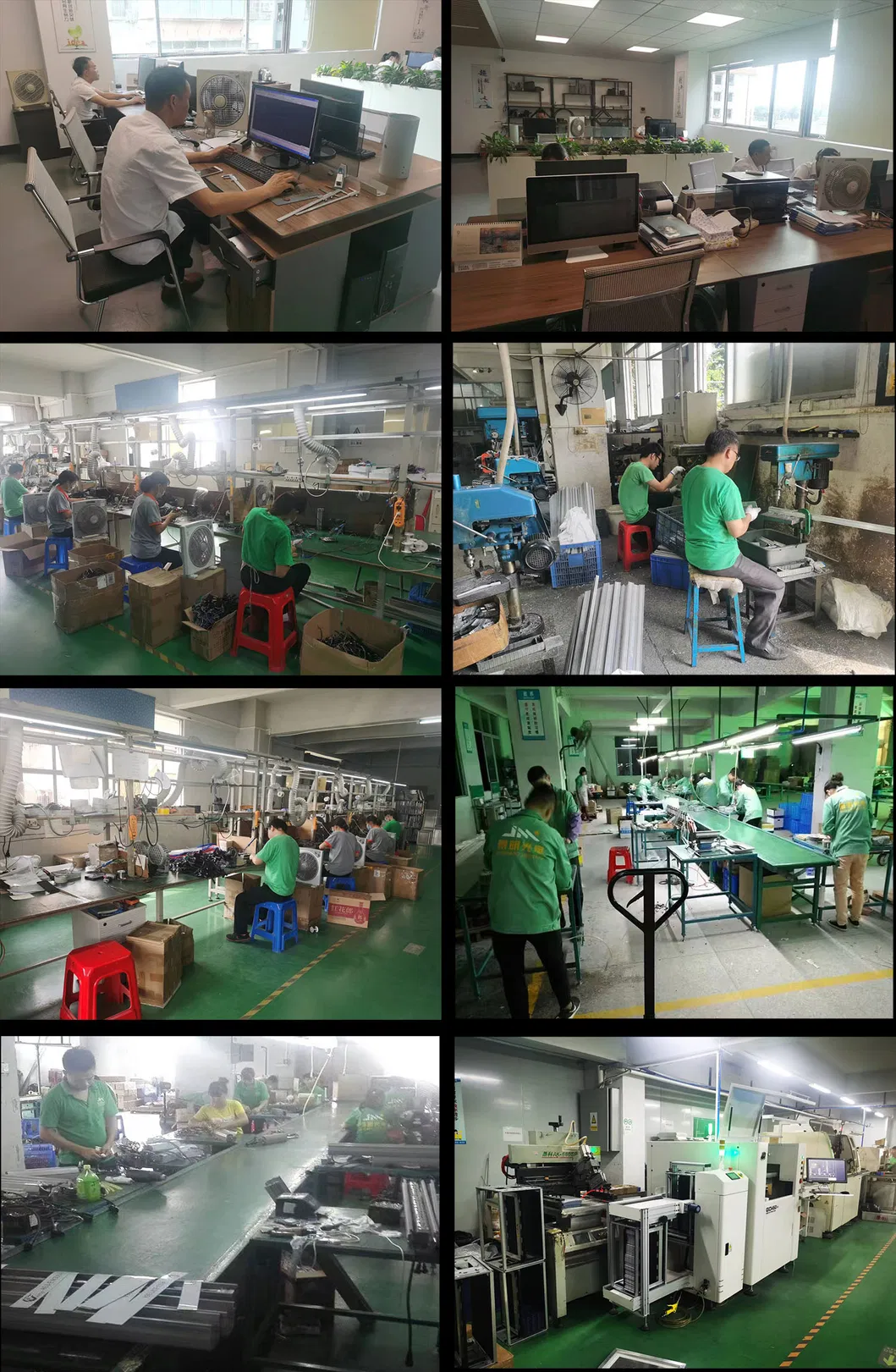

Manufacturing Excellence
The manufacturing facility covers nearly 6,000 square meters, equipped with high-tech LED production and testing equipment. We hold more than 30 patents for outlook and technology, ensuring stable and reliable lighting systems for global customers. Our core principles are environmental protection and low-carbon lighting solutions.
Frequently Asked Questions
Q1. Can I have a sample order for LED lights?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What is the typical lead time?
Samples need 3-5 days, while mass production typically takes 1-2 weeks depending on order quantity.
Q3. Do you have a minimum order quantity (MOQ)?
We offer low MOQ; 1pc for sample checking is available.
Q4. How are the goods shipped and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx, or TNT, taking 3-5 days. Airline and sea shipping are also options.
Q5. Can I print my logo on the LED light product?
Yes. Please inform us formally before production and confirm the design based on our sample.
Q6. What kind of guarantee do you offer?
We offer a warranty ranging from 2 to 5 years for our products.
