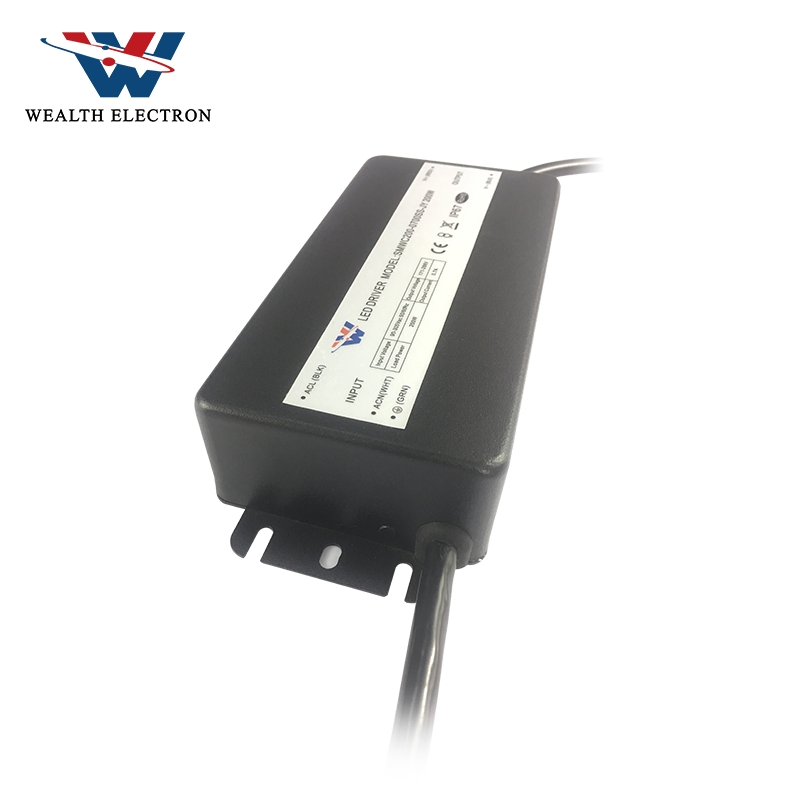

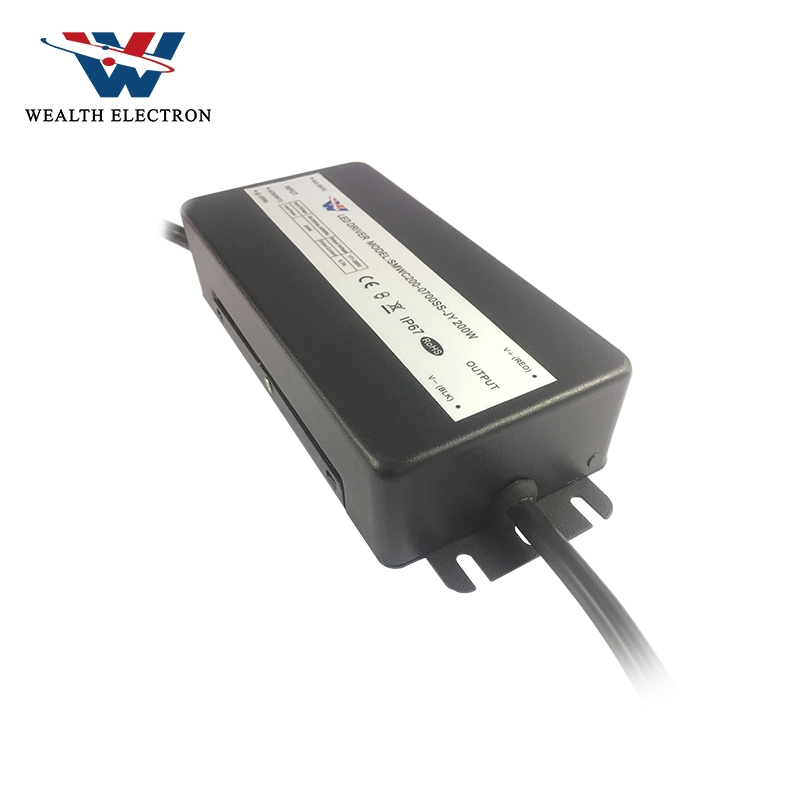

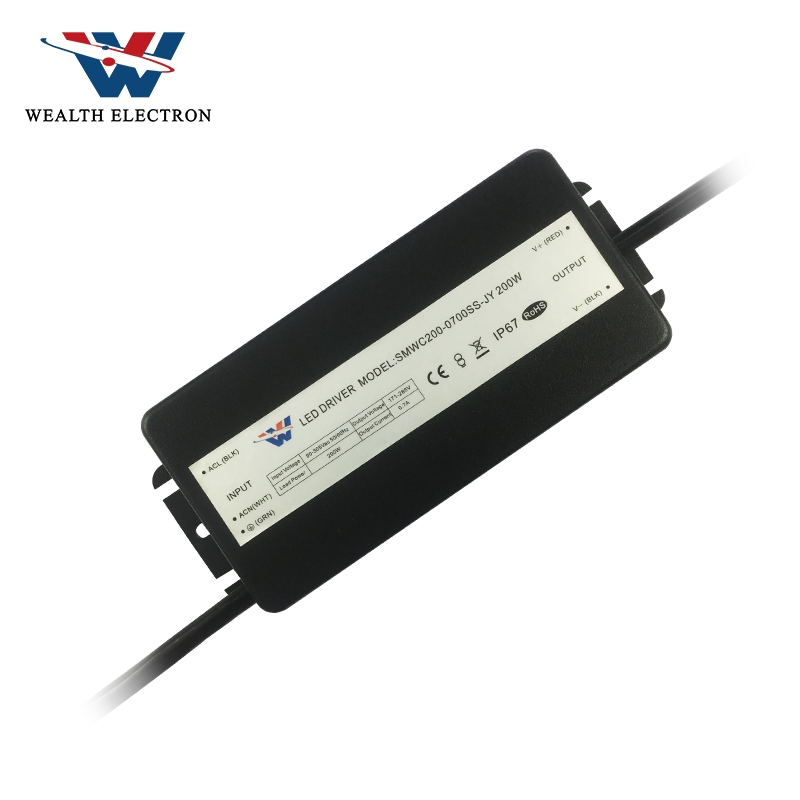

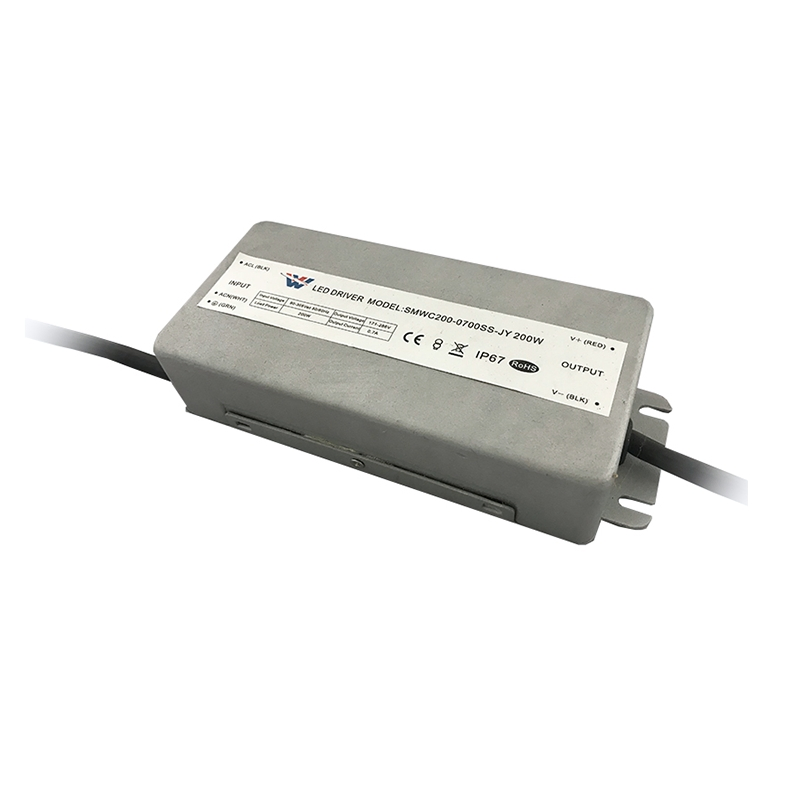

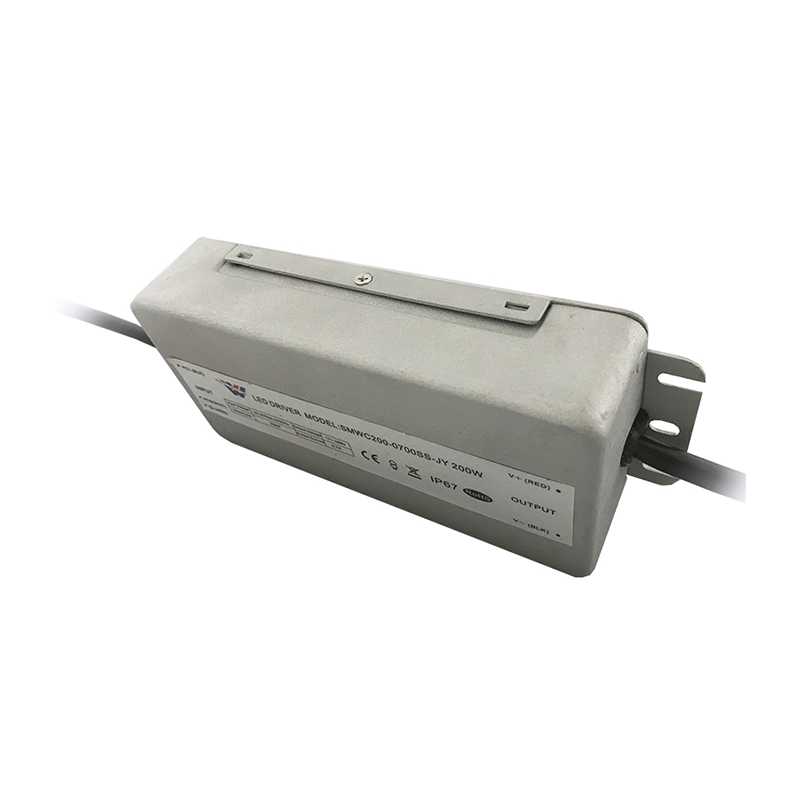

60W 100W 120W 150W 200W 240W LED Driver for Portable Emergency Light
Product Description
ℹ️
Basic Information
Model NO.DHC040
Driving MethodLED Constant Current
Circuit StructureElectronic Step-down Transformer
CertificationTUV, CE, RoHS, ISO9001, CCC
Power Supply ModeConstant Current Source
Modulation SystemPWM
Efficiency94%
Input Voltage10-30VDC
Waterproof RatingIP67
ApplicationLED Lighting & Solar Light
📝
Product Description
DC Input Constant Current LED Driver
- Wide Input Voltage 10 to 30VDC
- Under-Voltage Protection / Over Temperature Protection
- High Efficiency (up to 94%)
- Selectable dimming function ( 0~10V / PWM / 100K Resistor )
- IP67 Waterproof Rating, Fully isolated
- Comply to worldwide safety regulations for lighting
- Cooling by free air convection

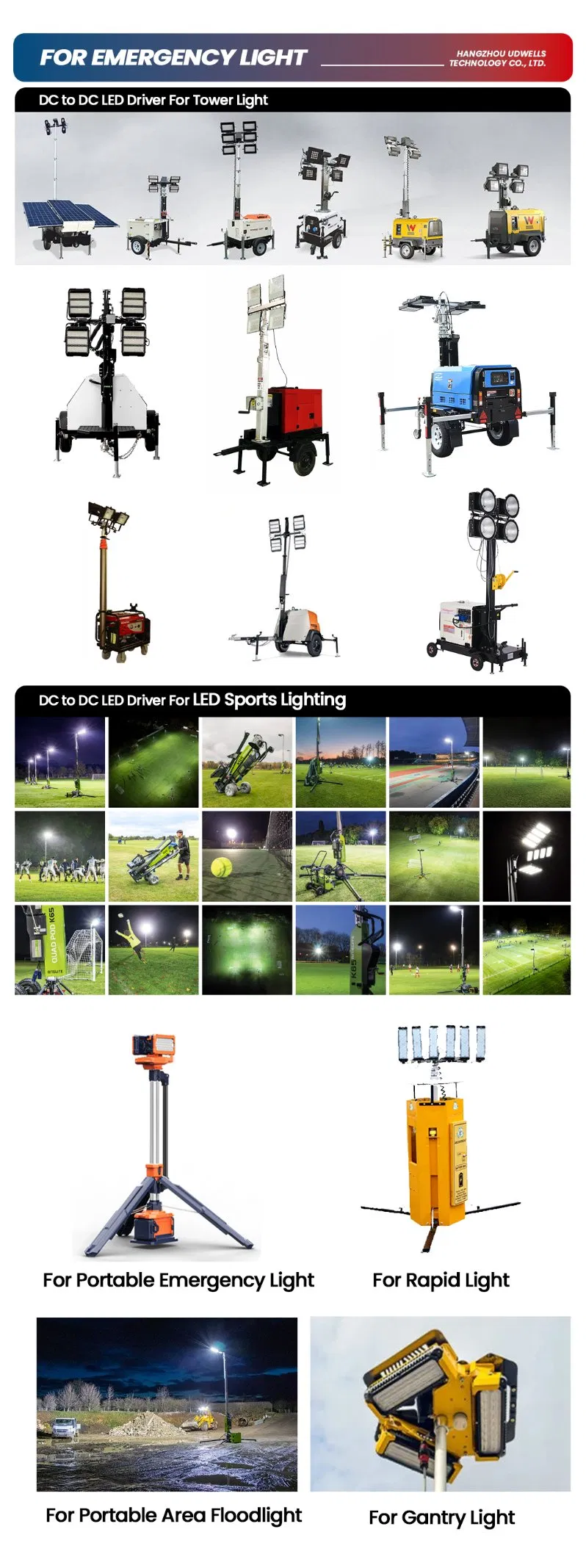

- Suitable for LED lighting & moving sign applications (dry / damp / wet locations)
📊
Technical Specifications
| Model No | Input Voltage | Power | Output Voltage | Output Current | Size |
|---|---|---|---|---|---|
| DHC-60SN(CD)-86 | 10-30VDC | 60W | 33-90V | 0.65A | 125*43.5*34.5mm |
| DHC-60SN(CD)-56 | 10-30VDC | 60W | 33-56V | 1.25A | 125*43.5*34.5mm |
| DHC-100SN(CD)-56 | 10-30VDC | 100W | 33-56V | 1.8A/2.1A | 153*43.5*34.5mm |
| DHC-120SN(CD)-56 | 20-30VDC | 120W | 33-56V | 2.1A/2.5A | 153*43.5*34.5mm |
| DHC-150SN(CD)-56 | 20-30VDC | 150W | 33-56V | 2.6A/3.1A | 159*67.5*37mm |
| DHC-200SN(CD)-56 | 20-30VDC | 200W | 33-56V | 3.5A/4.2A | 159*67.5*37mm |
| DHC-240SN(CD)-56 | 20-30VDC | 240W | 33-56V | 1.05A/1.25A | 159*67.5*37mm |
| DHC-150SN(CD)-120 | 30-60VDC | 150W | 70-100V | 1.5A | 159*67.5*37mm |
| DHC-200SN(CD)-120 | 30-60VDC | 200W | 70-100V | 2.2A | 159*67.5*37mm |
| DHC-240SN(CD)-120 | 30-60VDC | 240W | 70-100V | 2.6A | 159*67.5*37mm |
| DHC-320SN(CD) | 100-277VAC | 320W | 40V | 6.9A | 243*83*40mm |
⚙️

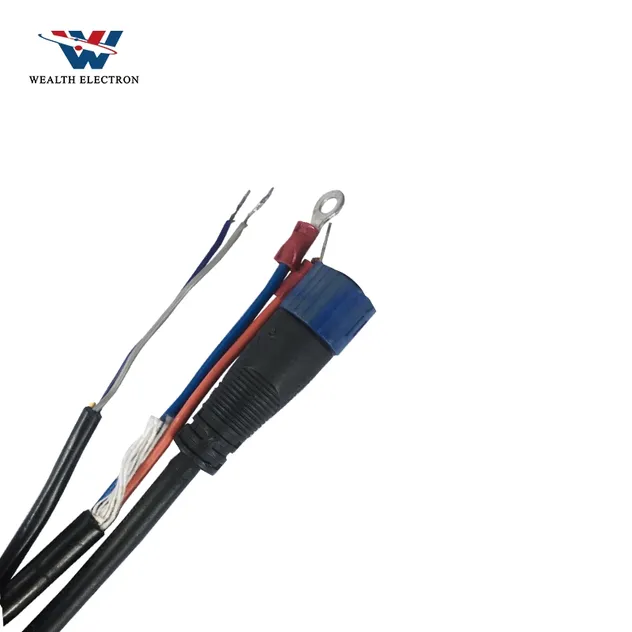

Product Diagrams & Performance
❓
Frequently Asked Questions
What is the energy efficiency of this LED driver?
This constant current LED driver features high efficiency of up to 94%, ensuring minimal energy loss and reduced heat generation during operation.
What dimming methods does the DHC series support?
The driver supports selectable dimming functions including 0-10V, PWM, and 100K resistor dimming, allowing for flexible lighting control.
Is the driver suitable for outdoor use?
Yes, it has an IP67 waterproof rating and is fully isolated, making it suitable for dry, damp, and wet locations, including solar street lights and outdoor signage.
What safety protections are included?
The unit is equipped with comprehensive protection features, including Under-Voltage Protection (UVP), Over-Temperature Protection (OTP), Short Circuit Protection, and Over-Voltage Protection.
What is the input voltage range for these DC drivers?
Depending on the specific model, the input voltage ranges from 10-30VDC to 30-60VDC, covering a wide variety of DC power systems.
Does this product meet international safety standards?
Yes, it complies with worldwide safety regulations for lighting and holds certifications such as TUV, CE, RoHS, and CCC.
