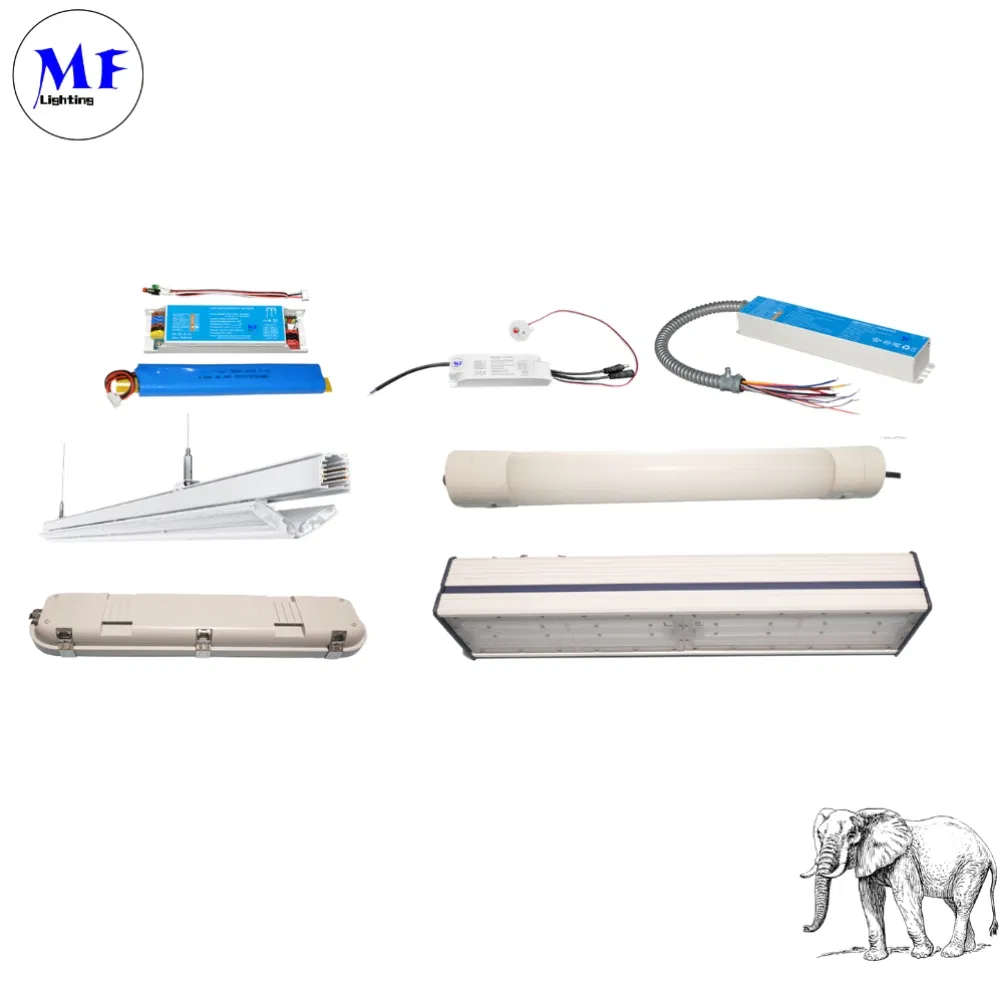

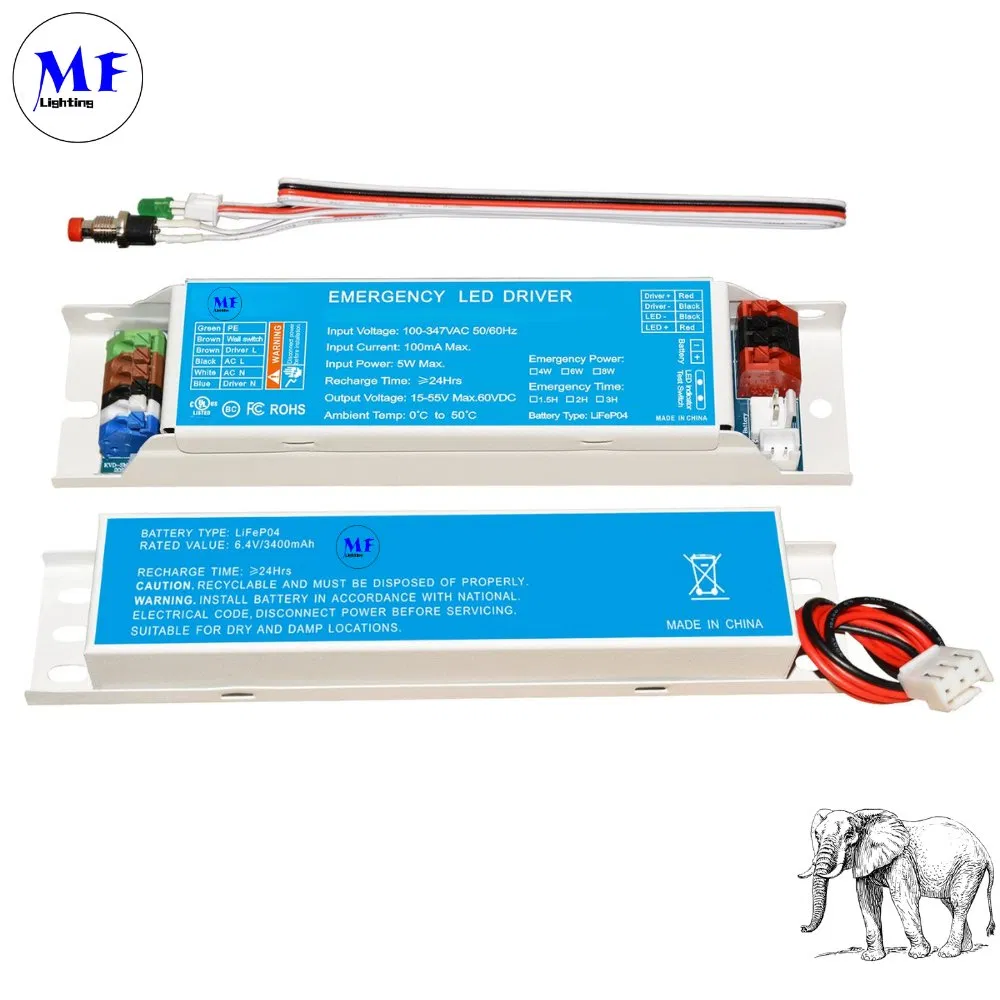

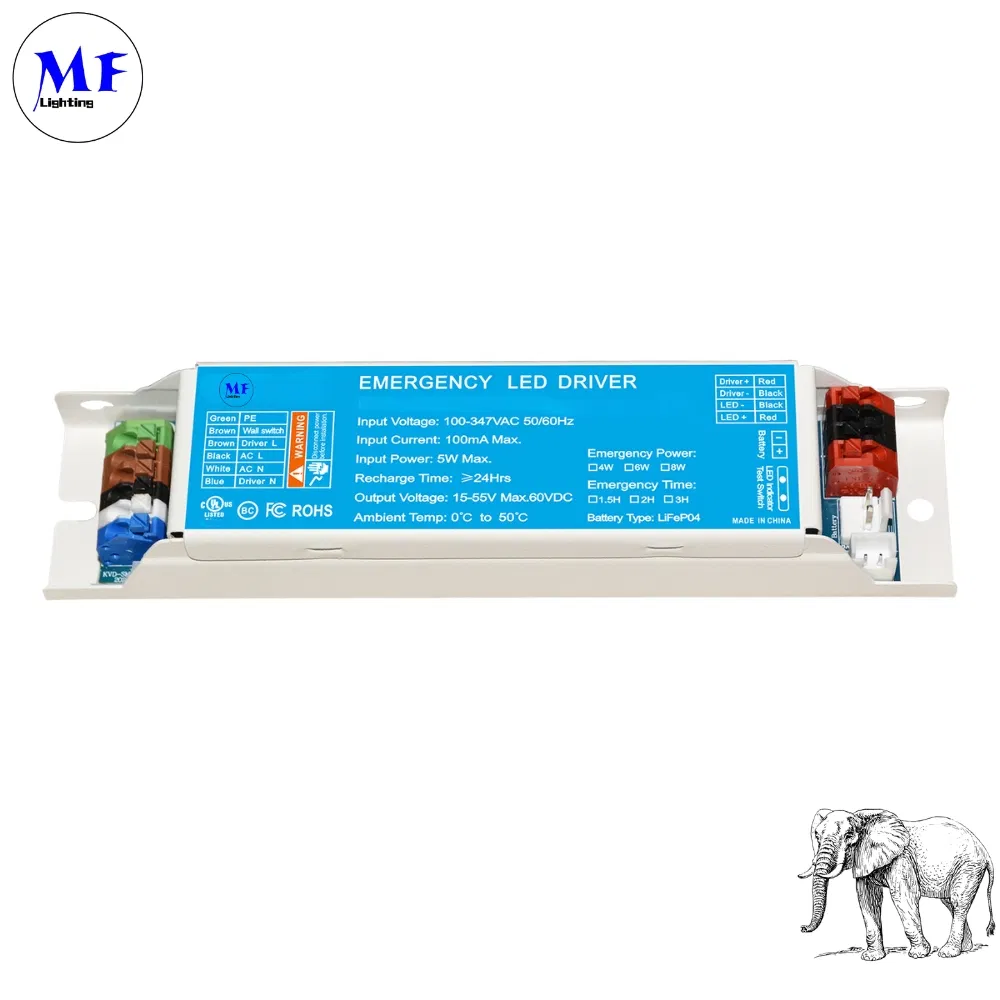

16year Manufacture 5years Warranty 4W 6W 8W 24hours Charging Time 3hours LED Panic Powerpack LED Light Emergency Kit Backup Ballast Driver Li-FEP04 Battery

1 / 5

16year Manufacture 5years Warranty 4W 6W 8W 24hours Charging Time 3hours LED Panic Powerpack LED Light Emergency Kit Backup Ballast Driver Li-FEP04 Battery

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Overview

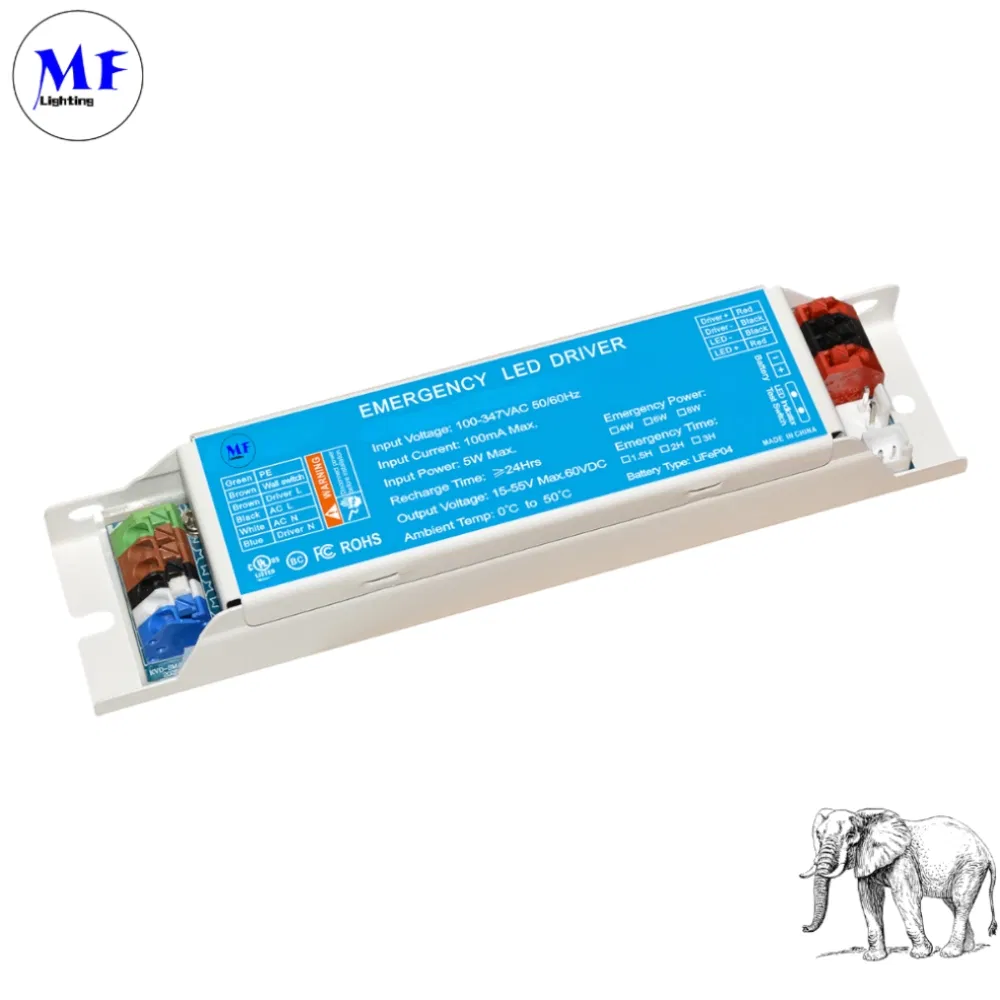

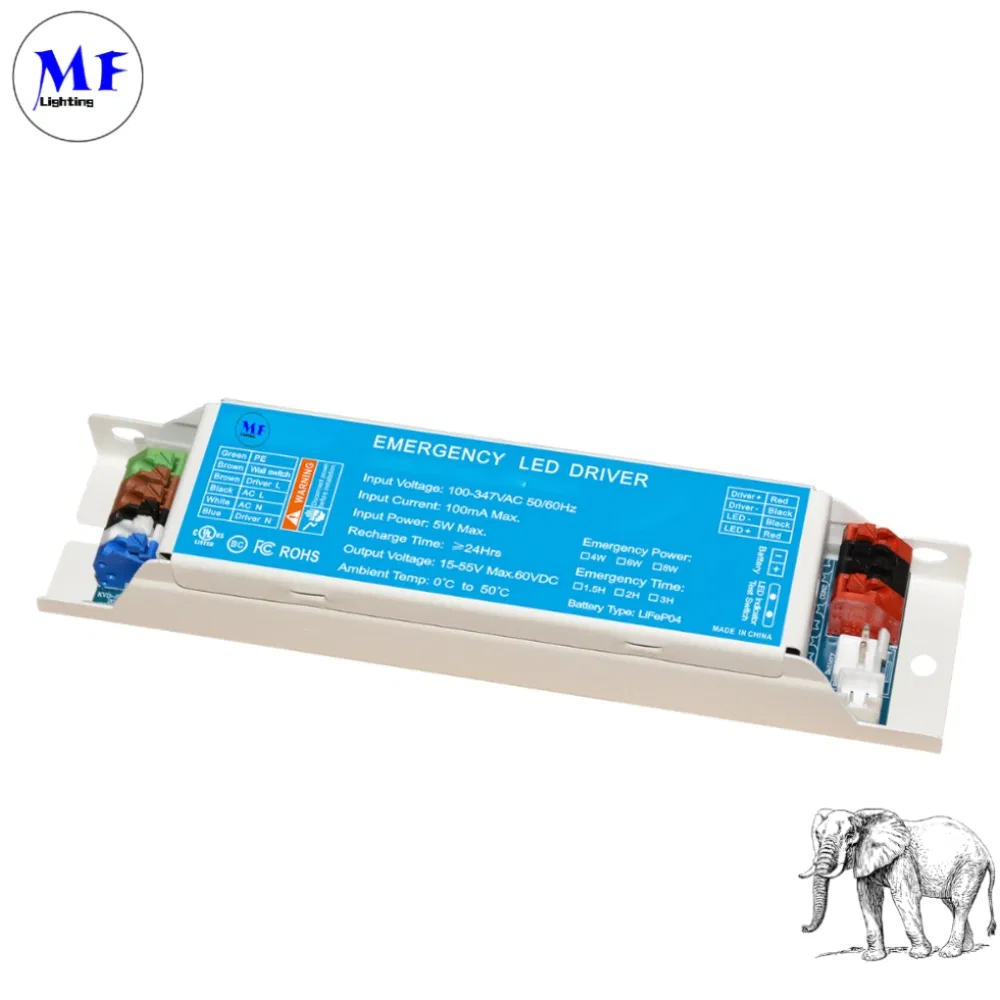

Professional 4W 6W 8W Emergency Kit with Li-Fep04 Battery. Featuring a 24-hour charging time and 3-hour emergency duration, this backup ballast driver is designed for reliability in critical situations.

Input Voltage100-347VAC 50/60Hz

AC Input Current100mA Max.

Input Power Rating5.0W Max

Battery Charging Current250mA

Battery Charging Time≥24 hours

Output Voltage15-55VDC / 60-240VDC

Emergency Time≥1.5h

Battery TypeLi-FEP04 2000mAh-6.4V

Output Power4W/6W/8W

Warranty5 Years

Ambient Temp0°C to 60°C

HS Code9405499000

⭐

Features

Meets most safety standards for global lighting requirements.
Compliant with CSA C22.2 NO.141 and UL924 standards.
Equipped with external lithium iron phosphate (Li-FEP04) battery.
Comprehensive protection: Over-charge, over-discharge, and short circuit protection.
Intelligent indicator showing various working modes.
High durability battery supporting 2000 cycles of standard charge/discharge.
RoHS compliant environmental standards.

Specifically optimized for Street Lighting: Ensures urban resilience during grid failures caused by storms or accidents. These units instantly power dedicated high-output LED modules to maintain safe vehicle and pedestrian movement.

🎨

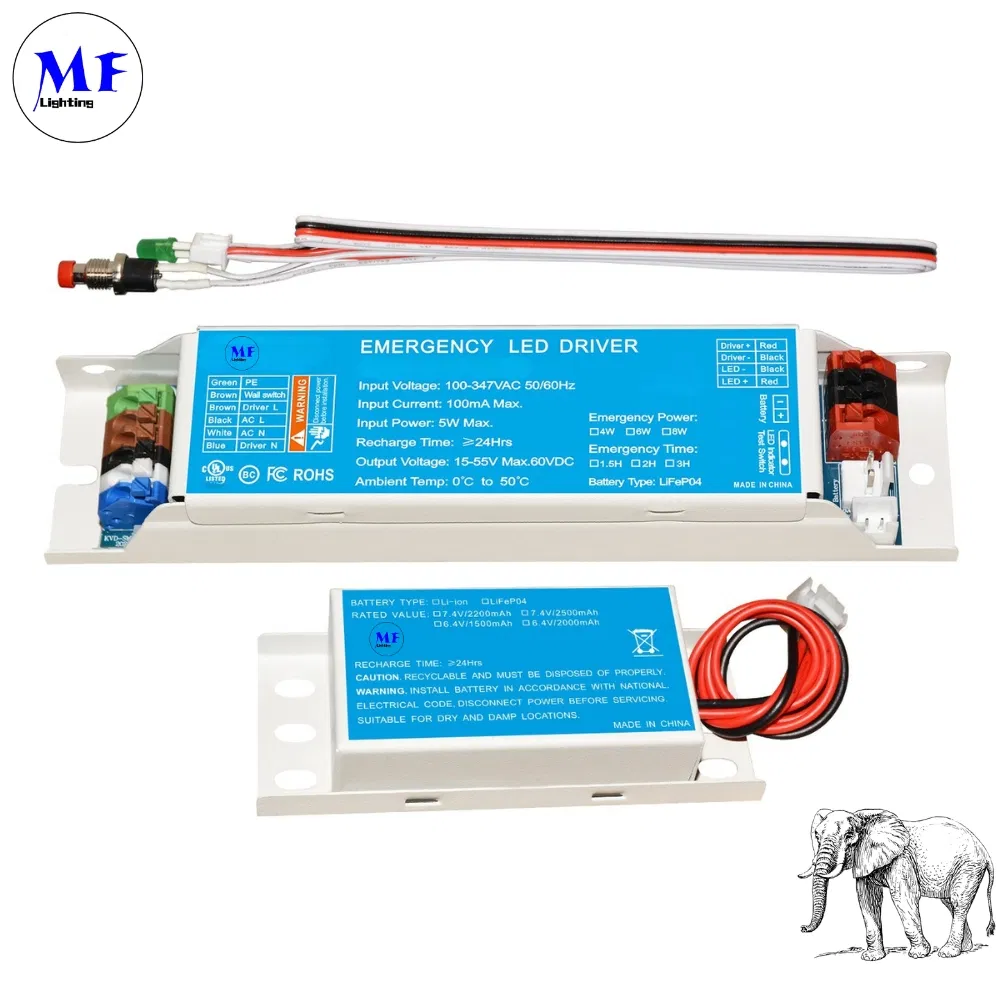

Design

📊

Specifications

Input Voltage	100-347 Vac 50/60Hz
AC Input Current	100mA Max. @230Vac
Input Wattage	5.0W Max
Battery Charging Current	250mA Max.
Battery Charging Time	>24h
Emergency Output	15-55VDC / 60-240VDC
Emergency Time	≥1.5H
Storage Temperature	-20 to 40ºC
Battery Specification	Li-Fep04 2000mAh-6.4V
Output Power	4W / 6W / 8W
Warranty	5 Years
Ambient Rating	0°C to 60°C (32°F to 104°F)

🔌

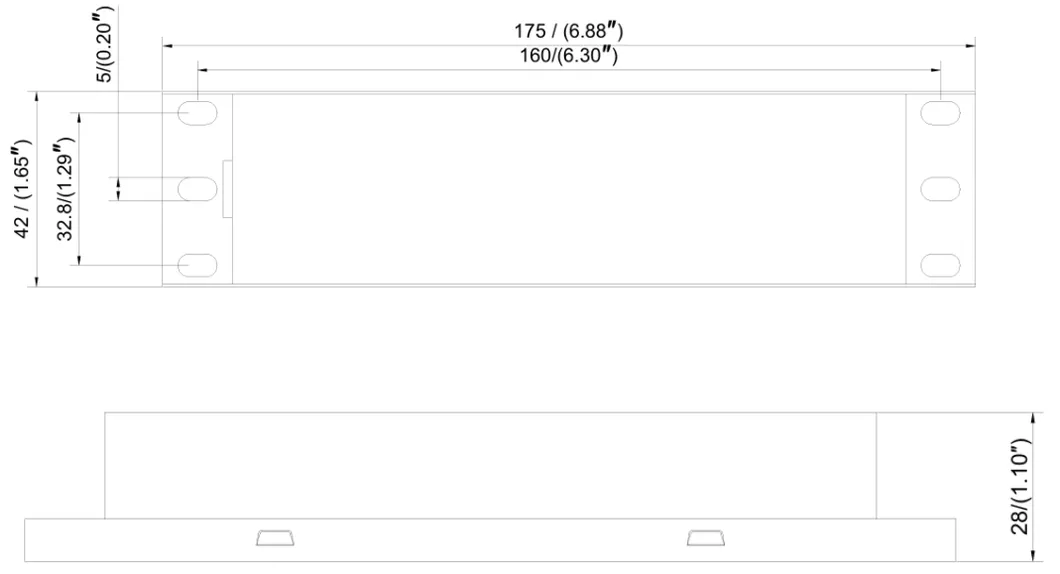

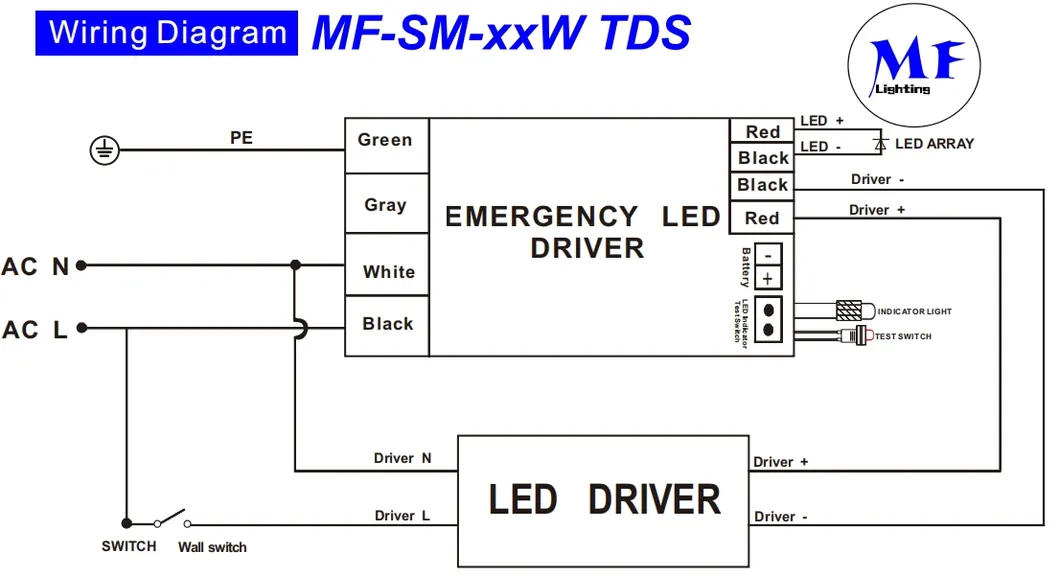

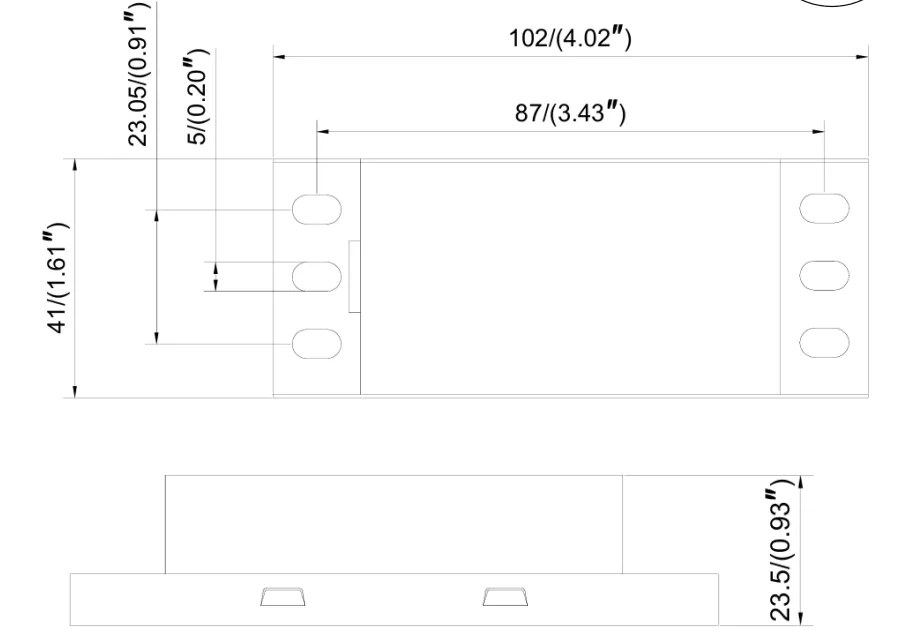

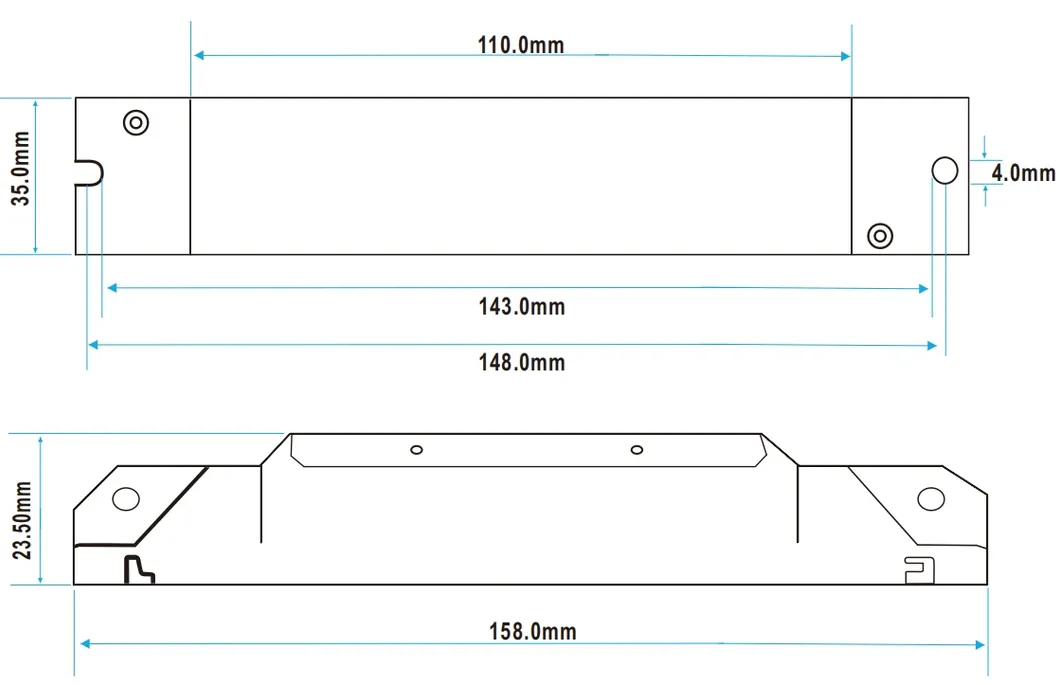

Wiring Diagram & Dimensions

6W / 8W Models

💡

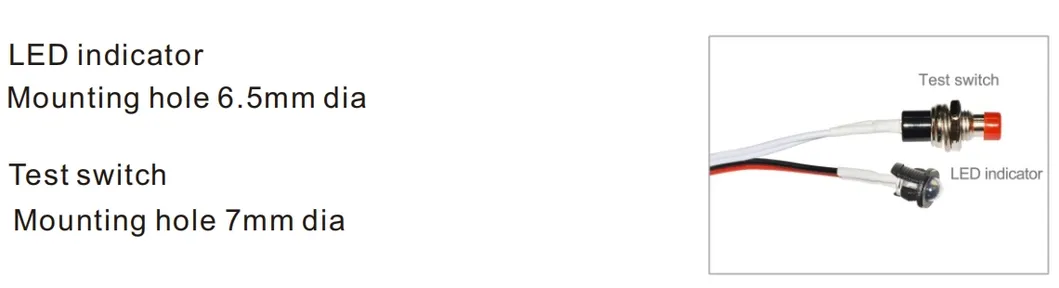

LED & Test Button Status

LED INDICATOR CODES

Green Breathing: Charging mode
Green Stable: Fully charged
Red Flashing (1/sec): Battery disconnected or defective
Red Flashing (4/sec): Load failure during emergency (open/short circuit)
Green Flashing: Emergency status active

TEST BUTTON FUNCTIONS

Press (0-2s): Enter simulated emergency state for 10 seconds.
Short Press (In Emergency): Exit and return to normal charging.
Quarterly Self-Test: Automatically enters emergency state every 90 days until battery discharge.

🏢

Applications

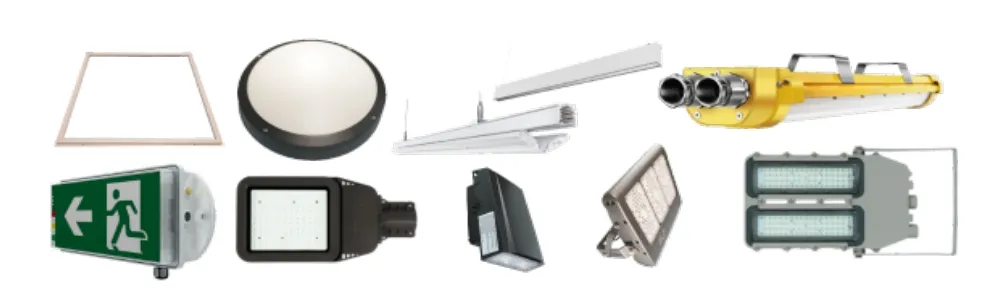

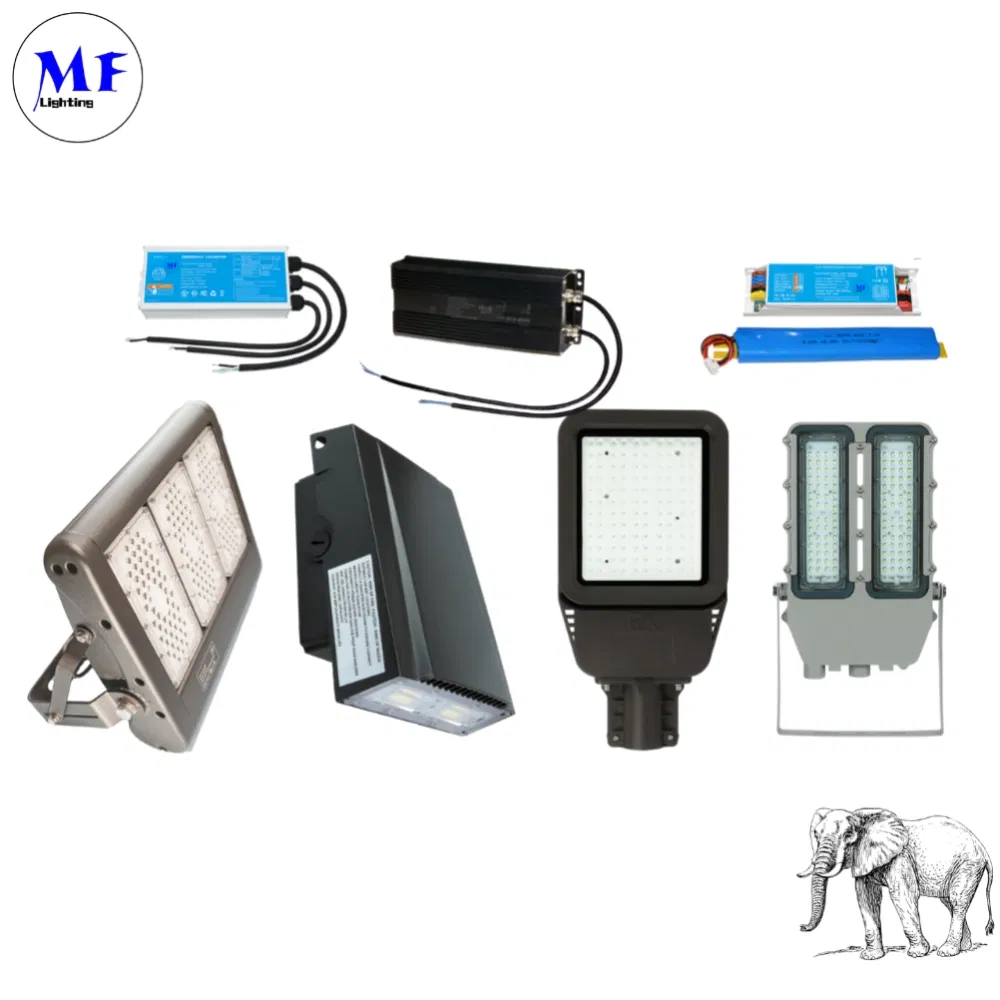

Compatible Fixtures: Street Lights, High Bay, Panel Lights, Downlights, Tri-proof Lights, Magnetic Lights, Exit Signs, Flood Lights, Explosion-proof Fixtures, Troffers, and more.

Common Scenarios

• Commercial: Hallways, stairwells, lobbies.

• Industrial: Production lines, hazardous zones.

• Healthcare: Operating rooms, patient areas.

• Educational: Classrooms, libraries.

• Retail: Hotels, malls, supermarkets.

• Public: Tunnels, parking garages.

📜

Technical Documentation

❓

Frequently Asked Questions

1. What is the emergency duration of this kit? The system provides a minimum of 90 minutes (1.5 hours) of emergency lighting, with high-quality models extending up to 3 hours depending on the load.

2. Which LED fixtures are compatible with these emergency drivers? Our drivers are highly versatile and compatible with Tri-proof lights, High Bay lights, Panel lights, Downlights, and even Explosion-proof fixtures.

3. What battery technology is used? We use advanced Lithium Iron Phosphate (Li-FEP04) batteries, which offer higher safety, better thermal stability, and up to 2000 cycles of charge/discharge.

4. Does the device perform self-diagnostic testing? Yes, the driver includes a quarterly self-test function that automatically enters an emergency state every 90 days to verify battery and system integrity.

5. What does a flashing red LED indicator mean? A slow red flash usually indicates the battery is not connected or is defective. A fast red flash indicates a load failure, such as a short or open circuit during emergency mode.

6. What is the standard warranty period? We provide a full 5-year warranty for these emergency powerpack kits, reflecting our 16 years of manufacturing expertise.
