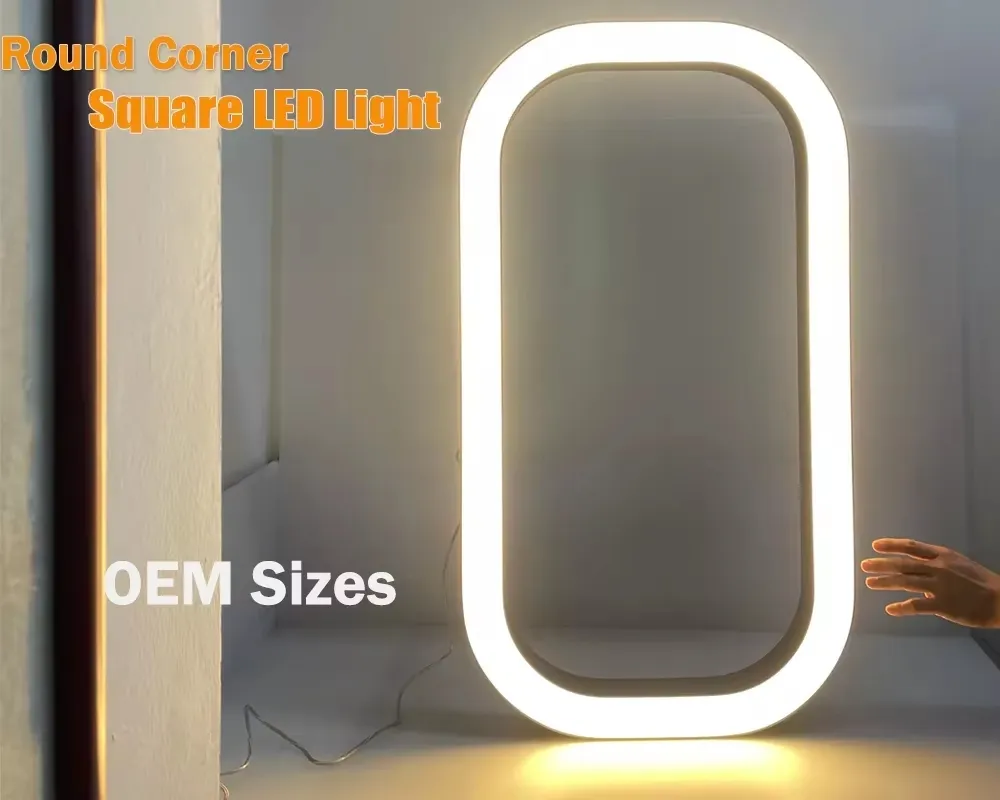

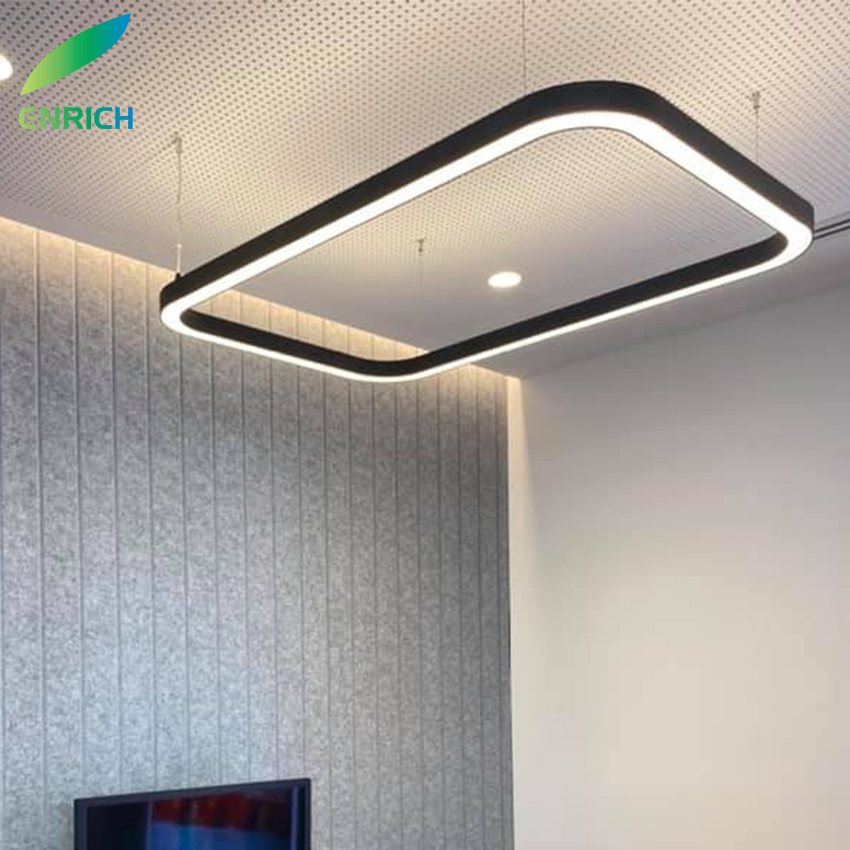

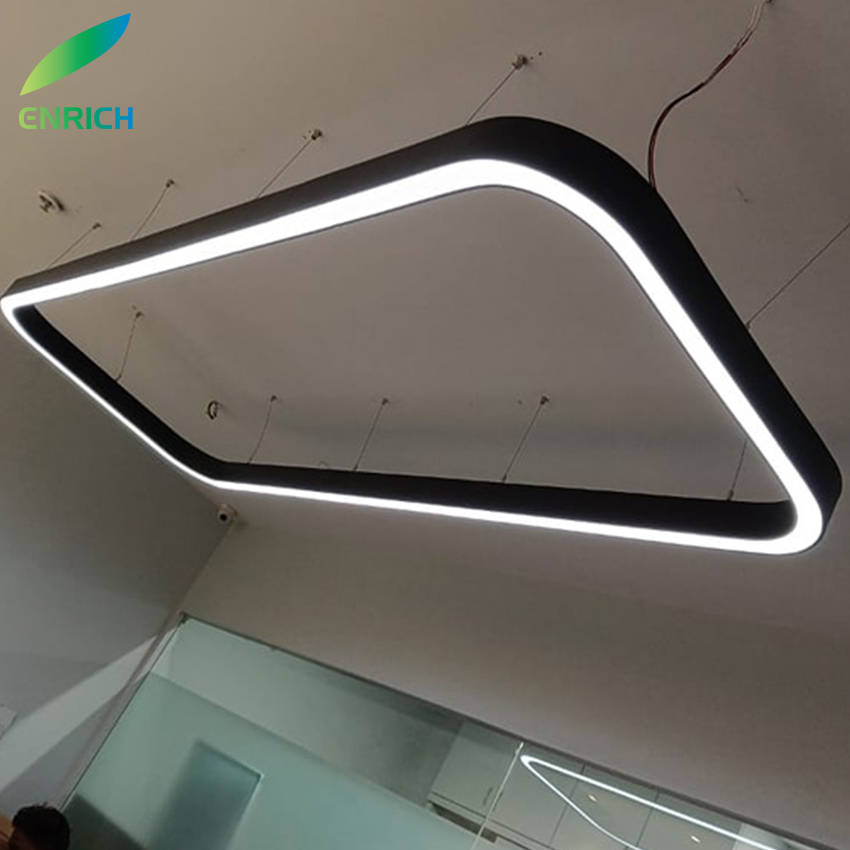

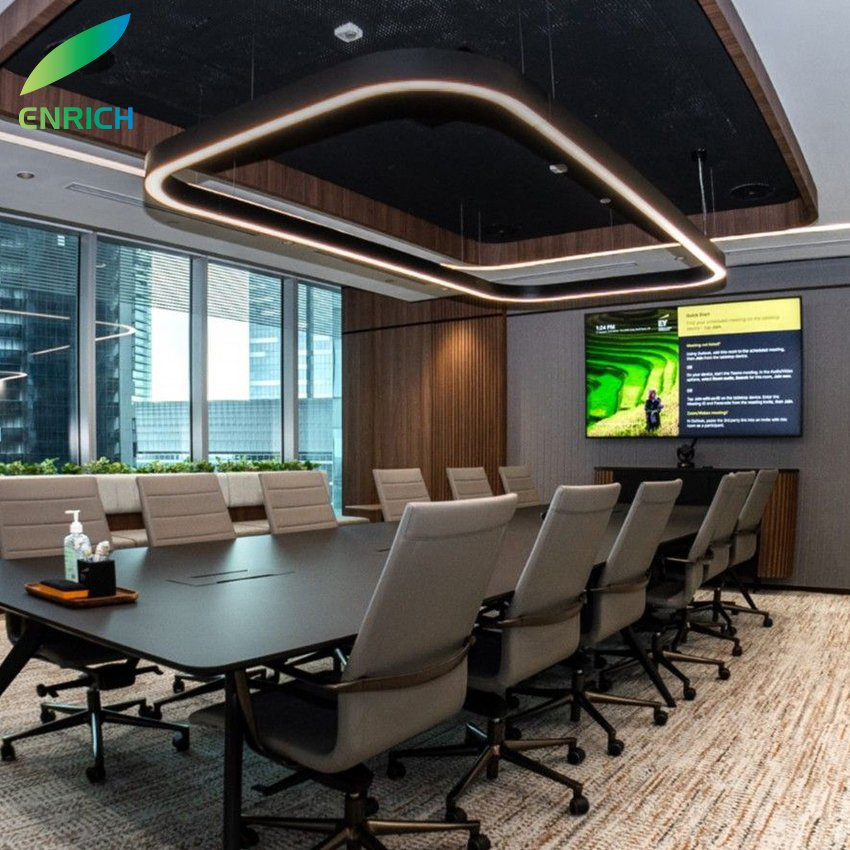

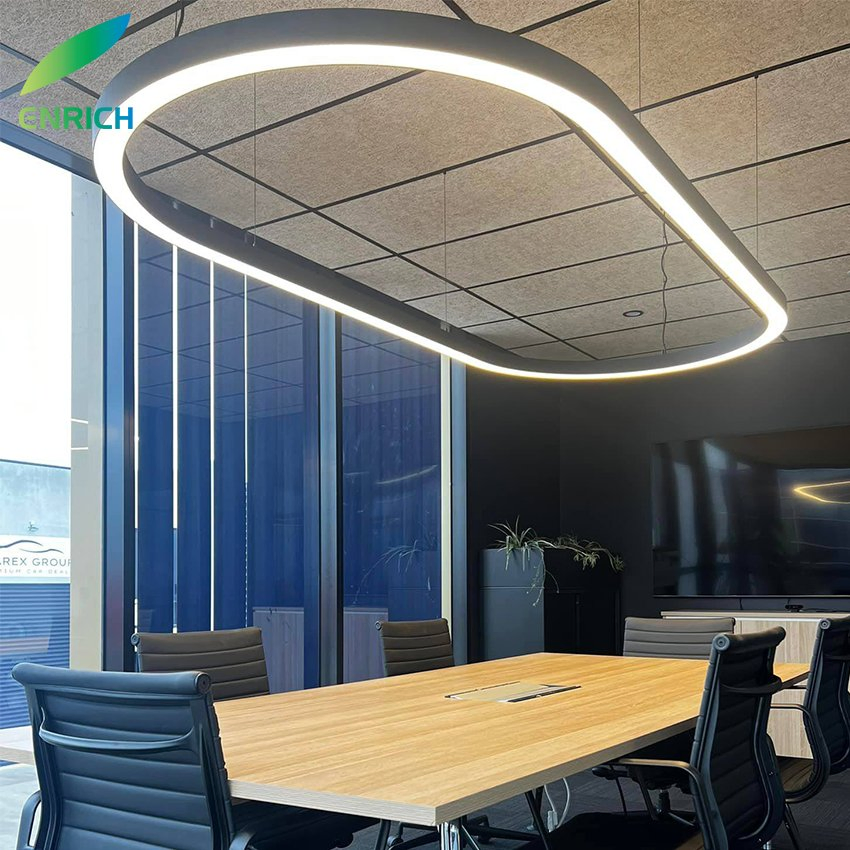

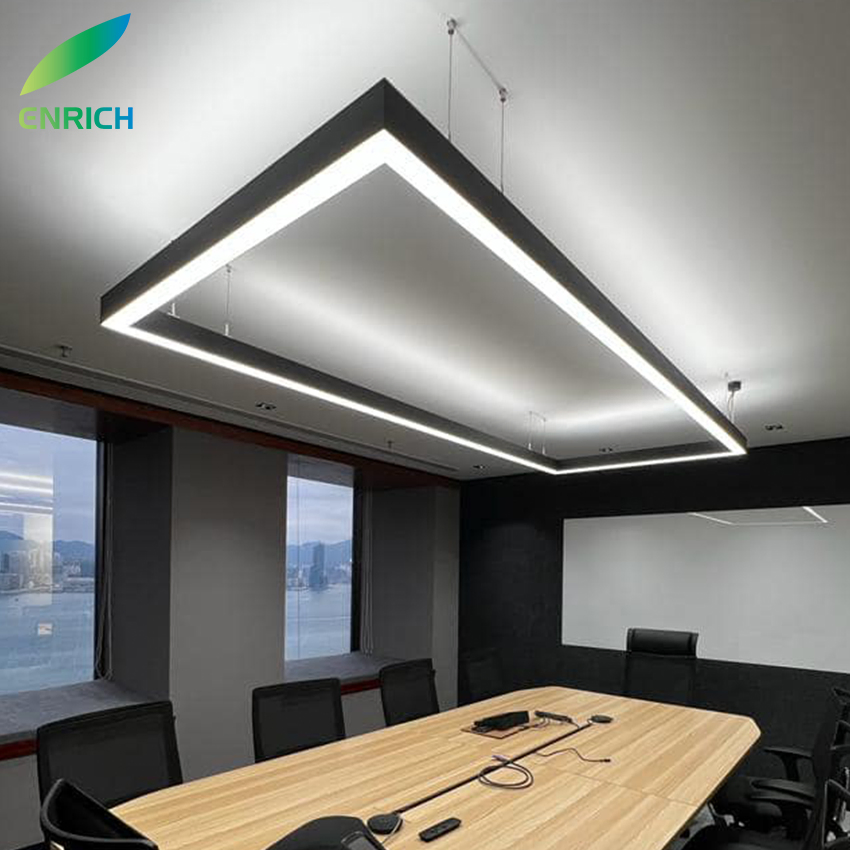

Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Product Description
Basic Specifications
Model NO.
LC6060-F600/1000
Style
European
Irradiated Area
≥30m²
IP Rating
IP33
Certification
CE, EMC, RoHS, SAA
Voltage
AC85-265V
Beaming Angle
120°
LED Chips
Epistar SMD 2835 - 504PCS
Wattage
20W/M
Luminous Efficiency
100lm/W
CRI
>80/90
Shell Color
Black, White, Silver, Customized
Specification
L1000*W600*W60*H60mm
HS Code
9405110000
Production Capacity
50000 Pieces/Year
Product Highlights
- ✦ No dark area, lighting uniformly, excellent heat dissipation performance.
- ✦ High Efficacy: 100lm/w ±5%.

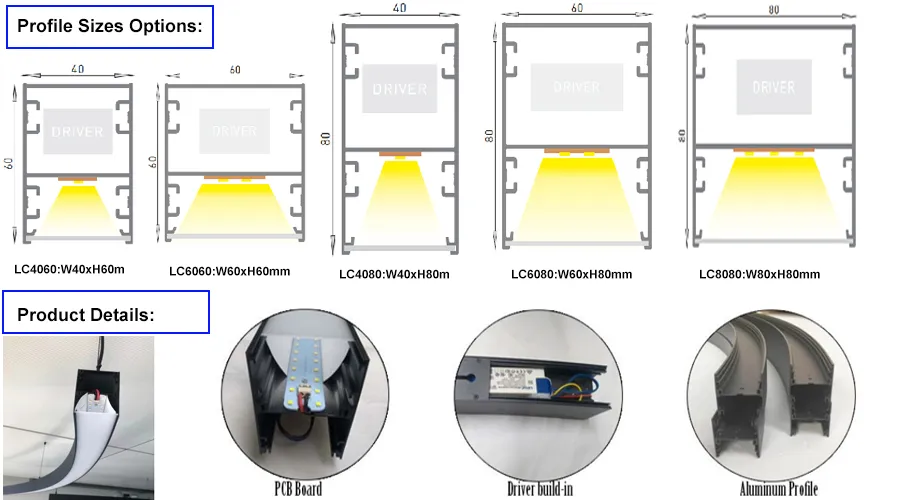

- ✦ Material: 1.5mm thick extrusion aluminum profile housing, frosted PC cover.
- ✦ High CRI: Ra>80 (standard), Ra>90 (available).
- ✦ Certified driver, flicker-free, build-in, power factor>0.9.
- ✦ Input Voltage: AC220-240V (EU version), AC100-240V (US version).
- ✦ LED PCB board, SMD2835, L80B10(Ta=25ºC)>50000hrs, long lifespan.
- ✦ Diameters available in L900*W900mm to L3000*W1200mm and custom sizes.
- ✦ Color Temperature: 3000K, 4000K, 5000K, 6000K.
- ✦ Shell Colors: White, Black (standard), silver, golden optional.

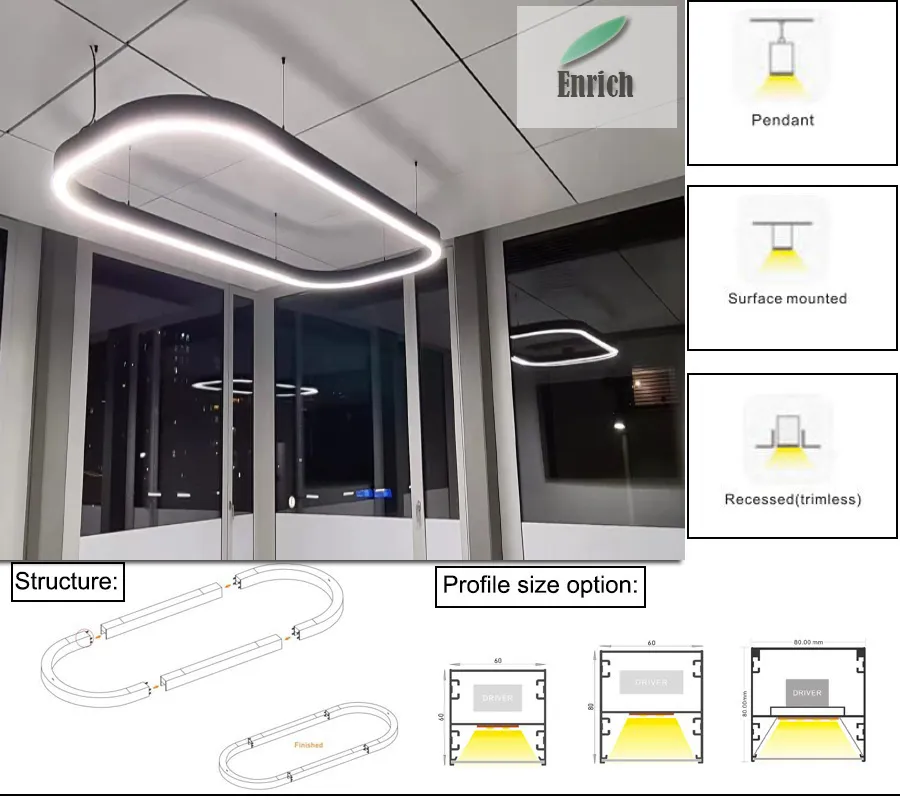

- ✦ Mounting: Suspended, Ceiling surface, Rimless recessed mounting.
- ✦ Warranty: 5 year.

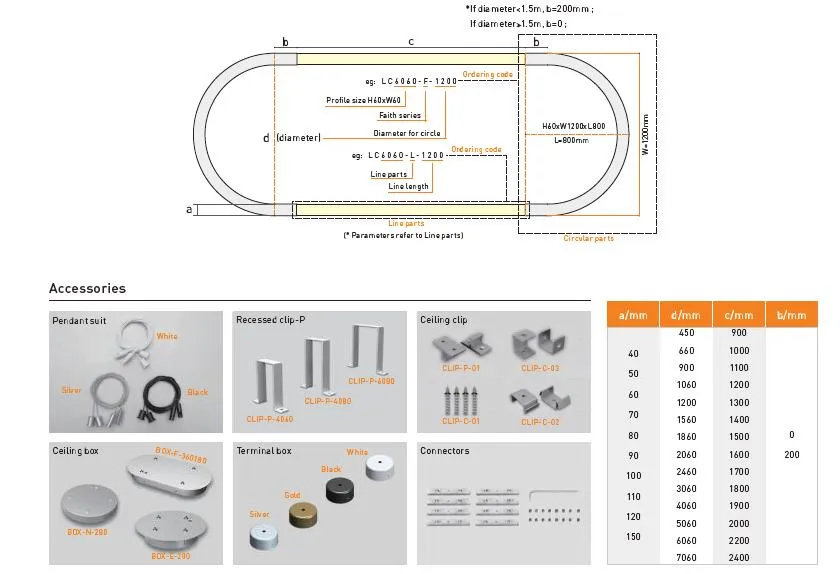

Technical Specifications
| Model | LC6060-B-900 | LC6060-B-1032 | LC6060-B-1200 | LC6060-B-3000/600 | LC6060-B-3000/1200 |
|---|---|---|---|---|---|
| Voltage | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
| Size (mm) | L900*W900 | L1032*W1032 | L1200*W1200 | L3000*W600 | L3000*W1200 |
| Power | 50W | 60W | 70W | 136W | 160W |
| Luminous | 100lm/w | 100lm/w | 100lm/w | 100lm/w | 100lm/w |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| CRI | >80 | >80 | >80 | >80 | >80 |
| Material | 6063-T5 aluminum + PC | ||||
| CCT | 3000K/4000K/6000K/RGB/RGBW/RGB+CCT | ||||
Packaging & Parameters
Package Size
120.00cm * 120.00cm * 25.00cm
Package Weight
6.000kg
Average Life
50000 (h)
Main Material
Aluminum & Acrylic resin

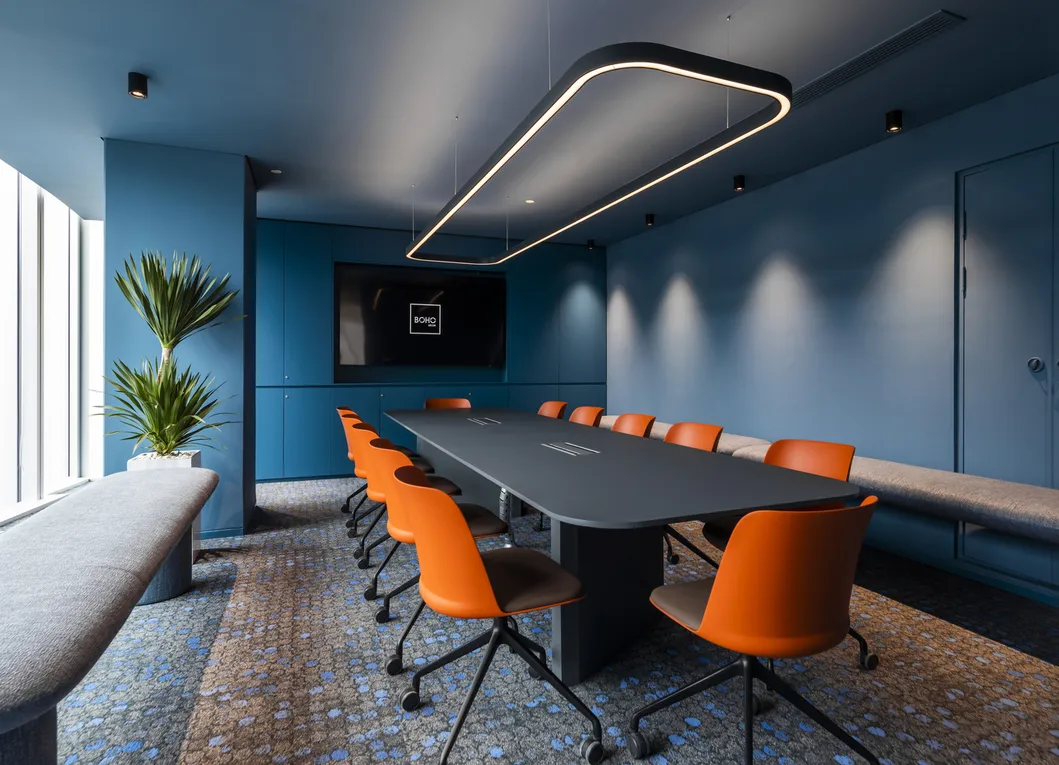

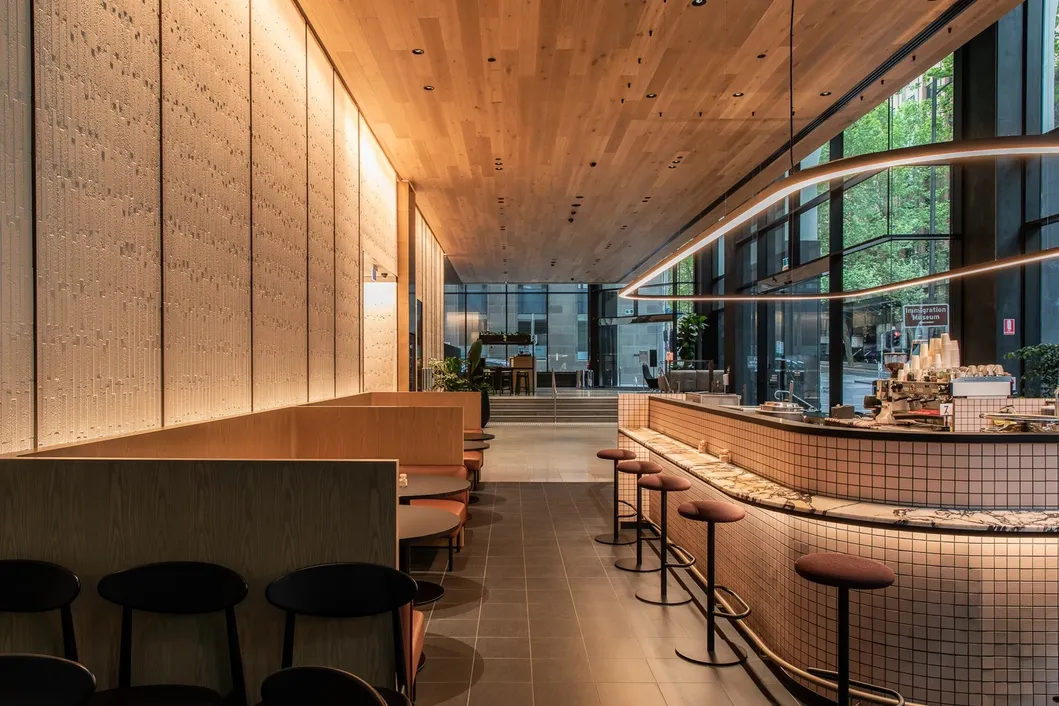

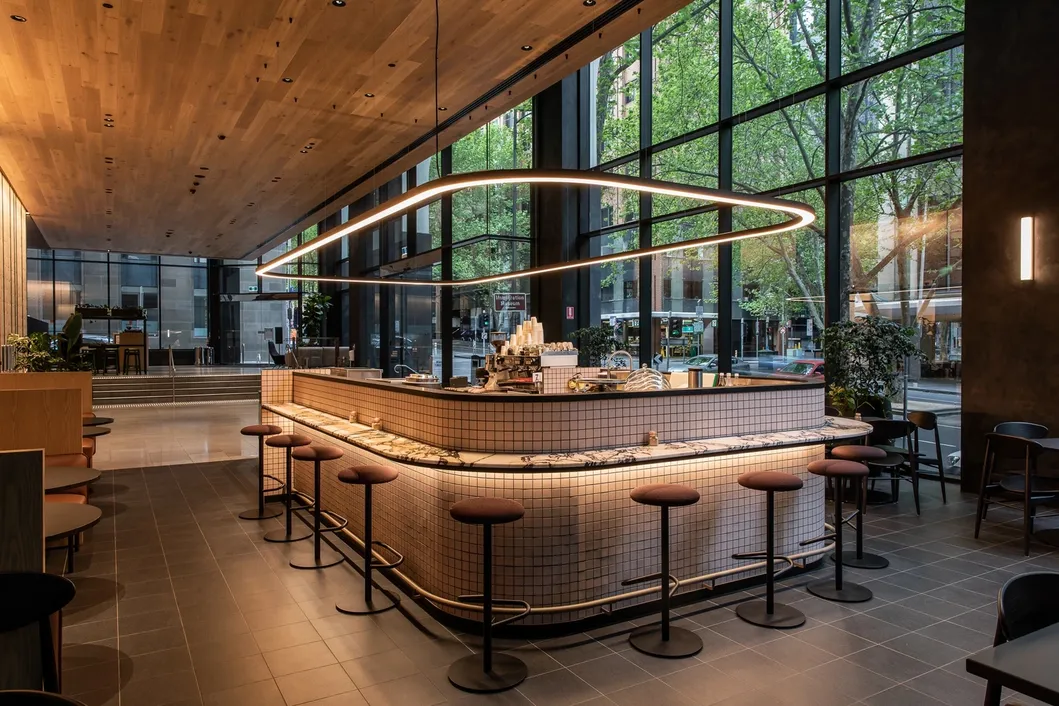

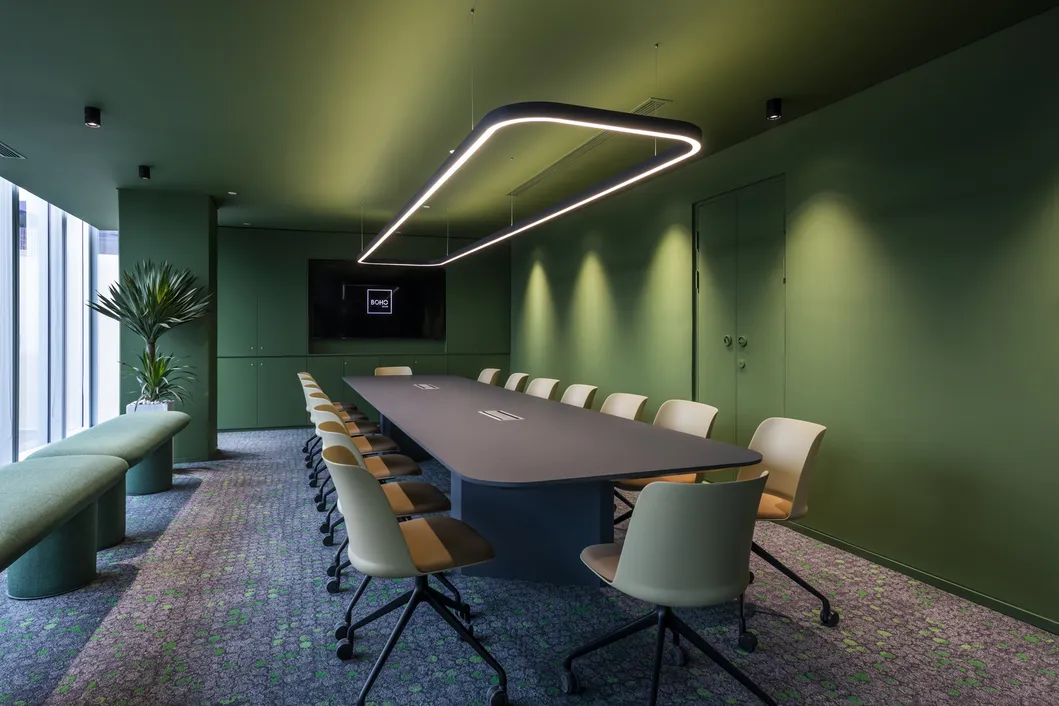

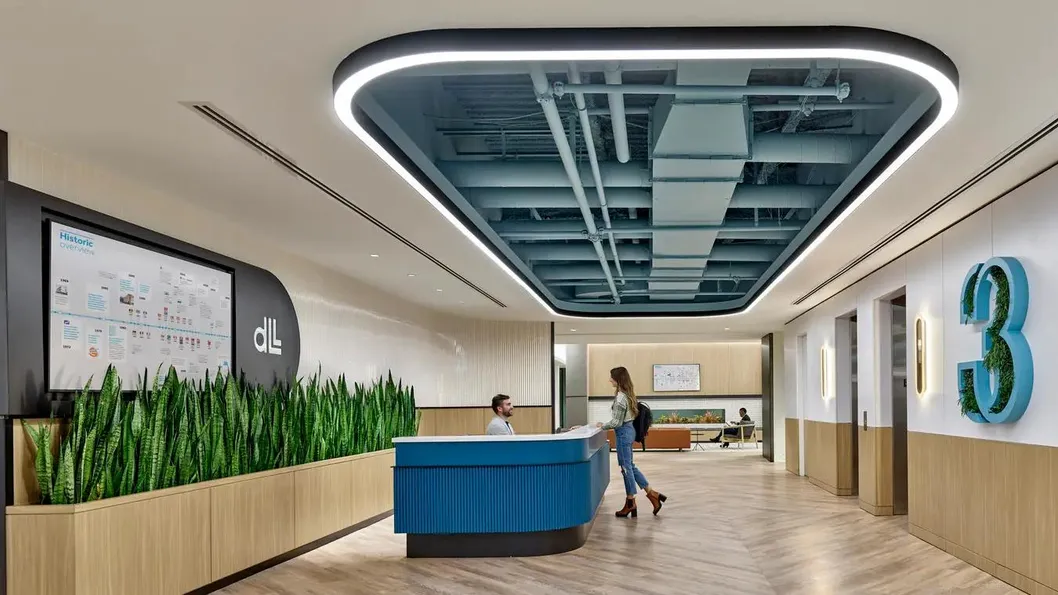

Application Scenarios

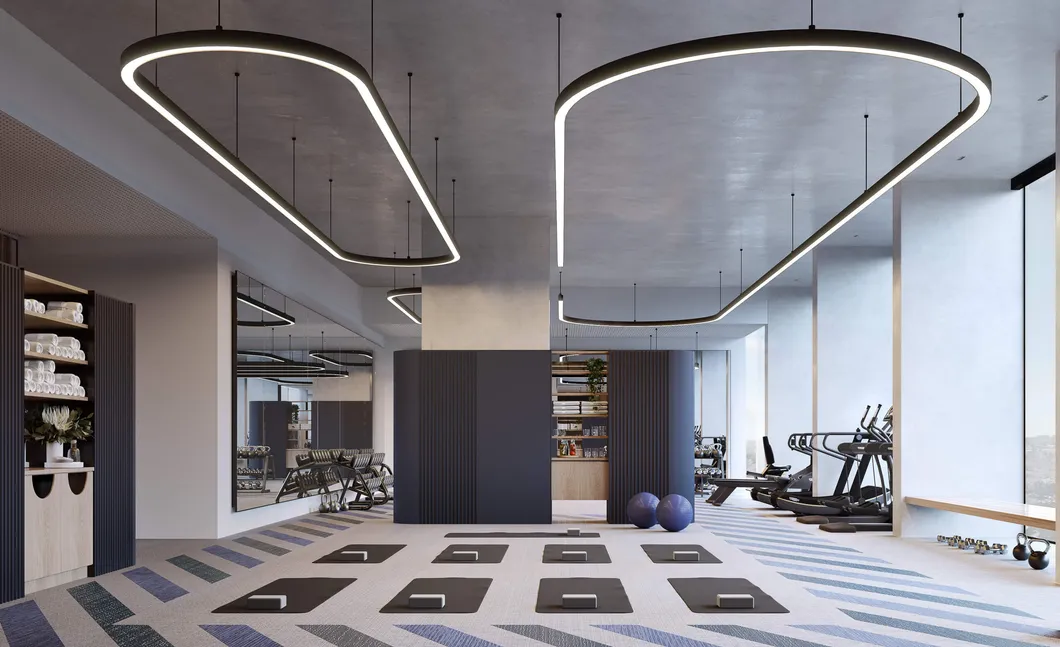

Widely used in shopping malls, stores, offices, gyms, schools, hotels, residential spaces, and reception desks.

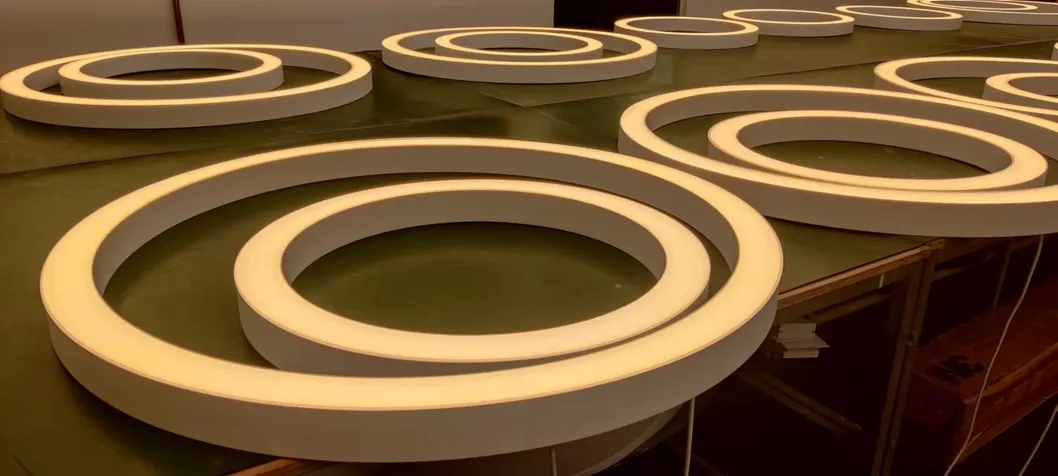

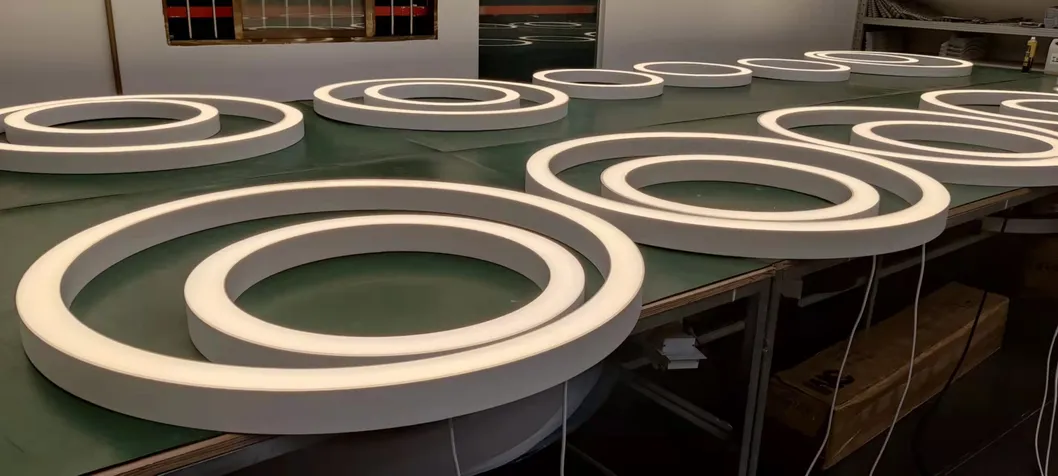

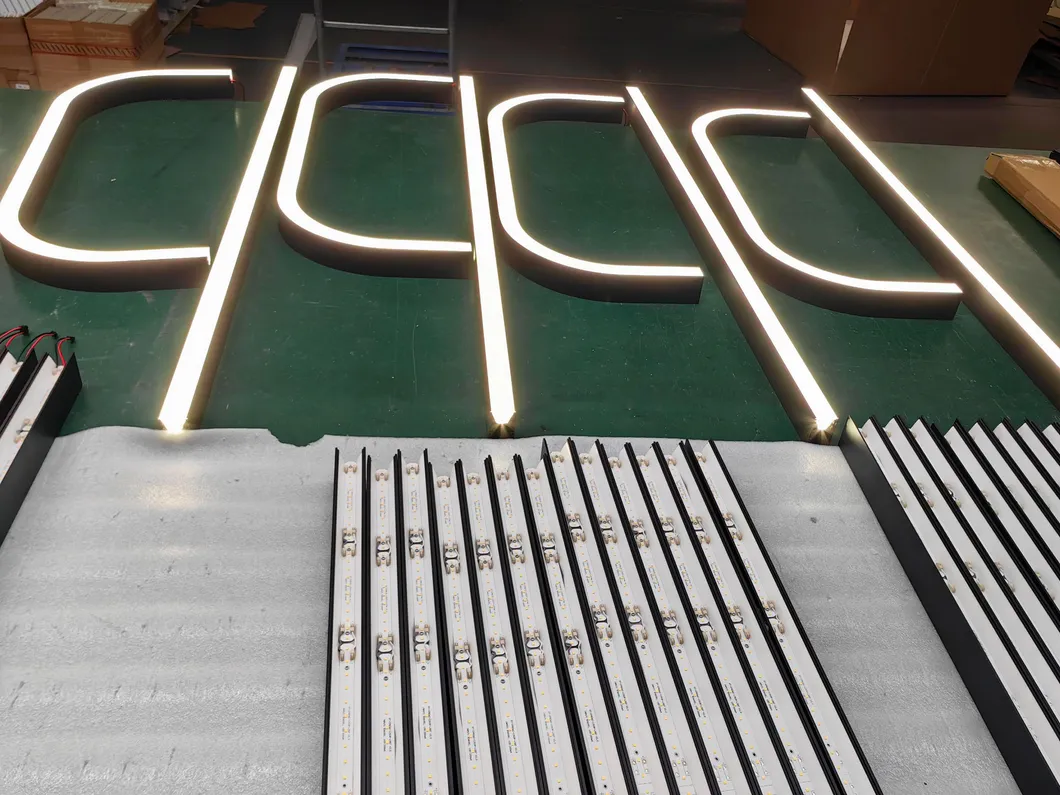

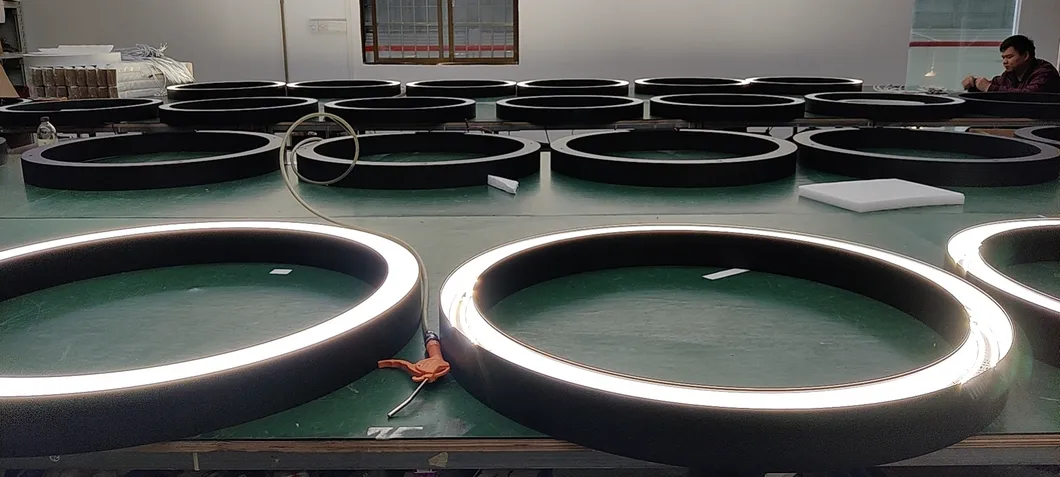

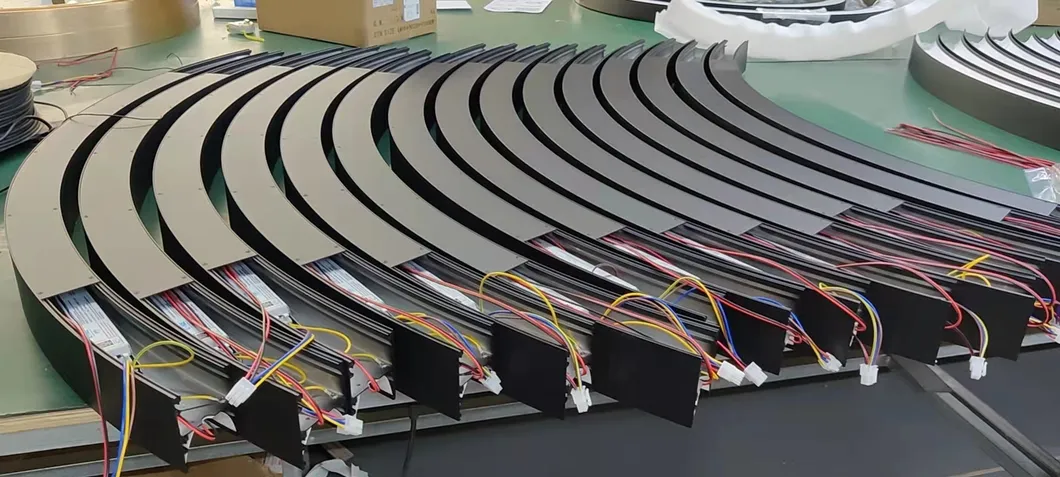

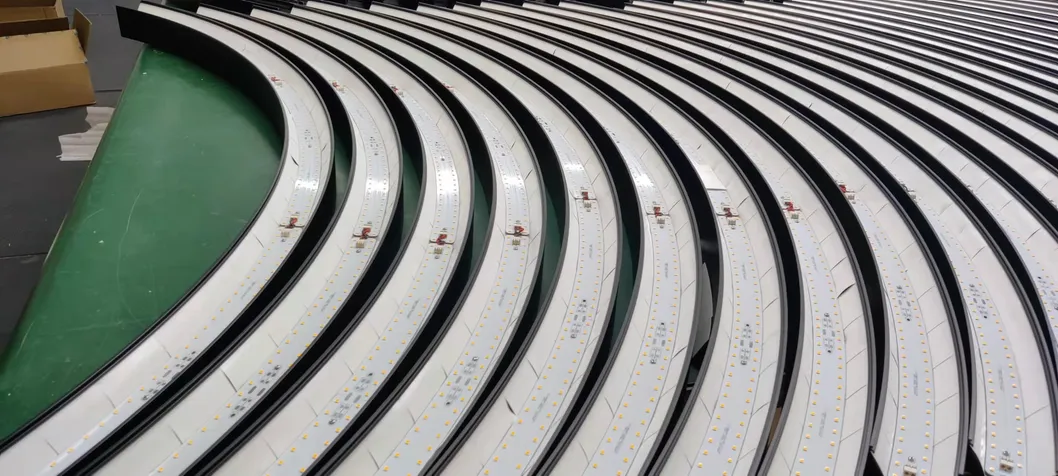

Production & Quality Control
Global Presence & Exhibitions
Frequently Asked Questions
Q: What is the warranty for these LED linear lights?
A: We provide a 5-year warranty on our LED linear lights, ensuring long-term reliability and performance.
Q: Can the size of the lights be customized?
A: Yes, we accept OEM designs and can customize sizes and shapes according to your specific project requirements.
Q: What mounting options are available?
A: The lights support suspended mounting, ceiling surface mounting, and rimless recessed mounting to fit various interior designs.
Q: Are the drivers flicker-free?
A: Yes, all units come with certified flicker-free built-in drivers with a power factor greater than 0.9.
Q: What color temperatures are available?
A: We offer standard options of 3000K, 4000K, 5000K, and 6000K, as well as RGB, RGBW, and RGB+CCT options.
Q: What materials are used in the construction?
A: The housing is made of 1.5mm thick high-quality extrusion aluminum profile (6063-T5) combined with a frosted PC cover for uniform lighting.
