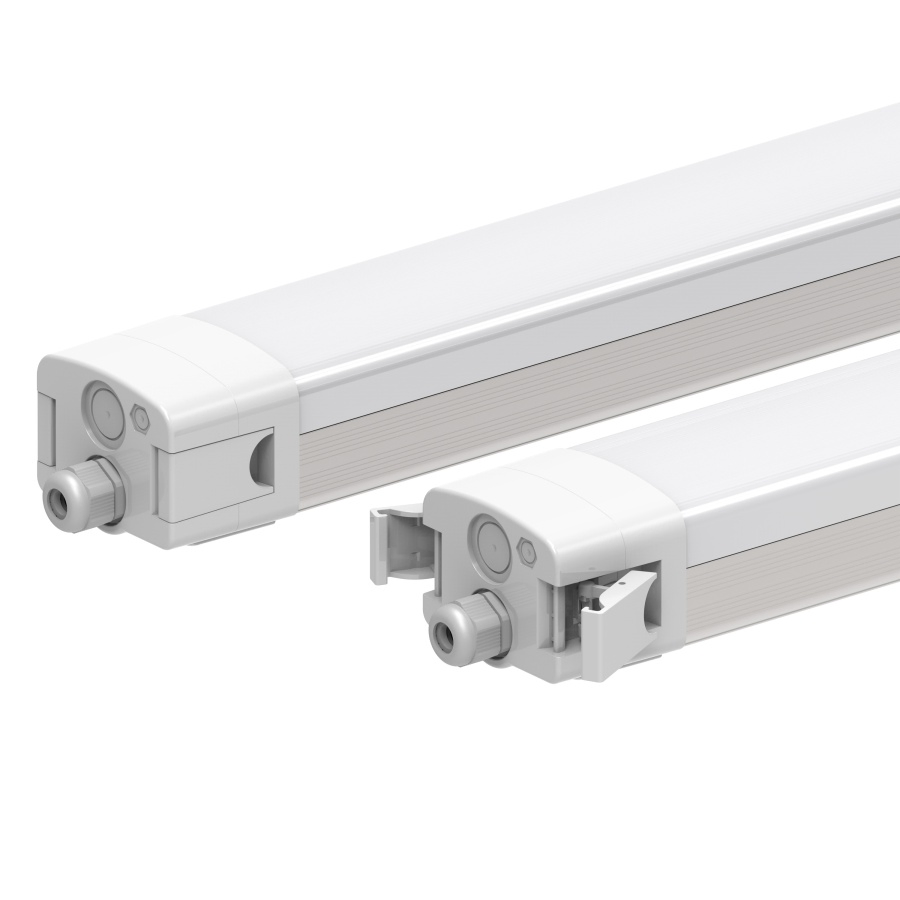

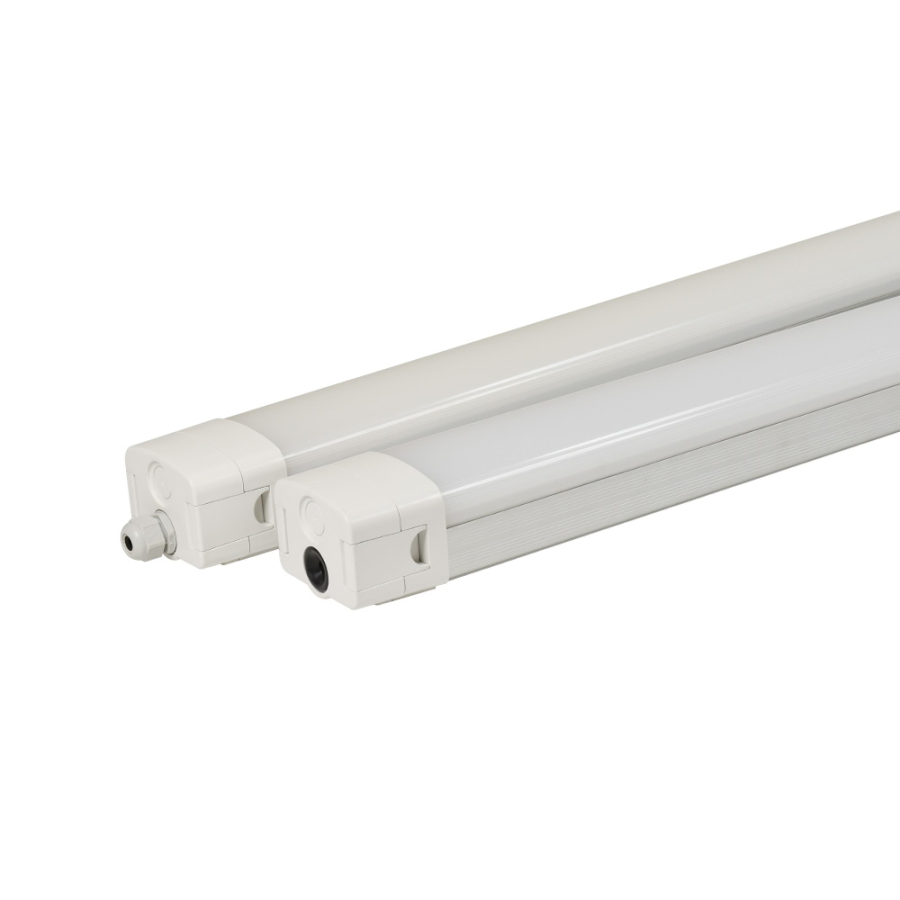

2FT 4FT 5FT 8FT IP65 IP66 22W 40W 48W 60W 100W LED Tri-Proof Ceiling Batten Light Lamp
Product Description
Overview & Basic Info
Model NO.TR02-22SN1 -DFN1B-001

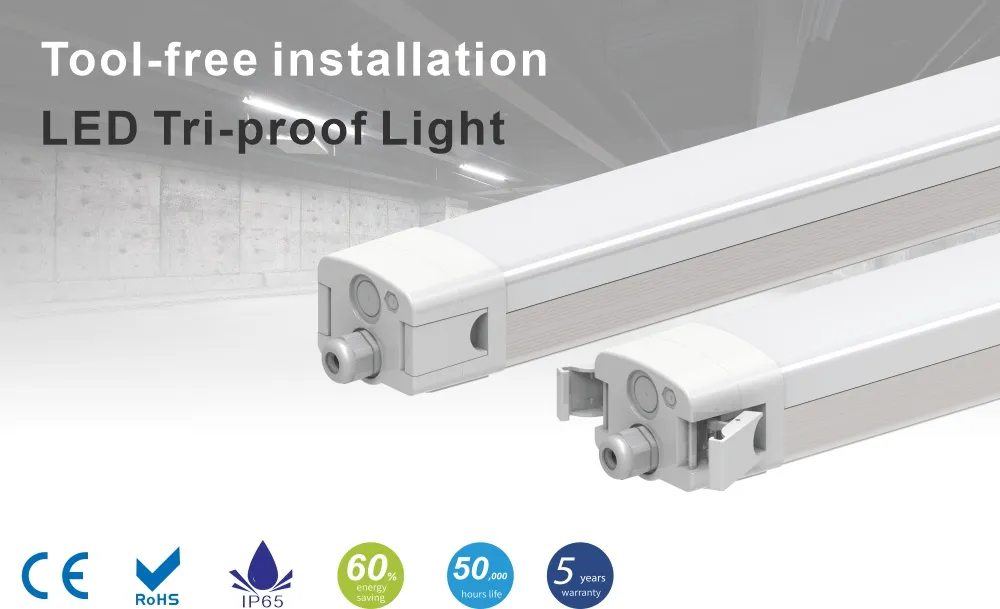

FeatureAnti-corrosion, Dust-Proof, Waterproof, Tool Free Installation
MaterialAluminum + PC
CertificationCE, RoHS, FCC, EMC, LVD, TUV
Lumen Efficacy100lm/W, 125lm/W, 140lm/W
IP/Ik RateIP 65 / Ik10 Approval
Warranty5 Years
Capacity50000PCS/Month
Product Description
2ft 4ft 5ft 8ft IP65 IP66 22W 40W 48W 60W 100W LED Tri-proof Ceiling Batten Light Lamp
Key Features

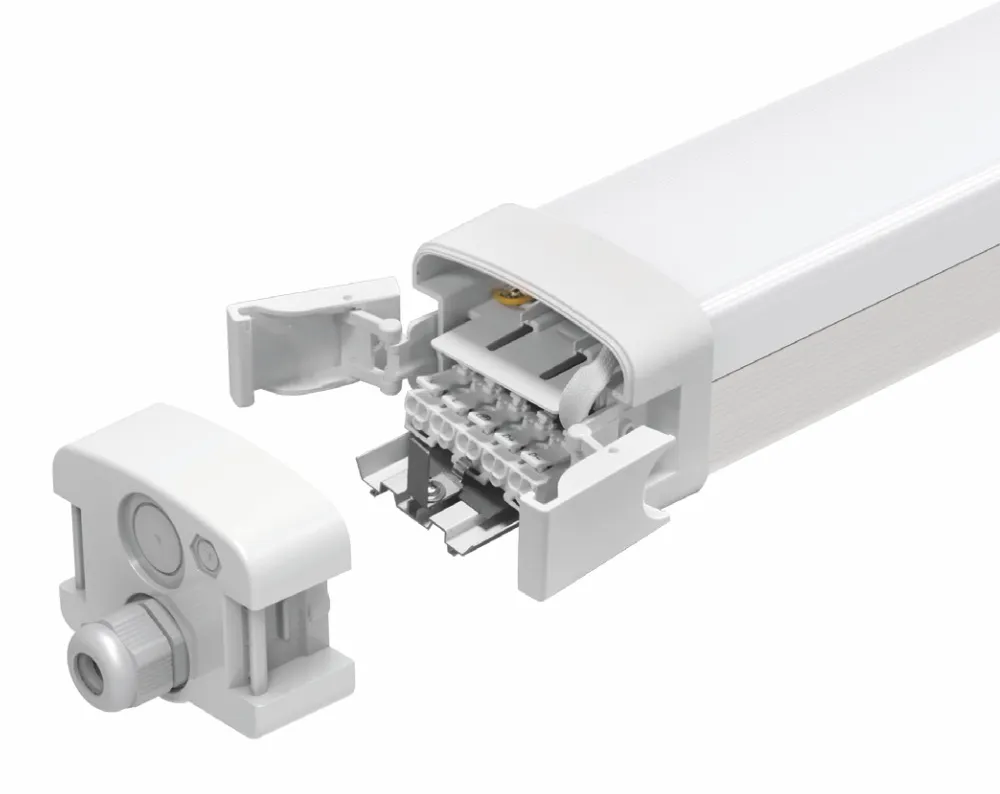

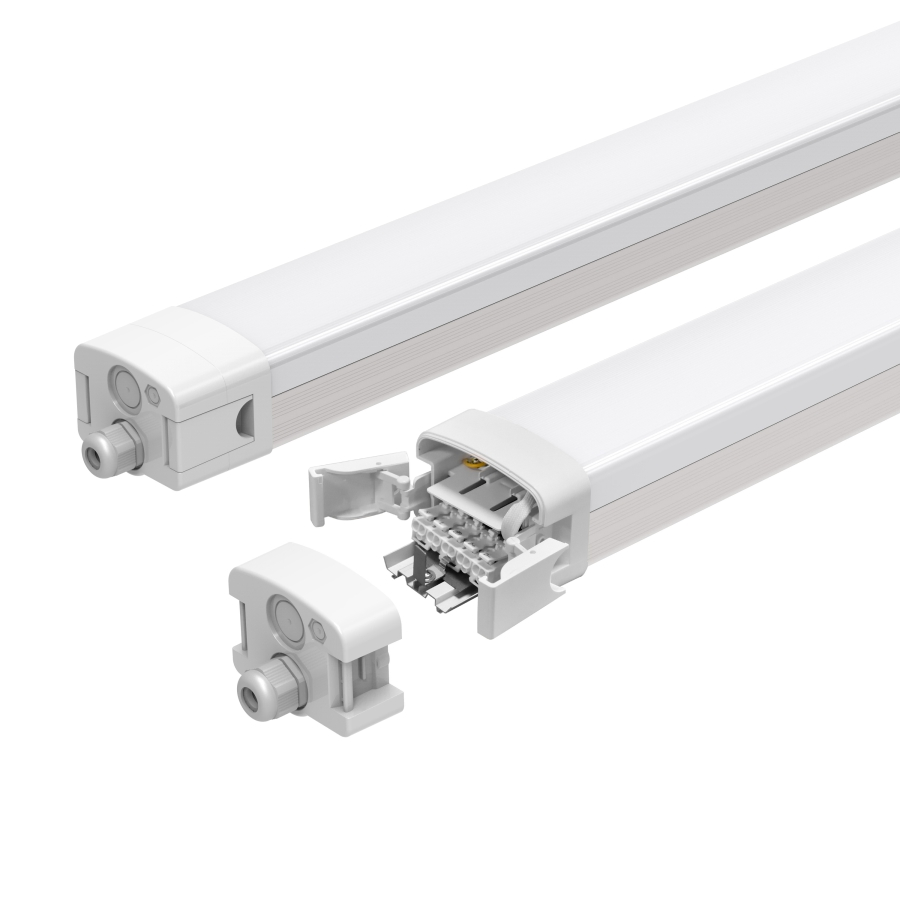

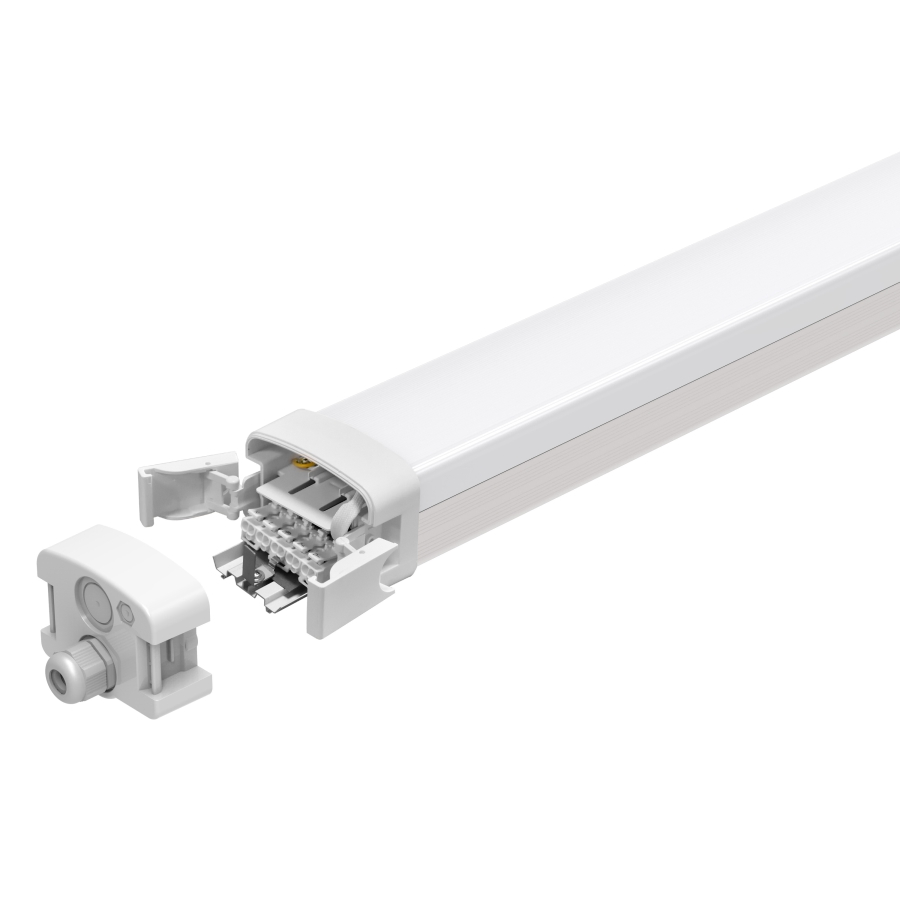

Special driver tray for easy replacement
Single or Double wiring options
IP 65 / IK10 Approval for harsh environments

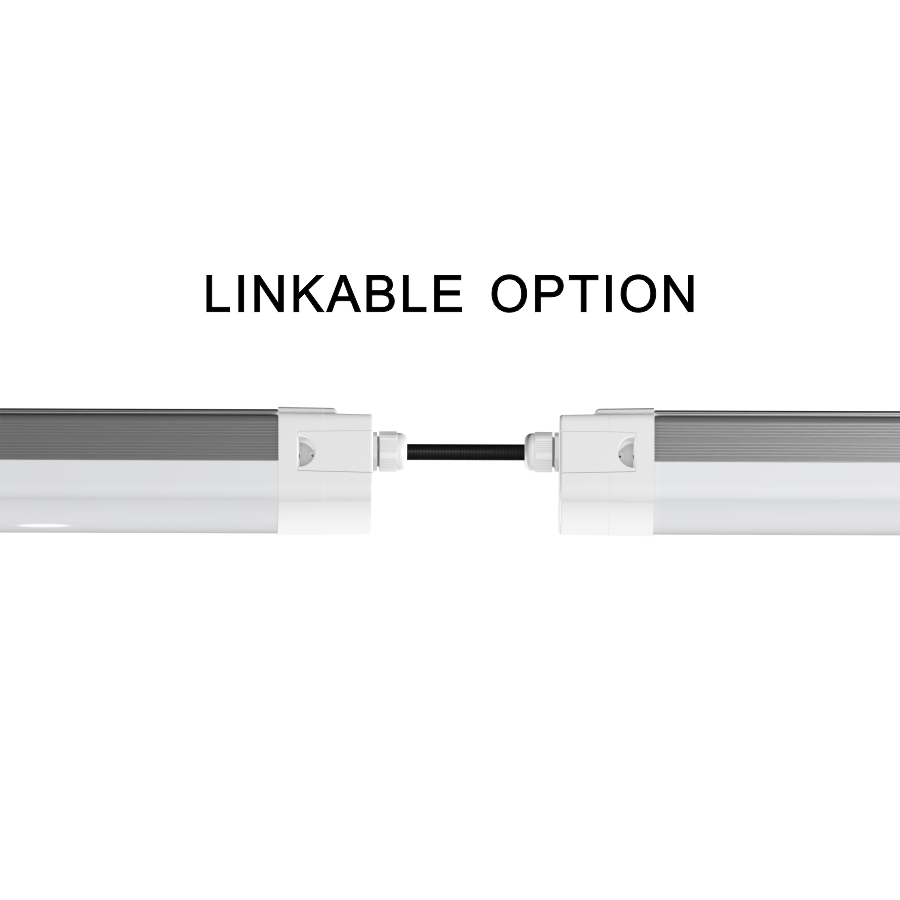

Multiple Linkable with double wiring
Patent aluminum case as heatsink

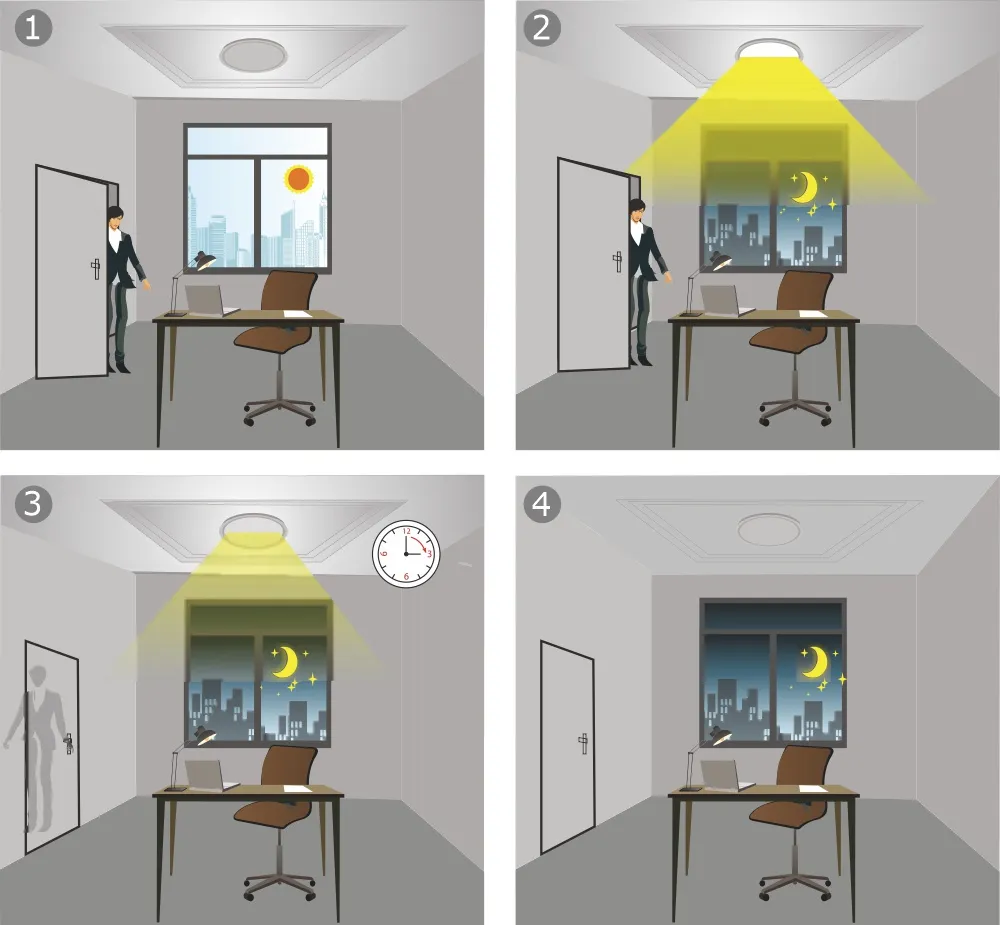

Microwave sensor & DALI dimming options
Optical & Electrical Specifications
Input: AC100-130V / AC200-240V
High bright 2835 SMD LEDs
Power Factor: >0.9, THD < 15%
CCT: 3000K | 4000K | 5000K | 6000K
CRI: Ra80 or Ra90
Beam Angle: 120°
| Item | 2ft (0.6M) | 4ft (1.2M) | 4ft (1.2M) | 5ft (1.5M) | 8ft (2.4M) |
|---|---|---|---|---|---|
| Rated Power | 22W | 40W | 60W | 60W | 100W |
| LED Qty | 143pcs | 234pcs | 325pcs | 325pcs | 520pcs |
| Lumen Efficacy | 100/125/140 Lm/W | ||||
| Luminous Flux | 2200-3050Lm | 4000-5600Lm | 6000-8400Lm | 6000-8400Lm | 10000-14000Lm |
| Housing | Full Plastic / Aluminum Case | ||||
Technology & Application
Typical Applications
• Replacement for fluorescent NCF lights
• Warehouses, Factories, and Car Parks
• Sports Facilities and Indoor/Outdoor Locations

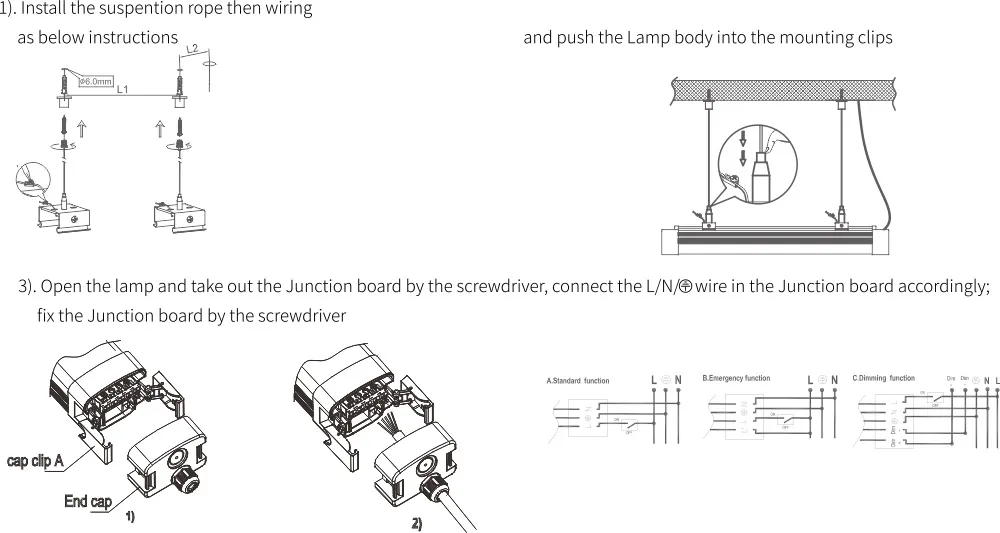

Installation Instructions

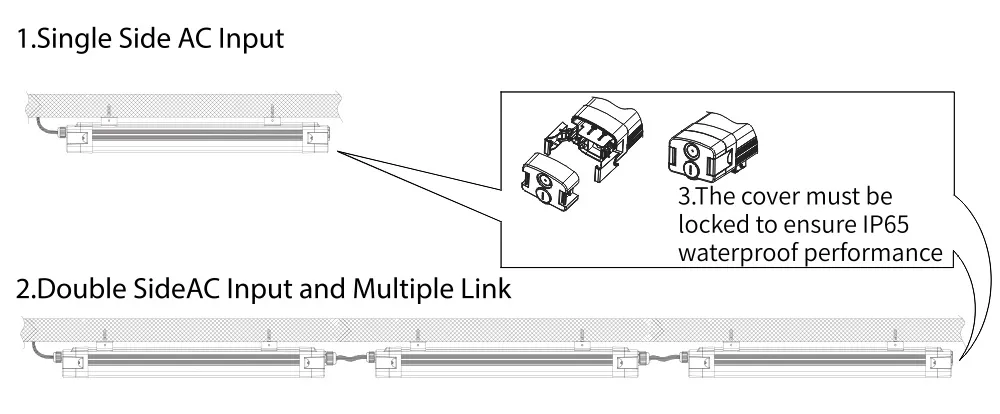

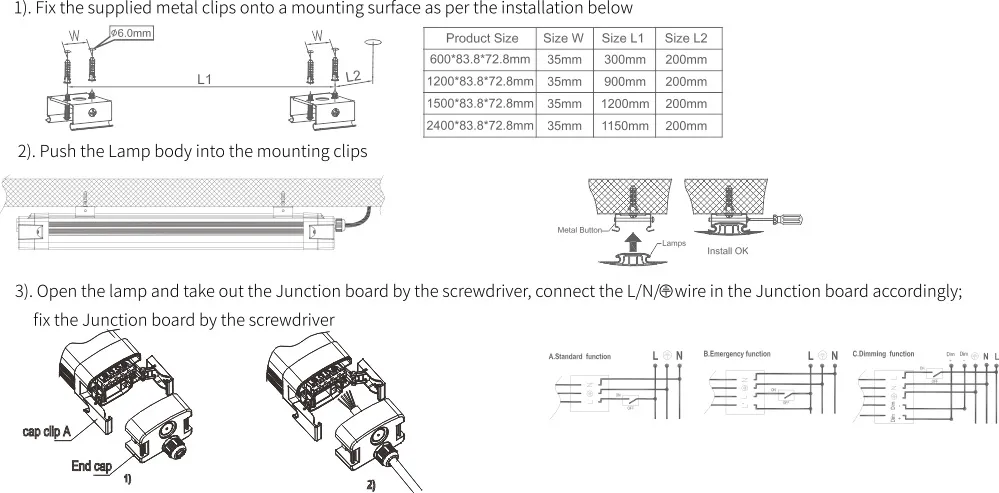

Wiring & Mounting Methods
Packaging Details
| Product Type | Power | Carton Size | Qty/Carton | Gross Weight |
|---|---|---|---|---|
| 60cm / 2ft | 22W | 72*19*21.5cm | 4pcs | 8.0Kgs |
| 120cm / 4ft | 40W / 60W | 132*19*21.5cm | 4pcs | 12.5Kgs |
| 150cm / 5ft | 40W / 60W | 162*19*21.5cm | 4pcs | 15.5Kgs |
| 240cm / 8ft | 100W | 252*19*21.5cm | 4pcs | 24.0Kgs |
Manufacturing Excellence
Specializing in industrial LED lighting since 2010. Our professional R&D team and complete quality control system ensure every product meets international standards. We excel in OEM services and customized driver designs to satisfy specific client requirements.
Frequently Asked Questions
What is your Minimum Order Quantity (MOQ)?
Our MOQ is 1 piece. We welcome sample orders to test and check quality.
What is the expected lead time for orders?
For orders under 50pcs, we ship within 5-7 workdays. For orders between 50-500pcs, the lead time is approximately 10-12 working days after payment.
How are the goods shipped and how long does it take?
We usually ship via DHL, UPS, FedEx, or TNT (3-5 days). Air-to-door shipping takes around 15 days.
What is your policy for product failures?
Our failure rate is strictly controlled around 0.3%. If any damage occurs during transportation or testing, we will provide replacement units.
Are you a manufacturer or a trading company?
We are a dedicated manufacturer of LED lighting with over a decade of production and export experience since 2010.
What kind of warranty do you provide?
We offer a 5-year warranty on our Tri-proof LED lights, ensuring long-term reliability for your projects.
