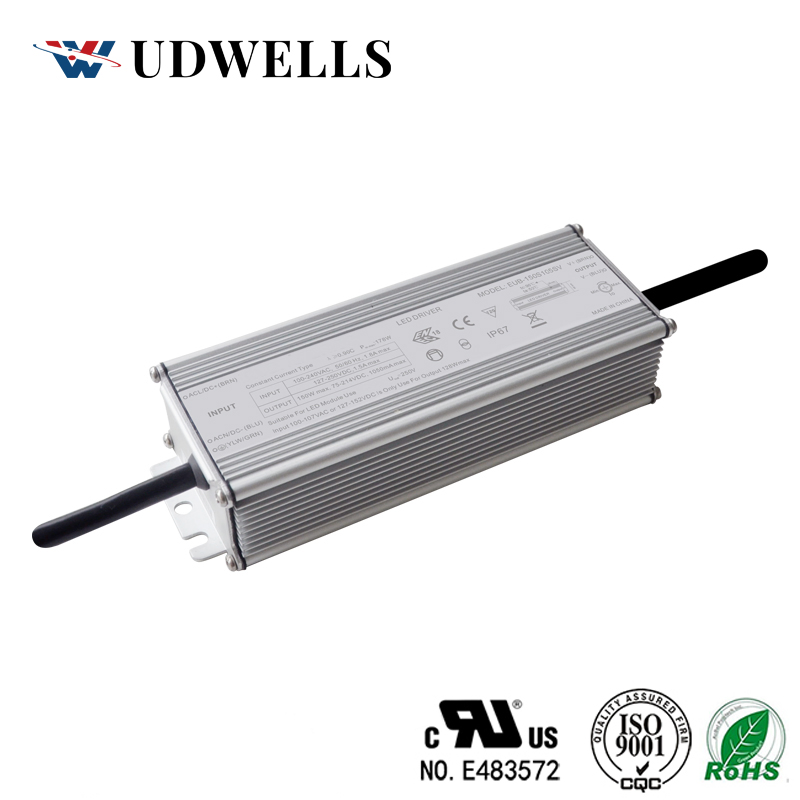

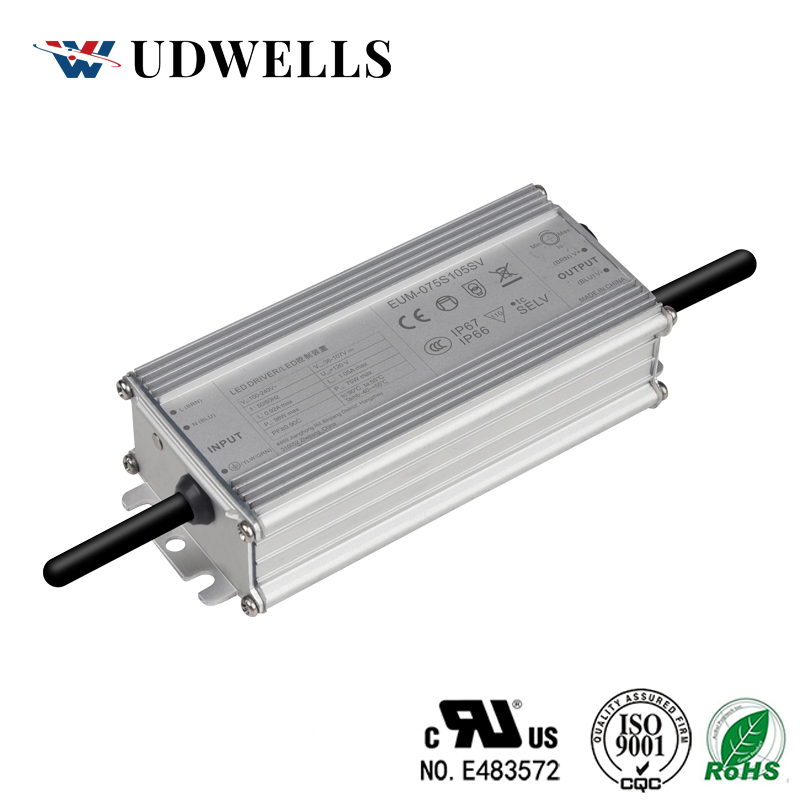

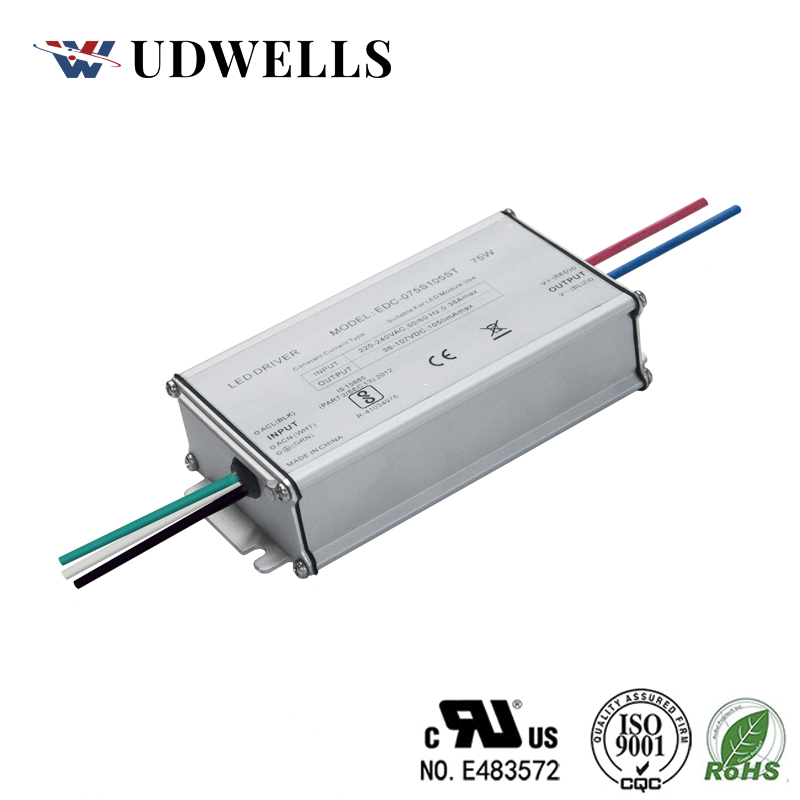

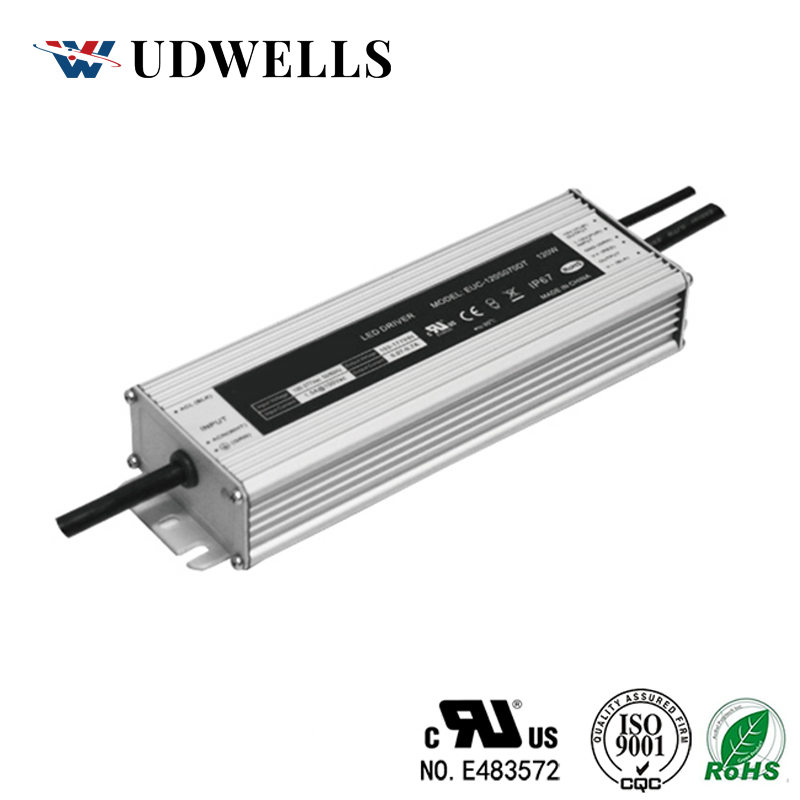

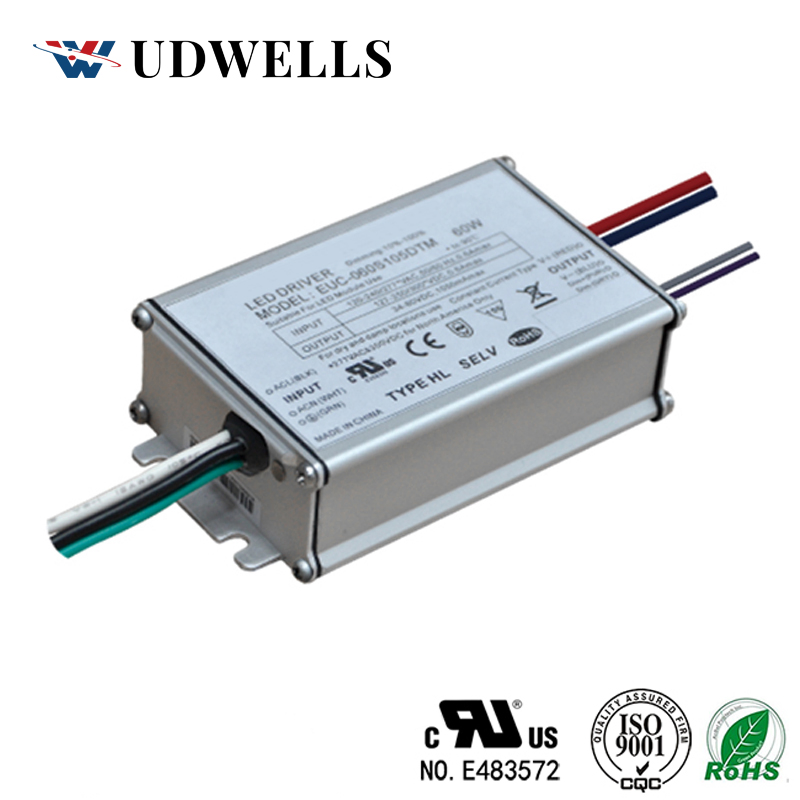

Portable Emergency Light DC to DC LED Driver
Product Description
📊 Basic Information
Model NO.
DHC040
Driving Method
LED Constant Current
Circuit Structure
Electronic Step-down Transformer
Certification
TUV, CE, RoHS, ISO9001, CCC
Power Supply Mode
Constant Current Source
Modulation System
PWM
Efficiency
94%
Input Voltage
10-30VDC
Waterproof Rating
IP67
Cooling
Free Air Convection
📦 Packaging & Delivery
Package Size
12.90cm * 4.90cm * 3.30cm
Gross Weight
1.200kg
💡 Product Description & Features

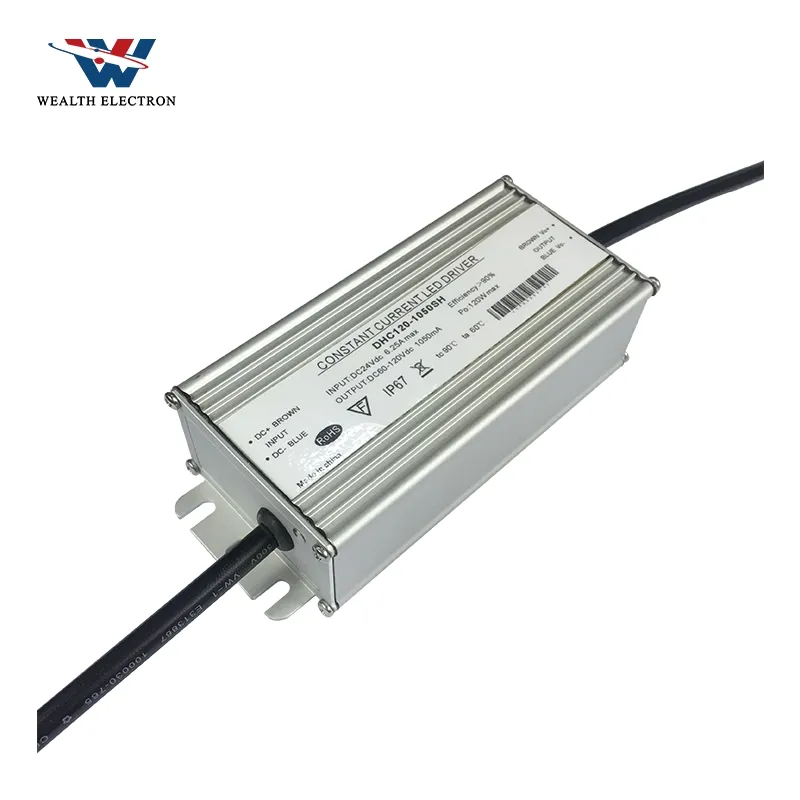

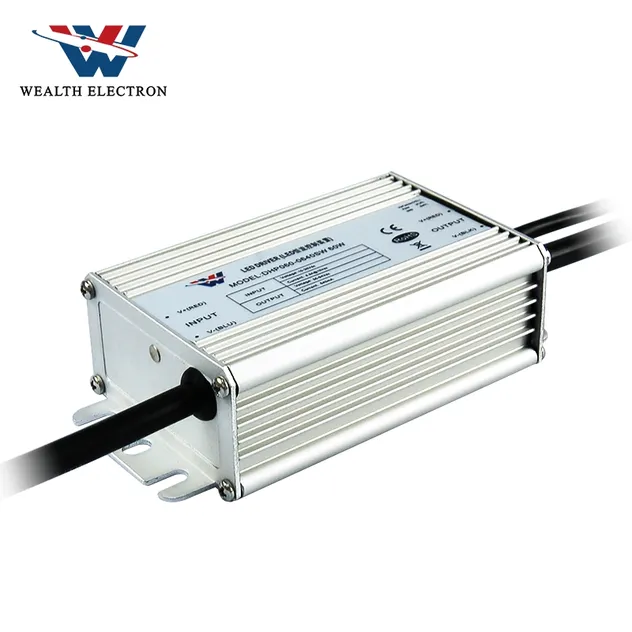

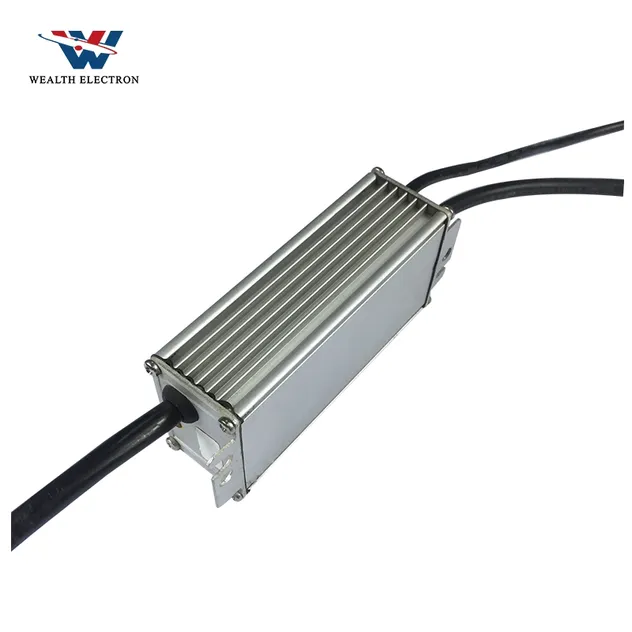

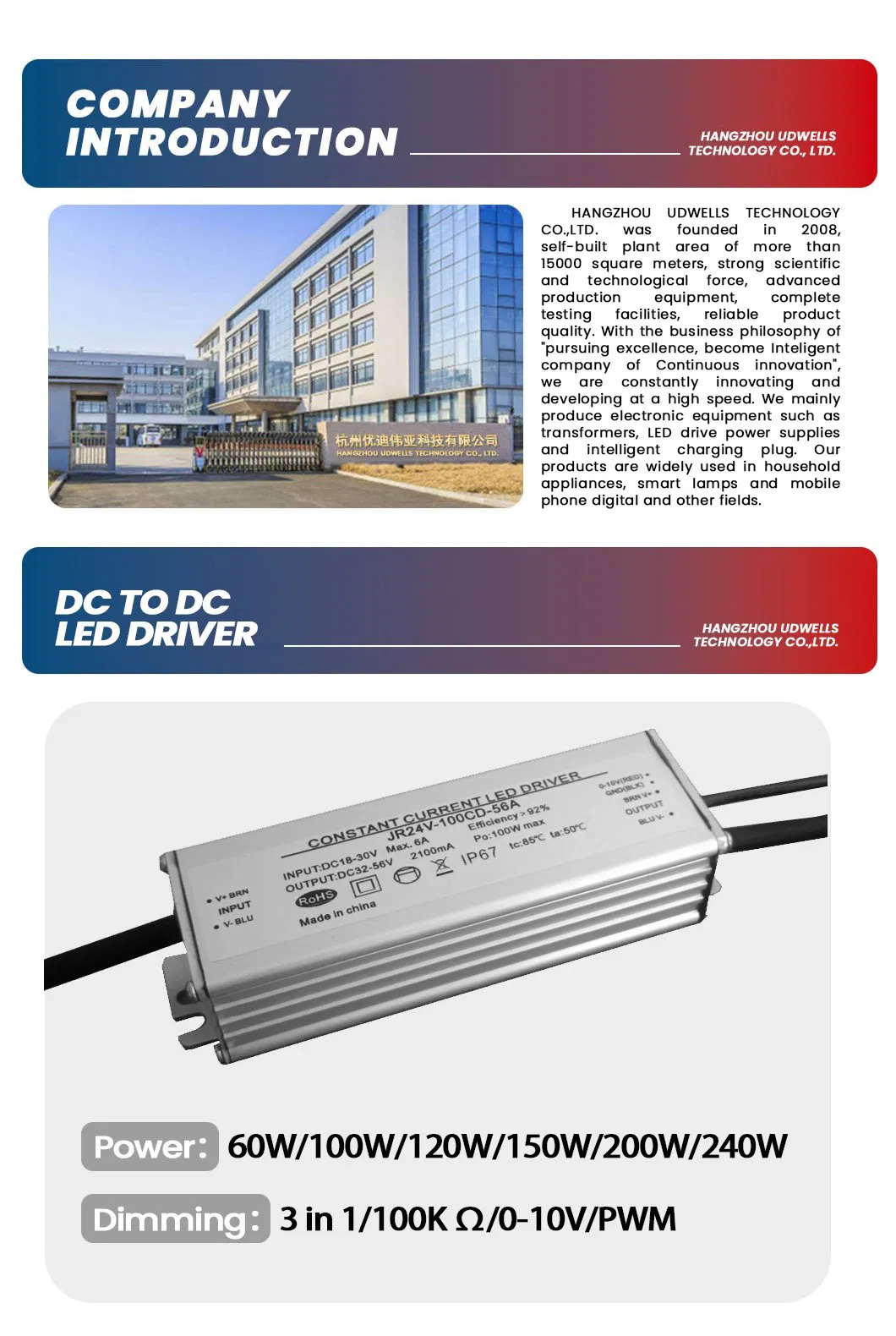

DC Input Constant Current LED Driver
- Wide Input Voltage 10 to 30VDC
- Under-Voltage Protection / Over Temperature Protection / Short Circuit Protection
- High Efficiency (up to 94%)
- Selectable dimming function (0~10V / PWM / Resistor)
- IP67 Waterproof Rating, Fully isolated
- Comply to worldwide safety regulations for lighting

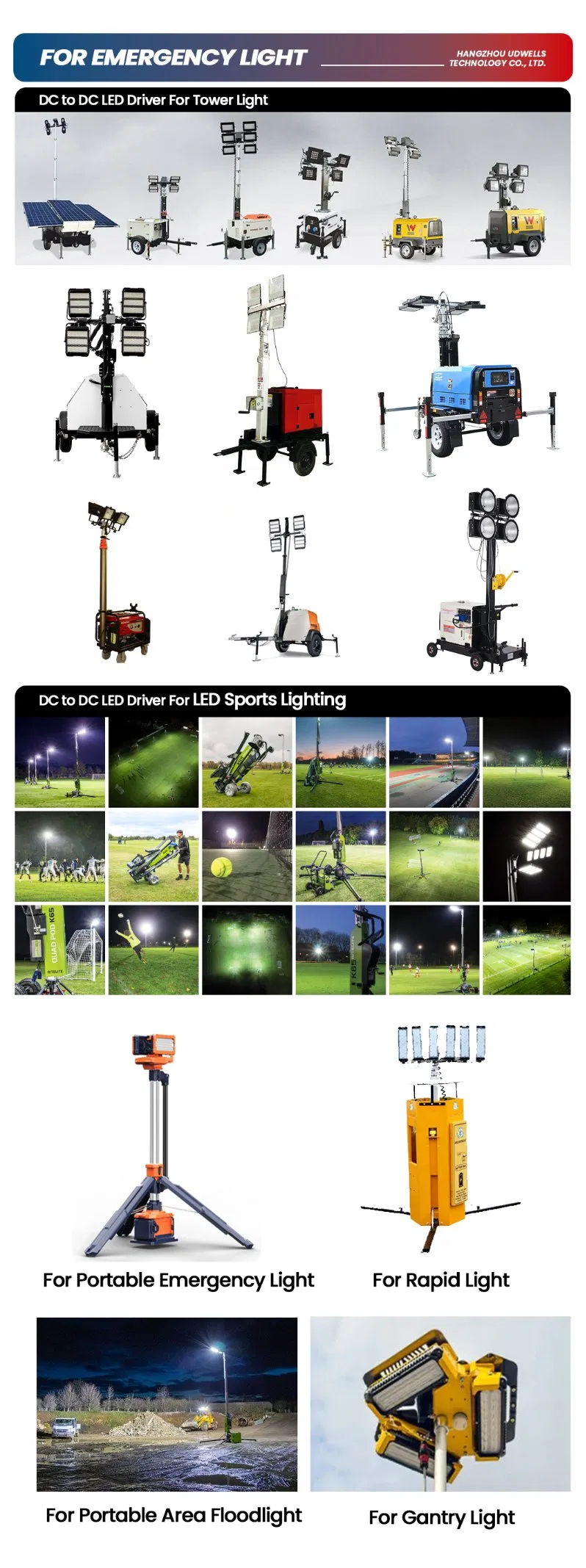

- Suitable for LED lighting & solar light applications
📋 Technical Specifications
| Model No | Input Voltage | Power | Output Voltage | Output Current | Size |
|---|---|---|---|---|---|
| DHC-60SN(CD)-86 | 10-30VDC | 60W | 33-90V | 0.65A | 125*43.5*34.5mm |
| DHC-60SN(CD)-56 | 10-30VDC | 60W | 33-56V | 1.25A | 125*43.5*34.5mm |
| DHC-100SN(CD)-56 | 10-30VDC | 100W | 33-56V | 1.8A/2.1A | 153*43.5*34.5mm |
| DHC-120SN(CD)-56 | 20-30VDC | 120W | 33-56V | 2.1A/2.5A | 153*43.5*34.5mm |
| DHC-150SN(CD)-56 | 20-30VDC | 150W | 33-56V | 2.6A/3.1A | 159*67.5*37mm |
| DHC-200SN(CD)-56 | 20-30VDC | 200W | 33-56V | 3.5A/4.2A | 159*67.5*37mm |
| DHC-240SN(CD)-56 | 20-30VDC | 240W | 33-56V | 1.05A/1.25A | 159*67.5*37mm |
| DHC-150SN(CD)-120 | 30-60VDC | 150W | 70-100V | 1.5A | 159*67.5*37mm |
| DHC-200SN(CD)-120 | 30-60VDC | 200W | 70-100V | 2.2A | 159*67.5*37mm |
| DHC-240SN(CD)-120 | 30-60VDC | 240W | 70-100V | 2.6A | 159*67.5*37mm |
❓ Frequently Asked Questions
What is the maximum efficiency of this LED driver?
The DHC series LED driver offers a high efficiency of up to 94%.
Is this driver suitable for outdoor use?
Yes, it features an IP67 waterproof rating, making it suitable for dry, damp, and wet locations.
What types of dimming are supported?
It supports selectable dimming options including 0-10V, PWM, and 100K Resistor dimming.
What safety protections are built-in?
The driver includes under-voltage, over-temperature, over-voltage, and short-circuit protection.
How is the driver cooled?
The unit is designed to be cooled by free air convection, ensuring stable operation without external fans.
Which certifications does this product hold?
This product complies with TUV, CE, RoHS, ISO9001, CCC, and worldwide safety regulations for lighting.
