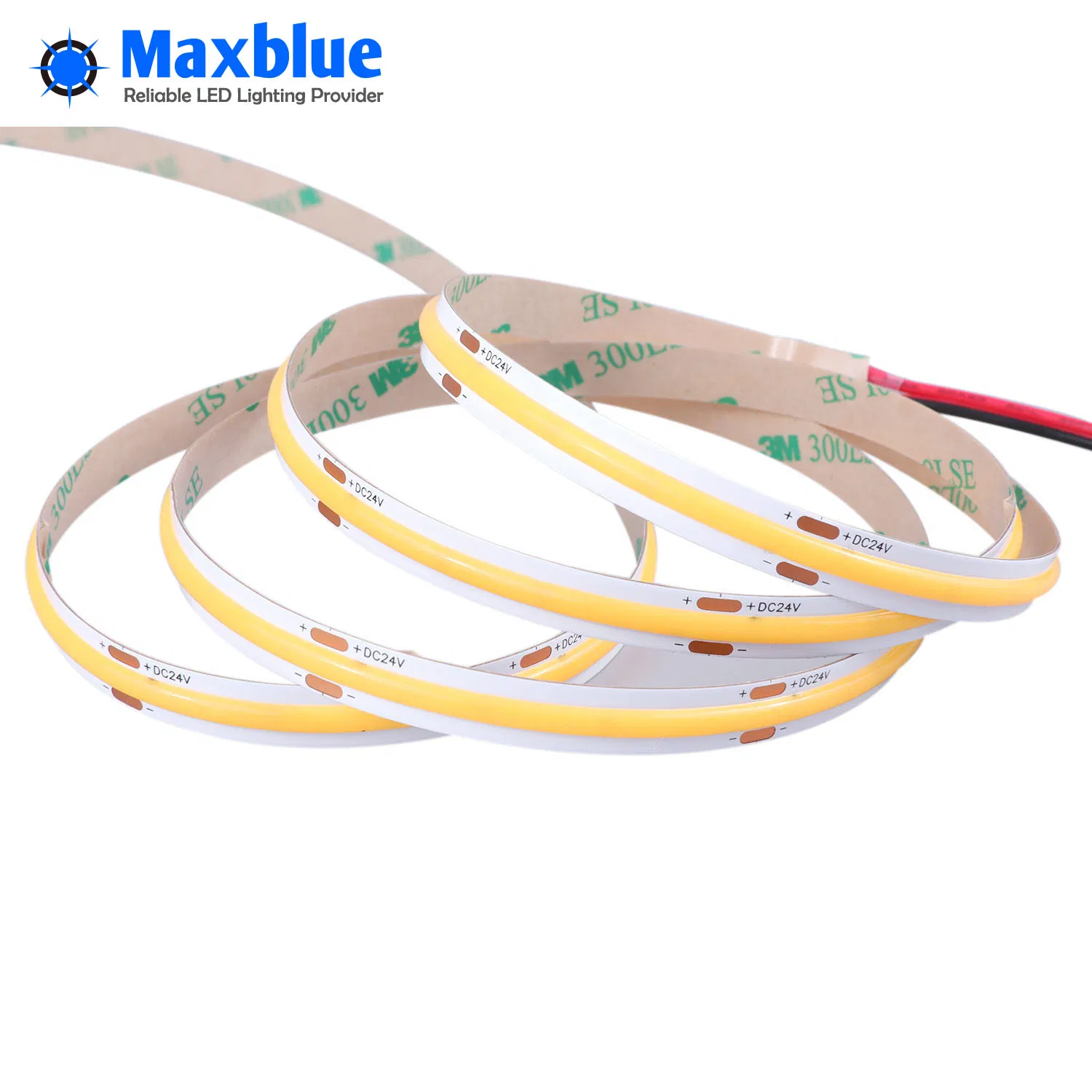

Ra90+ Chip on Board COB Flexible LED Strip Linear Light
Product Description
Basic Information
Product Description

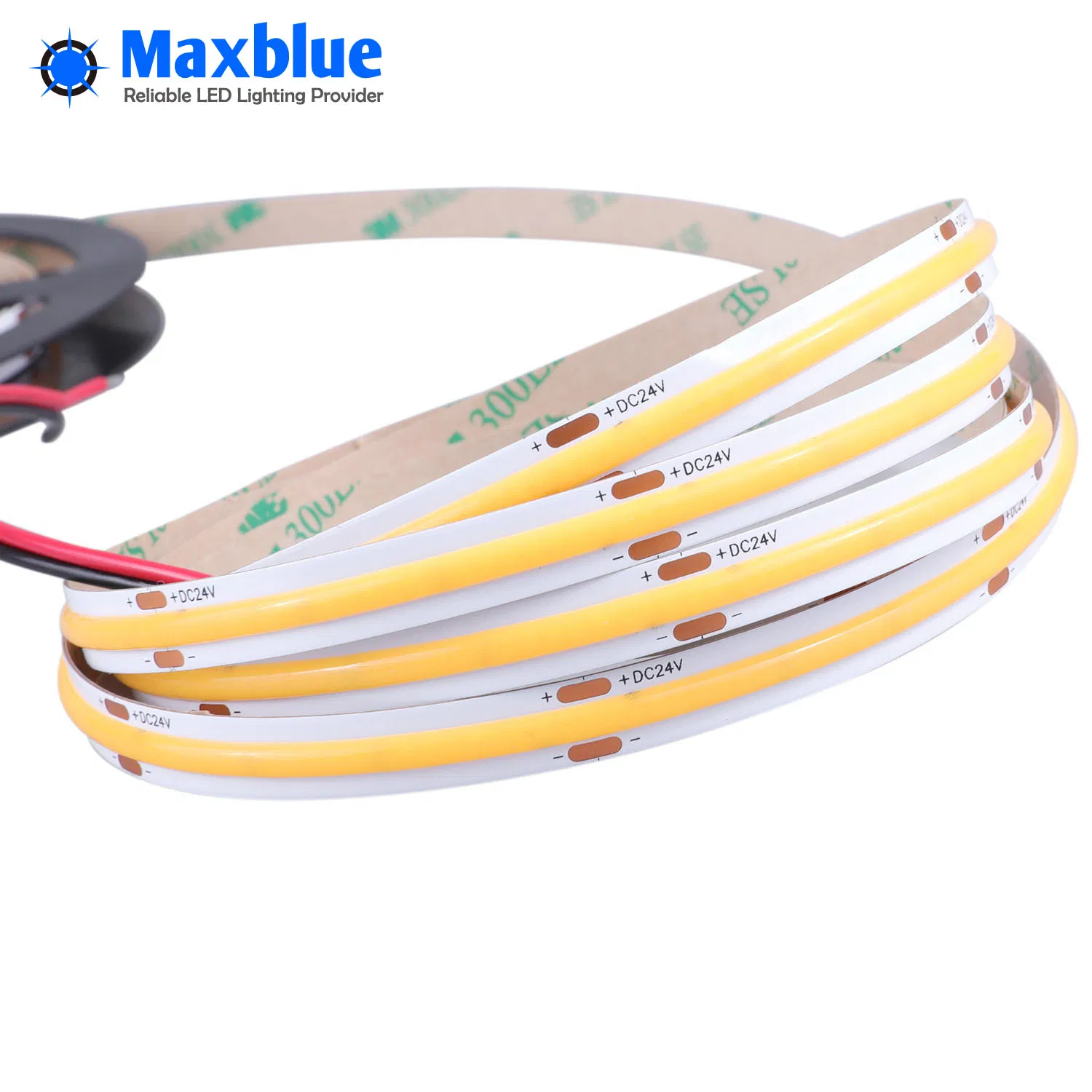

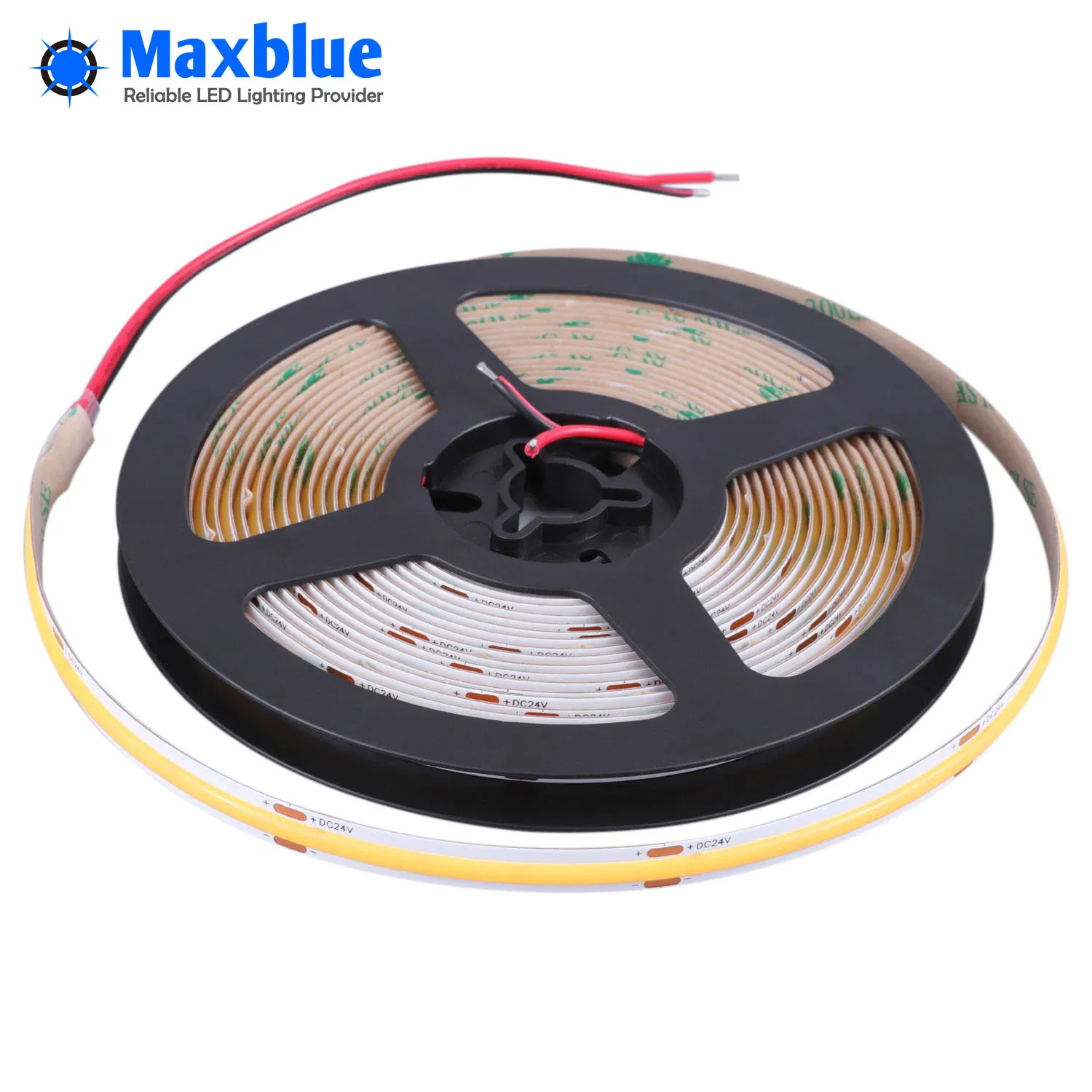

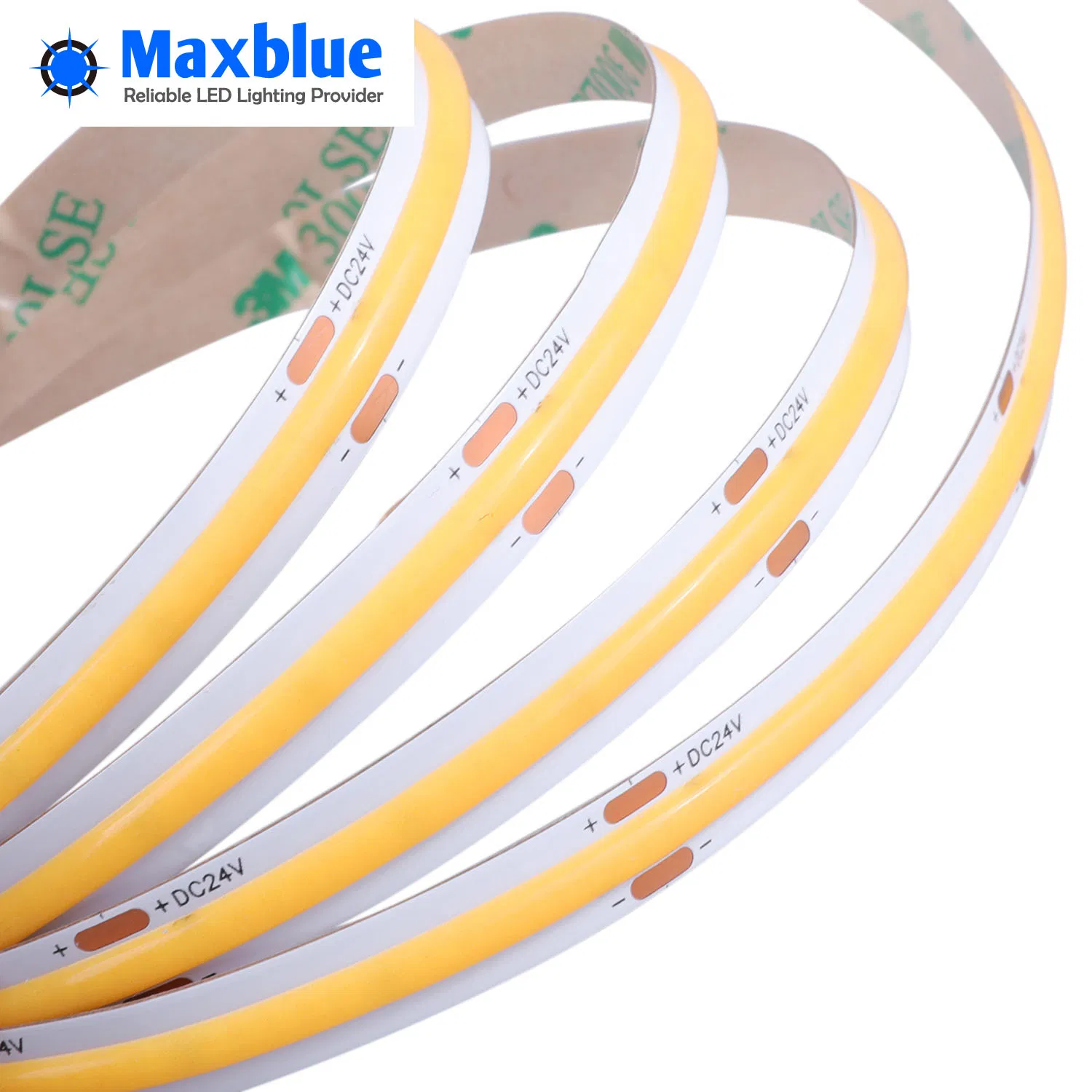

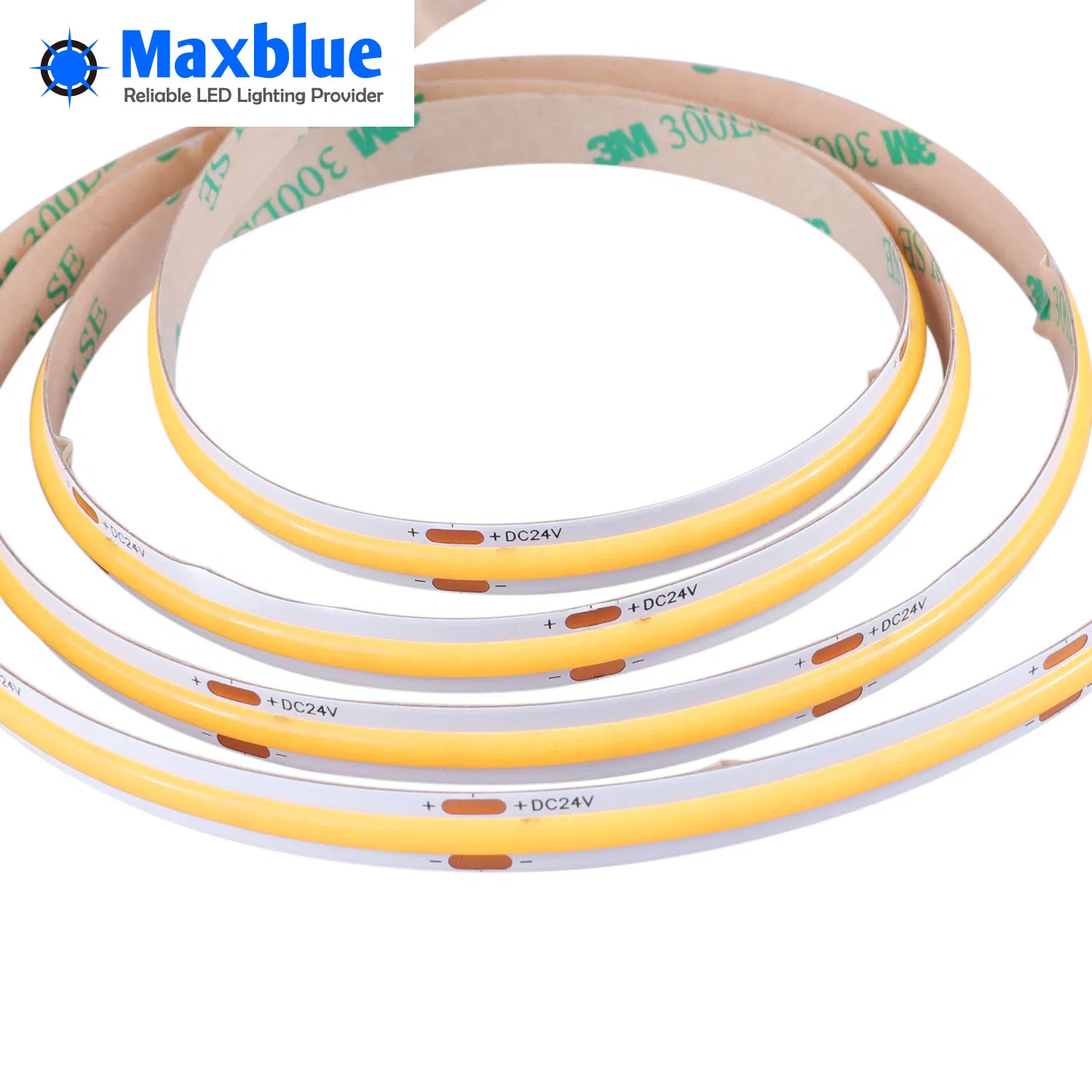

Ra90+ Chip on Board COB Flexible LED Strip Linear Light

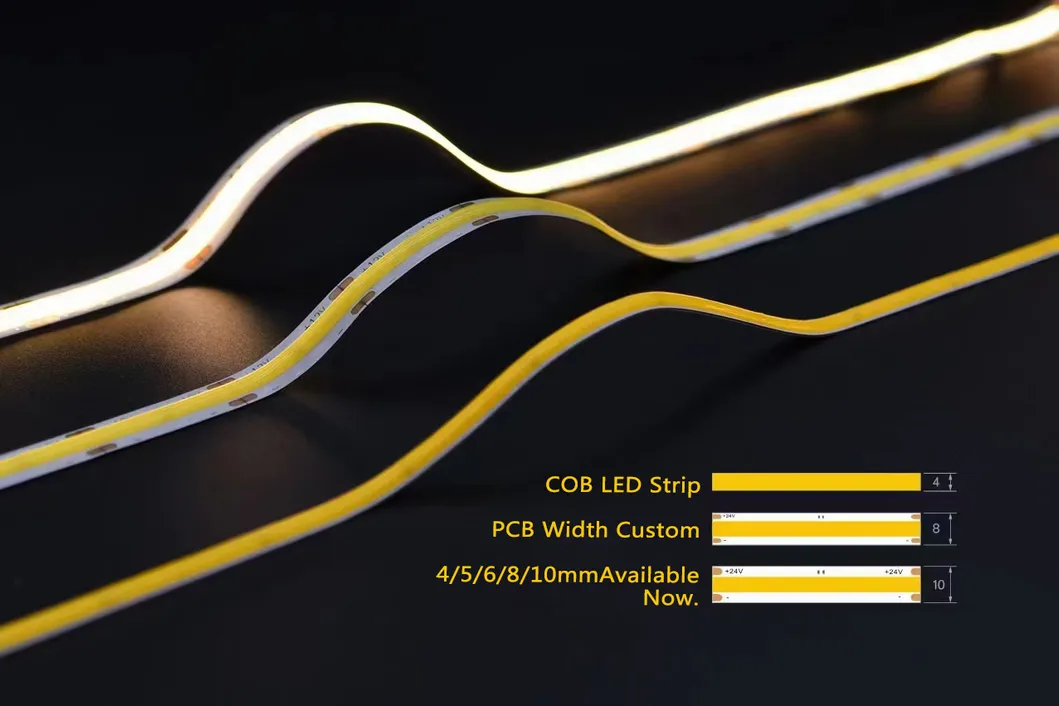

The COB LED strip features a 180° beam angle and no-spot continuous linear lighting, providing soft and uniform illumination. Its flexibility and easy-to-cut design make it ideal for DIY cabinet lighting, canopy lighting, and more. Available in static single color, multi-colors (RGB, RGBW), and CCT tunable dual white.
- Truly dotless & continuous, ideal for linear and indirect lighting.
- 180° beam angle for wider light distribution.
- Super perfect color uniformity, soft and cozy lighting without glare.
- 12/24Vdc design available for versatile installation.
- Constant current IC version available for consistent brightness across lengths.

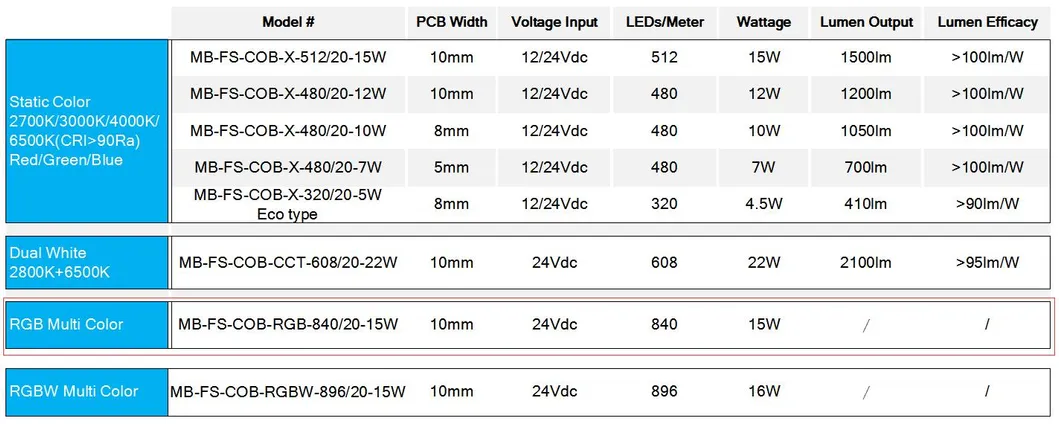

Product Parameters
| Technical Specifications | |
|---|---|
| Product Name | COB LED Strip Light |
| Model No. | MB-FS-COB-X-480/20-12W |
| LED Lifetime | 30,000 Hrs |
| Warranty | 3 Years |
| Working Voltage | DC24V |
| Wattage | 12W/M (10W/15W available on request) |
| LED Type/Brand | COB (EPISTAR/SANAN) |
| Color Rendering Index | >82Ra / >90Ra |
| Luminous Efficiency | 95-105 lm/W |
| Beam Angle | 180° |
| Dimmable | Yes, by PWM |
| PCB Width | 10mm (8mm available) |
| IP Rating | IP20 (IP65/67/68 available) |

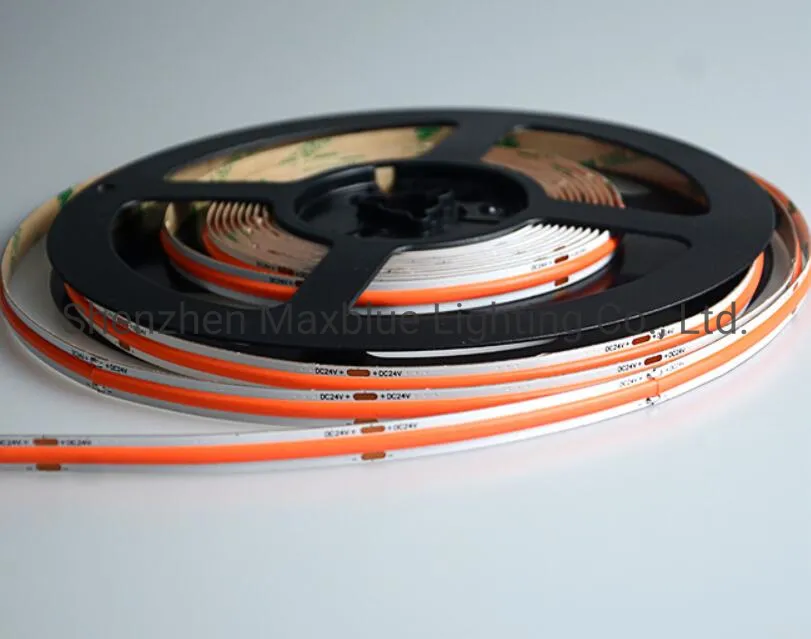

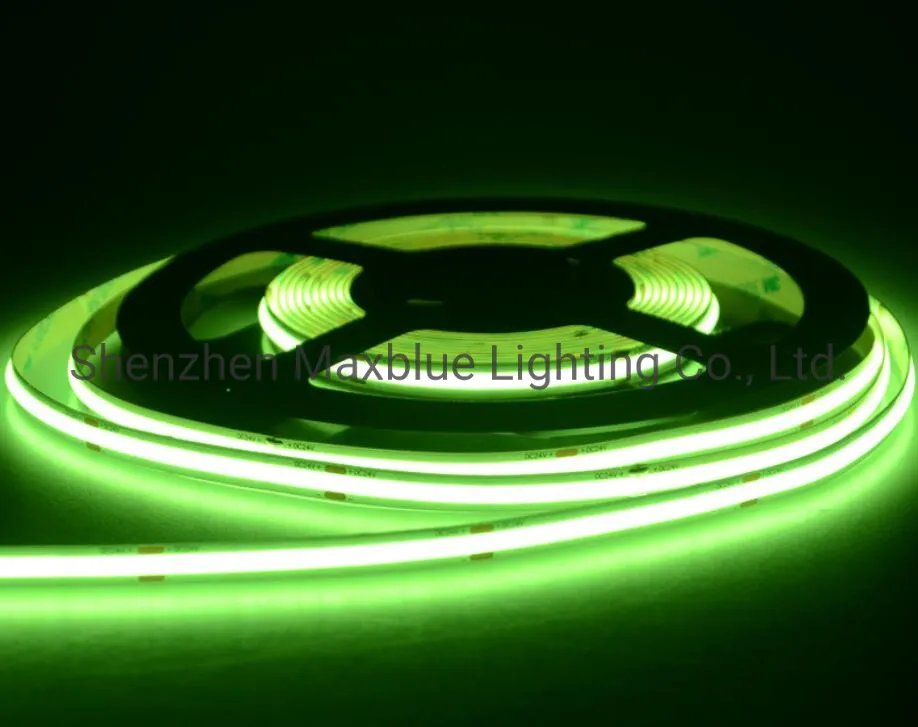

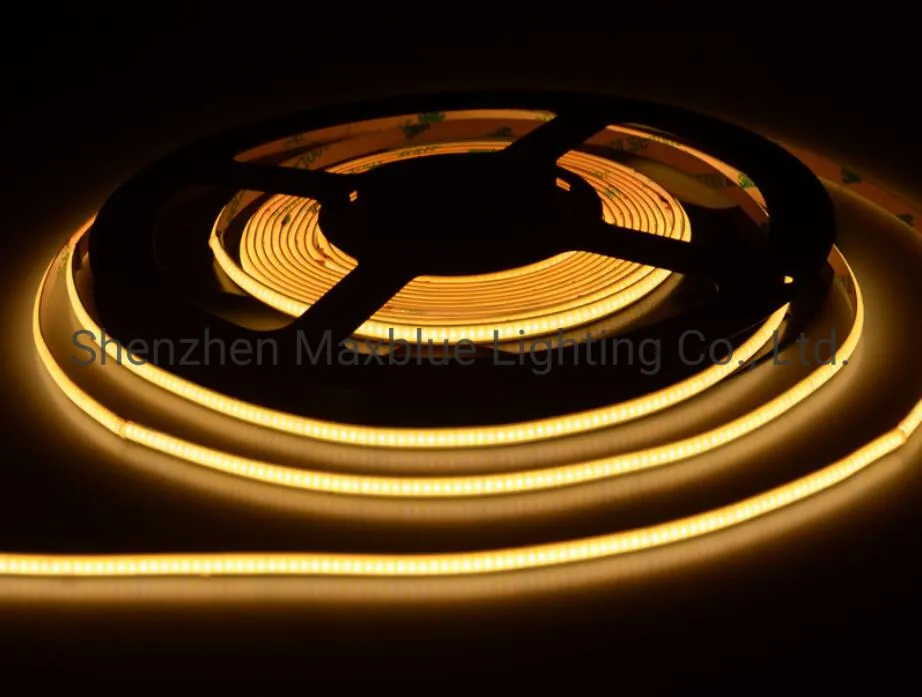

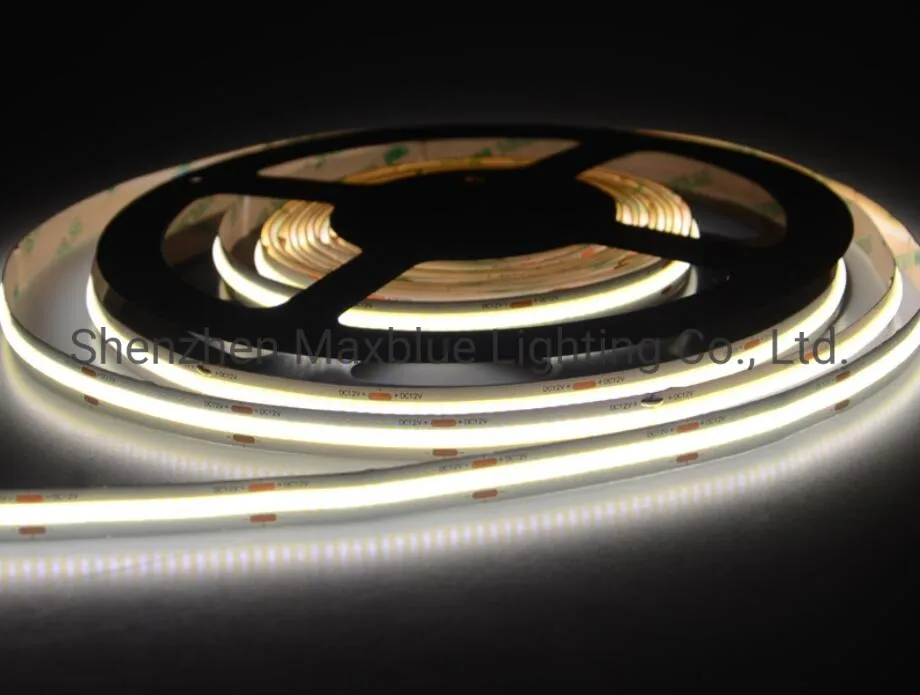

Detailed Photos

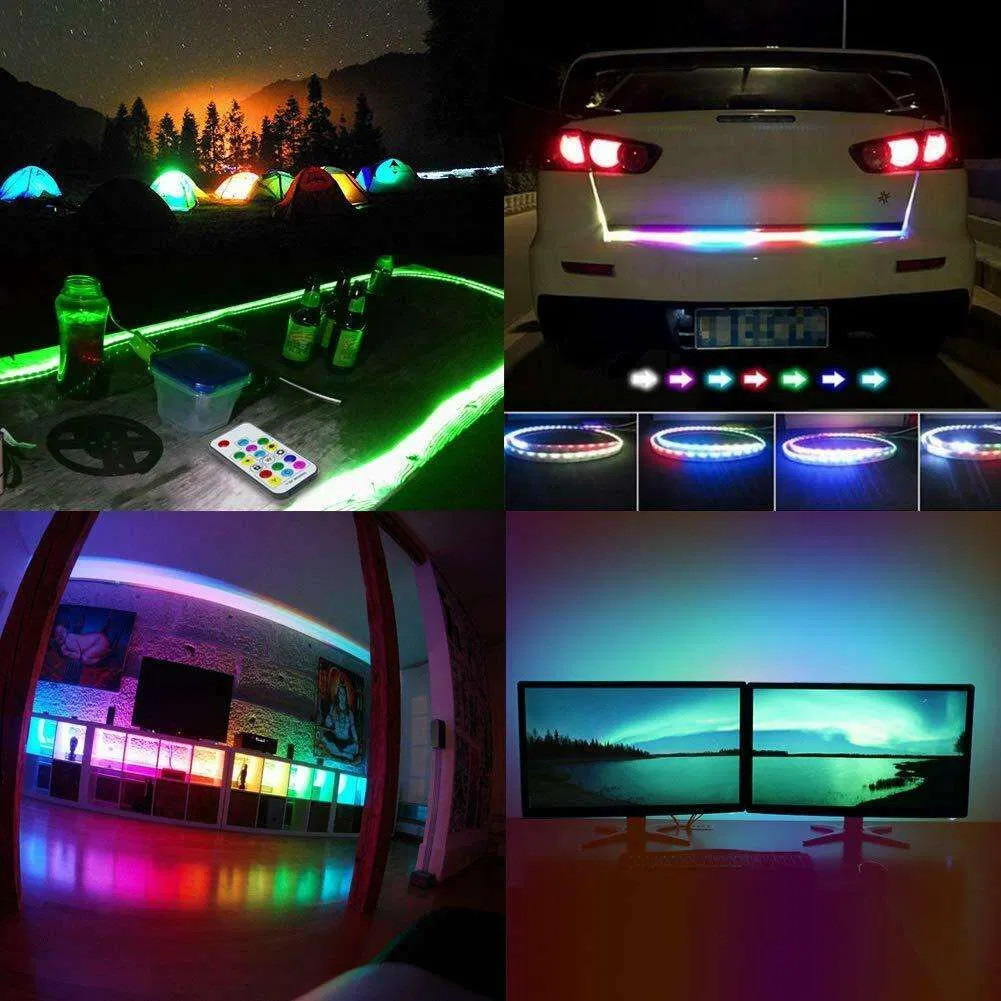

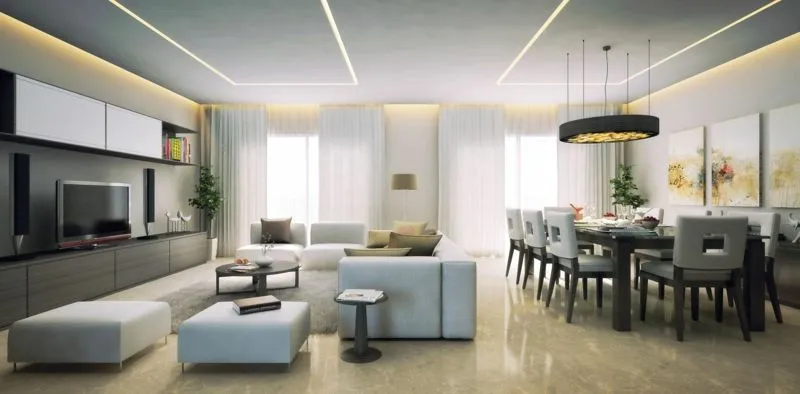

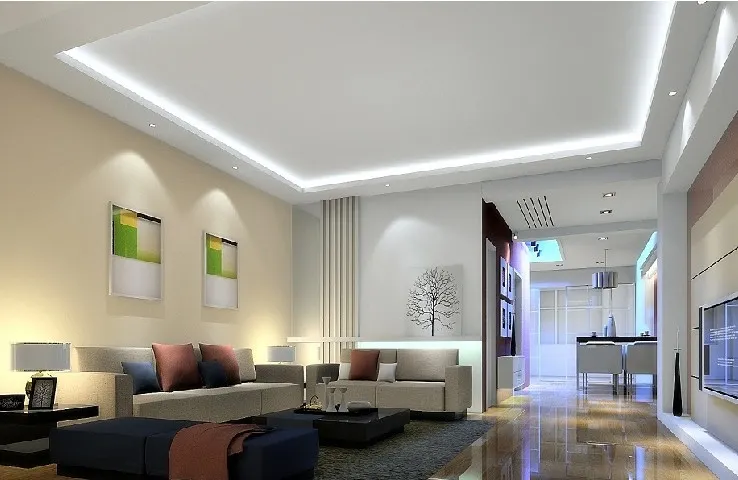

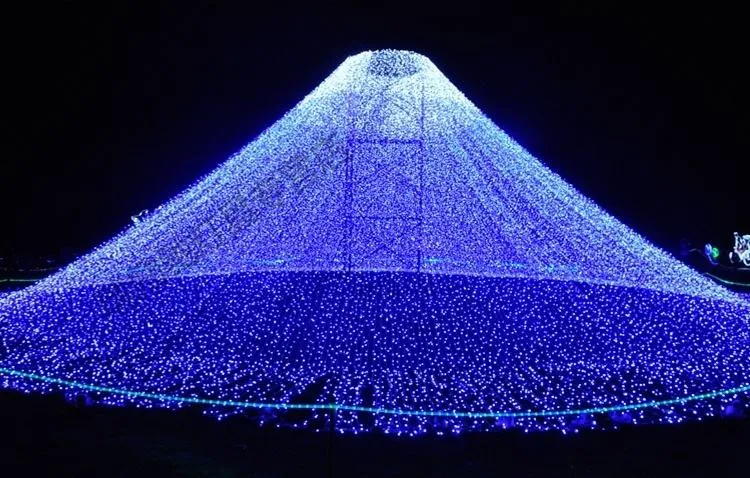

LED Strip Applications
Our Mission & Values
Vision: Better lighting for the world while maintaining maximum blue skies.
Mission: To be a leading brand in products and services within the LED lighting industry.
Core Values:
- Eco-friendly & Energy-saving: Reduced CO2 emissions.
- Reliable: Strict quality control for stable life span.
- Affordable: Latest technology at reasonable prices.

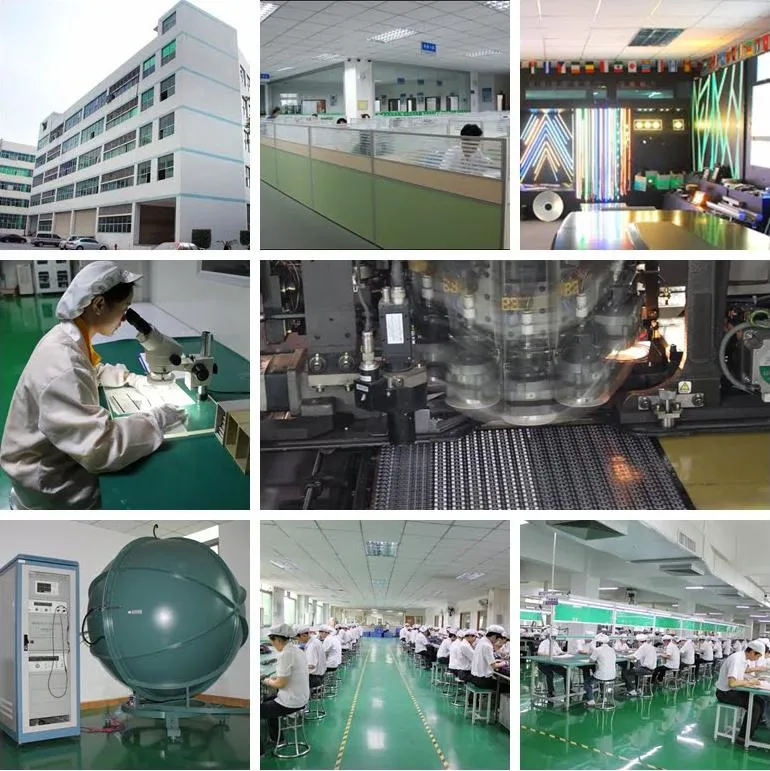

Factory View
Established in 2009, we specialize in indoor and commercial LED decoration. With ISO9001:2008 certified facilities, SMT production lines, and automatic reflow machines, we produce high-quality items catering to global markets including Europe, America, and Asia.
