Silicone Flexible LED Wall Washer for Landscape Hotel Garden Cottage

Customization: Available
Emitting Color: Warm White
Power: 20W

Product Description

Basic Information
Model NO.
ATA-WA24W22S42XX
IP Rating
IP68
Diffuser
PMMA Lens
Beam Angle
60°
Lifespan
50000 hours
Warranty
3 Years
Input Voltage
24V
Luminous Efficiency
130lm/W
CRI
Ra>80 to Ra>98
Material
Silicone, FPCB, PMMA Lens
Product Description

Silicone Flexible LED Wall Washer for Landscape Hotel Garden Cottage

This LED Flexible Wall Washer is an improved alternative to traditional aluminum heavy wall washers. Utilizing an integrated extrusion injection molding process, it offers superior waterproof performance and durability.

High Performance
  • Integrated extrusion process for excellent waterproofing.
  • Works perfectly in rain, sleet, and snow.
  • High luminous efficiency up to 130lm/W.
🔄Superior Flexibility
  • 360° bendable structure for narrow spaces.
  • Skin-friendly silicone, odorless and non-toxic.
  • Easy to shape curves, letters, and patterns.
🛡️Durable Design
  • Anti-UV, corrosion resistant, and anti-static.
  • Food-grade silicone, flame retardant.
  • Excellent heat dissipation for 50,000h lifespan.
Technical Specifications
Product NameLED Flexible Wall Washer
Product Width (mm)13mm, 16mm, 17mm, 22mm, 25mm, 28mm
LED Light Source3030 SMD LED
Luminous Efficiency130LM/W
Viewing Angle15, 20, 25, 30, 35, 45, 60, 30*45, 20*45, 15*60 degrees
Working VoltageDC12V, DC24V, DC48V, AC110V-240V
Emitting ColorWhite, RGB, RGBW, CCT, DMX Digital, etc.
IP GradeIP66, IP67, IP68
InstallationAluminum Profile, Stainless Steel Slot/Keel
Working Temp-20 to +60 celsius degree

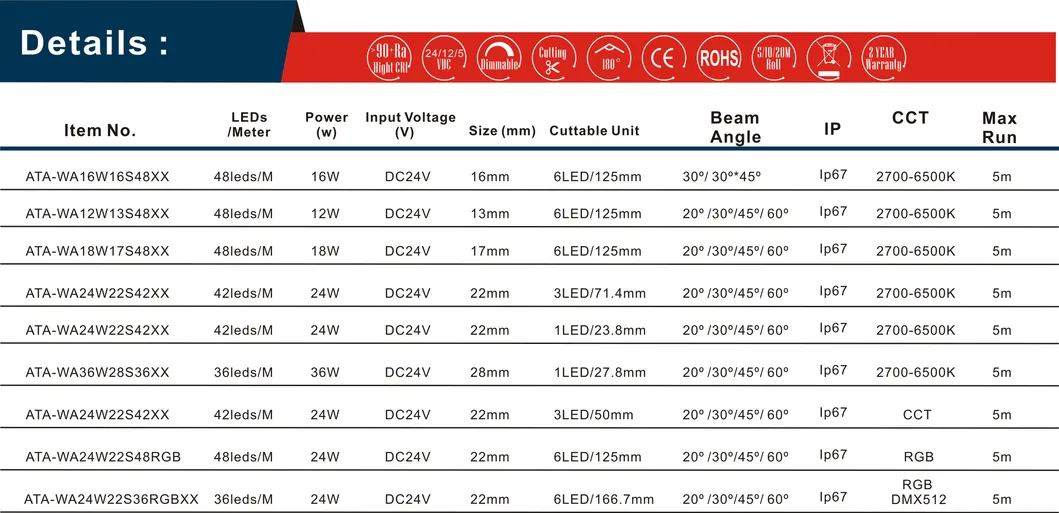

LED Wall Washer Overview

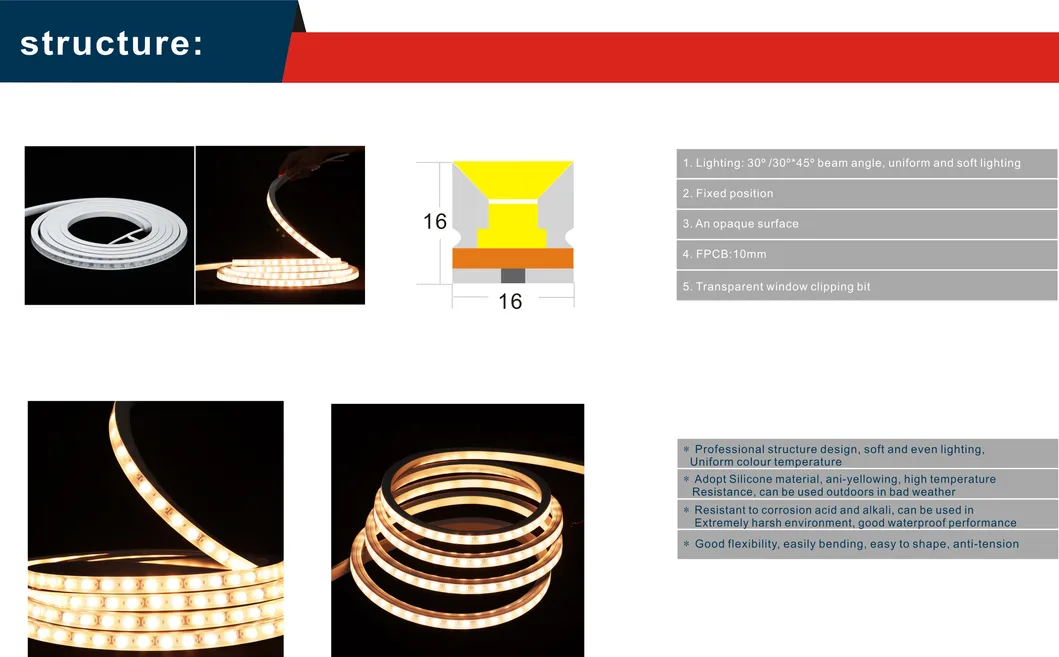

Dimensions
Applications & Scenarios
Commercial & Public

Bars, clubs, hotels, restaurants, museums, office buildings, shopping malls, and stadiums.

Outdoor & Landscape

Building outlines, city skylines, bridges, parks, gardens, and underwater lighting engineering.

Home & Decoration

Ceilings, bedrooms, kitchens, stairs, patios, and DIY festive atmosphere lighting.

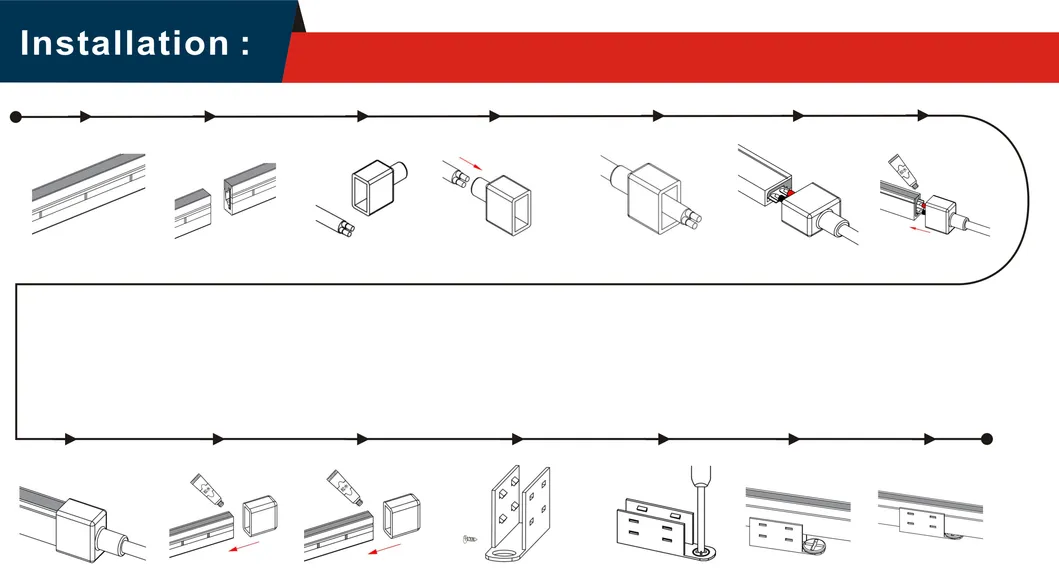

Installation Guide

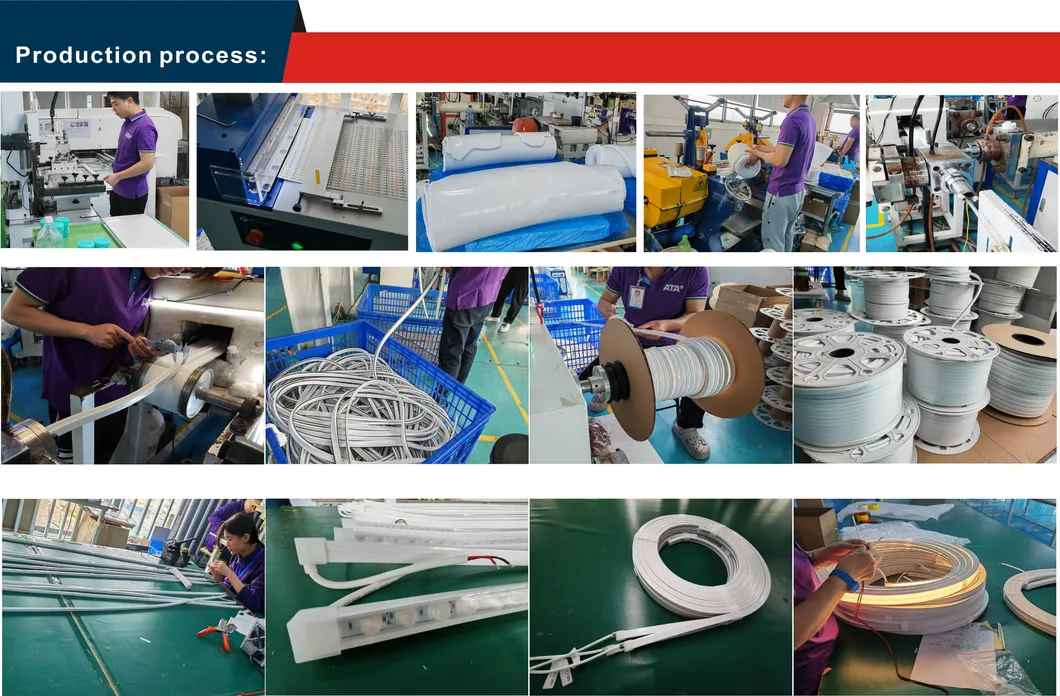

Factory View

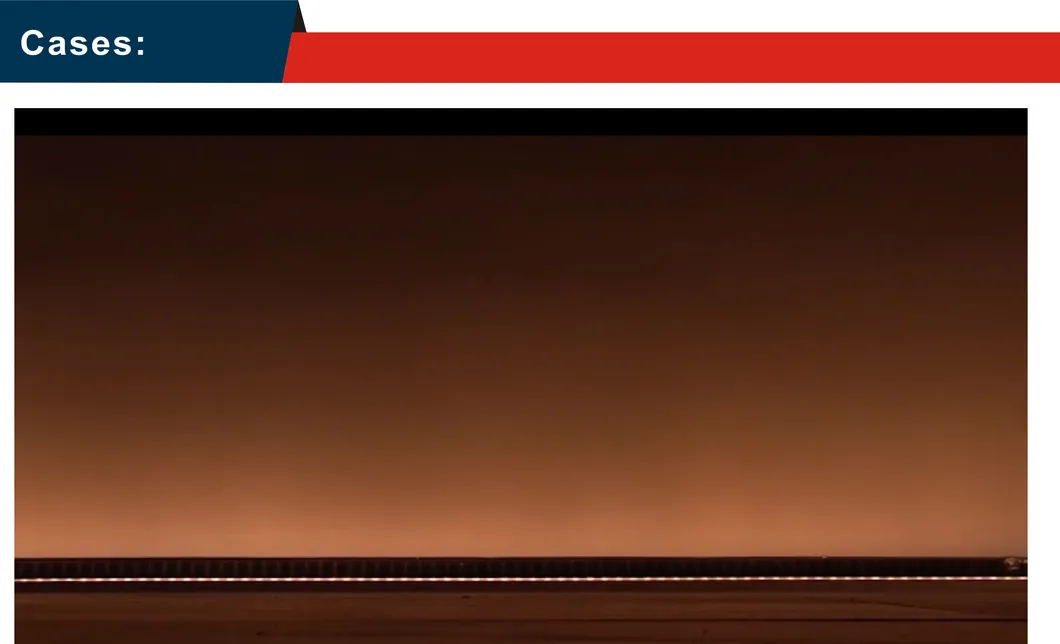

Project Showcase
Quality Control & Service
  • Stability Test: 100% aging test for 48 hours and waterproof testing for 72 hours.
  • Lead Time: 2-3 days for samples, 7-15 days for normal orders.
  • Support: OEM & ODM services, DIALux layout, and onsite technical support.
Frequently Asked Questions
What is the main advantage of Silicone Flexible LED Wall Washers over traditional ones?
They are much lighter, 360° bendable, and easier to install in narrow or curved spaces where traditional heavy aluminum wall washers cannot fit.
Is this product suitable for permanent outdoor installation?
Yes, it features an IP68 rating and is made of high-quality silicone that is resistant to UV radiation, salt, and extreme weather conditions.
Can the light strip be cut to a specific length?
Yes, the strip is cuttable at marked units (e.g., every 50mm or 125mm depending on the model) to fit your project requirements perfectly.
Does the silicone housing turn yellow over time?
No, we use high-grade anti-UV silicone material which is specifically designed to resist yellowing and maintain high transmittance even in sun-exposed environments.
What control methods are supported?
The product supports various working modes including simple On/Off, DMX512, Triac, PWM, 1-10V, and smart control via WiFi or Bluetooth.
What certifications does the product hold?
Our products are certified by CE, RoHS, FCC, TUV, VDE, and SAA, ensuring they meet international safety and quality standards.
