Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight
Product Description

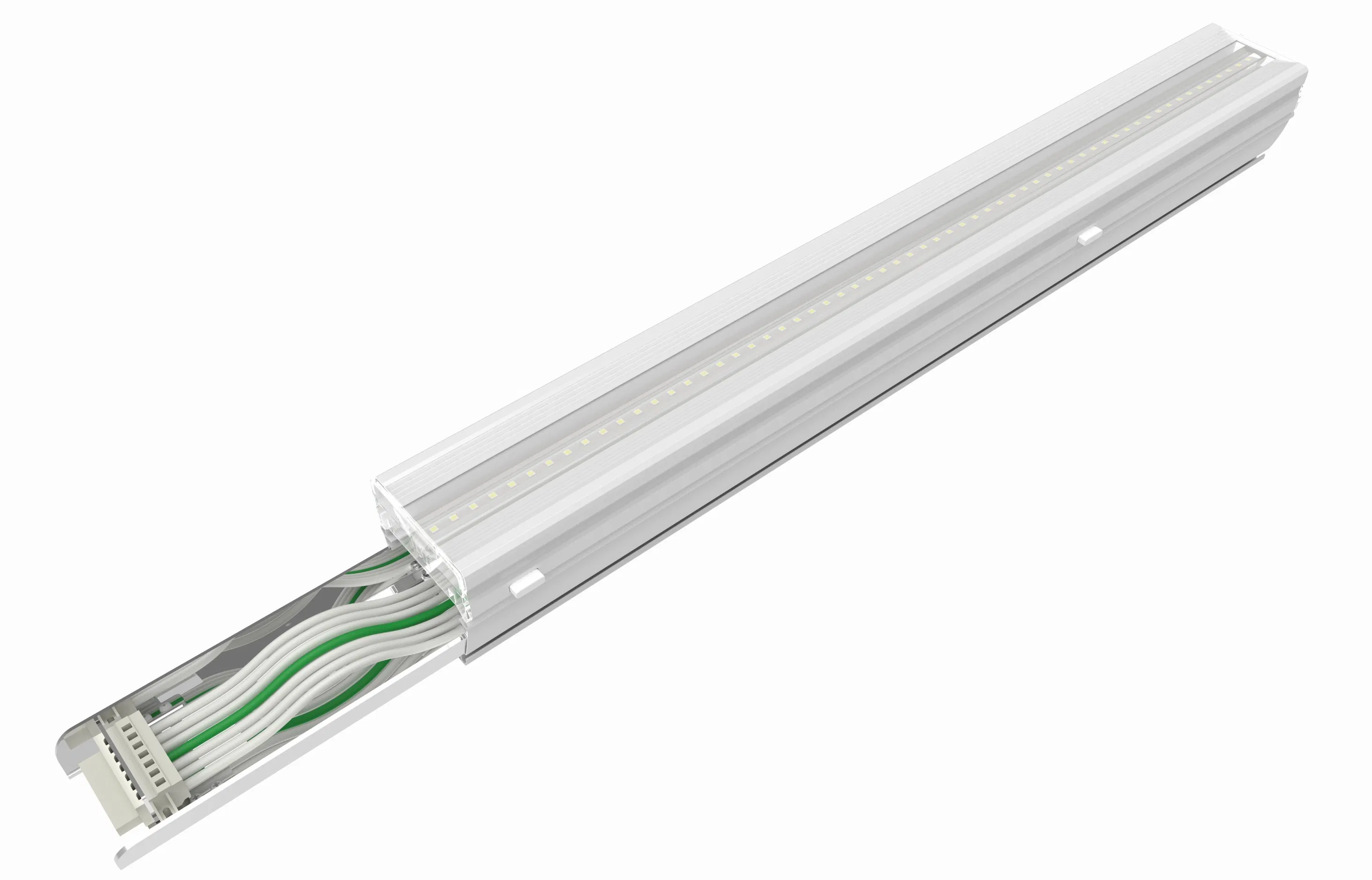

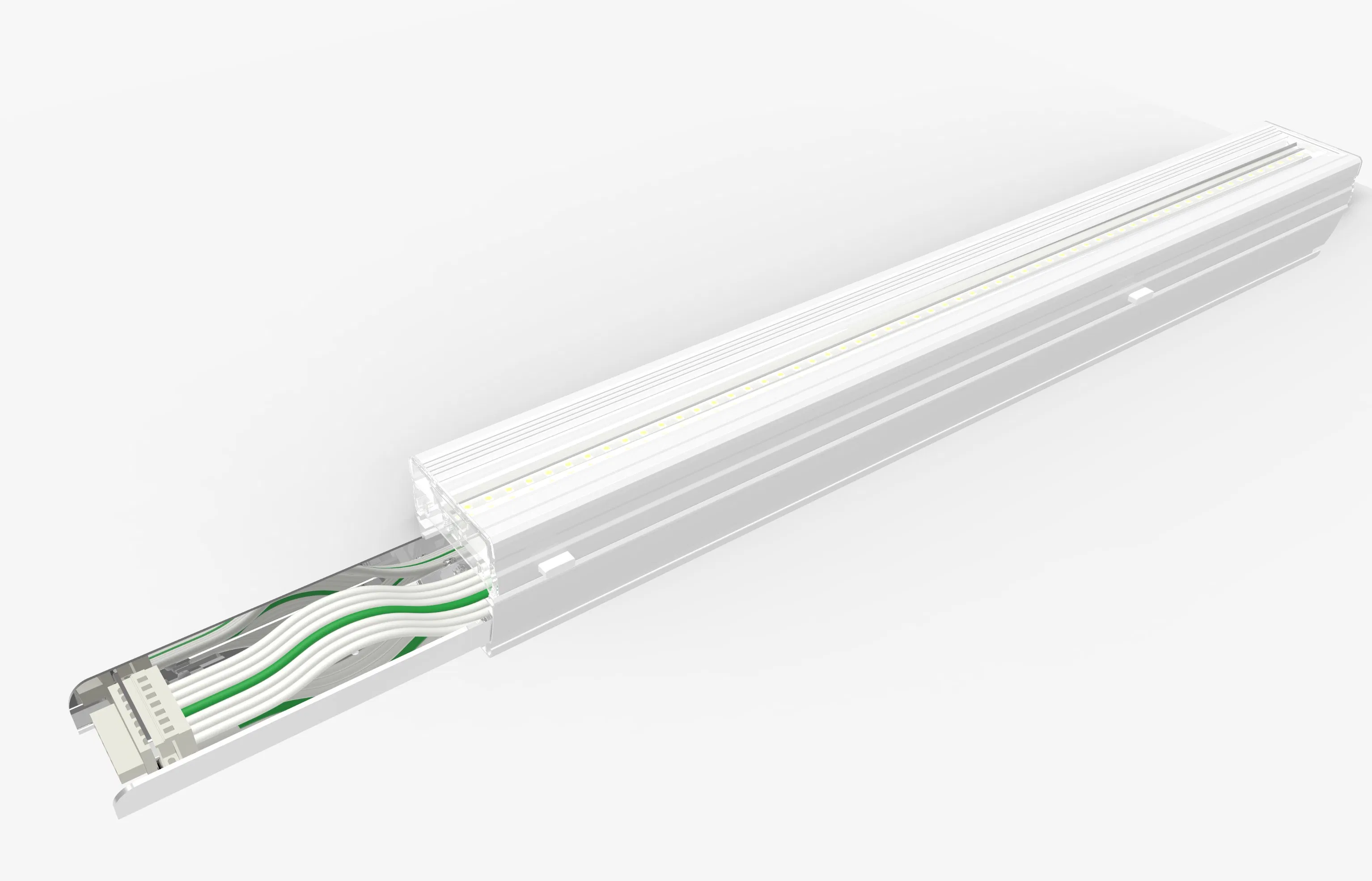

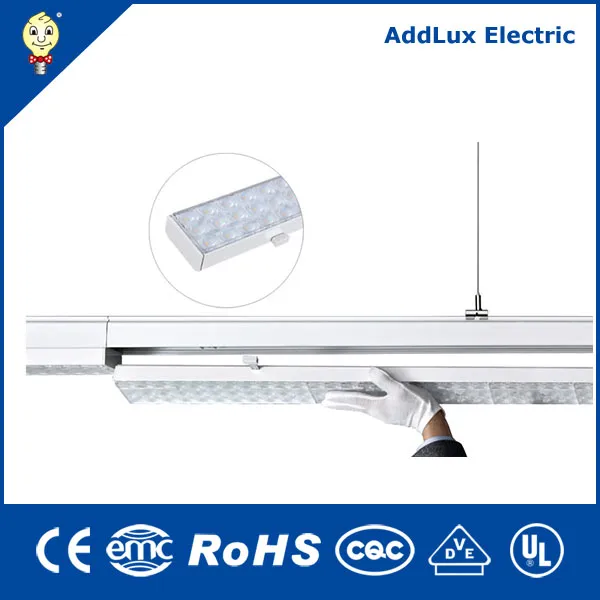

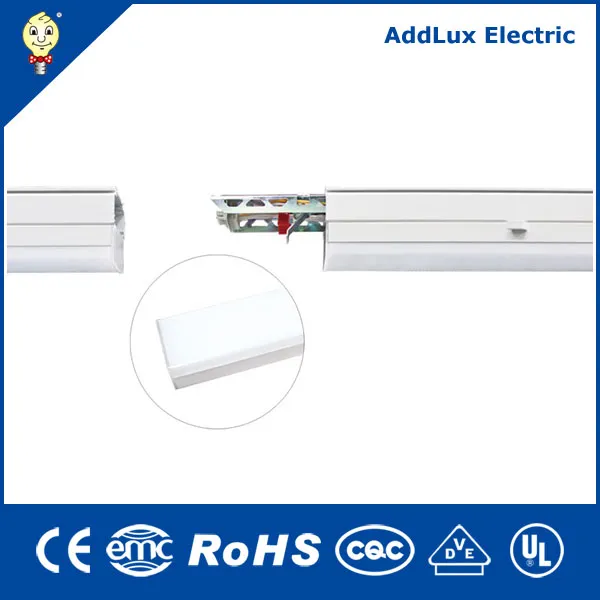

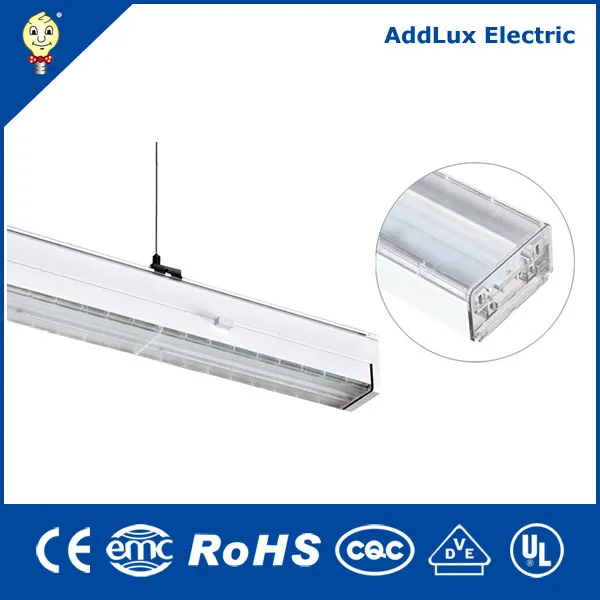

A continuous-row LED lighting system could be created only by a trunking unit and a LED luminaire. It appears as a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking are perfectly matched to each other as array dimmable linkable LED linear lights.
28W - 225W
Ra > 80 (Ra 95 Optional)
Tool-less Linkable
High Efficiency LED
| Item No. | Length | Power | Lumen |
|---|---|---|---|
| YB01Z0632 | 577mm | 28W | 4160Lm |
| YB01Z1575 | 1432mm | 75W | 9750Lm |
| YB01Z30150 | 2861mm | 150W | 19500Lm |
| YB01Z45225 | 4297mm | 225W | 29250Lm |
The LED linear lighting system is an energy-efficient, low maintenance better alternative to traditional linear fluorescent in a variety of industrial, commercial and light assembly applications. It is the optimal solution for conventional lighting systems and also excellent for new installations. Due to its low installation cost, everything in one box and installation is tool-less.

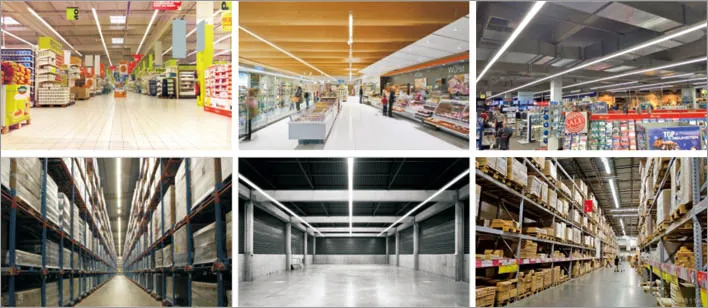

Business Lighting
- Office & Store Lighting
- Workshop & Warehouse
- Bar & Restaurant
- Museum & Laboratories
Home Lighting
- Living Room & Kitchen
- Bedroom & Study Room
- Bathroom & Closet
- Outdoor Areas

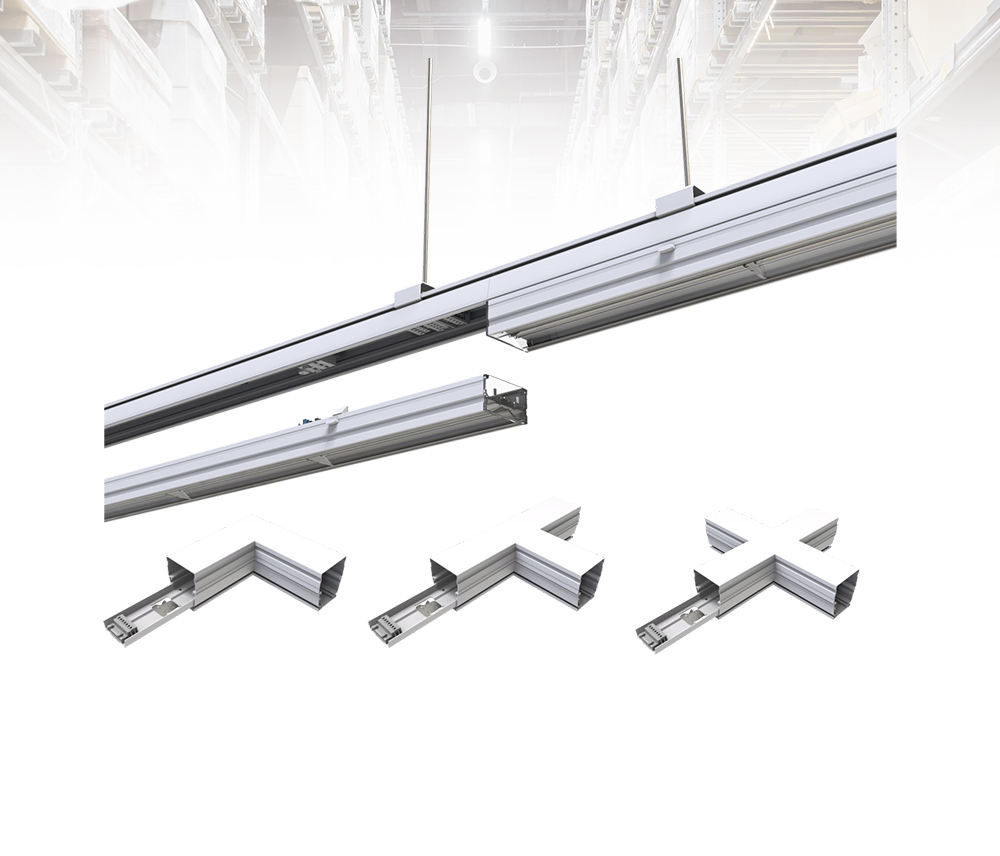

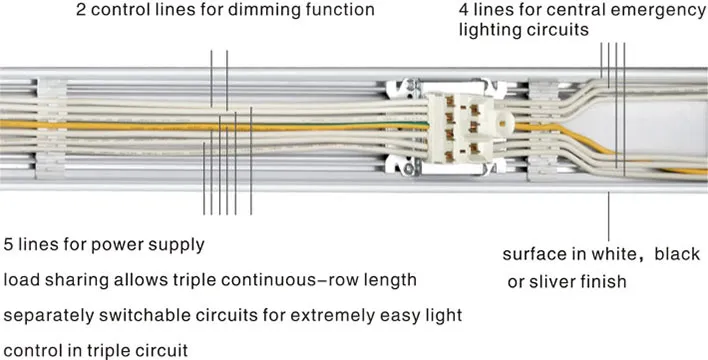

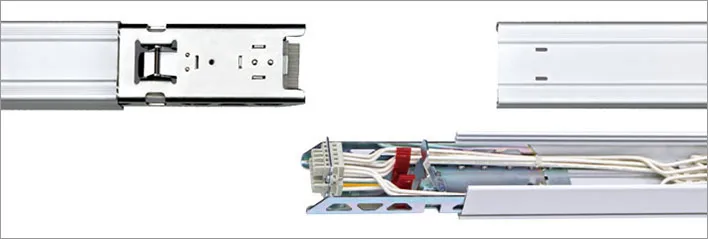

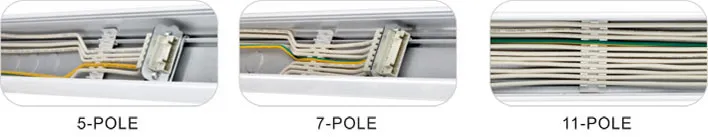

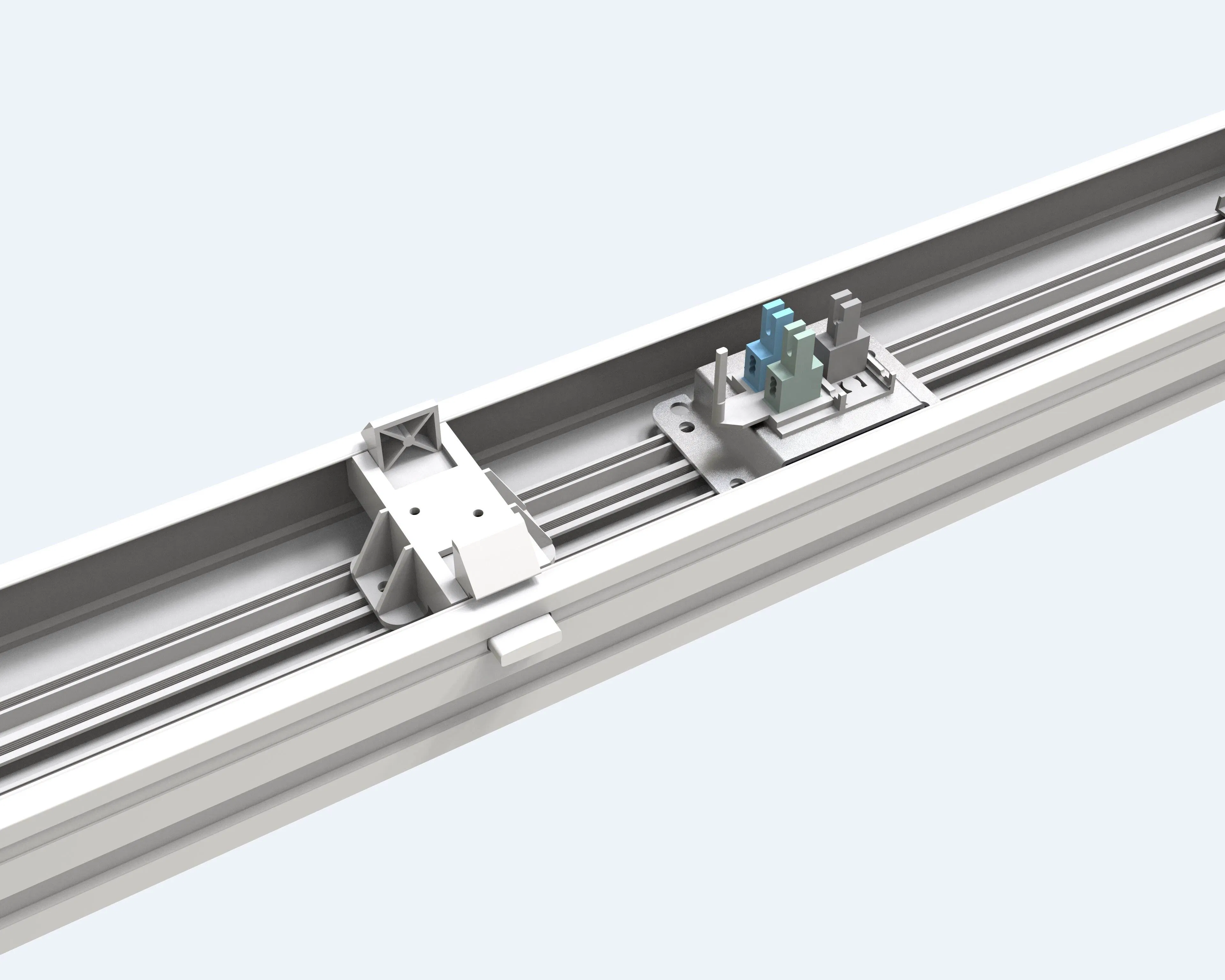

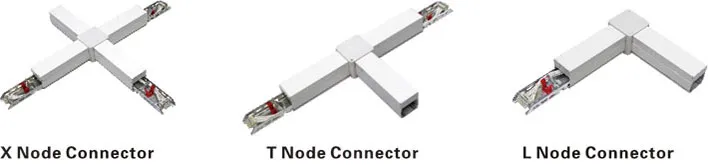

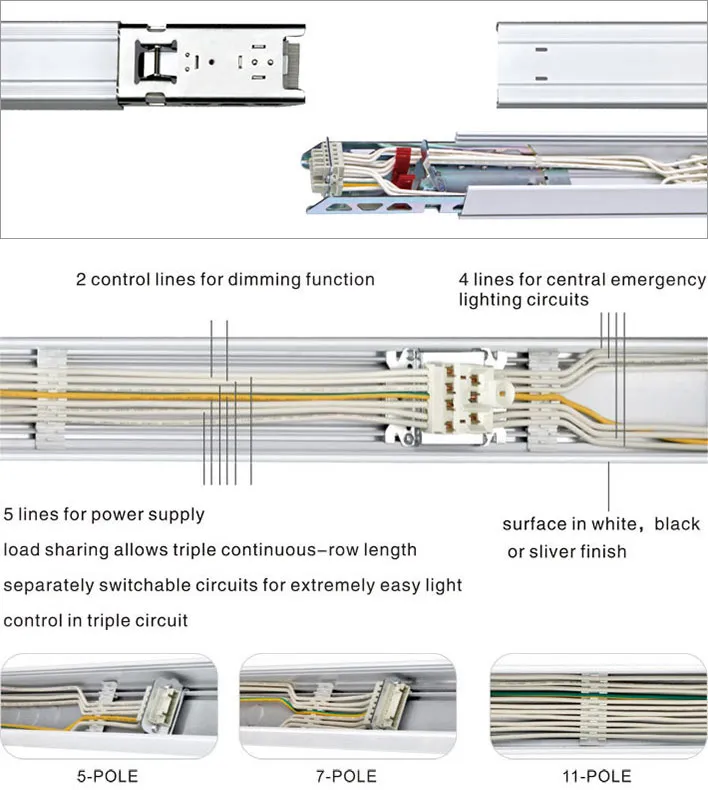

The flexible trunking system features an 11-pole current conducting section. All functions such as power supply, lighting control, and emergency lighting connection are integrated seamlessly. Node connectors (L, T, X shapes) expand the system's flexibility without needing tools.

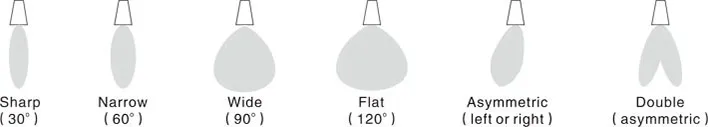

A wide range of optics from sharp to wide distribution:
- Sharp: 30° | Narrow: 60° | Wide: 90°
- Flat: 120° | Asymmetric: Left or Right
- Double Asymmetric distribution

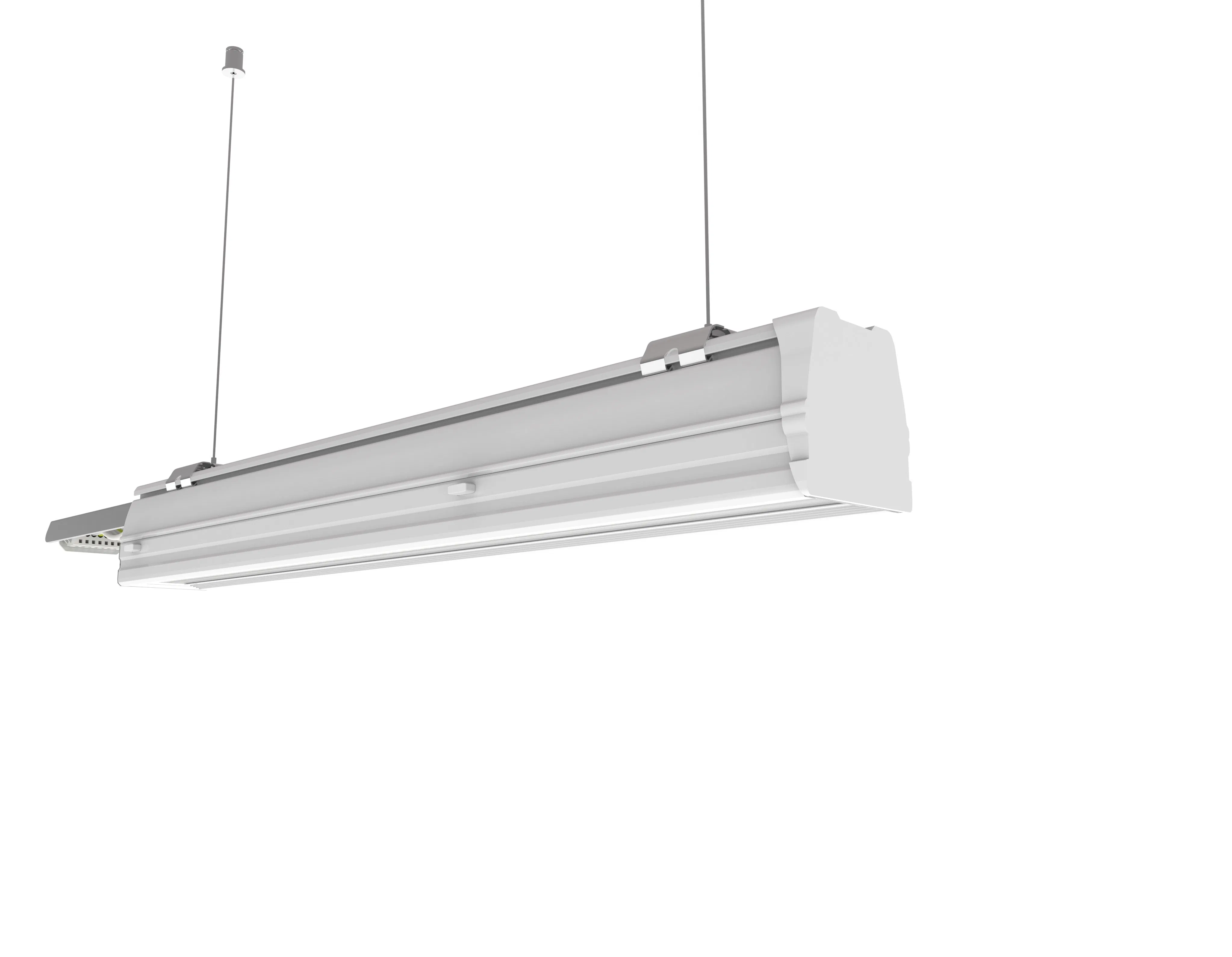

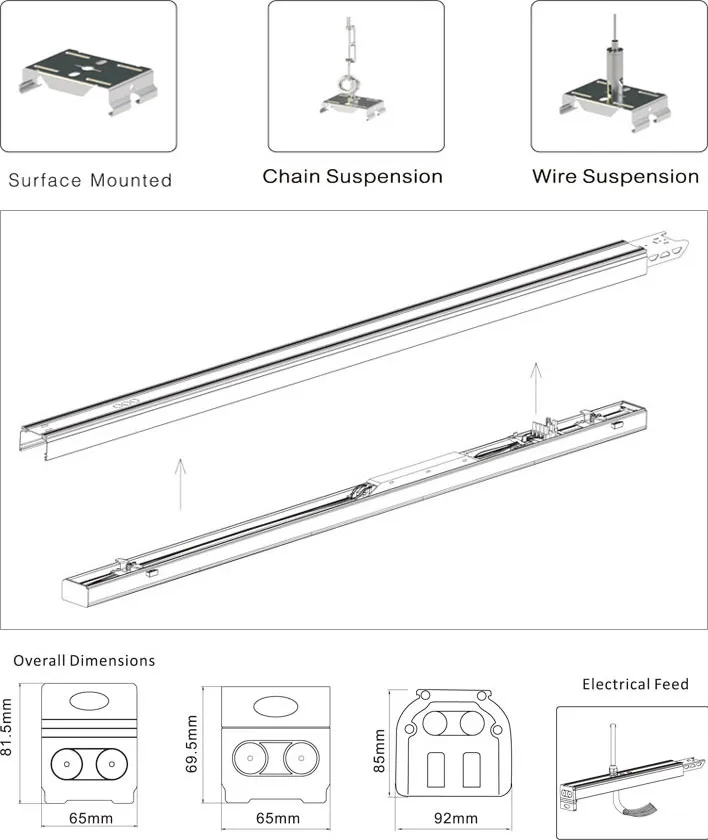

Support for ceiling mounted, wall mounted, and pendant mounted installations. A maximum suspension span of 3m ensures quick and easy setup with fewer points.
