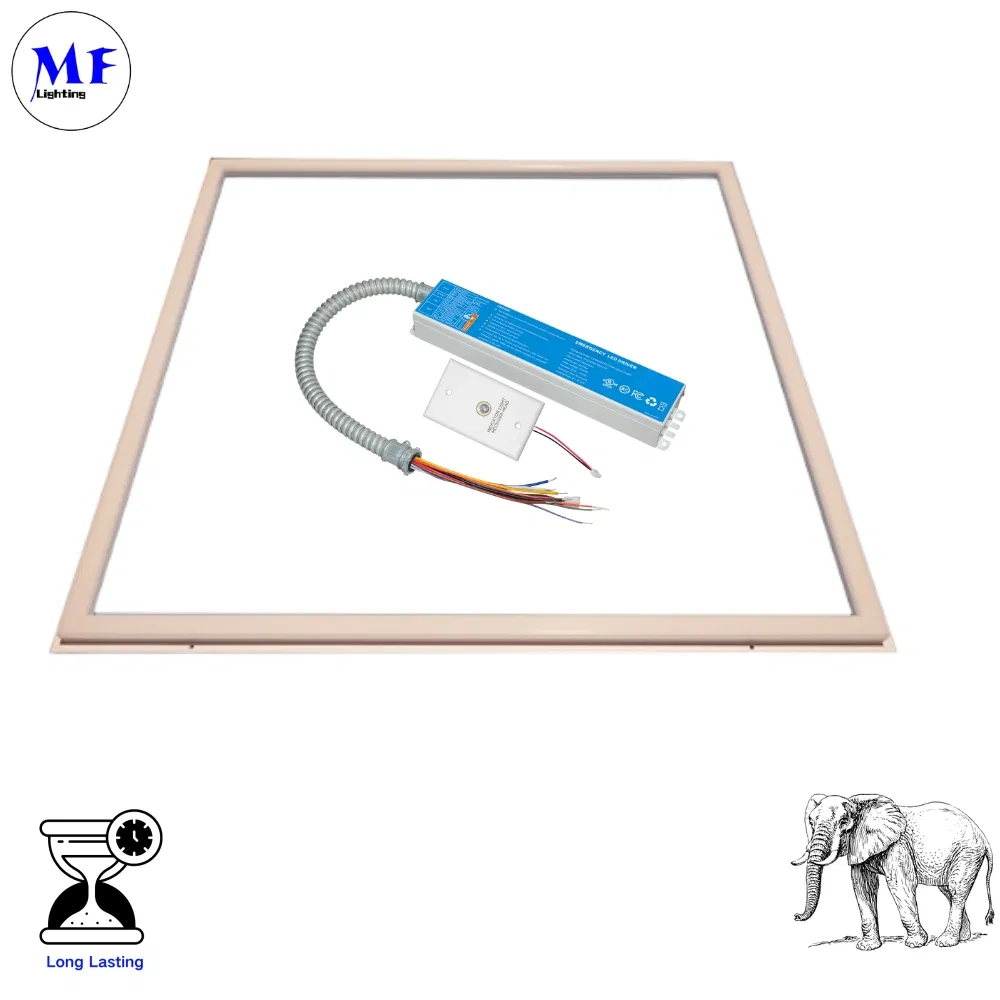

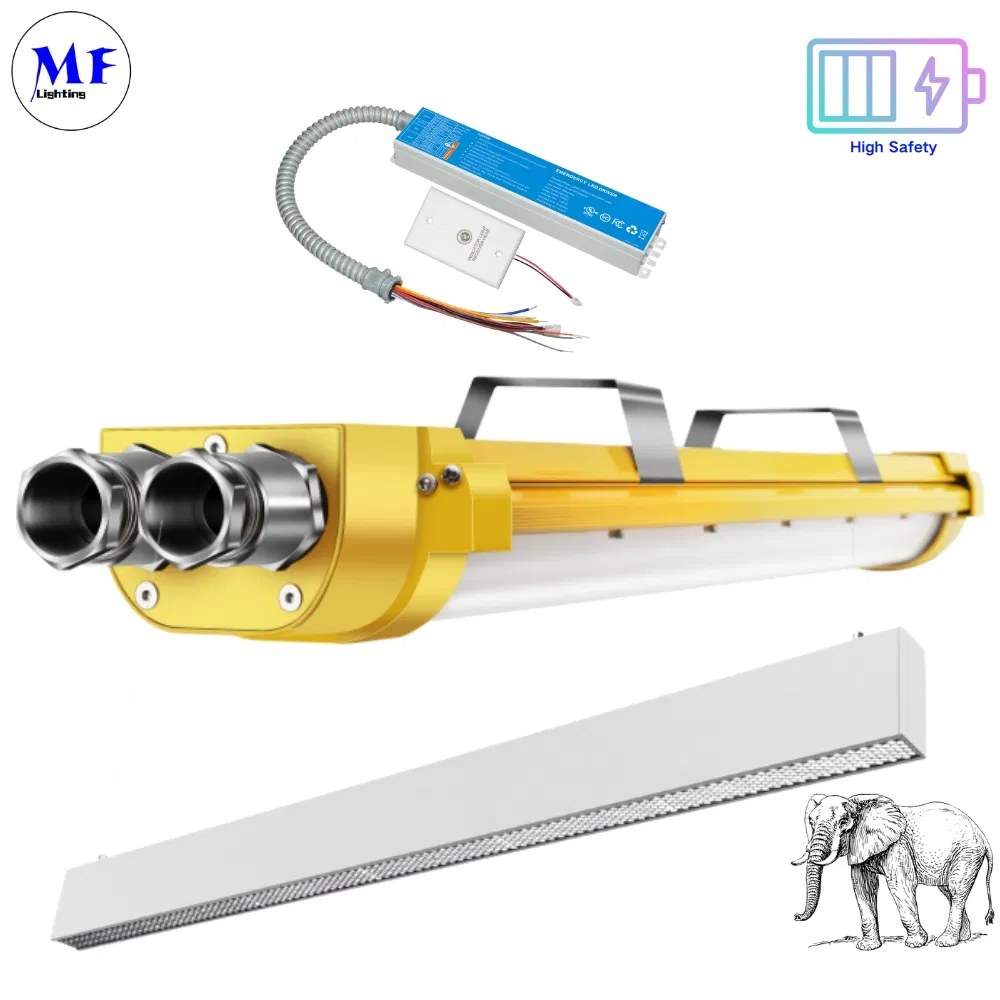

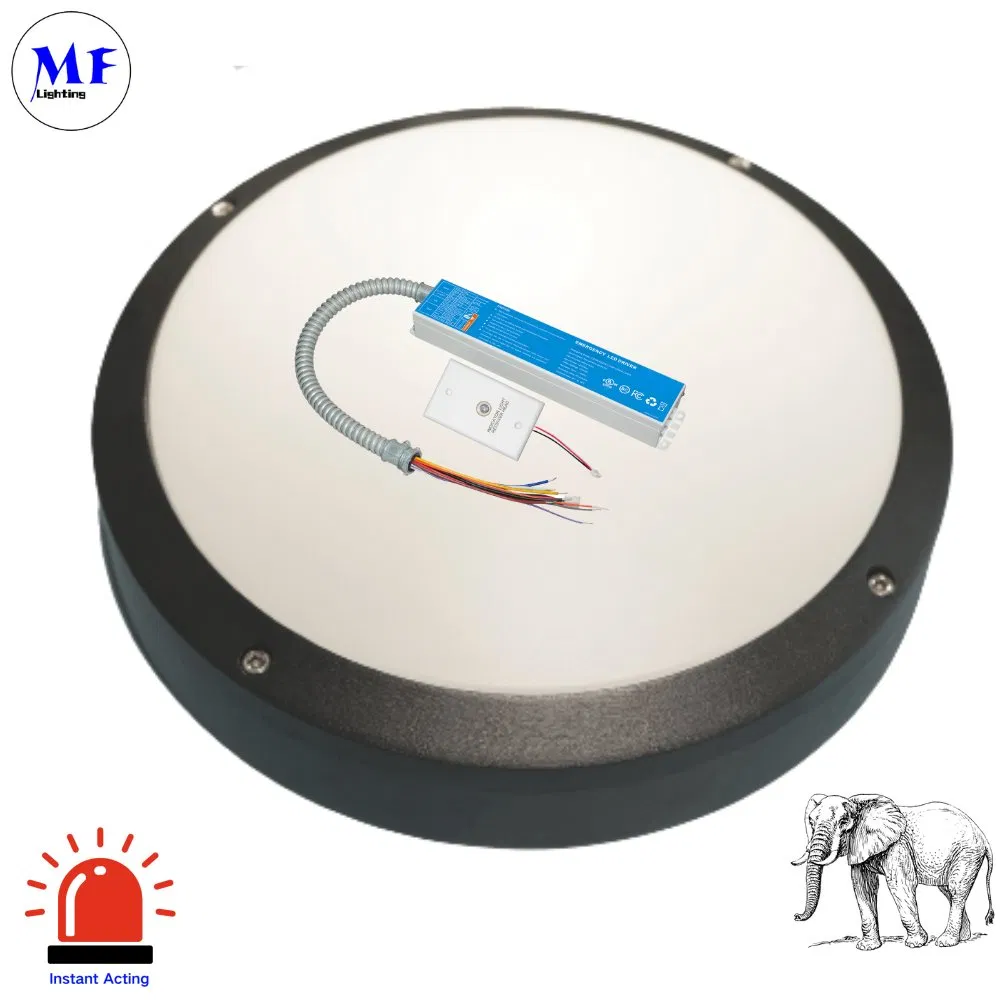

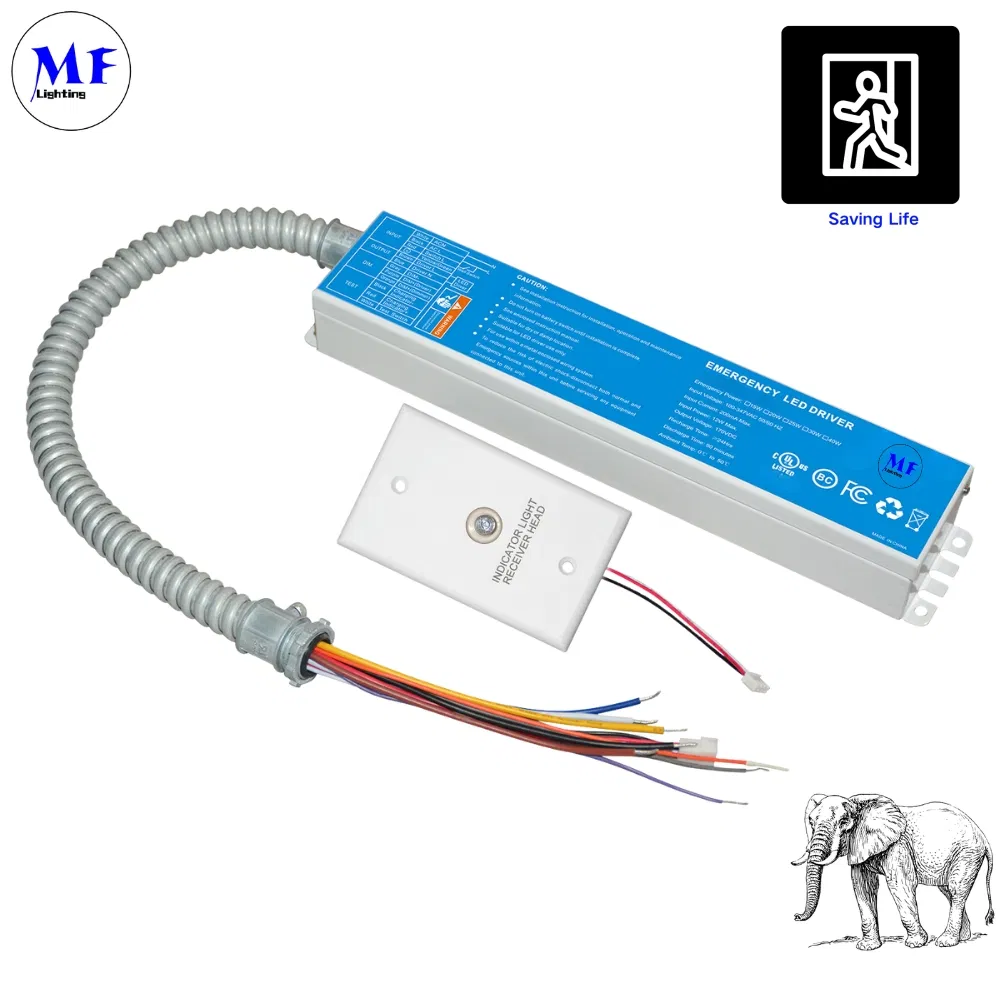

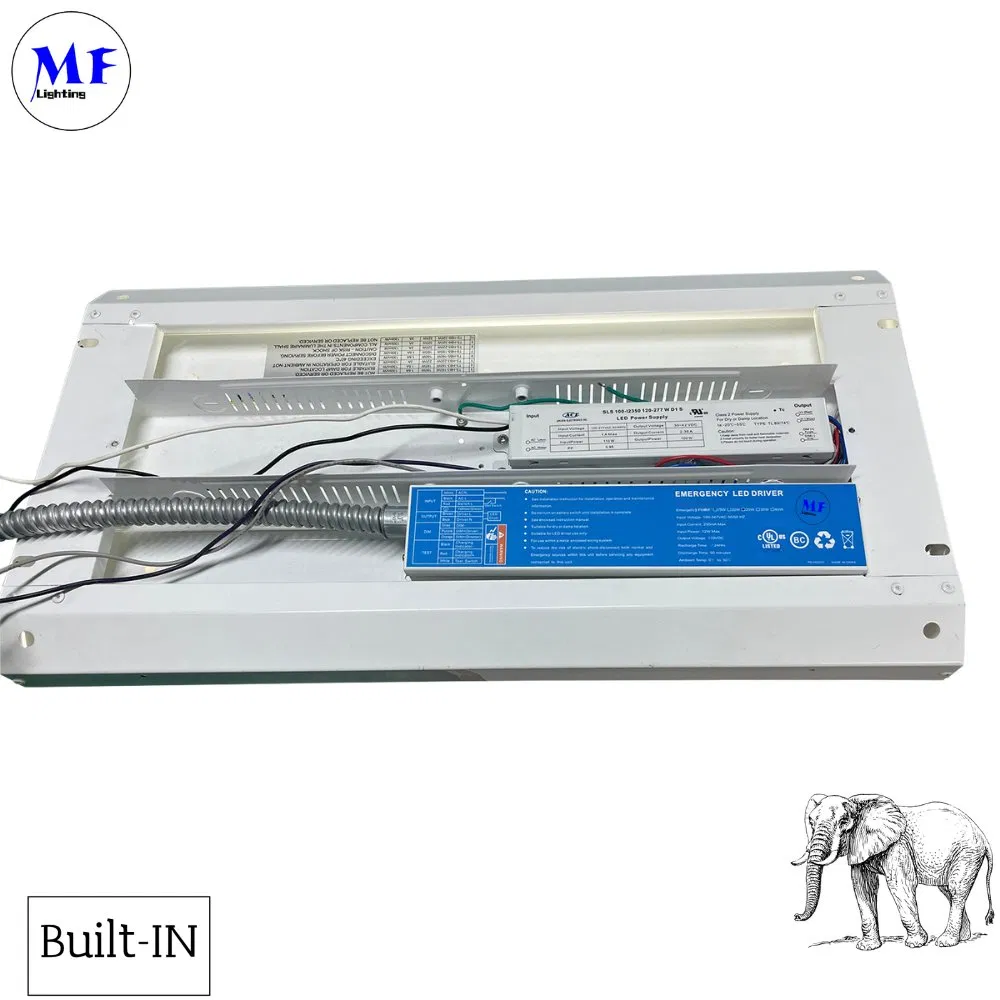

Factory Price UL Listed 0-10V Dimmable LED Emergency Panic Driver with 90 Minute Discharge Time 5 Year Warranty for Wall Light Panel Light Pendant Light

1 / 5

Factory Price UL Listed 0-10V Dimmable LED Emergency Panic Driver with 90 Minute Discharge Time 5 Year Warranty for Wall Light Panel Light Pendant Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

★Basic Info

Model NO.	MF-EM-xxW-170	Input Current	200mA Max
Input Power Rating	12W Max.	Output Voltage	170VDC
Emergency Power	15W/25W/30W/40W	Recharging Time	24hours
Discharging Time	90 Minute	Battery	Li-ion
Warranty	5 Years	Ambient Temp	32~122 F(0....+50 ℃)
Weight	3.66 Lbs(1.4kg)	Production Capacity	50000pieces/Year

♦Product Description

Factory Price UL Listed 0-10V Dimmable LED Emergency Panic Driver with 90-Minute Discharge Time 5Year Warranty for Down Light Highbay Light Tube Light

▶Features

UL Listed for US and Canada
Listed to UL924 and tested to CSA C22.2 NO.141 Field or factory installation
High voltage output
Low energy consumption CEC compliance
Constant output power

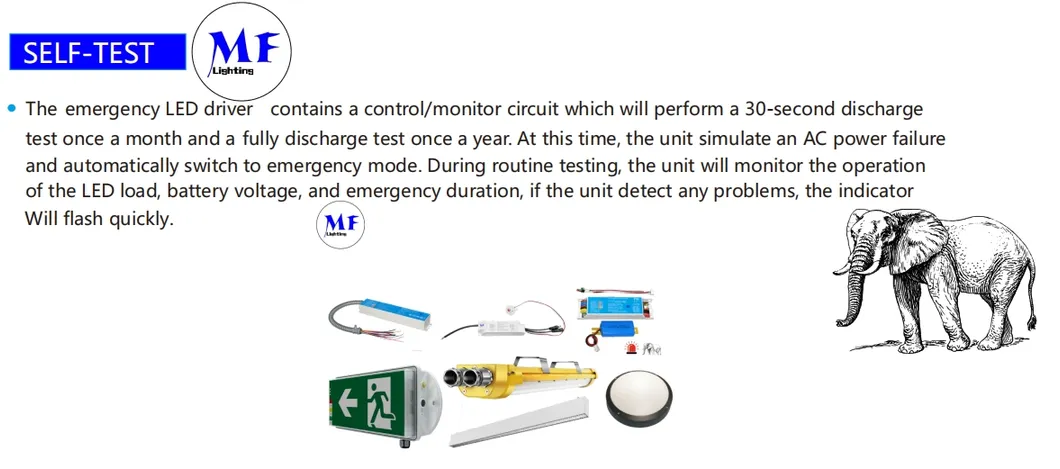

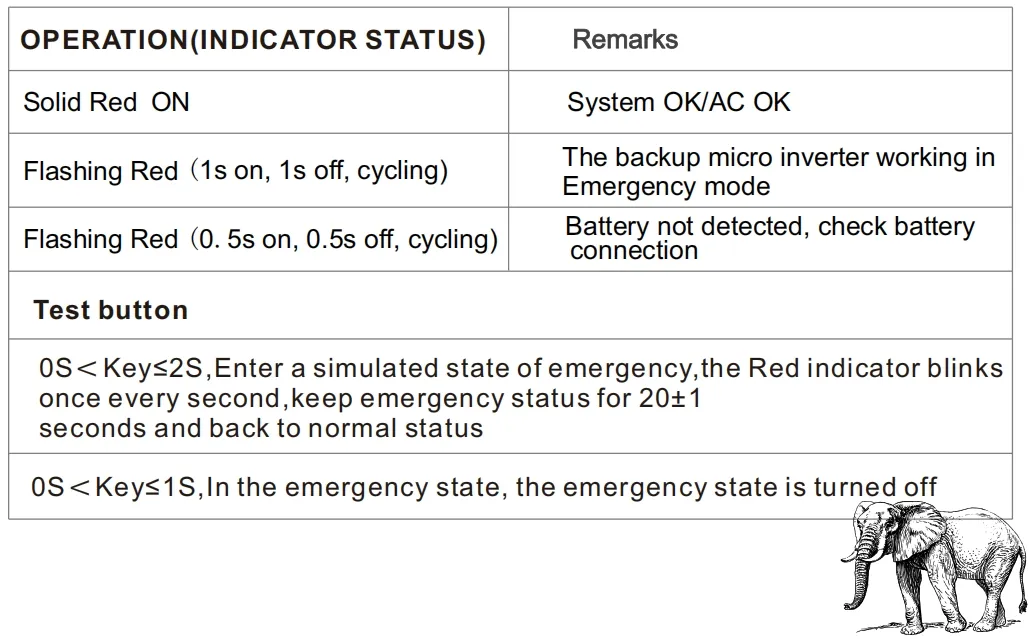

Self-testing functionality
Battery: over temperature protection

⚙Technical Data

Input voltage	100-347Vac, 50/60Hz
Input current	200mA max
Input Power rating	12W max.
Output Voltage	170Vdc
Emergency Power	15W/25W/30W/40W
Recharge Time	24Hrs
Discharge Time	90 minute
Ambient Temp	32~122 F(0....+50 ºC)
Warranty	5 Years
Battery	Li-ion
Weight	3.66 lbs(1.4kg)

🛒Ordering Information

Emergency Power	Emergency Time	Battery Specifications
8W	1.5H	Li-ion 2600mAh 7.4V
15W	1.5H	Li-ion 2500mAh-14.8V

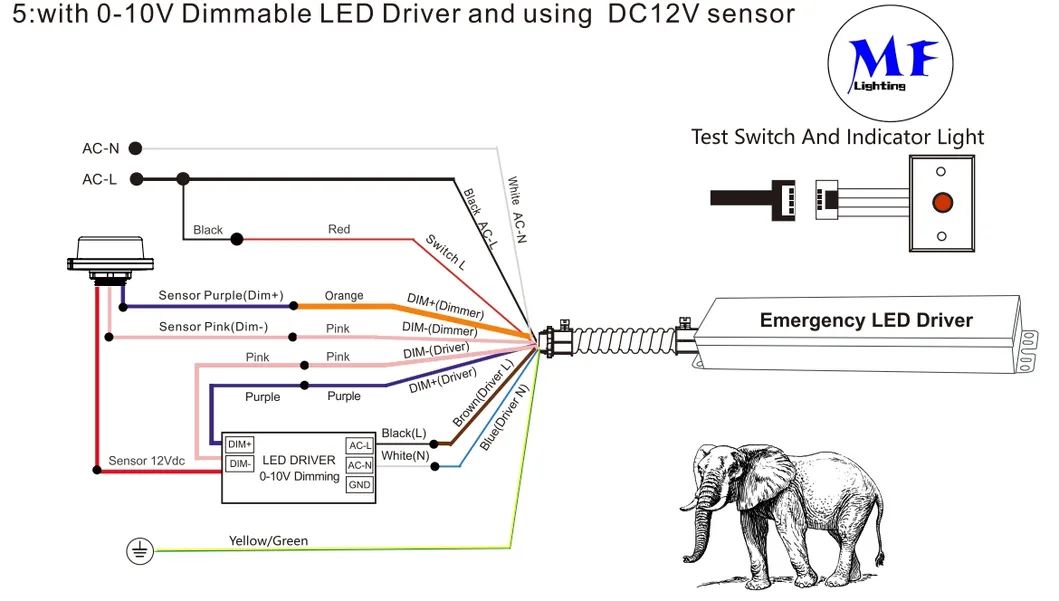

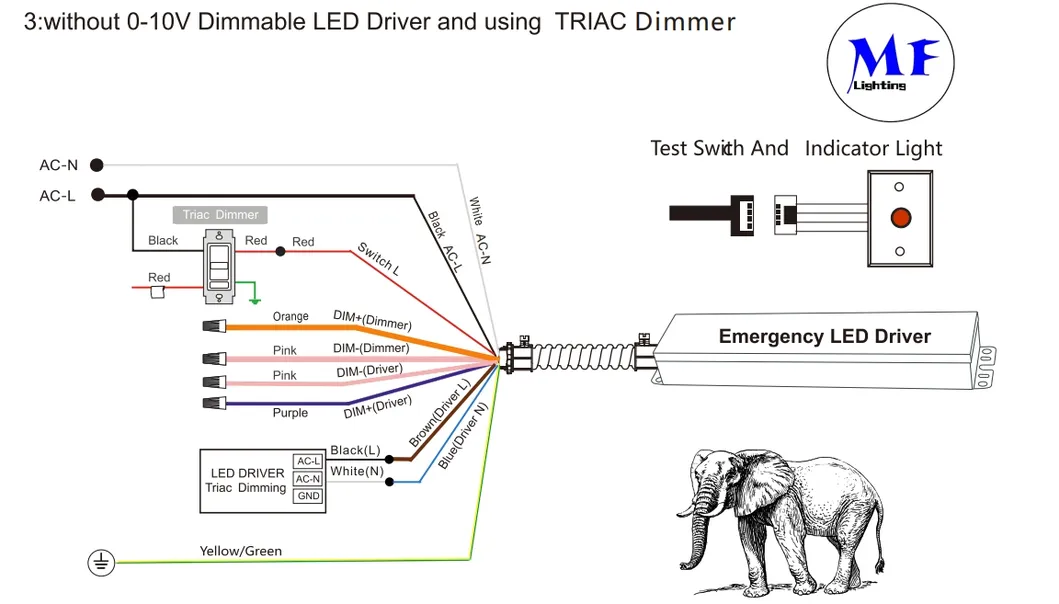

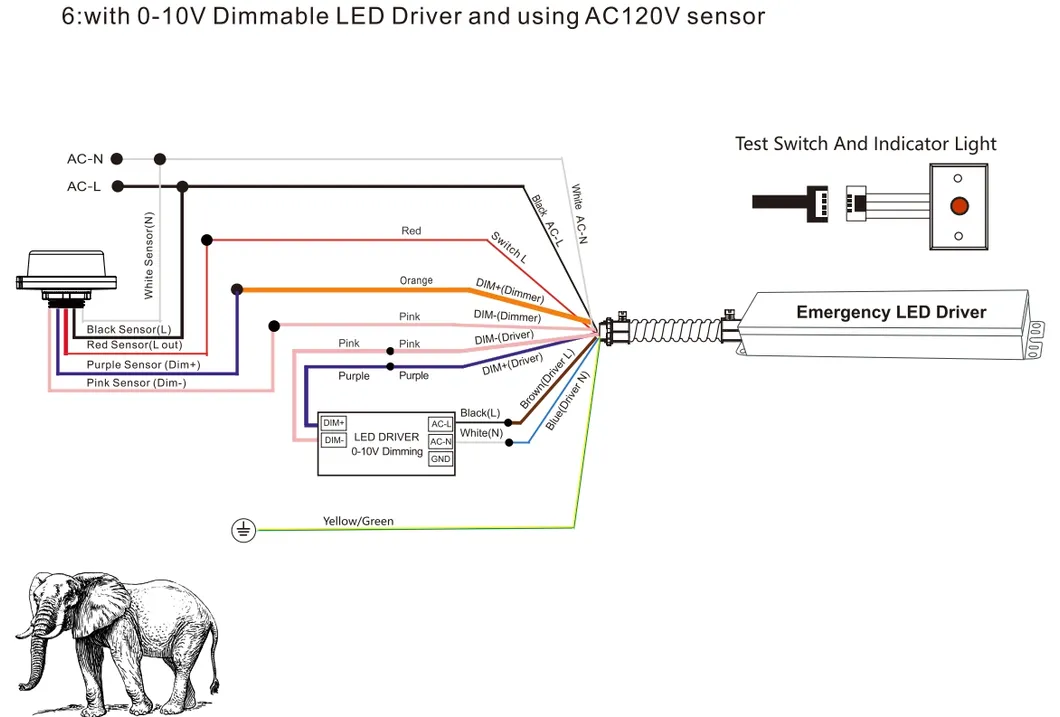

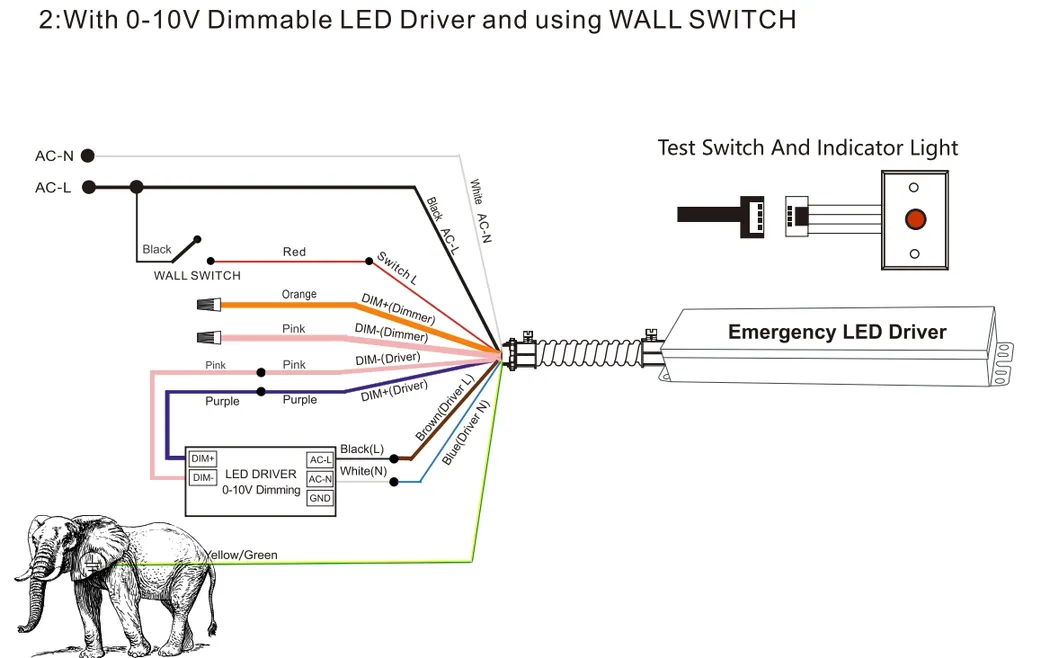

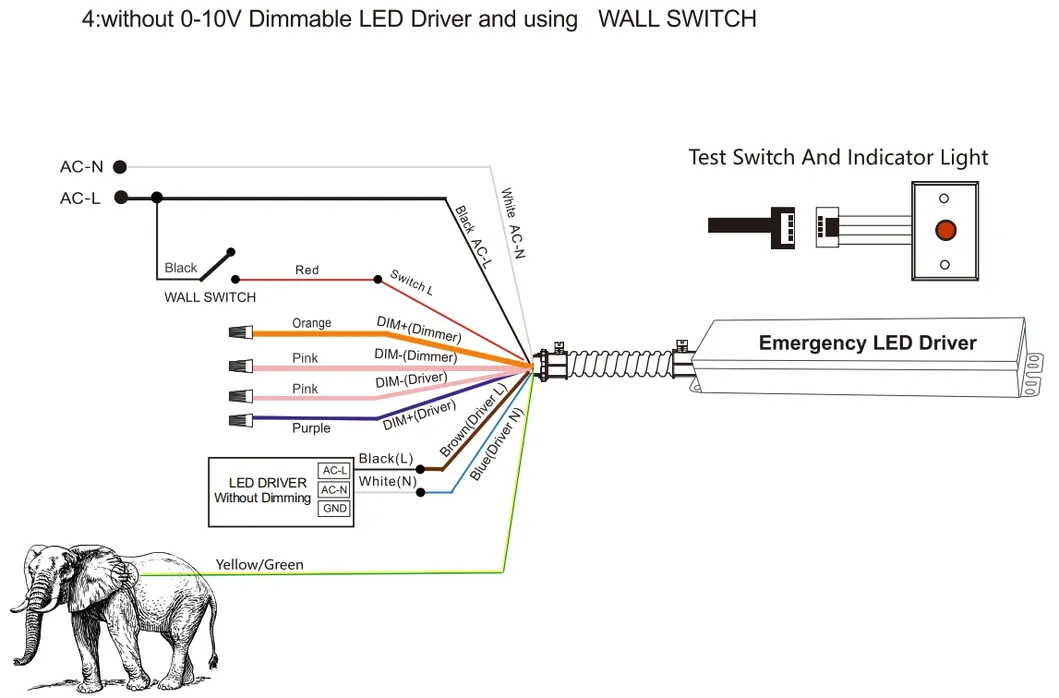

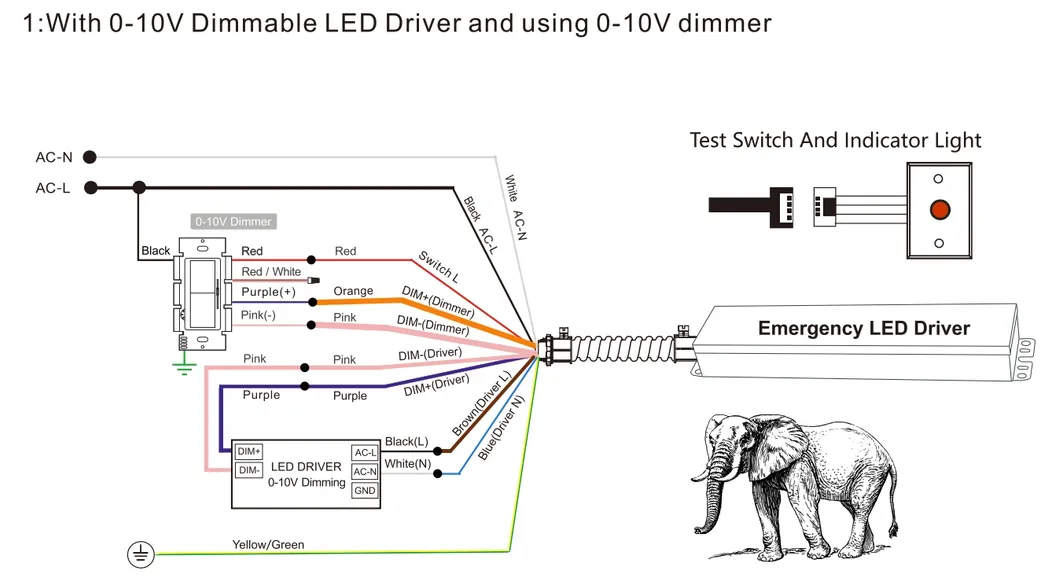

🔌Wiring Diagrams

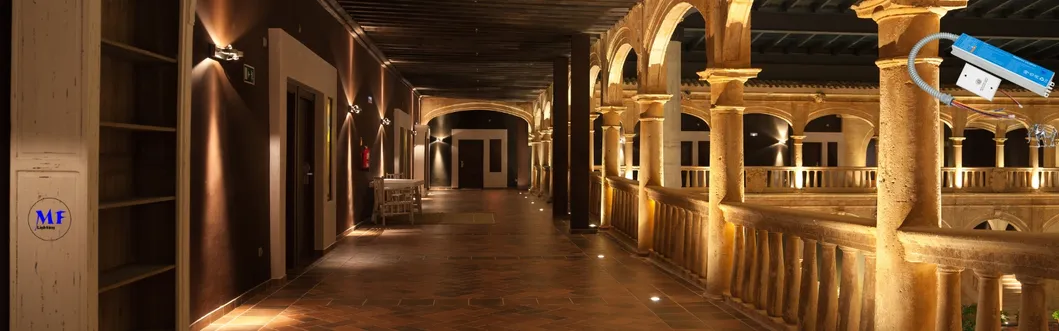

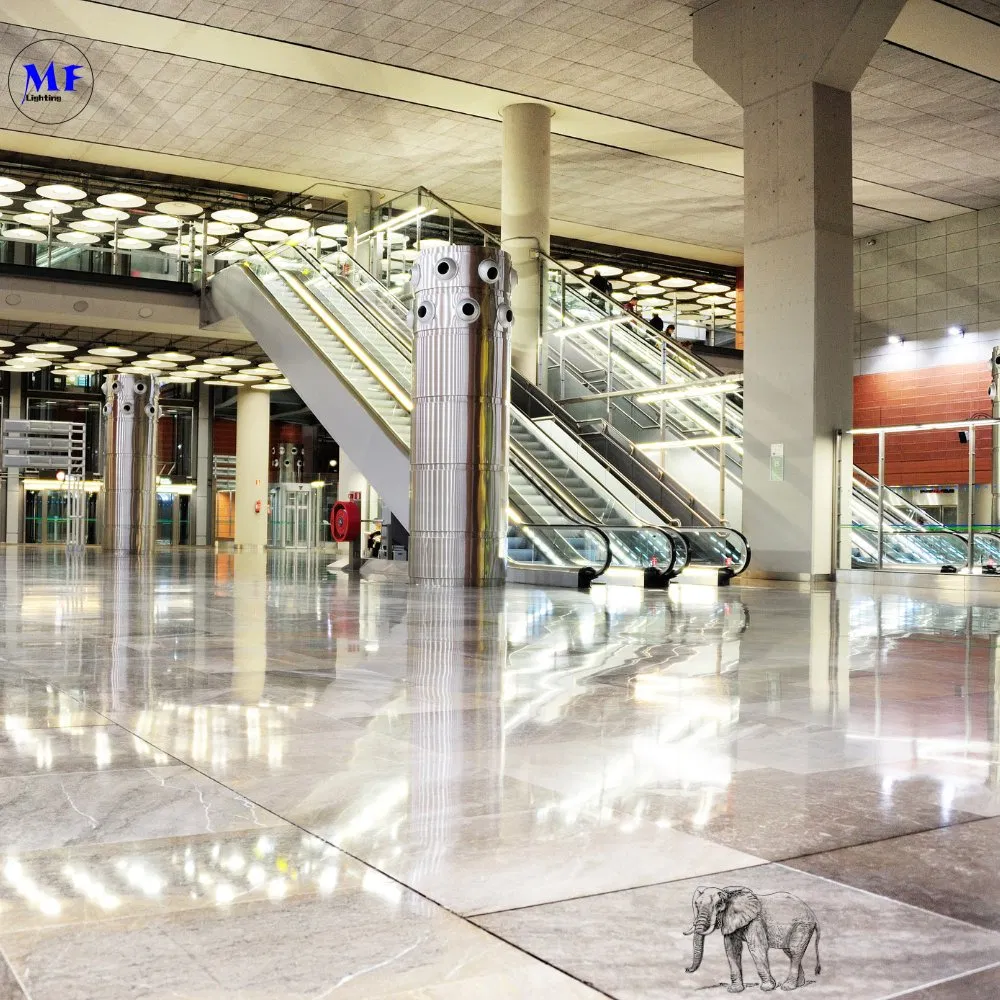

🏢Application Scenarios

This product is an LED Emergency Driver with self-detection, constant-power emergency output, built-in battery, and multi-protection functions. It suits LED fittings with external LED drivers.

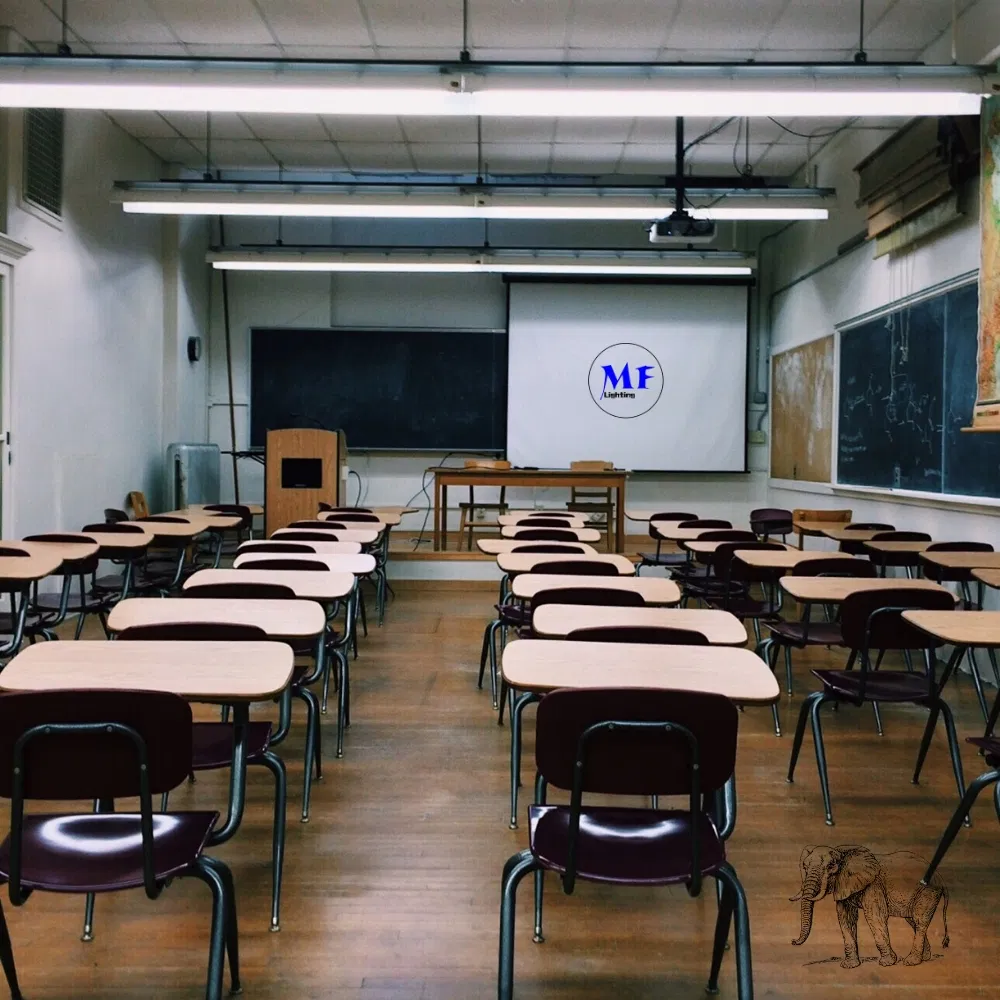

1. Educational Institutions: Ensures safe evacuation in classrooms, corridors, and stairwells.
2. Hospitals: Powers emergency lights in patient rooms, operating theaters, and emergency exits.

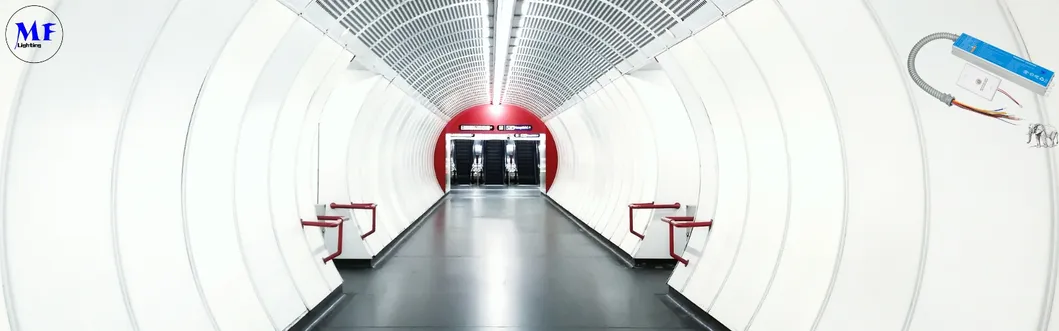

3. Transportation Hubs: Essential for subways, train stations, and airports.
4. Commercial Spaces: Illuminates aisles and exits in shopping malls and supermarkets.
5. Industrial & Residential: Ideal for offices, factories, hotels, basements, and parking lots.

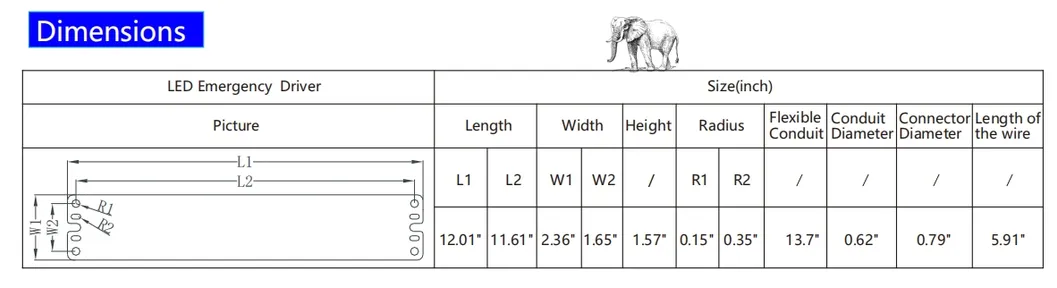

📏Dimensions

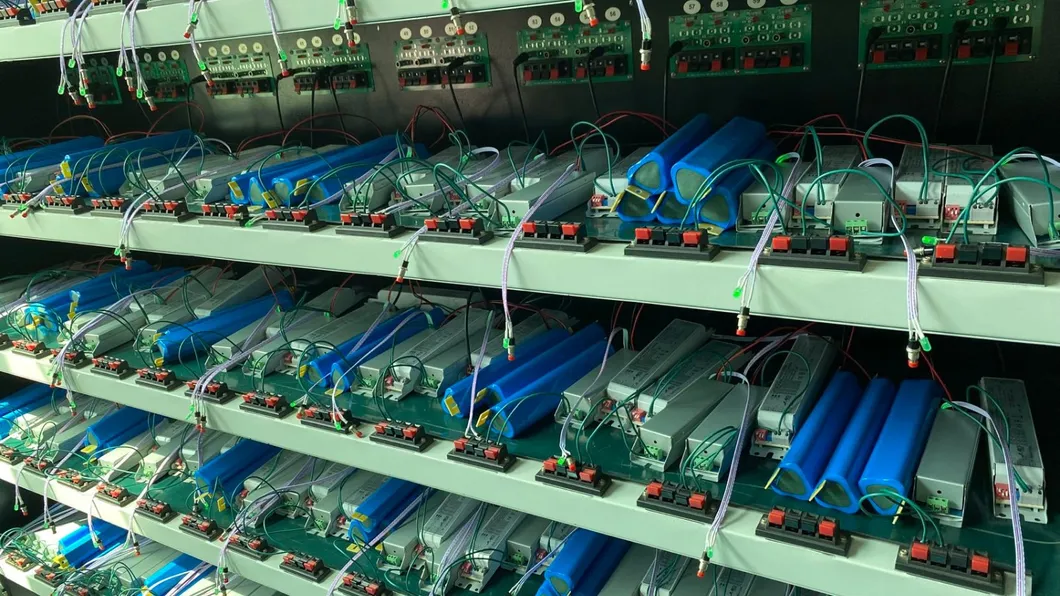

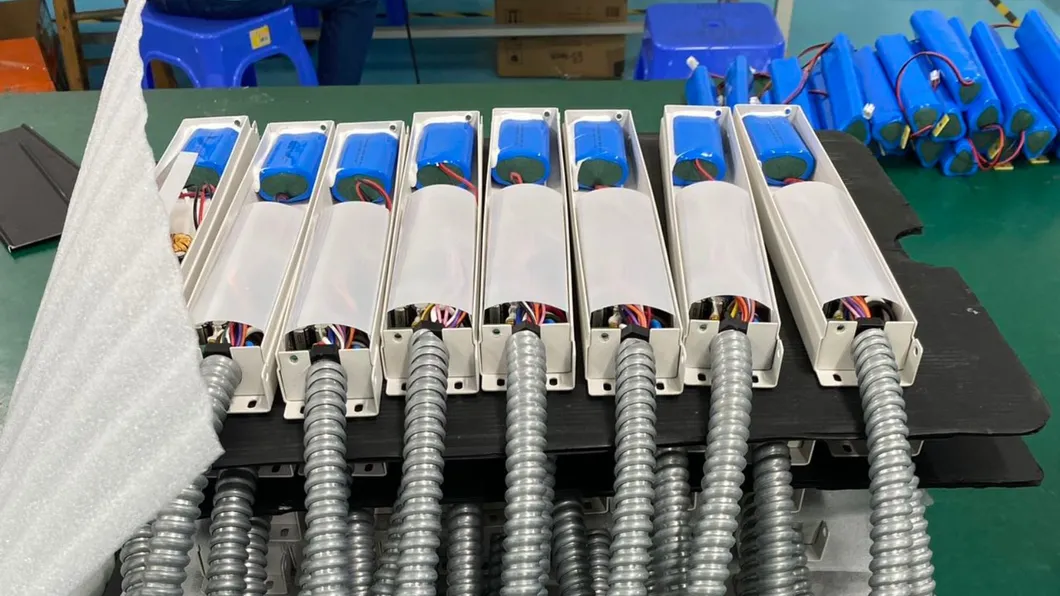

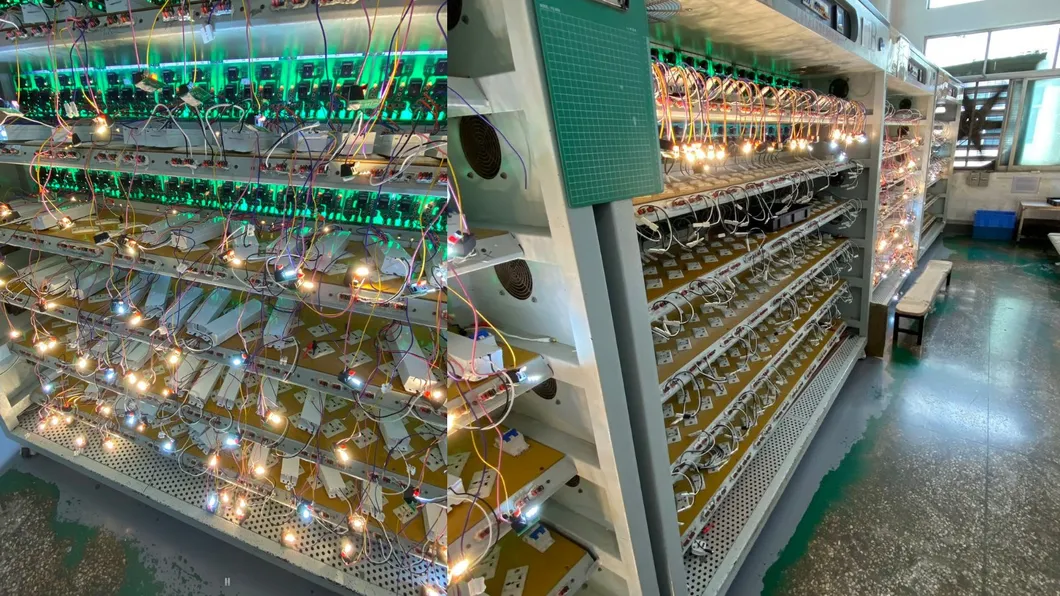

⚒Production Line

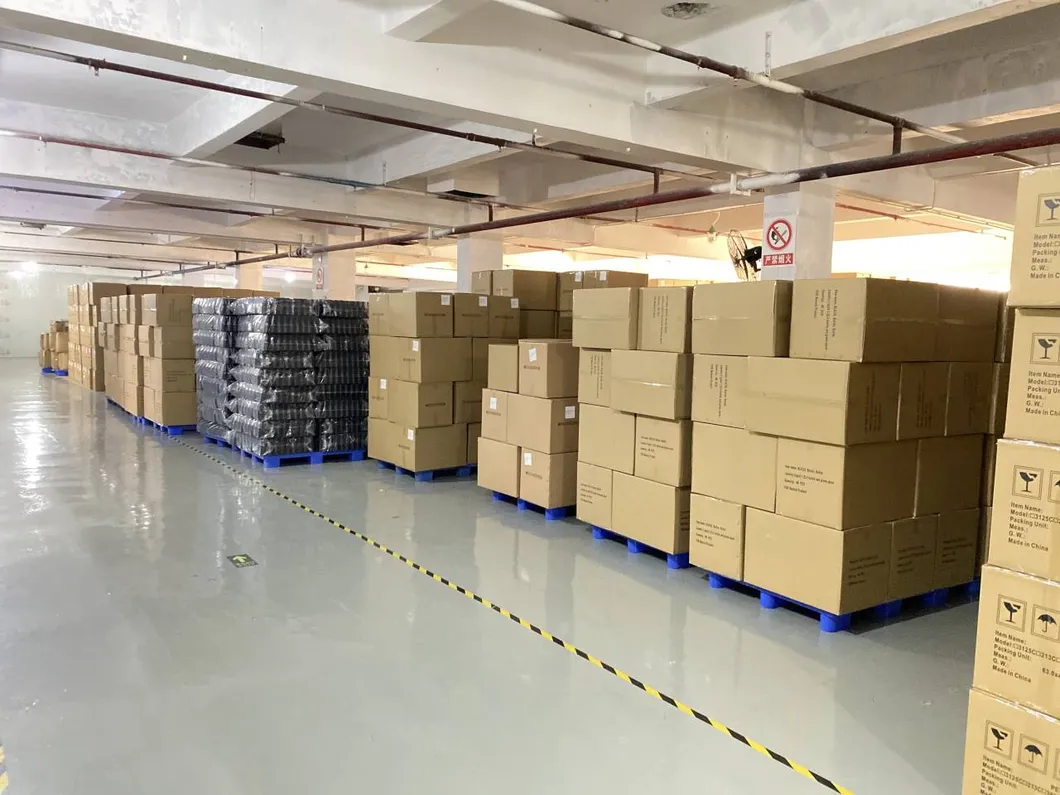

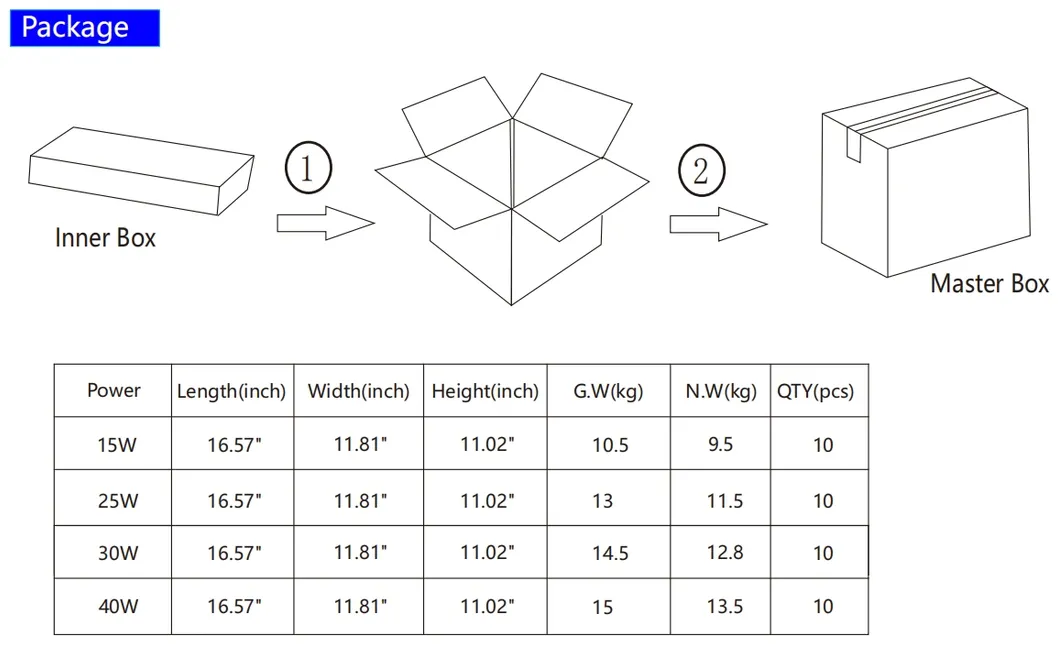

📦Packaging & Shipping

❓Frequently Asked Questions

Are you a manufacturer?

Absolutely, we are a professional manufacturer with 16 years of experience in LED lighting solutions, including waterproof recessed lights and outdoor landscape lighting.

What are your main products?

Our main products include LED Tri-proof lights, High Bay lights, Flood lights, Explosion Proof Lights, Down Lights, and specialized underwater/inground lighting.

What is the Minimum Order Quantity (MOQ)?

For customized models, samples should be prepaid. We offer free customization if the order quantity exceeds 1000 pieces.

What are the payment and shipping options?

We accept T/T, Western Union, and PayPal. Standard terms are 50% advanced and 50% balance. Shipping terms include EXW, FOB, CIF, CNF, and DDP.

What is the expected delivery time?

Samples typically take 5-7 working days, while mass production takes about 20-30 working days depending on order volume.

Why should we choose your products?

We offer comprehensive OEM/ODM services, have a dedicated design team, provide high-quality products at competitive prices, and have no strict MOQ requests for standard items.
