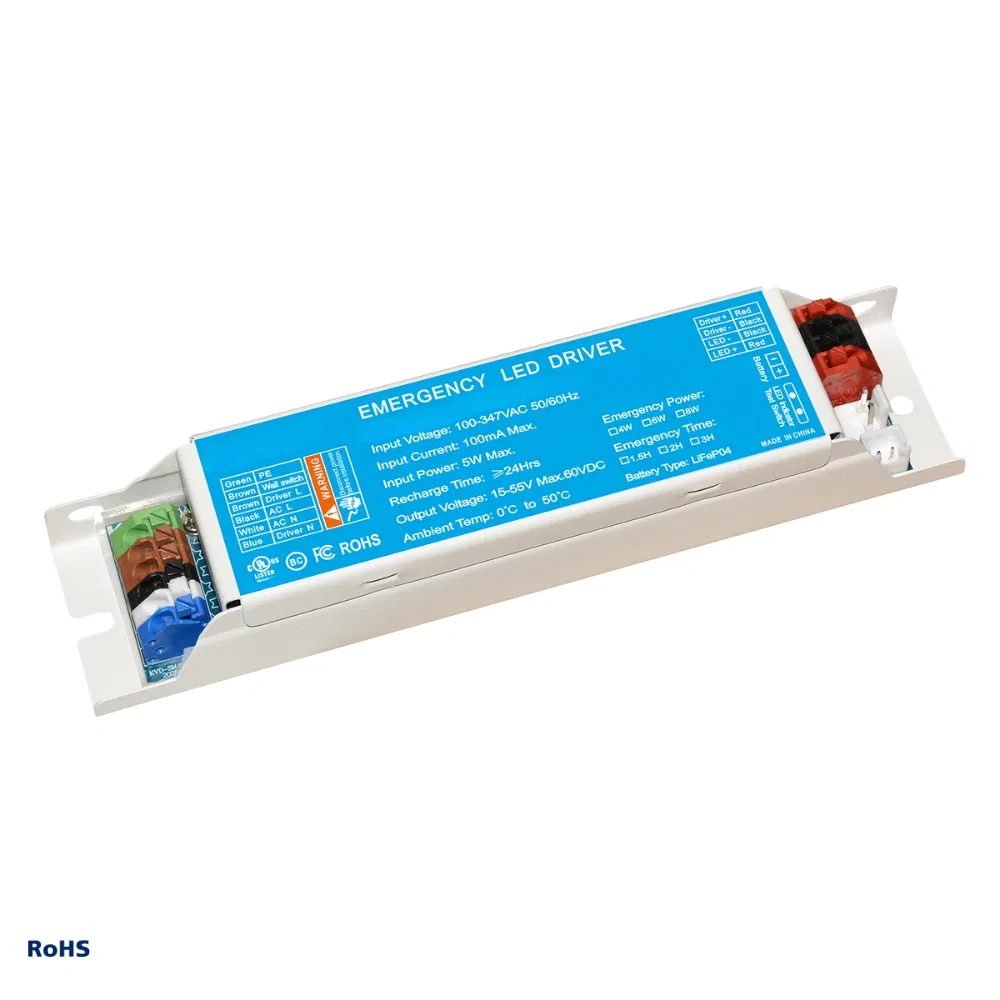

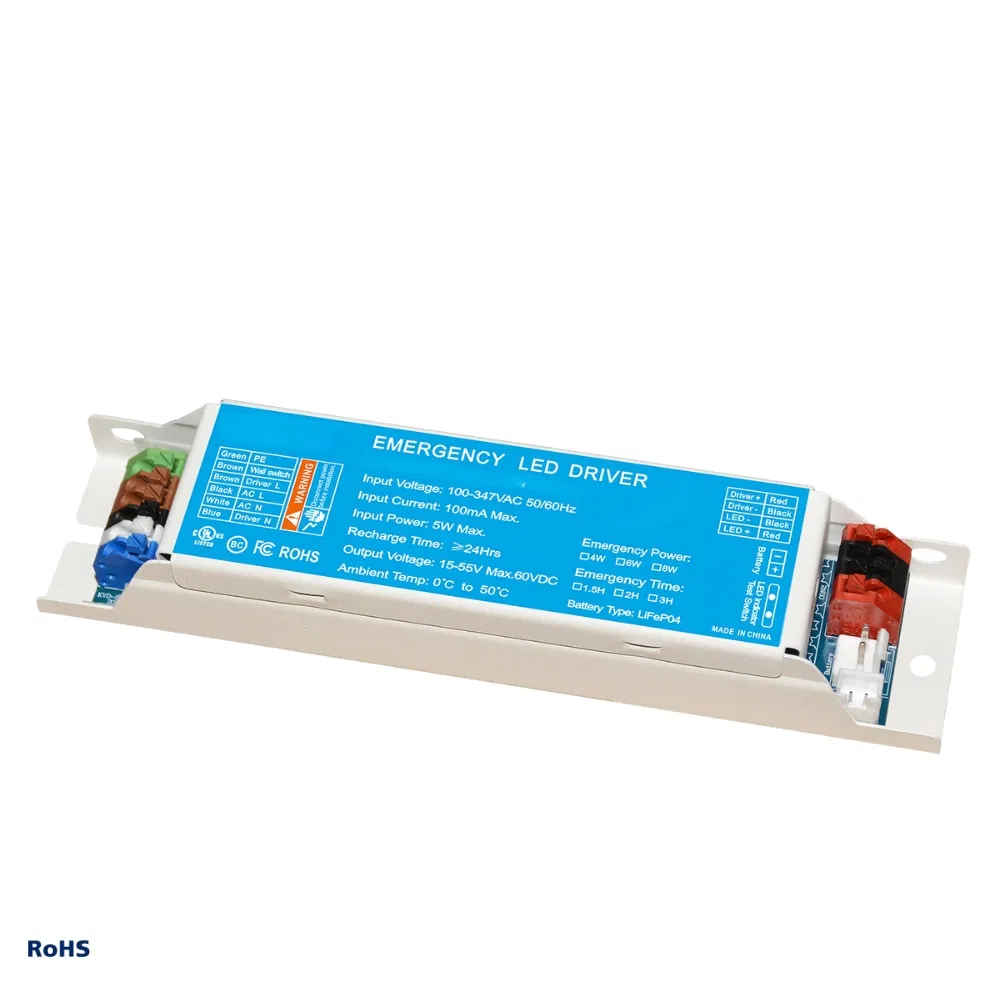

Factory Price UL924 4W 5 Years Panic Emergency Powerpack Emergency LED Driver with Li-FEP04 2000mAh-6.4V Battery
Product Description

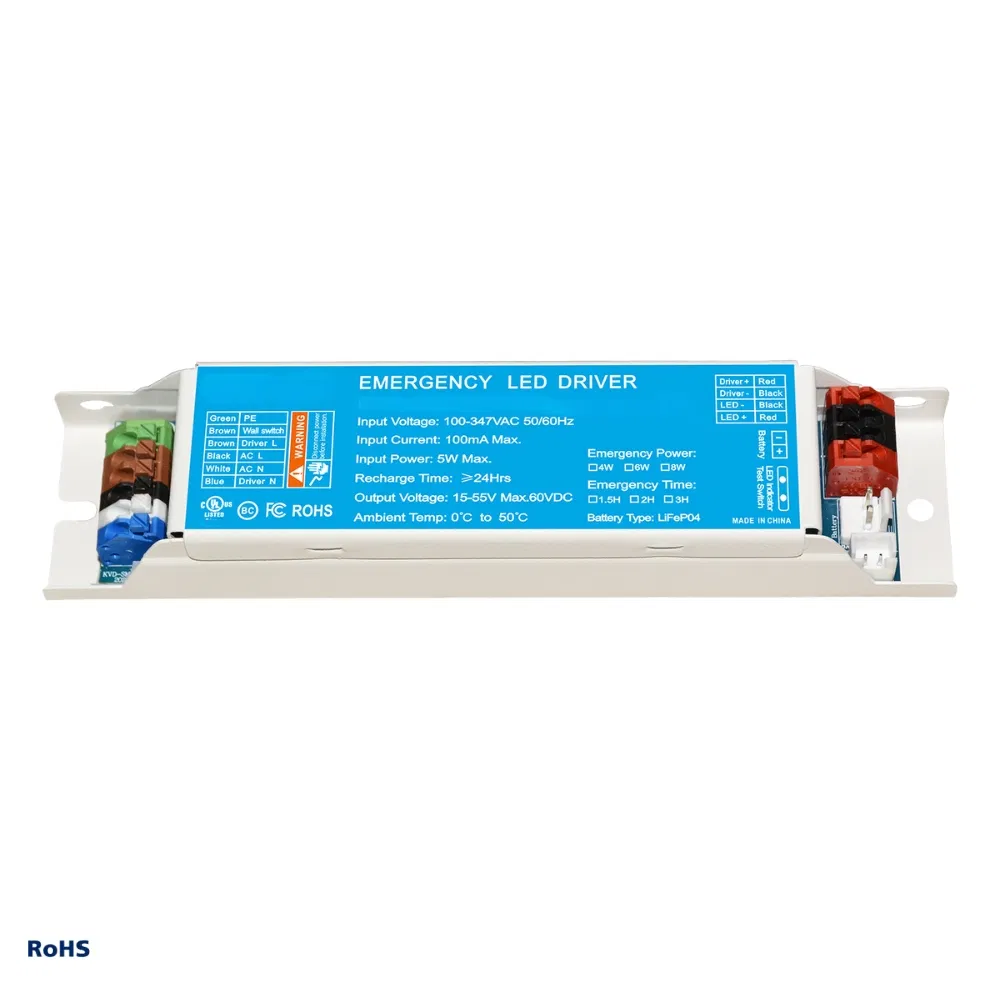

Factory Price UL924 4W Emergency LED Driver

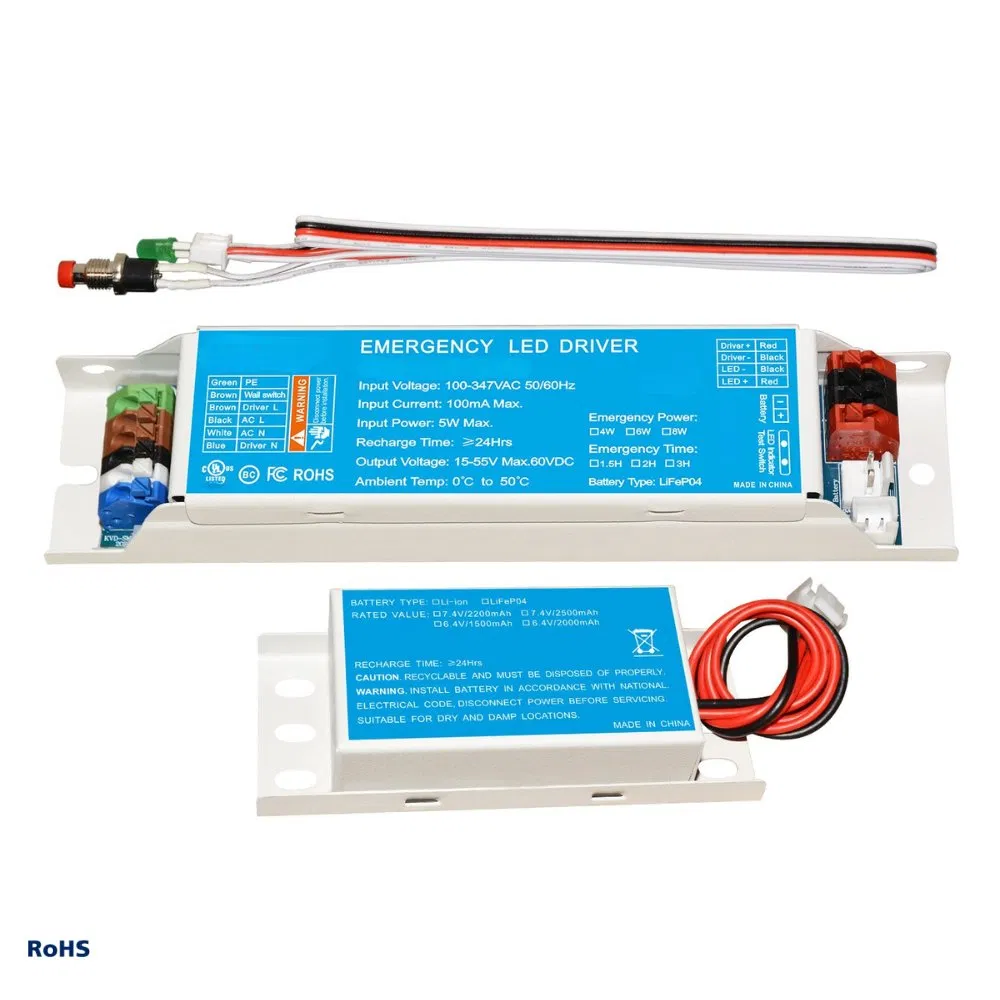

High-performance emergency powerpack with Li-Fep04 2000mAh-6.4V battery. Designed for 5 years of reliable panic emergency operation.
- Meets major safety standards for global lighting compliance.
- Standard CSA C22.2 NO.141 & UL924 certified.

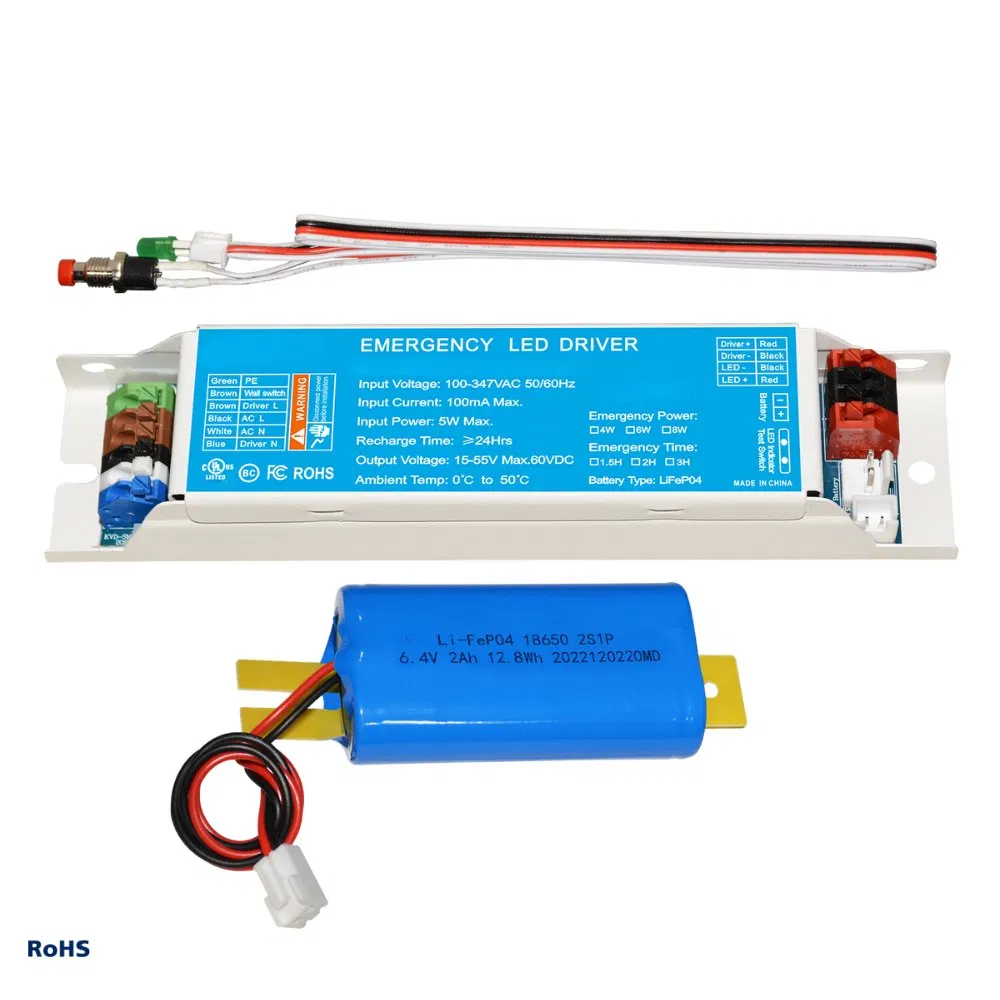

- External lithium iron phosphate battery for enhanced safety.
- Complete battery protections: over-charge, over-discharge, and short-circuit protection.
- Multi-mode indicators for real-time working status.
- Long lifespan: Battery supports 2000 cycles of standard charging/discharging.
- Fully RoHS compliant.
| Parameter | Details |
|---|---|
| Charging Current | 250mA |
| Charging Time | ≥24 Hours |
| Output Power | 4W |
| Temperature Rating | 0°C to 60°C (32°F to 104°F) |
| Housing Material | Metallic Housing (EMC, FCC, C-tick compliant) |
| IP Rating | IP20 |
| Dimensions | 100*38*20mm |
Equipped with over-voltage, short-circuit, over-load, and open-circuit protection.
Includes a seasonal self-detect function and mock-up electricity pause testing.
Fully complies with CEC emergency saving ordinances for high efficiency.

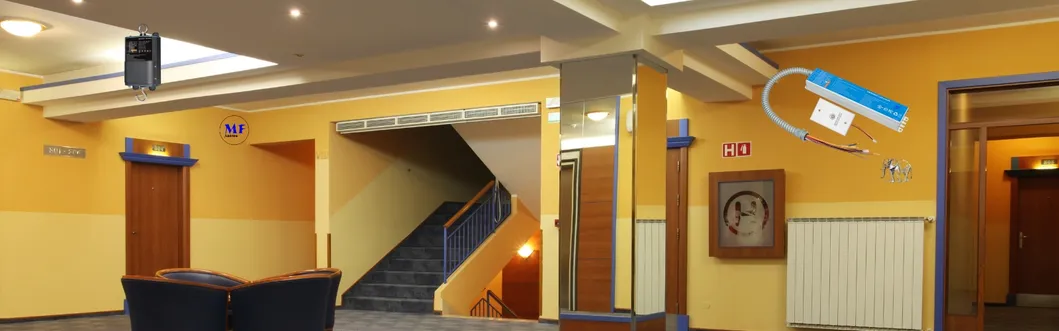

Safe evacuation lighting for hallways, hospitals, and clinics during power outages.
Rugged design for warehouses and schools with 90 minutes of reliable backup power.

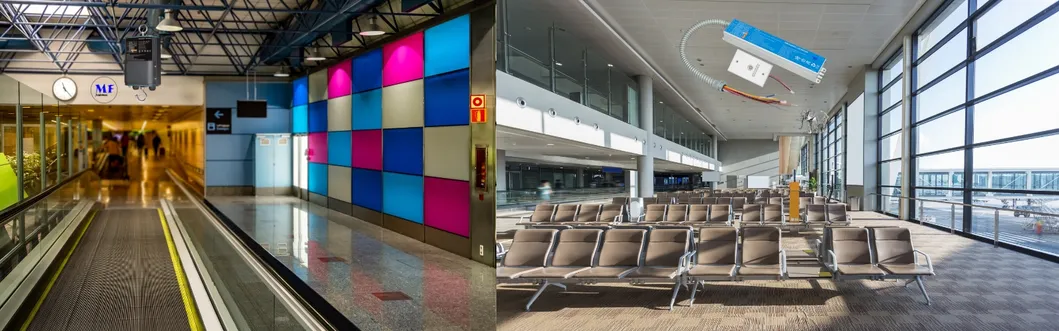

Ideal for shopping malls, airports, and subway stations to guide passenger safety.
Critical for apartment stairwells and common areas, exceeding standard building codes.

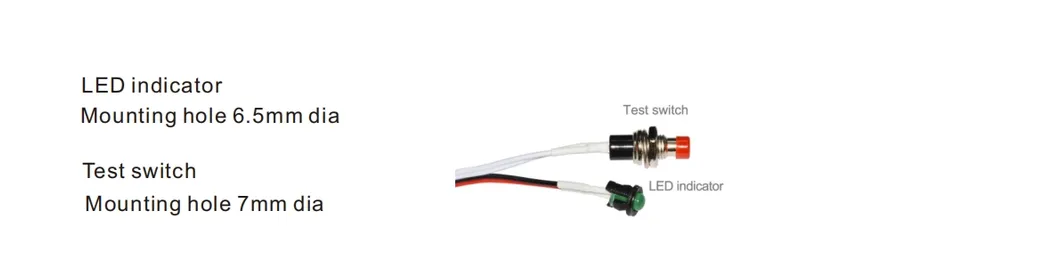

Green Breathing: Charging mode active.
Green Stable: Battery is fully charged.
Green Flashing (1s): Emergency status mode.
Red Flashing (1s): Battery not connected or defective.
Red Flashing (4s): Load failure (short/open circuit) during emergency mode.
1. Initial Charge: For first-time use, connect to main power and charge for 24 hours to activate the battery.
2. Environment: Keep away from heat sources; use only within the rated temperature range.
3. Storage: Store in a cool, dry place. Recharge at least once every 6 months if stored long-term.
4. Testing: Emergency testing should last longer than 1 minute. Avoid frequent rapid pressing of the test button.
