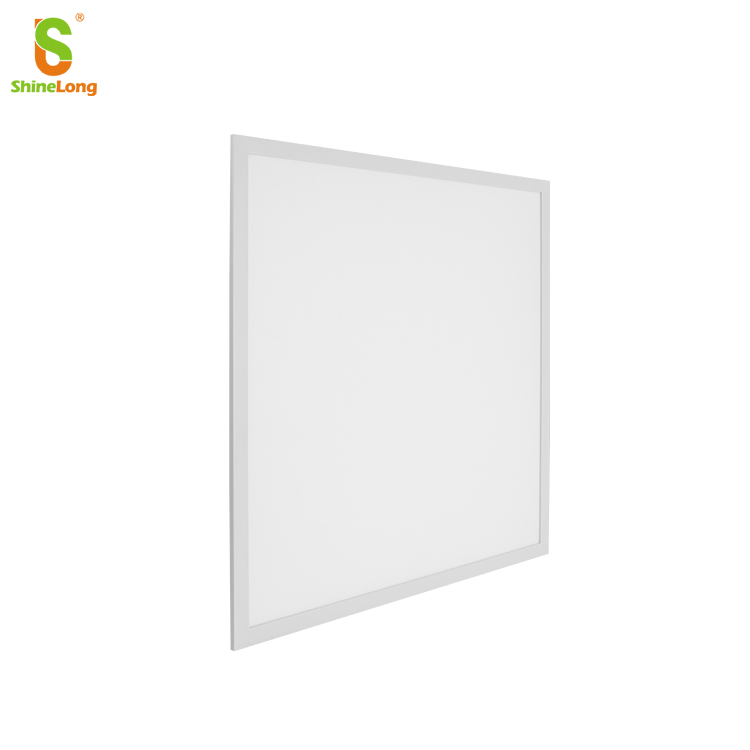

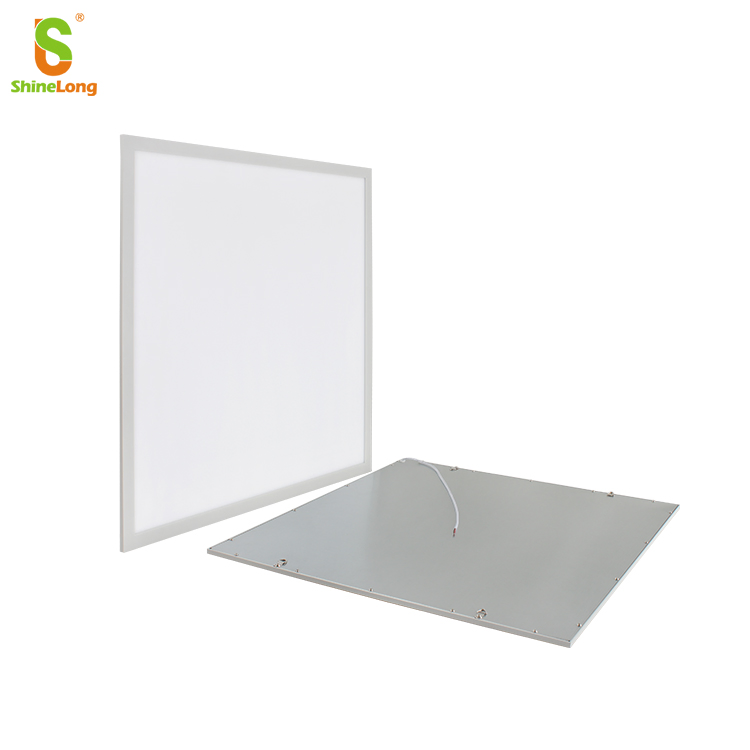

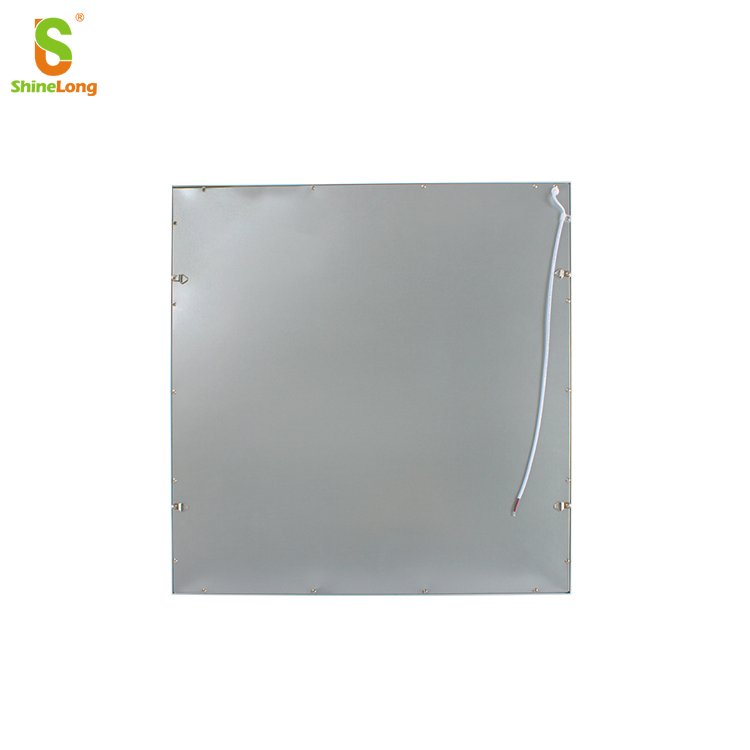

Ultra-Thin Panel Light IP54 Ik06 RoHS 100lm/W Ugr<19 for Office/Commercial
Product Description
i
Basic Specifications
Model NO.
SL-P1112-X-26B
Emitting Color
White
Appearance
Square
Certification
CE, RoHS
Voltage
100-240V
Beam Angle
120°
Wattage
12W / 25W / 40W / 60W
CRI
>80
CCT
3000K/4000K/5000K/6000K
Warranty
5 Years
IP Rating
IP54
IK Rating
IK06

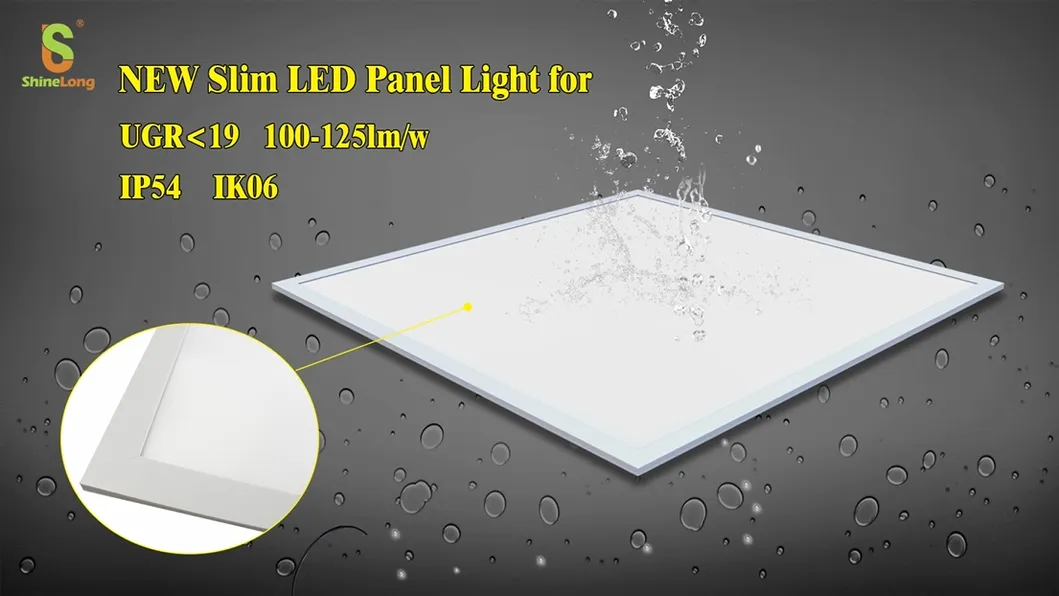

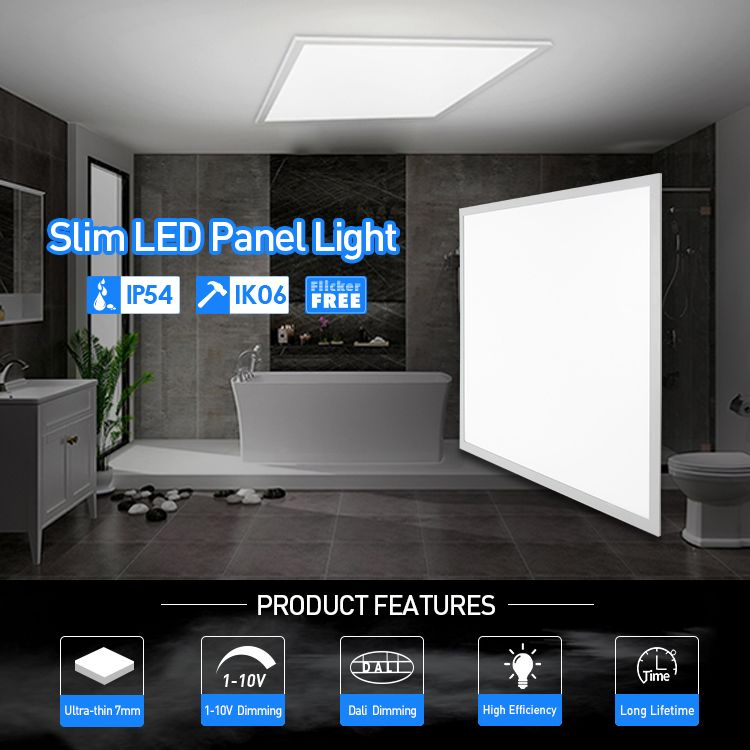

IP54 IK06 Slim Panel Light
High-Performance Commercial & Industrial Lighting Solution
★
Product Features

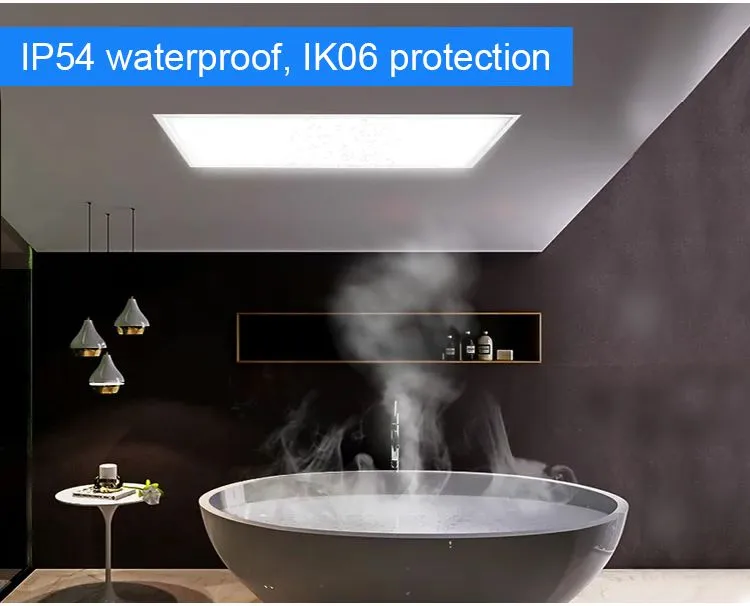

- Ultra-thin slice LED panel light with IK06 and IP54 certifications for durability.
- Adheres to CE and RoHS Standards for safety and environmental compliance.

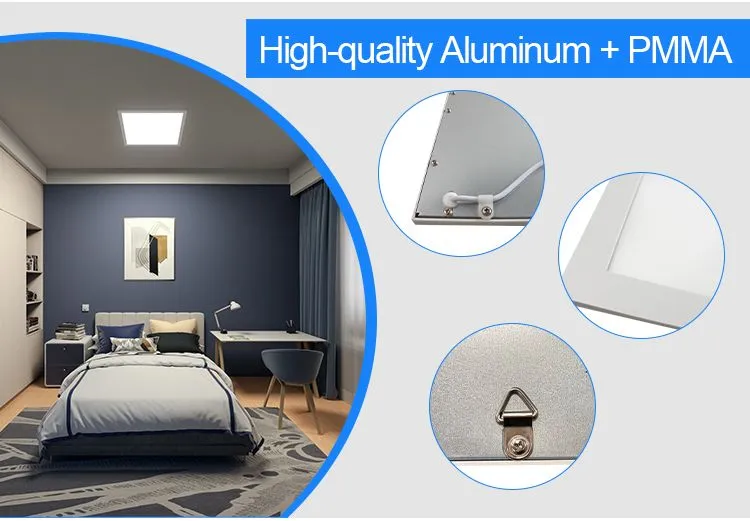

- Premium materials: robust aluminum combined with pristine PMMA.
- Outstanding luminous efficacy: 100lm/w ±10% up to 125lm/w ±10%.
- Superior lighting control: supports 1-10V and DALI dimming drivers.

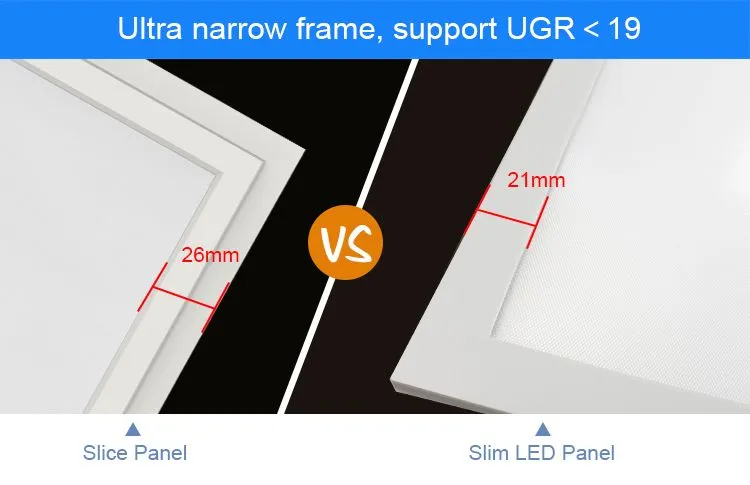

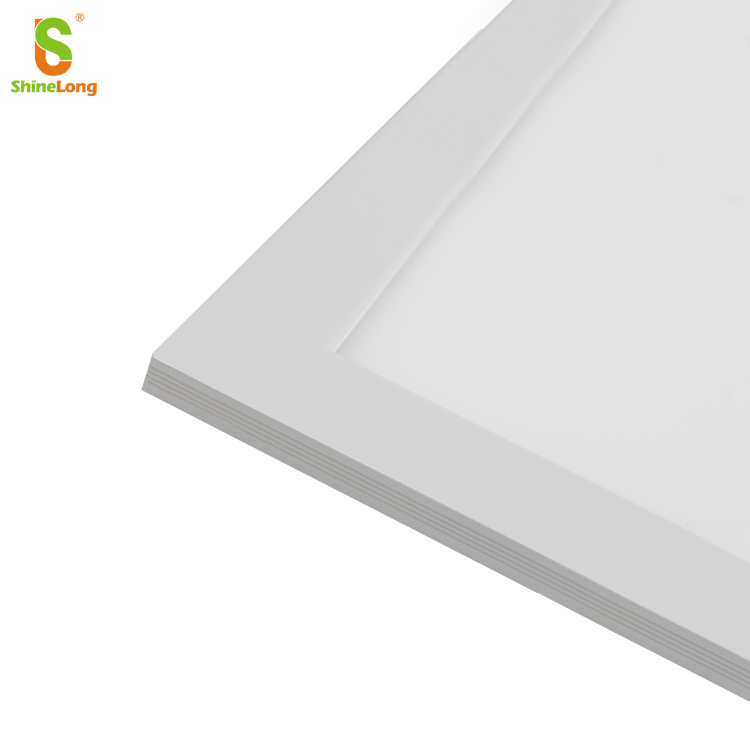

- Ultra-narrow frame designed to support UGR<19 for glare-free illumination.

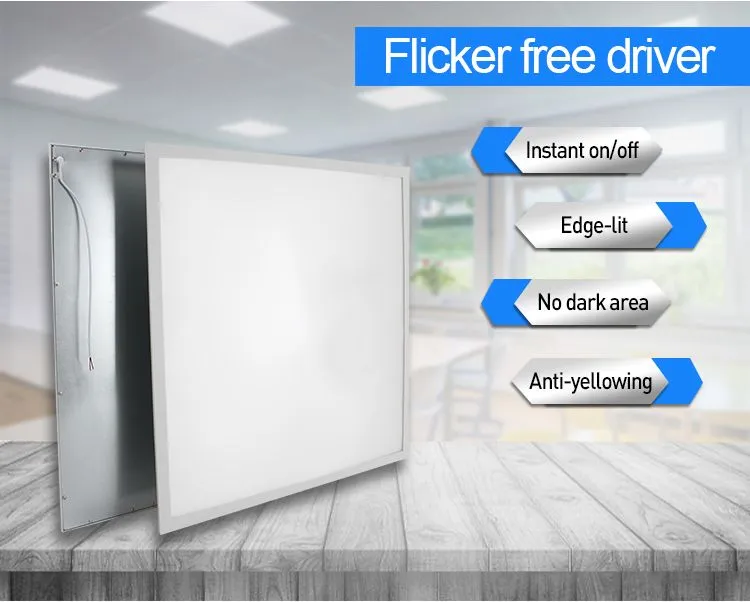

- Instantaneous on/off with edge-lit technology and anti-yellowing features.
- Long lifespan of 50,000 hours (L80B10) with a 5-year warranty.
- Versatile installation: Suspending, Ceiling Mounted, and Recessed.
📊

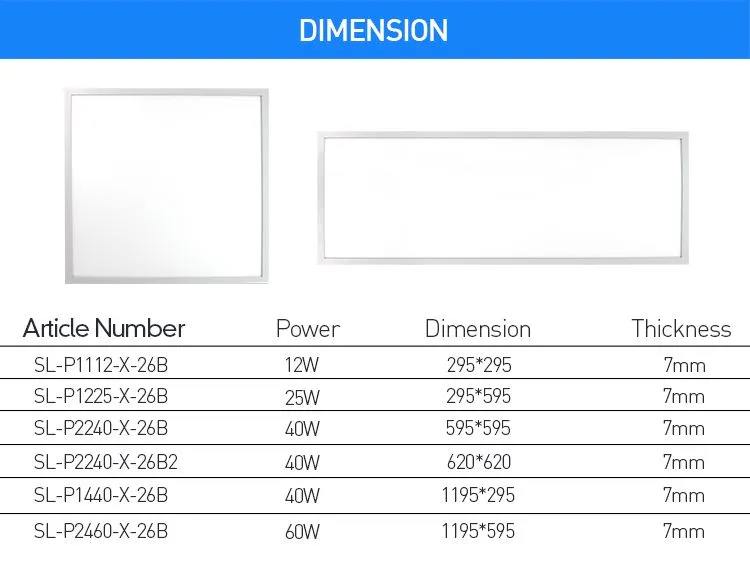

Technical Data Sheet
| Article Number | Dimension (mm) | Power (W) | Lumen (lm) |
|---|---|---|---|
| SL-P1112-X-26B | 295*295*7 | 12 | 1100 |
| SL-P1225-X-26B | 295*295*7 | 25 | 2500 |
| SL-P2240-X-26B | 595*595*7 | 40 | 4000 |
| SL-P2240-X-26B2 | 620*620*7 | 40 | 4000 |
| SL-P1440-X-26B | 1195*295*7 | 40 | 4000 |
| SL-P2460-X-26B | 1195*595*7 | 60 | 6000 |
* 'X' symbolizes CCT options: W(3000K/4000K), P(5000K), C(6000K).
🖼
Product Display
🏢

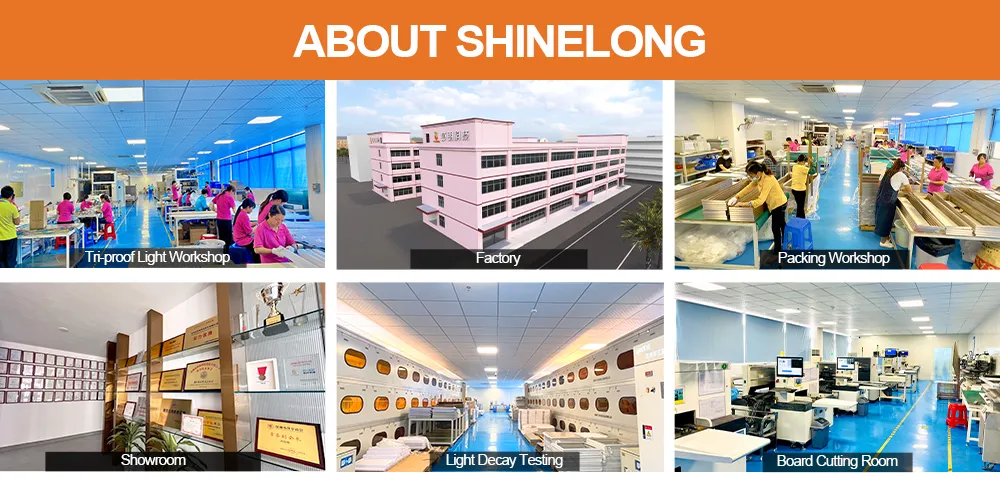

Quality Manufacturing
Specializing in high-performance LED lighting solutions, the production facility spans over 20,000 square meters. With a focus on R&D, we offer expertise in tri-proof lamps, explosion-proof lamps, and panel lights for industrial and commercial sectors. Our comprehensive production system includes SMT, injection molding, and mold development, ensuring a monthly capacity exceeding one million pieces.
?
Frequently Asked Questions
What is the monthly production capacity for these panel lights?
The factory's monthly production capacity can reach up to 50,000 pieces of panel lights, catering to both small-to-medium and large-scale orders efficiently.
How long does delivery typically take for a standard order?
Regular orders usually have a production cycle of 15-20 days following the advance payment. Expedited services may be available for urgent requirements.
Can you provide customized branding or logos on the products?
Yes, logo printing on both the products and packaging is available, provided the Minimum Order Quantity (MOQ) requirements are met.
How is product quality guaranteed?
We implement strict detection during the entire production process and perform rigorous sampling inspections before shipment to ensure intact packaging and high-quality standards.
What is the expected lifespan and warranty for the panel lights?
The lights feature an exceptional lifespan of 50,000 hours (L80B10 at 25ºC) and come with a comprehensive 5-year warranty for peace of mind.
What applications are these lights suitable for?
These IP54 slim panel lights are ideal for offices, hospitals, universities, schools, supermarkets, showrooms, and exhibition halls.
