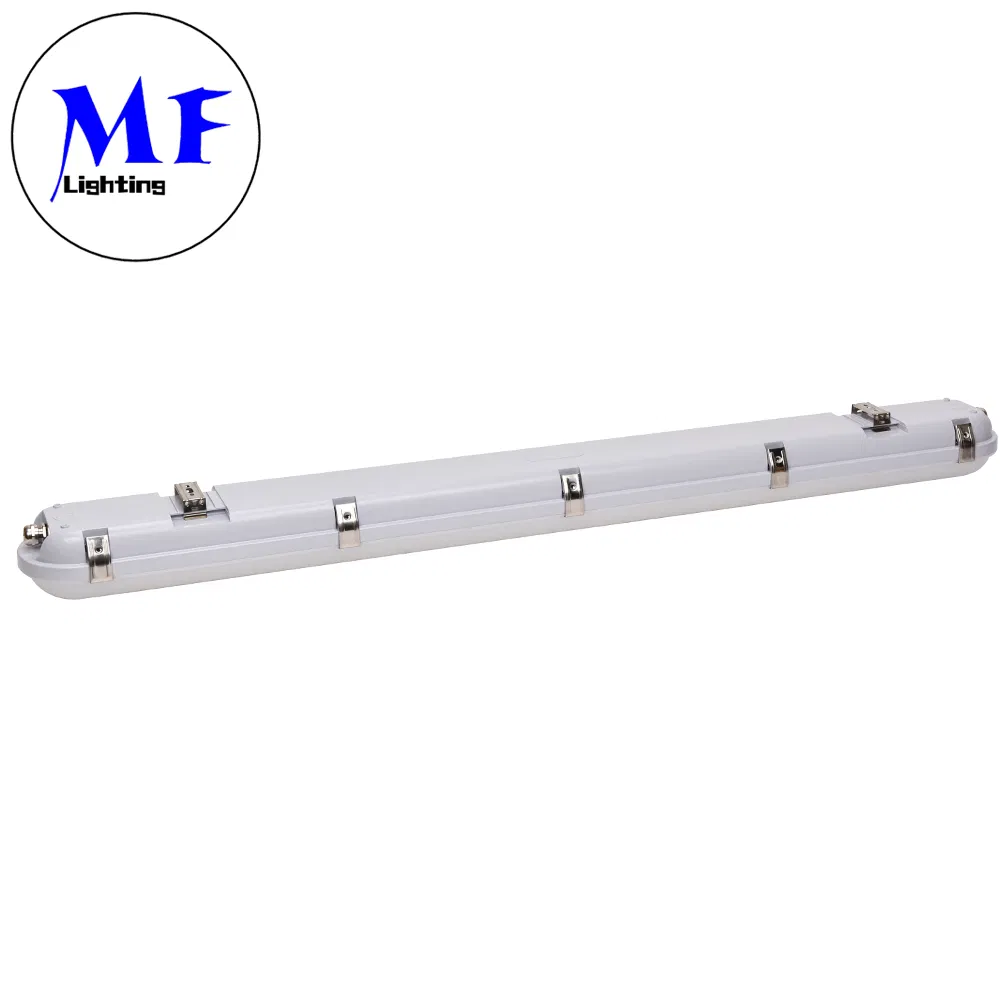

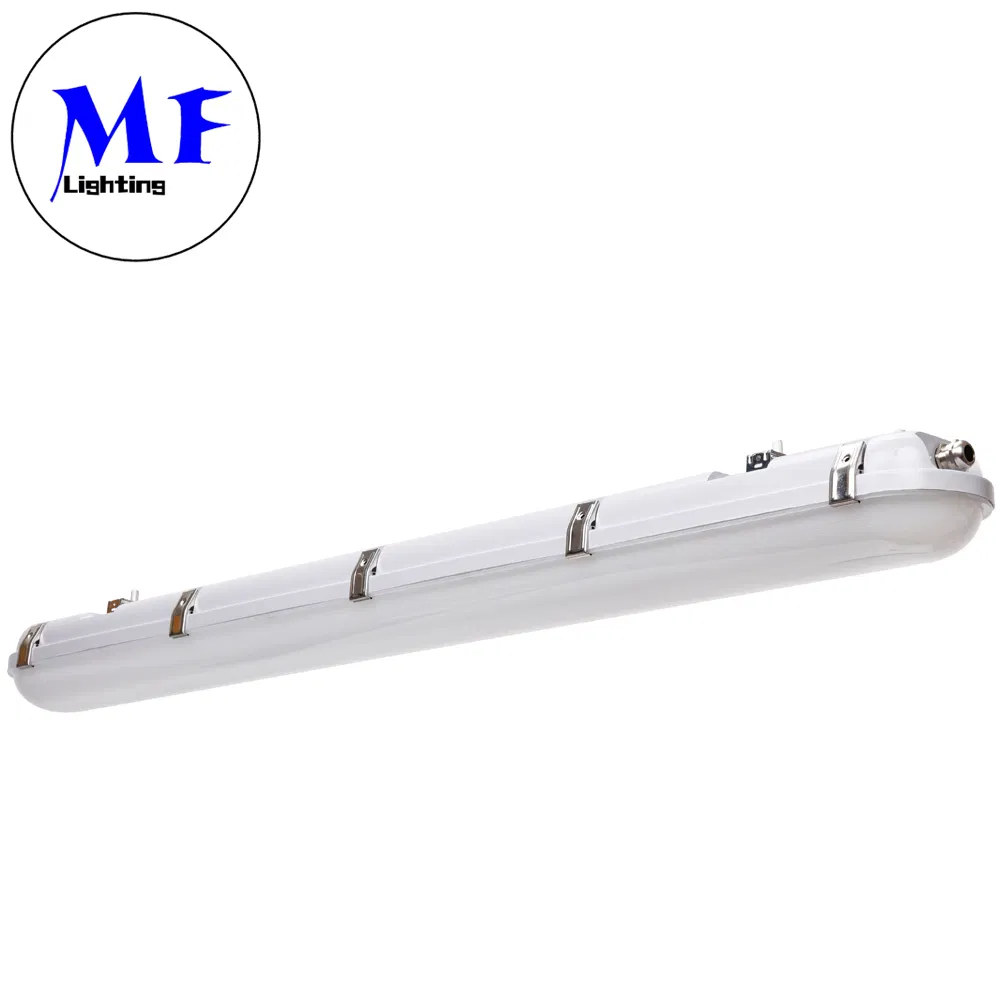

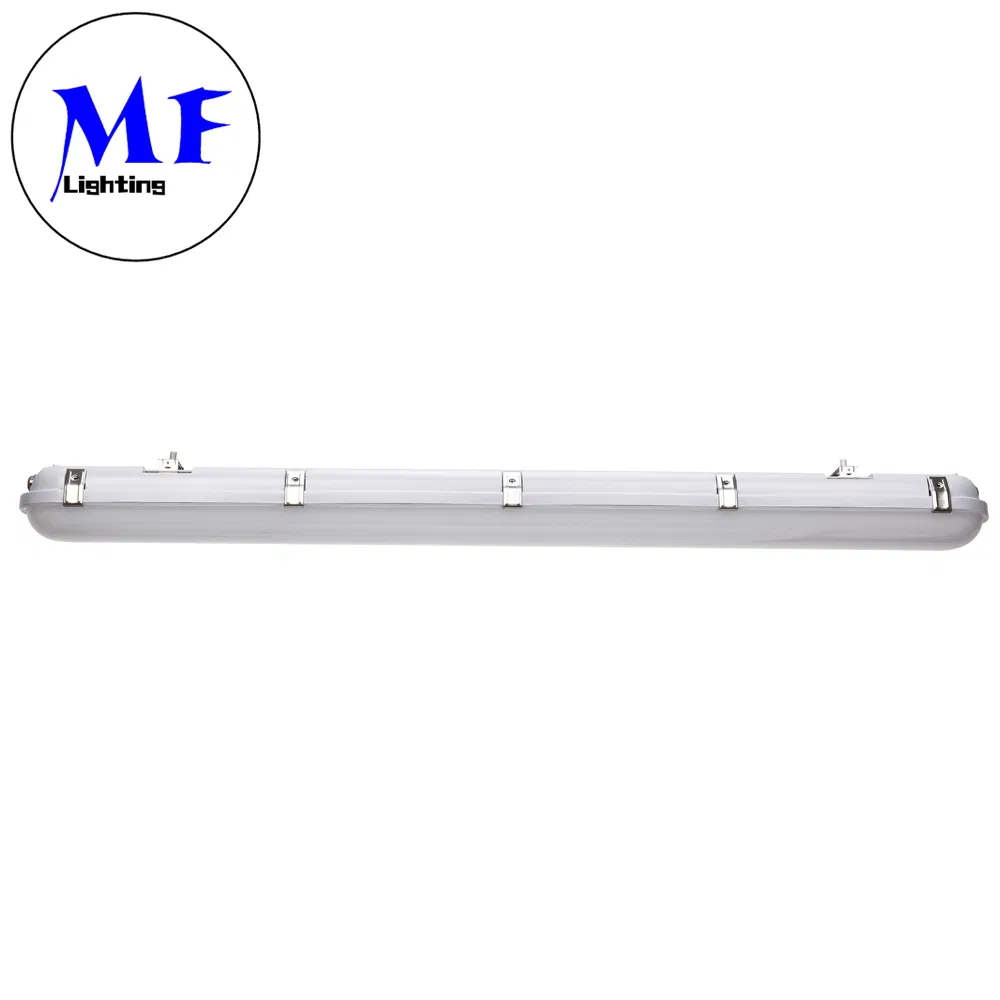

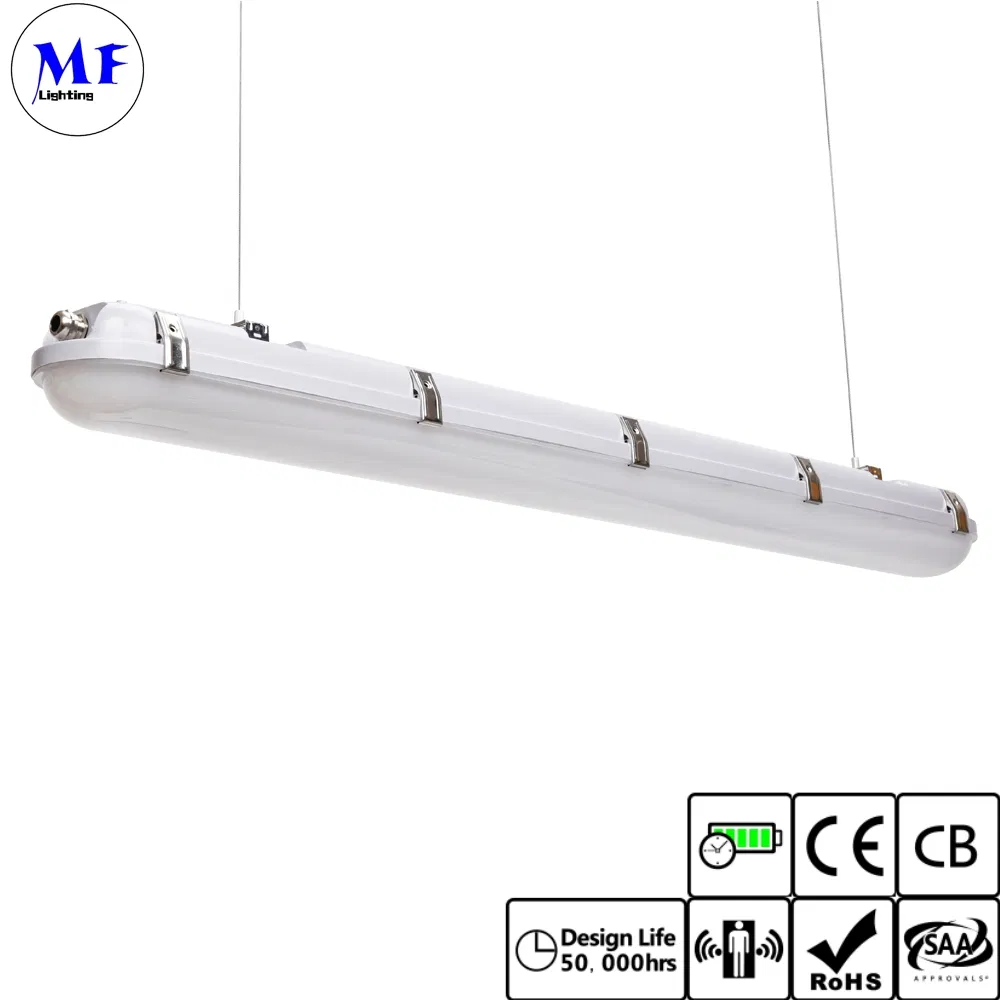

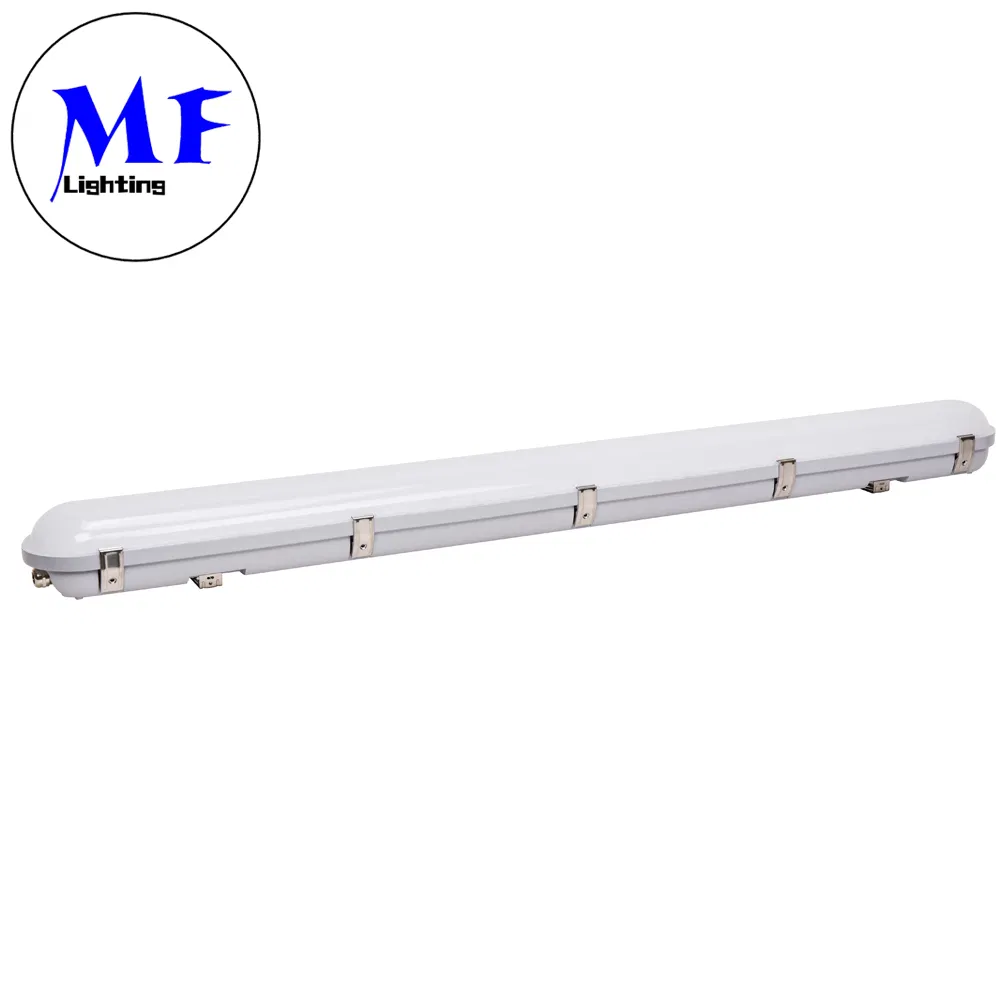

2FT 4FT 5FT Waterproof IP66 20W 40W 60W Linkable Tunnel Railway Train Station Vapor Tight Tube Batten Motion Sensor 90min Emergency RGBW LED Tri Proof Light
Product Description
Product Overview
Quick Detail

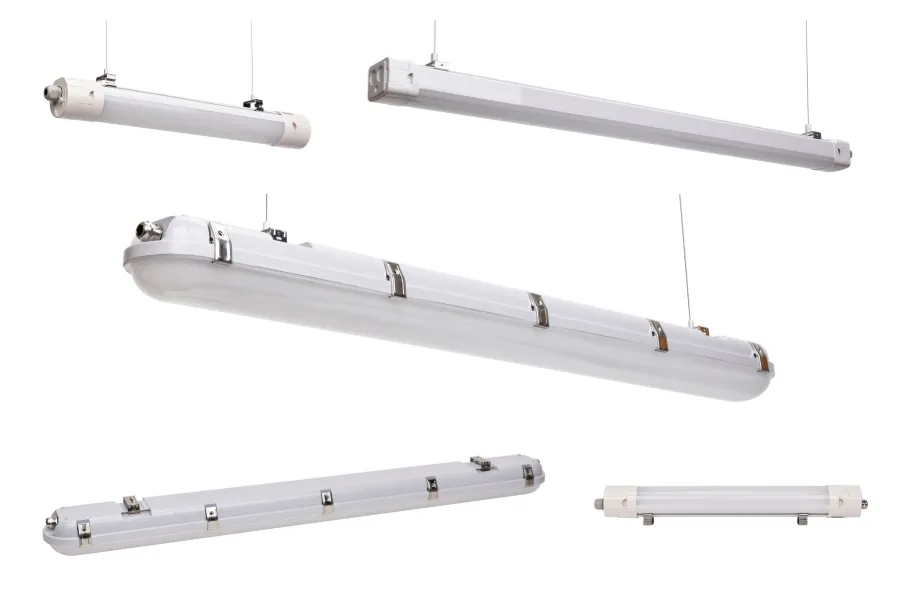

LED Tunnel & Tri-proof Lighting
- Luminous Flux: 140lm/w±10%
- CRI: >85 | PF: >0.95

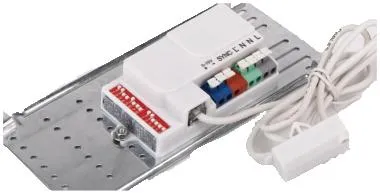

- Sensor: Motion Sensor Available

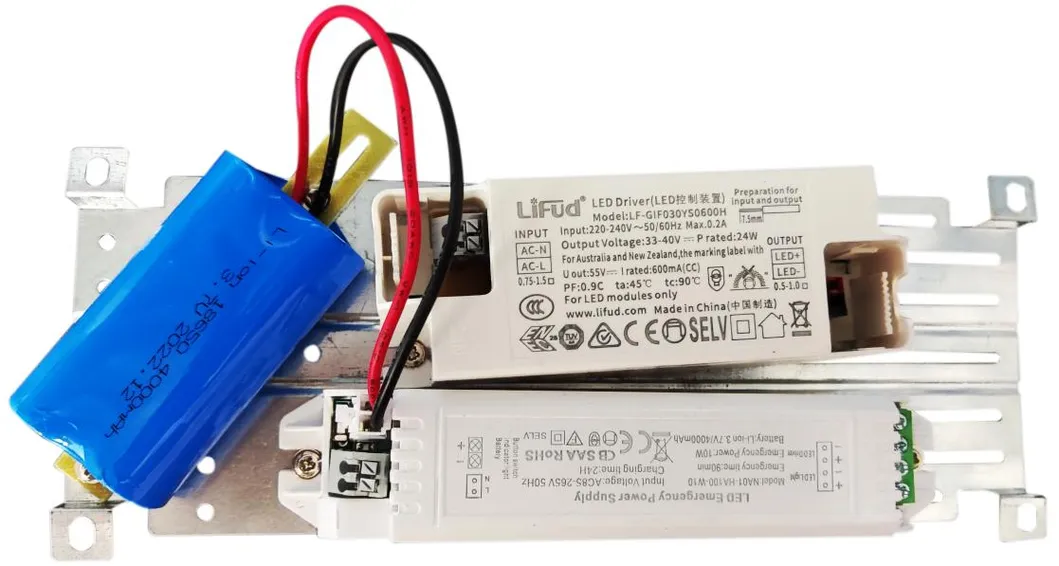

- Emergency Kit: 90min Emergency Time
- Linkable Weather Proof Design
- Available Sizes: 2ft, 4ft, 5ft
Specifications
| Parameter | Details |
|---|---|
| Power (Watt) | 20W / 40W / 60W / 80W |
| Product Size | 2ft(600mm) / 4ft(1200mm) / 5ft(1500mm) / 6ft(1800mm) |
| Color Temperature | 3000K-4500K / 5000K-5500K / 6000K-6500K |

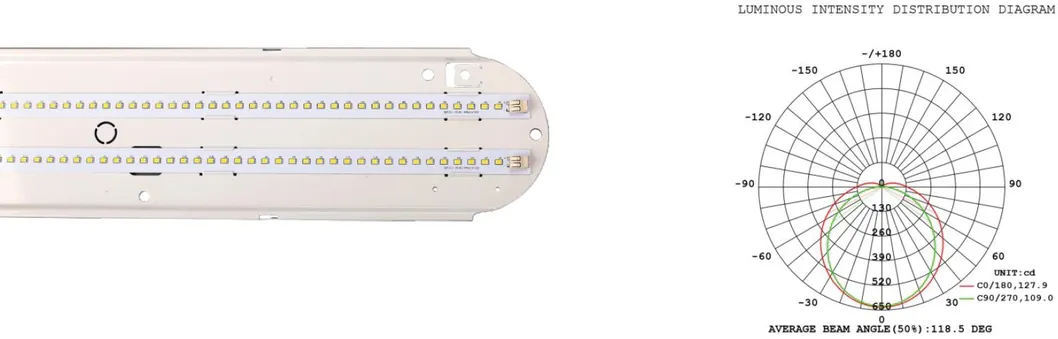

| RGB | RGB Optional |
| Operating Temp | -20°C ~ 40°C |
| Certificate | CE / RoHS |

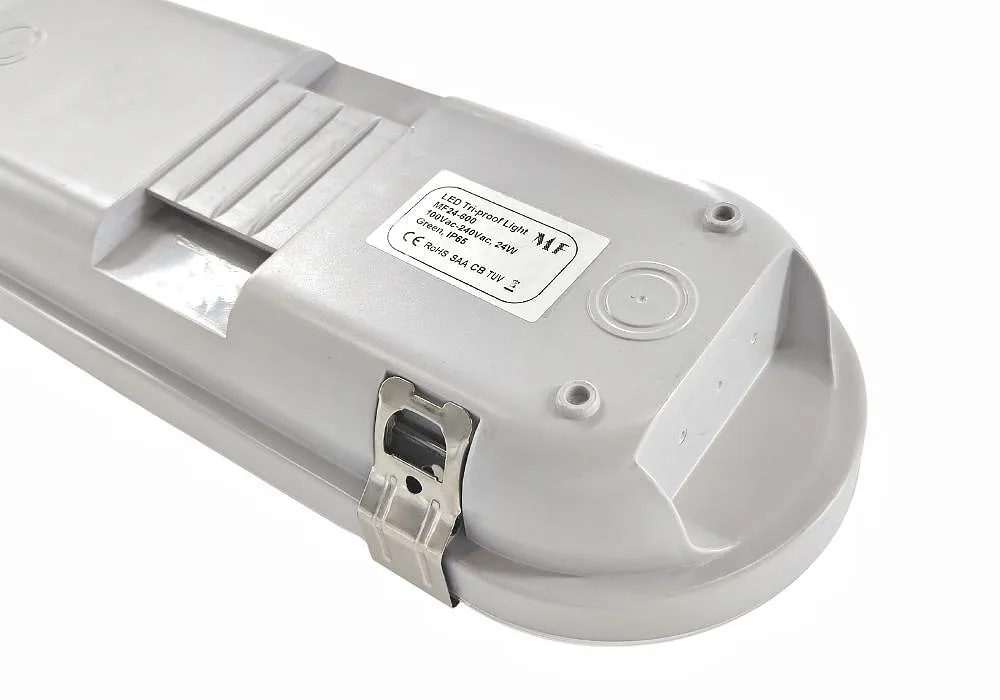

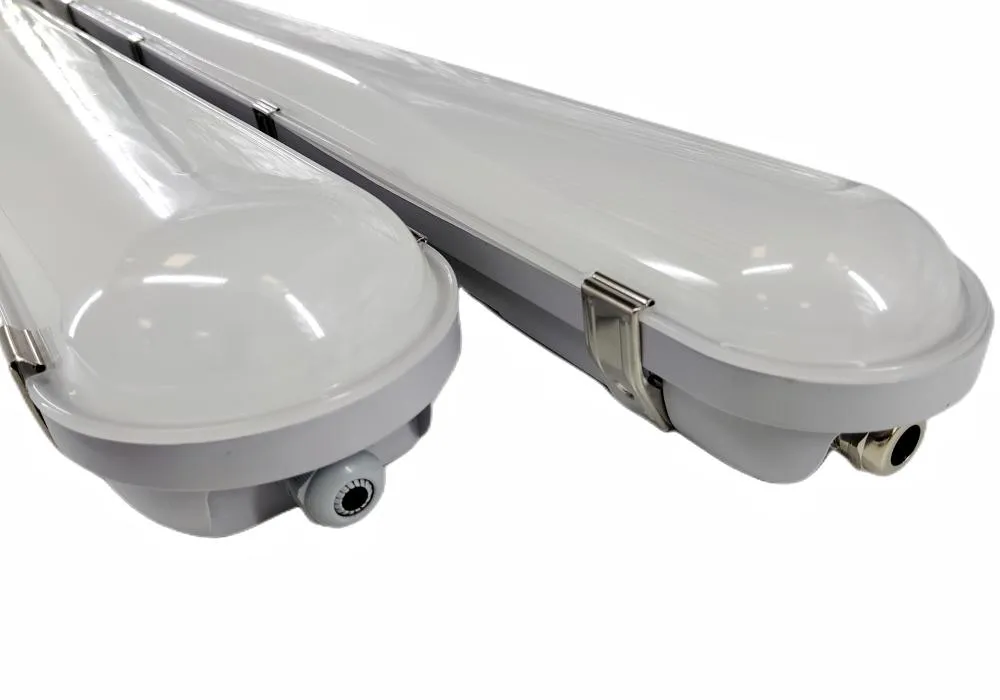

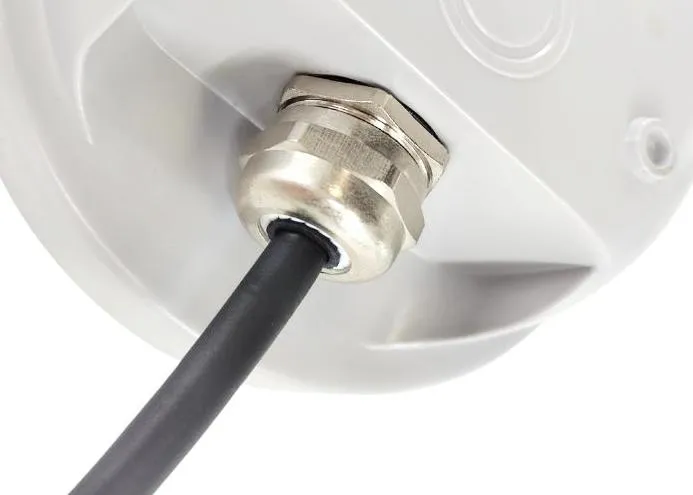

Detailed Photos

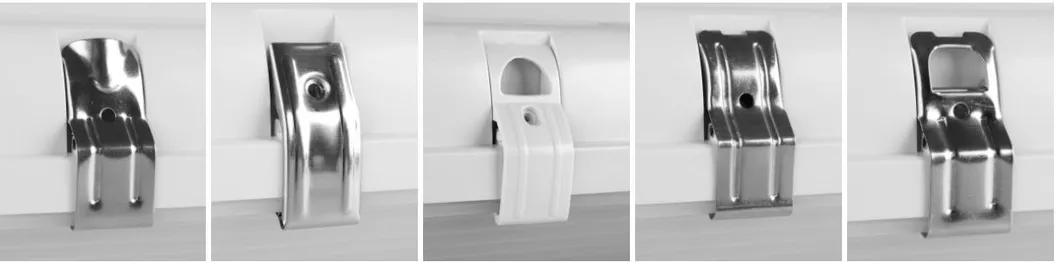

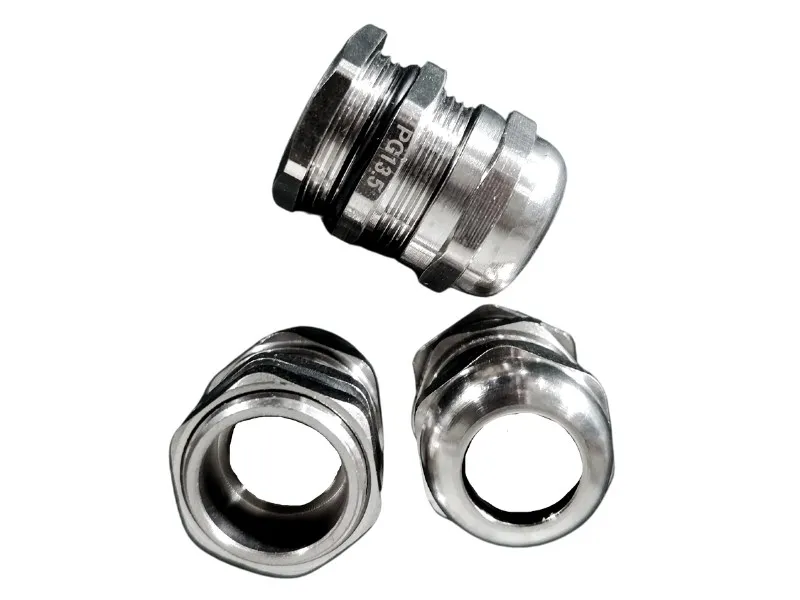

Components & Features

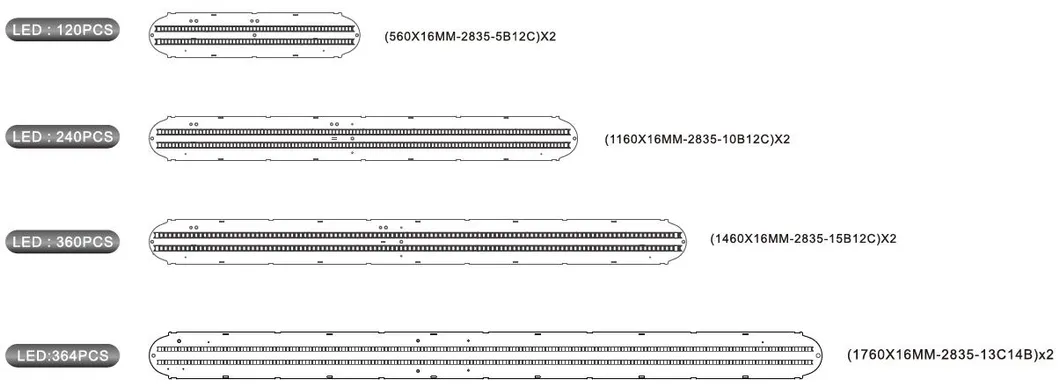

Structure Design

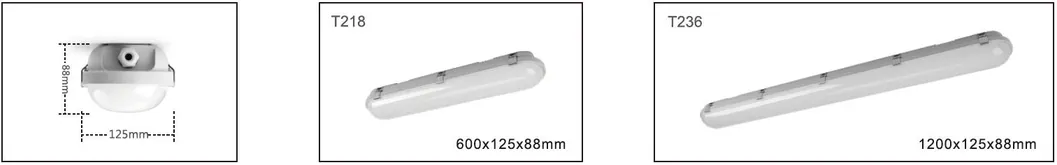

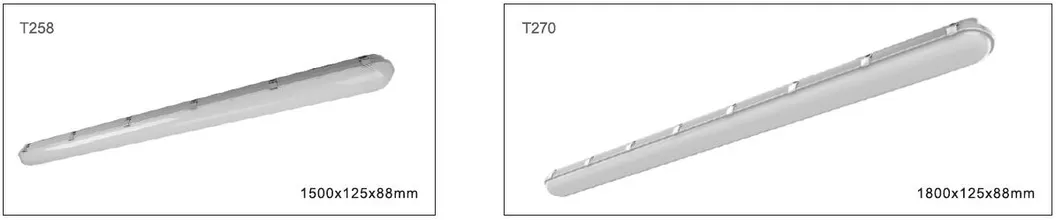

Dimension Data
| Product Code | Dimensions (LxWxH) | Q'ty/ctn | G.W./CTN |
|---|---|---|---|
| MF-T218 | 600x125x88mm | 6 | 8.5kg |
| MF-T236 | 1200x125x88mm | 6 | 14.6kg |
| MF-T258 | 1500x125x88mm | 6 | 17kg |
| MF-T270 | 1800x125x88mm | 4 | 14kg |

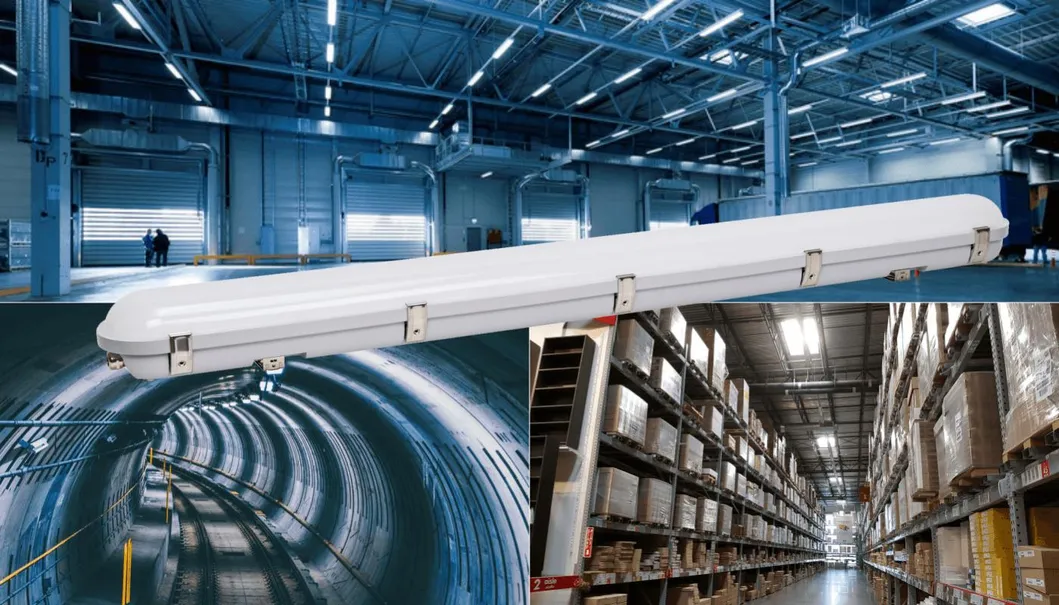

Applications
- Industrial lighting: Perfect for warehouses, factories, and production facilities with high energy efficiency.
- Outdoor lighting: Suitable for car parks, walkways, and building perimeters designed for harsh weather.
- Commercial lighting: Optimal for supermarkets, retail stores, and shopping malls.
- Public lighting: Reliable illumination for airports, train stations, and bus terminals.
- Agricultural lighting: Ideal for greenhouses and livestock farms to promote growth.
Frequently Asked Questions
Our main products include LED Tri-proof lights, LED High Bay lights, LED Flood lights, Explosion Proof lights, and specialized underwater/garden lighting solutions.
We generally have no strict MOQ request for standard products. For customized models, we offer free customization for orders exceeding 1000 pieces.
Samples typically take 5-7 working days, while mass production requires approximately 20-30 working days depending on the order volume.
We accept T/T, Western Union, and Paypal. Standard terms include 50% advance and 50% balance. Shipping terms include EXW, FOB, CIF, and DDP.
Each unit is packed in an individual color box and then secured in a strong master carton to ensure safe transport.
Yes, we provide full OEM and ODM services supported by our internal design team to meet your specific project requirements.
