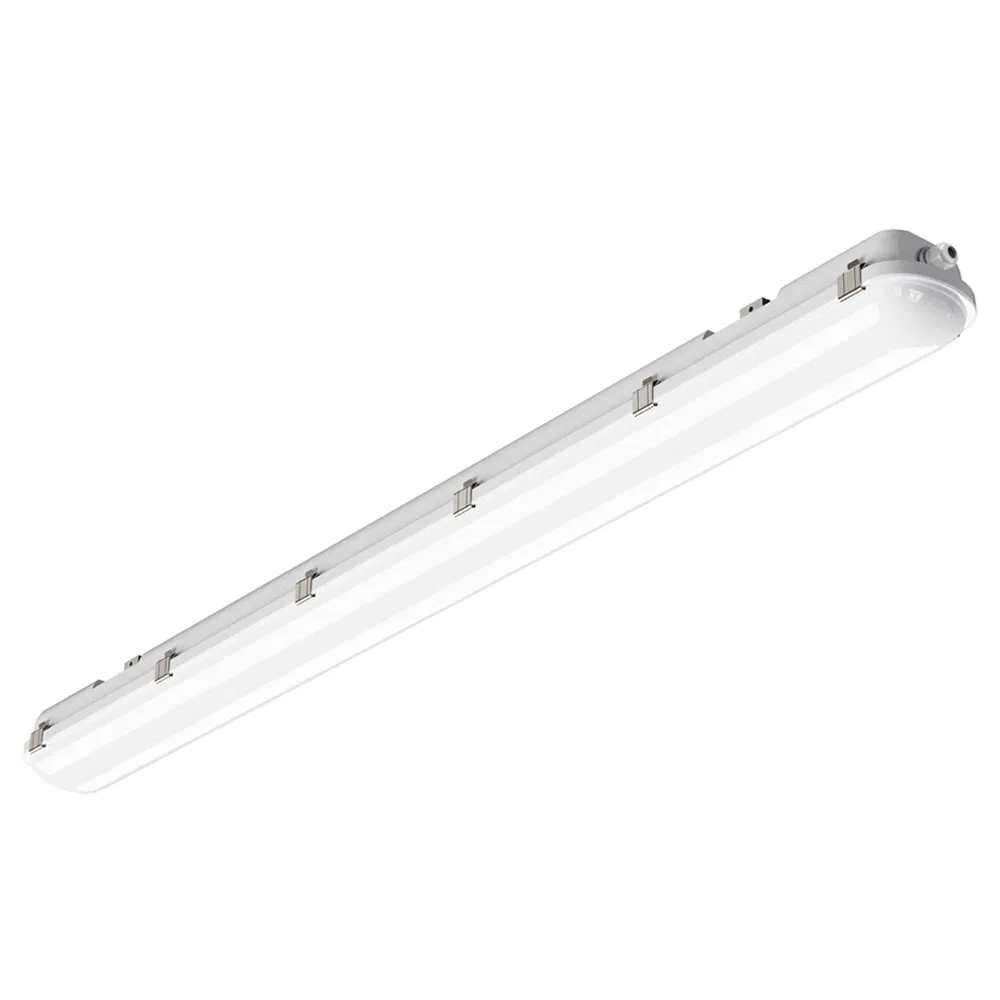

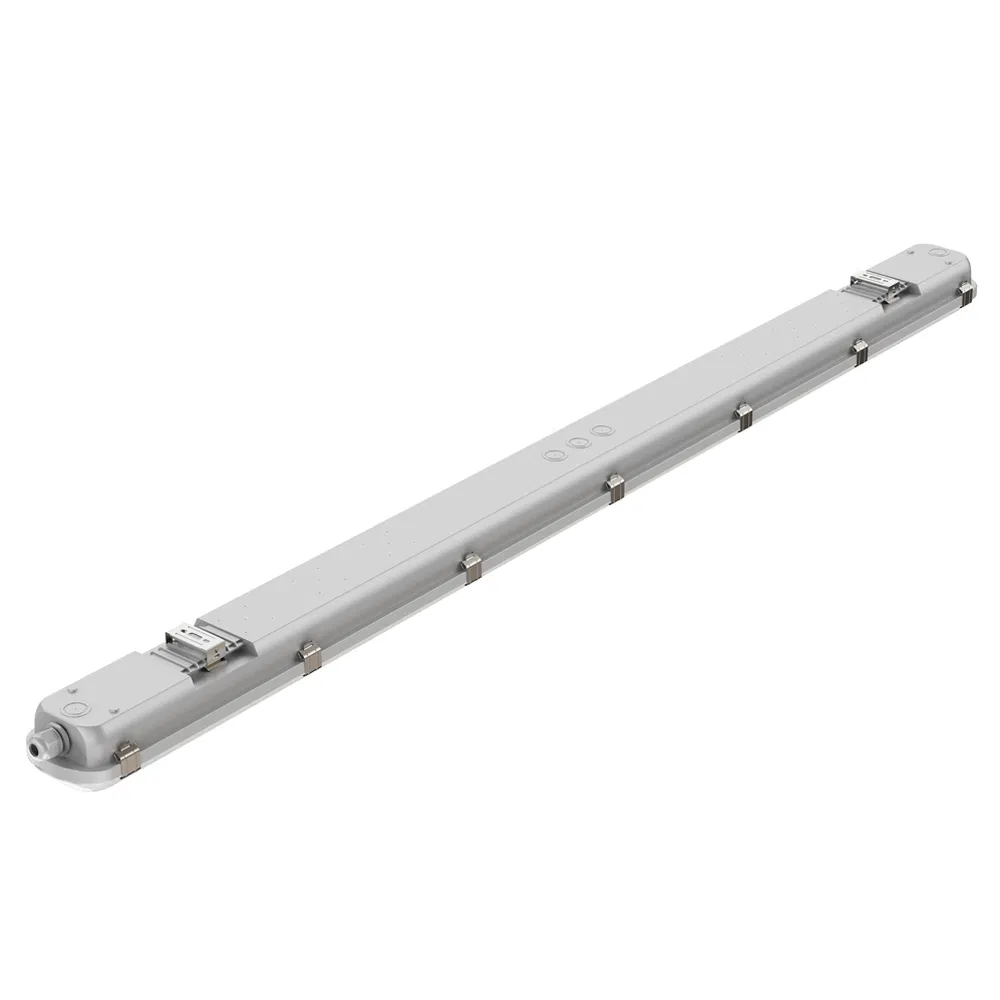

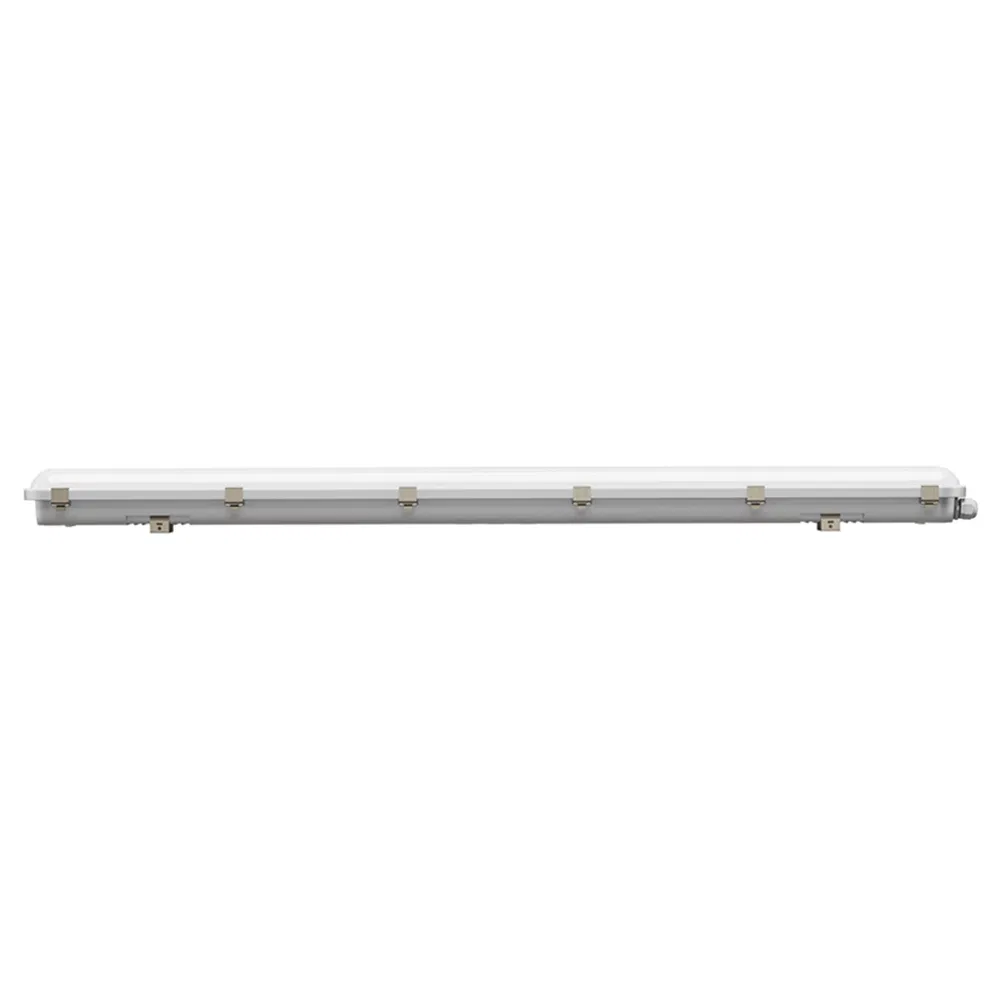

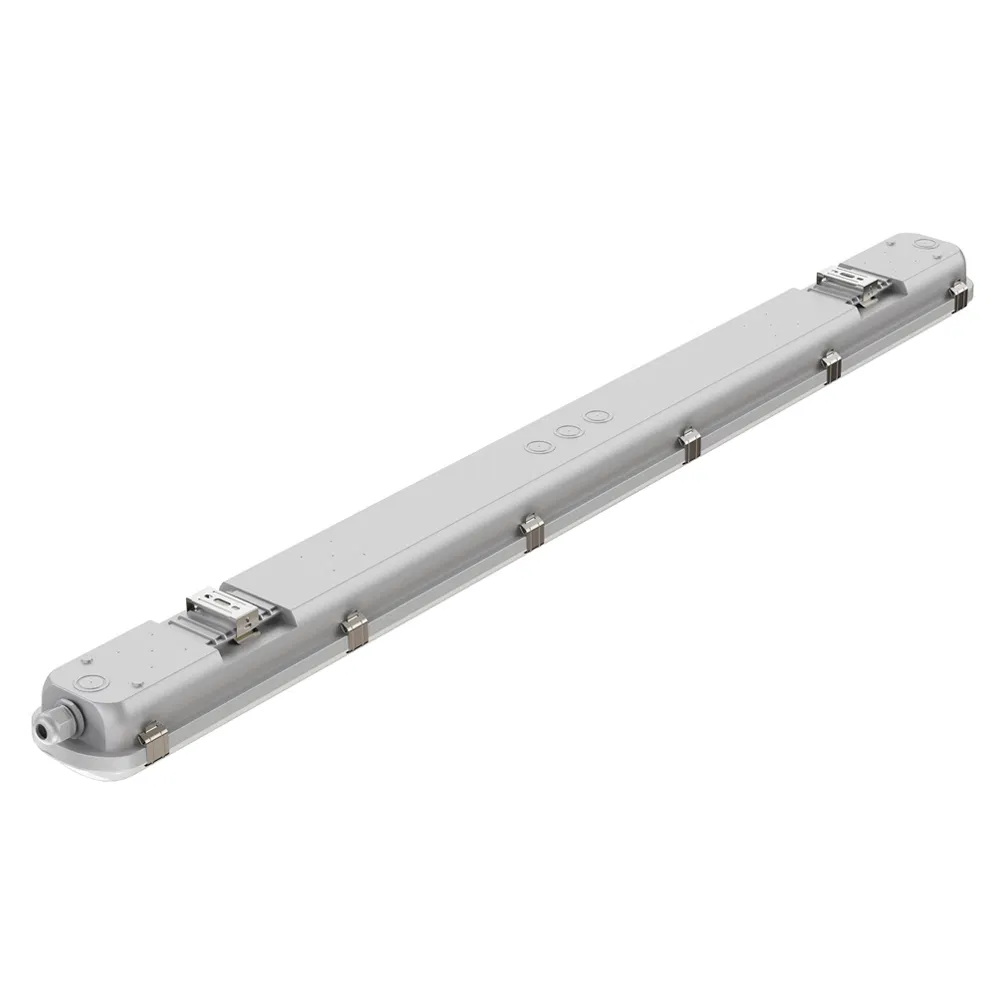

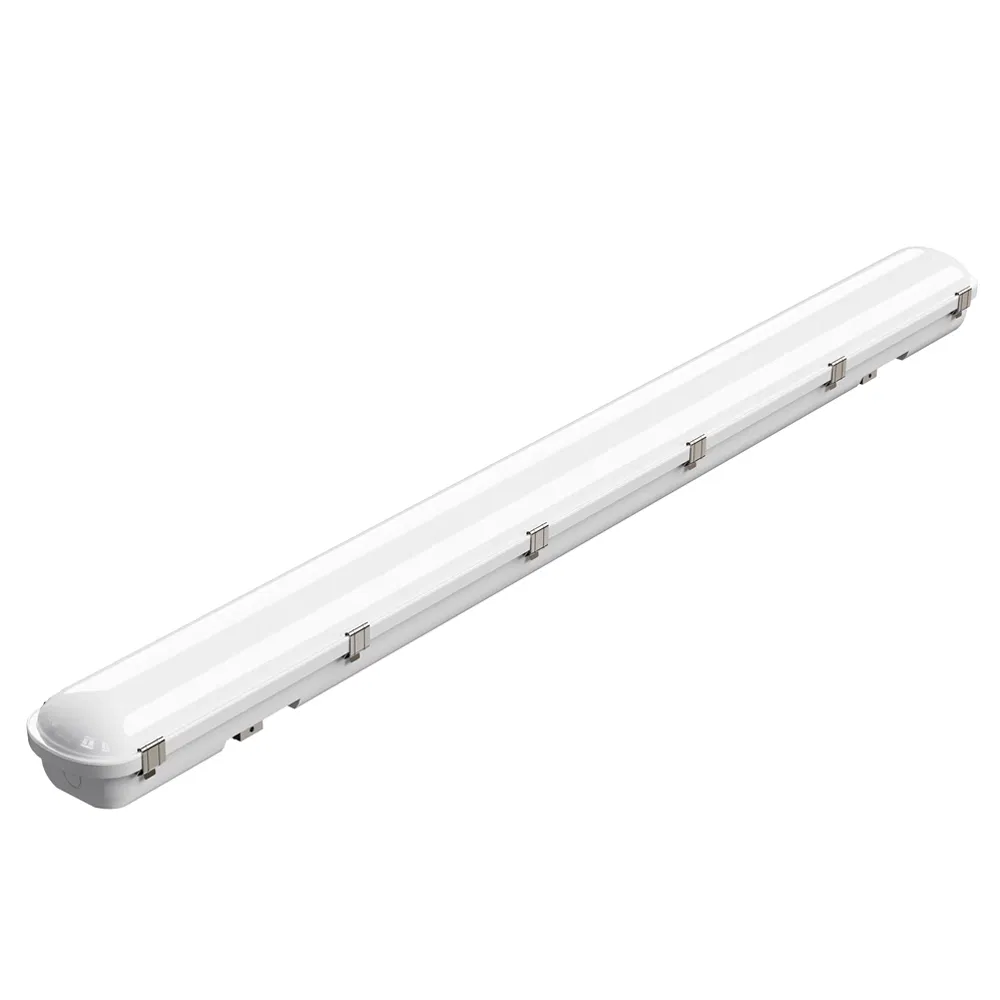

3FT 4FT 5FT Waterproof Vapor Tight Lighting LED Underground Parking Tri Proof Linear Dust Proof Batten Light for Garage
Product Description
ℹ️ Basic Information
Model No.
ETP36W
Material
High-Quality Plastic
IP Grade
IP66 (Waterproof & Dustproof)
Origin
China
💡 Product Description

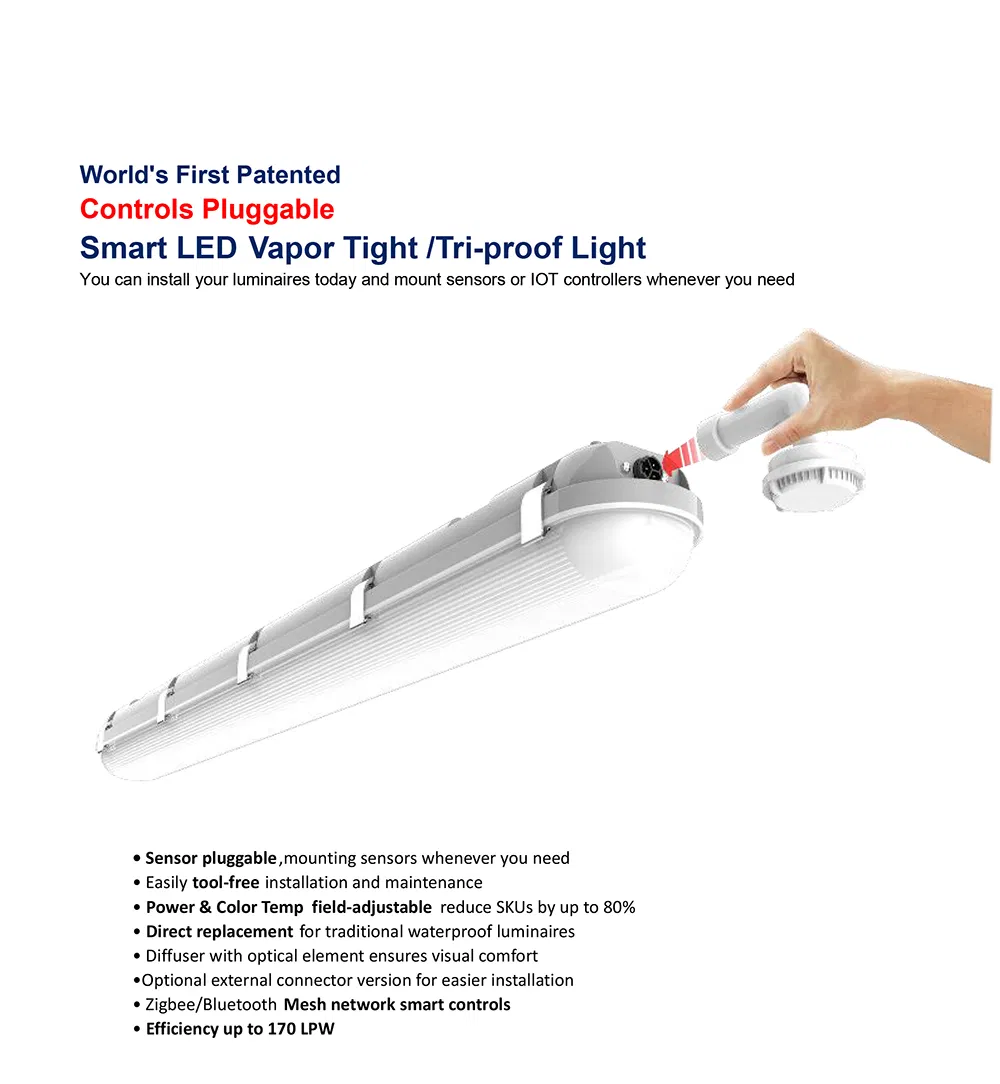

3FT 4FT 5FT Waterproof Vapor Tight Lighting LED Underground Parking Tri-Proof Linear Dust Proof Batten Light, specifically designed for garages and industrial environments.
Key Features:

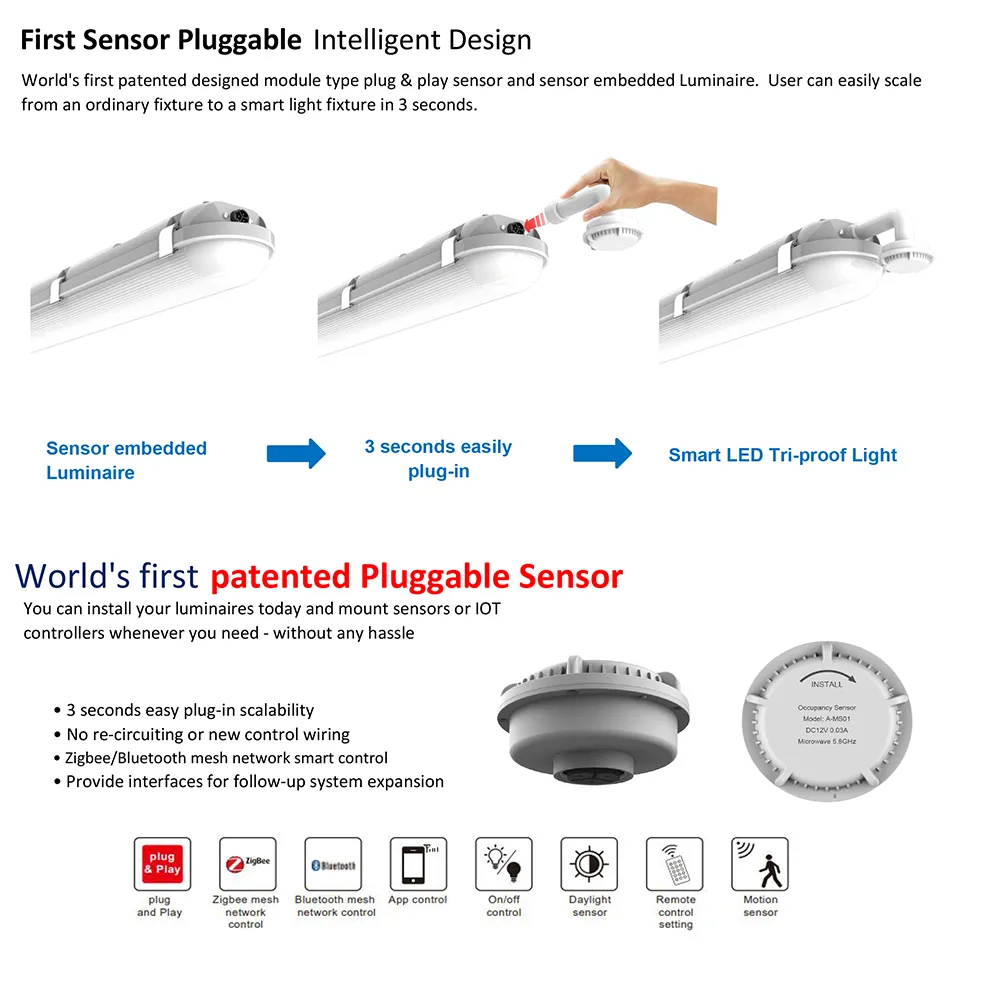

- Pluggable sensor for smart functionality.
- Easy tool-free installation and maintenance.
- Field-adjustable Power & Color Temperature (CCT), reducing SKUs by up to 80%.
- Optional external connector version for simplified wiring.
- Advanced smart controls: Zigbee / Bluetooth Mesh network compatibility.
📋 Technical Specifications
| Traditional LED Tri-proof Light - ETP Series | |
|---|---|
| Input Wattage | 20W, 36W, 50W, 80W (Adjustable Wattage Available) |
| Input Voltage | 100-277VAC / 100-240VAC (347V optional) |
| System Efficiency | Up to 130lm/W (170lm/W optional) |
| Dimming | 0-10V, DMX, Dali2 (Dimmable and Non-dimmable options) |
| CRI / CCT | CRI 80/90; 3000K, 4000K, 5000K (Adjustable) |
| IP Rating | IP66 for dust and water protection |
| Operating Temp | –30°C to +45°C (-22°F to 122°F) |
| Lifespan / Warranty | 50,000 Hrs / 5 to 10 Years Warranty Options |

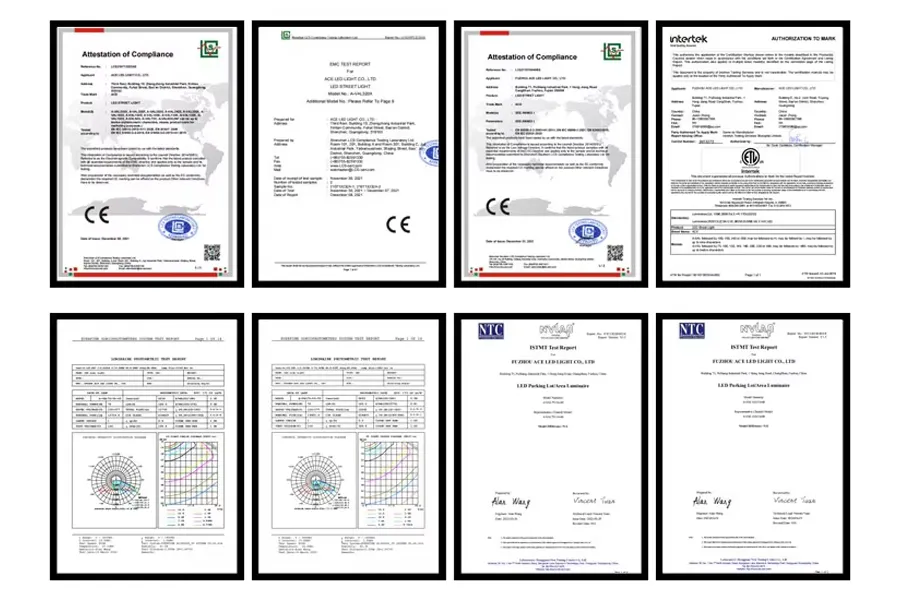

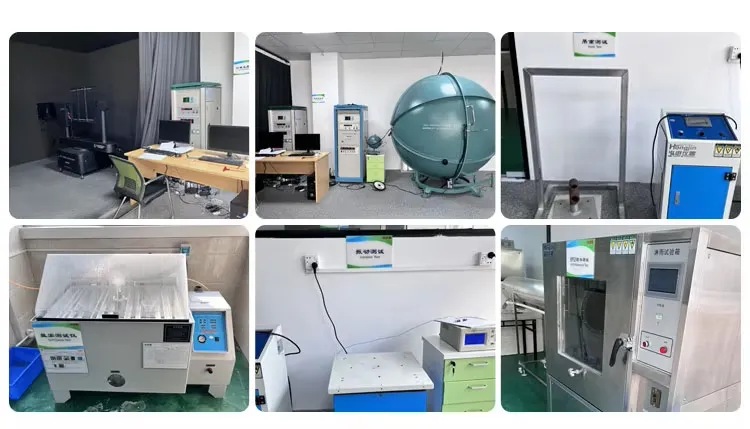

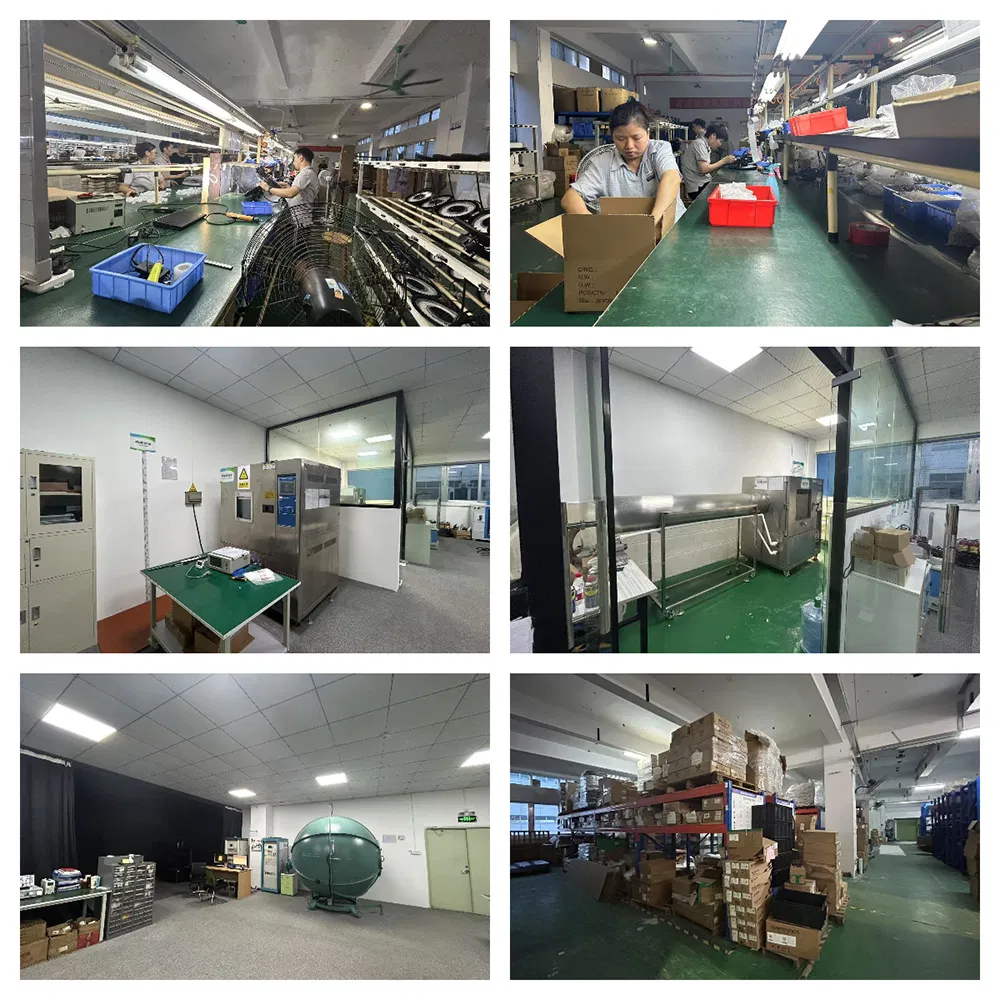

🛡️ Quality Assurance & Facilities
📦 Packaging & Shipping
❓ Frequently Asked Questions
Can I have a sample order for this LED light?
Yes, we welcome sample orders for testing and quality checking. Mixed samples are also acceptable.
What is the typical production and delivery time?
Sample orders take 5-7 days, while mass production takes 15-25 days. Delivery via express takes 5-10 days depending on your location.
Do you support OEM and ODM services?
Yes, we provide full ODM and OEM services, including logo placement on lights/packaging and custom color box design.
How do you handle defective products?
Our defect rate is less than 0.2%. We offer a 5-year warranty; if defects occur, we will provide replacement lights or credit them toward your next order.
What are the available dimming options for this tri-proof light?
We offer 0-10V dimming as standard for US markets, non-dimmable as standard for EU, and optional DMX or Dali2 control systems.
Is the wattage and color temperature adjustable?
Yes, the ETP series features field-adjustable power and CCT settings, which helps significantly reduce inventory SKUs.
