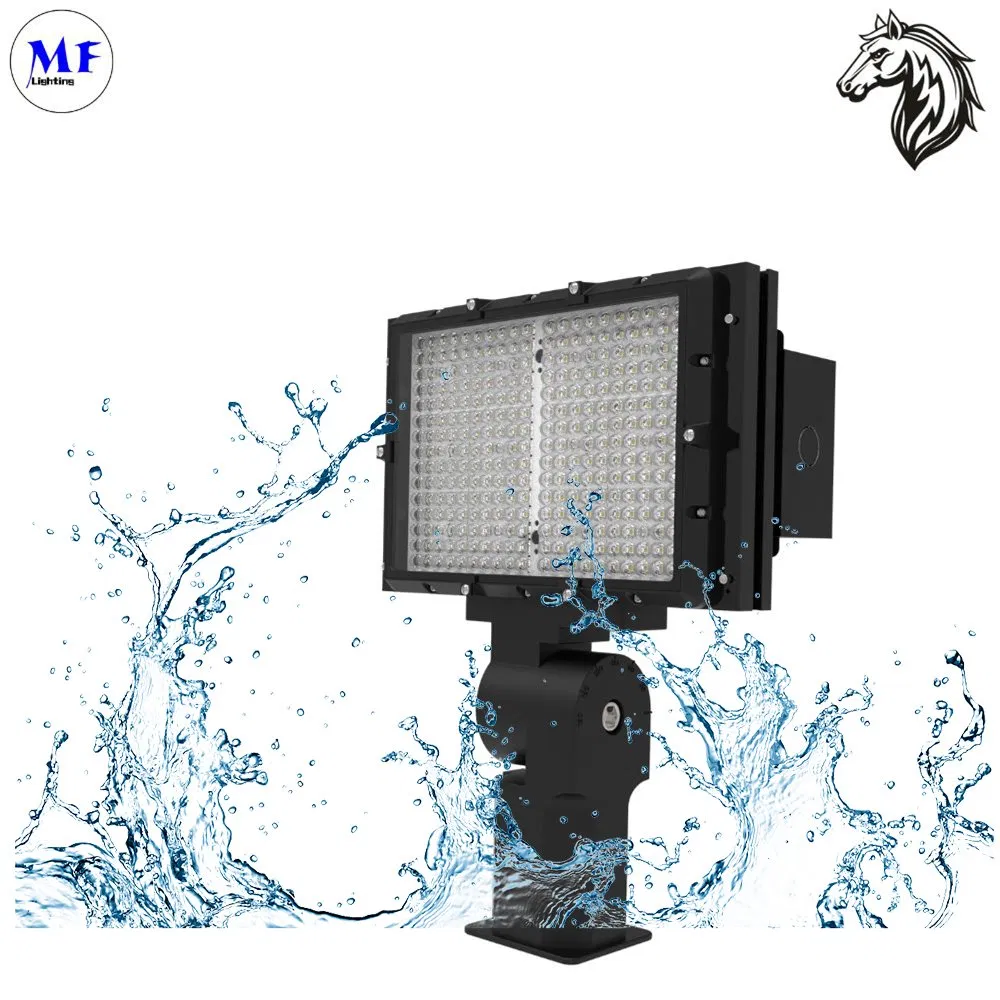

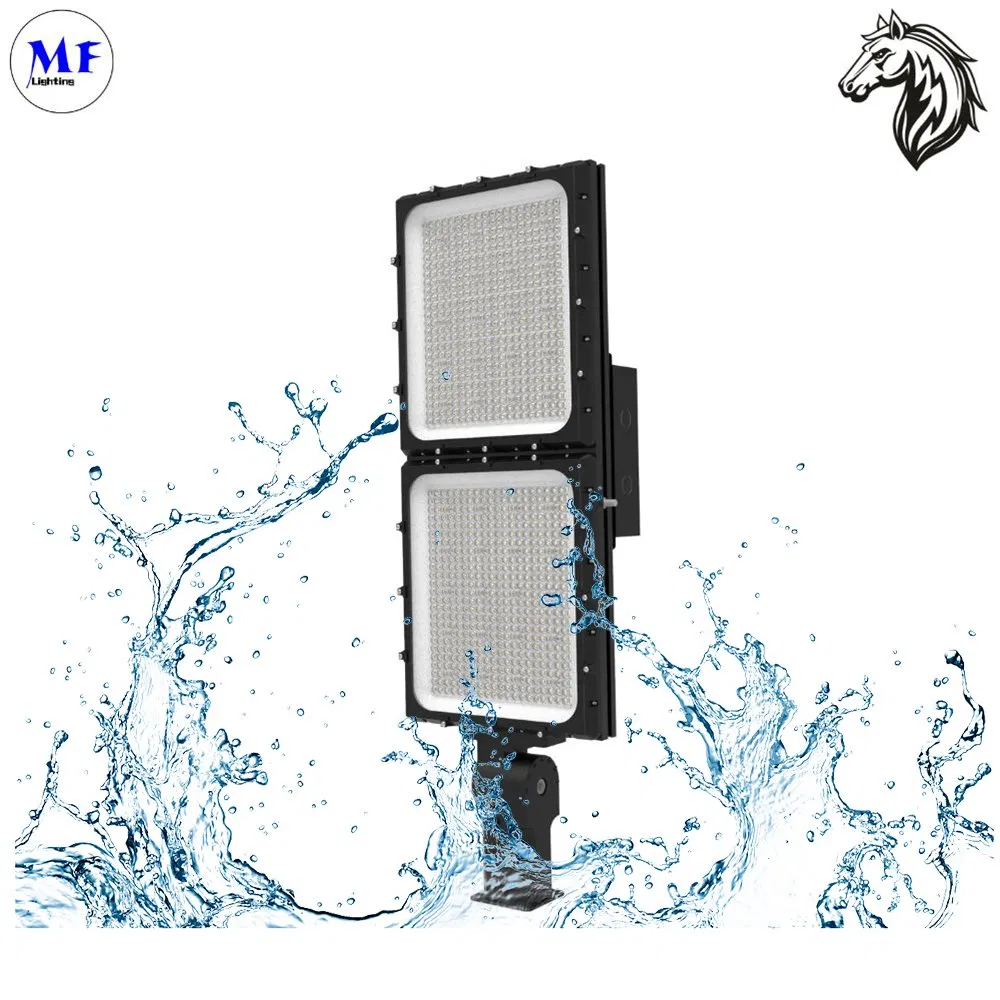

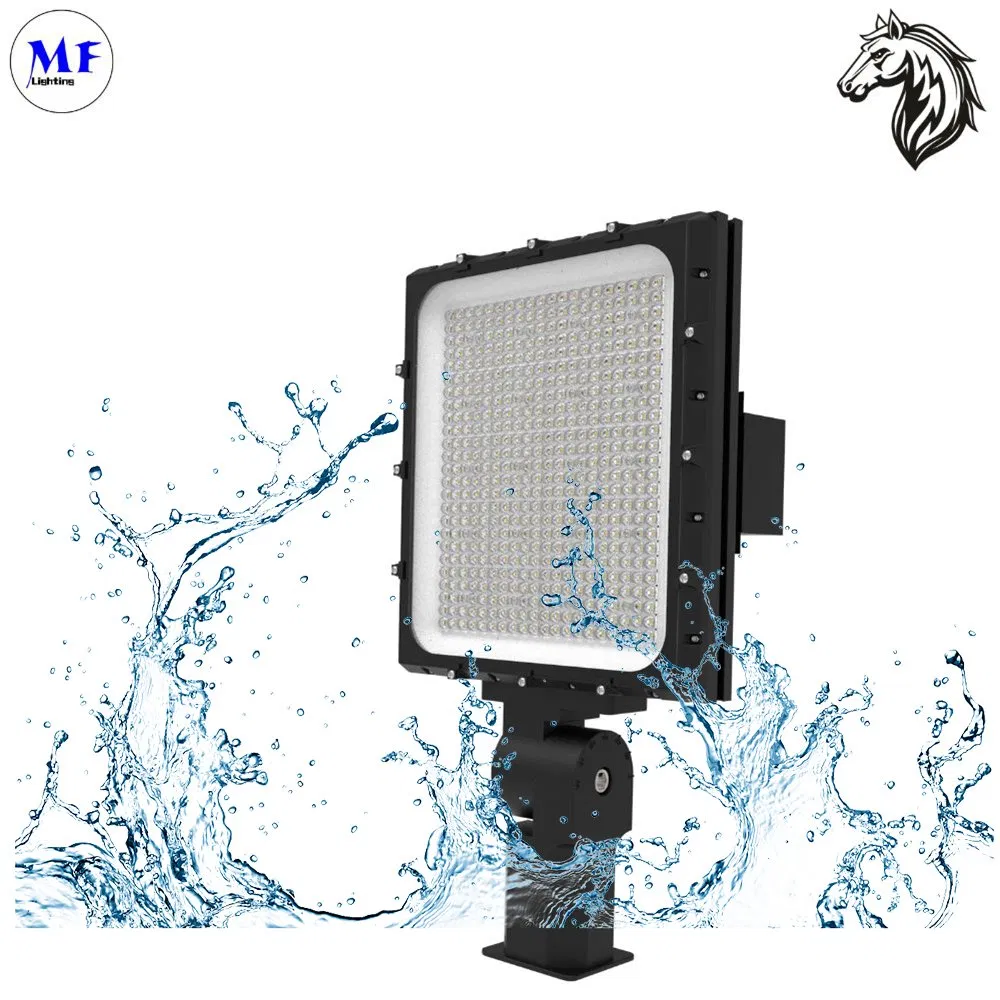

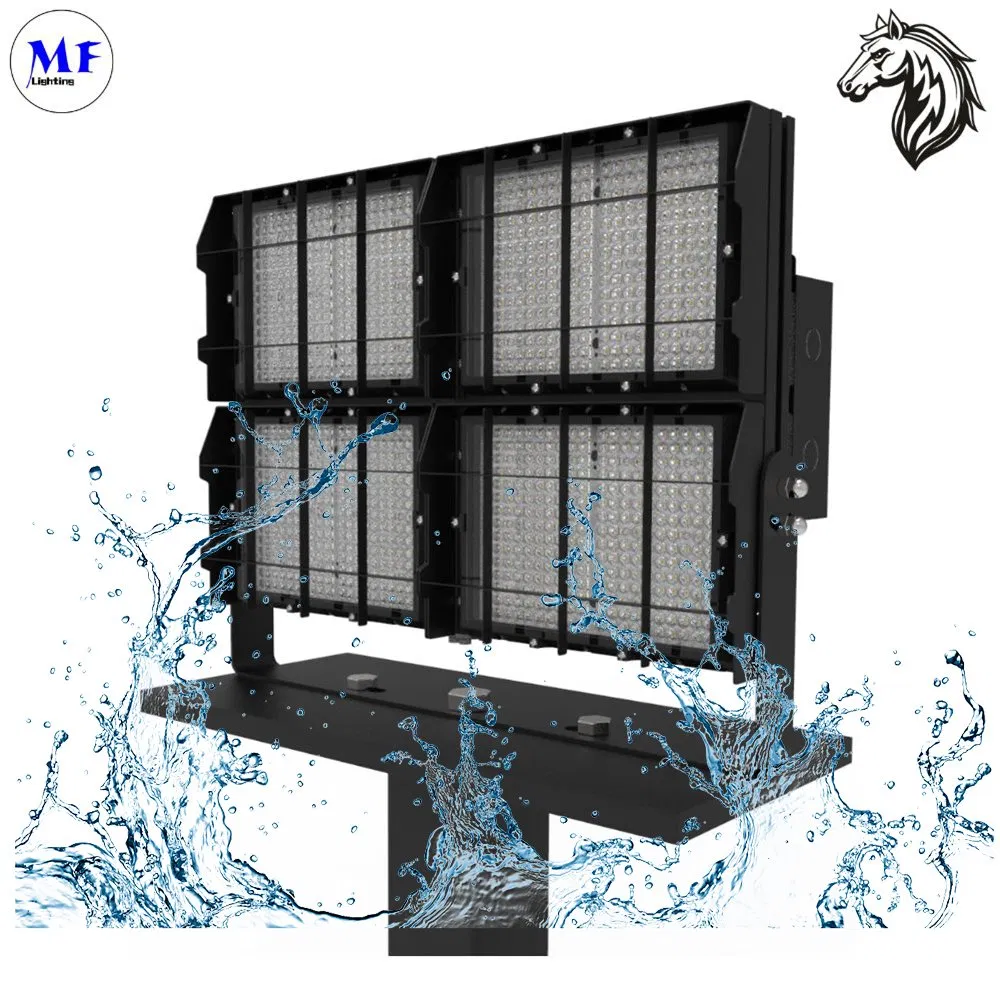

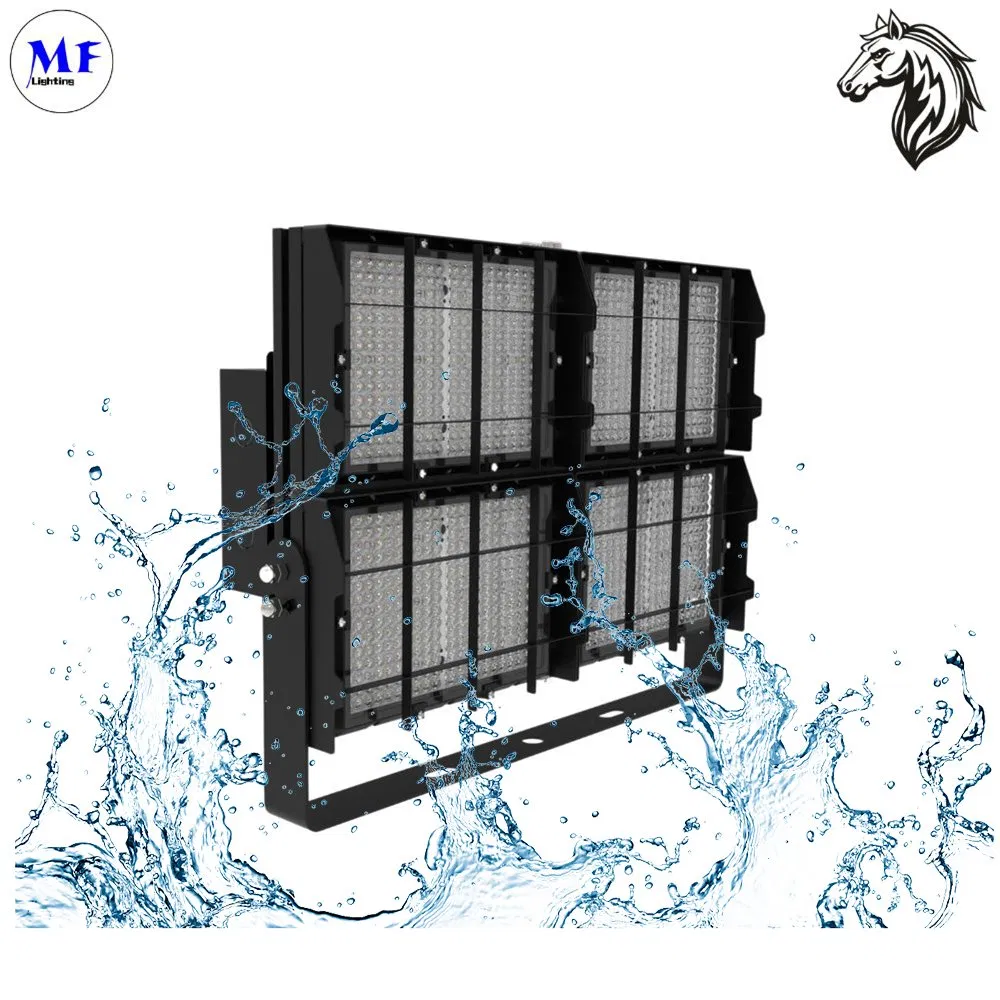

Factory Price IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof 400W LED Flood Light for Arena Tennis Basebal Field Court Golf Course
Product Description
Model No.
MF-S06A400BT-H8G2/N4
Pole Height
25-30m
Power Range
200W - 1200W
IP Rating
IP67
Certification
CE, CQC, EMC, Energy Star, ETL, FCC, RoHS, SAA
Input Voltage
AC100-277V, 50-60Hz
LED Chips
Lu-Mileds 5050/3030
Luminous Efficacy
145lm/W ~ 155lm/W
Beam Angle
15°/25°/40°/60°/90°/P45°
Lifespan
>50,000 hrs
Surge Protection
10KV
IK Rating
IK09
IP67 Waterproof Outdoor LED Flood Light with Vertical Module Design - Ideal for Arena, Tennis, Baseball Field, Court, and Golf Courses.

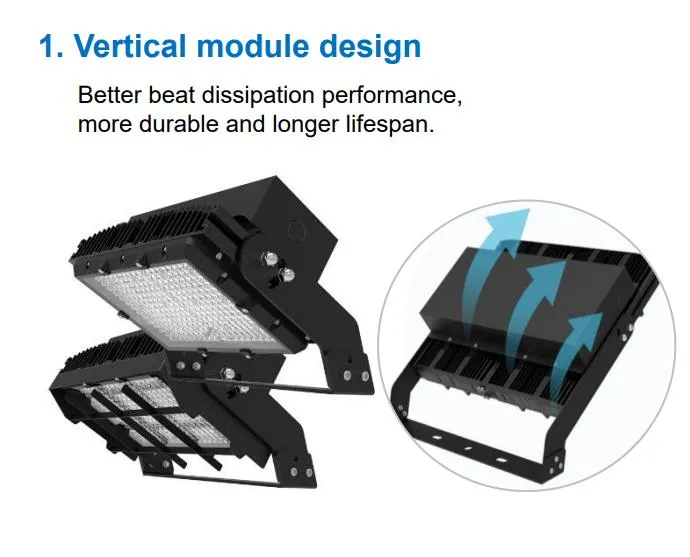

- Vertical module design: Provides superior heat dissipation performance, ensuring a more durable and longer lifespan.

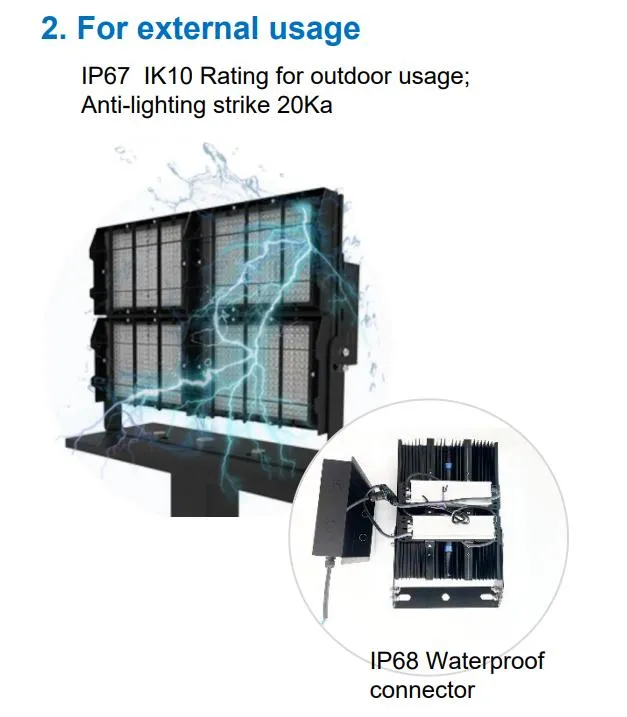

- Built-in driver: IP67 waterproof shell protection offers double safety and durability.

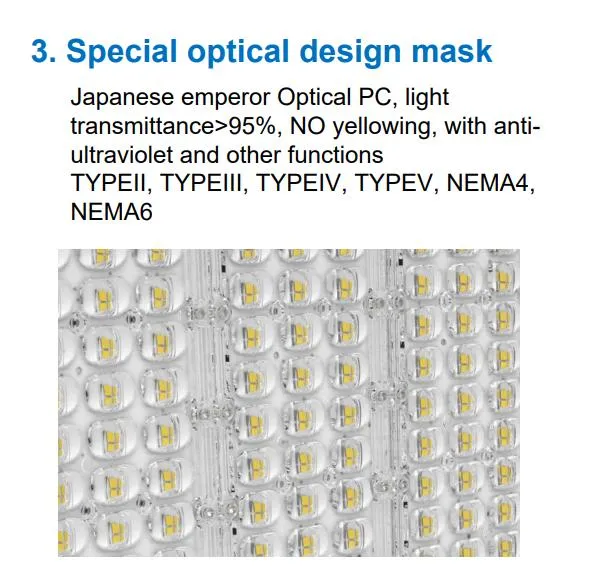

- Special optical design mask: Utilizing Japanese high-quality Optical PC, light transmittance exceeds 95% with anti-yellowing and anti-ultraviolet properties.

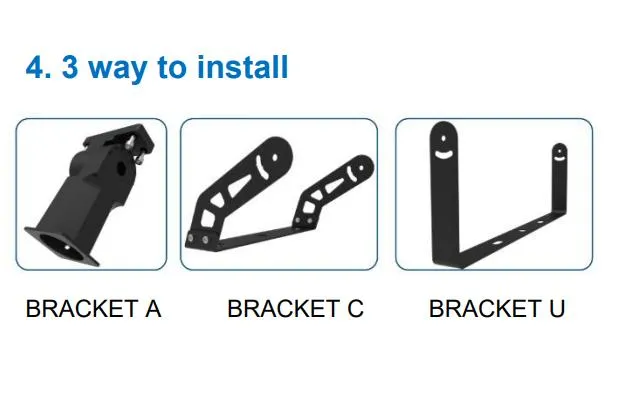

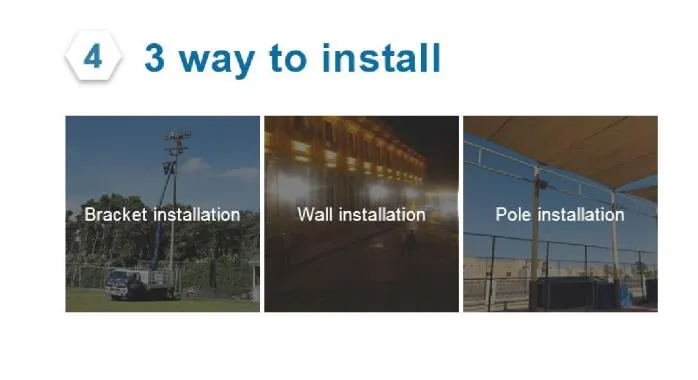

- Flexible Installation: Supports 3 different ways to install for maximum versatility.

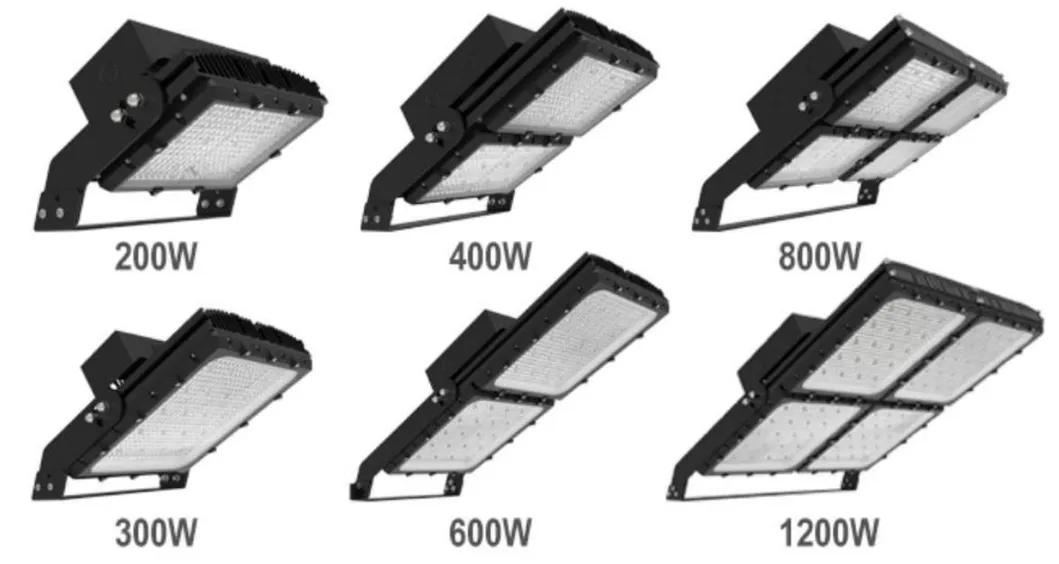

| Items | 200BT | 300BT | 400BT | 600BT | 800BT | 1200BT |
|---|---|---|---|---|---|---|
| Wattage | 200W | 300W | 400W | 600W | 800W | 1200W |
| Lumen Output | 28000LM | 42000LM | 56000LM | 84000LM | 112000LM | 168000LM |
| LED Driver | SOSEN / MEANWELL / INVENTRONICS | |||||
| Color Temp | 3000K, 4000K, 5000K, 6000K, CCT etc. | |||||
| Luminous Efficacy | 145LM/W ~ 155LM/W | |||||
Professional Lighting Solutions
- Free OEM/ODM Services.

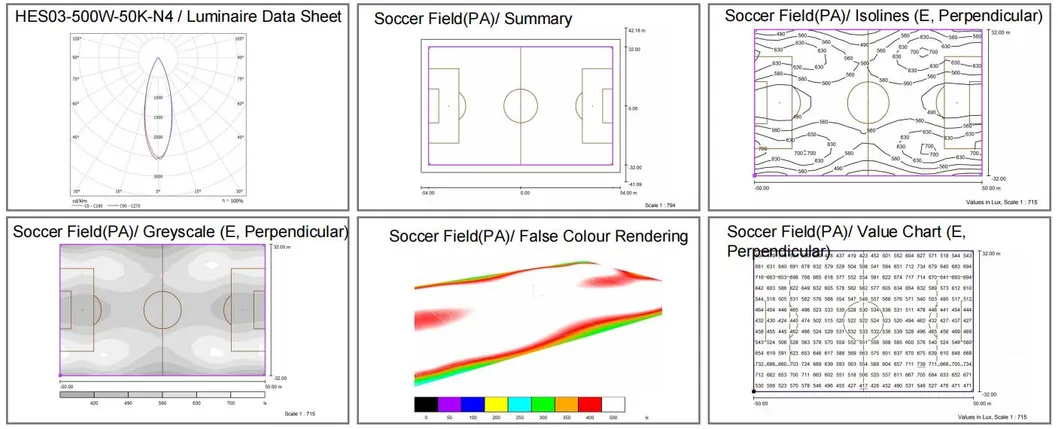

- Free DIALux simulation and testing services for your specific projects.
- 8 years of engineering experience to escort your project from start to finish.
- Complete certification (CE, RoHS, ETL, FCC) and detailed test reports.
- 5 years warranty with free replacement support.

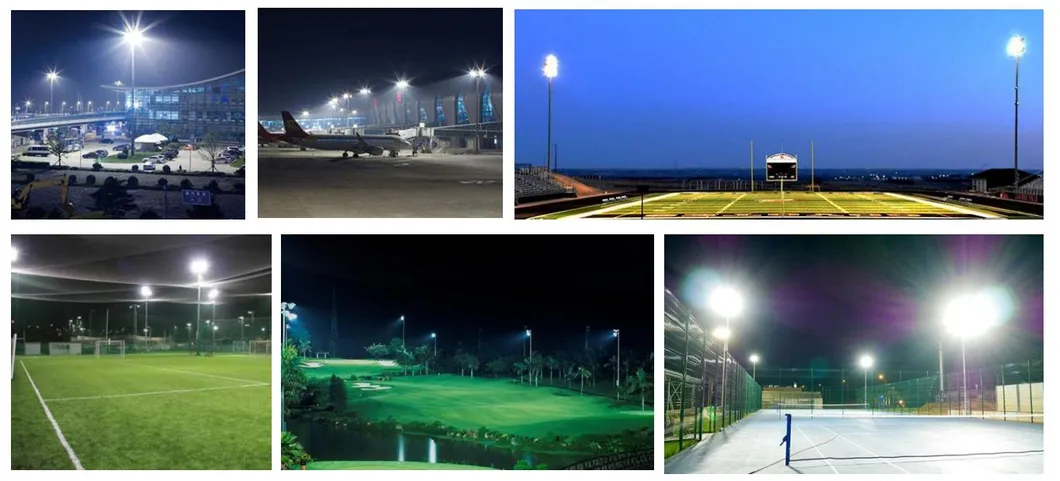

Ideal for football pitches, sports fields, airport hangers, wharfs, tower cranes, golf courses, and stadiums.
| Item# | 200BT | 300BT | 400BT | 600BB | 800BB | 1000BB |
|---|---|---|---|---|---|---|
| N.W. | 7.1kg | 10.14kg | 12.82kg | 19.7kg | 25.8kg | 33.38kg |
| Carton Size (mm) | 360*475*160 | 470*475*160 | 580*475*160 | 690*475*160 | 620*795*160 | 730*795*160 |
Are you a manufacturer?
Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development and manufacturing, operating based on ISO quality management since 2009.
Can I order a sample of the LED High Mast Light?
Yes, we welcome sample orders to test and check product quality. Mixed samples are also acceptable.
What is the lead time for orders?
For sample orders, the lead time is 3-7 days. For mass production, it is typically 15-25 days depending on the order quantity.
Can I print my logo on the products?
Yes, we provide OEM services. We can help create labels and color boxes according to your specific requirements.
What is your warranty policy for defective products?
We offer a 5-year warranty. Our products have a defective rate of less than 0.2%. If a defect occurs during the warranty period, we will ship new lights to you upon receiving photo/video evidence.
How do you ship the finished products?
We offer multiple shipping methods including Sea, Air, or Express (DHL, UPS, FedEx, TNT, etc.) to suit your project needs.
