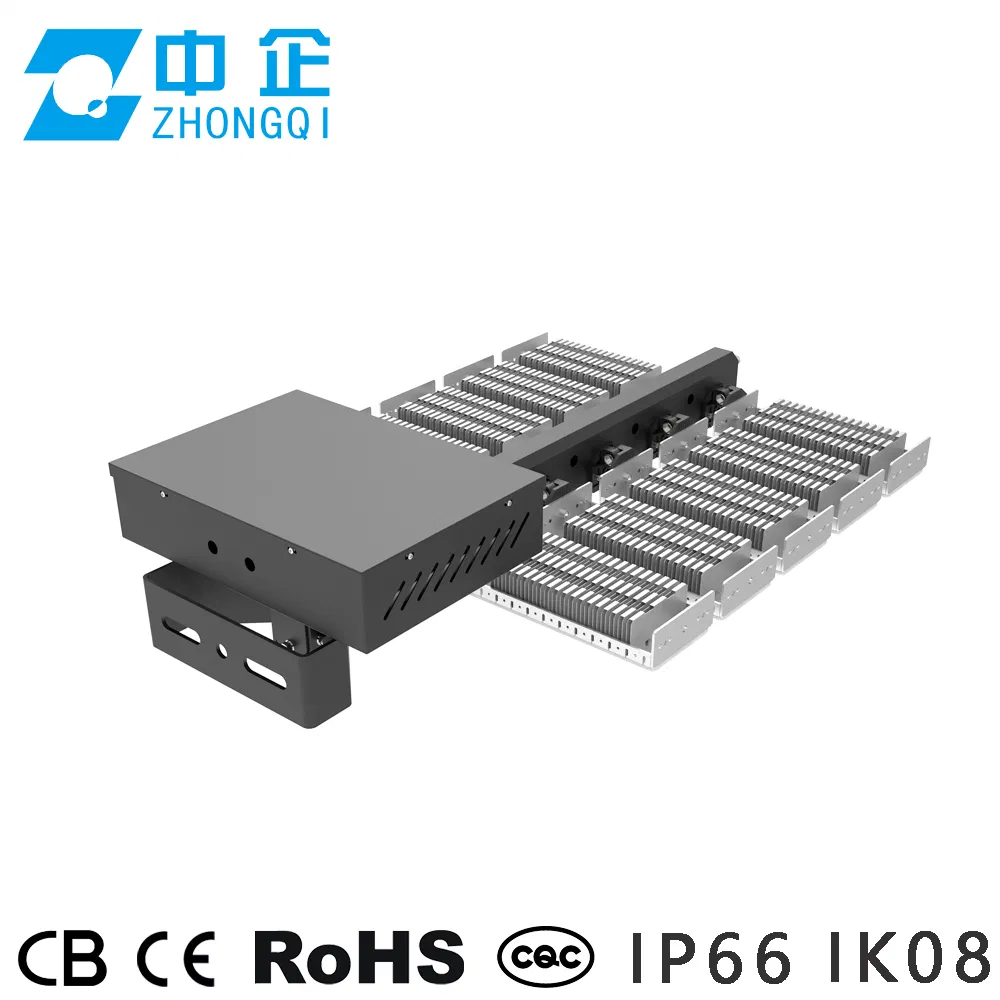

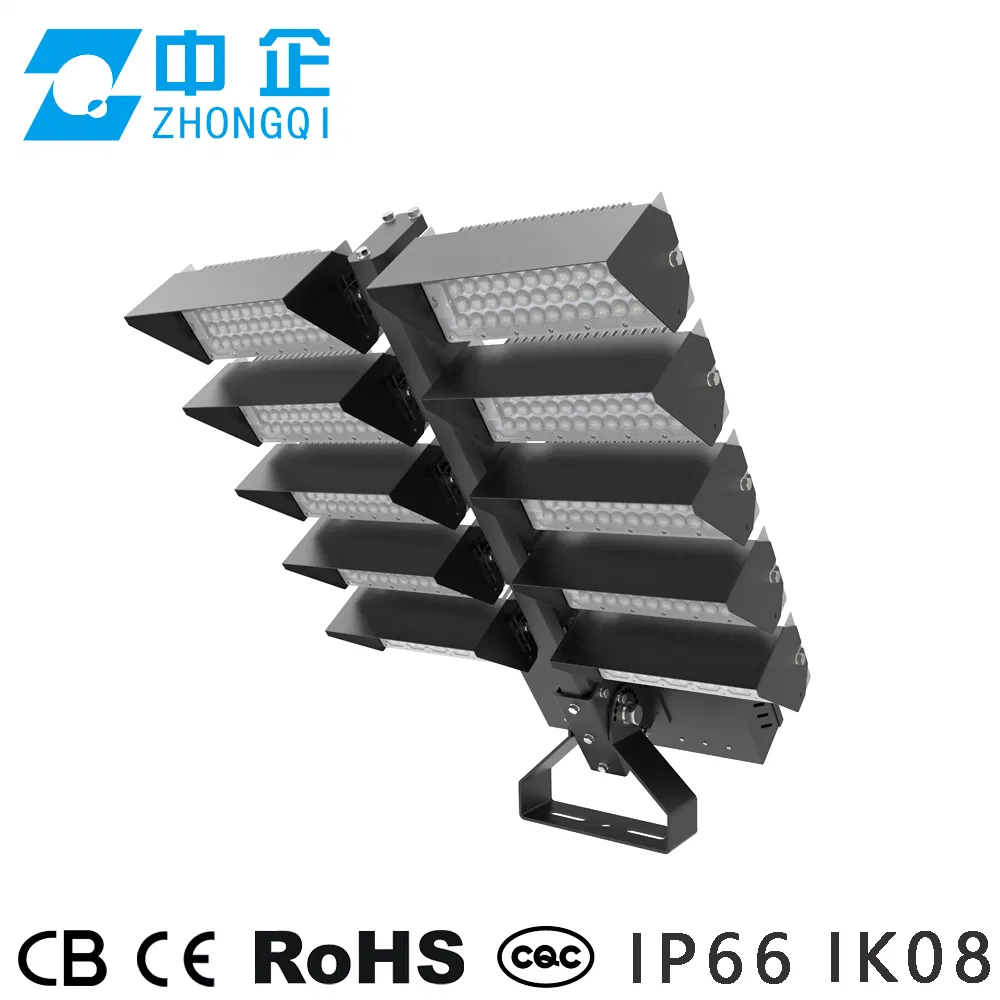

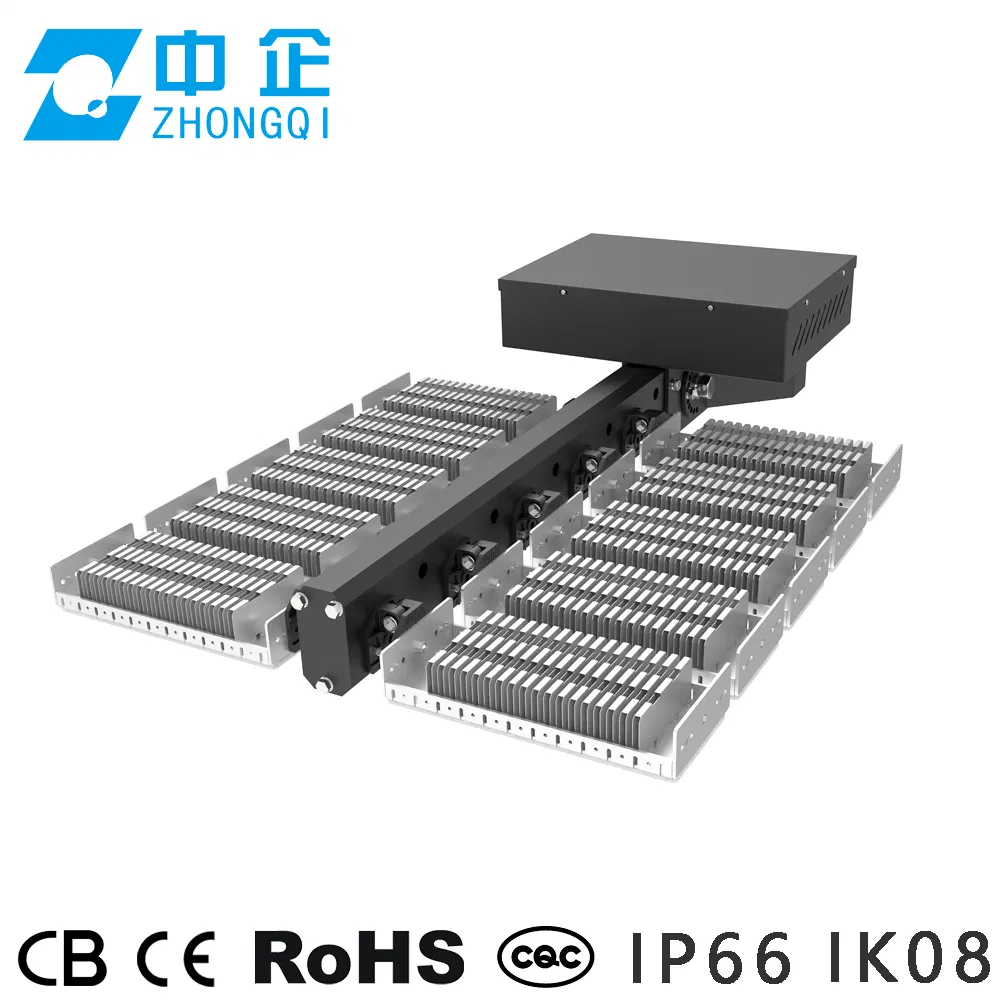

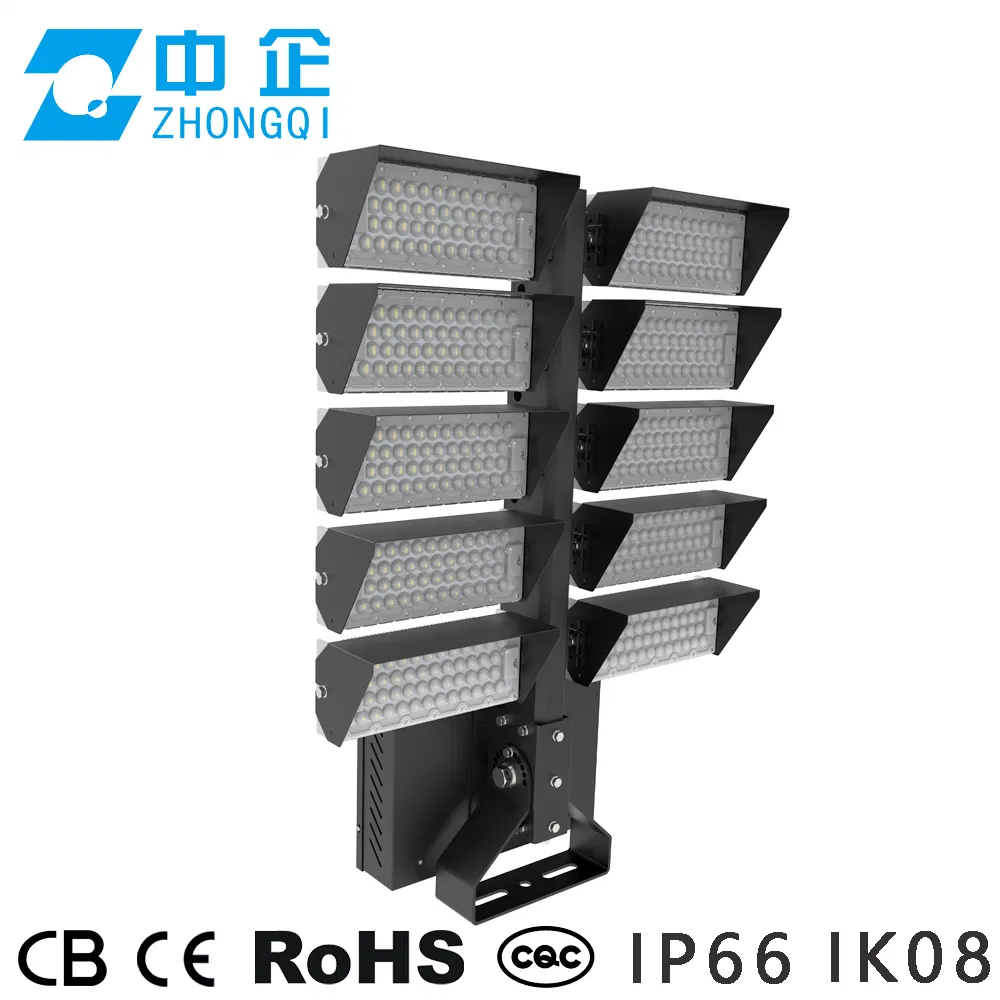

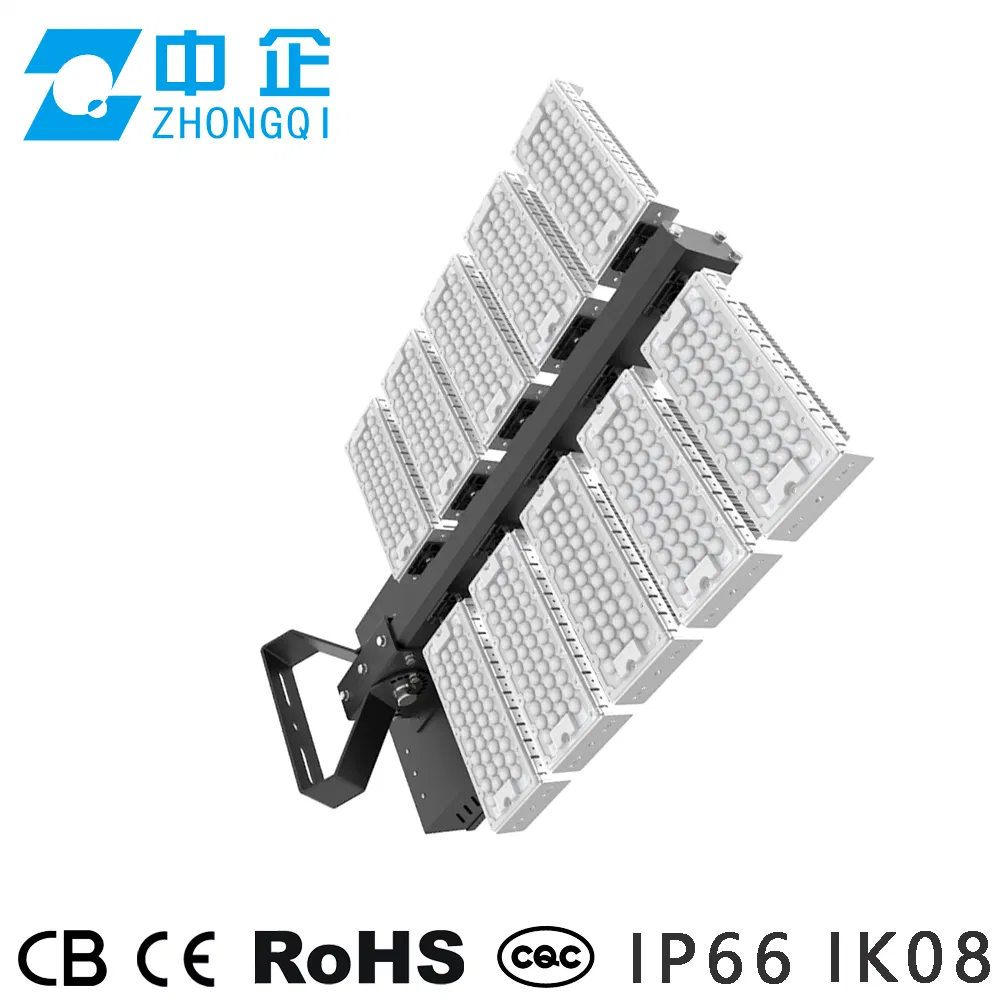

LED Flood Light IP66 190lm/W 3000K Ik10 NEMA Dali Dimmable Sensor 5 Years Warranty LED Flood Lamp Private Mouldflood Lighting
Product Description
i
Basic Information
Model NO.
TYZQ-FD015-H
Power
50-400W
Projection Distance
>35m
IP Rating
IP66
Operating Voltage
100-240V
LED Chips
Epistar
Material
Aluminum / Tempered Glass
Lpw
120lm/W - 200lm/W
Beam Angle
8° - 120° Asymmetric
Certification
CE, RoHS, FCC, CCC, SAA, etc.
★

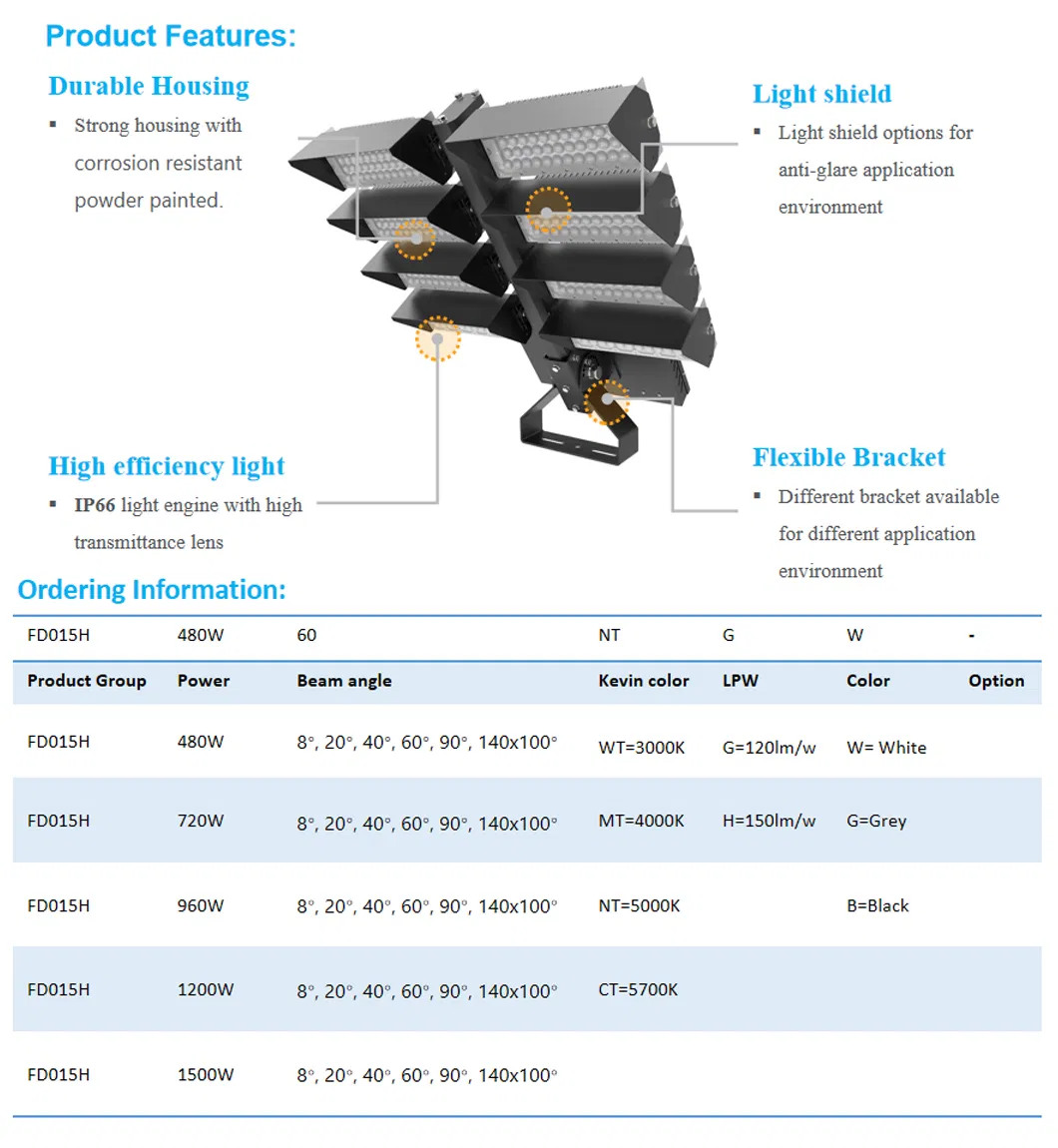

Product Features
Patented design combined with many advanced technologies.
High strength Aluminium housing, modular design, strong resistance to impact and corrosion.
Multiple beam angles for your options: 20/40/60/90/Asymmetric.
Single or multiple LED module arrays at your options for different application environments.
LED modular design offers simple maintenance.
IP66 & IK08 rating, suitable for various demanding environments.
Stainless mounting bracket for flexible installation options.
⚙
Technical Parameters
| Product Model | Power (W) | Premium LPW | Standard LPW | N.W. (kg) | Product Size (mm) | Packaging Size (mm) |
|---|---|---|---|---|---|---|
| TYZQ-FD015H | 480 | 160 lm/W | 130 lm/W | 12.50 | 704*586*173 | 788*666*230 |
| TYZQ-FD015H | 720 | 160 lm/W | 130 lm/W | 14.50 | 704*730*173 | 810*788*230 |
| TYZQ-FD015H | 960 | 160 lm/W | 130 lm/W | 16.50 | 704*874*173 | 954*788*230 |
| TYZQ-FD015H | 1200 | 160 lm/W | 130 lm/W | 18.50 | 704*1018*213 | 1098*788*230 |
| TYZQ-FD015H | 1500 | 160 lm/W | 130 lm/W | 20.50 | 704*1162*213 | 1242*788*230 |
☀

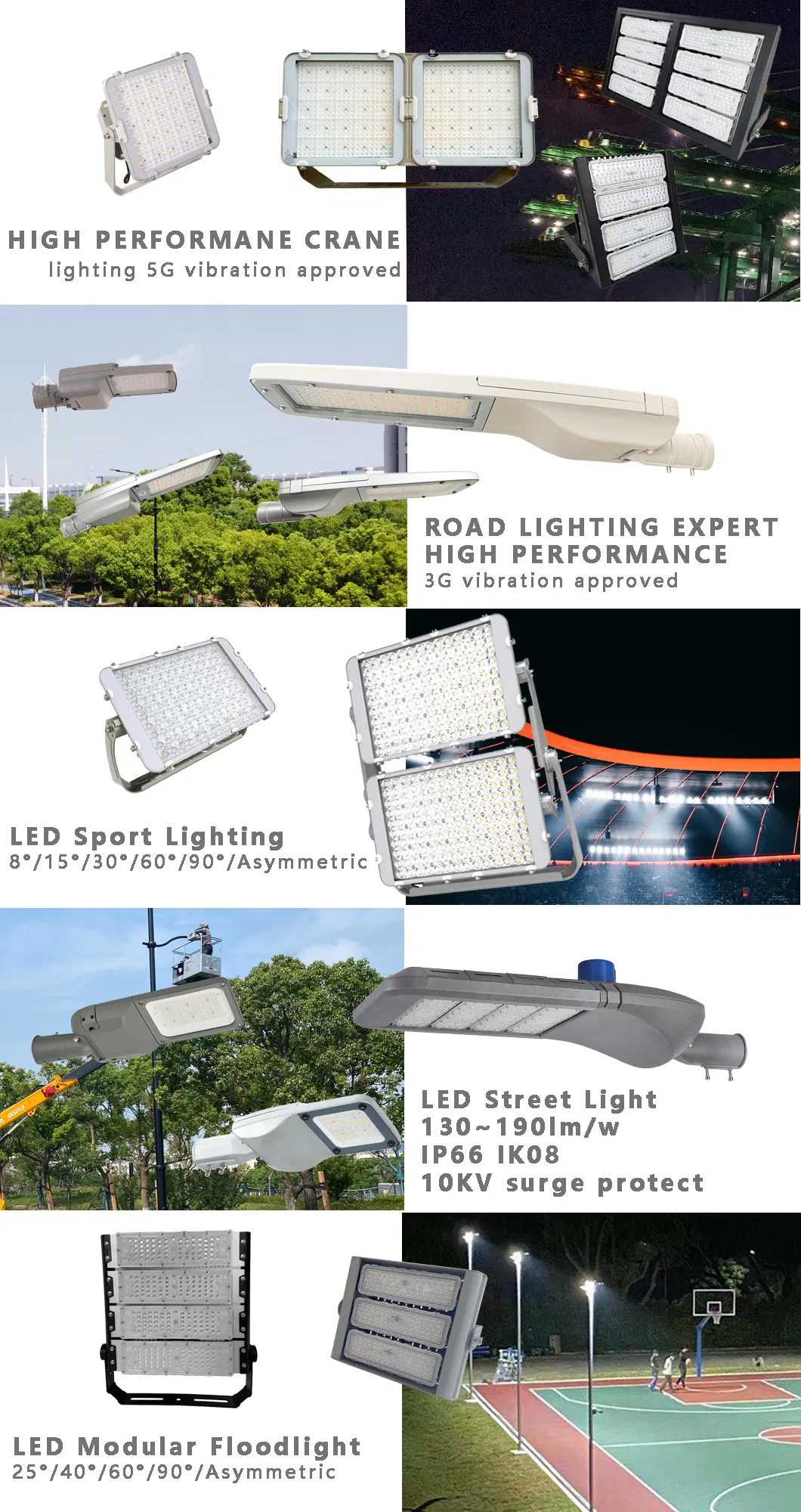

Applications
🔍

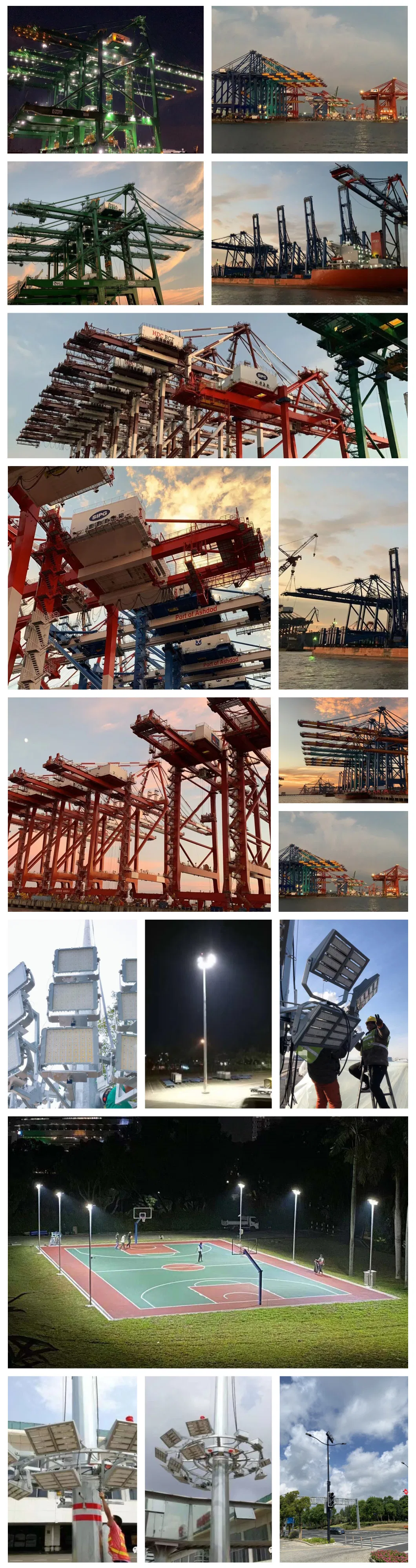

Product Details
🏭

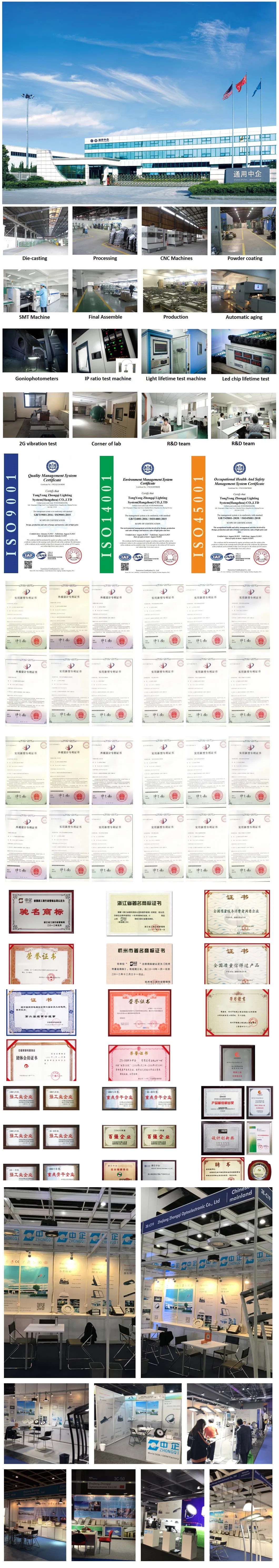

Manufacturing Overview
📦

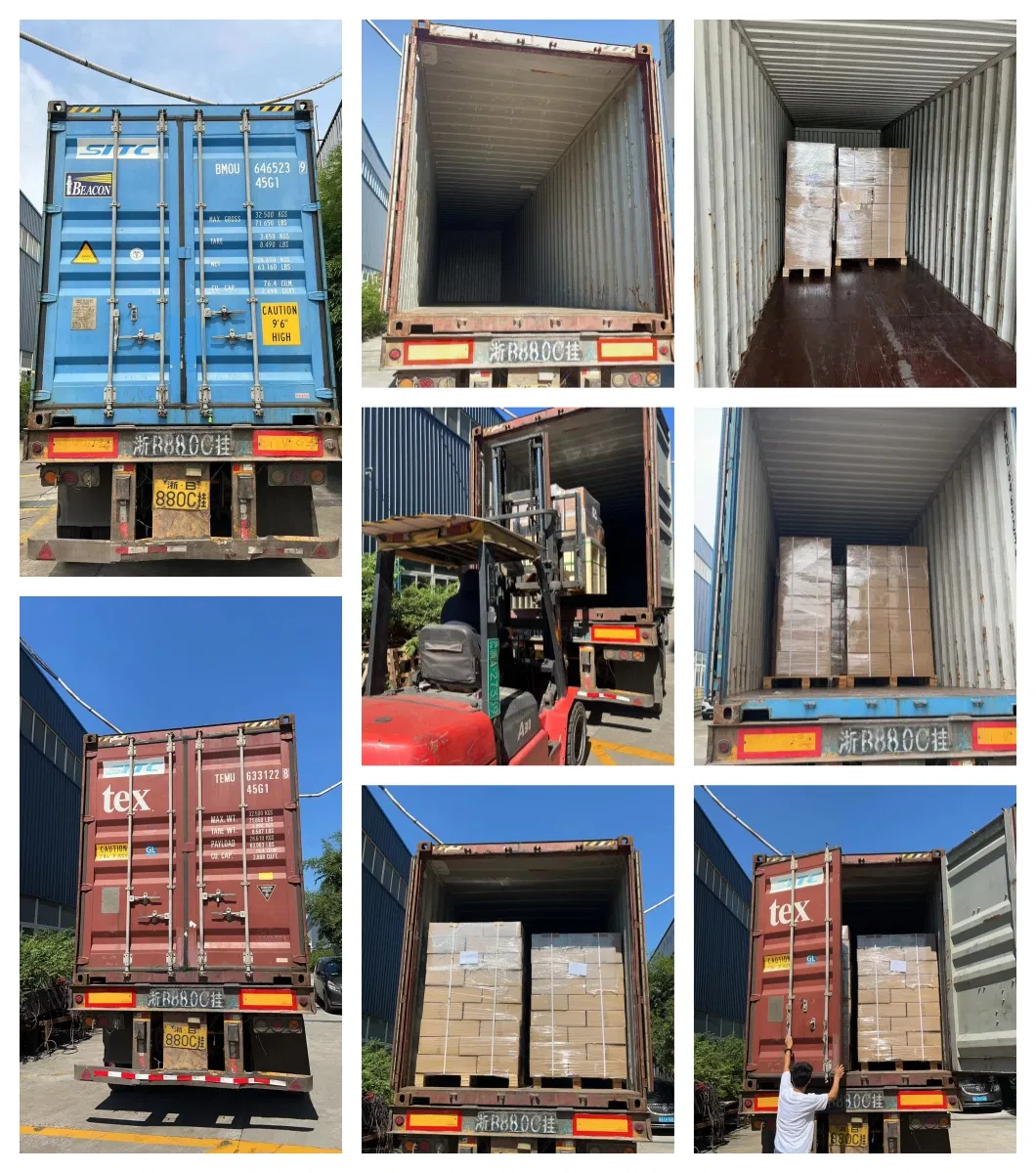

Packaging & Shipping
?
Frequently Asked Questions
Q1: Can I have a sample before quantity orders?
Yes, we welcome sample orders for your approval and testing.
Q2: What about lead time?
Sample orders take 3-5 days, while bulk quantity orders typically take 25-30 days.
Q3: Is ODM or OEM service accepted?
Yes, we provide full ODM & OEM services to meet your specific requirements.
Q4: How long is the warranty for your products?
We offer a 2-5 year warranty depending on the product configuration.
Q5: What are the payment terms?
Our standard terms are a 30% TT deposit, with the remaining 70% due before shipment.
Q6: Are the lights suitable for outdoor stadium use?
Yes, with IP66 rating and advanced modular design, these are ideal for stadiums, airports, and public squares.
