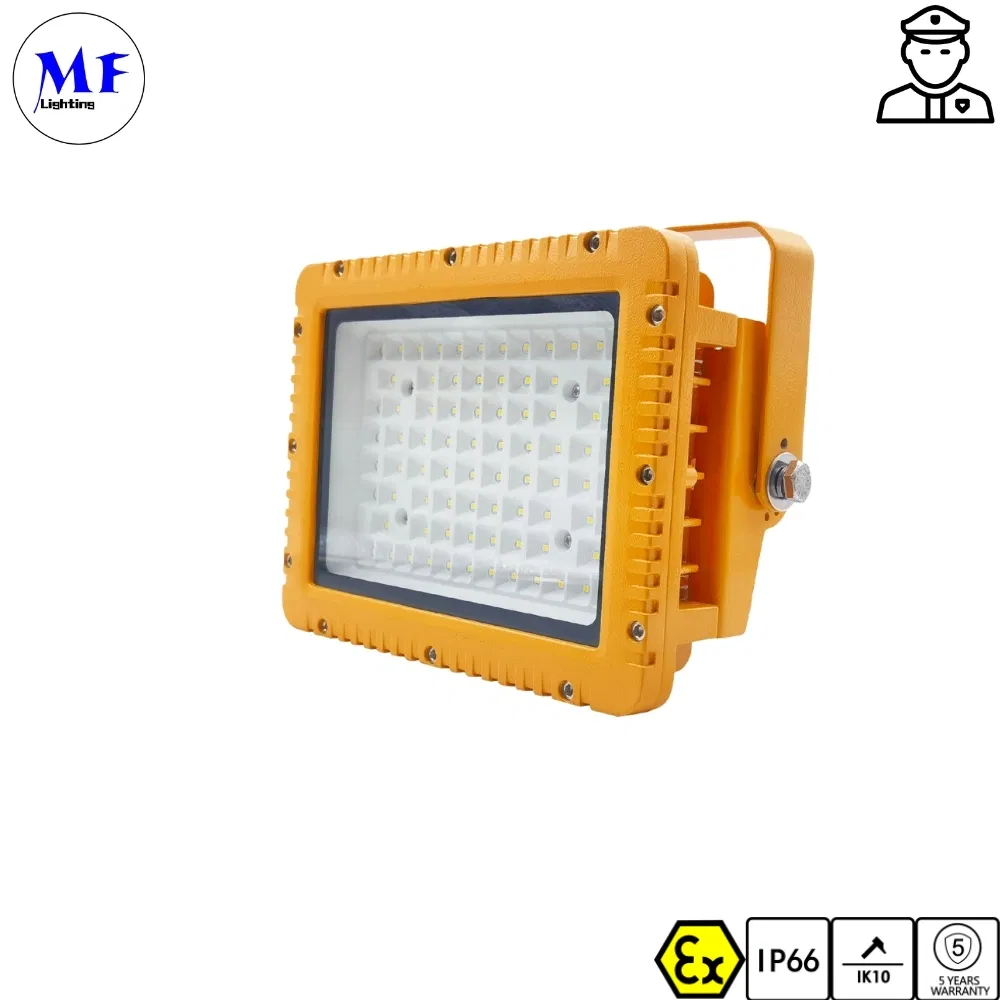

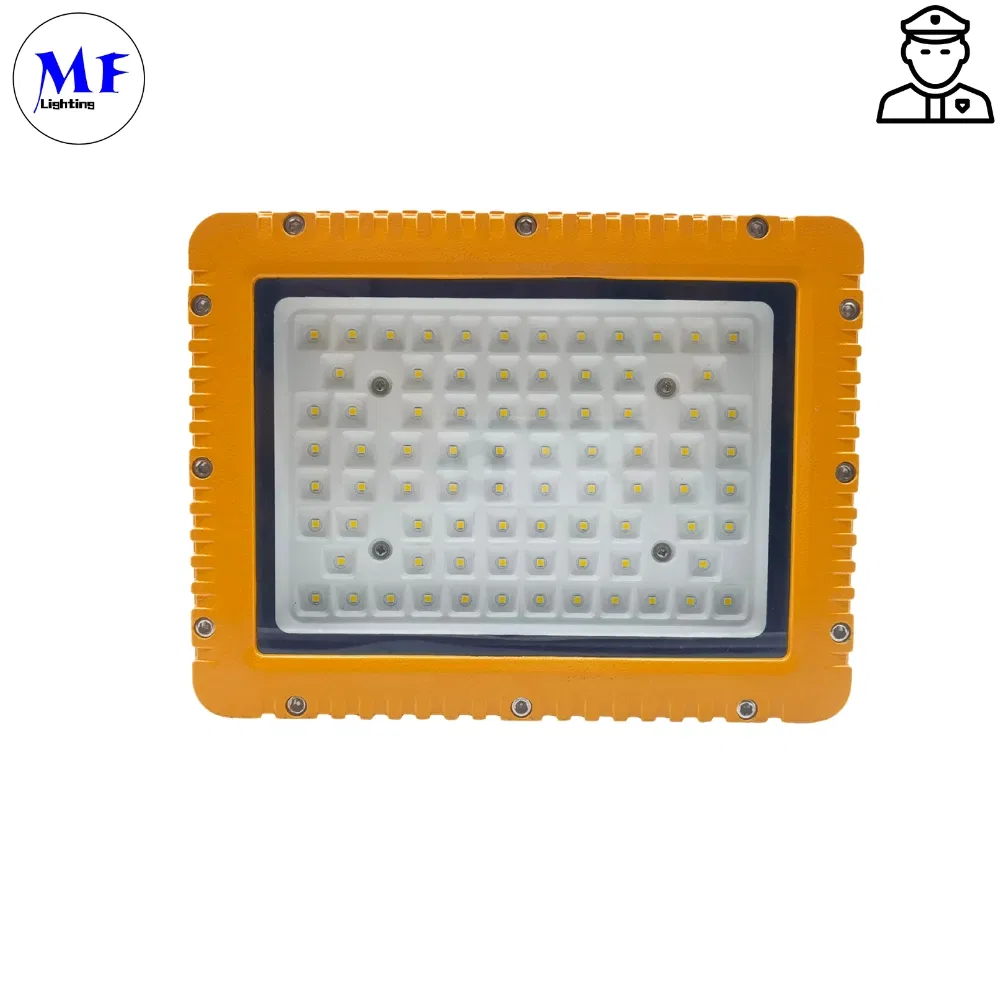

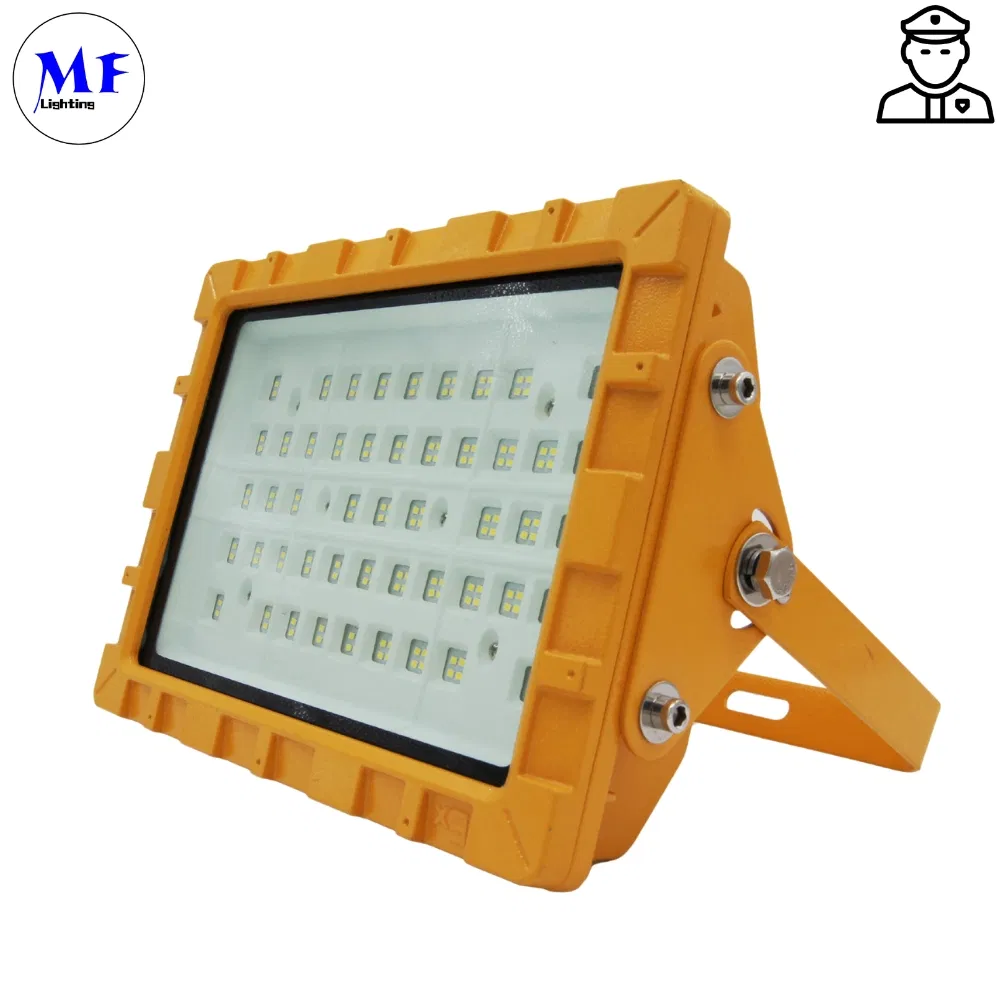

Atex Ex Iecex Ik10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and Storage Yard
Product Description

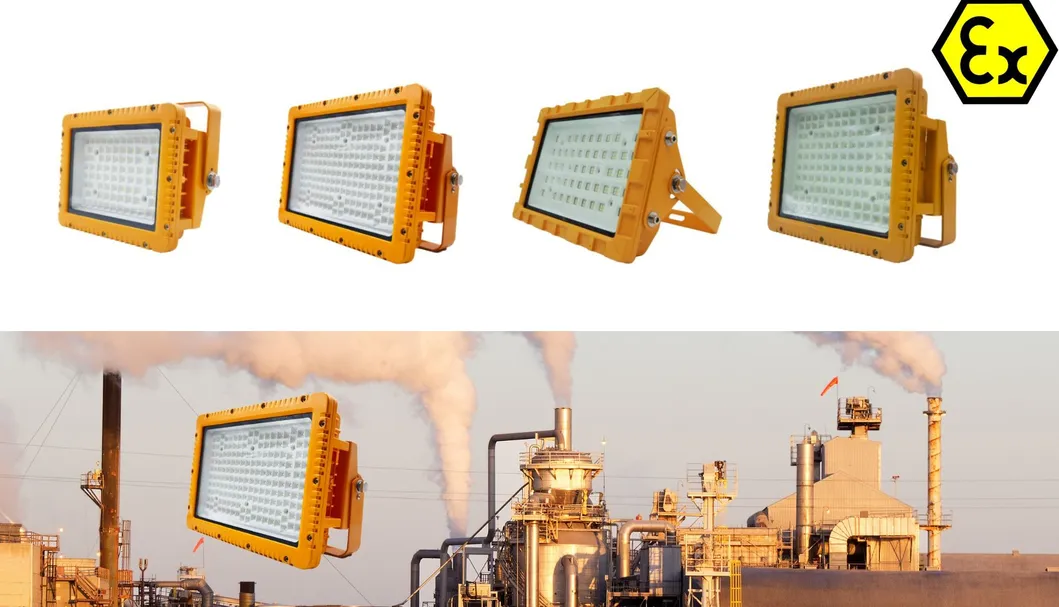

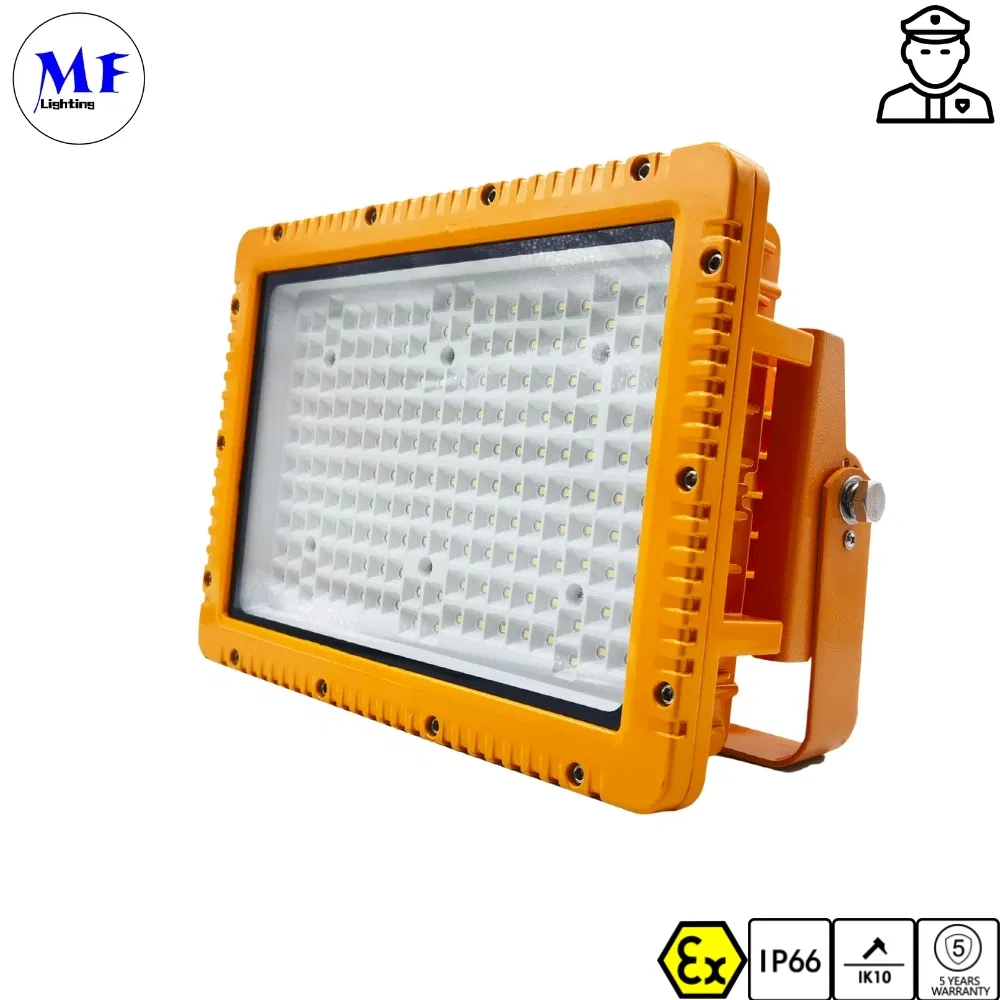

Explosion Proof LED Flood Light (50W - 240W)

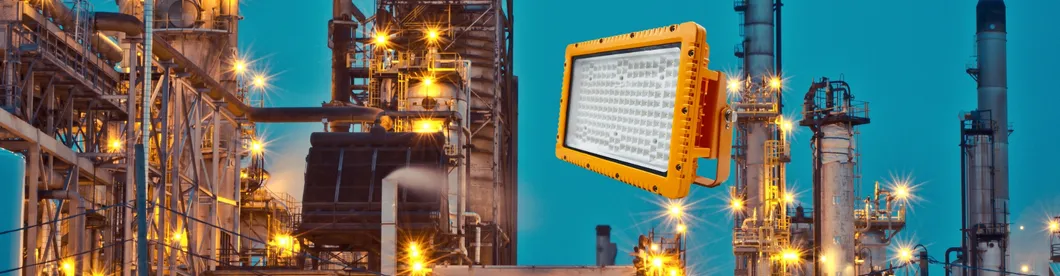

Atex EX IECEx IK10 IP66 Dustproof Explosion Proof LED Flood Light designed for Marine Offshore, storage yards, and hazardous industrial environments.
Base Type
E26
Irradiated Area
≥30m²
Input Voltage
AC200-250V / DC12-48V
Power Range
30W to 240W
Color Temp
2000K - 7000K
LED Chips
CREE / Lumen / Atmospherics

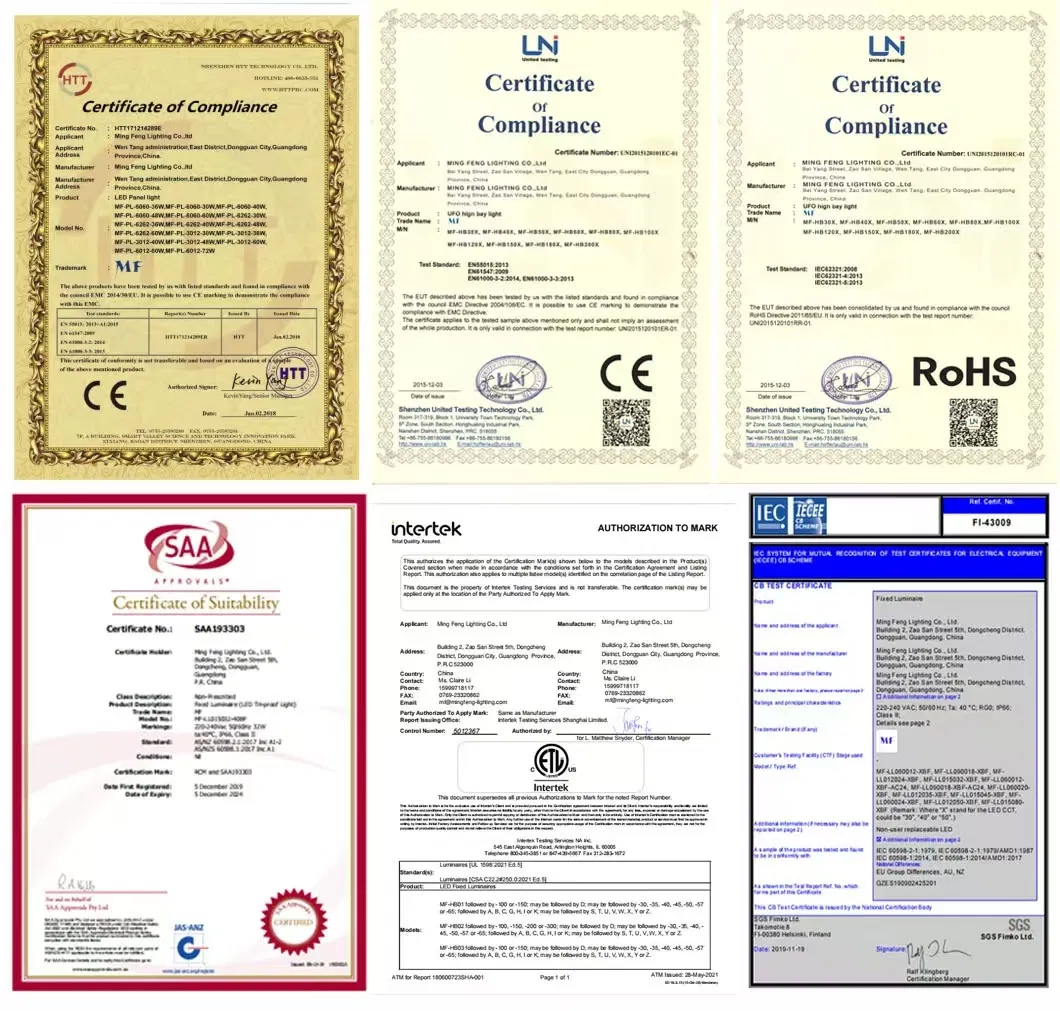

Certification
ATEX, IECEx, CE, RoHS, ETL, SAA, TUV
CRI
>80ra
Material
Aluminum + Stainless Steel + Tempered Glass
Luminous Flux
140lm/W
Protection
IP66 / IK10
Warranty
5 Years
Lifespan
>50,000 hours
Working Temp
-40°C ~ +60°C
- High quality SMT LED technology.
- Heavy-duty and high impact resistance (IK10).
- Replaceable LED board and drivers for easy maintenance.

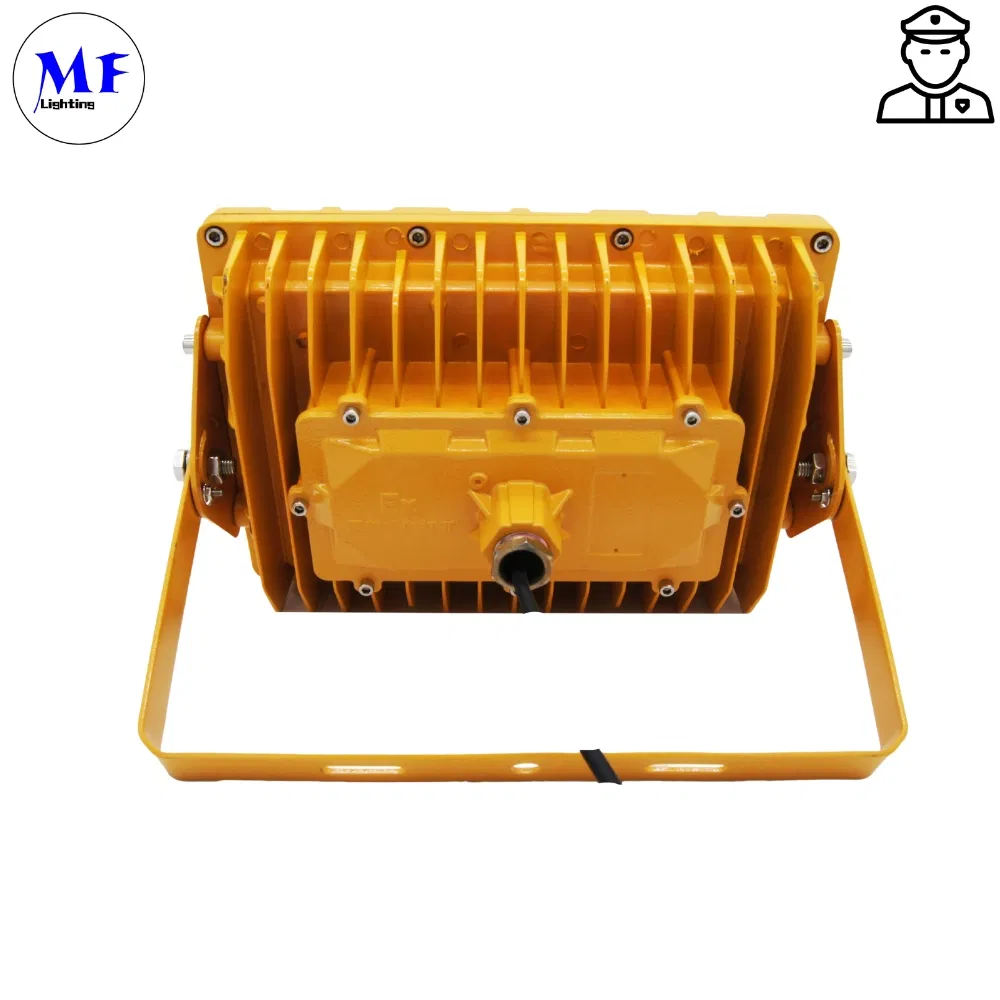

- Integrated junction box for driver protection.
- Dimmable and battery backup functions available.
- Marine rating powder coated finish treatment.

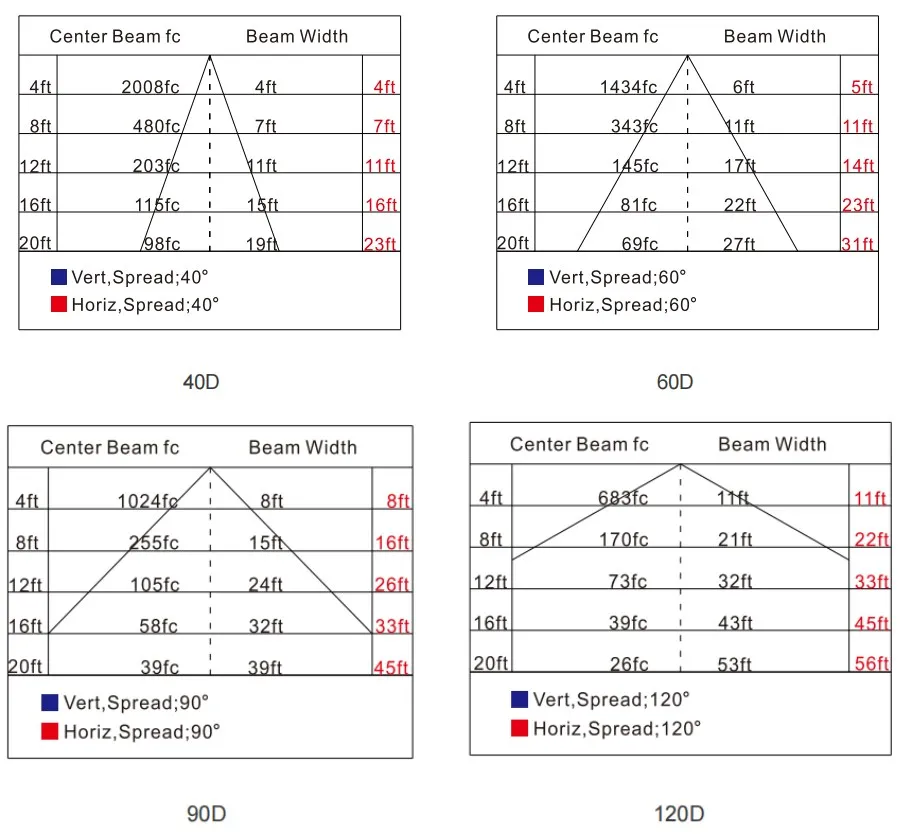

- Glass or Polycarbonate lens options for various beam angles.

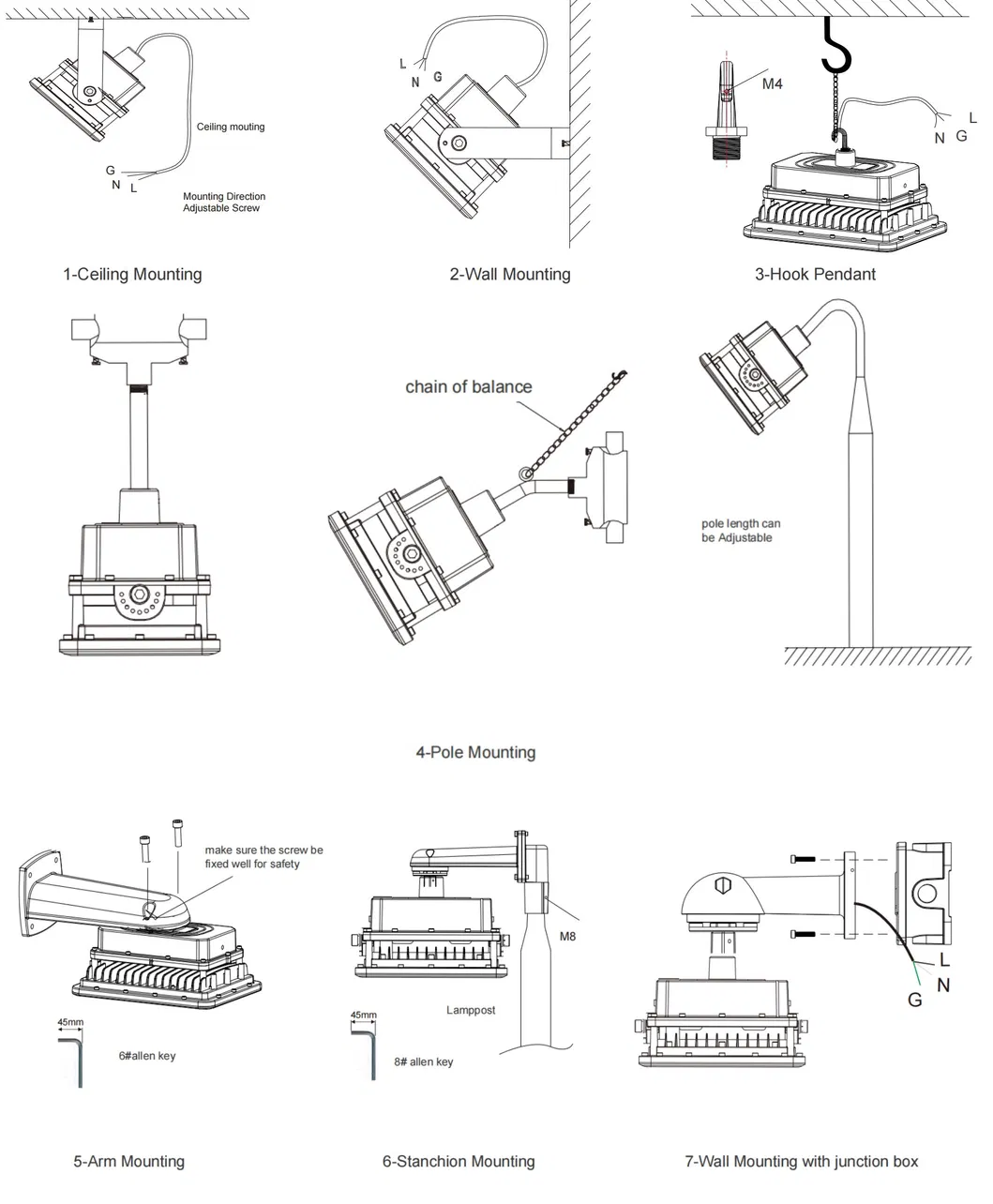

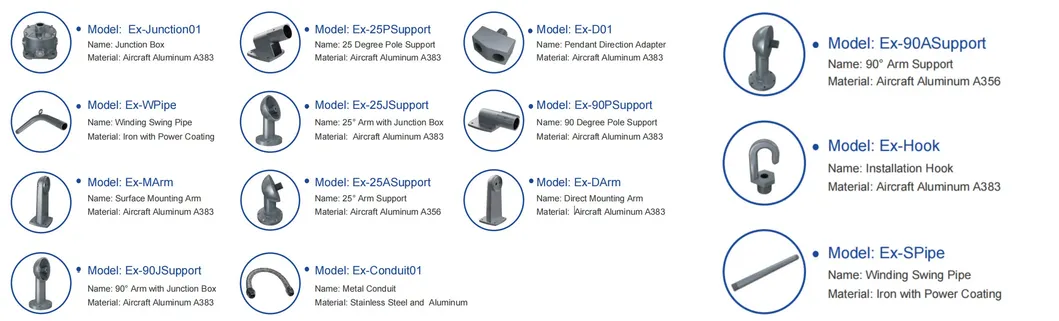

- Multiple installation methods for diverse applications.
ATEX: II 2 G Ex eb mb IIC T6...T4 Gb | II 2 D Ex tb IIIC T80°C...T100°C Db IP66
IECEx: Ex eb mb IIC T6...T4 Gb | Ex tb IIIC T80°C...T100°C Db IP66
UL844 (North America): Class I Div 2 (Groups A,B,C,D), Class II Div 1 & 2, Class III
Marine: UL 1598, UL 1598A, ABS Rated
| Product Range | Wattage | Color Temp | Voltage | Lumens | Warranty | Emergency |
|---|---|---|---|---|---|---|
| Low Power Series | 30W / 50W / 60W | 2200K-7000K | AC200-250V / DC12-48V | 4200 - 8400 | 5 Years | 3 Hours Opt. |
| Medium Power Series | 80W / 100W | 2200K-7000K | AC200-250V / DC12-48V | 11200 - 14000 | 5 Years | 3 Hours Opt. |
| High Power Series | 150W / 180W / 200W | 2200K-7000K | AC200-250V / DC12-48V | 21000 - 28000 | 5 Years | 3 Hours Opt. |
| Ultra Power Series | 240W | 2200K-7000K | AC200-250V / DC12-48V | 33600 | 5 Years | 3 Hours Opt. |

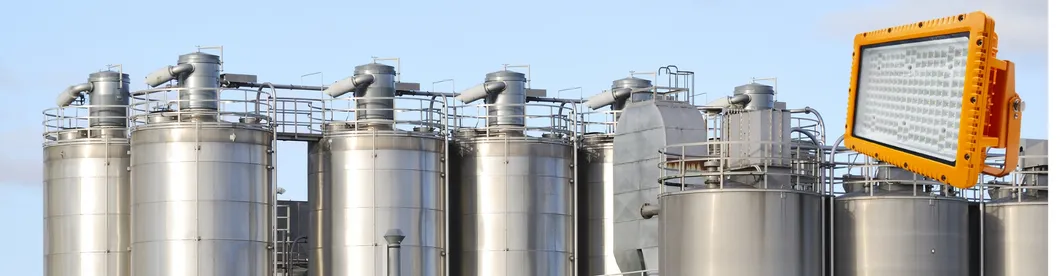

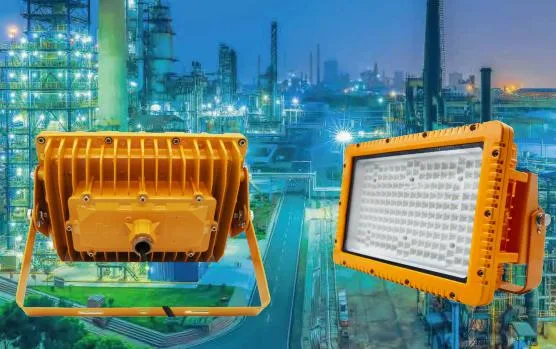

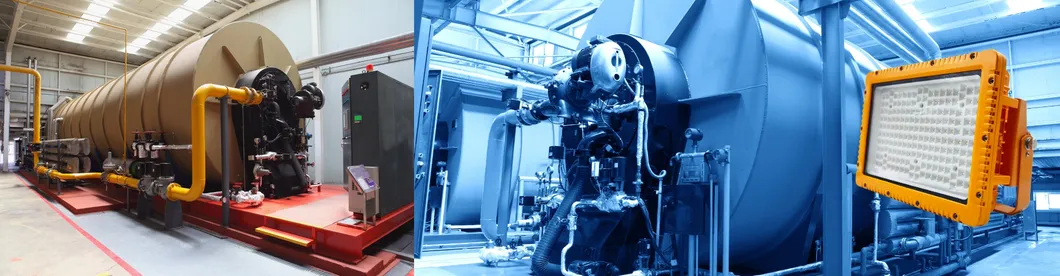

Oil & Gas Industry
- Petroleum production & refining
- Loading and transportation
- Petroleum storage and retail
- LNG & Mining operations

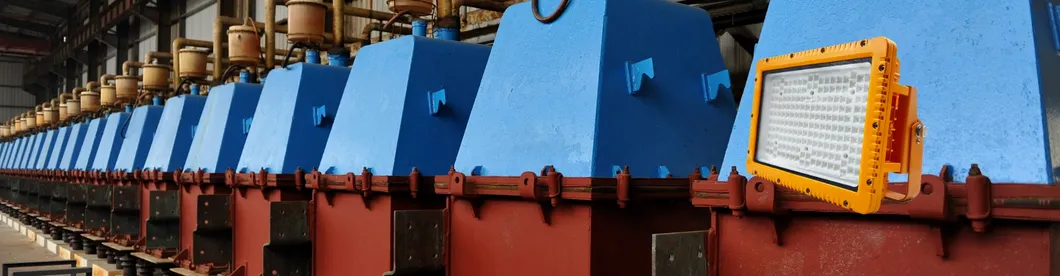

Chemical & Metal
- Paint facilities & storage
- Steel and aluminum factories
- Pumping stations
- Metal smelting & foundry
Marine & Food
- Ocean platform facilities
- Aerospace clean rooms
- Flour & fine particle storage
- Alcohol & Food distilling
| Quantity/Carton | Packing Size (mm) | Net Weight (KG) | Gross Weight (KG) |
|---|---|---|---|
| 1 Unit | 460 * 490 * 290 | 12.5 | 15.0 |
Frequently Asked Questions
1. What is the explosion-proof rating of this LED flood light?
The light is ATEX and IECEx certified (Ex eb mb IIC T6...T4 Gb) and UL844 rated for Class I, Division 2 environments, making it suitable for high-risk hazardous zones.
2. Can this light be used in offshore and marine environments?
Yes, it features a marine-rated powder-coated finish and is IP66 waterproof, specifically designed to withstand corrosive salty air and high humidity in marine structures.
3. What is the warranty period for this product?
This LED flood light comes with a standard 5-year warranty, covering performance and structural integrity under specified working conditions.
4. Is the LED driver replaceable if it fails?
Yes, the design includes a replaceable LED board and drivers, with an integrated junction box to simplify maintenance and extend the overall fixture lifespan.
5. What is the operating temperature range?
The light is engineered to operate reliably in extreme environments, with a working temperature range of -40°C to +60°C.
6. Does it support emergency battery backup?
Yes, an emergency battery backup function is available as an option, providing up to 3 hours of illumination during power failures.
