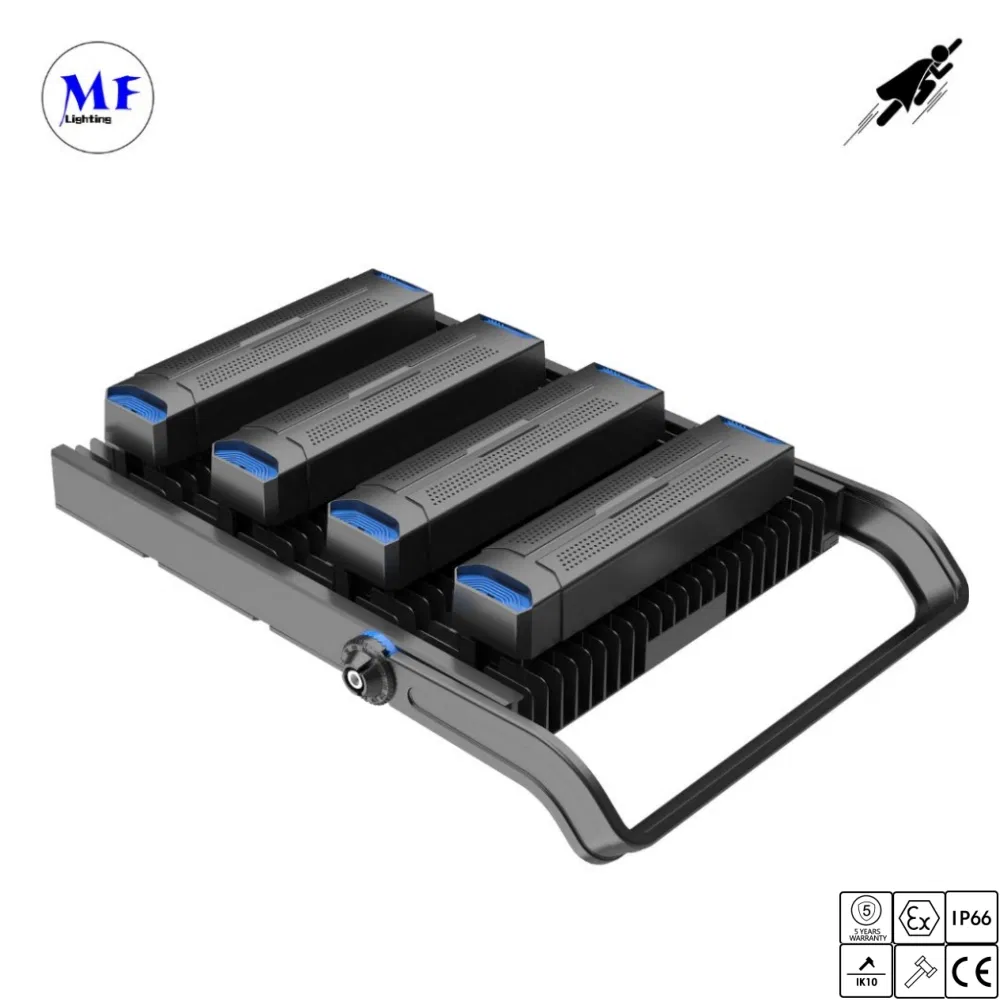

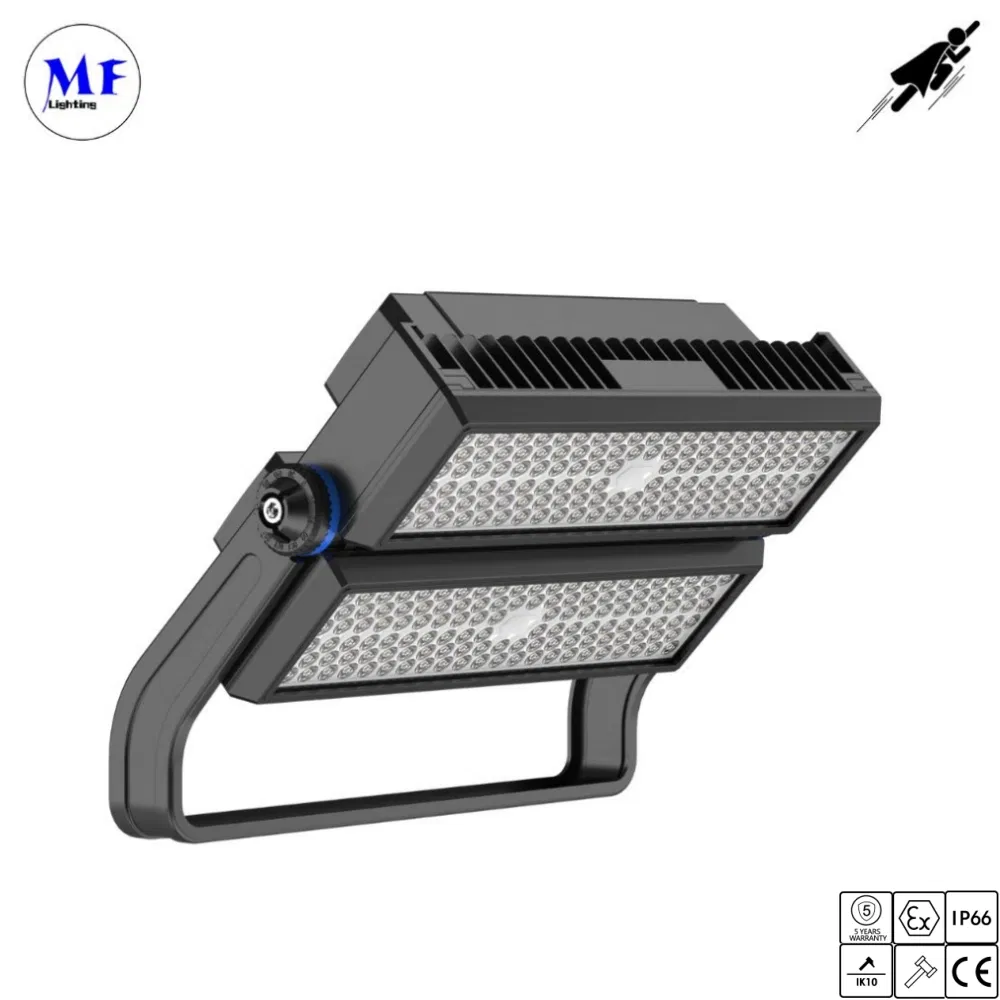

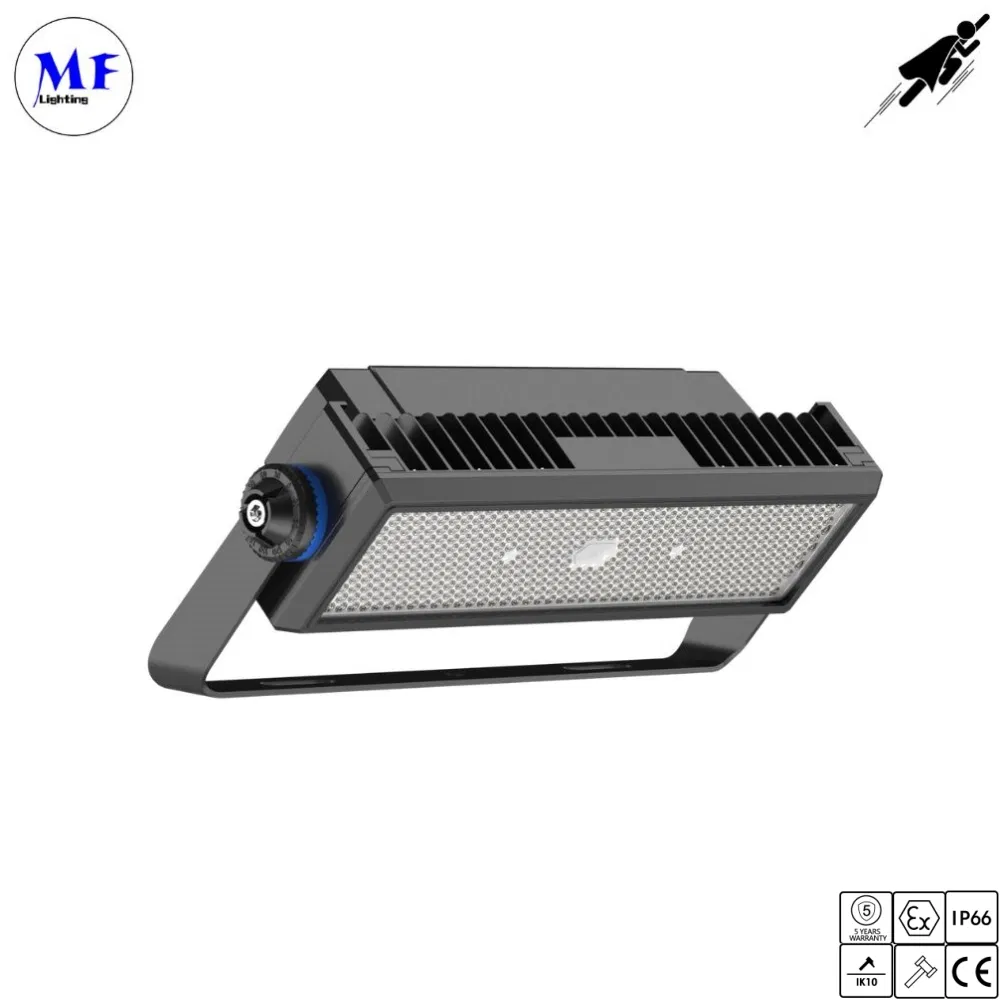

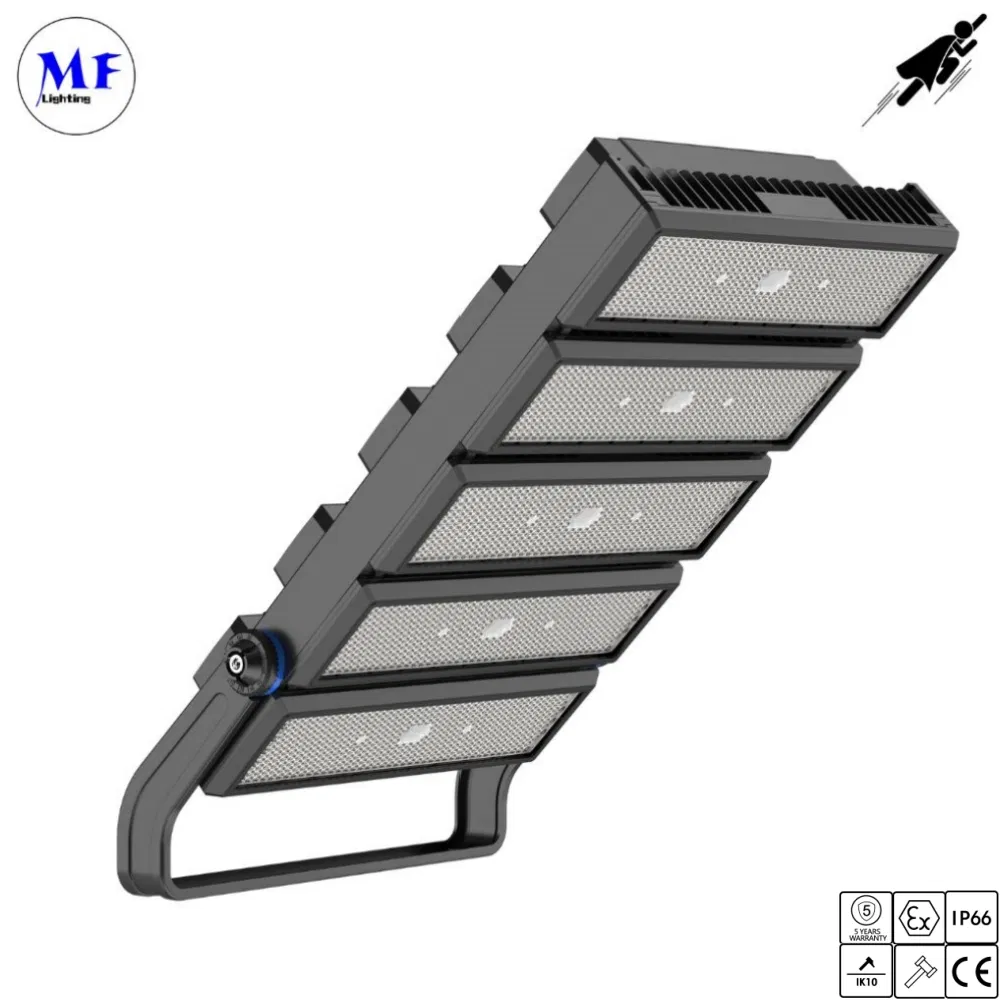

High Power Module 250W 500W 1000W 1250W 1500W Ik10 IP66 Outdoor Waterproof Tennis Sports LED Flood Light Stadium Light for Football Soccer Court
Product Description
Product Overview
High Power Module Outdoor Waterproof LED Flood Light for Stadiums, Football, and Soccer Courts. Designed for world-class performance with IP66 and IK10 protection.
Model
Superman II
Power Range
250W - 1500W
Application
Park, Square, Factory, Stadium
IP Rating
IP66
Certification
CE, RoHS, VDE
Voltage
AC85-277V / 100-305VAC
LED Brand
Osram / Lumileds
Driver Brand
Meanwell / Sosen
CRI (Ra)
>70 / >80 / >90
IK Class
IK08 / IK10
Core Features
1. All-In-One Design New generation LED sports lighting combining energy saving, cutting-edge optical management, and low maintenance.
2. Flicker-Free Technology Ideal for 4K slow-motion replay up to 2000fps, meeting the needs of high-definition broadcasting.

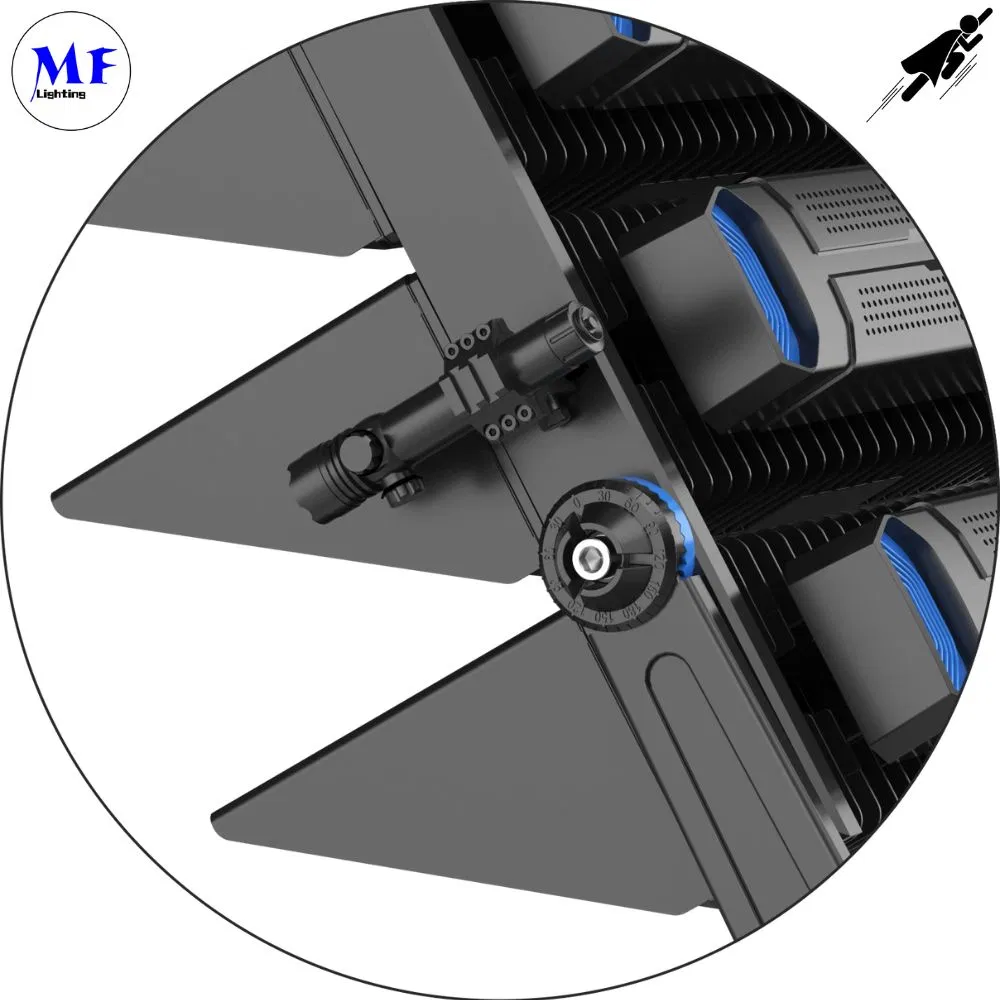

3. Modular Concept Based on 250-300W per module, scalable up to 1500W. Flexible racked angle and laser aimer for precision field coverage.
4. High Protection & Durability IP66 and IK10 rated. Modular spacing reduces wind resistance (EPA). Equipped with wire guards and 10KV/20KV surge protection.
5. Thermal Management Fin-design increases heat dissipation areas through conduction, radiation, and convection for extended lifespan.
6. Glare & Spill Light Control Asymmetrical optical lens focus light on the field, preventing spill light into residential areas and ensuring a glare-free experience.
7. Corrosion Resistance Neutral salt spray tested (1000H/2000H/3000H) with electrophoresis and AkzoNobel powder coating for coastal environments.
Specifications - Plan A (150lm/w)
| Model No. | H250W | H500W | H750W | H1000W | H1250W |
|---|---|---|---|---|---|
| Rated Power | 240W | 480W | 720W | 960W | 1200W |
| Luminous Flux | 36,000 ±5% | 72,000 ±5% | 108,000 ±5% | 144,000 ±5% | 180,000 ±5% |
| Input Voltage | 100-305Vac 50/60Hz | ||||
| CCT (K) | 3000/4000/5000/5700 | ||||
| Beam Angle | 10/25/45/60/90/65°*25° | ||||
| Net Weight (kg) | 7 | 14 | 20 | 26 | 32 |

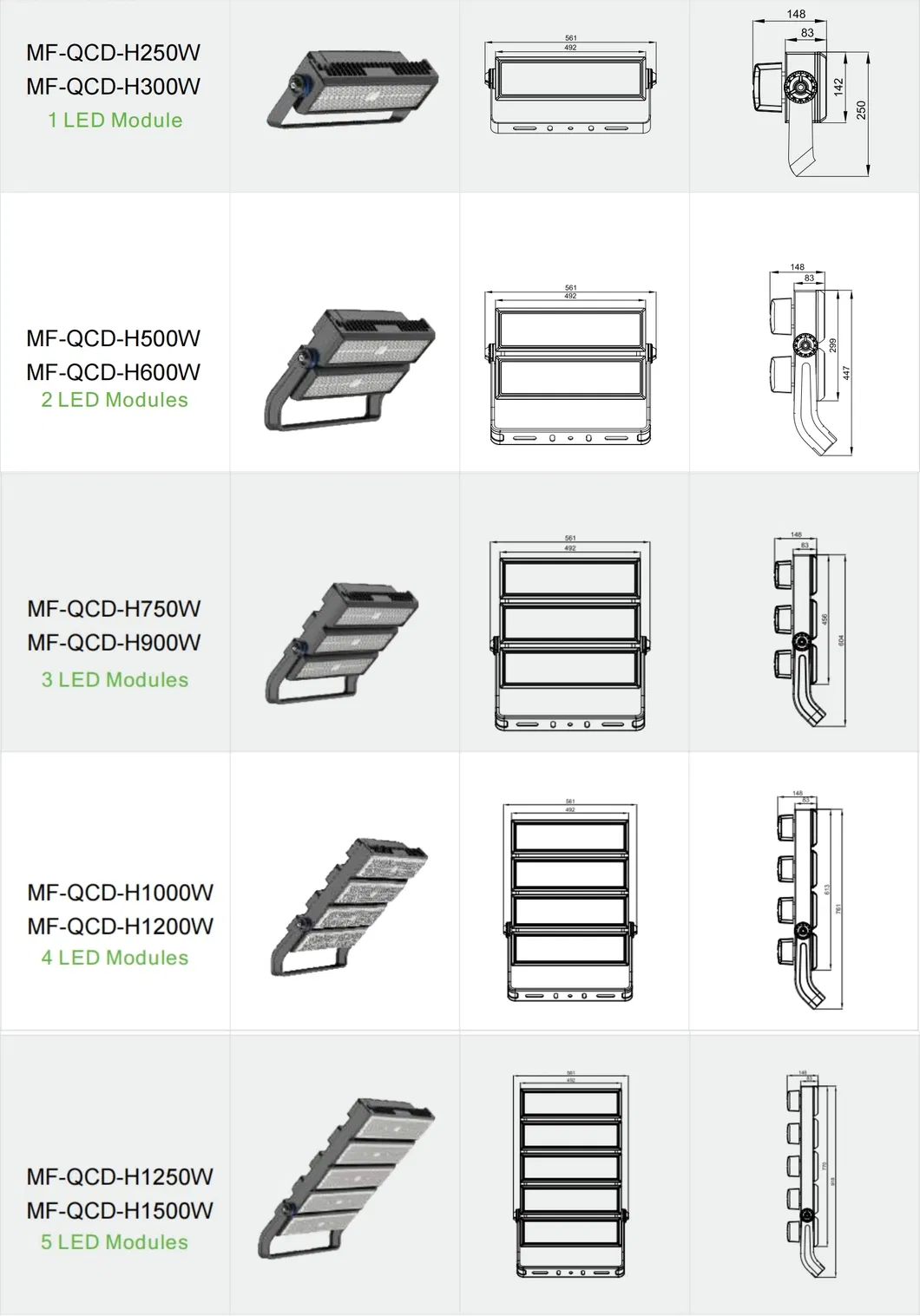

Dimensions & Design

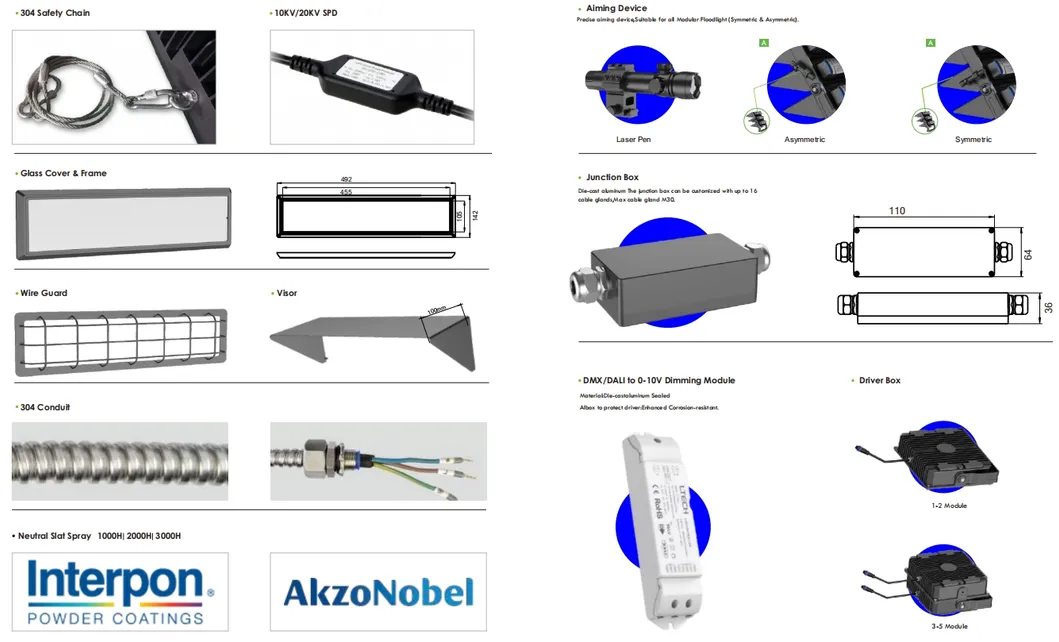

Professional Accessories

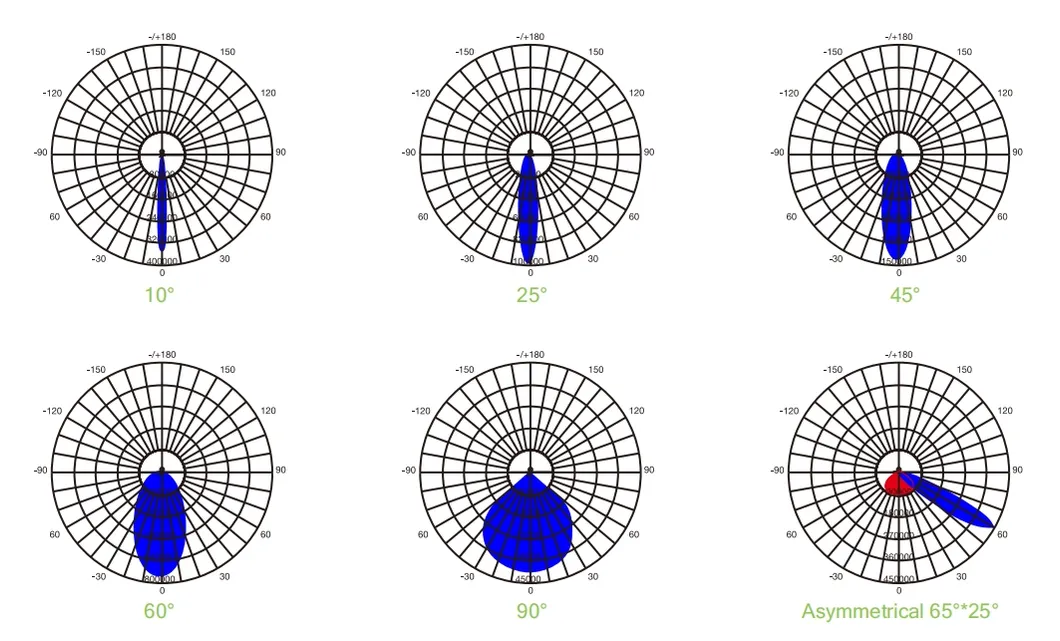

Photometry & Simulation

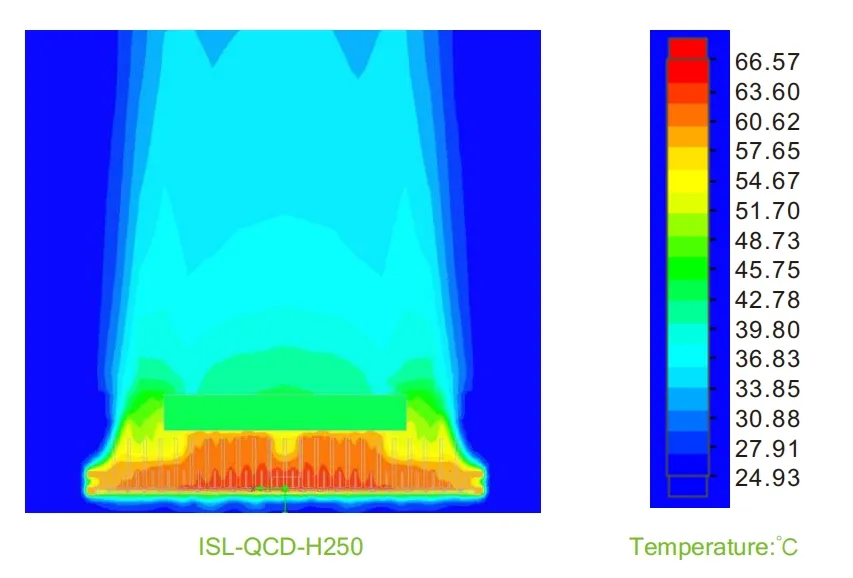

Heat Dissipation Excellent management ensures longevity. Die-casting module design maximizes cooling surfaces.

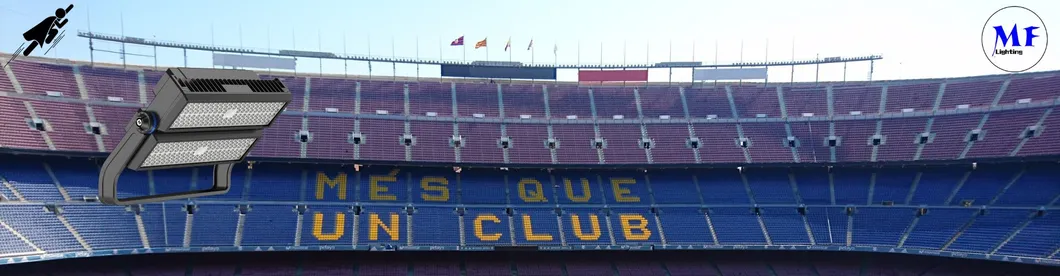

Wide Applications

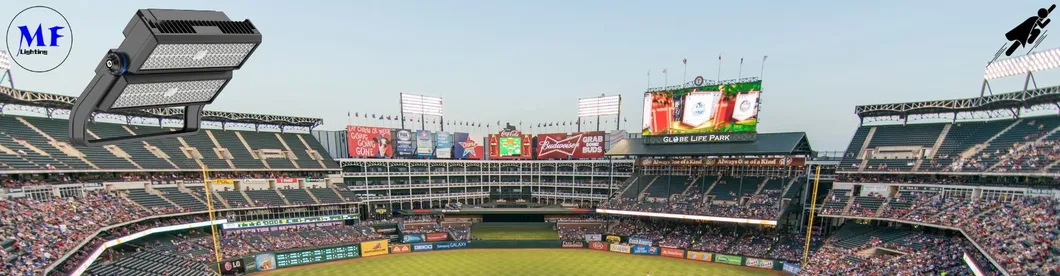

Ideal for sports stadiums, airports, shipping ports, industrial complexes, and construction sites. These lights provide bright and uniform illumination for safe evening operations and broadcasting.
Safety & Installation
• Install by a certified electrician based on local regulations.
• Check local voltage before installation.
• Clean only when power is off and the lamp is cooled.
• Do not cover fixtures with flammable materials.
• Check local voltage before installation.
• Clean only when power is off and the lamp is cooled.
• Do not cover fixtures with flammable materials.
Frequently Asked Questions
What is the maximum power available for these stadium lights?
The modular series supports a wide range of power options, from 250W up to a high-power 1500W configuration.
Are these lights suitable for 4K television broadcasting?
Yes, the Superman II series is flicker-free and supports slow-motion replay up to 2000fps, making it perfect for televised sports events.
How do these lights handle coastal environments with high salt levels?
They feature high corrosion resistance through neutral salt spray testing and triple powder coating (AkzoNobel), ideal for wharfs and coastal ports.
What is the protection rating for outdoor use?
The fixtures are IP66 waterproof and IK10 impact-resistant, ensuring durability against rain, wind, and debris.
Can the light beam be adjusted for specific areas of a field?
Absolutely. The modular design includes a racked angle adjustment and can be equipped with a laser aimer for precise light distribution.
