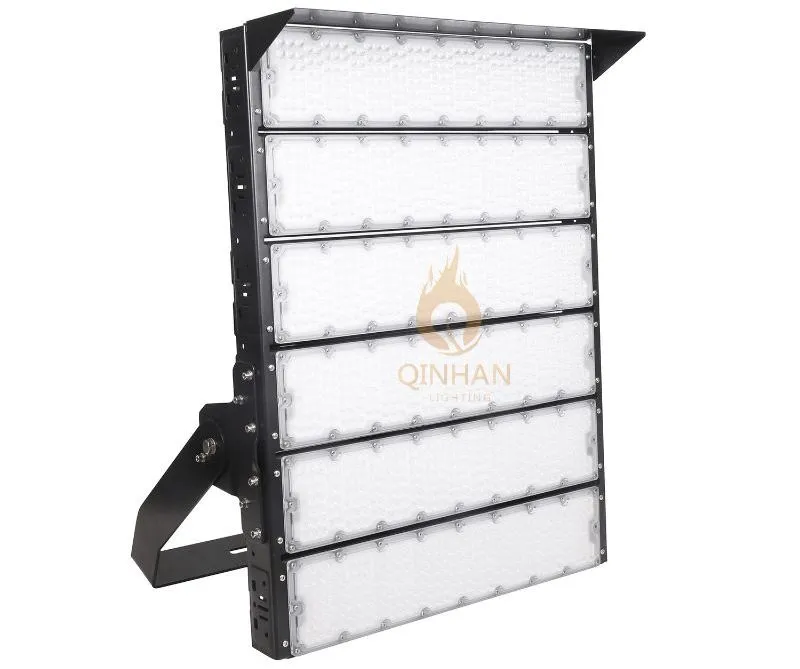

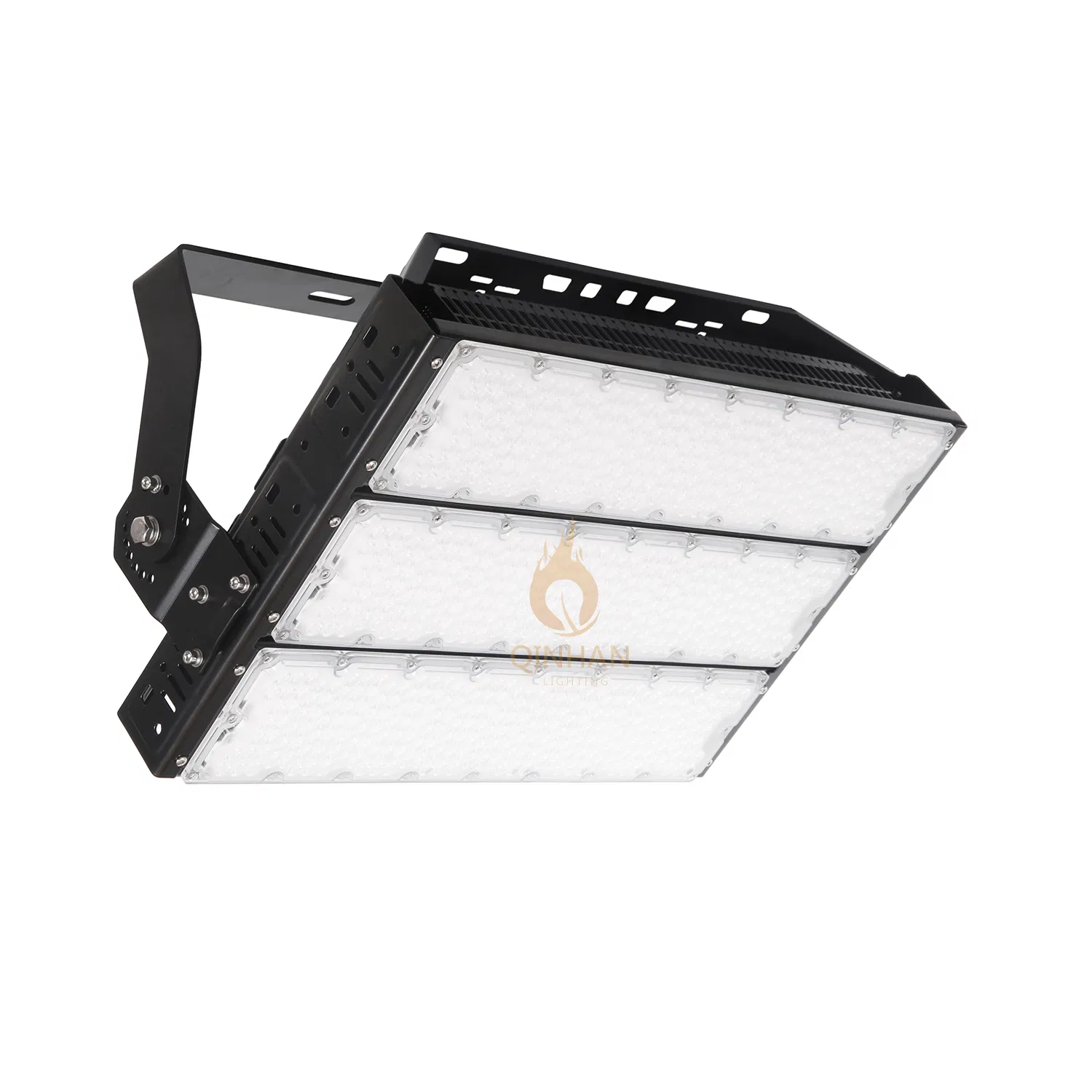

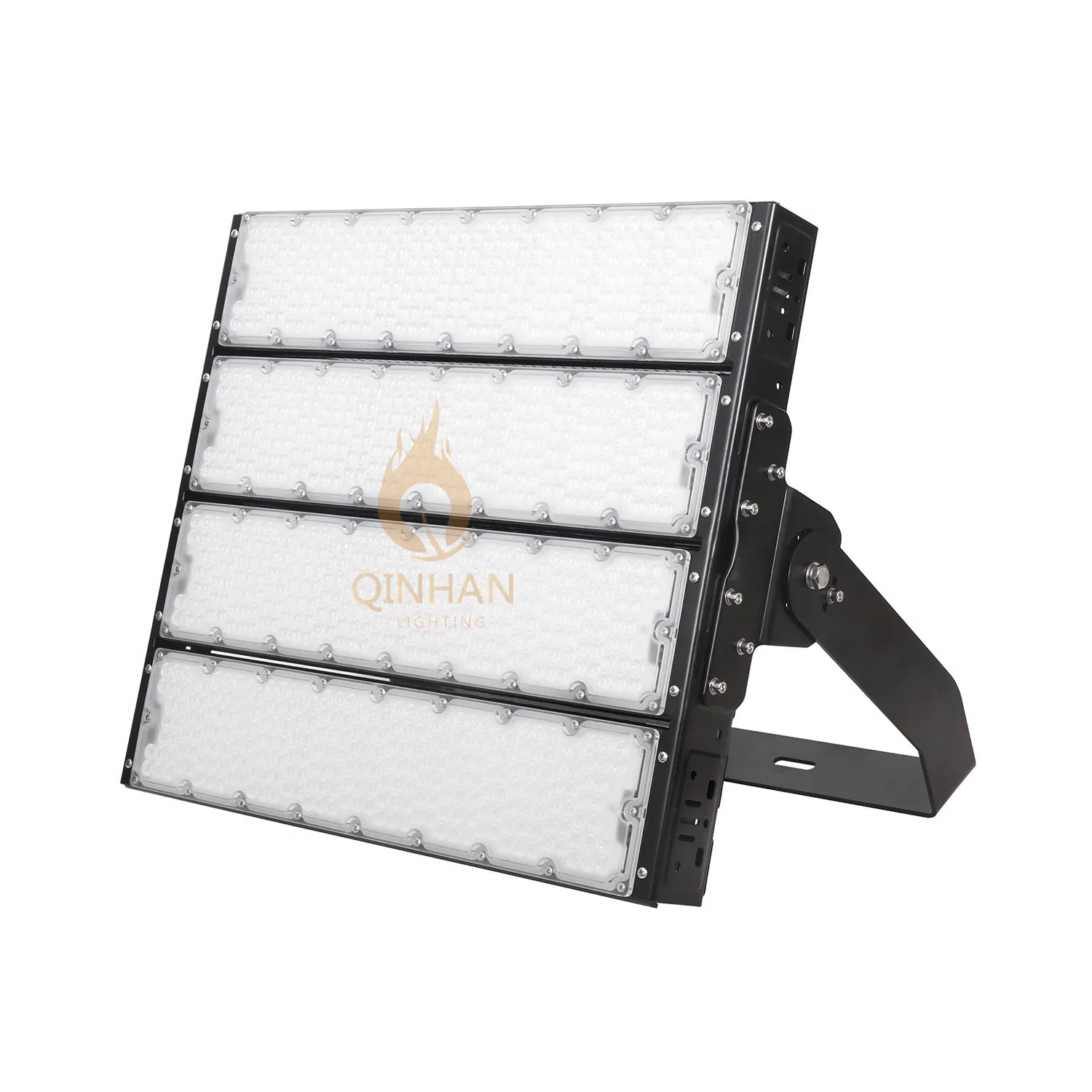

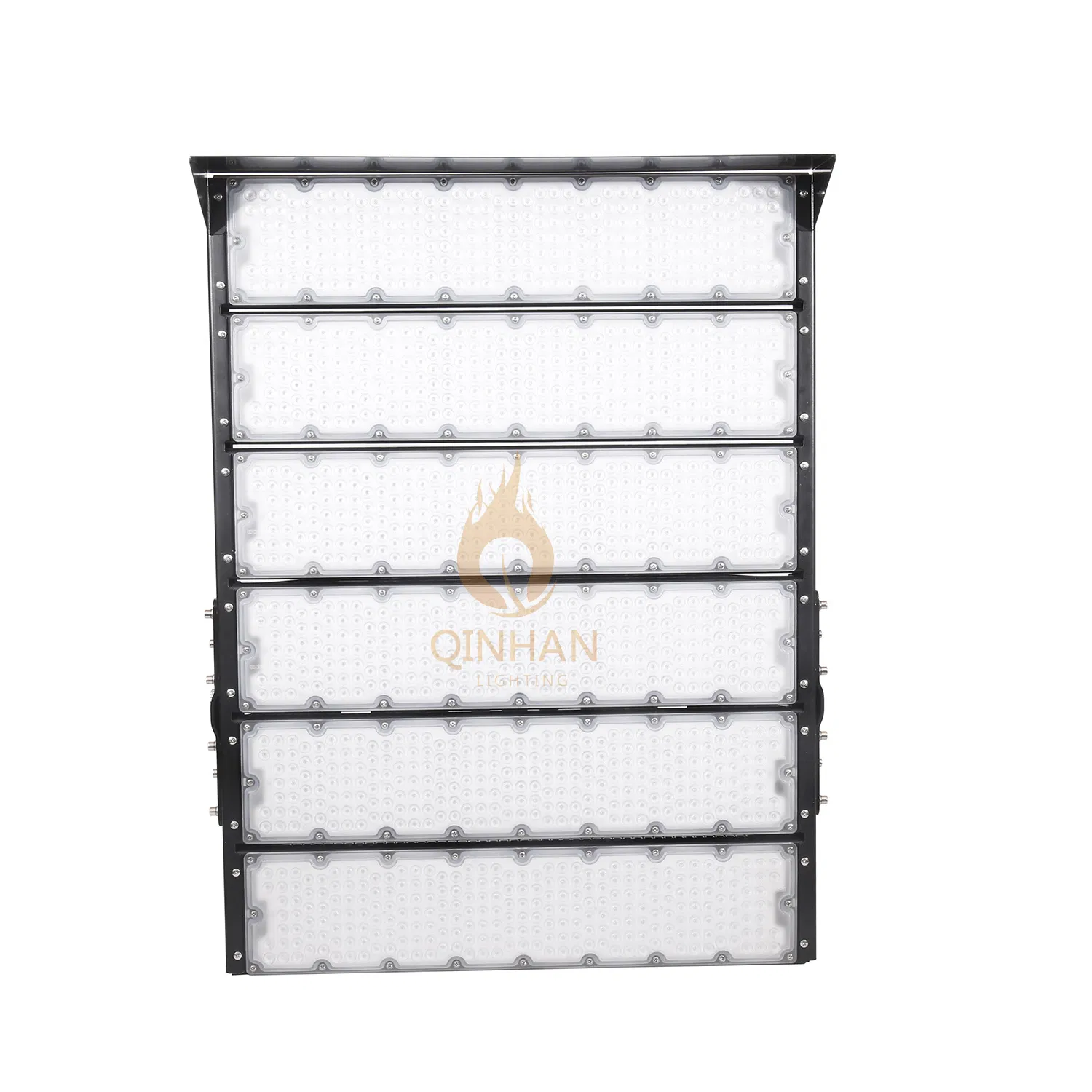

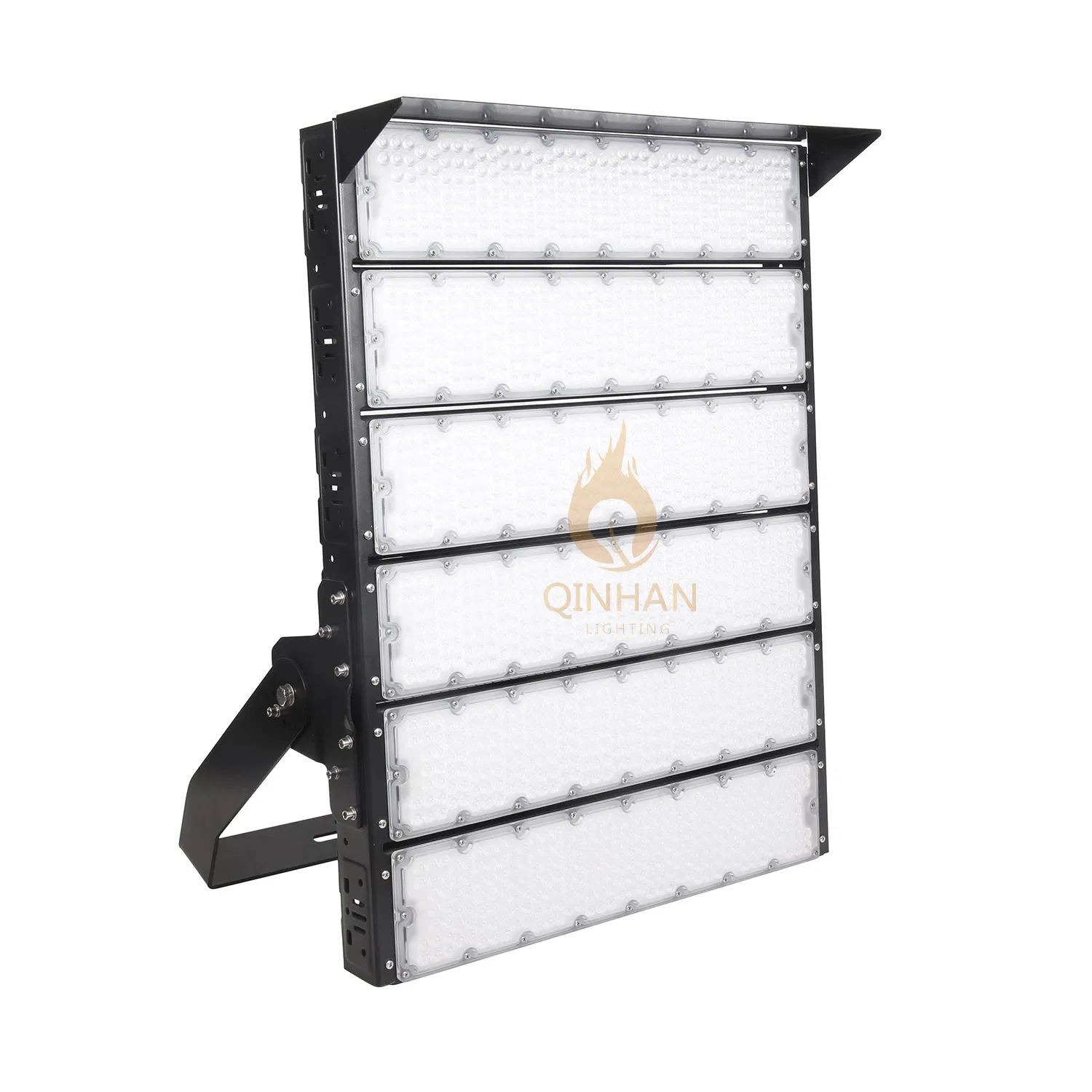

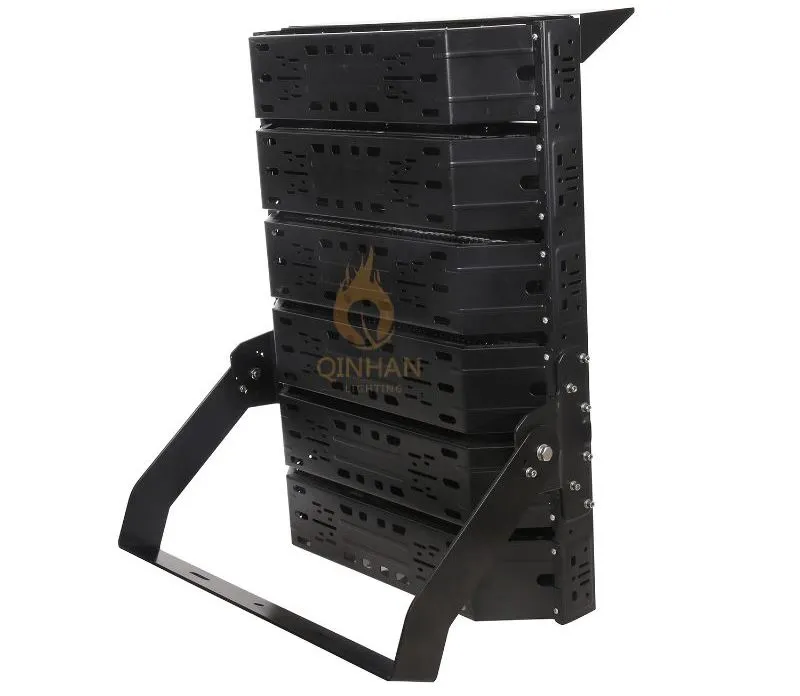

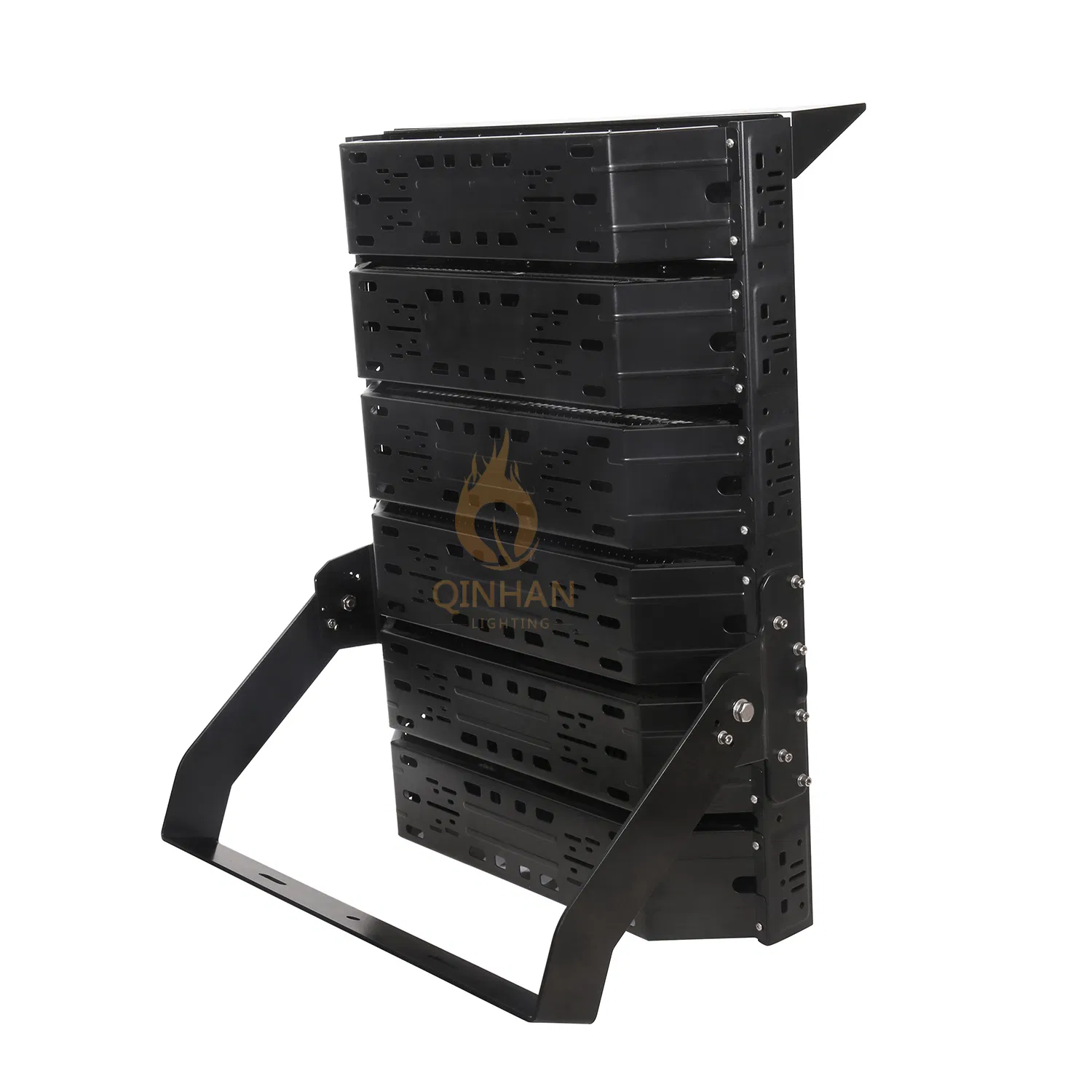

250W 500W 750W 1000W1500W IP66 High Mast LED Flood Projector Search Light for Outdoor Stadium Sport Court Lighting
Product Description
Basic Specifications
Model NO.
QH-FLMS-1500W
Power
1500W
IP Rating
IP66
Projection Distance
>35m
LED Chips Brand
CREE
Driver
Meanwell or Inventronics
Warranty
5 Years
Luminous Flux
150-160LM/Watt
Operating Voltage
85-265V
Body Material
Die-Casting Aluminum
High Power LED Stadium Search Light
DALI DMX 0-10V dimmable high power 1500W outdoor IP66 stadium sport court high mast led flood projector search light AC 110V 240V 347V 480V input voltage.
Key Features
🛡️IP66 Waterproof: Rated for extreme outdoor environments.
🔄Rotatable Modules: Offering maximum customization for light angles.

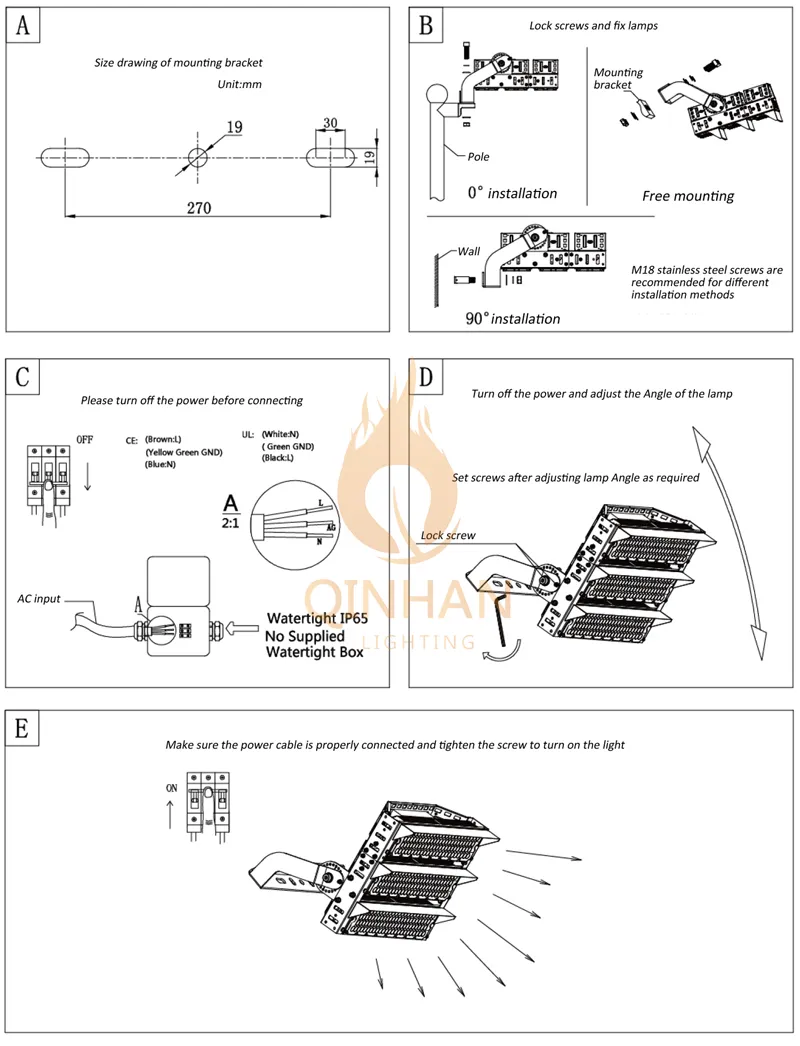

🏗️Heavy Duty: Stirrup mounting bracket for secure high mast installation.
🎯Multiple Optics: Choose from 20°/40°/60°/49*21°/30*70°.
💡High Efficiency: Industry-leading 150-160 Lm/W efficiency.
⏱️Long Life: 50,000-hour operating life with zero maintenance.
❄️Thermal Design: Unique heat extraction prolongs fixture life.
⚡Instant-On: Flicker-free cold start performance.
Technical Datasheet

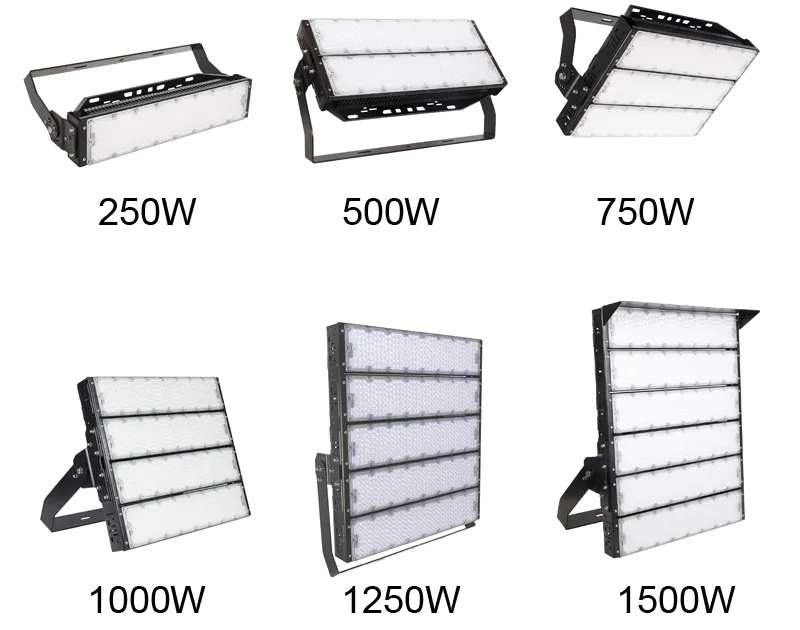

| Model | QH-FLMS-500W | QH-FLMS-750W | QH-FLMS-1000W | QH-FLMS-1500W |
|---|---|---|---|---|
| Power | 500W | 750W | 1000W | 1500W |
| LED Qty | 192pcs | 288pcs | 384pcs | 576pcs |
| Luminous Flux | 150-160LM/Watt | |||
| Input Voltage | 90-305V AC 50/60Hz | |||
| Gross Weight | 6.5Kg | 14Kg | 18.4Kg | 25Kg |
Materials & Performance
Housing
ADC 12 die-casting + AL 1070 pure aluminum
Control System
DALI / 0-10V / DMX512 Dimming
Surge Protection
10kV / 20kV (Optional)
Impact Resistance
IK08 / IK09 / IK10
Applications
Square, Park, Port, Airport, Golf Course, Stadium
Frequently Asked Questions
❓ Can we customize our brand and logo?
Yes, we support brand customization including logo printing, embossing on the tank, and custom brand boxes.
❓ What is the warranty and quality level?
We offer a 5-year to 10-year warranty depending on specifications. Quality is our priority, and we use only top-tier components.

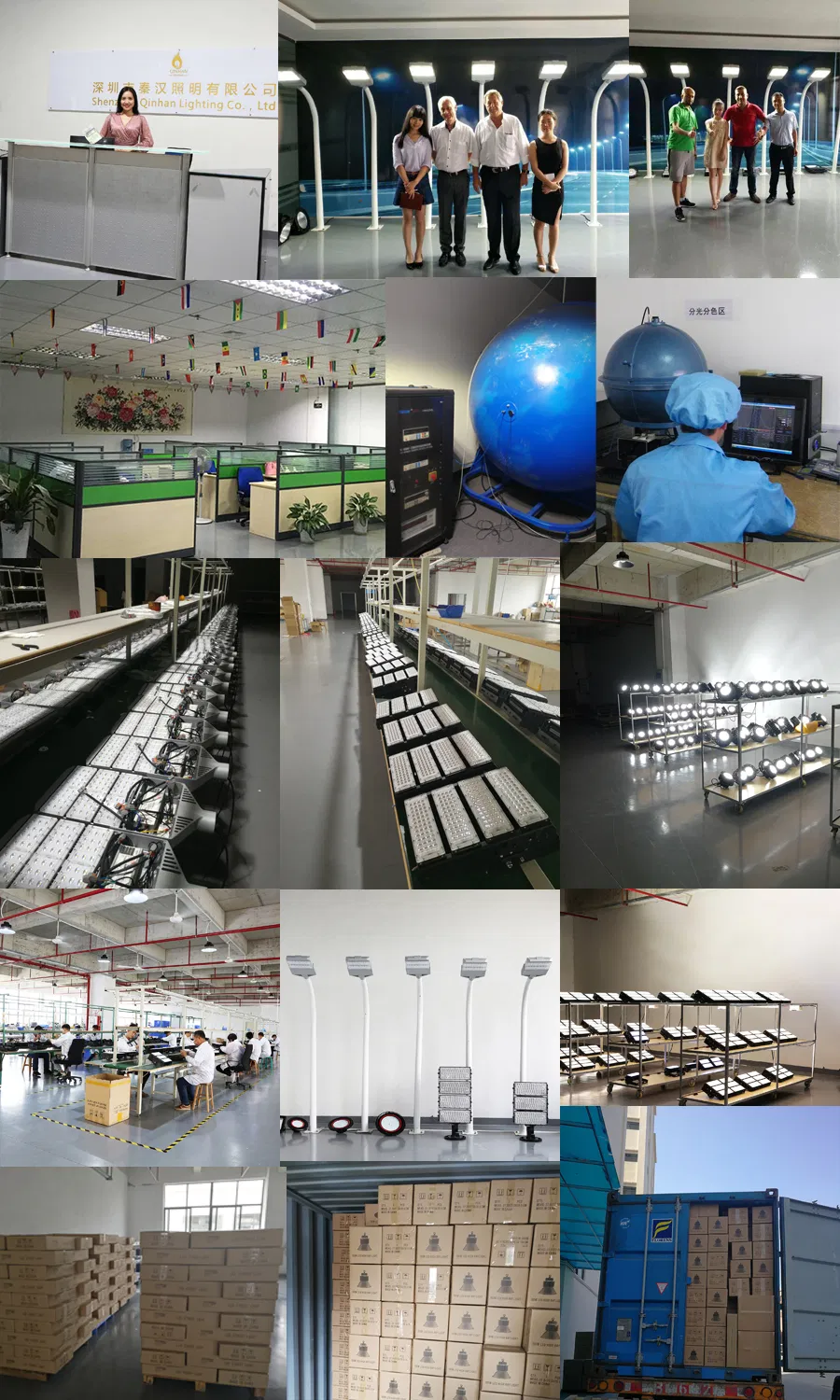

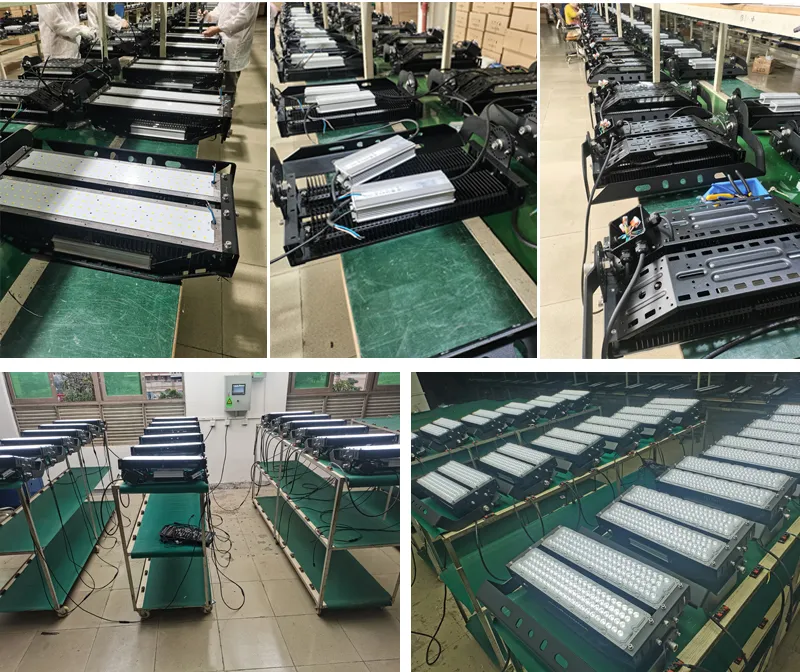

❓ How do you handle quality control?
Our factory adheres to strict quality control standards and has gained CE, DLC, ROHS, FCC, and ISO9001 authentication.
❓ Can you provide high-quality LED flood lights?
Absolutely. We specialize in high-power LED lighting and only use the best components to ensure high performance and durability.
❓ What if a product arrives damaged or non-functional?
Don't worry, we provide a compensation policy where we will provide the same quantity of working lights in your next order.
❓ What are your standard payment terms?
We accept T/T, L/C at sight, and Western Union for your convenience.
