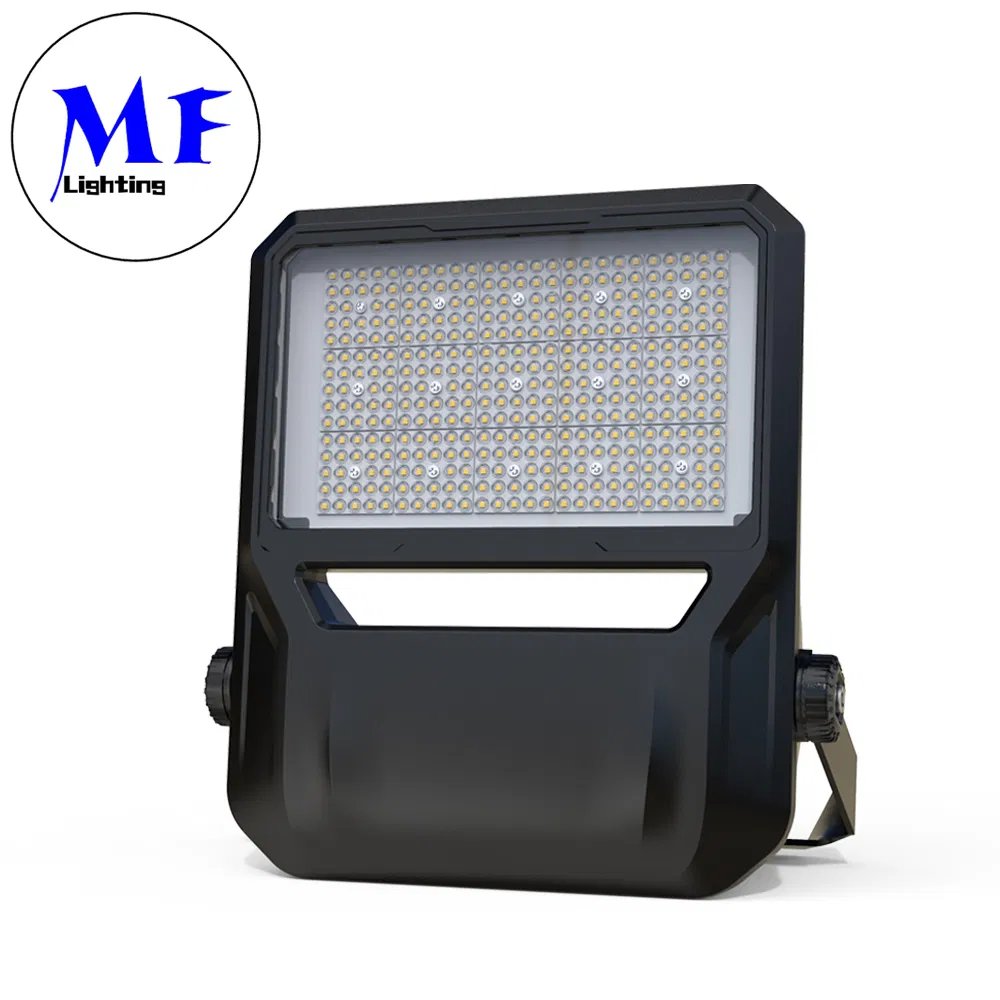

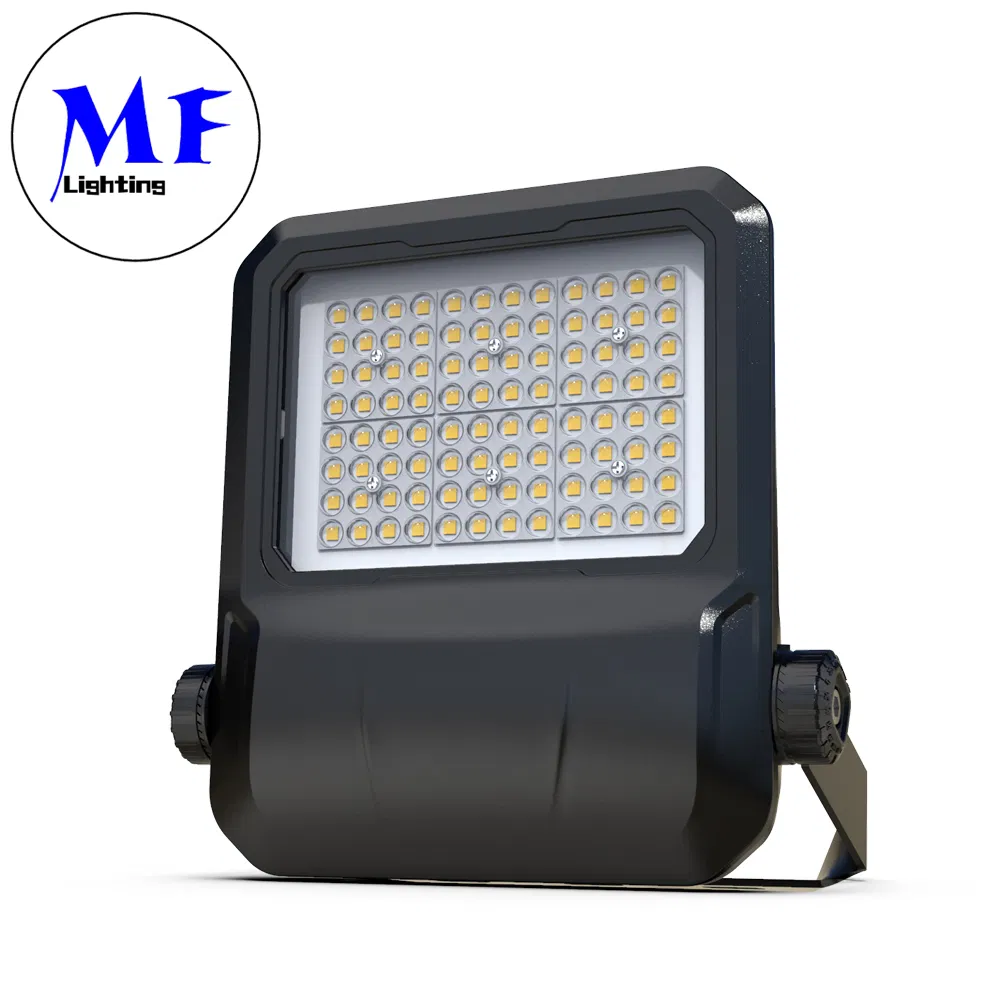

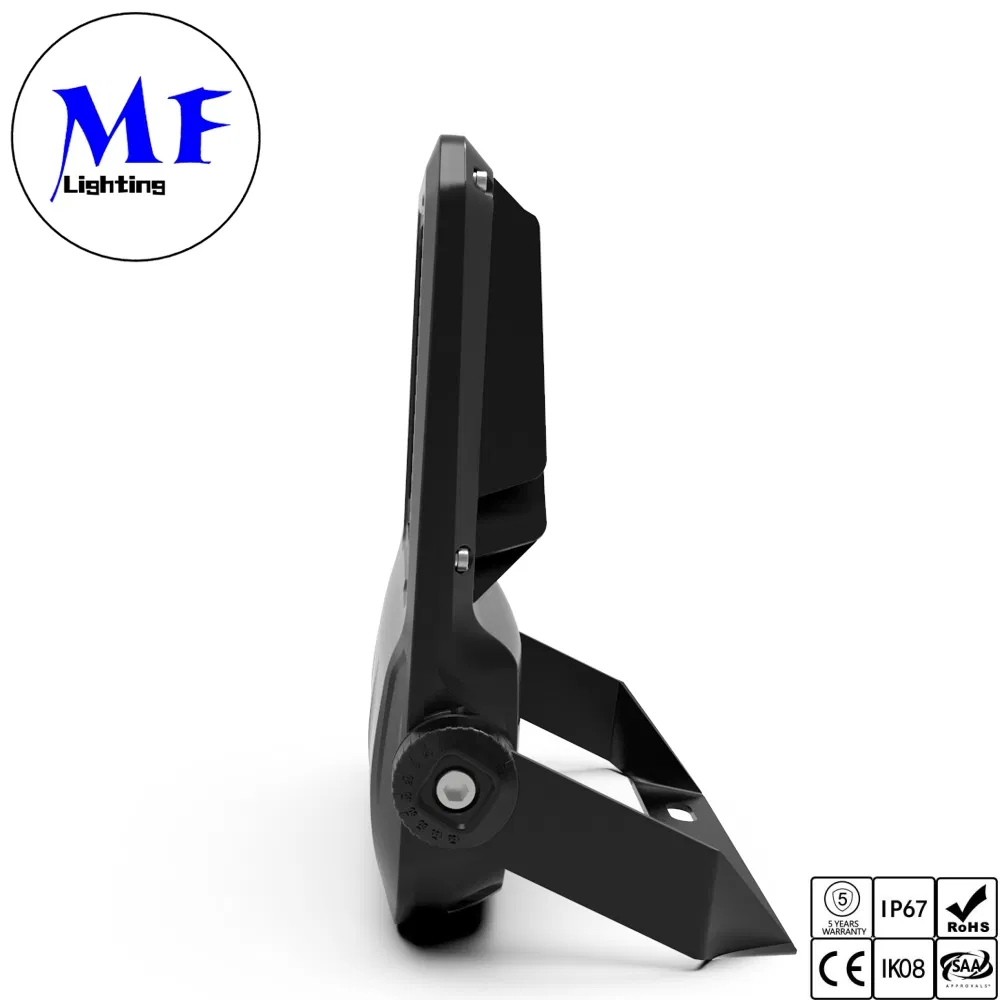

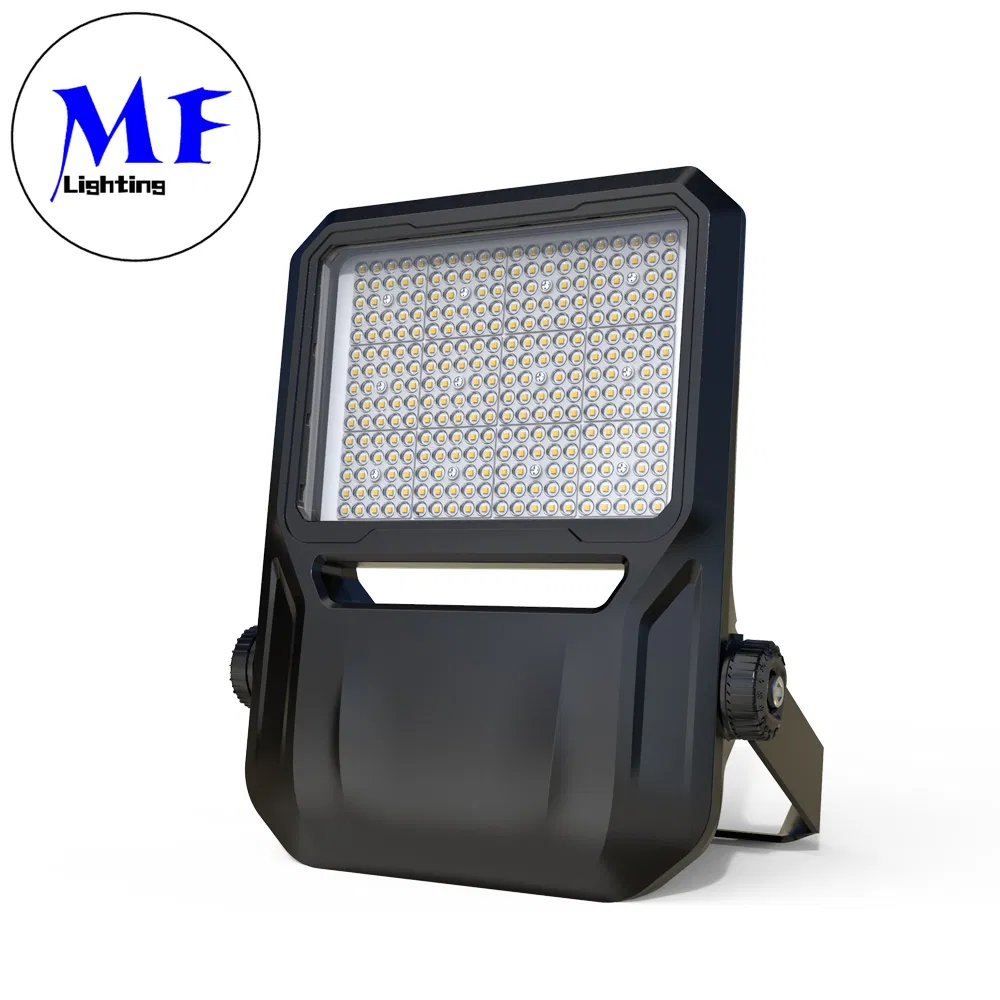

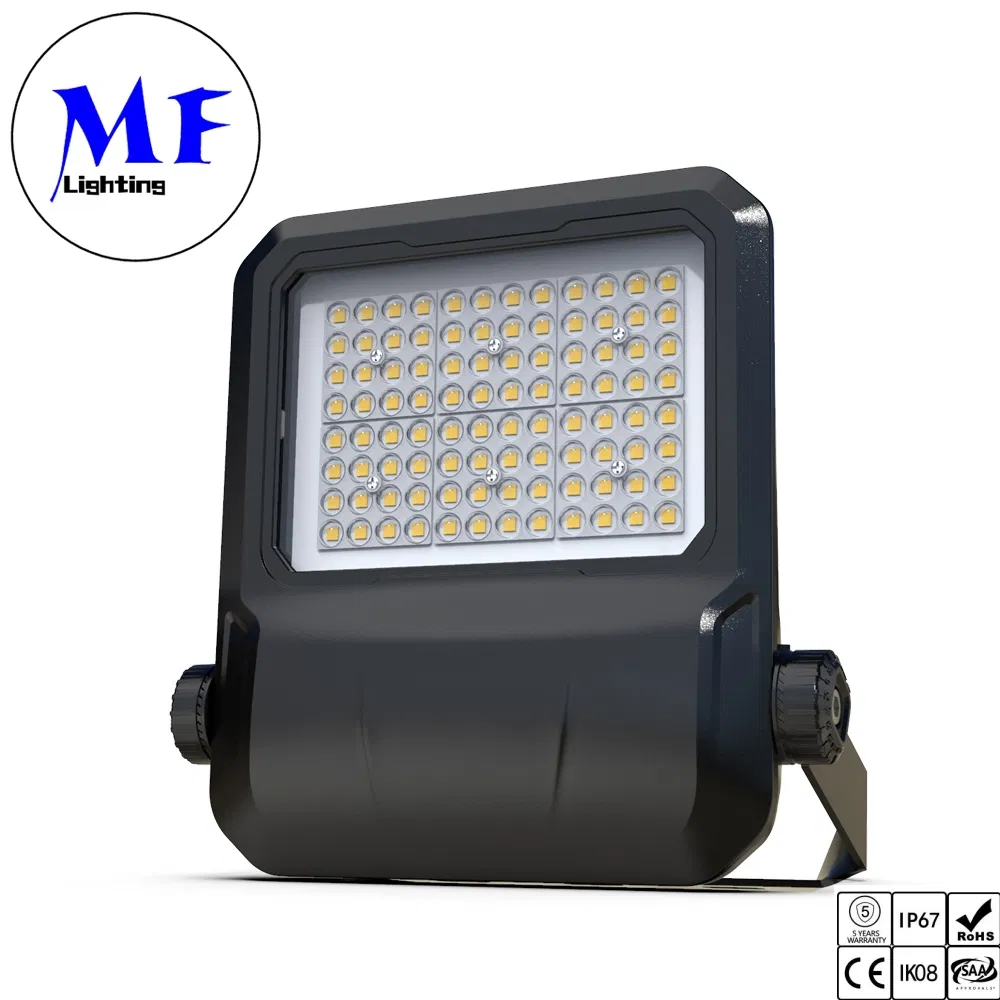

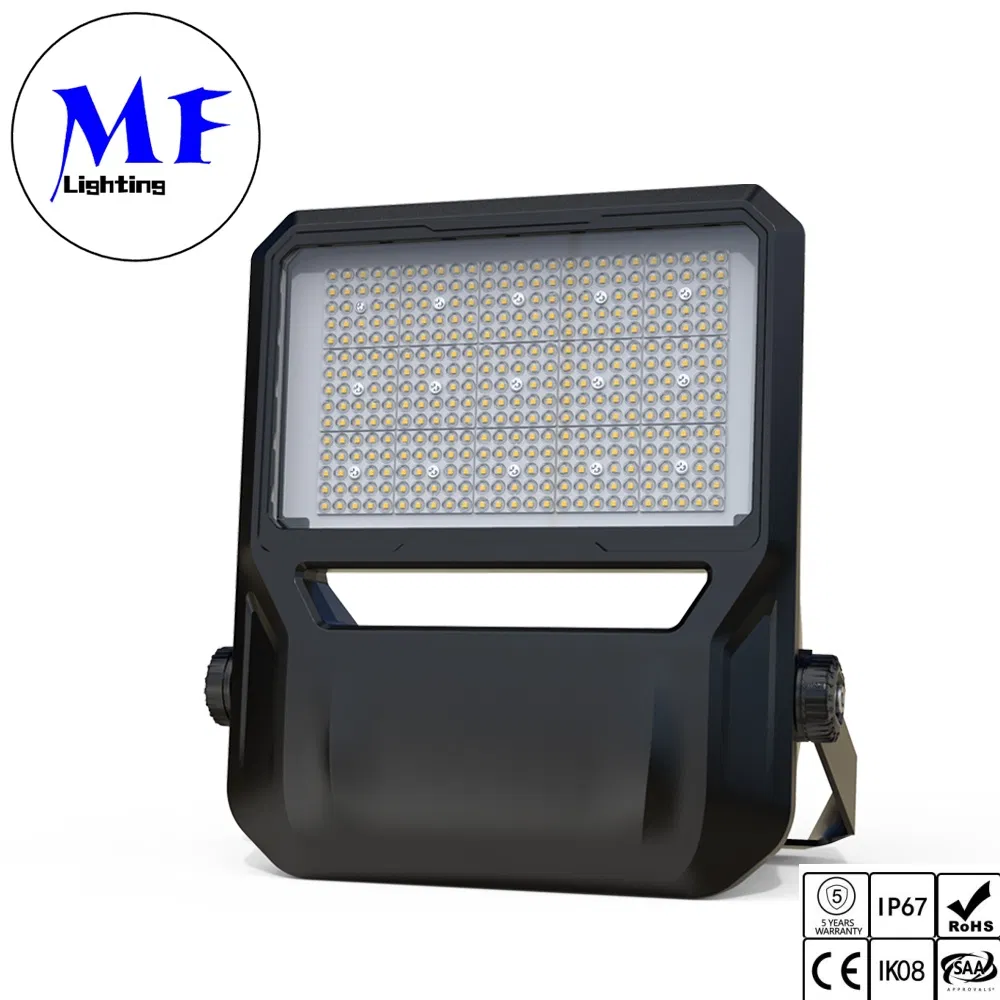

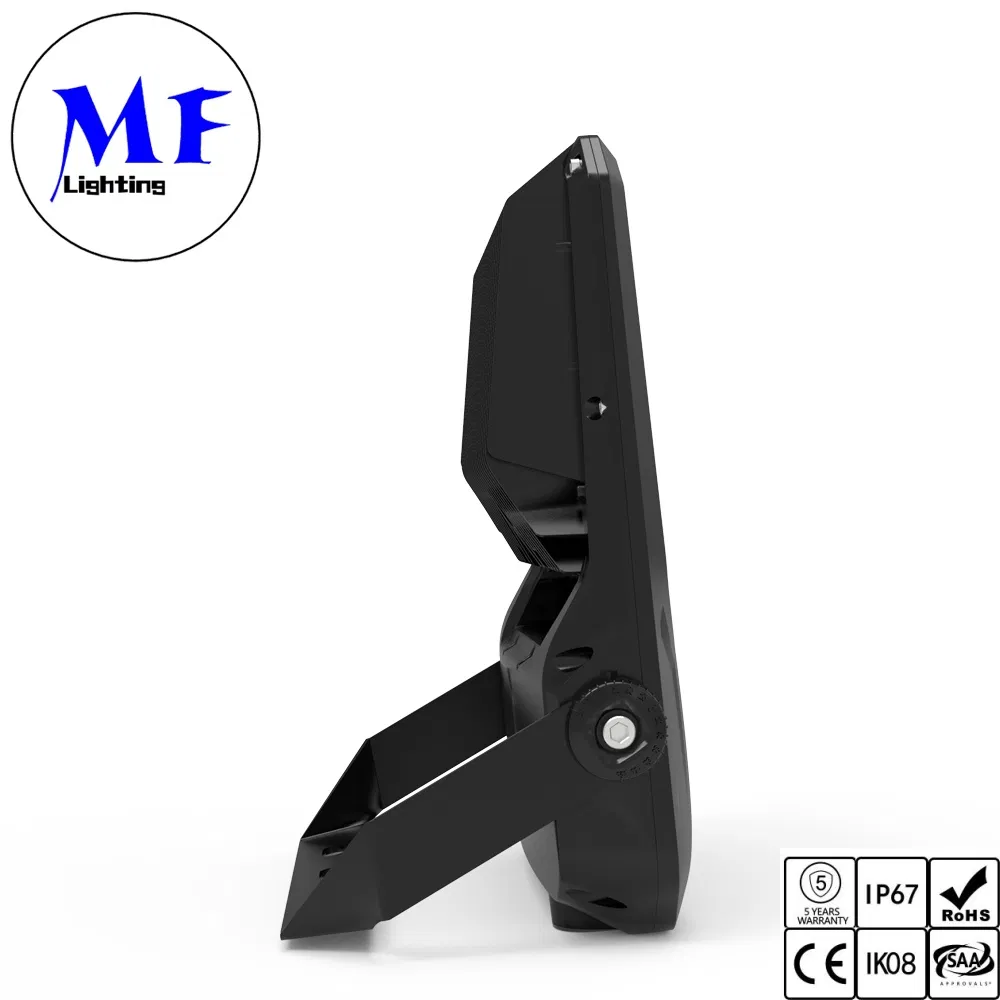

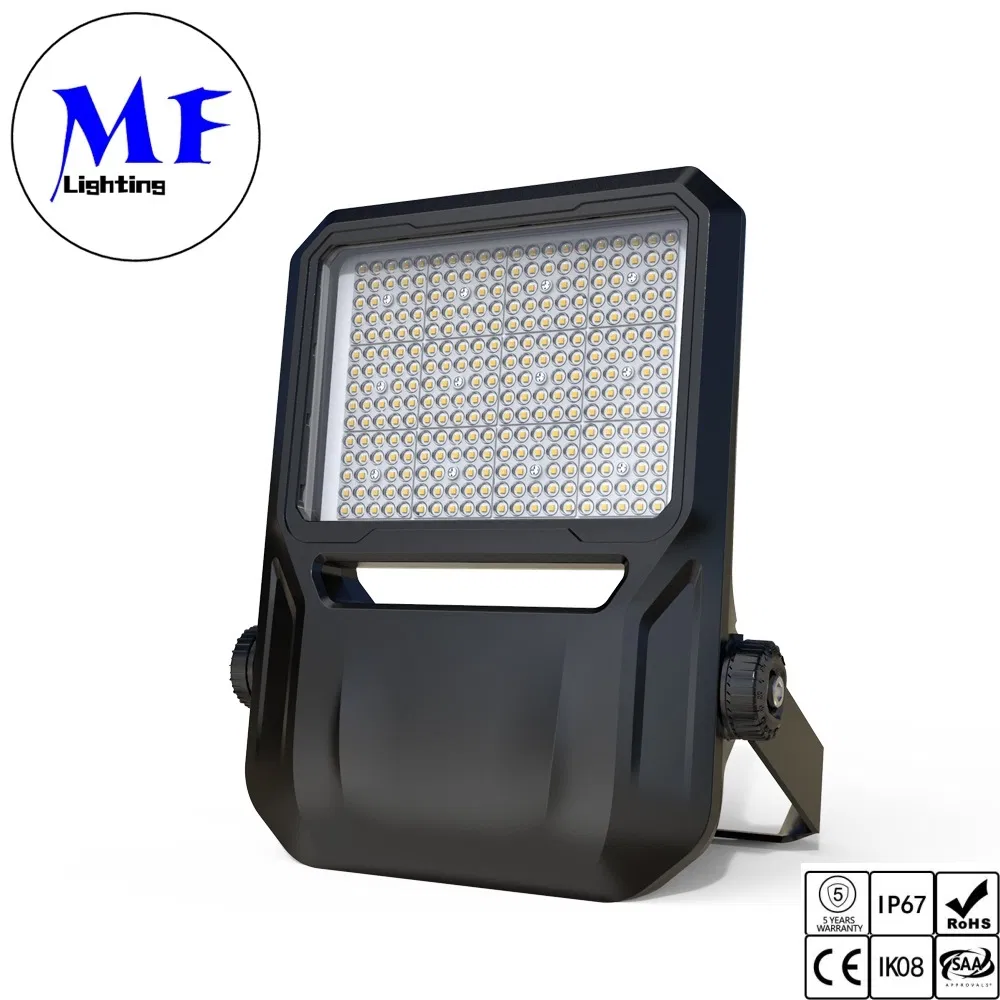

Factory Price 100W 150W 200W 300W 400W Sport Filed Outdoor Stadium Garden Landscape Tennis Court Yard IP66 Waterproof Dustproof Roadway Square LED Flood Light
Product Description
Basic Information
Model NO.
MF SKY series Flood light
Power
20W-400W
IP Rating
IP67
Certification
CCC, CE, RoHS, SAA
Voltage
AC 100-277V
LED Chips
Mean Well 3030 / Phi-Lips
CRI
>80ra
Luminous Flux
130lm/W-150lm/W
Warranty
5 Years
IK Rate
IK08 / IK09
Product Description
Factory Price 100W 150W 200W 300W 400W Sport Field Outdoor Stadium Garden Landscape Tennis Court Yard IP66 Waterproof Dustproof Roadway Square LED Flood Light
Core Features
Massive light output of up to 39,200lm
Ultra-high system efficiency of up to 140lm/W
High quality LED Chip and Driver
Long >102,000 hours lifespan to L70
Professionally Designed True Asymmetric Flat Optics
Tough IP67 and IK09 construction
Suitable for coastal areas (optional stainless steel)
IP67 Waterproof and Dust proof

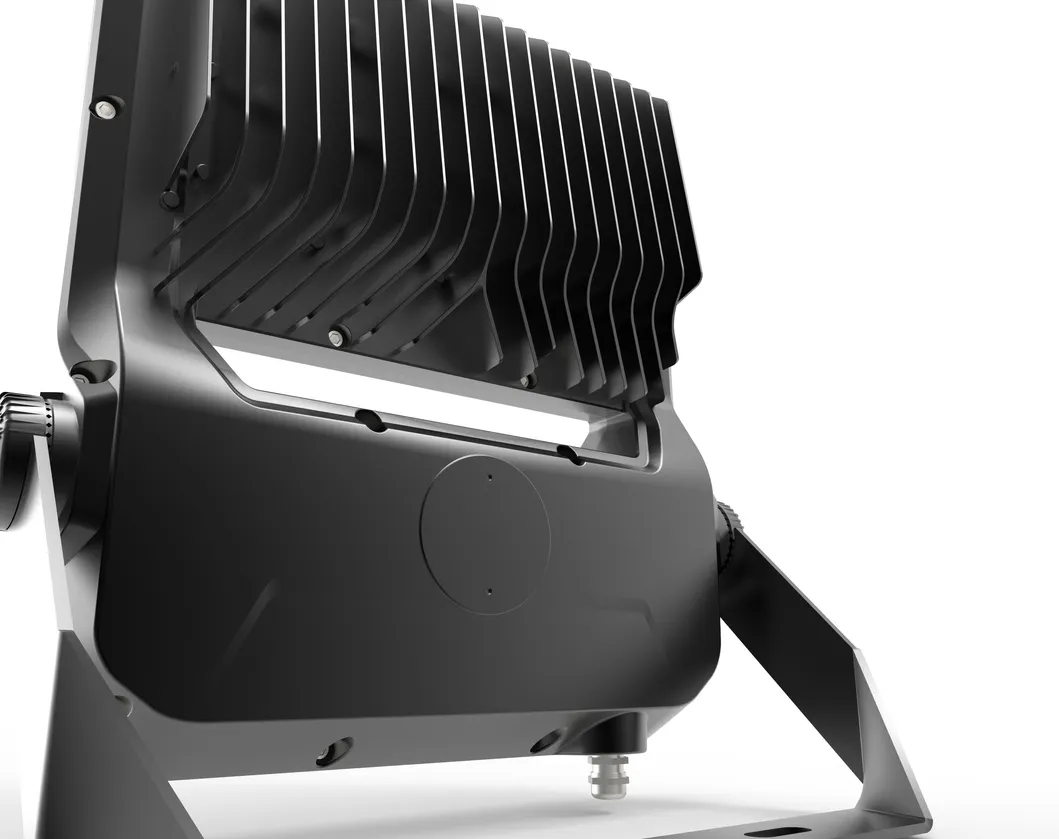

Product Characteristics
Specifications
| CODE | POWER | LUMEN OUTPUT | EFFICACY |
|---|---|---|---|
| MF-SKY-50 | 50W | 7,000lm | 140lm/W +10 |
| MF-SKY-100 | 100W | 14,000lm | 140lm/W +10 |
| MF-SKY-150 | 150W | 21,000lm | 140lm/W +10 |
| MF-SKY-200 | 200W | 28,000lm | 140lm/W +10 |
| MF-SKY-280 | 280W | 39,200lm | 140lm/W +10 |
| LIGHTING DATA | ELECTRICAL DATA | ||
|---|---|---|---|
| LIGHT SOURCE | SMD 5050 | POWER SUPPLY | Inven-tronics / Mean-Well |
| LIFETIME | >102,000hrs | INPUT VOLTAGE | 100-277V/AC |
| CCT | 3000K-6500K | POWER FACTOR | ≥0.97 |
| CRI | >70 / >80 | SURGE PROTECTION | 6kV |

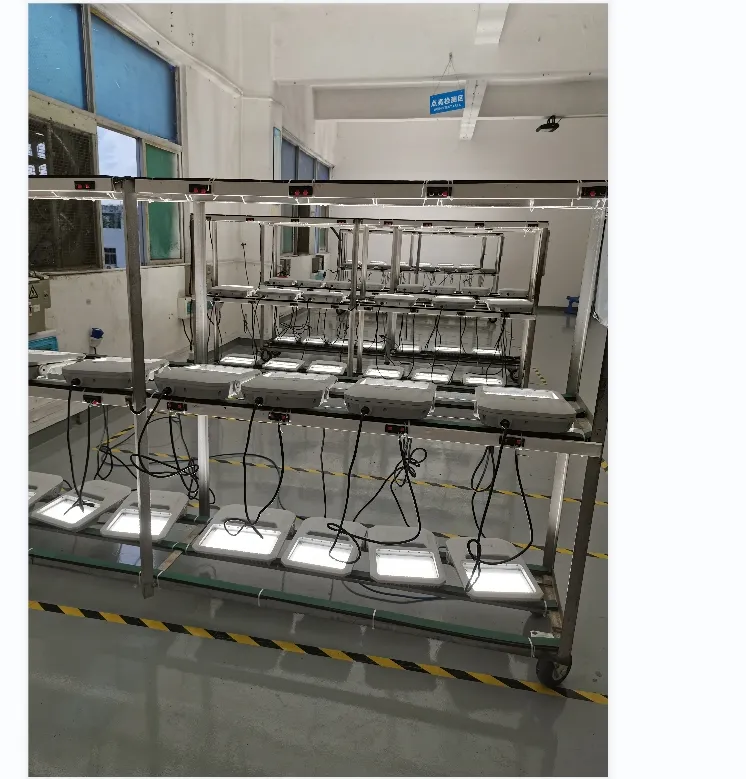

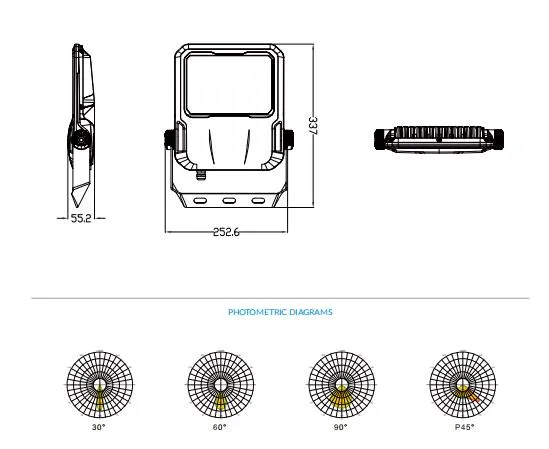

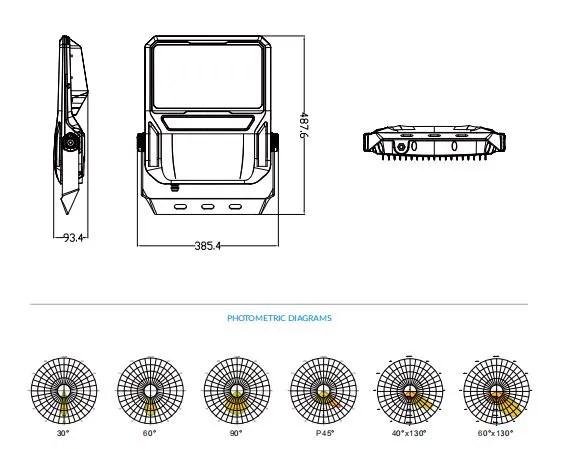

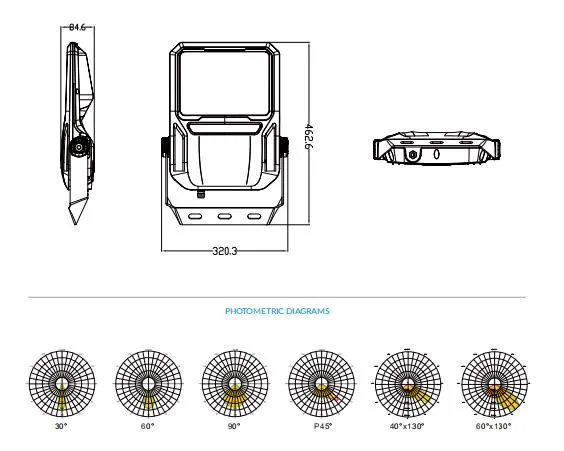

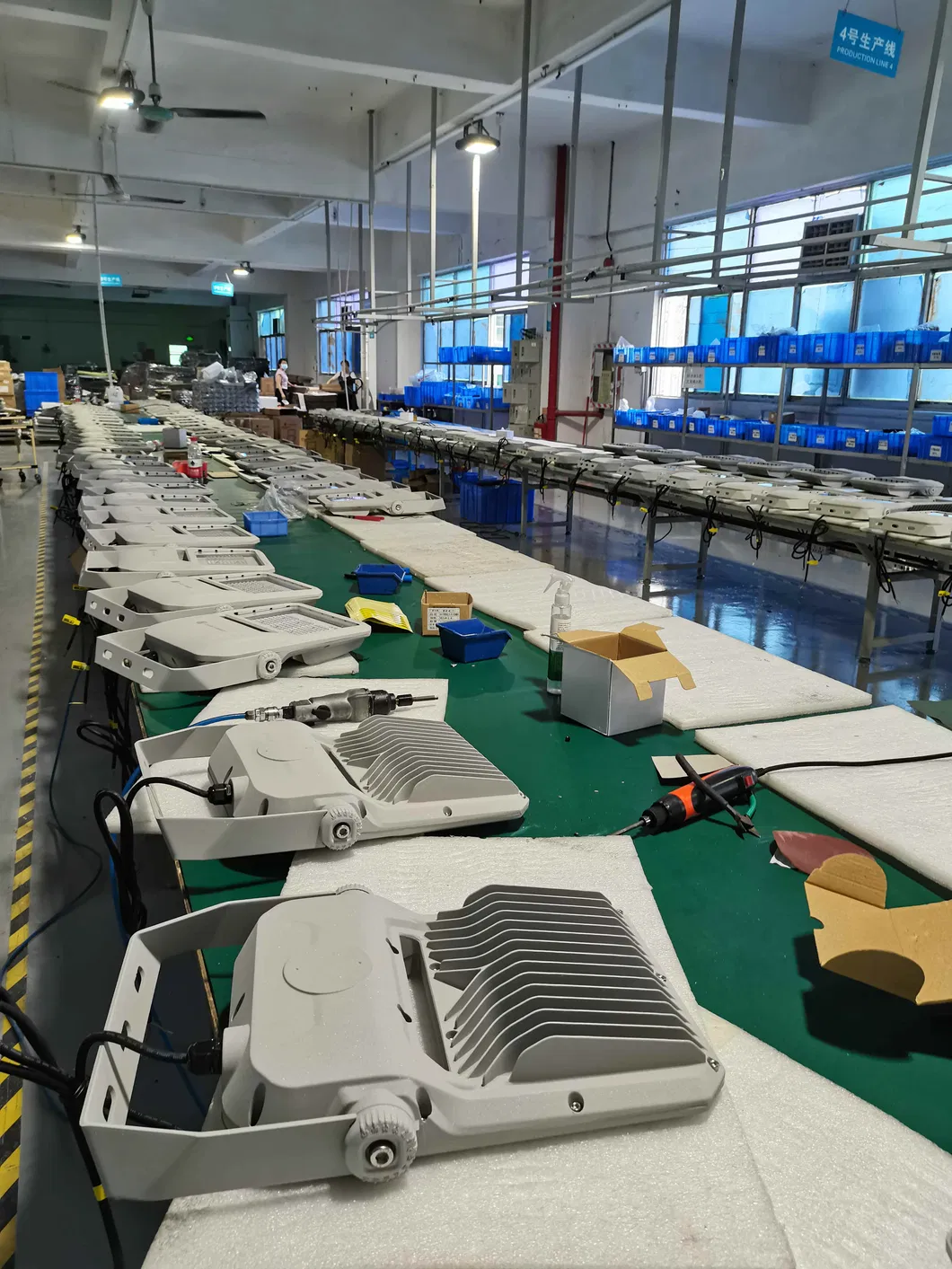

Production & Dimension

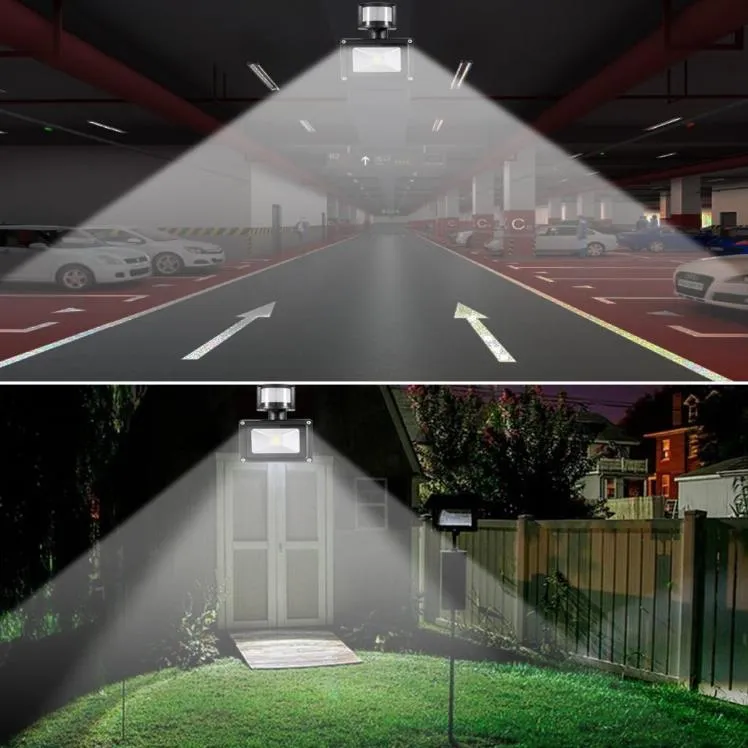

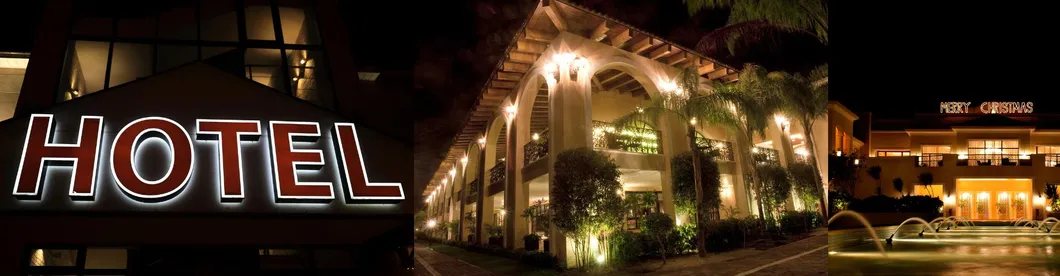

Applications
| COMMERCIAL | PUBLIC | INDUSTRIAL |
|---|---|---|
| Tunnel / Supermarkets | Airports / Stadium | Manufacture / Warehouses |
| Billboards / Buildings | Train & Bus Stations | Parking lots / Gas stations |

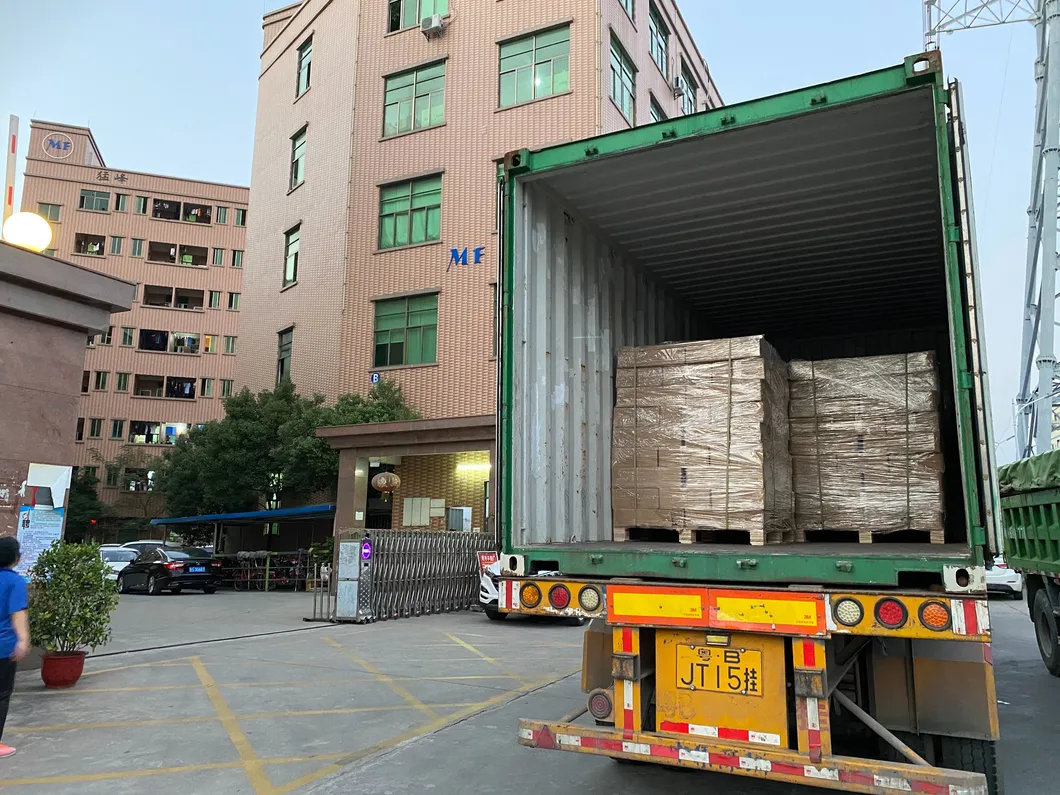

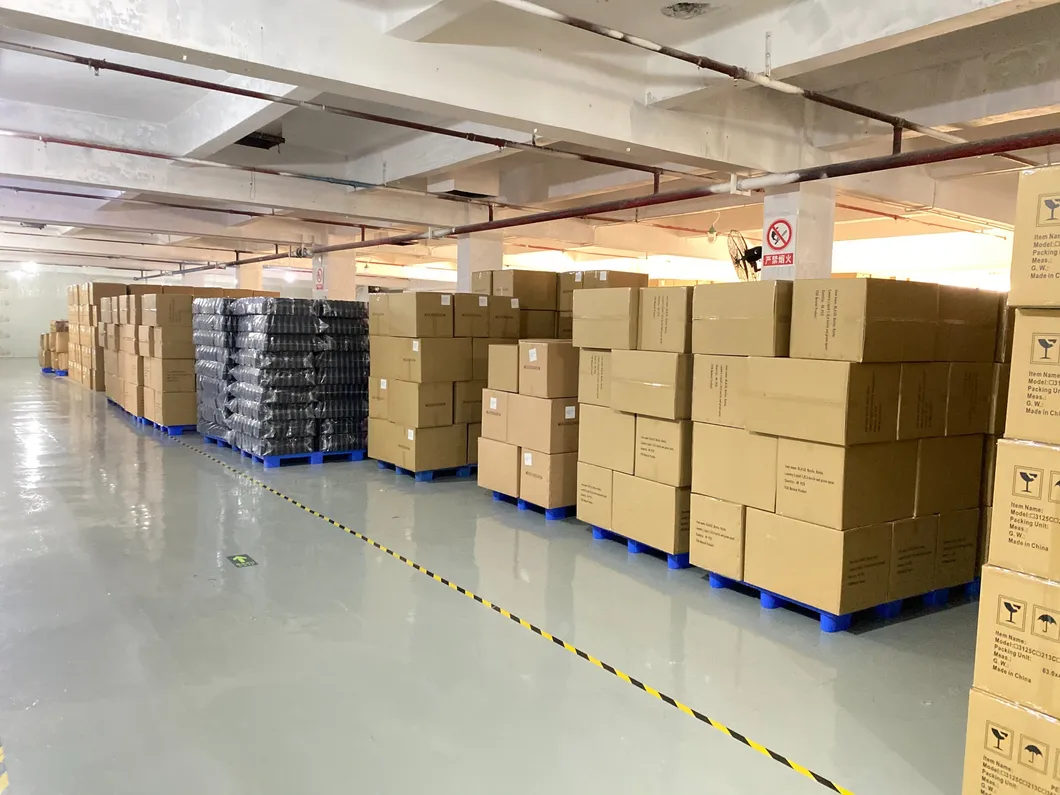

Packaging
Matters Needing Attention
1. Installations must be done by a certified electrician.
2. Always handle lamps carefully during installation or replacement.
3. Check local voltage compatibility before installation.
4. Power off and cool down the lamp completely before revamping.
5. Use a soft cloth and PH neutral detergent for cleaning.
6. Do not cover fixtures with flammable materials.
Frequently Asked Questions
What is the waterproof rating of this flood light?
The MF SKY series flood lights feature an IP67 rating, making them completely dust-tight and protected against powerful water jets or temporary immersion.
How long is the warranty period?
We provide a 5-year warranty for this product, ensuring long-term reliability for your outdoor lighting projects.
Can these lights be used in coastal areas?
Yes, they are suitable for coastal areas, especially when equipped with the optional 304 stainless steel bracket for enhanced corrosion resistance.
What kind of LED chips and drivers are used?
The fixtures use high-quality SMD 5050 LED chips (Phi-lips) and reliable drivers from brands like Mean-Well or Inven-tronics.
What is the expected lifespan of the light?
The light source has a long lifespan of over 102,000 hours (to L70), significantly reducing maintenance costs.
Are there different dimming options available?
Yes, we offer various dimmable options including 0-10V, Dali, Sensor, LoRa, and Zhaga control systems.
