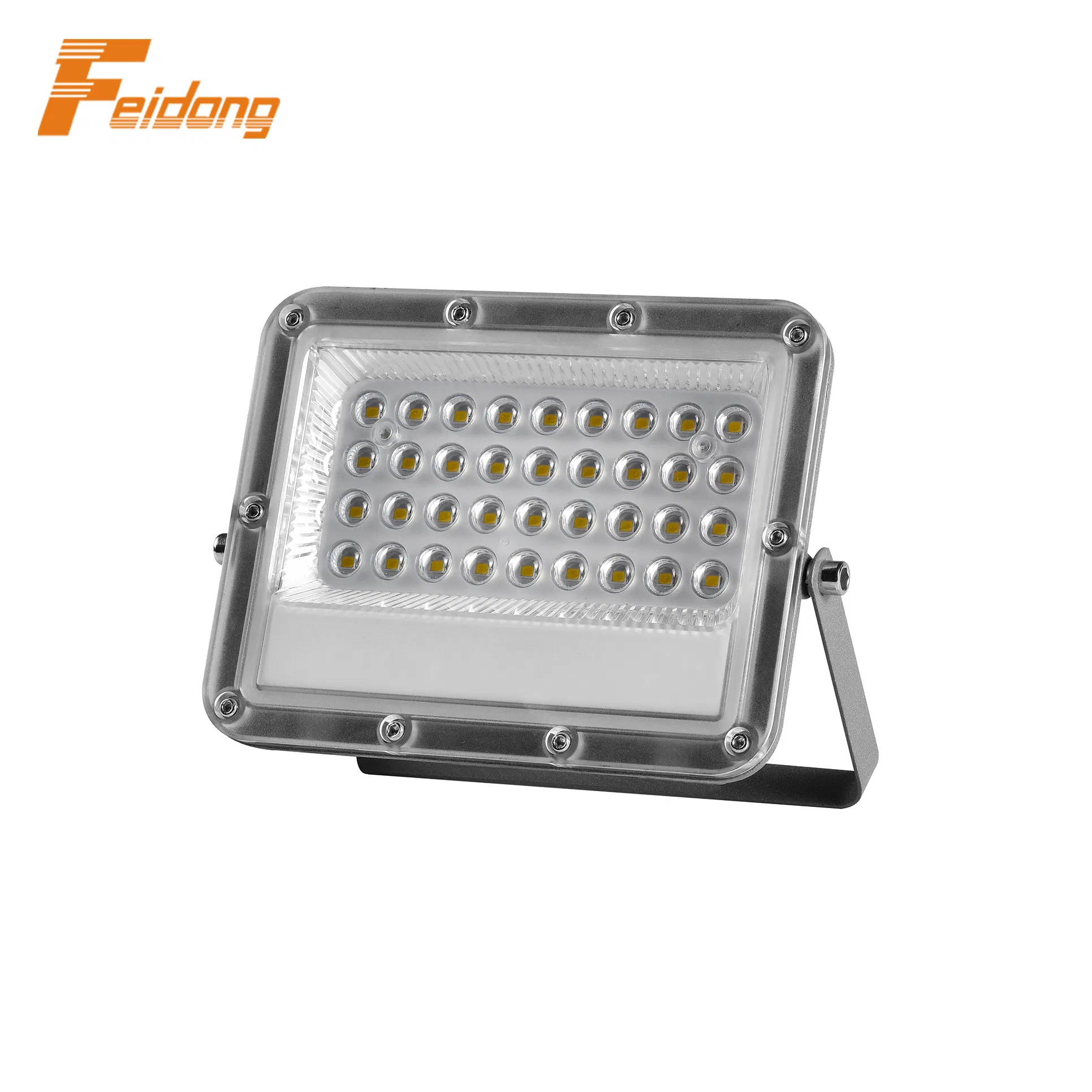

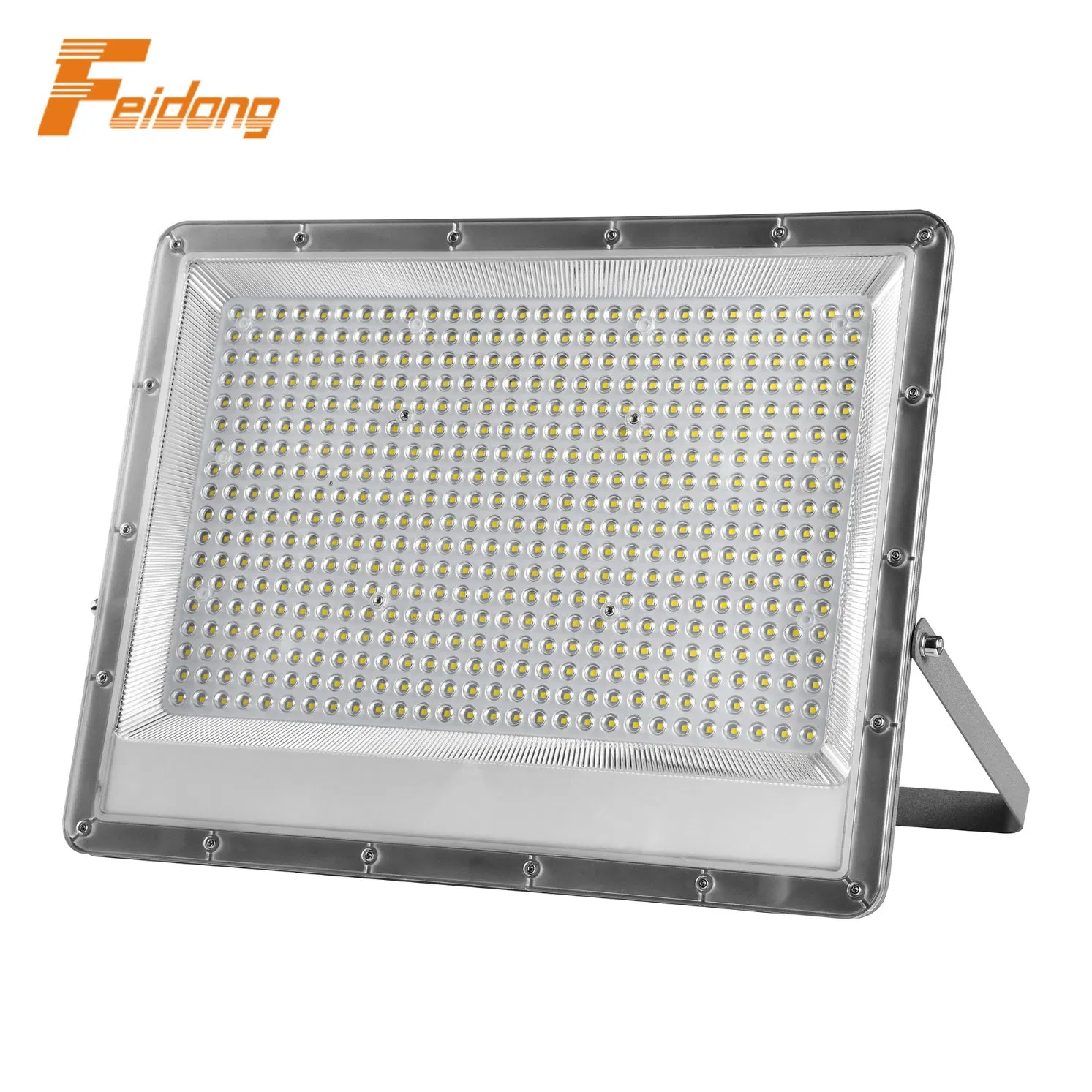

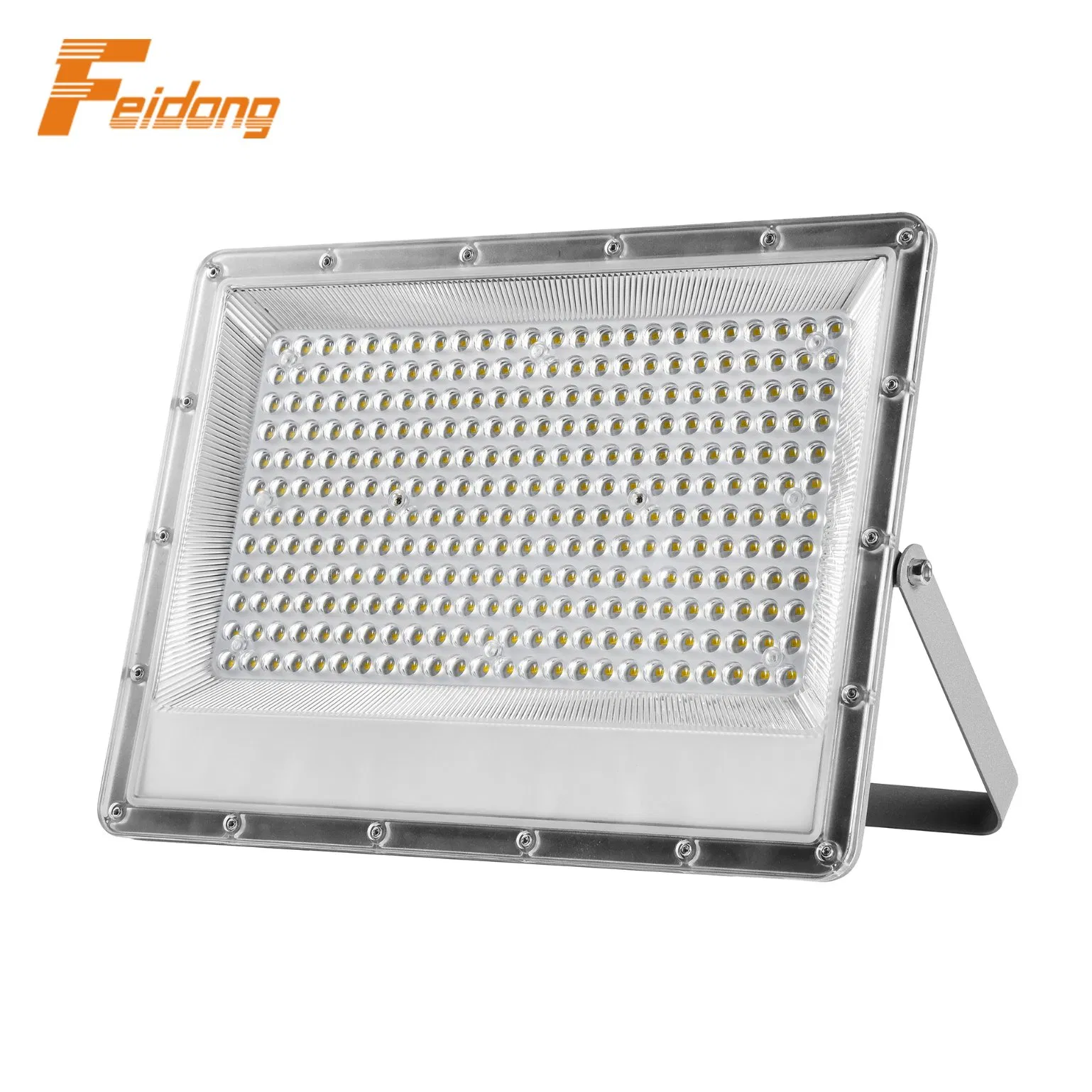

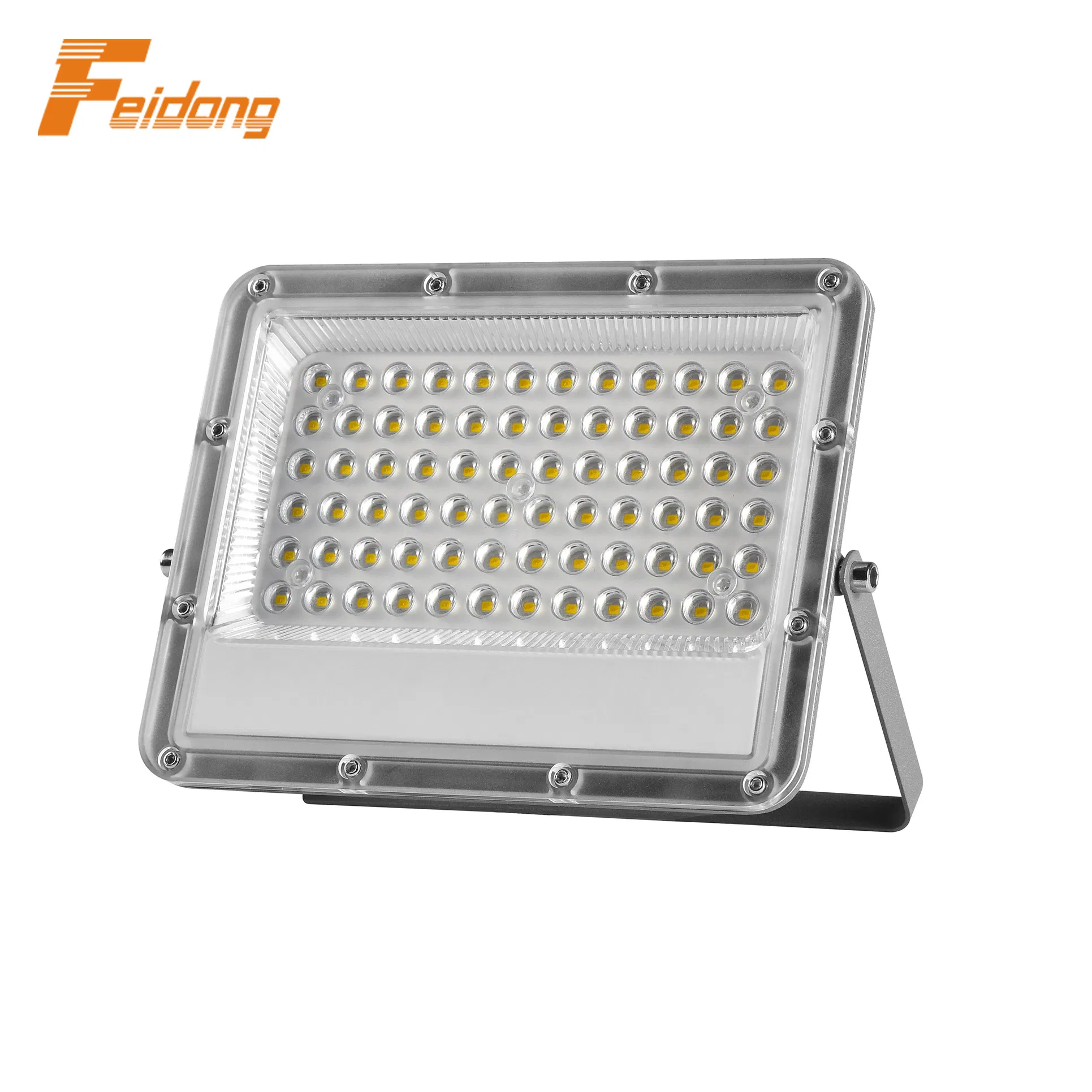

AC100-265V 30W-400W High Lumen Outdoor LED Floodlight
Product Description
📋
Basic Specifications
Model NO.
TG003
Power Range
30W - 400W

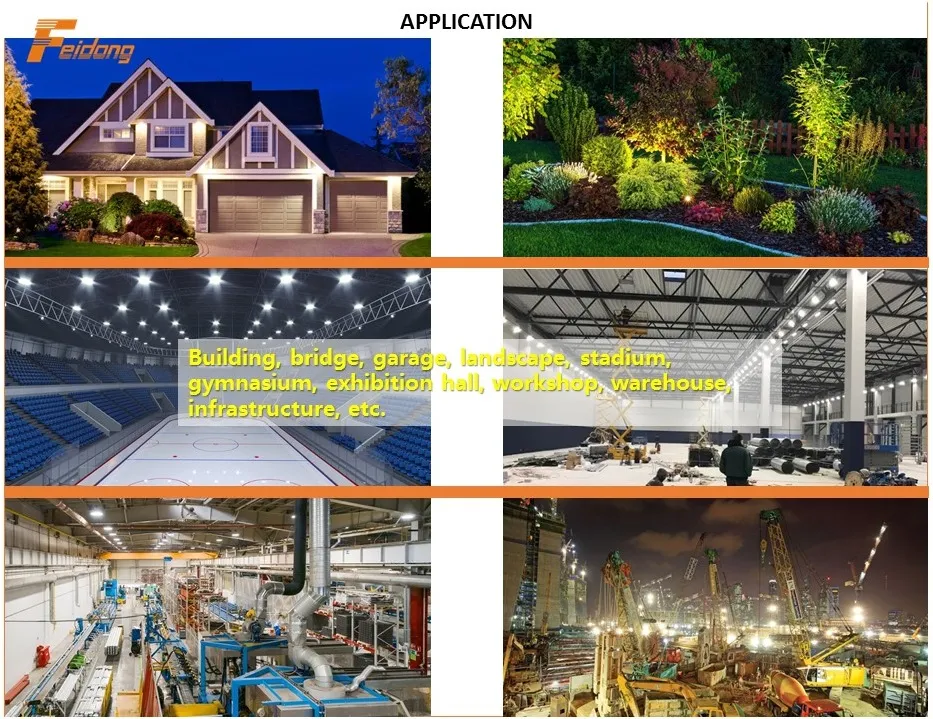

Application
Park, Square, Factory, Garden
IP Rating
IP66
Certification
CE, RoHS
Input Voltage
AC100-265V
LED Brand
Sanan
Lumen
100-110lm/W
Housing Color
Black or Grey
CRI
>80
💡
Product Description
AC100-265V 30W-400W outdoor LED floodlight with optical lens spot light, emitting angle 90 degree. Features high lumen 100-110lm/W SKD efficiency.

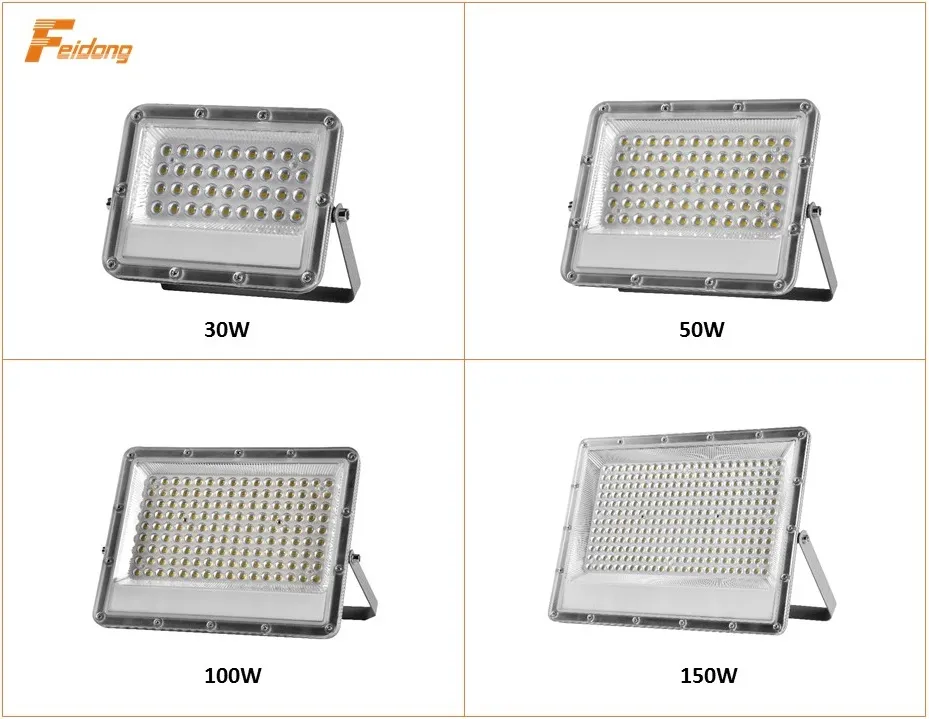

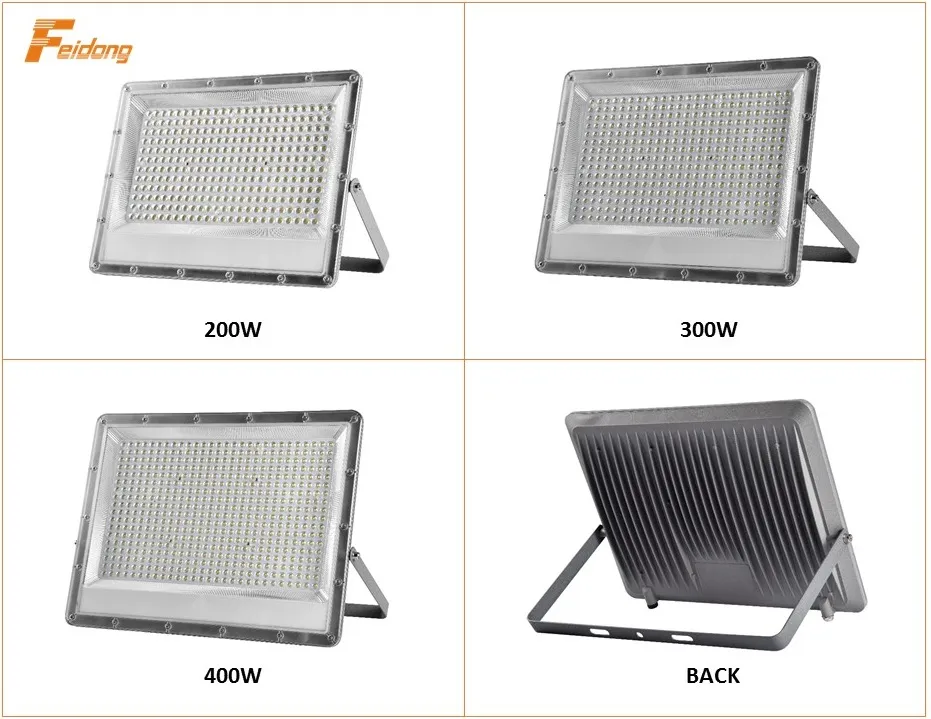

| MODEL | TG003A-30W | TG003A-50W | TG003A-100W | TG003A-150W | TG003A-200W | TG003A-300W | TG003A-400W |
| POWER | 30W | 50W | 100W | 150W | 200W | 300W | 400W |
| LED QTY | 36PCS | 72PCS | 144PCS | 216PCS | 288PCS | 360PCS | 504PCS |
| Flux (LM/W) | 100-110 | 100-110 | 100-110 | 100-110 | 100-110 | 100-110 | 100-110 |
| Anti-surge | 1.5KV | 3.5KV | 3.5KV | 3.5KV | 3.5KV | 3.5KV | 3.5KV |
| Dimension (mm) | 155*125*25 | 210*160*25 | 270*208*25 | 335*250*33 | 380*282*33 | 455*328*35 | 485*368*35 |
| Net Weight (kg) | 0.3 | 0.48 | 0.8 | 1.4 | 1.8 | 2.5 | 3.2 |
📸

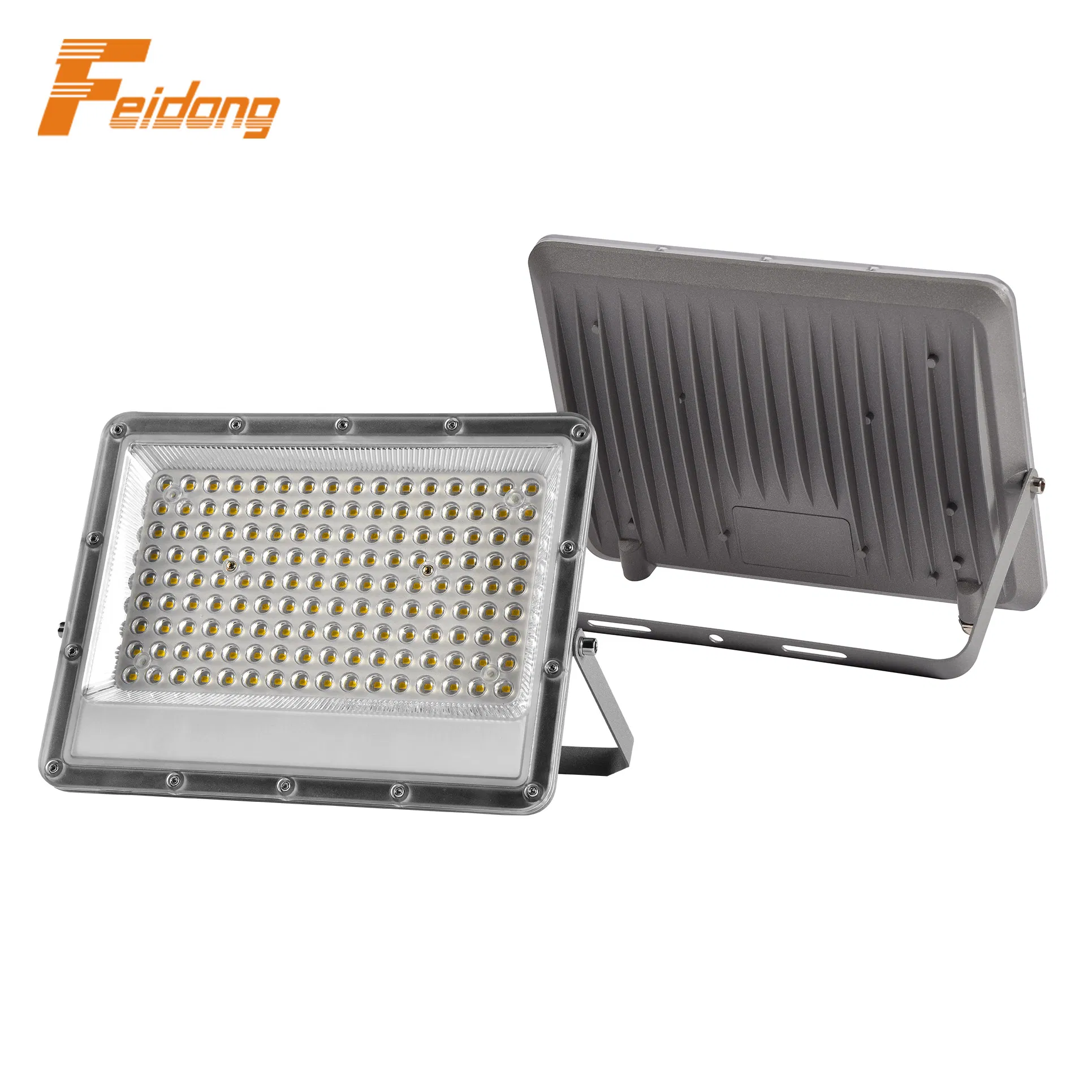

Product Showcase
🛠️

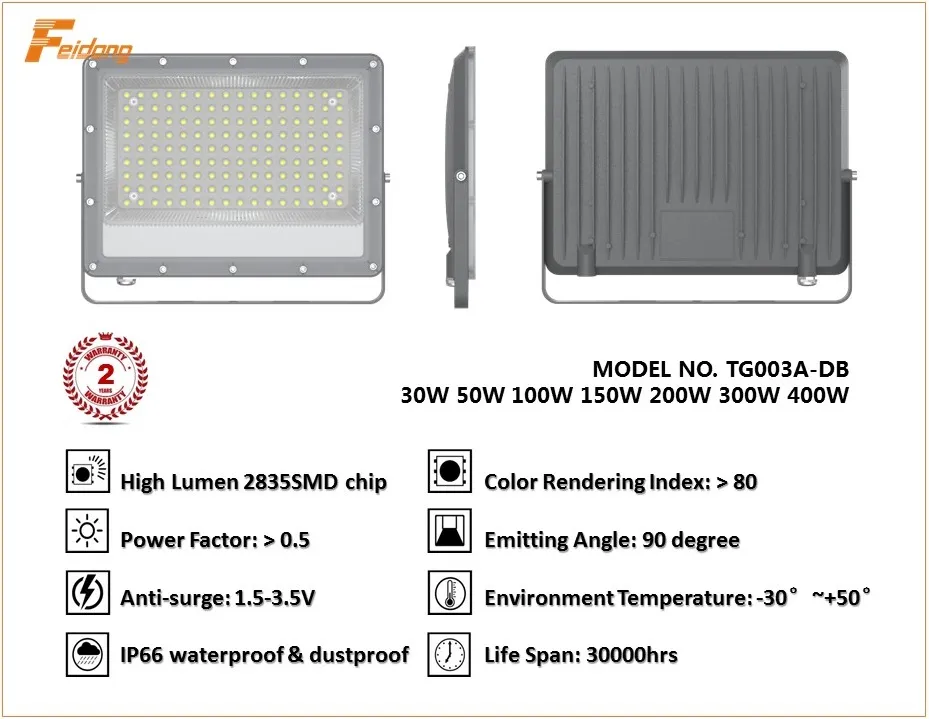

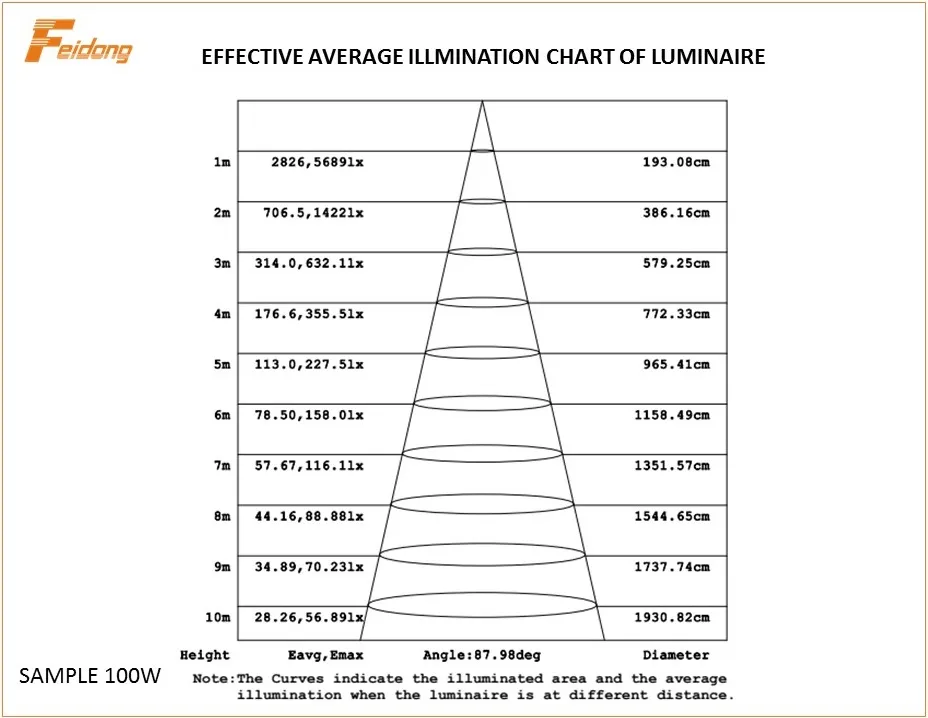

Technical Details
❓
Frequently Asked Questions
What is the weather resistance level of this floodlight?
The TG003 model features an IP66 rating, making it highly resistant to dust and powerful water jets, ideal for outdoor use.
What voltage range is supported?
It supports a wide input voltage range of AC100-265V, compatible with various international power standards.

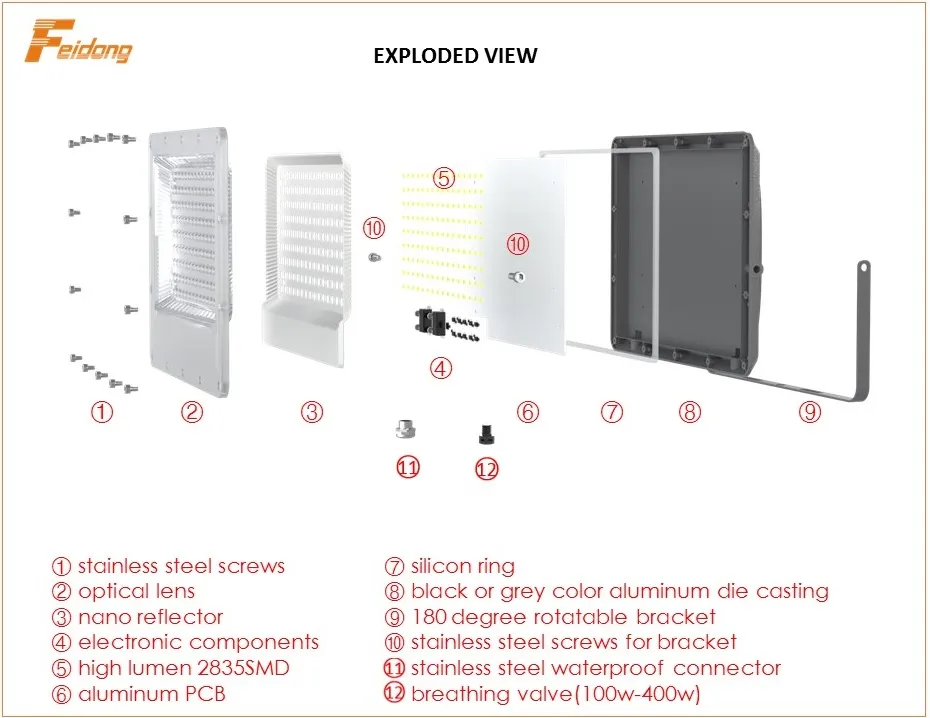

What materials are used in the construction?
The housing is made of high-quality aluminum alloy, ensuring excellent heat dissipation and durability.
What is the expected lifespan of the LEDs?
The Sanan LED chips used in this light are rated for a lifetime of over 30,000 hours.
Does the product come with a warranty?
Yes, this outdoor LED floodlight comes with a standard 2-year warranty.

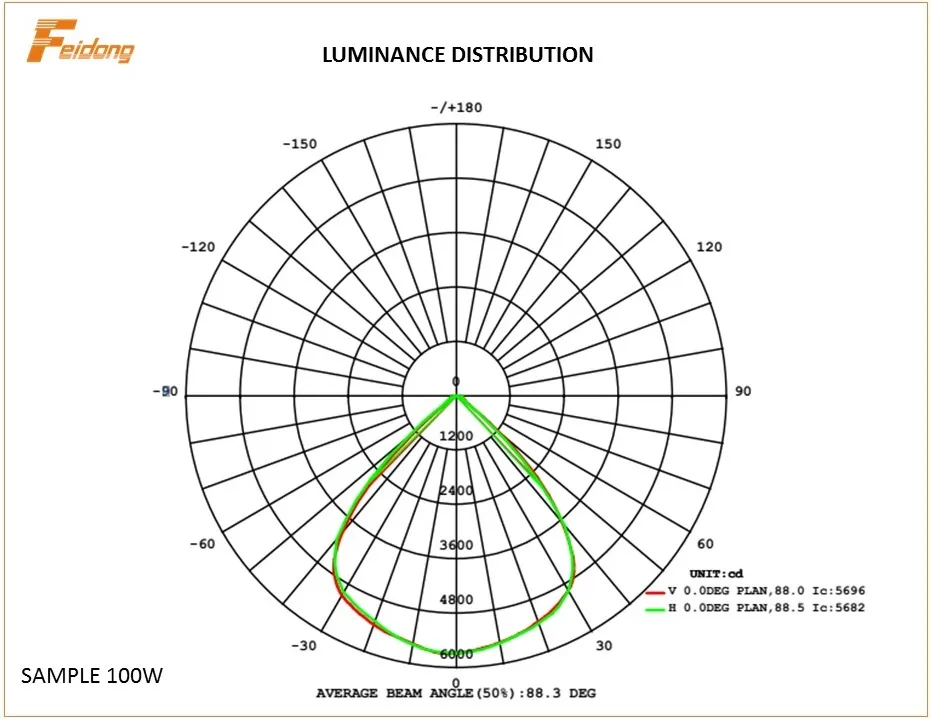

What is the light emitting angle?
The light is equipped with an optical lens providing a precise 90-degree beam angle.
